2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#73267) — 75 parça

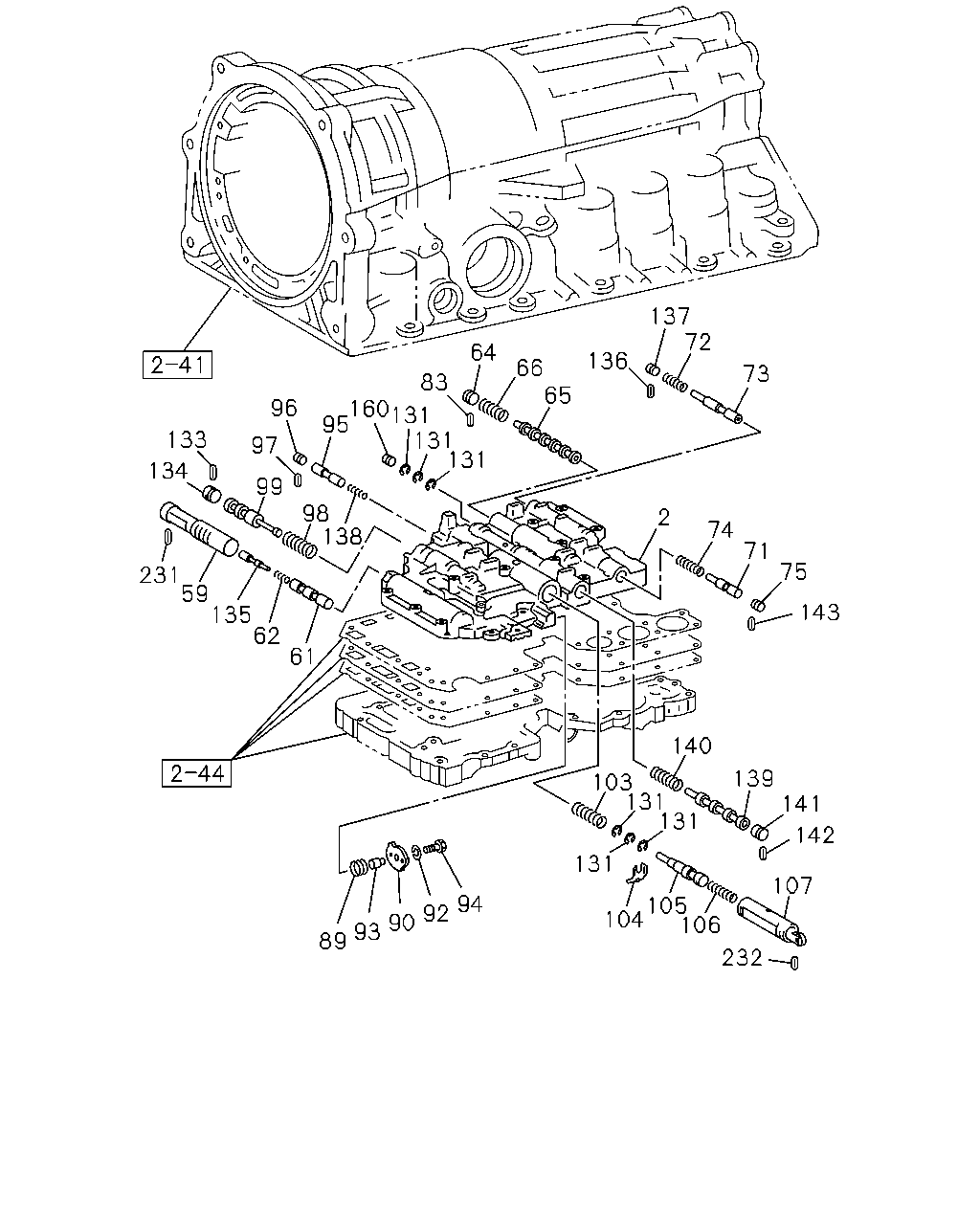

137 72 64 136 66 65 73 83 96 160 131 95 131 131 133 97 134 99 98 138 2 74 71 75 231 59 135 62 143 61 140 103 131 131 139 141 142 131 107 94 92 90 93 89 105 104 106 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
2	04.265 BODY ASM; VLV UPR RR,A/T 4JG2 ENG(RJC)	8-94480-064-0	01	1	9801-	●
59	04.265 SLEEVE; LOCKUP CONT VALVE 4JG2 ENG(RJC)	8-94480-066-0	01	1	9801-	●
61	04.265 VALVE; LOCKUP CONT,UPR BODY 4JG2 ENG(RJC)	8-94480-065-0	01	1	9801-	●
62	04.265 SPRING; LOCKUP CONT VALVE 4JG2 ENG(RJC)	8-94480-068-0	01	1	9801-	●
64	04.265 PLUG; VLV,2-3 SHIFT,VLV UPR RR,A 4JG2 ENG(RJC)	8-97025-828-0	01	1	9801-	●
65	04.265 VALVE; 2-3 SHIFT,VLV UPR RR,A/T 4JG2 ENG(RJC)	8-94480-083-0	01	1	9801-	●
66	04.265 SPRING; VLV,2-3 SHIFT,VLV UPR RR 4JG2 ENG(RJC)	8-94480-057-0	01	1	9801-	●
71	04.265 VALVE; LOW,VLV UPR RR,A/T 4JG2 ENG(RJC)	8-94480-084-0	01	1	9801-	●
72	04.265 SPRING; VLV LOW,VLV UPR RR,A/T 4JG2 ENG(RJC)	8-94479-757-0	01	1	9801-	●
73	04.265 VALVE; GOV MODULATOR,A/T 4JG2 ENG(RJC)	8-94480-084-0	01	1	9801-	●
74	04.265 SPRING; VALVE,GOV MODULATOR,A/T 4JG2 ENG(RJC)	8-97025-826-0	01	1	9801-	●
75	04.265 PLUG; GOV MODULATOR 4JG2 ENG(RJC)	8-94480-072-0	01	1	9801-	●
83	04.265 RETAINER; VLV,VLV UPR RR,A/T 4JG2 ENG(RJC)	5-34538-008-0	01	1	9801-	●
89	04.265 SPRING; THROTTLE CAM RETURN,A/T 4JG2 ENG(RJC)	8-94480-081-0	01	1	9801-	●
90	04.265 CAM; VLV,KICK DOWN & THROTTLE,A/ 4JG2 ENG(RJC)	8-94479-755-0	01	1	9801-	●
92	04.265 WASHER; LK,CAM,A/T 4JG2 ENG(RJC)	5-34539-004-0	01	1	9801-	●
93	04.265 PIECE; DIST,CAM,A/T 4JG2 ENG(RJC)	5-34538-014-0	01	1	9801-	●
94	04.265 BOLT; CAM,KICK DOWN,A/T 4JG2 ENG(RJC) M6X28	8-94473-611-0	01	1	9801-	●
95	04.265 VALVE; CUT BACK,VLV UPR FRT,A/T 4JG2 ENG(RJC)	8-94480-074-0	01	1	9801-	●
96	04.265 PLUG; VLV,CUT BACK,VLV UPR FRT,A 4JG2 ENG(RJC)	8-97143-368-0	01	1	9801-	●
97	04.265 RETAINER; VLV,VLV UPR FRT,A/T 4JG2 ENG(RJC)	8-94480-071-0	01	1	9801-	●
98	04.265 SPRING; SECONDARY,A/T 4JG2 ENG(RJC)	8-94480-070-0	01	1	9801-	●
99	04.265 VALVE; SECONDARY,A/T 4JG2 ENG(RJC)	8-94480-069-0	01	1	9801-	●
103	04.265 SPRING; THROTTLE BODY,SECONDARY, 4JG2 ENG(RJC) BLUE	8-94480-076-0	01	1	9801-	●
104	04.265 PLATE; THROTTLE BODY,A/T 4JG2 ENG(RJC)	8-94480-075-0	01	1	9801-	●
105	04.265 VALVE; THROTTLE,A/T 4JG2 ENG(RJC)	8-94480-077-0	01	1	9801-	●
106	04.265 SPRING; THROTTLE BODY,PRIMARY,A/ 4JG2 ENG(RJC)	8-94480-079-0	01	1	9801-	●
107	04.265 VALVE ASM; KICK DOWN,A/T 4JG2 ENG(RJC)	8-94480-080-0	01	1	9801-	●
131	04.265 RING; THROTTLE BODY,A/T 4JG2 ENG(RJC)	5-34538-011-0	06	1	9801-	●
133	04.265 KEY; SECONDARY VALVE 4JG2 ENG(RJC)	5-34538-008-0	01	1	9801-	●
134	04.265 PLUG; SECONDARY VALVE 4JG2 ENG(RJC)	8-94480-059-0	01	1	9801-	●
135	04.265 PLUNGER; LOCKUP RELAY 4JG2 ENG(RJC)	8-94480-067-0	01	1	9801-	●
136	04.265 RETAINER; LOW MODULATOR VALVE 4JG2 ENG(RJC)	8-94480-062-0	01	1	9801-	●
137	04.265 PLUG; LOW MODULATOR VALVE 4JG2 ENG(RJC)	8-94480-072-0	01	1	9801-	●
138	04.265 SPRING; CUT BACK VALVE 4JG2 ENG(RJC)	8-94480-073-0	01	1	9801-	●
139	04.265 VALVE; 3-4 SHIFT UPR BODY 4JG2 ENG(RJC)	8-94480-082-0	01	1	9801-	●
140	04.265 SPRING; 3-4 SHIFT VALVE 4JG2 ENG(RJC)	8-94480-057-0	01	1	9801-	●
141	04.265 PLUG; 3-4 SHIFT VALVE 4JG2 ENG(RJC)	8-94480-059-0	01	1	9801-	●
142	04.265 RETAINER; 3-4 SHIFT VALVE PLUG 4JG2 ENG(RJC)	8-94480-060-0	01	1	9801-	●
143	04.265 RETAINER; 2ND MODULATOR VLV 4JG2 ENG(RJC)	8-94480-060-0	01	1	9801-	●
160	04.265 PLUG; VLV BODY 4JG2 ENG(RJC)	8-94480-085-0	01	1	9801-	●
231	04.265 RETAINER; LOCKUP CONT VALVE 4JG2 ENG(RJC)	5-34538-004-0	01	1	9801-	●
232	04.265 PIN; LOCATING 4JG2 ENG(RJC)	8-94480-078-0	01	1	0106-	●

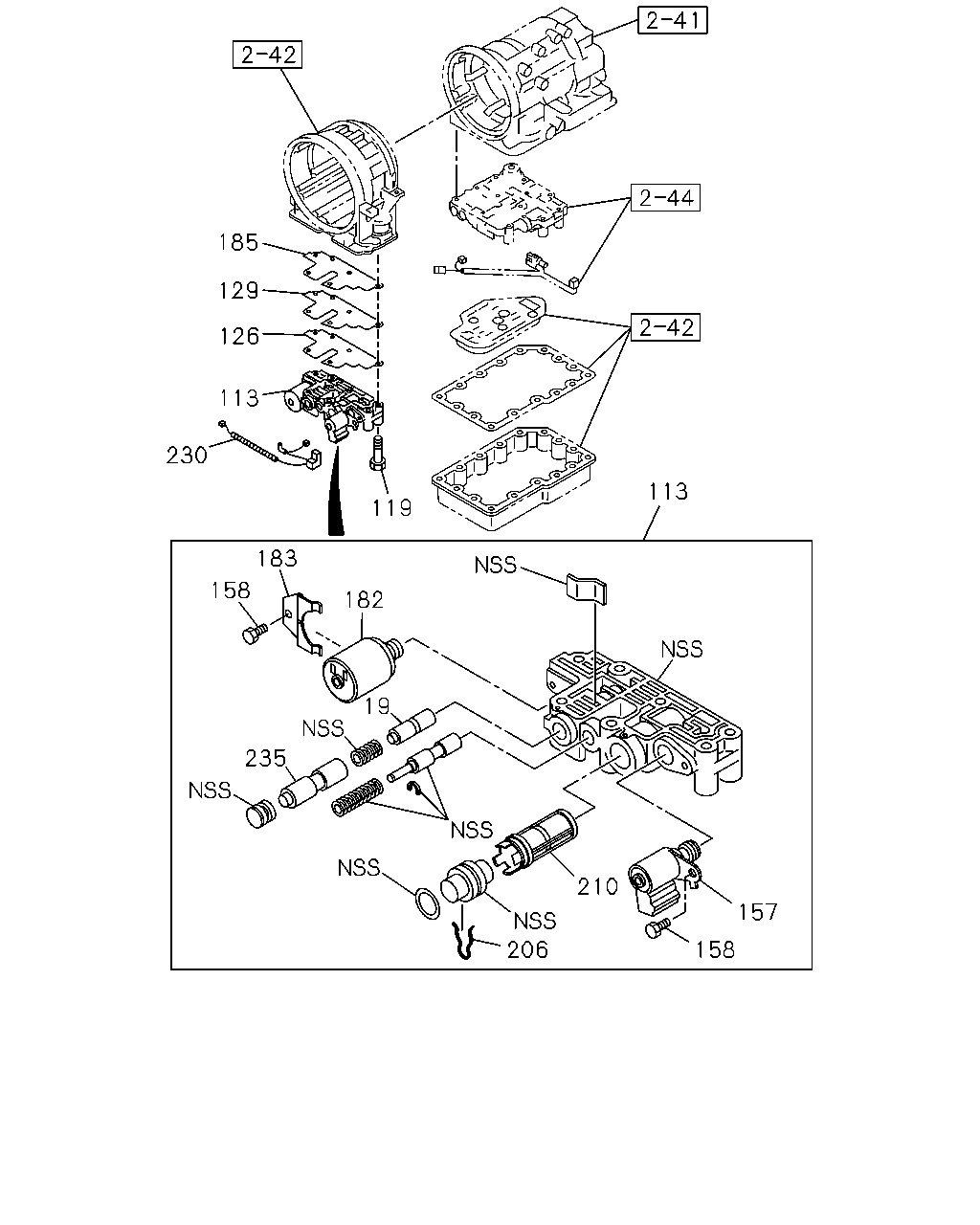

185 129 126 113 230 113 119 183 158 182 19 235 210 157 206 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
19	04.265 VALVE; ACCUMLATOR CONT,UPR VLV	8-96014-338-0	01	1	9712-	●
113	04.265 VALVE ASM; CONT,A/T	8-96017-357-0	01	1	9712-0105	●
113	04.265 VALVE ASM; CONT,A/T 6VD1 ENG(RLV)	8-96017-357-0	01	1	0106-	●
113	04.265 VALVE ASM; CONT,A/T 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96017-357-0	01	1	0106-	●
113	04.265 VALVE ASM; CONT,A/T 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96023-391-0	01	1	0106-	●
119	04.265 BOLT; VLV BODY,A/T	8-96017-270-0	07	1	9712-	●
126	04.265 GASKET; VALVE BODY	8-96017-399-0	01	1	9712-	●
129	04.265 PLATE; SEPARATOR,SIDE	8-96018-292-0	01	1	9712-0105	●
129	04.265 PLATE; SEPARATOR,SIDE 6VD1 ENG(RLV)	8-96018-292-0	01	1	0106-	●
129	04.265 PLATE; SEPARATOR,SIDE 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96018-292-0	01	1	0106-	●
129	04.265 PLATE; SEPARATOR,SIDE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96022-846-0	01	1	0106-	●
157	04.115 SOLENOID; CONV CLU	8-96014-183-0	01	1	9712-0105	●
157	04.115 SOLENOID; CONV CLU 6VD1 ENG(RLV)	8-96014-183-0	01	1	0106-	●
157	04.115 SOLENOID; CONV CLU 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96014-183-0	01	1	0106-	●
157	04.115 SOLENOID; CONV CLU 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-534-0	01	1	0106-	●
158	04.115 BOLT; SOLENOID	8-00117-461-0	02	1	9712-	●
182	04.115 SOLENOID; FORCE MOTOR	8-08677-314-0	01	1	9712-0105	●
182	04.115 SOLENOID; FORCE MOTOR 6VD1 ENG(RLV)	8-08677-314-0	01	1	0106-	●
182	04.115 SOLENOID; FORCE MOTOR 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-08677-314-0	01	1	0106-	●
182	04.115 SOLENOID; FORCE MOTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-043-0	01	1	0106-	●
183	04.115 RETAINER; FORCE MOTOR	8-96016-954-0	01	1	9712-0105	●
183	04.115 RETAINER; FORCE MOTOR 6VD1 ENG(RLV)	8-96016-954-0	01	1	0106-	●
183	04.115 RETAINER; FORCE MOTOR 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96016-954-0	01	1	0106-	●
183	04.115 RETAINER; FORCE MOTOR 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-476-0	01	1	0106-	●
185	04.265 GASKET; ADAPTER TO TRANSFER PLAT	8-96017-400-0	01	1	9712-	●
206	04.265 RING; SNAP 04.233	8-05258-185-0	01	1	9712-	●
210	04.265 STRAINER	8-96041-009-0	01	1	9712-	●
230	04.115 HARNESS ASM; CABLE,A/T CONT	8-96018-278-0	01	1	9712-0105	●
230	04.115 HARNESS ASM; CABLE,A/T CONT 6VD1 ENG(RLV)	8-96018-278-0	01	1	0106-	●
230	04.115 HARNESS ASM; CABLE,A/T CONT 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96018-278-0	01	1	0106-	●
230	04.115 HARNESS ASM; CABLE,A/T CONT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-537-0	01	1	0106-	●
235	04.265 VALVE; ACCUMULATOR	8-05258-806-0	01	1	9712-	●
