2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#73266) — 132 parça

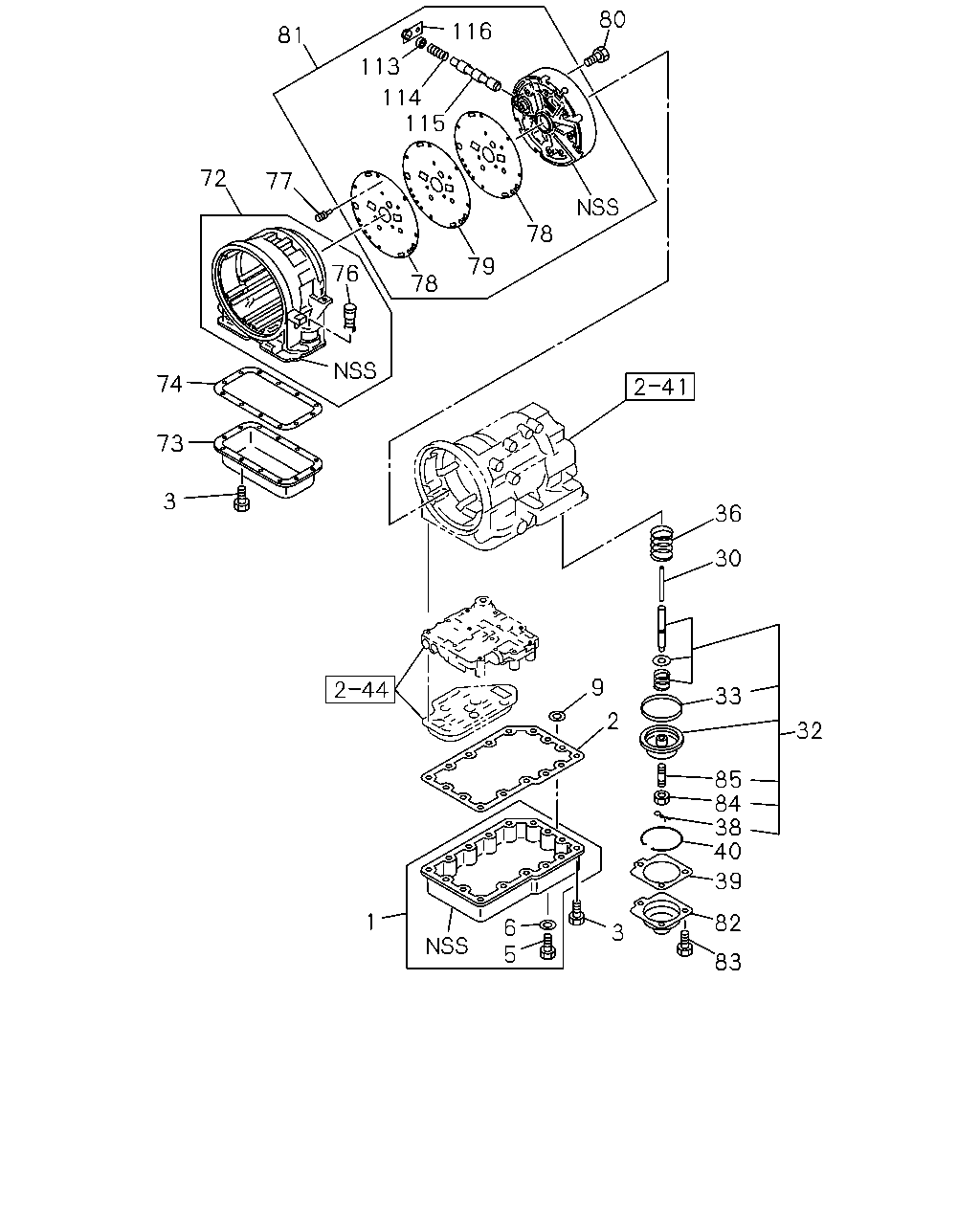

80 116 81 113 114 115 72 77 78 79 76 78 74 73 3 36 30 9 33 2 32 85 84 38 40 39 1 82 6 5 3 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 4JG2 ENG(RJC)	8-97027-212-0	01	1	9801-	●
1	04.195 PAN ASM; OIL,A/T 4JX1 ENG(RJM)	8-97207-144-0	01	1	9909-	●
1	04.195 PAN ASM; OIL,A/T	8-96017-876-0	01	1	9712-9912		●
1	04.195 PAN ASM; OIL,A/T	8-96023-707-0	01	1	0001-		●
2	04.196 GASKET; OIL PAN,A/T 4JG2 ENG(RJC)	8-94479-932-0	01	1	9801-	●
2	04.196 GASKET; OIL PAN,A/T	8-96014-234-0	01	1	9712-		●
3	04.196 BOLT; OIL PAN TO CASE 4JG2 ENG(RJC)	8-97130-928-0	19	1	9801-9908	●
3	04.196 BOLT; OIL PAN TO CASE	8-97130-928-0	19	1	9909-	●
3	04.196 BOLT; OIL PAN TO CASE	8-96017-023-0	28	1	9712-		●
5	04.195 PLUG; OIL PAN 4JG2 ENG(RJC)	5-34132-003-0	01	1	9801-9908	●
5	04.195 PLUG; OIL PAN	5-34132-003-0	01	1	9909-	●
5	04.195 PLUG; OIL PAN	8-96015-481-0	02	1	9712-		●
6	04.195 GASKET; OIL PAN TO PLUG 4JG2 ENG(RJC) ID=12	5-34132-002-0	01	1	9801-9908	●
6	04.195 GASKET; OIL PAN TO PLUG ID=12	5-34132-002-0	01	1	9909-	●
6	04.195 GASKET; OIL PAN TO PLUG	8-01638-257-0	02	1	9712-9810		●
6	04.195 GASKET; OIL PAN TO PLUG	8-11023-580-0	02	1	9811-9912		●
6	04.195 GASKET; OIL PAN TO PLUG 01.456	8-11023-582-0	02	1	0001-		●
9	04.195 MAGNET; OIL PAN 4JG2 ENG(RJC)	5-34138-004-0	02	1	9801-	●
9	04.195 MAGNET; OIL PAN 4JX1 ENG(RJM)	5-34138-004-0	04	1	9909-	●
9	04.195 MAGNET; OIL PAN	8-96013-938-0	01	1	9712-		●
30	04.265 ROD; VAC DIAPH,A/T	8-05258-182-0	01	1	9712-		●
32	04.228 PISTON ASM; SERVO,A/T	8-96017-601-0	01	1	9712-		●
33	04.229 SEAL; RING,SERVO PISTON,A/T	8-05258-159-0	01	1	9712-		●
36	04.233 SPRING; RETURN,SERVO PISTON,A/T	8-08958-931-0	01	1	9712-		●
38	04.233 RING; SNAP,SERVO PISTON,A/T	8-05258-185-0	01	1	9712-		●
39	04.212 GASKET; SERVO COVER	8-96014-414-0	01	1	9712-		●
40	04.233 RETAINER; SERVO PISTON,A/T	8-05258-121-0	01	1	9712-		●
72	04.195 CASE ASM; ADAPTER	8-96017-512-0	01	1	9712-0105		●
72	04.195 CASE ASM; ADAPTER 6VD1 ENG(RLV)	8-96017-512-0	01	1	0106-		●
72	04.195 CASE ASM; ADAPTER 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96017-512-0	01	1	0106-		●
72	04.195 CASE ASM; ADAPTER 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96017-508-0	01	1	0106-		●
73	04.195 PAN ASM; ADAPTER	8-96014-186-0	01	1	9712-		●
74	04.195 GASKET; ADAPTER PAN	8-96014-235-0	01	1	9712-		●
76	04.195 CONNECTOR; ADAPTER CASE	8-96015-408-0	01	1	9712-0105		●
76	04.195 CONNECTOR; ADAPTER CASE 6VD1 ENG(RLV)	8-96015-408-0	01	1	0106-		●
76	04.195 CONNECTOR; ADAPTER CASE 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96015-408-0	01	1	0106-		●
76	04.195 CONNECTOR; ADAPTER CASE 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4) 04.226	8-96018-330-0	01	1	0106-		●
77	04.195 RESTRICTOR; OIL	8-96014-353-0	01	1	9712-		●
78	04.195 GASKET; ADAPTER PLATE	8-96016-514-0	02	1	9712-		●
79	04.195 PLATE; ADAPTER,CTR SUPPORT	8-96016-833-0	01	1	9712-0105		●
79	04.195 PLATE; ADAPTER,CTR SUPPORT 6VD1 ENG(RLV)	8-96016-833-0	01	1	0106-		●
79	04.195 PLATE; ADAPTER,CTR SUPPORT 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96016-833-0	01	1	0106-		●
79	04.195 PLATE; ADAPTER,CTR SUPPORT 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96018-405-0	01	1	0106-		●
80	04.195 SCREW; CTR SUPPORT	8-96013-316-0	08	1	9712-		●
81	04.233 SUPPORT ASM; CENTER	8-96041-282-0	01	1	9712-0105		●
81	04.233 SUPPORT ASM; CENTER 6VD1 ENG(RLV)	8-96041-282-0	01	1	0106-		●
81	04.233 SUPPORT ASM; CENTER 6VE1 ENG(RJQ) EXC. EUROPE EQUIPMENT(EK4)	8-96041-282-0	01	1	0106-		●
81	04.233 SUPPORT ASM; CENTER 6VE1 ENG(RJQ) EUROPE EQUIPMENT(EK4)	8-96041-243-0	01	1	0106-		●
82	04.233 COVER; SERVO PISTON	8-96014-413-0	01	1	9712-		●
83	04.233 SCREW; SERVO COVER 04.195	8-96013-316-0	04	1	9712-		●
84	04.233 NUT; SERVO SCREW	8-96017-231-0	01	1	9712-		●
85	04.233 SCREW; SERVO PISTON	8-96018-235-0	01	1	9712-		●
113	04.105 PLUG; LOCKOUT 04.052	8-96017-027-0	01	1	9712-		●
114	04.256 SPRING; LOCKOUT 04.052	8-96014-961-0	01	1	9712-		●
115	04.256 VALVE; LOCKOUT 04.052	8-96014-967-0	01	1	9712-		●
116	04.256 PLATE; RETAINER 04.052	8-96017-026-0	01	1	9712-		●

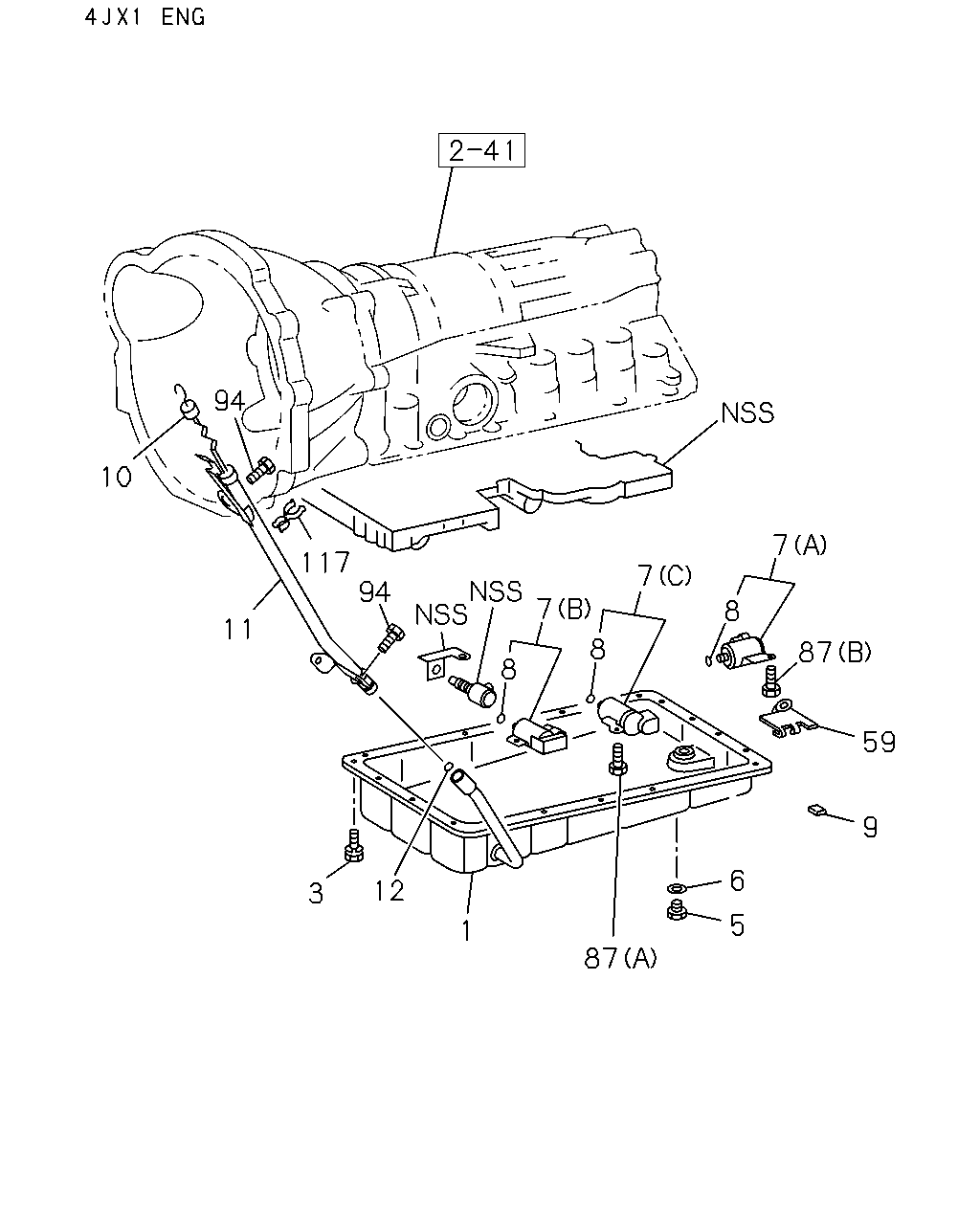

94 10 7 117 94 7 7 8 1 8 87 8 59 9 6 12 3 5 1 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 4JG2 ENG(RJC)	8-97027-212-0	01	1	9801-	●
1	04.195 PAN ASM; OIL,A/T 4JX1 ENG(RJM)	8-97207-144-0	01	1	9909-	●
1	04.195 PAN ASM; OIL,A/T	8-96017-876-0	01	1	9712-9912		●
1	04.195 PAN ASM; OIL,A/T	8-96023-707-0	01	1	0001-		●
3	04.196 BOLT; OIL PAN TO CASE 4JG2 ENG(RJC)	8-97130-928-0	19	1	9801-9908	●
3	04.196 BOLT; OIL PAN TO CASE	8-97130-928-0	19	1	9909-	●
3	04.196 BOLT; OIL PAN TO CASE	8-96017-023-0	28	1	9712-		●
5	04.195 PLUG; OIL PAN 4JG2 ENG(RJC)	5-34132-003-0	01	1	9801-9908	●
5	04.195 PLUG; OIL PAN	5-34132-003-0	01	1	9909-	●
5	04.195 PLUG; OIL PAN	8-96015-481-0	02	1	9712-		●
6	04.195 GASKET; OIL PAN TO PLUG 4JG2 ENG(RJC) ID=12	5-34132-002-0	01	1	9801-9908	●
6	04.195 GASKET; OIL PAN TO PLUG ID=12	5-34132-002-0	01	1	9909-	●
6	04.195 GASKET; OIL PAN TO PLUG	8-01638-257-0	02	1	9712-9810		●
6	04.195 GASKET; OIL PAN TO PLUG	8-11023-580-0	02	1	9811-9912		●
6	04.195 GASKET; OIL PAN TO PLUG 01.456	8-11023-582-0	02	1	0001-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (B)	8-97126-803-0	02	1	9801-9807	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (B)	8-97214-538-0	02	1	9808-	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (A)	8-97126-804-0	01	1	9801-9807	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (A)	8-97214-539-0	01	1	9808-9908	●
7	04.265 SOLENOID; DOWN SHIFT,A/T (A)	8-97214-539-0	01	1	9909-	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JX1 ENG(RJM) (B)	8-97218-986-0	01	1	9909-	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JX1 ENG(RJM) (C)	8-97218-987-0	01	1	9909-	●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T 4JG2 ENG(RJC) ID=6.1	8-94480-101-0	03	1	9801-9908	●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T ID=6.1	8-94480-101-0	03	1	9909-	●
9	04.195 MAGNET; OIL PAN 4JG2 ENG(RJC)	5-34138-004-0	02	1	9801-	●
9	04.195 MAGNET; OIL PAN 4JX1 ENG(RJM)	5-34138-004-0	04	1	9909-	●
9	04.195 MAGNET; OIL PAN	8-96013-938-0	01	1	9712-		●
10	04.197 GAUGE; OIL LEVEL 4JG2 ENG(RJC)	8-97044-281-3	01	1	9801-	●
10	04.197 GAUGE; OIL LEVEL 4JX1 ENG(RJM)	8-97201-013-0	01	1	9909-	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 04.133 ID=9.8	9-09561-110-0	01	1	9712-	●
59	04.265 CLIP; SOLENOID WIRE 4JG2 ENG(RJC)	8-97126-813-0	01	1	9801-	●
87	04.265 BOLT; SOLENOID 4JG2 ENG(RJC) (B) M6X12	8-94479-927-0	03	1	9801-	●
87	04.265 BOLT; SOLENOID 4JX1 ENG(RJM) 04.197 (A) M5X12	8-94405-335-0	01	1	9909-	●
87	04.265 BOLT; SOLENOID 4JX1 ENG(RJM) (B) M6X12	8-94479-927-0	01	1	9909-	●
94	04.197 BOLT; OIL FILLER TUBE 4JX1 ENG(RJM) 01.062 M8X16 FLANGE	0-28080-816-0	02	1	9909-	●
117	04.265 CLIP 4JX1 ENG(RJM) 02.483 ID=25.5 & 13	8-97181-208-0	01	1	9909-	●

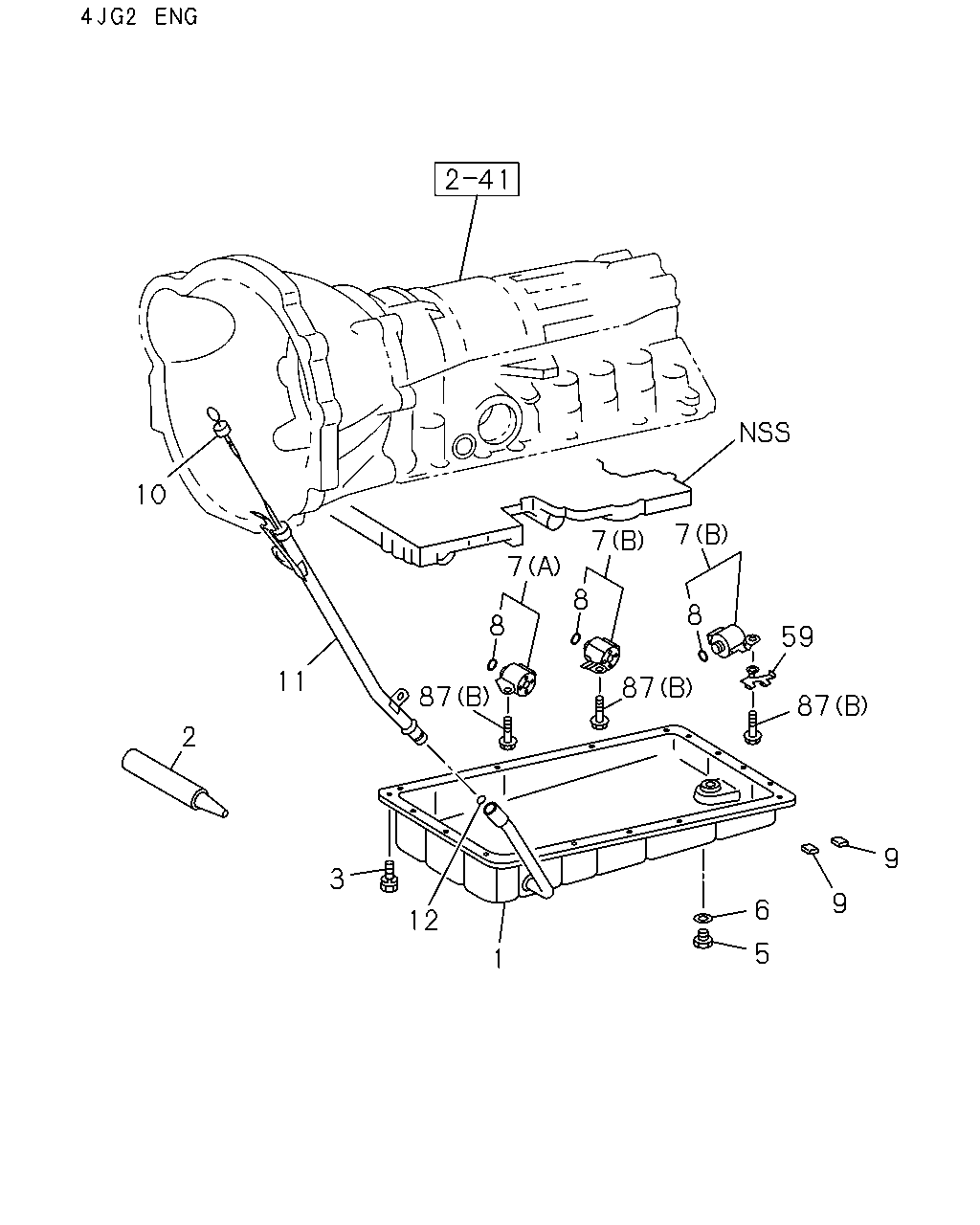

10 7 7 7 8 8 8 59 87 11 87 87 2 9 3 9 6 12 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 4JG2 ENG(RJC)	8-97027-212-0	01	1	9801-	●
1	04.195 PAN ASM; OIL,A/T 4JX1 ENG(RJM)	8-97207-144-0	01	1	9909-	●
1	04.195 PAN ASM; OIL,A/T	8-96017-876-0	01	1	9712-9912		●
1	04.195 PAN ASM; OIL,A/T	8-96023-707-0	01	1	0001-		●
2	04.196 GASKET; OIL PAN,A/T 4JG2 ENG(RJC)	8-94479-932-0	01	1	9801-	●
2	04.196 GASKET; OIL PAN,A/T	8-96014-234-0	01	1	9712-		●
3	04.196 BOLT; OIL PAN TO CASE 4JG2 ENG(RJC)	8-97130-928-0	19	1	9801-9908	●
3	04.196 BOLT; OIL PAN TO CASE	8-97130-928-0	19	1	9909-	●
3	04.196 BOLT; OIL PAN TO CASE	8-96017-023-0	28	1	9712-		●
5	04.195 PLUG; OIL PAN 4JG2 ENG(RJC)	5-34132-003-0	01	1	9801-9908	●
5	04.195 PLUG; OIL PAN	5-34132-003-0	01	1	9909-	●
5	04.195 PLUG; OIL PAN	8-96015-481-0	02	1	9712-		●
6	04.195 GASKET; OIL PAN TO PLUG 4JG2 ENG(RJC) ID=12	5-34132-002-0	01	1	9801-9908	●
6	04.195 GASKET; OIL PAN TO PLUG ID=12	5-34132-002-0	01	1	9909-	●
6	04.195 GASKET; OIL PAN TO PLUG	8-01638-257-0	02	1	9712-9810		●
6	04.195 GASKET; OIL PAN TO PLUG	8-11023-580-0	02	1	9811-9912		●
6	04.195 GASKET; OIL PAN TO PLUG 01.456	8-11023-582-0	02	1	0001-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (B)	8-97126-803-0	02	1	9801-9807	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (B)	8-97214-538-0	02	1	9808-	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (A)	8-97126-804-0	01	1	9801-9807	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JG2 ENG(RJC) (A)	8-97214-539-0	01	1	9808-9908	●
7	04.265 SOLENOID; DOWN SHIFT,A/T (A)	8-97214-539-0	01	1	9909-	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JX1 ENG(RJM) (B)	8-97218-986-0	01	1	9909-	●
7	04.265 SOLENOID; DOWN SHIFT,A/T 4JX1 ENG(RJM) (C)	8-97218-987-0	01	1	9909-	●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T 4JG2 ENG(RJC) ID=6.1	8-94480-101-0	03	1	9801-9908	●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T ID=6.1	8-94480-101-0	03	1	9909-	●
9	04.195 MAGNET; OIL PAN 4JG2 ENG(RJC)	5-34138-004-0	02	1	9801-	●
9	04.195 MAGNET; OIL PAN 4JX1 ENG(RJM)	5-34138-004-0	04	1	9909-	●
9	04.195 MAGNET; OIL PAN	8-96013-938-0	01	1	9712-		●
10	04.197 GAUGE; OIL LEVEL 4JG2 ENG(RJC)	8-97044-281-3	01	1	9801-	●
10	04.197 GAUGE; OIL LEVEL 4JX1 ENG(RJM)	8-97201-013-0	01	1	9909-	●
11	04.197 TUBE; OIL FILLER 4JG2 ENG(RJC)	8-97168-296-6	01	1	9712-9908	●
11	04.197 TUBE; OIL FILLER	8-97231-908-0	01	1	9909-9909	●
11	04.197 TUBE; OIL FILLER 4JX1 ENG(RJM)	8-97231-908-1	01	1	9910-	●
11	04.197 TUBE; OIL FILLER 4JG2 ENG(RJC)	8-97061-029-3	01	1	9910-	●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 04.133 ID=9.8	9-09561-110-0	01	1	9712-	●
59	04.265 CLIP; SOLENOID WIRE 4JG2 ENG(RJC)	8-97126-813-0	01	1	9801-	●
87	04.265 BOLT; SOLENOID 4JG2 ENG(RJC) (B) M6X12	8-94479-927-0	03	1	9801-	●
87	04.265 BOLT; SOLENOID 4JX1 ENG(RJM) 04.197 (A) M5X12	8-94405-335-0	01	1	9909-	●
87	04.265 BOLT; SOLENOID 4JX1 ENG(RJM) (B) M6X12	8-94479-927-0	01	1	9909-	●
