Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#73262) — 216 parça

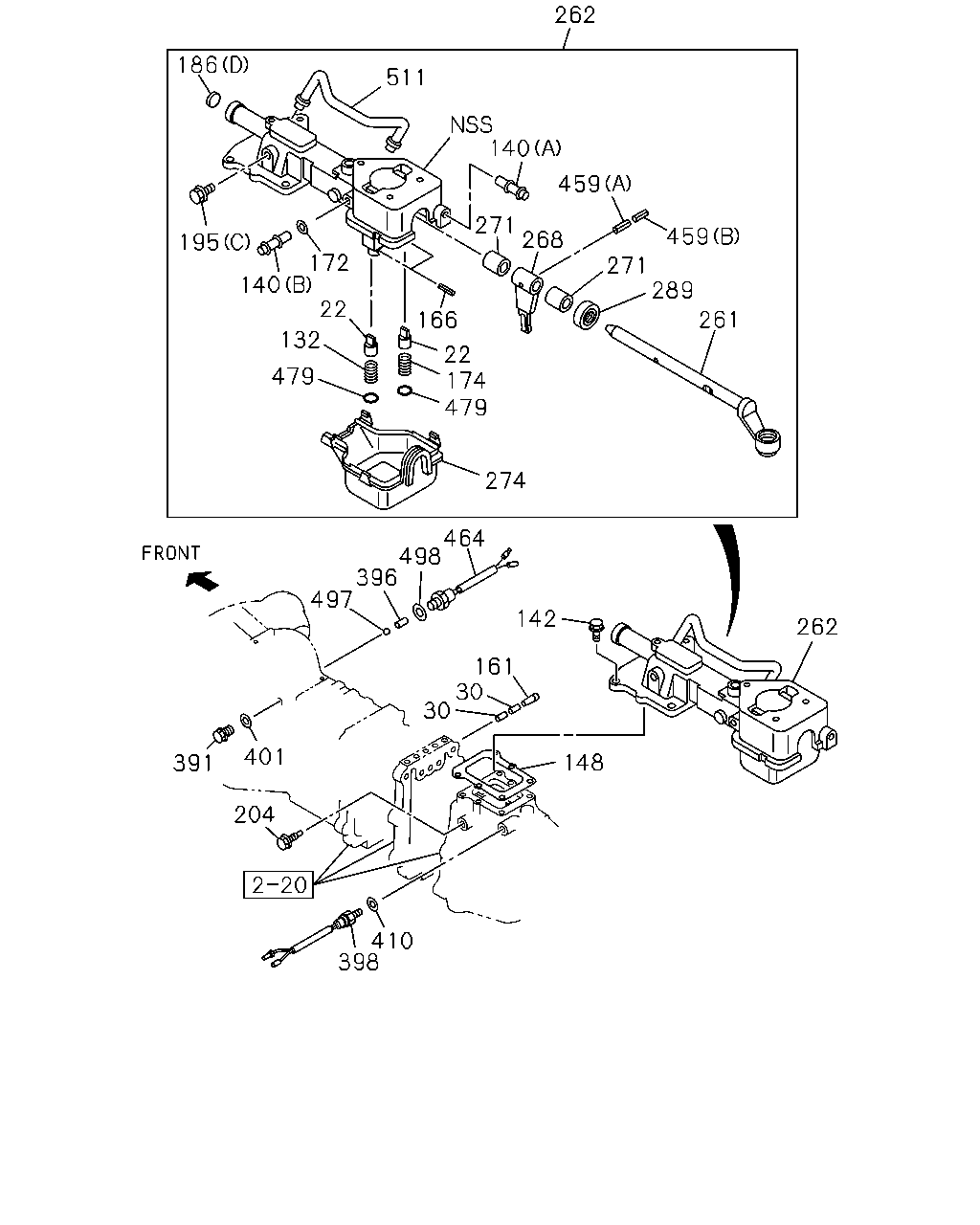

262 186 511 140 459 271 268 459 195 172 140 22 271 289 261 166 132 22 174 479 479 274 464 498 396 497 142 262 161 30 30 401 148 391 204 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9712-0003	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9712-	●
30	04.307 PIN; INTER LK	8-97165-086-0	03	1	9712-		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9712-0003	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0004-	●
140	04.104 BREATHER; AIR,TRANS (B)	8-97172-655-0	01	1	9712-0003	●
140	04.104 BREATHER; AIR,TRANS 04.510 (B)	8-97173-544-0	01	1	0004-	●
140	04.104 BREATHER; AIR,TRANS (A)	8-97172-656-0	01	1	9712-0003	●
140	04.104 BREATHER; AIR,TRANS 04.510 (A)	8-97173-545-0	01	1	0004-0305	●
140	04.104 BREATHER; AIR,TRANS ONE TOUCH 4X4 SYSTEM(7QY) 04.510 (A)	8-97173-545-0	01	1	0306-	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9712-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9712-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9712-	●
166	04.302 PIN; SPR,SELECT LEVER 04.307 D=4.2 L=25	8-97103-142-0	02	1	9712-0003	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	9712-9811	●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9712-0003	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0004-	●
186	04.105 PLUG; SHIFTER ROD 00.253 (D) OD=16	9-11129-081-0	01	1	9712-0003	●
186	04.105 PLUG; SHIFTER ROD (B)	8-97164-987-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 6VE1 ENG(RJQ) (A)	8-97164-955-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97164-926-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 4JX1 ENG(RJM) (C)	8-97164-926-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97164-926-0	02	1	9712-		●
195	04.105 BOLT 01.656 (C) M8X12 FLANGE	8-94479-696-1	01	1	9712-0003	●
195	04.105 BOLT (A)	8-97164-897-0	02	1	9712-		●
195	04.105 BOLT (B)	8-97164-962-0	02	1	9712-		●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9712-	●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9712-9811	●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0004-	●
261	04.309 ROD; GEAR CONT	8-97164-904-0	01	1	9712-		●
262	04.105 BOX ASM; SHIFT CONT EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97357-584-0	01	1	0306-	●
262	04.105 BOX ASM; SHIFT CONT	8-97172-637-1	01	1	9712-9811	●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003	●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0305	●
262	04.105 BOX ASM; SHIFT CONT ONE TOUCH 4X4 SYSTEM(7QY)	8-97257-822-0	01	1	0306-	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9712-0003	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-	●
268	04.302 LEVER; CONT,INTERNAL	8-97164-951-0	01	1	9712-		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9712-0003	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9712-0003	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-94478-118-0	01	1	9712-0003	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0004-	●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9712-9811	●
391	04.104 PLUG; SW HOLE 6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) M14X11	8-94252-142-0	01	1	9812-	●
396	04.311 PLUNGER; SHIFT ROD FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9712-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9712-	●
398	02.698 SWITCH; REV LAMP	8-97165-079-0	01	1	9712-		●
401	04.075 GASKET; SWITCH,TOP & 3RD 6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
410	04.054 GASKET; REV SW 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (A) OD=5.4	9-09678-510-0	01	1	9712-0003	●
459	04.302 PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0004-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (B) OD=3.3	9-09678-519-0	01	1	9712-0003	●
464	04.075 SWITCH; 1ST & 2ND FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) 04.439	8-94411-366-1	01	1	9712-	●
464	04.075 SWITCH; 1ST & 2ND 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97165-080-0	01	1	9712-		●
464	04.075 SWITCH; 1ST & 2ND 4JX1 ENG(RJM)	8-97165-080-0	01	1	9712-		●
479	04.307 PLATE; SELECT D=13	8-97103-110-0	02	1	9712-0003	●
497	04.307 BALL; SWITCH FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5)	9-00097-517-0	01	1	9712-	●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
498	04.075 GASKET; SWITCH,1ST & 2ND 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97185-164-0	01	1	9712-		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JX1 ENG(RJM)	8-97185-164-0	01	1	9712-		●
511	04.302 PIPE; AIR	8-97172-589-0	01	1	9712-0003	●

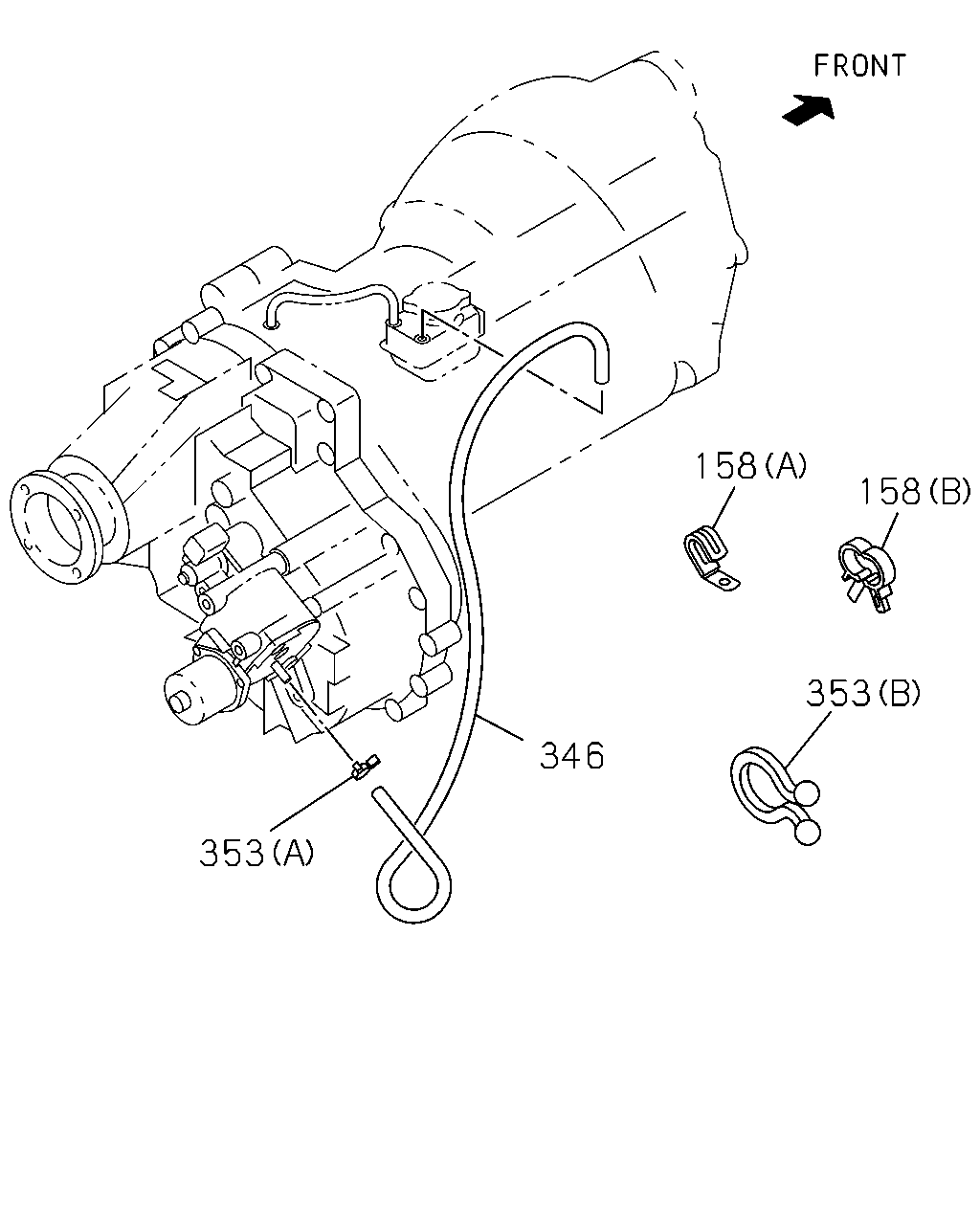

158 158 353 346 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
158	04.105 CLIP; HARNESS EXC. TORQUE ON DEMAND<7HA> 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9712-9809		●	●	●
158	04.105 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9810-9902		●		●
158	04.105 CLIP; HARNESS 00.446 (A) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	9903-		●	●	●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC) 02.559 (B) ID=10 & 12	8-94155-296-0	01	1	9712-			●
346	04.545 HOSE; AIR ONE TOUCH 4X4 SYSTEM(7QY) 04.510	8-97165-010-0	01	1	9712-	●
346	04.545 HOSE; AIR ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.510	8-97172-682-0	01	1	9712-9801		●	●	●
346	04.545 HOSE; AIR ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97203-737-0	01	1	9802-		●	●	●
353	04.545 CLIP; AIR HOSE ONE TOUCH 4X4 SYSTEM(7QY) 16.065 (B) ID=20	1-09709-068-0	01	1	9712-0104	●
353	04.545 CLIP; AIR HOSE 4JX1 ENG(RJM) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 16.065 (B) ID=20	1-09709-068-0	01	1	9712-0104		●	●
353	04.545 CLIP; AIR HOSE ONE TOUCH 4X4 SYSTEM(7QY) 16.065 (B) ID=20	1-09709-068-0	01	1	0105-	●
353	04.545 CLIP; AIR HOSE 4JX1 ENG(RJM) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 16.065 (B) ID=20	1-09709-068-0	01	1	0105-		●
353	04.545 CLIP; AIR HOSE ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 16.065 (B) ID=20	1-09709-068-0	01	1	0105-			●
353	04.545 CLIP; AIR HOSE ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 03.278 (A)	8-97031-674-0	01	1	9712-9901	●	●	●	●

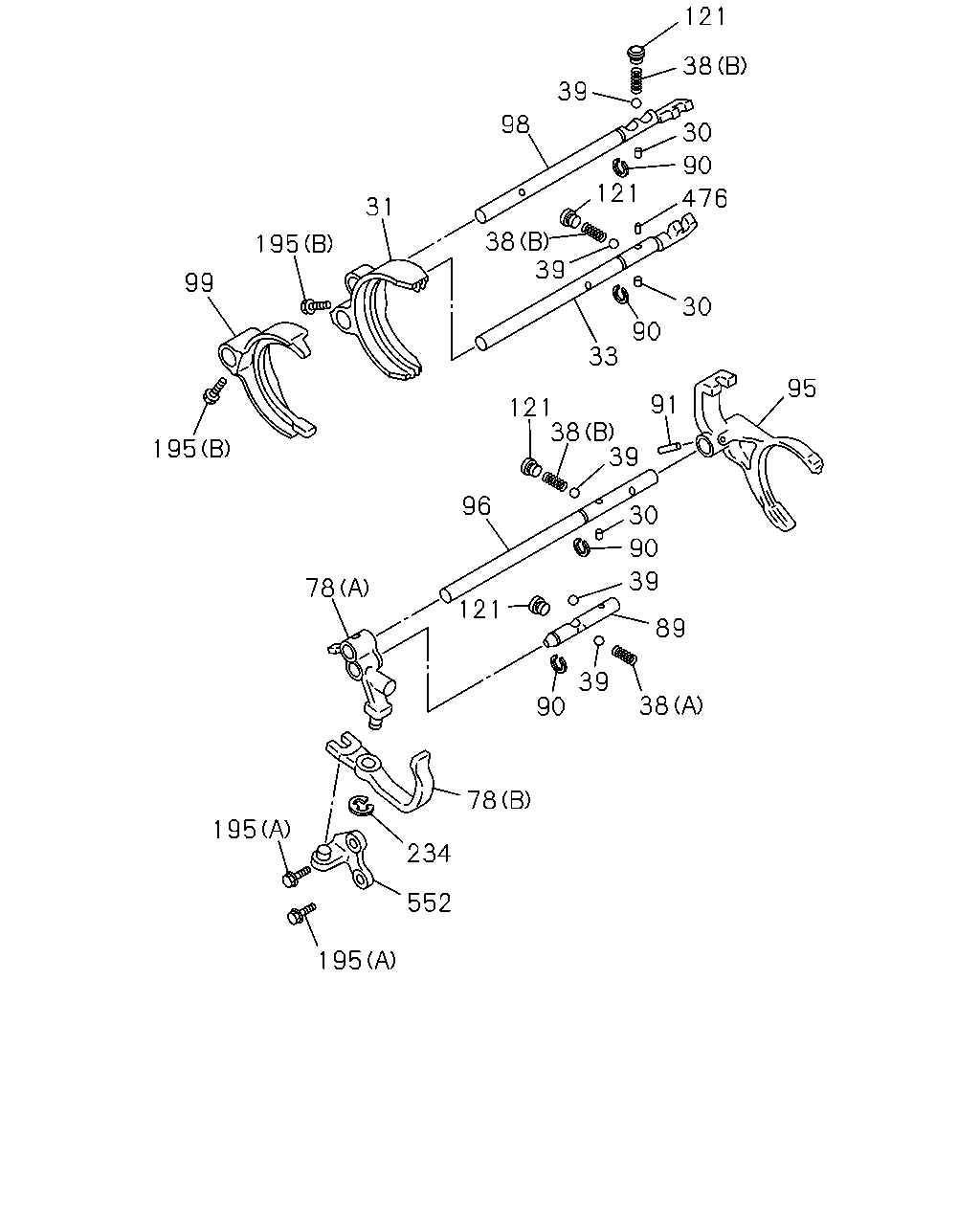

121 38 39 30 98 90 121 476 31 38 39 195 99 30 90 33 95 91 121 38 39 195 30 96 90 39 78 121 89 39 38 90 78 195 234 552 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9712-	●
30	04.307 PIN; INTER LK	8-97165-086-0	03	1	9712-		●
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9712-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97164-989-0	01	1	9712-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	9712-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97164-958-0	01	1	9712-		●
38	04.311 SPRING; DETENT (A)	8-97165-087-0	01	1	9712-		●
38	04.311 SPRING; DETENT (B)	8-97187-640-0	03	1	9712-		●
39	04.307 BALL; DETENT	8-97165-089-0	05	1	9712-		●
78	04.302 ARM; SHIFT,REV (A)	8-97164-956-0	01	1	9712-		●
78	04.302 ARM; SHIFT,REV (B)	8-97164-991-0	01	1	9712-		●
89	04.309 ROD; SHIFT,REV	8-97164-961-0	01	1	9712-		●
90	04.307 RING; SNAP,SHIFT ROD	8-97165-074-0	04	1	9712-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9712-	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	9712-		●
95	04.302 ARM; SHIFT,5TH	8-97164-993-0	01	1	9712-		●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	9712-	●
96	04.309 ROD; SHIFT,5TH	8-97164-960-0	01	1	9712-		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	9712-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97164-959-0	01	1	9712-0111		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97326-186-0	01	1	0112-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9712-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97164-990-0	01	1	9712-		●
121	04.307 PLUG; DETENT SPR 04.105	8-97164-954-0	04	1	9712-		●
195	04.105 BOLT 01.656 (C) M8X12 FLANGE	8-94479-696-1	01	1	9712-0003	●
195	04.105 BOLT (A)	8-97164-897-0	02	1	9712-		●
195	04.105 BOLT (B)	8-97164-962-0	02	1	9712-		●
234	04.311 RING; SNAP	8-97165-075-0	01	1	9712-		●
476	04.311 PIN; SHIFT ROD	8-97164-966-0	01	1	9712-		●
552	04.105 BRACKET	8-97164-992-0	01	1	9712-		●

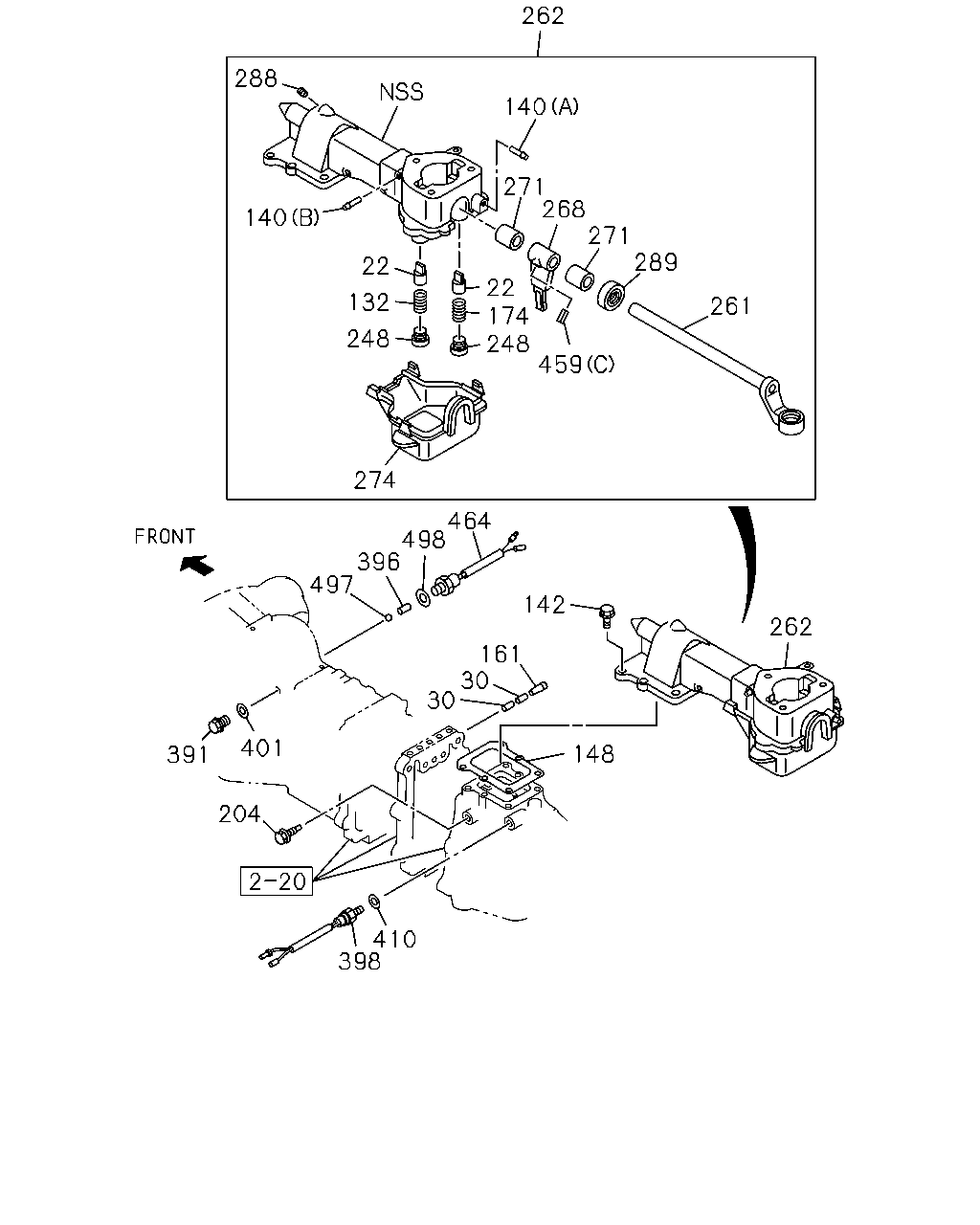

262 288 140 271 268 271 289 140 22 22 174 248 459 132 261 248 274 464 498 396 497 142 262 161 30 30 401 148 391 204 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97103-102-0	02	1	9712-0003	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0004-	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	9712-	●
30	04.307 PIN; INTER LK	8-97165-086-0	03	1	9712-		●
132	04.027 SPRING; SELECT STOP	8-97103-106-0	01	1	9712-0003	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0004-	●
140	04.104 BREATHER; AIR,TRANS (B)	8-97172-655-0	01	1	9712-0003	●
140	04.104 BREATHER; AIR,TRANS 04.510 (B)	8-97173-544-0	01	1	0004-	●
140	04.104 BREATHER; AIR,TRANS (A)	8-97172-656-0	01	1	9712-0003	●
140	04.104 BREATHER; AIR,TRANS 04.510 (A)	8-97173-545-0	01	1	0004-0305	●
140	04.104 BREATHER; AIR,TRANS ONE TOUCH 4X4 SYSTEM(7QY) 04.510 (A)	8-97173-545-0	01	1	0306-	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	9712-	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	9712-	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	9712-	●
174	04.307 SPRING; REV	8-97103-105-0	01	1	9712-0003	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0004-	●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	9712-	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0004-	●
248	04.105 RETAINER; CONT BOX 4JX1 ENG(RJM)	8-97164-913-0	01	1	9712-		●
248	04.105 RETAINER; CONT BOX 6VE1 ENG(RJQ)	8-97164-912-0	01	1	9712-		●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9712-9811	●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0004-	●
261	04.309 ROD; GEAR CONT	8-97164-904-0	01	1	9712-		●
262	04.105 BOX ASM; SHIFT CONT EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97357-584-0	01	1	0306-	●
262	04.105 BOX ASM; SHIFT CONT	8-97172-637-1	01	1	9712-9811	●
262	04.105 BOX ASM; SHIFT CONT	8-97215-046-1	01	1	9812-0003	●
262	04.105 BOX ASM; SHIFT CONT	8-97257-822-0	01	1	0004-0305	●
262	04.105 BOX ASM; SHIFT CONT ONE TOUCH 4X4 SYSTEM(7QY)	8-97257-822-0	01	1	0306-	●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9712-0003	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-	●
268	04.302 LEVER; CONT,INTERNAL	8-97164-951-0	01	1	9712-		●
271	04.105 BUSHING; QUAD BOX ID=14 L=15	8-94478-119-0	02	1	9712-0003	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0004-	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97103-093-3	01	1	9712-0003	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0004-	●
288	04.307 PLUG; AIR BREATHER	9-00097-517-0	01	1	0004-	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-94478-118-0	01	1	9712-0003	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0004-	●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	9712-9811	●
391	04.104 PLUG; SW HOLE 6VD1 ENG(RLV) EXC. ANTI LOCK BRAKE SYSTEM(JE5) M14X11	8-94252-142-0	01	1	9812-	●
396	04.311 PLUNGER; SHIFT ROD FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) 04.075 D=5.5 L=20.7	8-94225-228-0	01	1	9712-	●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9712-	●
398	02.698 SWITCH; REV LAMP	8-97165-079-0	01	1	9712-		●
401	04.075 GASKET; SWITCH,TOP & 3RD 6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
410	04.054 GASKET; REV SW 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (A) OD=5.4	9-09678-510-0	01	1	9712-0003	●
459	04.302 PIN; SPR,ROD TO ARM (C) OD=5	8-97184-905-0	01	1	0004-	●
459	04.302 PIN; SPR,ROD TO ARM 04.042 (B) OD=3.3	9-09678-519-0	01	1	9712-0003	●
464	04.075 SWITCH; 1ST & 2ND FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) 04.439	8-94411-366-1	01	1	9712-	●
464	04.075 SWITCH; 1ST & 2ND 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97165-080-0	01	1	9712-		●
464	04.075 SWITCH; 1ST & 2ND 4JX1 ENG(RJM)	8-97165-080-0	01	1	9712-		●
497	04.307 BALL; SWITCH FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5)	9-00097-517-0	01	1	9712-	●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
498	04.075 GASKET; SWITCH,1ST & 2ND 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97185-164-0	01	1	9712-		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JX1 ENG(RJM)	8-97185-164-0	01	1	9712-		●

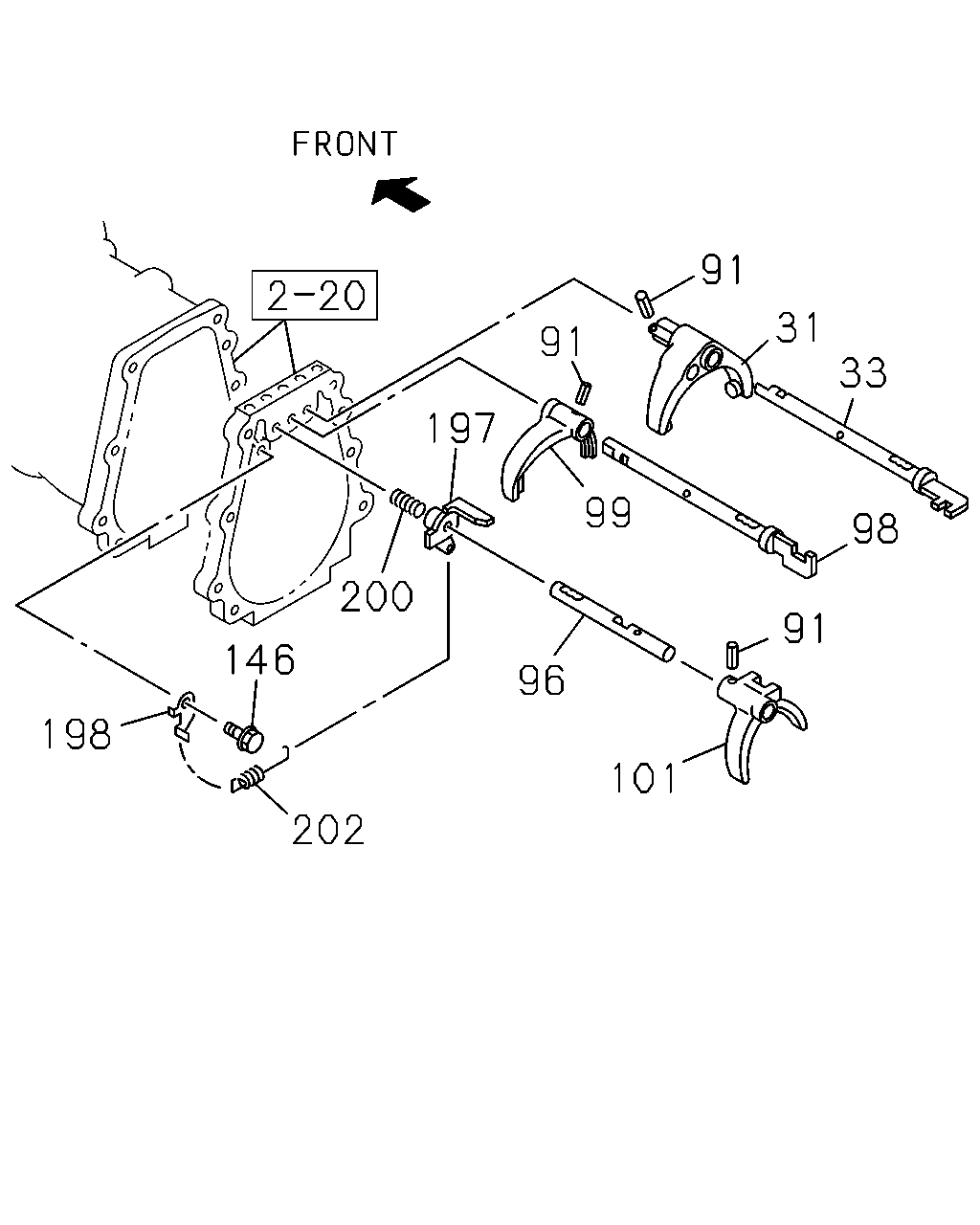

91 31 91 33 197 99 98 200 91 146 96 198 101 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	04.302 ARM; SHIFT,LOW & 2ND	8-94421-912-2	01	1	9712-	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97164-989-0	01	1	9712-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	9712-	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97164-958-0	01	1	9712-		●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	9712-	●
91	04.302 PIN; SPR,SHIFT ARM	8-97164-994-0	01	1	9712-		●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	9712-	●
96	04.309 ROD; SHIFT,5TH	8-97164-960-0	01	1	9712-		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	9712-	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97164-959-0	01	1	9712-0111		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97326-186-0	01	1	0112-		●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	9712-	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97164-990-0	01	1	9712-		●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	9712-	●
146	04.032 BOLT; REV INHIBITOR 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-0011	●
146	04.032 BOLT; REV INHIBITOR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0012-	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	9712-	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	9712-	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	9712-	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	9712-	●

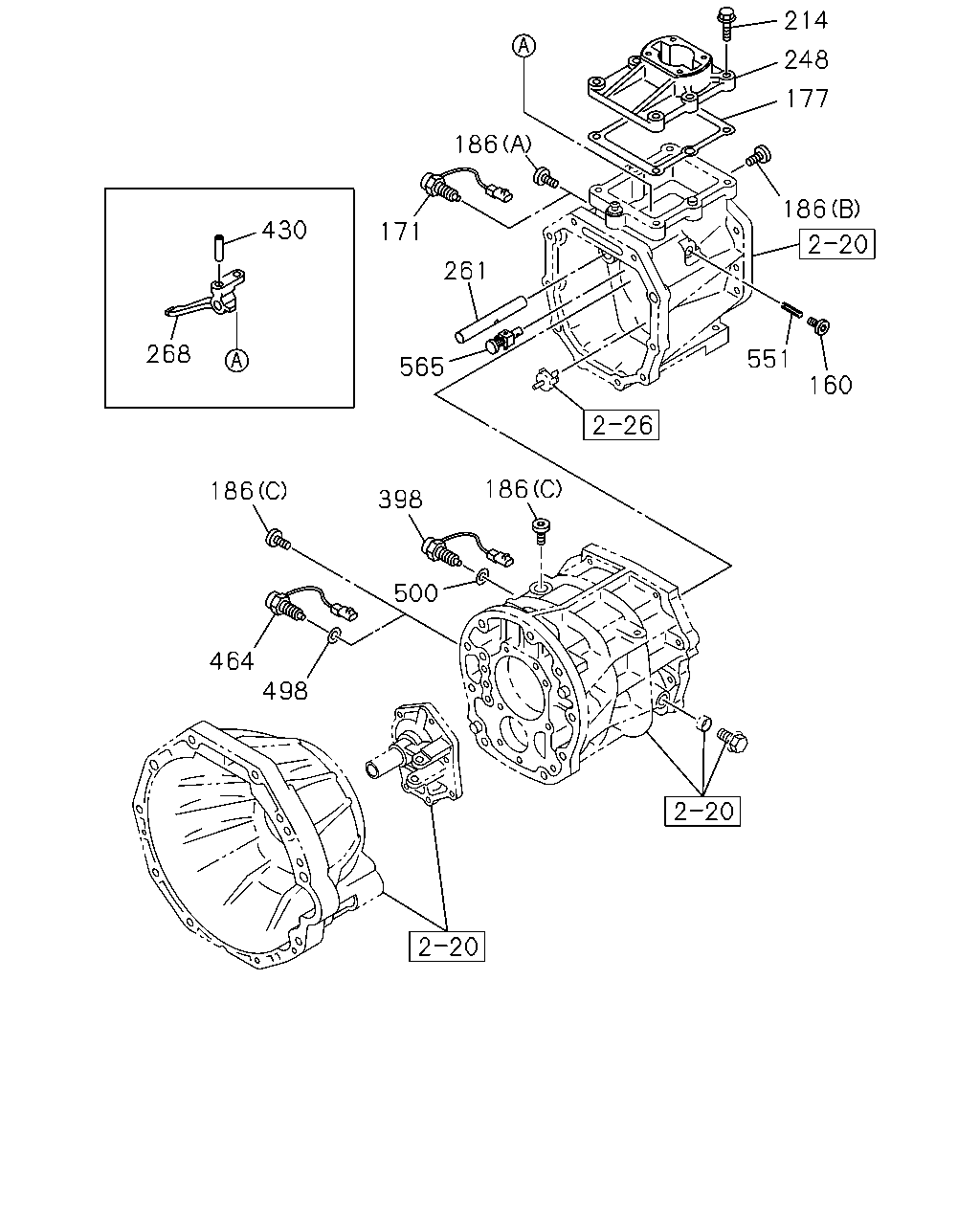

214 248 177 186 186 430 171 261 268 551 565 160 186 186 398 500 464 498

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
160	04.105 PLUG; BLIND	8-97164-954-0	01	1	9712-		●
171	04.054 SWITCH; NEUTRAL 4JX1 ENG(RJM)	8-97165-083-0	01	1	9712-		●
177	04.105 GASKET; CONT BOX	8-97164-901-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 00.253 (D) OD=16	9-11129-081-0	01	1	9712-0003	●
186	04.105 PLUG; SHIFTER ROD (B)	8-97164-987-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 6VE1 ENG(RJQ) (A)	8-97164-955-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97164-926-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 4JX1 ENG(RJM) (C)	8-97164-926-0	01	1	9712-		●
186	04.105 PLUG; SHIFTER ROD 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5) (C)	8-97164-926-0	02	1	9712-		●
214	04.510 BOLT; CONT BOX,SUB TRANS	8-97164-927-0	06	1	9712-		●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0004-	●
248	04.105 RETAINER; CONT BOX 4JX1 ENG(RJM)	8-97164-913-0	01	1	9712-		●
248	04.105 RETAINER; CONT BOX 6VE1 ENG(RJQ)	8-97164-912-0	01	1	9712-		●
261	04.309 ROD; GEAR CONT	8-97103-090-1	01	1	9712-9811	●
261	04.309 ROD; GEAR CONT	8-97103-092-1	01	1	9812-0003	●
261	04.309 ROD; GEAR CONT	8-97257-825-0	01	1	0004-	●
261	04.309 ROD; GEAR CONT	8-97164-904-0	01	1	9712-		●
268	04.302 LEVER; CONT,INTERNAL	8-97103-089-0	01	1	9712-0003	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0004-	●
268	04.302 LEVER; CONT,INTERNAL	8-97164-951-0	01	1	9712-		●
398	02.698 SWITCH; REV LAMP	8-97138-635-0	01	1	9712-	●
398	02.698 SWITCH; REV LAMP	8-97165-079-0	01	1	9712-		●
430	04.307 PIN; SPR,SHIFT ROD	8-97164-924-0	01	1	9712-		●
464	04.075 SWITCH; 1ST & 2ND FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) 04.439	8-94411-366-1	01	1	9712-	●
464	04.075 SWITCH; 1ST & 2ND 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97165-080-0	01	1	9712-		●
464	04.075 SWITCH; 1ST & 2ND 4JX1 ENG(RJM)	8-97165-080-0	01	1	9712-		●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9712-	●
498	04.075 GASKET; SWITCH,1ST & 2ND 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97185-164-0	01	1	9712-		●
498	04.075 GASKET; SWITCH,1ST & 2ND 4JX1 ENG(RJM)	8-97185-164-0	01	1	9712-		●
500	04.075 GASKET; SW 04.105	8-97164-900-0	01	1	9712-		●
551	04.303 PIN; SPRING	8-97164-925-0	01	1	9712-		●
565	04.302 PIN ASM; REVERSE RESTRICT	8-97164-905-0	01	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
