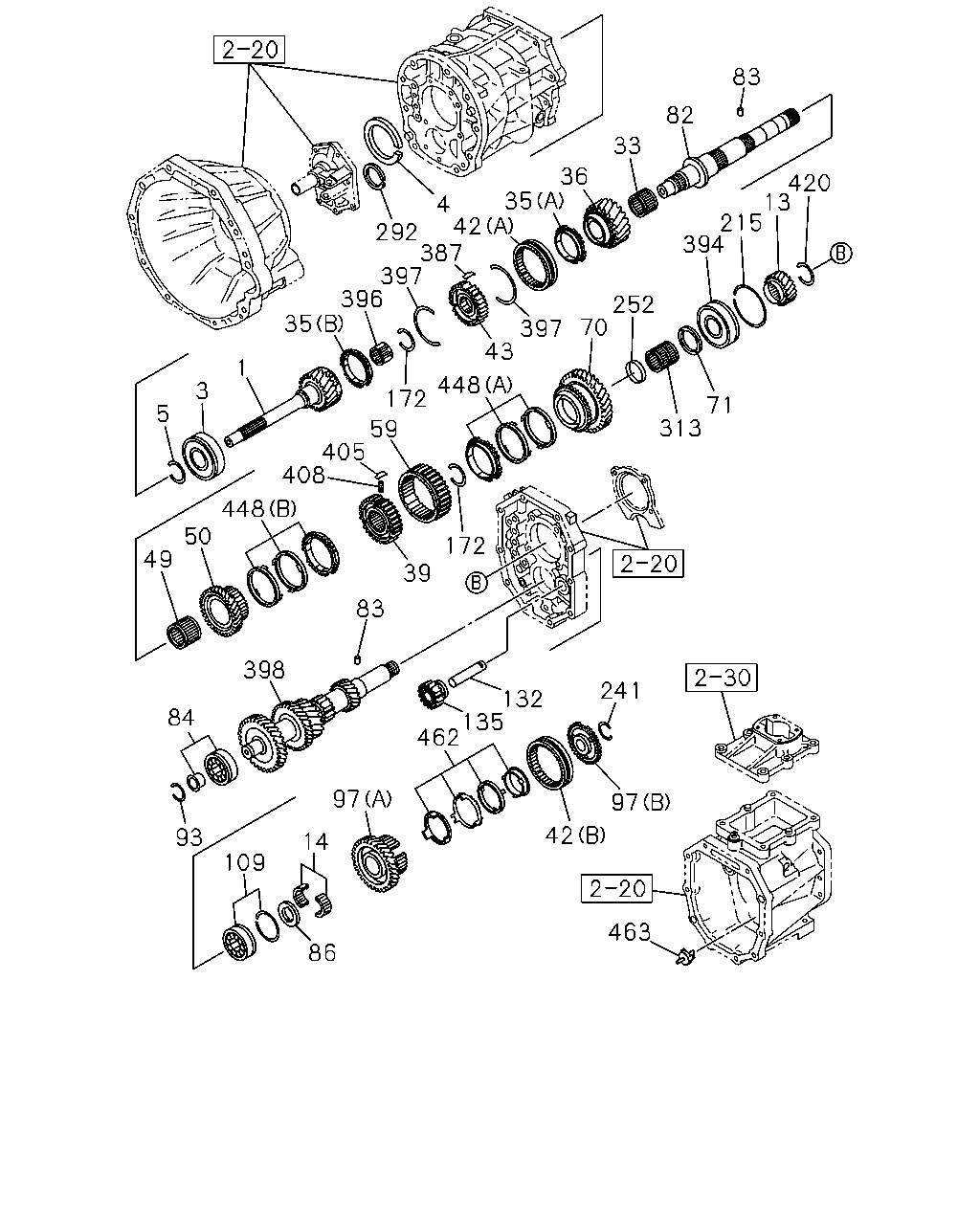

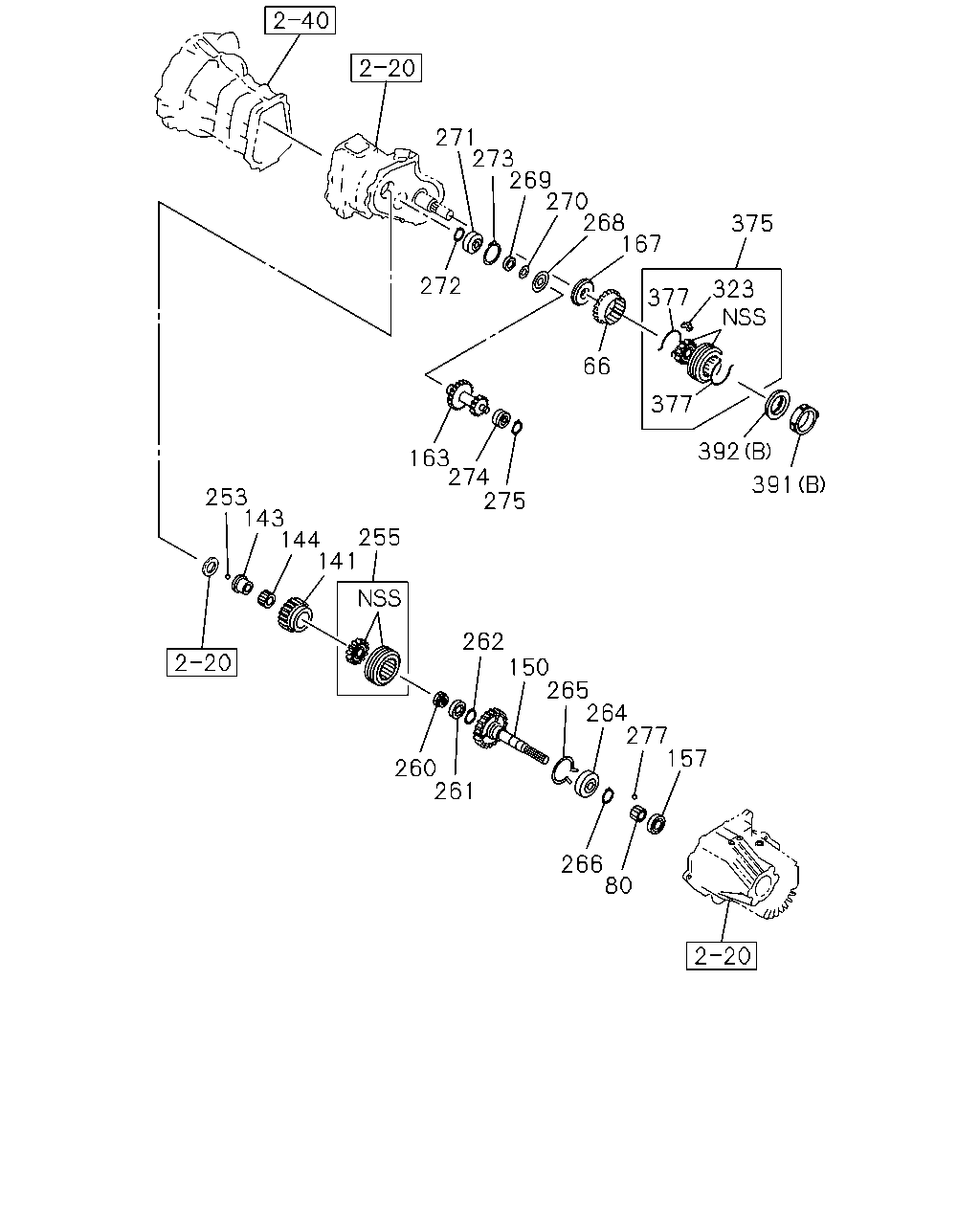

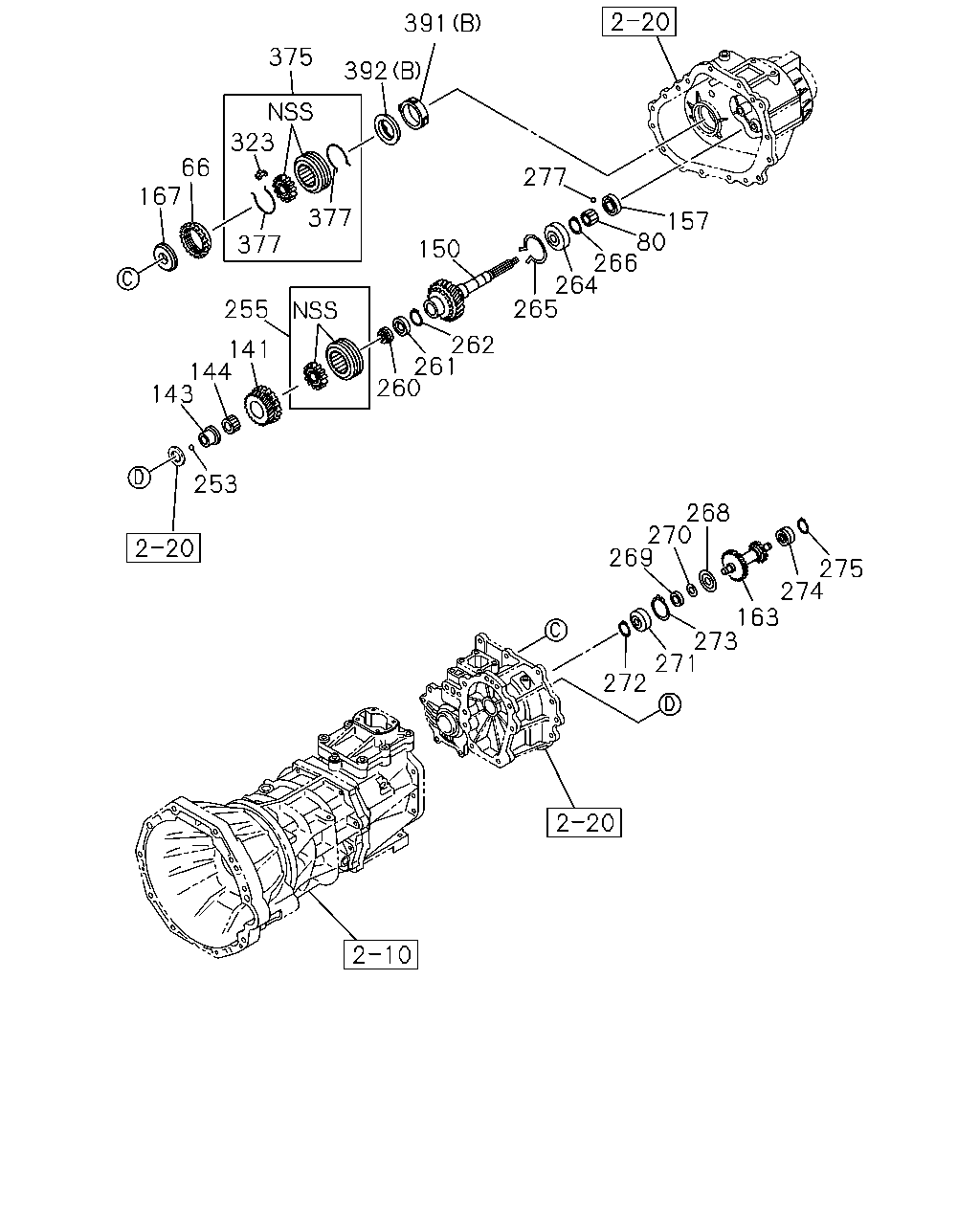

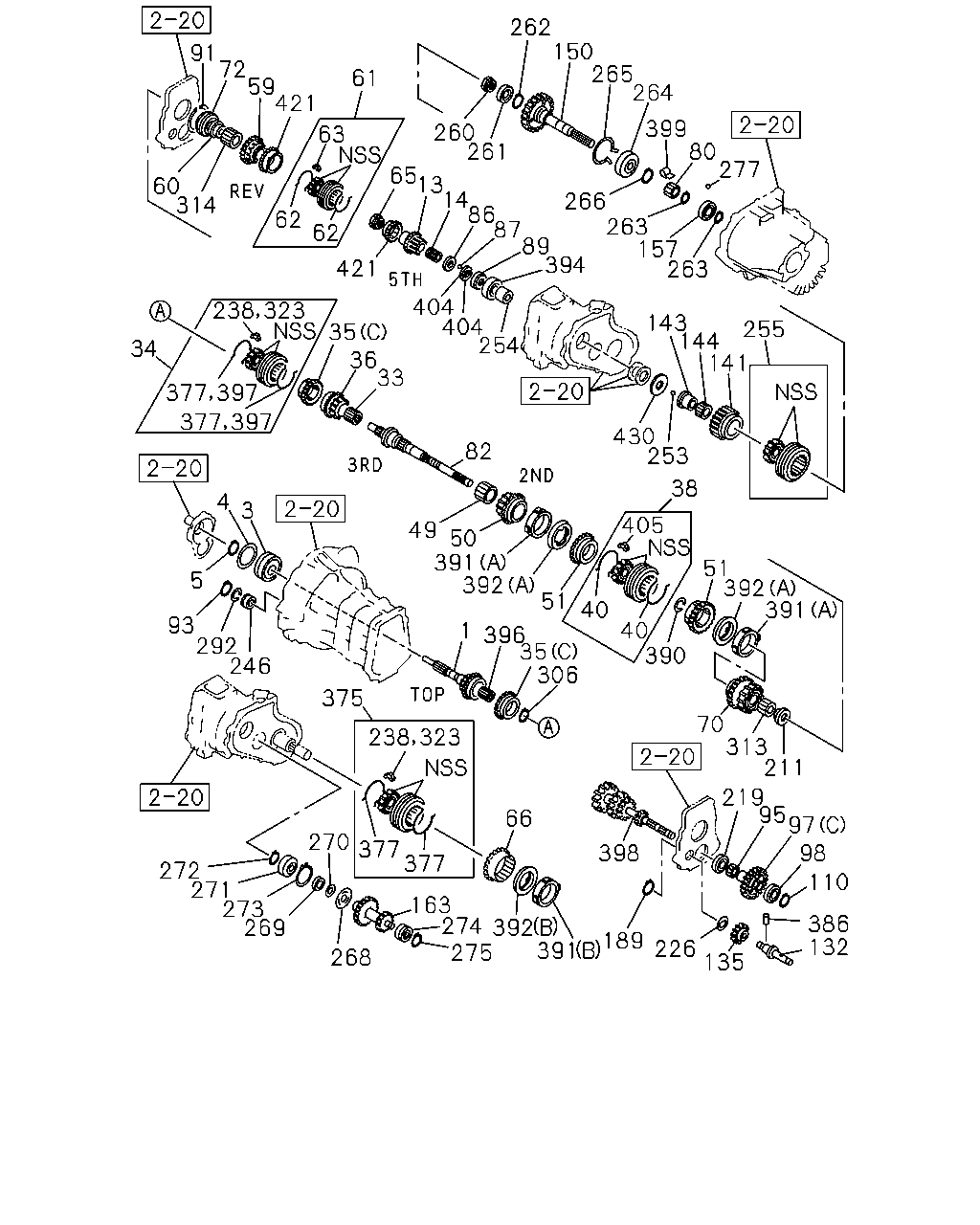

2-26 — MANUAL TRANSMISSION GEAR (#73261) — 596 parça

262 150 265 264 91 72 59 421 61 399 80 277 260 261 63 65 13 14 86 87 89 394 60 314 266 263 157 263 62 62 421 404 404 254 143 144 141 255 35 36 33 34 430 253 82 38 4 3 405 49 50 391 392 51 392 391 5 51 40 93 292 246 40 390 1 396 35 306 375 70 313 211 219 95 97 98 66 270 377 377 398 272 271 273 269 110 163 189 275 391 386 132 135 226 268 238 323 397 377 397 377 238 323 392 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9712-	●
1	04.351 SHAFT; TOP GEAR,TRANS	8-97165-076-0	01	1	9712-0111		●
1	04.351 SHAFT; TOP GEAR,TRANS	8-97328-354-0	01	1	0112-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9712-	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97164-976-0	01	1	9712-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9712-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97165-073-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9712-0004	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0005-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.10	8-97165-064-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.15	8-97165-065-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.20	8-97165-066-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.25	8-97165-067-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.30	8-97165-068-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.35	8-97165-069-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.40	8-97165-070-0	01	1	9712-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9712-	●
13	04.415 GEAR; 5TH,MAINSHAFT	8-97164-981-0	01	1	9712-0111		●
13	04.415 GEAR; 5TH,MAINSHAFT	8-97322-773-0	01	1	0112-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9712-	●
14	04.419 BEARING; NEEDLE,5TH	8-97165-013-0	01	1	9712-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	9712-	●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-97165-014-0	01	1	9712-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9712-9808	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	9809-0105	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0106-	●
35	04.383 RING; BLOCK,4TH & 3RD (C) Z=45	8-94151-510-3	02	1	9712-	●
35	04.383 RING; BLOCK,4TH & 3RD (A)	8-97165-002-0	01	1	9712-		●
35	04.383 RING; BLOCK,4TH & 3RD (B)	8-97165-003-0	01	1	9712-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9712-	●
36	04.415 GEAR; 3RD,MAINSHAFT	8-97164-979-1	01	1	9712-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9712-9808	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	9809-0105	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0106-	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	9712-	●
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9712-	●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-97165-016-0	01	1	9712-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9712-	●
50	04.395 GEAR; 2ND,MAINSHAFT	8-97164-978-0	01	1	9712-		●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	9712-	●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9712-	●
59	04.417 GEAR; REV MAINSHAFT	8-97165-077-0	01	1	9712-		●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	9712-	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9712-9808	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	9809-0105	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0106-	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	9712-	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	9712-	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	9712-	●
66	04.383 RING; BLOCK,SYN	8-97169-516-0	01	1	9712-9902	●	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97169-516-1	01	1	9903-	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>	8-97169-516-1	01	1	9903-			●	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9712-	●
70	04.417 GEAR; 1ST,MAINSHAFT	8-97164-977-0	01	1	9712-		●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	9712-	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) Z=6	8-94472-608-1	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) Z=6	8-94333-535-2	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=6	8-94333-535-2	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9712-9804		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9712-9804			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9805-9902	●	●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9805-9902			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9903-9908	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9903-9908			●
80	04.343 GEAR; SPD DRIVE SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4) Z=6	8-94333-535-2	01	1	9909-9912	●	●	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0001-0105	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	0001-0105			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0106-	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) Z=6	8-94333-535-2	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	9712-9908			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	9909-0105			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	0106-			●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9712-	●
82	04.403 SHAFT; MAIN,TRANS	8-97164-995-0	01	1	9712-		●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH	8-97164-996-0	01	1	9712-		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	9712-	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	9712-	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	9712-	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-	●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.00	8-97165-027-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.05	8-97165-028-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.10	8-97165-029-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.15	8-97165-030-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.20	8-97165-031-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.25	8-97165-032-0	01	1	9712-		●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	9712-	●
97	04.415 GEAR; 5TH,COUNTER (C) Z=50	8-94377-434-0	01	1	9712-	●
97	04.415 GEAR; 5TH,COUNTER (A)	8-97164-980-0	01	1	9712-0111		●
97	04.415 GEAR; 5TH,COUNTER (A)	8-97322-772-0	01	1	0112-		●
97	04.415 GEAR; 5TH,COUNTER (B)	8-97165-090-0	01	1	9712-		●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	9712-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	9712-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	9712-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	9712-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	9712-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	9712-	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	9712-	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	9712-	●
132	04.433 SHAFT; REV	8-97165-006-0	01	1	9712-		●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	9712-	●
135	04.430 GEAR; REV IDLER	8-97164-982-0	01	1	9712-		●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9712-9902	●	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9903-	●	●	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9712-9902	●	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9903-	●	●	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9712-9902	●	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9903-	●	●	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) Z=49	8-97166-157-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) Z=49	8-97166-156-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=49	8-97166-156-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9712-9804		●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9805-9902	●	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9903-	●	●	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) NSK	8-94422-170-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) NSK	8-94422-050-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) NSK	8-94422-050-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9712-9804		●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9805-9902	●	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9903-	●	●	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9712-9902	●	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9903-	●	●	●	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	9712-	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	9712-	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	9712-	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	9712-	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	9712-	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	9712-	●
238	04.384 INSERT	8-94448-202-2	03	1	9809-	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	9712-	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9712-9902	●	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9903-	●	●	●	●
254	04.525 COLLAR; TRANSFER	8-94483-030-2	01	1	9712-	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9712-9902	●	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9903-	●	●	●	●
260	04.412 NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9712-	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9712-9902		●	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9903-		●	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9712-9902	●	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9903-	●	●	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-9902	●	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9903-	●	●	●	●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) 04.416 ID=27.9	9-09180-030-0	02	1	9712-9804	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9712-9902	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9903-	●	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9712-9902	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9903-	●	●	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9712-9902	●	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9903-	●	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9712-9902	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9903-0004	●	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0005-	●	●	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9712-9902	●	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9903-	●	●	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER 4JG2 ENG(RJC)	8-97222-764-0	01	1	9901-9902	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	01	1	9901-9902		●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	01	1	9901-9902			●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9712-9812	●	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	02	1	9901-9902			●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	9903-	●	●	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9712-9902	●	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9903-	●	●	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9712-9902	●	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9903-	●	●	●	●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9712-	●
272	04.525 RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9712-	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9712-9902	●	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9903-	●	●	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9712-9902	●	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9903-	●	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9712-9902	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9903-	●	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9712-9902	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9903-	●	●	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-9902	●	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9903-	●	●	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9712-9902	●	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9903-	●	●	●	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9712-	●
292	04.422 RING; SNAP,BRG OUTER	8-97165-071-0	01	1	9712-		●
306	04.416 RING; SNAP,MAINSHAFT T=1.90 BLUE	8-97129-615-0	01	1	9712-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.85 YELLOW	8-97129-616-0	01	1	9712-	●
306	04.416 RING; SNAP,MAINSHAFT T=1.80 WHITE	8-97129-617-0	01	1	9712-	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9712-	●
313	04.419 BEARING; NEEDLE,LOW GEAR	8-97165-015-0	01	1	9712-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	9712-	●
314	04.419 BEARING; NEEDLE,REV GEAR KOYO	8-94422-065-1	01	1	9809-	●
323	04.384 INSERT	8-94448-202-1	03	1	9712-9808	●	●	●
323	04.384 INSERT	8-94448-202-1	03	1	9712-9808	●
323	04.384 INSERT	8-94448-202-2	03	1	9809-9902		●	●
323	04.384 INSERT	8-94448-202-2	03	1	9903-9912		●	●	●
323	04.384 INSERT SHIFT ON THE FLY(7EX)	8-94448-202-2	03	1	0001-		●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97104-027-0	01	1	9809-0105	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97188-798-0	01	1	0106-	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9712-9902	●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9903-9908	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9903-9908			●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9909-9912	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9909-9912				●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9909-9912			●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	0001-	●	●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97104-027-0	01	1	9712-		●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9712-9808	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9712-9808	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9809-9902		●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9903-9912		●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	0001-		●	●	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	9712-	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	9712-	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	9712-	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	9712-	●
391	04.383 RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9712-	●
391	04.383 RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9712-9902	●	●	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9903-	●	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> (B)	8-97101-452-0	01	1	9903-			●	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9712-	●
392	04.383 RING; OUTSIDE,SYN (B)	8-97169-514-0	01	1	9712-9902	●	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97169-514-1	01	1	9903-	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> (B)	8-97169-514-1	01	1	9903-			●	●
394	04.419 BEARING; BALL,MAINSHAFT RR 04.352 NSK	8-97018-921-1	01	1	9712-	●
394	04.419 BEARING; BALL,MAINSHAFT RR	8-97164-975-0	01	1	9712-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9712-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97165-012-0	01	1	9712-		●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	9809-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97165-004-0	02	1	9712-		●
398	04.421 GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	9712-	●
398	04.421 GEAR; COUNTER	8-97164-983-0	01	1	9712-0111		●
398	04.421 GEAR; COUNTER	8-97328-374-0	01	1	0112-		●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX)	8-94310-229-0	01	1	9712-9804	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	9712-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9712-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-97165-000-0	03	1	9712-		●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	9712-	●
430	04.525 PLATE; OIL SEAL,TRANSFER 04.537	8-94482-379-2	01	1	9712-	●

83 82 33 36 420 13 215 394 35 4 42 292 387 397 396 35 252 70 397 43 1 448 3 172 71 313 5 59 405 408 448 50 172 49 39 83 398 241 132 135 462 84 97 97 42 93 14 109 463 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.351 SHAFT; TOP GEAR,TRANS Z=25	8-97182-212-0	01	1	9712-	●
1	04.351 SHAFT; TOP GEAR,TRANS	8-97165-076-0	01	1	9712-0111		●
1	04.351 SHAFT; TOP GEAR,TRANS	8-97328-354-0	01	1	0112-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	9712-	●
3	04.403 BEARING; TOP GEAR SHAFT	8-97164-976-0	01	1	9712-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	9712-	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT	8-97165-073-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.0 OD=53.0	8-94422-093-0	01	1	9712-0004	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0005-	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.10	8-97165-064-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.15	8-97165-065-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.20	8-97165-066-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.25	8-97165-067-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.30	8-97165-068-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.35	8-97165-069-0	01	1	9712-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT T=2.40	8-97165-070-0	01	1	9712-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-2	01	1	9712-	●
13	04.415 GEAR; 5TH,MAINSHAFT	8-97164-981-0	01	1	9712-0111		●
13	04.415 GEAR; 5TH,MAINSHAFT	8-97322-773-0	01	1	0112-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	9712-	●
14	04.419 BEARING; NEEDLE,5TH	8-97165-013-0	01	1	9712-		●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	9712-	●
33	04.352 BEARING; NEEDLE,3RD GEAR	8-97165-014-0	01	1	9712-		●
35	04.383 RING; BLOCK,4TH & 3RD (C) Z=45	8-94151-510-3	02	1	9712-	●
35	04.383 RING; BLOCK,4TH & 3RD (A)	8-97165-002-0	01	1	9712-		●
35	04.383 RING; BLOCK,4TH & 3RD (B)	8-97165-003-0	01	1	9712-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=29	8-97104-022-2	01	1	9712-	●
36	04.415 GEAR; 3RD,MAINSHAFT	8-97164-979-1	01	1	9712-		●
39	04.384 HUB; CLU,LOW & 2ND	8-97164-971-0	01	1	9712-		●
42	04.383 SLEEVE (A)	8-97164-998-0	01	1	9712-		●
42	04.383 SLEEVE (B)	8-97165-005-0	01	1	9712-		●
43	04.384 HUB; CLU,3RD & 4TH,MAIN	8-97164-972-0	01	1	9712-		●
49	04.352 BEARING; NEEDLE,2ND GEAR KOYO	9-00096-625-0	01	1	9712-	●
49	04.352 BEARING; NEEDLE,2ND GEAR	8-97165-016-0	01	1	9712-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=33	8-97025-872-0	01	1	9712-	●
50	04.395 GEAR; 2ND,MAINSHAFT	8-97164-978-0	01	1	9712-		●
59	04.417 GEAR; REV MAINSHAFT Z=40	8-97104-024-2	01	1	9712-	●
59	04.417 GEAR; REV MAINSHAFT	8-97165-077-0	01	1	9712-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=43	8-94363-057-0	01	1	9712-	●
70	04.417 GEAR; 1ST,MAINSHAFT	8-97164-977-0	01	1	9712-		●
71	04.406 WASHER; THRUST,LOW	8-97164-997-0	01	1	9712-		●
82	04.403 SHAFT; MAIN,TRANS Z=28-34-26-27	8-97120-039-0	01	1	9712-	●
82	04.403 SHAFT; MAIN,TRANS	8-97164-995-0	01	1	9712-		●
83	04.399 PIN; THRUST WASHER	8-97164-974-0	02	1	9712-		●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-97165-017-0	01	1	9712-		●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	9712-	●
86	04.416 WASHER; THRUST,5TH	8-97164-996-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-	●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.00	8-97165-027-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.05	8-97165-028-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.10	8-97165-029-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.15	8-97165-030-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.20	8-97165-031-0	01	1	9712-		●
93	04.422 RING; SNAP,COUNTER FRT BRG T=2.25	8-97165-032-0	01	1	9712-		●
97	04.415 GEAR; 5TH,COUNTER (C) Z=50	8-94377-434-0	01	1	9712-	●
97	04.415 GEAR; 5TH,COUNTER (A)	8-97164-980-0	01	1	9712-0111		●
97	04.415 GEAR; 5TH,COUNTER (A)	8-97322-772-0	01	1	0112-		●
97	04.415 GEAR; 5TH,COUNTER (B)	8-97165-090-0	01	1	9712-		●
109	04.422 BEARING; COUNTER SHAFT,RR	8-97165-018-0	01	1	9712-		●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	9712-	●
132	04.433 SHAFT; REV	8-97165-006-0	01	1	9712-		●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	9712-	●
135	04.430 GEAR; REV IDLER	8-97164-982-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=1.80	8-97165-050-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=1.85	8-97165-051-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=1.90	8-97165-052-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=1.95	8-97165-053-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.00	8-97165-054-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.05	8-97165-055-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.10	8-97165-056-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.30	8-97165-057-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.35	8-97165-058-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.40	8-97165-059-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.45	8-97165-060-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.50	8-97165-061-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.55	8-97165-062-0	01	1	9712-		●
172	04.412 RING; SNAP,CLU HUB T=2.60	8-97165-063-0	01	1	9712-		●
215	04.416 RING; SNAP,BALL BRG	8-97165-072-0	01	1	9712-		●
241	04.416 RING; SNAP T=2.85	8-97165-020-0	01	1	9712-		●
241	04.416 RING; SNAP T=2.90	8-97165-021-0	01	1	9712-		●
241	04.416 RING; SNAP T=2.95	8-97165-022-0	01	1	9712-		●
241	04.416 RING; SNAP T=3.00	8-97165-023-0	01	1	9712-		●
241	04.416 RING; SNAP T=3.05	8-97165-024-0	01	1	9712-		●
241	04.416 RING; SNAP T=3.10	8-97165-025-0	01	1	9712-		●
241	04.416 RING; SNAP T=3.15	8-97165-026-0	01	1	9712-		●
252	04.412 SPACER	8-97164-973-0	01	1	9712-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	9712-	●
292	04.422 RING; SNAP,BRG OUTER	8-97165-071-0	01	1	9712-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	9712-	●
313	04.419 BEARING; NEEDLE,LOW GEAR	8-97165-015-0	01	1	9712-		●
387	04.384 INSERT; SYN,4TH & 3RD	8-97165-001-0	03	1	9712-		●
394	04.419 BEARING; BALL,MAINSHAFT RR 04.352 NSK	8-97018-921-1	01	1	9712-	●
394	04.419 BEARING; BALL,MAINSHAFT RR	8-97164-975-0	01	1	9712-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	9712-	●
396	04.352 BEARING; NEEDLE,MAINSHAFT	8-97165-012-0	01	1	9712-		●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	9809-	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-97165-004-0	02	1	9712-		●
398	04.421 GEAR; COUNTER Z=46-38-27-21	8-97100-912-1	01	1	9712-	●
398	04.421 GEAR; COUNTER	8-97164-983-0	01	1	9712-0111		●
398	04.421 GEAR; COUNTER	8-97328-374-0	01	1	0112-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	9712-	●
405	04.384 INSERT; SYN,LOW & 2ND	8-97165-000-0	03	1	9712-		●
408	04.384 SPRING	8-97165-019-0	03	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=2.75	8-97165-035-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=2.80	8-97165-036-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=2.85	8-97165-037-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=2.90	8-97165-038-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=2.95	8-97165-039-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=3.00	8-97165-040-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=3.05	8-97165-041-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=3.10	8-97165-042-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=3.15	8-97165-043-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=3.20	8-97165-044-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=3.25	8-97165-045-0	01	1	9712-		●
420	04.416 RING; SNAP,OUTPUT SHAFT T=3.30	8-97165-046-0	01	1	9712-		●
448	04.380 SYNCHRONIZER ASM; 1ST & 2ND (A)	8-97164-968-0	01	1	9712-		●
448	04.380 SYNCHRONIZER ASM; 1ST & 2ND (B)	8-97164-969-1	01	1	9712-		●
462	04.383 RING ASM; BLOCK,SYNCHRONIZER	8-97164-970-0	01	1	9712-		●
463	04.422 PIPE; COUNTER SHAFT	8-97164-985-0	01	1	9712-		●

271 273 269 270 268 167 375 272 323 377 66 377 392 163 274 275 391 253 143 144 255 141 262 150 265 264 277 157 260 261 266 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
66	04.383 RING; BLOCK,SYN	8-97169-516-0	01	1	9712-9902	●	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97169-516-1	01	1	9903-	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>	8-97169-516-1	01	1	9903-			●	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) Z=6	8-94472-608-1	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) Z=6	8-94333-535-2	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=6	8-94333-535-2	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9712-9804		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9712-9804			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9805-9902	●	●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9805-9902			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9903-9908	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9903-9908			●
80	04.343 GEAR; SPD DRIVE SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4) Z=6	8-94333-535-2	01	1	9909-9912	●	●	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0001-0105	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	0001-0105			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0106-	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) Z=6	8-94333-535-2	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	9712-9908			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	9909-0105			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	0106-			●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9712-9902	●	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9903-	●	●	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9712-9902	●	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9903-	●	●	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9712-9902	●	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9903-	●	●	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) Z=49	8-97166-157-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) Z=49	8-97166-156-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=49	8-97166-156-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9712-9804		●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9805-9902	●	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9903-	●	●	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) NSK	8-94422-170-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) NSK	8-94422-050-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) NSK	8-94422-050-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9712-9804		●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9805-9902	●	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9903-	●	●	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9712-9902	●	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9903-	●	●	●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	9712-9902		●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	9903-9912		●	●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER SHIFT ON THE FLY(7EX)	8-97102-940-0	01	1	0001-		●	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9712-9902	●	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9903-	●	●	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9712-9902	●	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9903-	●	●	●	●
260	04.412 NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9712-	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9712-9902		●	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9903-		●	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9712-9902	●	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9903-	●	●	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-9902	●	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9903-	●	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9712-9902	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9903-	●	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9712-9902	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9903-	●	●	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9712-9902	●	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9903-	●	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9712-9902	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9903-0004	●	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0005-	●	●	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9712-9902	●	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9903-	●	●	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER 4JG2 ENG(RJC)	8-97222-764-0	01	1	9901-9902	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	01	1	9901-9902		●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	01	1	9901-9902			●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9712-9812	●	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	02	1	9901-9902			●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	9903-	●	●	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9712-9902	●	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9903-	●	●	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9712-9902	●	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9903-	●	●	●	●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9712-	●
272	04.525 RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9712-	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9712-9902	●	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9903-	●	●	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9712-9902	●	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9903-	●	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9712-9902	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9903-	●	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9712-9902	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9903-	●	●	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-9902	●	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9903-	●	●	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9712-9902	●	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9903-	●	●	●	●
323	04.384 INSERT	8-94448-202-1	03	1	9712-9808	●	●	●
323	04.384 INSERT	8-94448-202-1	03	1	9712-9808	●
323	04.384 INSERT	8-94448-202-2	03	1	9809-9902		●	●
323	04.384 INSERT	8-94448-202-2	03	1	9903-9912		●	●	●
323	04.384 INSERT SHIFT ON THE FLY(7EX)	8-94448-202-2	03	1	0001-		●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97104-027-0	01	1	9809-0105	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97188-798-0	01	1	0106-	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9712-9902	●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9903-9908	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9903-9908			●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9909-9912	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9909-9912				●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9909-9912			●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	0001-	●	●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97104-027-0	01	1	9712-		●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9712-9808	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9712-9808	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9809-9902		●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9903-9912		●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	0001-		●	●	●
391	04.383 RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9712-	●
391	04.383 RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9712-9902	●	●	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9903-	●	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> (B)	8-97101-452-0	01	1	9903-			●	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9712-	●
392	04.383 RING; OUTSIDE,SYN (B)	8-97169-514-0	01	1	9712-9902	●	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97169-514-1	01	1	9903-	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> (B)	8-97169-514-1	01	1	9903-			●	●

391 375 392 323 66 167 277 377 157 80 266 264 265 377 150 255 262 261 260 141 144 143 253 268 270 269 275 274 163 273 271 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
66	04.383 RING; BLOCK,SYN	8-97169-516-0	01	1	9712-9902	●	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX)	8-97169-516-1	01	1	9903-	●	●
66	04.383 RING; BLOCK,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>	8-97169-516-1	01	1	9903-			●	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) Z=6	8-94472-608-1	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) Z=6	8-94333-535-2	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=6	8-94333-535-2	01	1	9712-9804	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9712-9804		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9712-9804			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9805-9902	●	●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9805-9902			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	9903-9908	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	9903-9908			●
80	04.343 GEAR; SPD DRIVE SUSPENSION RIDE & HANDLING<FE2> EXC. EUROPE EQUIPMENT(EK4) Z=6	8-94333-535-2	01	1	9909-9912	●	●	●	●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0001-0105	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	0001-0105			●
80	04.343 GEAR; SPD DRIVE Z=6	8-94333-535-2	01	1	0106-	●	●		●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) Z=6	8-94333-535-2	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) Z=6	8-94333-535-2	01	1	0106-			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	9712-9908			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	9909-0105			●
80	04.343 GEAR; SPD DRIVE FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=6	8-97169-435-0	01	1	0106-			●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9712-9902	●	●	●
141	04.535 GEAR; INPUT,TRANSFER Z=34	8-97141-878-0	01	1	9903-	●	●	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9712-9902	●	●	●
143	04.525 COLLAR; INPUT GEAR BRG,TRANSFER	8-94482-579-1	01	1	9903-	●	●	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9712-9902	●	●	●
144	04.525 BEARING; NEEDLE,INPUT GEAR 04.419 NSK	1-09811-028-1	01	1	9903-	●	●	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) Z=49	8-97166-157-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) Z=49	8-97166-156-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=49	8-97166-156-0	01	1	9712-9804	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9712-9804		●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9805-9902	●	●	●
150	04.530 SHAFT; OUTPUT,RR WHEEL DRIVE Z=49	8-97166-156-0	01	1	9903-	●	●	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) NSK	8-94422-170-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX) NSK	8-94422-050-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) NSK	8-94422-050-0	01	1	9712-9804	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-0	01	1	9712-9804		●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9805-9902	●	●	●
157	04.520 BEARING; BALL,OUTPUT SHAFT NSK	8-94422-050-1	01	1	9903-	●	●	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9712-9902	●	●	●
163	04.535 GEAR; COUNTER,TRANSFER Z=37-26	8-97165-317-0	01	1	9903-	●	●	●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	9712-9902		●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER	8-97102-940-0	01	1	9903-9912		●	●	●
167	04.422 PLATE; LK,COUNTER SHAFT,TRANSFER SHIFT ON THE FLY(7EX)	8-97102-940-0	01	1	0001-		●	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9712-9902	●	●	●
253	04.535 BALL; INPUT 04.416	8-94201-356-0	01	1	9903-	●	●	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9712-9902	●	●	●
255	04.538 SYNCHRONIZER ASM; LOW-HIGH,TRANS	8-97141-885-1	01	1	9903-	●	●	●	●
260	04.412 NUT; MAINSHAFT END M30	8-94422-072-1	01	1	9712-	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9712-9902		●	●
260	04.412 NUT; MAINSHAFT END M27	8-94388-182-1	01	1	9903-		●	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9712-9902	●	●	●
261	04.525 BEARING; PILOT,OUTPUT SHAFT NSK	8-94422-176-0	01	1	9903-	●	●	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-9902	●	●	●
262	04.525 RING; SNAP,PILOT BRG 08.934 ID=23.2	9-09180-025-0	01	1	9903-	●	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9712-9902	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT NSK	8-94422-054-1	01	1	9903-	●	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9712-9902	●	●	●
264	04.520 BEARING; RR OUTPUT SHAFT,FRT KOYO	8-94422-055-1	01	1	9903-	●	●	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9712-9902	●	●	●
265	04.525 RING; SNAP,BRG OUTER OD=95.0	8-94422-091-0	01	1	9903-	●	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9712-9902	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.0 OD=53.0	8-94422-093-0	01	1	9903-0004	●	●	●	●
266	04.525 RING; SNAP,BRG INNER ID=37.4	8-97254-316-0	01	1	0005-	●	●	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9712-9902	●	●	●
268	04.537 PLATE; ANTI LASH,COUNTER	8-97164-348-0	01	1	9903-	●	●	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER 4JG2 ENG(RJC)	8-97222-764-0	01	1	9901-9902	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	01	1	9901-9902		●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER FINAL GEAR RATIO 41/9(HC6),FINAL GEAR RATIO 43/10(S7C) EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	01	1	9901-9902			●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-94482-469-1	01	1	9712-9812	●	●	●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER FINAL GEAR RATIO 41/10(GT5) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>	8-97222-764-0	02	1	9901-9902			●
269	04.537 SPACER; ANTI LASH PLATE,COUNTER	8-97222-764-0	01	1	9903-	●	●	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9712-9902	●	●	●
270	04.520 SPRING; BELLEVILLE,ANTI LASH,TRA 04.537	8-94482-498-0	01	1	9903-	●	●	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9712-9902	●	●	●
271	04.520 BEARING; COUNTER GEAR,FRT NSK	8-94422-050-1	01	1	9903-	●	●	●	●
272	04.525 RING; SNAP,BRG INNER T=1.55 YELLOW	8-94448-809-0	01	1	9712-	●
272	04.525 RING; SNAP,BRG INNER T=1.60 BLUE	8-94448-810-0	01	1	9712-	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9712-9902	●	●	●
272	04.525 RING; SNAP,BRG INNER T=1.50 WHITE	8-94448-808-0	01	1	9903-	●	●	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9712-9902	●	●	●
273	04.525 RING; SNAP,BRG OUTER OD=77.0	8-94422-092-0	01	1	9903-	●	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9712-9902	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR NSK	8-97080-184-0	01	1	9903-	●	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9712-9902	●	●	●
274	04.520 BEARING; COUNTER GEAR,RR KOYO	8-97080-185-0	01	1	9903-	●	●	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9712-9902	●	●	●
275	04.525 RING; SNAP,COUNTER GEAR BRG 08.934 ID=23.2	9-09180-025-0	01	1	9903-	●	●	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9712-9902	●	●	●
277	04.345 BALL; SPD DRIVE GEAR 04.416	8-94201-356-0	01	1	9903-	●	●	●	●
323	04.384 INSERT	8-94448-202-1	03	1	9712-9808	●	●	●
323	04.384 INSERT	8-94448-202-1	03	1	9712-9808	●
323	04.384 INSERT	8-94448-202-2	03	1	9809-9902		●	●
323	04.384 INSERT	8-94448-202-2	03	1	9903-9912		●	●	●
323	04.384 INSERT SHIFT ON THE FLY(7EX)	8-94448-202-2	03	1	0001-		●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97104-027-0	01	1	9809-0105	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97188-798-0	01	1	0106-	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9712-9902	●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9903-9908	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9903-9908			●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	9909-9912	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH 4JX1 ENG(RJM) EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9909-9912				●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX),TORQUE ON DEMAND<7HA>	8-97104-026-0	01	1	9909-9912			●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH EXC. SHIFT ON THE FLY(7EX)	8-97104-026-0	01	1	0001-	●	●	●	●
375	04.380 SYNCHRONIZER ASM; 2ND & 4TH SHIFT ON THE FLY(7EX)	8-97104-027-0	01	1	9712-		●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9712-9808	●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9712-9808	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9809-9902		●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS	8-94422-075-0	02	1	9903-9912		●	●	●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS SHIFT ON THE FLY(7EX)	8-94422-075-0	02	1	0001-		●	●	●
391	04.383 RING; INSIDE,SYN (A) OD=95.8	8-94363-056-0	02	1	9712-	●
391	04.383 RING; INSIDE,SYN (B)	8-97101-452-0	01	1	9712-9902	●	●	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97101-452-0	01	1	9903-	●	●
391	04.383 RING; INSIDE,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> (B)	8-97101-452-0	01	1	9903-			●	●
392	04.383 RING; OUTSIDE,SYN (A) OD=90.0	8-94363-055-1	02	1	9712-	●
392	04.383 RING; OUTSIDE,SYN (B)	8-97169-514-0	01	1	9712-9902	●	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) (B)	8-97169-514-1	01	1	9903-	●	●
392	04.383 RING; OUTSIDE,SYN SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> (B)	8-97169-514-1	01	1	9903-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
