Sayfa 2-25 - Isuzu EPC

2-25 — SPEEDOMETER DRIVEN GEAR (#73260) — 594 parça

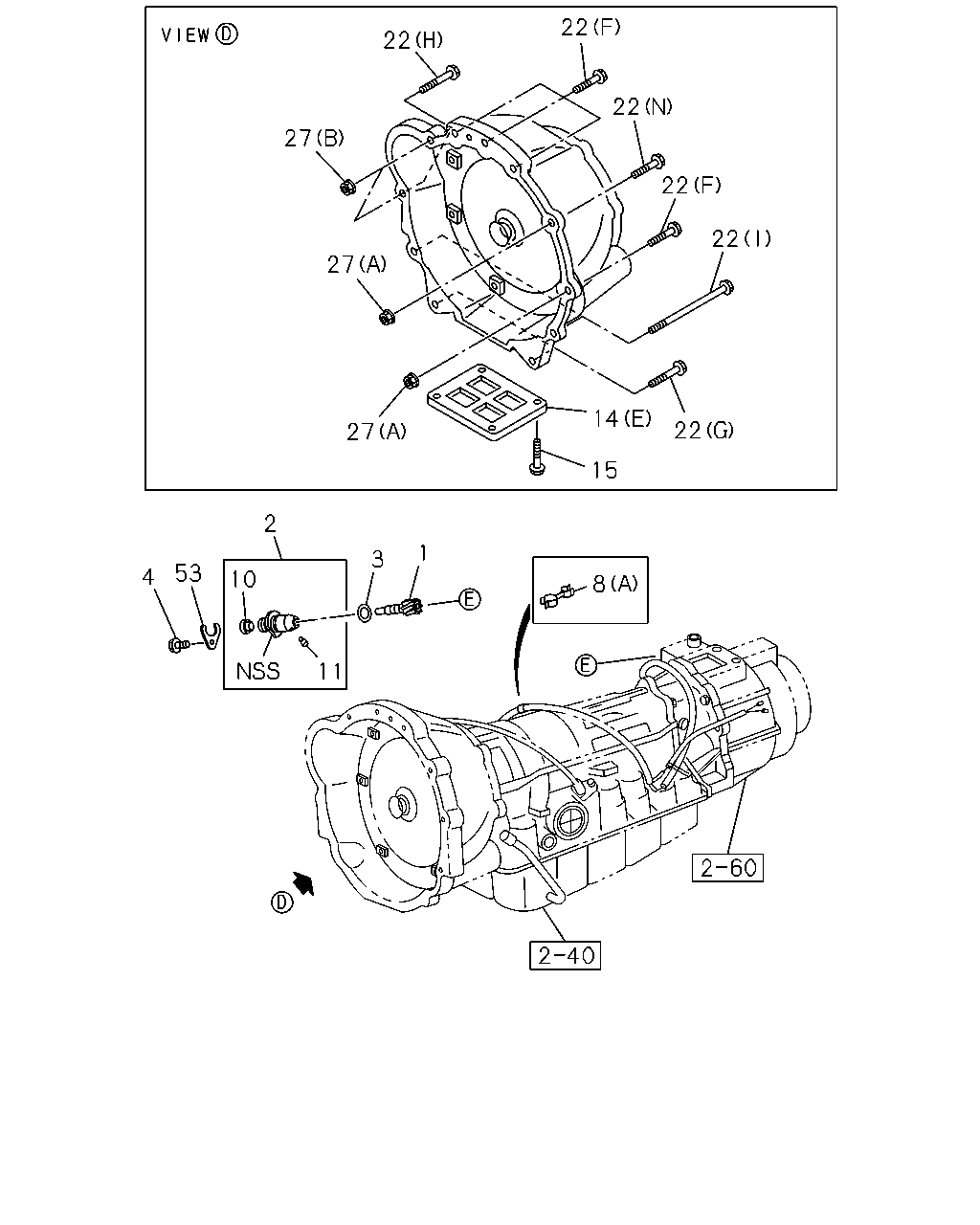

22 22 22 27 22 22 27 14 22 27 15 2 1 3 53 4 10 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-2	01	1	9712-	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9712-0105	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9712-0105			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-2	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9712-9902		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	9712-9902				●
1	04.337 GEAR; DRIVEN,SPD EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) Z=17	8-97012-085-1	01	1	9903-9912				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0001-0005			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008			●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0006-0008			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=17	8-97012-085-1	01	1	0009-0102		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102			●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105		●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105			●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3),ONE TOUCH4X4 SYSTEM(7QY) Z=17	8-97012-085-2	01	1	0106-		●	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=16	8-97169-434-0	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=16	8-97169-434-1	01	1	0106-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9712-	●	●	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	9712-	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-	●	●	●	●
8	04.338 CLIP 4JX1 ENG(RJM) 03.163 (A) ID=13 & 4.75	8-94447-856-0	01	1	9909-0010			●
8	04.338 CLIP 02.343 (B) ID=16	8-94413-325-0	01	1	9909-			●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	9712-	●	●	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A)	8-97164-174-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C)	8-97164-176-3	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (B)	8-97164-175-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 4JG2 ENG(RJC) (D)	8-97061-582-0	01	1	9712-			●
14	00.679 COVER; UNDER,TRANS 4JX1 ENG(RJM) (E)	8-97180-258-0	01	1	9909-			●
14	00.679 COVER; UNDER,TRANS (A)	8-97164-521-1	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-547-3	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-518-1	01	1	9712-				●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> M10X45 FLANGE	0-28081-045-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-	●	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.163 M6X40 FLANGE	0-28680-640-0	02	1	9712-		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9801-9908			●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9909-			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.500 M6X10 FLANGE	0-28080-610-0	08	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (G) M10X60 FLANGE	0-28081-060-0	02	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (H) M12X40 FLANGE	0-28081-240-0	01	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.042 (B) M12X80	0-28081-280-0	01	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) M12X45 FLANGE	0-28181-245-0	05	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C) M12X50 FLANGE	0-28181-250-0	02	1	9712-	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9712-9804	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9805-0010	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (D) M12X90	0-28081-290-0	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (E) M12X85 FLANGE	8-94480-345-1	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X35 FLANGE	0-28081-035-0	01	1	9712-9804			●
22	00.685 BOLT; TRANS CASE TO ENG 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9805-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9909-0010			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28081-245-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (H) M12X45 FLANGE	0-28081-245-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (I) M12X60 FLANGE	0-28081-260-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (I) M12X60 FLANGE	0-28081-260-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176	8-97163-249-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (G) M12X176	8-97163-249-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) (N) M10X35 FLANGE	0-28081-035-0	01	1	9909-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (N) M10X35 FLANGE	0-28081-035-0	01	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (J) M12X70 FLANGE	0-28081-270-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (K) M12X40 FLANGE	0-28181-240-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28181-245-0	02	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.669 (M) M10X40 FLANGE	0-28781-040-0	02	1	9712-				●
27	00.685 NUT; CLU HSG TO TRANS 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-9908			●
27	00.685 NUT; CLU HSG TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9909-			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9801-9809			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9712-9908			●
27	00.685 NUT; CLU HSG TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9909-			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (C) M12 FLANGE	0-91150-112-0	01	1	9712-				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9712-0206	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97352-311-0	01	1	0207-0207	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0207-	●	●	●	●

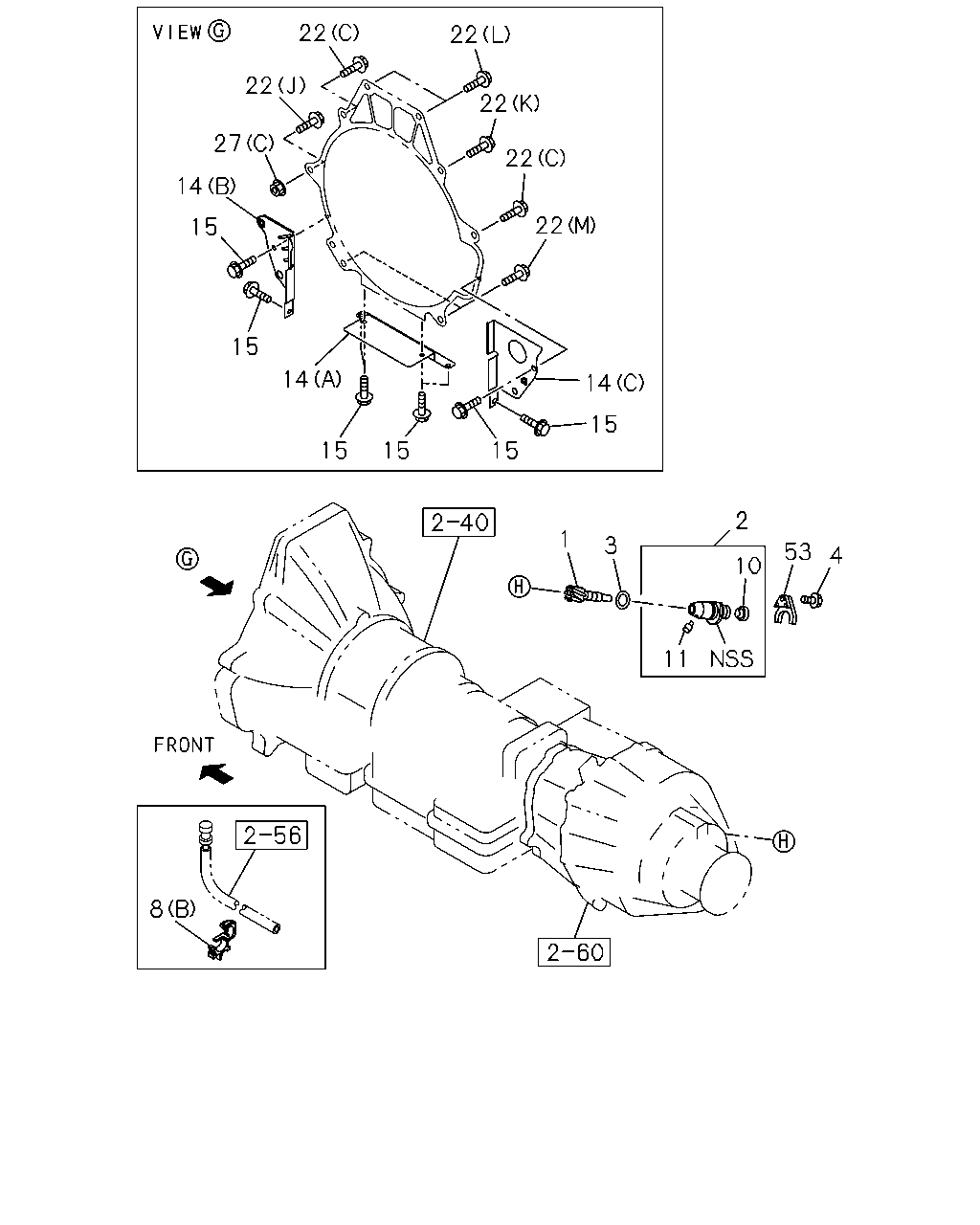

22 22 22 22 27 22 14 22 15 15 14 14 15 15 15 15 2 1 3 53 4 10 11 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-2	01	1	9712-	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9712-0105	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9712-0105			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-2	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9712-9902		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	9712-9902				●
1	04.337 GEAR; DRIVEN,SPD EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) Z=17	8-97012-085-1	01	1	9903-9912				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0001-0005			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008			●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0006-0008			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=17	8-97012-085-1	01	1	0009-0102		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102			●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105		●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105			●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3),ONE TOUCH4X4 SYSTEM(7QY) Z=17	8-97012-085-2	01	1	0106-		●	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=16	8-97169-434-0	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=16	8-97169-434-1	01	1	0106-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9712-	●	●	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	9712-	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-	●	●	●	●
8	04.338 CLIP 4JX1 ENG(RJM) 03.163 (A) ID=13 & 4.75	8-94447-856-0	01	1	9909-0010			●
8	04.338 CLIP 02.343 (B) ID=16	8-94413-325-0	01	1	9909-			●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	9712-	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	9712-	●	●	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A)	8-97164-174-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C)	8-97164-176-3	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (B)	8-97164-175-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 4JG2 ENG(RJC) (D)	8-97061-582-0	01	1	9712-			●
14	00.679 COVER; UNDER,TRANS 4JX1 ENG(RJM) (E)	8-97180-258-0	01	1	9909-			●
14	00.679 COVER; UNDER,TRANS (A)	8-97164-521-1	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-547-3	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-518-1	01	1	9712-				●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> M10X45 FLANGE	0-28081-045-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-	●	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.163 M6X40 FLANGE	0-28680-640-0	02	1	9712-		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9801-9908			●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9909-			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.500 M6X10 FLANGE	0-28080-610-0	08	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (G) M10X60 FLANGE	0-28081-060-0	02	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (H) M12X40 FLANGE	0-28081-240-0	01	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.042 (B) M12X80	0-28081-280-0	01	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) M12X45 FLANGE	0-28181-245-0	05	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C) M12X50 FLANGE	0-28181-250-0	02	1	9712-	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9712-9804	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9805-0010	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (D) M12X90	0-28081-290-0	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (E) M12X85 FLANGE	8-94480-345-1	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X35 FLANGE	0-28081-035-0	01	1	9712-9804			●
22	00.685 BOLT; TRANS CASE TO ENG 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9805-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9909-0010			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28081-245-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (H) M12X45 FLANGE	0-28081-245-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (I) M12X60 FLANGE	0-28081-260-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (I) M12X60 FLANGE	0-28081-260-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176	8-97163-249-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (G) M12X176	8-97163-249-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) (N) M10X35 FLANGE	0-28081-035-0	01	1	9909-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (N) M10X35 FLANGE	0-28081-035-0	01	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (J) M12X70 FLANGE	0-28081-270-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (K) M12X40 FLANGE	0-28181-240-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28181-245-0	02	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.669 (M) M10X40 FLANGE	0-28781-040-0	02	1	9712-				●
27	00.685 NUT; CLU HSG TO TRANS 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-9908			●
27	00.685 NUT; CLU HSG TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9909-			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9801-9809			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9712-9908			●
27	00.685 NUT; CLU HSG TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9909-			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (C) M12 FLANGE	0-91150-112-0	01	1	9712-				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9712-0206	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97352-311-0	01	1	0207-0207	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0207-	●	●	●	●

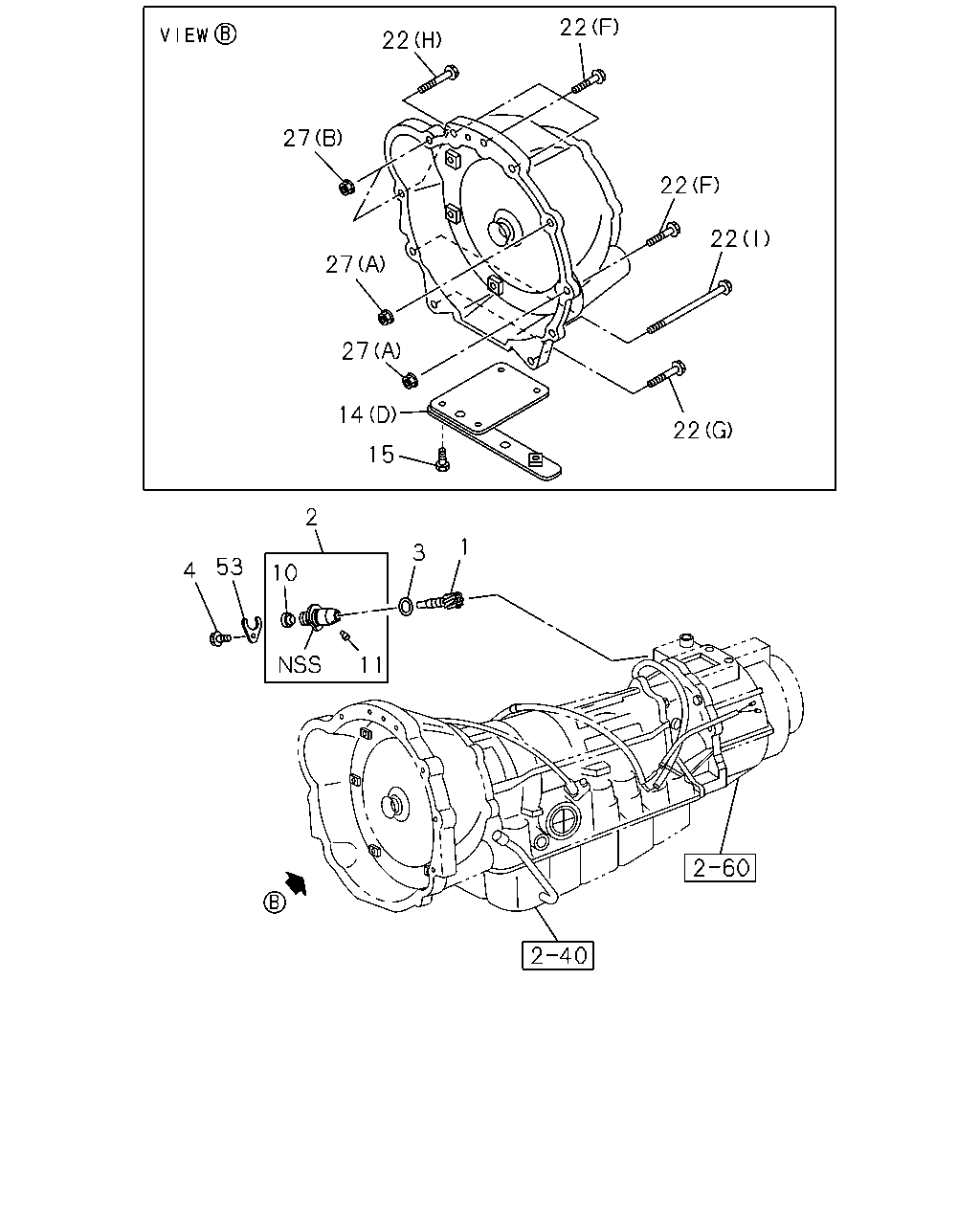

22 22 27 22 22 27 27 14 22 15 2 1 3 53 4 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-2	01	1	9712-	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9712-0105	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9712-0105			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-2	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9712-9902		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	9712-9902				●
1	04.337 GEAR; DRIVEN,SPD EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) Z=17	8-97012-085-1	01	1	9903-9912				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0001-0005			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008			●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0006-0008			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=17	8-97012-085-1	01	1	0009-0102		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102			●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105		●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105			●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3),ONE TOUCH4X4 SYSTEM(7QY) Z=17	8-97012-085-2	01	1	0106-		●	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=16	8-97169-434-0	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=16	8-97169-434-1	01	1	0106-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9712-	●	●	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	9712-	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-	●	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	9712-	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	9712-	●	●	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A)	8-97164-174-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C)	8-97164-176-3	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (B)	8-97164-175-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 4JG2 ENG(RJC) (D)	8-97061-582-0	01	1	9712-			●
14	00.679 COVER; UNDER,TRANS 4JX1 ENG(RJM) (E)	8-97180-258-0	01	1	9909-			●
14	00.679 COVER; UNDER,TRANS (A)	8-97164-521-1	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-547-3	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-518-1	01	1	9712-				●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> M10X45 FLANGE	0-28081-045-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-	●	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.163 M6X40 FLANGE	0-28680-640-0	02	1	9712-		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9801-9908			●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9909-			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.500 M6X10 FLANGE	0-28080-610-0	08	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (G) M10X60 FLANGE	0-28081-060-0	02	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (H) M12X40 FLANGE	0-28081-240-0	01	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.042 (B) M12X80	0-28081-280-0	01	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) M12X45 FLANGE	0-28181-245-0	05	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C) M12X50 FLANGE	0-28181-250-0	02	1	9712-	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9712-9804	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9805-0010	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (D) M12X90	0-28081-290-0	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (E) M12X85 FLANGE	8-94480-345-1	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X35 FLANGE	0-28081-035-0	01	1	9712-9804			●
22	00.685 BOLT; TRANS CASE TO ENG 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9805-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9909-0010			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28081-245-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (H) M12X45 FLANGE	0-28081-245-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (I) M12X60 FLANGE	0-28081-260-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (I) M12X60 FLANGE	0-28081-260-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176	8-97163-249-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (G) M12X176	8-97163-249-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) (N) M10X35 FLANGE	0-28081-035-0	01	1	9909-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (N) M10X35 FLANGE	0-28081-035-0	01	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (J) M12X70 FLANGE	0-28081-270-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (K) M12X40 FLANGE	0-28181-240-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28181-245-0	02	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.669 (M) M10X40 FLANGE	0-28781-040-0	02	1	9712-				●
27	00.685 NUT; CLU HSG TO TRANS 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9712-9908			●
27	00.685 NUT; CLU HSG TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.785 (A) M10 FLANGE	0-91150-110-0	02	1	9909-			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9801-9809			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9712-9908			●
27	00.685 NUT; CLU HSG TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 05.586 (B) M12 FLANGE	0-91150-112-0	02	1	9909-			●
27	00.685 NUT; CLU HSG TO TRANS 05.586 (C) M12 FLANGE	0-91150-112-0	01	1	9712-				●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9712-0206	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97352-311-0	01	1	0207-0207	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0207-	●	●	●	●

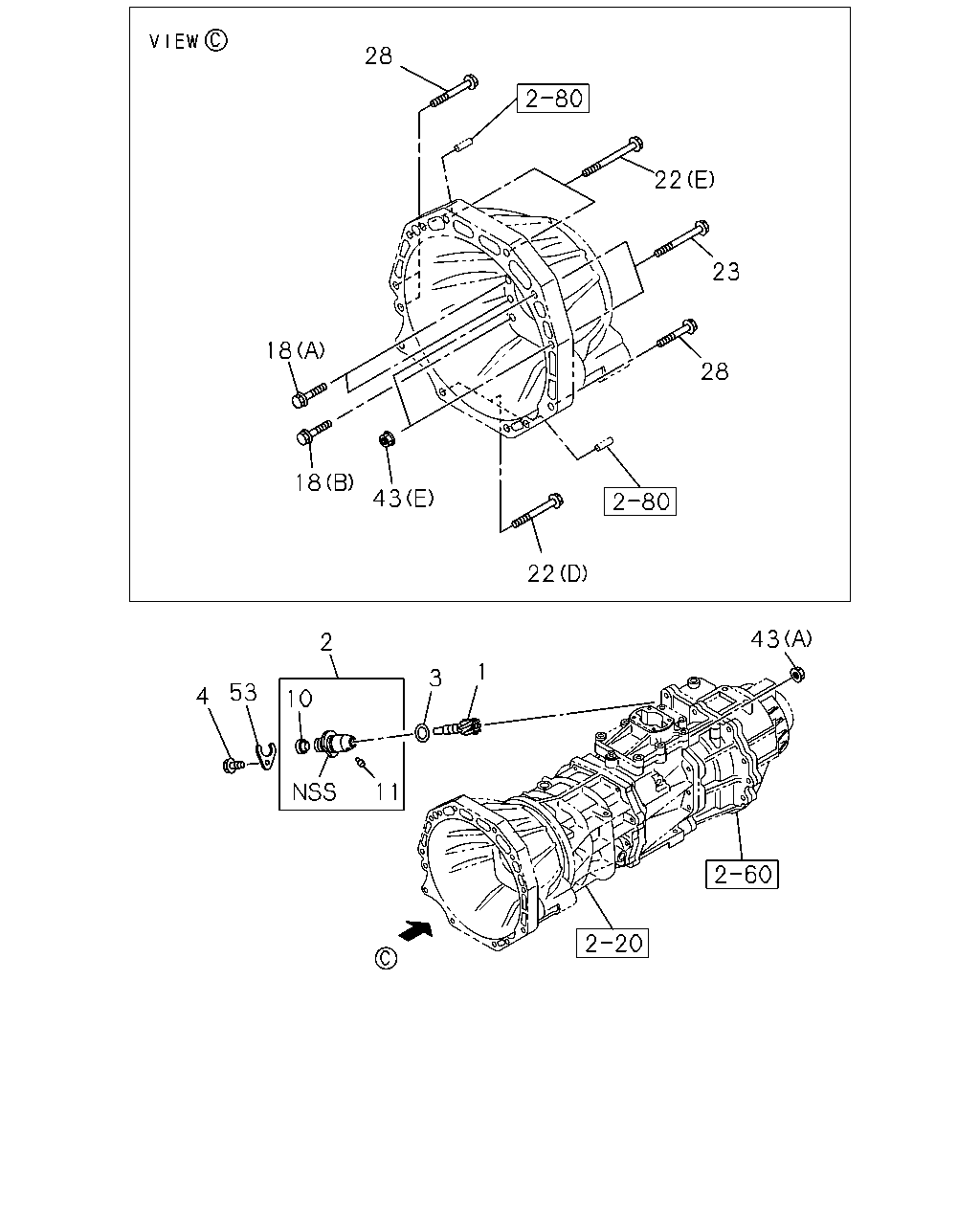

28 22 23 18 28 18 43 22 43 2 1 3 53 4 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-2	01	1	9712-	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9712-0105	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9712-0105			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-2	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9712-9902		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	9712-9902				●
1	04.337 GEAR; DRIVEN,SPD EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) Z=17	8-97012-085-1	01	1	9903-9912				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0001-0005			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008			●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0006-0008			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=17	8-97012-085-1	01	1	0009-0102		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102			●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105		●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105			●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3),ONE TOUCH4X4 SYSTEM(7QY) Z=17	8-97012-085-2	01	1	0106-		●	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=16	8-97169-434-0	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=16	8-97169-434-1	01	1	0106-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9712-	●	●	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	9712-	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-	●	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	9712-	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	9712-	●	●	●	●
18	00.685 BOLT; CLU HSG TO TRANS (A)	8-97164-898-0	02	1	9712-		●
18	00.685 BOLT; CLU HSG TO TRANS (B)	8-97164-902-0	07	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (G) M10X60 FLANGE	0-28081-060-0	02	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (H) M12X40 FLANGE	0-28081-240-0	01	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.042 (B) M12X80	0-28081-280-0	01	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) M12X45 FLANGE	0-28181-245-0	05	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C) M12X50 FLANGE	0-28181-250-0	02	1	9712-	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9712-9804	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9805-0010	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (D) M12X90	0-28081-290-0	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (E) M12X85 FLANGE	8-94480-345-1	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X35 FLANGE	0-28081-035-0	01	1	9712-9804			●
22	00.685 BOLT; TRANS CASE TO ENG 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9805-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9909-0010			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28081-245-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (H) M12X45 FLANGE	0-28081-245-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (I) M12X60 FLANGE	0-28081-260-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (I) M12X60 FLANGE	0-28081-260-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176	8-97163-249-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (G) M12X176	8-97163-249-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) (N) M10X35 FLANGE	0-28081-035-0	01	1	9909-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (N) M10X35 FLANGE	0-28081-035-0	01	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (J) M12X70 FLANGE	0-28081-270-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (K) M12X40 FLANGE	0-28181-240-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28181-245-0	02	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.669 (M) M10X40 FLANGE	0-28781-040-0	02	1	9712-				●
23	00.685 BOLT; STARTER TO TRANS CASE 4JG2 ENG(RJC) M12X70 FLANGE	0-28081-270-0	02	1	9712-	●
23	00.685 BOLT; STARTER TO TRANS CASE 4JX1 ENG(RJM) M12X100 FLANGE	0-28081-200-0	02	1	9712-		●
28	00.685 BOLT; TRANS CASE TO HSG 4JX1 ENG(RJM) M12X45 FLANGE	0-28081-245-0	04	1	9712-0105		●
28	00.685 BOLT; TRANS CASE TO HSG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) M12X45 FLANGE	0-28081-245-0	02	1	0106-		●
28	00.685 BOLT; TRANS CASE TO HSG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 00.724 M12X50 FLANGE	0-28081-250-0	02	1	0106-		●
28	00.685 BOLT; TRANS CASE TO HSG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) M12X45 FLANGE	0-28081-245-0	04	1	0106-		●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	9712-	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.586 (E) M12 FLANGE	0-91150-112-0	02	1	9712-	●
43	00.685 NUT; TRANS CASE 4JX1 ENG(RJM) 05.586 (E) M12 FLANGE	0-91150-112-0	02	1	9712-		●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.816 (C) M12	9-99110-412-0	01	1	9712-	●
43	00.685 NUT; TRANS CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9712-	●	●
43	00.685 NUT; TRANS CASE 4JX1 ENG(RJM),6VE1 ENG(RJQ) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9712-9908		●
43	00.685 NUT; TRANS CASE 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9909-		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9712-0206	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97352-311-0	01	1	0207-0207	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0207-	●	●	●	●

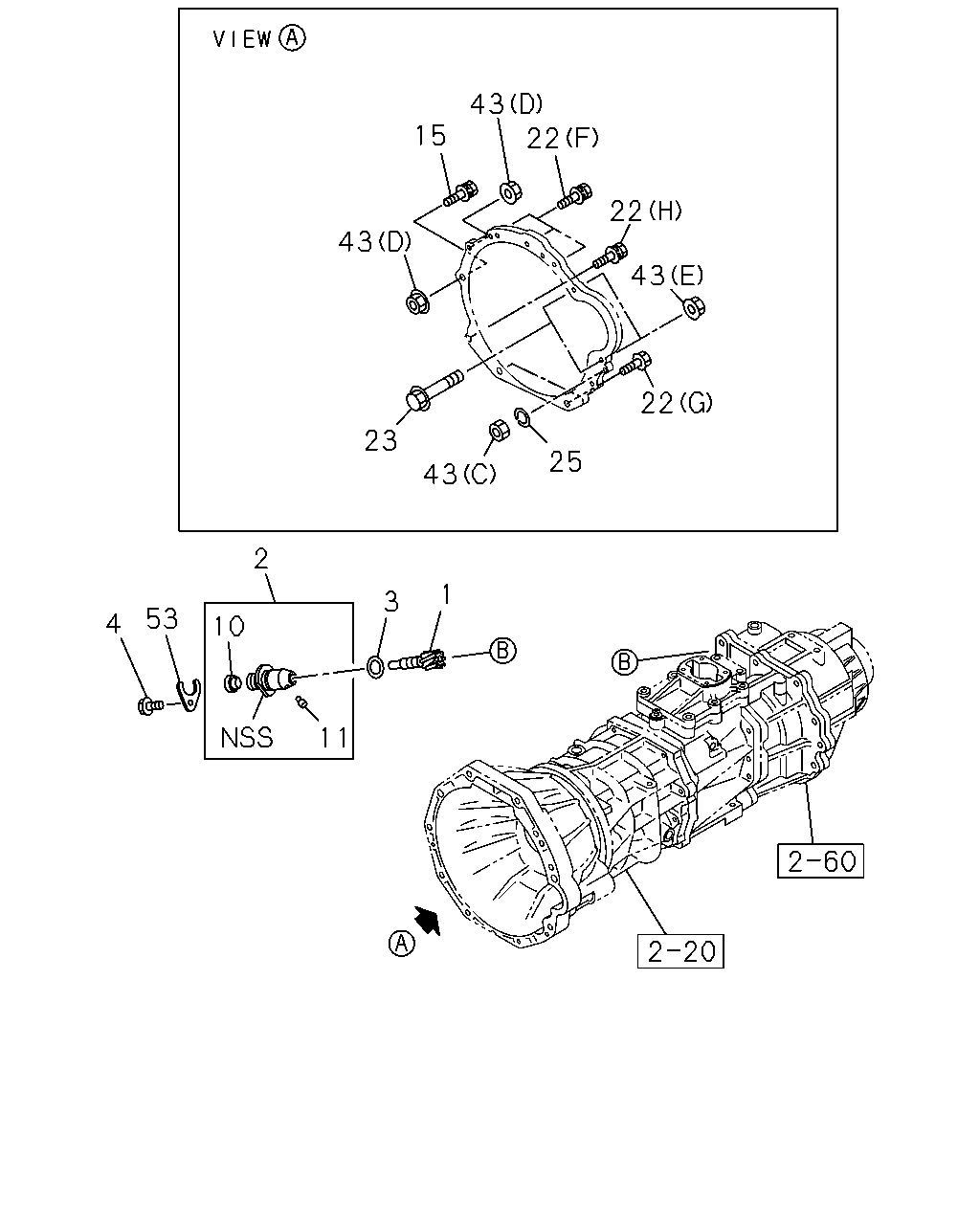

43 22 15 22 43 43 22 23 25 43 2 1 3 53 4 10 11

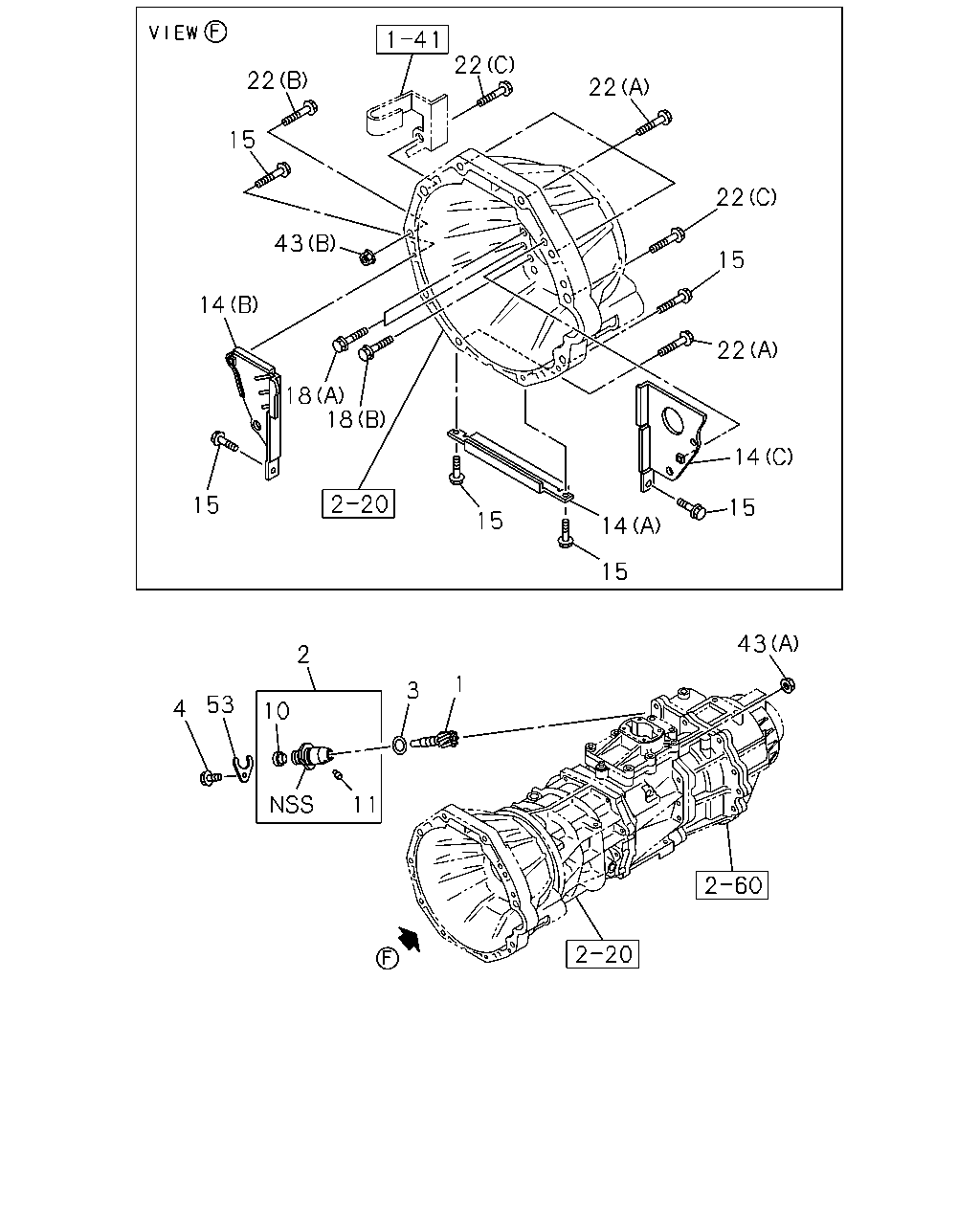

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-2	01	1	9712-	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9712-0105	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9712-0105			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-2	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9712-9902		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	9712-9902				●
1	04.337 GEAR; DRIVEN,SPD EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) Z=17	8-97012-085-1	01	1	9903-9912				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0001-0005			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008			●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0006-0008			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=17	8-97012-085-1	01	1	0009-0102		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102			●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105		●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105			●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3),ONE TOUCH4X4 SYSTEM(7QY) Z=17	8-97012-085-2	01	1	0106-		●	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=16	8-97169-434-0	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=16	8-97169-434-1	01	1	0106-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9712-	●	●	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	9712-	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-	●	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	9712-	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	9712-	●	●	●	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> M10X45 FLANGE	0-28081-045-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-	●	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.163 M6X40 FLANGE	0-28680-640-0	02	1	9712-		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9801-9908			●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9909-			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.500 M6X10 FLANGE	0-28080-610-0	08	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (G) M10X60 FLANGE	0-28081-060-0	02	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (H) M12X40 FLANGE	0-28081-240-0	01	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.042 (B) M12X80	0-28081-280-0	01	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) M12X45 FLANGE	0-28181-245-0	05	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C) M12X50 FLANGE	0-28181-250-0	02	1	9712-	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9712-9804	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9805-0010	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (D) M12X90	0-28081-290-0	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (E) M12X85 FLANGE	8-94480-345-1	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X35 FLANGE	0-28081-035-0	01	1	9712-9804			●
22	00.685 BOLT; TRANS CASE TO ENG 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9805-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9909-0010			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28081-245-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (H) M12X45 FLANGE	0-28081-245-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (I) M12X60 FLANGE	0-28081-260-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (I) M12X60 FLANGE	0-28081-260-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176	8-97163-249-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (G) M12X176	8-97163-249-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) (N) M10X35 FLANGE	0-28081-035-0	01	1	9909-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (N) M10X35 FLANGE	0-28081-035-0	01	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (J) M12X70 FLANGE	0-28081-270-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (K) M12X40 FLANGE	0-28181-240-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28181-245-0	02	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.669 (M) M10X40 FLANGE	0-28781-040-0	02	1	9712-				●
23	00.685 BOLT; STARTER TO TRANS CASE 4JG2 ENG(RJC) M12X70 FLANGE	0-28081-270-0	02	1	9712-	●
23	00.685 BOLT; STARTER TO TRANS CASE 4JX1 ENG(RJM) M12X100 FLANGE	0-28081-200-0	02	1	9712-		●
25	00.685 WASHER; PL,TRANS CASE 4JG2 ENG(RJC) 03.430 ID=12.5	9-09160-512-0	01	1	9712-	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	9712-	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.586 (E) M12 FLANGE	0-91150-112-0	02	1	9712-	●
43	00.685 NUT; TRANS CASE 4JX1 ENG(RJM) 05.586 (E) M12 FLANGE	0-91150-112-0	02	1	9712-		●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.816 (C) M12	9-99110-412-0	01	1	9712-	●
43	00.685 NUT; TRANS CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9712-	●	●
43	00.685 NUT; TRANS CASE 4JX1 ENG(RJM),6VE1 ENG(RJQ) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9712-9908		●
43	00.685 NUT; TRANS CASE 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9909-		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9712-0206	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97352-311-0	01	1	0207-0207	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0207-	●	●	●	●

22 22 22 15 22 43 15 14 22 18 18 14 15 15 15 14 15 43 2 1 3 53 4 10 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) Z=19	8-94473-303-2	01	1	9712-	●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-1	01	1	9712-0105	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) Z=18	8-97012-086-1	01	1	9712-0105			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA> Z=18	8-97012-086-1	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) Z=18	8-97012-086-2	01	1	0106-	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-			●
1	04.337 GEAR; DRIVEN,SPD 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) AUSTRALIA EQUIPMENT(RR3) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=18	8-97012-086-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9712-9902		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	9712-9902				●
1	04.337 GEAR; DRIVEN,SPD EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912		●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	9903-9912			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) Z=17	8-97012-085-1	01	1	9903-9912				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0001-0005			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0001-0005				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008		●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008			●	●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0006-0008			●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0006-0008				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) Z=17	8-97012-085-1	01	1	0009-0102		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 43/10(S7C) TORQUE ON DEMAND<7HA> EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0009-0102			●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SOUTH AFRICA EQUIPMENT(SW2) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0009-0102				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105		●	●
1	04.337 GEAR; DRIVEN,SPD 6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3),TORQUE ONDEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105		●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-1	01	1	0103-0105			●
1	04.337 GEAR; DRIVEN,SPD 4 DOOR LONG(UB***F) FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-1	01	1	0103-0105				●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM) FINAL GEAR RATIO 43/10(S7C) EXC. AUSTRALIA EQUIPMENT(RR3),ONE TOUCH4X4 SYSTEM(7QY) Z=17	8-97012-085-2	01	1	0106-		●	●
1	04.337 GEAR; DRIVEN,SPD 4JX1 ENG(RJM),6VE1 ENG(RJQ) FINAL GEAR RATIO 43/10(S7C) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. AUSTRALIA EQUIPMENT(RR3) Z=17	8-97012-085-2	01	1	0106-		●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EUROPE EQUIPMENT(EK4) SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) TORQUE ON DEMAND<7HA> Z=17	8-97012-085-2	01	1	0106-				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. TORQUE ON DEMAND<7HA> Z=16	8-97169-434-0	01	1	9712-0105				●
1	04.337 GEAR; DRIVEN,SPD FINAL GEAR RATIO 41/10(GT5) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> Z=16	8-97169-434-1	01	1	0106-				●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER	8-97021-133-4	01	1	9712-	●	●	●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	9712-	●	●	●	●
4	04.338 BOLT; RET,DRIVEN GEAR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	9712-	●	●	●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	9712-	●	●	●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	9712-	●	●	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A)	8-97164-174-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C)	8-97164-176-3	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) (B)	8-97164-175-1	01	1	9712-	●	●
14	00.679 COVER; UNDER,TRANS 4JG2 ENG(RJC) (D)	8-97061-582-0	01	1	9712-			●
14	00.679 COVER; UNDER,TRANS 4JX1 ENG(RJM) (E)	8-97180-258-0	01	1	9909-			●
14	00.679 COVER; UNDER,TRANS (A)	8-97164-521-1	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (C)	8-97164-547-3	01	1	9712-				●
14	00.679 COVER; UNDER,TRANS (B)	8-97164-518-1	01	1	9712-				●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) TURBOCHARGER<K51> 04.525 M10X40 FLANGE	0-28081-040-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC) EXC. TURBOCHARGER<K51> M10X45 FLANGE	0-28081-045-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VD1 ENG(RLV) 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9712-	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-	●	●
15	00.685 BOLT; UNDER COVER TO TRANS 6VE1 ENG(RJQ) 03.163 M6X40 FLANGE	0-28680-640-0	02	1	9712-		●
15	00.685 BOLT; UNDER COVER TO TRANS 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9801-9908			●
15	00.685 BOLT; UNDER COVER TO TRANS 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.439 M6X16 FLANGE	0-28680-616-0	04	1	9909-			●
15	00.685 BOLT; UNDER COVER TO TRANS 02.500 M6X10 FLANGE	0-28080-610-0	08	1	9712-				●
18	00.685 BOLT; CLU HSG TO TRANS (A)	8-97164-898-0	02	1	9712-		●
18	00.685 BOLT; CLU HSG TO TRANS (B)	8-97164-902-0	07	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) (G) M10X60 FLANGE	0-28081-060-0	02	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 09.171 (H) M12X40 FLANGE	0-28081-240-0	01	1	9712-	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) 02.042 (B) M12X80	0-28081-280-0	01	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (A) M12X45 FLANGE	0-28181-245-0	05	1	9712-	●	●
22	00.685 BOLT; TRANS CASE TO ENG 6VE1 ENG(RJQ),6VD1 ENG(RLV) (C) M12X50 FLANGE	0-28181-250-0	02	1	9712-	●	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9712-9804	●		●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	9805-0010	●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (D) M12X90	0-28081-290-0	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 00.780 (E) M12X85 FLANGE	8-94480-345-1	02	1	9712-		●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X35 FLANGE	0-28081-035-0	01	1	9712-9804			●
22	00.685 BOLT; TRANS CASE TO ENG 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9805-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	04	1	9909-0010			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0011-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-	●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) 04.525 (F) M10X40 FLANGE	0-28081-040-0	03	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (H) M12X45 FLANGE	0-28081-245-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (H) M12X45 FLANGE	0-28081-245-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (I) M12X60 FLANGE	0-28081-260-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (I) M12X60 FLANGE	0-28081-260-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176	8-97163-249-0	02	1	9712-9908			●
22	00.685 BOLT; TRANS CASE TO ENG 4JG2 ENG(RJC),4JX1 ENG(RJM) (G) M12X176	8-97163-249-0	02	1	9909-			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) (N) M10X35 FLANGE	0-28081-035-0	01	1	9909-0105			●
22	00.685 BOLT; TRANS CASE TO ENG 4JX1 ENG(RJM) EXC. EUROPE EQUIPMENT(EK4) (N) M10X35 FLANGE	0-28081-035-0	01	1	0106-			●
22	00.685 BOLT; TRANS CASE TO ENG (J) M12X70 FLANGE	0-28081-270-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 09.181 (K) M12X40 FLANGE	0-28181-240-0	01	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG (L) M12X45 FLANGE	0-28181-245-0	02	1	9712-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.669 (M) M10X40 FLANGE	0-28781-040-0	02	1	9712-				●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 04.785 (D) M10 FLANGE	0-91150-110-0	02	1	9712-	●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.586 (E) M12 FLANGE	0-91150-112-0	02	1	9712-	●
43	00.685 NUT; TRANS CASE 4JX1 ENG(RJM) 05.586 (E) M12 FLANGE	0-91150-112-0	02	1	9712-		●
43	00.685 NUT; TRANS CASE 4JG2 ENG(RJC) 05.816 (C) M12	9-99110-412-0	01	1	9712-	●
43	00.685 NUT; TRANS CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV) 05.586 (B) M12 FLANGE	0-91150-112-0	01	1	9712-	●	●
43	00.685 NUT; TRANS CASE 4JX1 ENG(RJM),6VE1 ENG(RJQ) 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9712-9908		●
43	00.685 NUT; TRANS CASE 04.785 (A) M10 FLANGE	0-91150-110-0	01	1	9909-		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	9712-0206	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97352-311-0	01	1	0207-0207	●	●	●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0207-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
