Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#73259) — 368 parça

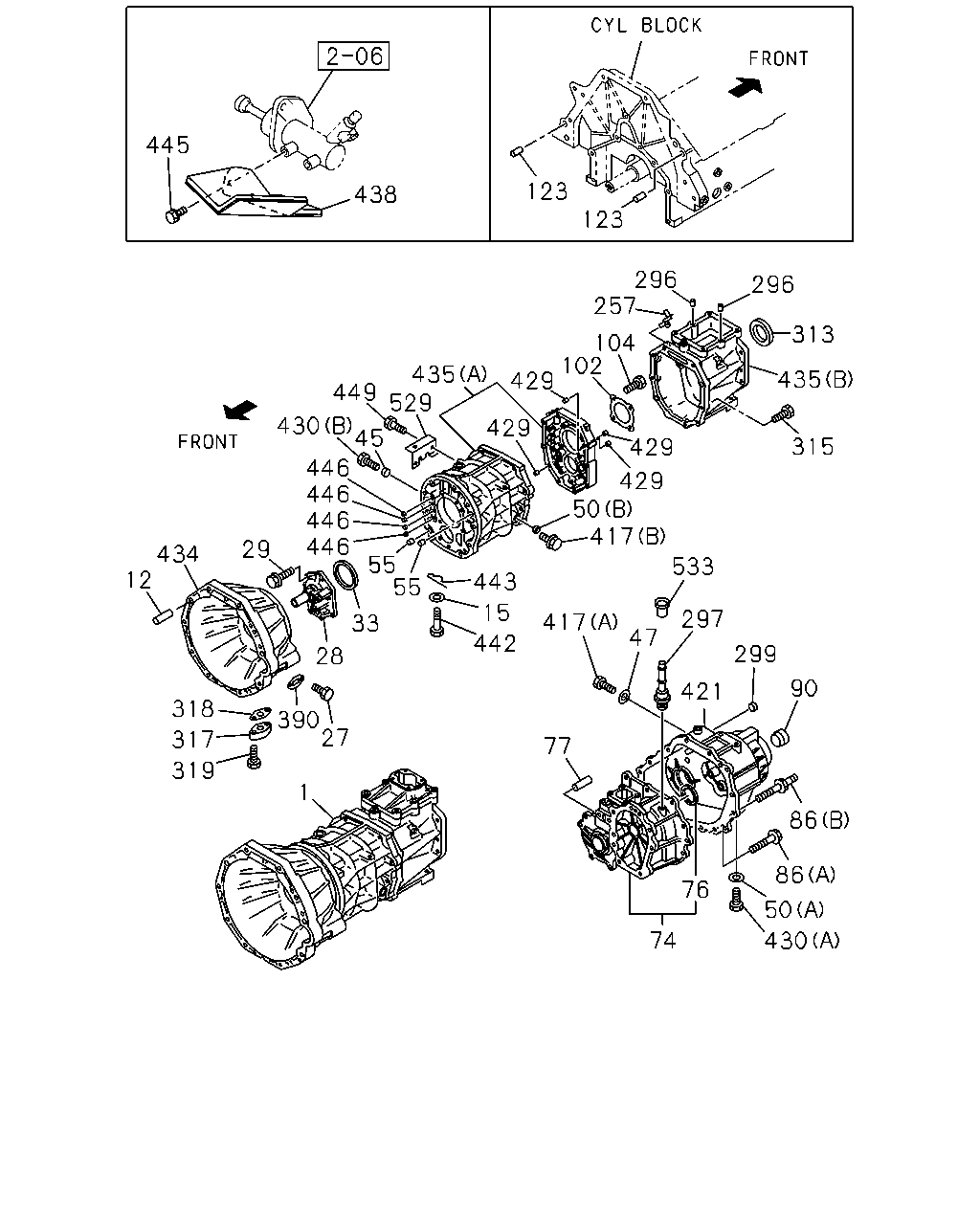

445 123 438 123 296 257 296 313 104 102 43 529 435 429 449 429 430 45 429 315 446 446 446 446 429 50 417 29 434 12 55 55 533 443 15 297 417 33 47 442 299 28 90 421 318 390 27 317 77 319 1 86 86 76 50 74 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-782-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-808-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) EXC. SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-810-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-811-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97168-783-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-809-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-813-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-812-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-438-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-780-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-804-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) EXC. SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-806-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-807-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97168-781-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-805-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JX1 ENG(RJM)	8-97207-105-1	01	1	9712-0111		●
1	04.003 TRANSMISSION ASM; MANUAL 4JX1 ENG(RJM)	8-97328-360-0	01	1	0112-		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97207-103-0	01	1	9712-9809		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97219-616-0	01	1	9810-0111		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97328-363-0	01	1	0112-		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97207-104-0	01	1	9712-0111		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97328-362-0	01	1	0112-		●
12	00.685 PIN; TRANS CASE TO BODY 4JX1 ENG(RJM) 08.939 OD=10 L=32	9-08161-032-0	02	1	9712-		●
15	04.302 WASHER; PL 6VD1 ENG(RLV) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9712-	●
15	04.302 WASHER; PL 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9712-		●
27	00.686 BOLT; COVER TO CLU HSG 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
27	00.686 BOLT; COVER TO CLU HSG 4JX1 ENG(RJM),6VE1 ENG(RJQ) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
28	04.356 COVER; FRT,TRANS CASE 4JG2 ENG(RJC)	8-97104-676-0	01	1	9712-	●
28	04.356 COVER; FRT,TRANS CASE 6VD1 ENG(RLV)	8-97104-678-0	01	1	9712-	●
28	04.356 COVER; FRT,TRANS CASE	8-97164-890-0	01	1	9712-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9712-	●
29	04.356 BOLT; FRT COVER	8-97164-896-0	08	1	9712-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9712-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	9712-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97165-084-0	01	1	9712-		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9712-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9712-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97164-900-0	01	1	9712-		●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9712-9902	●	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9903-	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (C) ID=17	8-97115-712-0	02	1	9712-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97164-900-0	01	1	9712-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17	8-97115-712-0	01	1	9712-9902		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17	8-97115-712-0	01	1	9903-		●	●	●
55	04.105 PIN; KNOCK,CASE,TRANS	8-97185-154-0	02	1	9712-		●
74	04.510 CASE ASM; TRANSFER	8-97149-125-1	01	1	9712-	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9712-9902		●	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9903-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	0106-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	0106-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9712-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9712-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9712-9902		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9903-0105		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9712-9902		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9903-		●	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9712-9902	●	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9903-	●	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9712-9902	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9903-	●	●	●	●
86	04.317 BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	09	1	9712-9805	●	●	●
86	04.317 BOLT; RR COVER 00.685 (A) M10X35 FLANGE	0-28081-035-0	09	1	9806-9902	●	●	●
86	04.317 BOLT; RR COVER 00.685 (A) M10X35 FLANGE	0-28081-035-0	09	1	9903-	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9712-9902	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9903-0010	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9712-9902	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9903-	●	●	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9712-	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97164-895-0	01	1	9712-		●
104	04.412 BOLT; BRG RET 04.105	8-97164-897-0	04	1	9712-		●
123	00.206 DOWEL; TRANS CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-94325-506-1	02	1	9712-	●	●	●
257	02.559 CLIP; HARNESS	8-97167-997-0	01	1	9712-		●
257	02.559 CLIP; HARNESS 4 DOOR LONG(UB***F) 6VE1 ENG(RJQ) TORQUE ON DEMAND<7HA> ID=22	8-97022-767-0	01	1	0106-			●
296	04.510 PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9712-	●
296	04.510 PIN; QUAD BOX TO CASE	8-97185-165-0	02	1	9712-		●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9712-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9712-9902		●	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9903-		●	●	●
299	04.317 PLUG; SHIFTER ROD ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	9712-9908	●	●	●
299	04.317 PLUG; SHIFTER ROD SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	9909-0105	●	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	0106-	●	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	9712-9908	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	9909-0105	●	●	●	●
299	04.317 PLUG; SHIFTER ROD SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	0106-	●	●	●	●
313	04.318 SEAL; OIL	8-97165-085-0	01	1	9712-		●
315	04.104 BOLT; CASE	8-97164-988-0	10	1	9712-		●
317	04.109 COVER; CASE 6VD1 ENG(RLV)	8-97034-422-1	01	1	9712-	●
317	04.109 COVER; CASE	8-97034-422-1	01	1	9712-		●
318	04.109 GASKET; COVER 6VD1 ENG(RLV)	8-97035-567-0	01	1	9712-	●
318	04.109 GASKET; COVER	8-97035-567-0	01	1	9712-		●
319	04.109 BOLT; COVER 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
319	04.109 BOLT; COVER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
390	00.797 COVER; DUST,CLU SHIFT 6VD1 ENG(RLV)	8-94380-259-1	01	1	9712-	●
390	00.797 COVER; DUST,CLU SHIFT 4JX1 ENG(RJM),6VE1 ENG(RJQ)	8-94380-259-1	01	1	9712-		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	02	1	9712-	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97164-952-0	01	1	9712-		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	9712-9902		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	9903-		●	●	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX)	8-97039-529-2	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX)	8-97069-364-5	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6)	8-97069-364-5	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS	8-97069-364-5	01	1	9712-9804		●	●
421	04.317 COVER; RR,TRANS EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97069-364-5	01	1	9805-9812	●	●	●
421	04.317 COVER; RR,TRANS EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9901-9908	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9909-0102	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9909-0102				●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0103-0105	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0103-0105				●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0106-0308	●	●	●	●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97369-829-0	01	1	0309-	●	●	●	●
421	04.317 COVER; RR,TRANS ONE TOUCH 4X4 SYSTEM(7QY)	8-97126-772-1	01	1	9712-9902	●	●	●
421	04.317 COVER; RR,TRANS ONE TOUCH 4X4 SYSTEM(7QY)	8-97126-772-1	01	1	9903-9903	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9903-9903		●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9904-9908	●	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9909-0105	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9909-0105				●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	0106-0308	●	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97369-830-0	01	1	0309-	●	●	●	●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9712-	●
429	04.105 PIN; STRAIGHT	8-97185-155-0	04	1	9712-		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	02	1	9712-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	9712-		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	9712-9902		●	●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	9903-		●	●	●
434	00.683 HOUSING; CLU 4JX1 ENG(RJM)	8-97185-561-0	01	1	9712-9908		●
434	00.683 HOUSING; CLU 4JX1 ENG(RJM)	8-97131-433-2	01	1	9909-		●
434	00.683 HOUSING; CLU 6VE1 ENG(RJQ)	8-97185-561-0	01	1	9712-		●
435	04.103 CASE; TRANS 4JG2 ENG(RJC) (C)	8-97087-054-0	01	1	9712-0002	●
435	04.103 CASE; TRANS 4JG2 ENG(RJC) (C)	8-97252-840-1	01	1	0003-0312	●
435	04.103 CASE; TRANS 4JG2 ENG(RJC) (C)	8-97376-845-0	01	1	0401-	●
435	04.103 CASE; TRANS 6VD1 ENG(RLV) (C)	8-97149-234-1	01	1	9712-9809	●
435	04.103 CASE; TRANS 6VD1 ENG(RLV) (C)	8-97184-472-0	01	1	9810-	●
435	04.103 CASE; TRANS (A)	8-97164-893-0	01	1	9712-		●
435	04.103 CASE; TRANS (B)	8-97164-986-0	01	1	9712-		●
438	00.782 PROTECTOR; HEAT,SLAVE CYL 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97178-698-0	01	1	9712-	●	●
442	04.302 PIN; SHIFT FORK 6VD1 ENG(RLV)	8-94377-424-1	01	1	9712-	●
442	04.302 PIN; SHIFT FORK	8-94377-424-1	01	1	9712-		●
443	04.302 PIN; SNAP,SHIFT FORK 6VD1 ENG(RLV) 04.662 L=27.7	1-09747-005-0	01	1	9712-	●
443	04.302 PIN; SNAP,SHIFT FORK 04.662 L=27.7	1-09747-005-0	01	1	9712-		●
445	00.782 BOLT; HEAT PROTECTOR 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●
446	04.105 PLUG; CASE,TRANS	8-97185-156-0	04	1	9712-		●
449	04.105 BOLT; BRKT 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
529	04.083 BRACKET; MISSION CASE 02.277	8-97163-787-0	01	1	9712-		●
533	04.104 CAP; AIR BREATHER EXC. TORQUE ON DEMAND<7HA>	8-94362-237-0	01	1	9712-9809		●	●	●
533	04.104 CAP; AIR BREATHER	8-94362-237-0	01	1	9810-9902		●	●
533	04.104 CAP; AIR BREATHER	8-94362-237-0	01	1	9903-		●	●	●

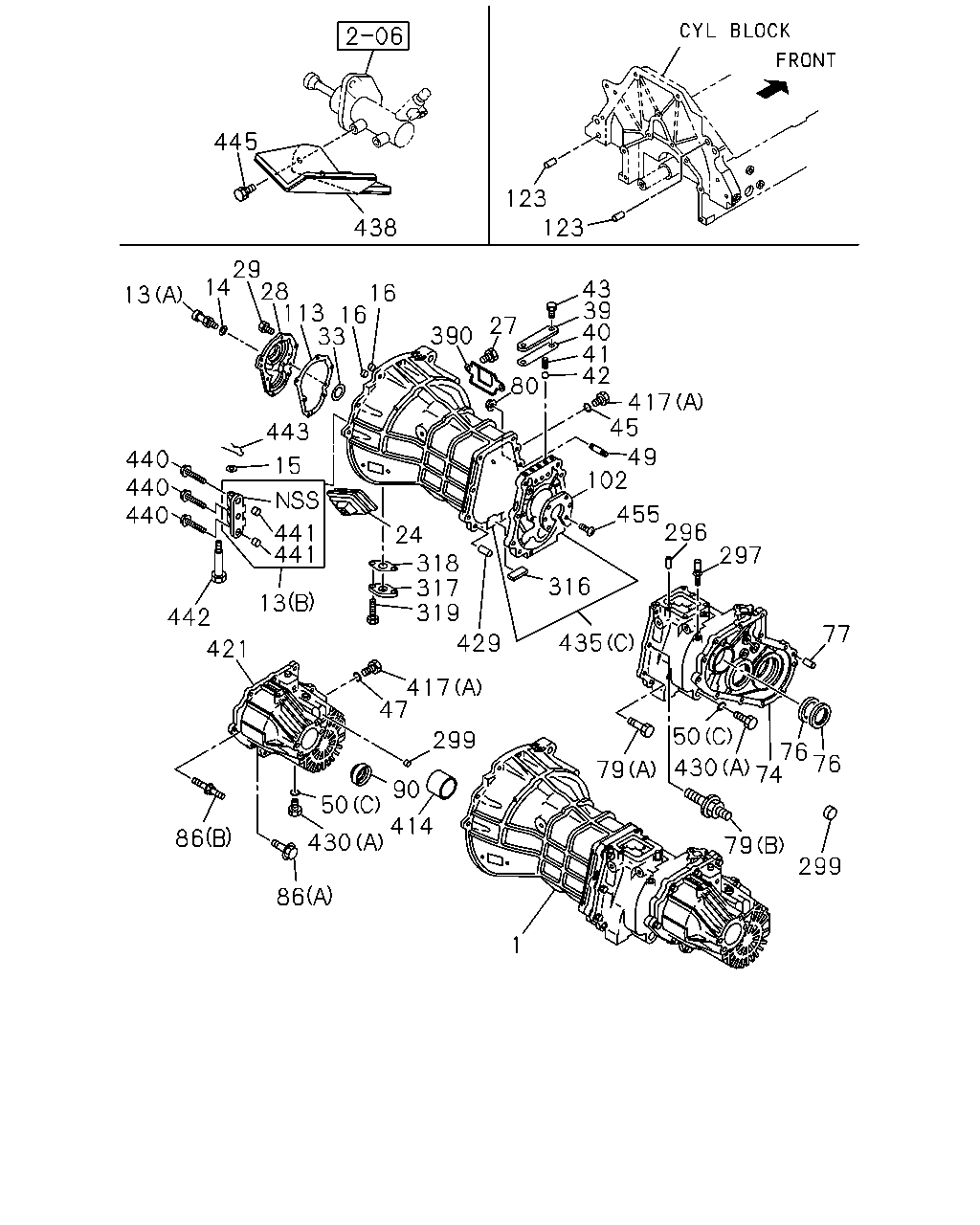

445 123 123 438 29 14 28 16 33 43 39 40 41 42 13 27 390 80 417 45 443 49 102 440 440 440 15 455 296 441 441 318 317 319 297 316 13 442 77 435 429 421 417 47 50 299 76 76 74 430 79 90 50 414 86 430 79 299 86 1 113 16 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-782-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-808-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) EXC. SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-810-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-811-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97168-783-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-809-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-813-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-812-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97169-438-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-780-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) SHIFT ON THE FLY(7EX) EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-804-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) ANTI LOCK BRAKE SYSTEM(JE5) EXC. SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-806-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) EXC. ANTI LOCK BRAKE SYSTEM(JE5),SHIFT ON THE FLY(7EX),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-807-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97168-781-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY)	8-97168-805-0	01	1	9712-	●
1	04.003 TRANSMISSION ASM; MANUAL 4JX1 ENG(RJM)	8-97207-105-1	01	1	9712-0111		●
1	04.003 TRANSMISSION ASM; MANUAL 4JX1 ENG(RJM)	8-97328-360-0	01	1	0112-		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97207-103-0	01	1	9712-9809		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97219-616-0	01	1	9810-0111		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) ANTI LOCK BRAKE SYSTEM(JE5)	8-97328-363-0	01	1	0112-		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97207-104-0	01	1	9712-0111		●
1	04.003 TRANSMISSION ASM; MANUAL 6VE1 ENG(RJQ) EXC. ANTI LOCK BRAKE SYSTEM(JE5)	8-97328-362-0	01	1	0112-		●
13	04.302 SUPPORT; SHIFT FORK 4JG2 ENG(RJC) (A) L=47.5	8-97072-827-0	01	1	9712-	●
13	04.302 SUPPORT; SHIFT FORK 6VD1 ENG(RLV) (B)	8-97033-703-1	01	1	9712-9904	●
13	04.302 SUPPORT; SHIFT FORK 6VD1 ENG(RLV) (B)	8-97218-275-0	01	1	9905-	●
14	04.302 WASHER; LK,SUPPORT 4JG2 ENG(RJC) 04.634 ID=12.2	9-09150-512-0	01	1	9712-	●
15	04.302 WASHER; PL 6VD1 ENG(RLV) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9712-	●
15	04.302 WASHER; PL 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	9712-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	9712-	●
24	00.797 COVER; CHECK HOLE,DUST 4JG2 ENG(RJC) 06.868	8-94156-700-0	01	1	9712-	●
27	00.686 BOLT; COVER TO CLU HSG 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
27	00.686 BOLT; COVER TO CLU HSG 4JX1 ENG(RJM),6VE1 ENG(RJQ) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
28	04.356 COVER; FRT,TRANS CASE 4JG2 ENG(RJC)	8-97104-676-0	01	1	9712-	●
28	04.356 COVER; FRT,TRANS CASE 6VD1 ENG(RLV)	8-97104-678-0	01	1	9712-	●
28	04.356 COVER; FRT,TRANS CASE	8-97164-890-0	01	1	9712-		●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	9712-	●
29	04.356 BOLT; FRT COVER	8-97164-896-0	08	1	9712-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	9712-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	9712-	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	8-97165-084-0	01	1	9712-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	9712-	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	9712-	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	9712-	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	9712-	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	9712-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	9712-	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97164-900-0	01	1	9712-		●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9712-9902	●	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9903-	●	●	●	●
49	04.510 STUD; TRANSFER CASE M10X51.5 L=72	8-97036-714-1	01	1	9712-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (C) ID=17	8-97115-712-0	02	1	9712-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97164-900-0	01	1	9712-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17	8-97115-712-0	01	1	9712-9902		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17	8-97115-712-0	01	1	9903-		●	●	●
74	04.510 CASE ASM; TRANSFER	8-97149-125-1	01	1	9712-	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9712-9902		●	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9903-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	0106-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	0106-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9712-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9712-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9712-9902		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9903-0105		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9712-9902		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9903-		●	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9712-9902	●	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9903-	●	●	●	●
79	04.510 BOLT; TRANSFER CASE 04.317 (A) M10X55 FLANGE	8-94473-959-1	06	1	9712-	●
79	04.510 BOLT; TRANSFER CASE (B) M10X18 M10X55 L=83	8-97036-715-0	01	1	9712-	●
80	04.510 NUT; TRANSFER CASE 04.785 M10 FLANGE	0-91150-110-0	01	1	9712-	●
86	04.317 BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9712-9902	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9903-	●	●	●	●
86	04.317 BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	09	1	9712-9805	●	●	●
86	04.317 BOLT; RR COVER 00.685 (A) M10X35 FLANGE	0-28081-035-0	09	1	9806-9902	●	●	●
86	04.317 BOLT; RR COVER 00.685 (A) M10X35 FLANGE	0-28081-035-0	09	1	9903-	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9712-9902	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9903-0010	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9712-9902	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9903-	●	●	●	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	9712-	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97164-895-0	01	1	9712-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	9712-	●
123	00.206 DOWEL; TRANS CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-94325-506-1	02	1	9712-	●	●	●
296	04.510 PIN; QUAD BOX TO CASE OD=6 L=12	9-08150-612-0	02	1	9712-	●
296	04.510 PIN; QUAD BOX TO CASE	8-97185-165-0	02	1	9712-		●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9712-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9712-9902		●	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9903-		●	●	●
299	04.317 PLUG; SHIFTER ROD ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	9712-9908	●	●	●
299	04.317 PLUG; SHIFTER ROD SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	9909-0105	●	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	0106-	●	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	9712-9908	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	9909-0105	●	●	●	●
299	04.317 PLUG; SHIFTER ROD SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	0106-	●	●	●	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	9712-	●
317	04.109 COVER; CASE 6VD1 ENG(RLV)	8-97034-422-1	01	1	9712-	●
317	04.109 COVER; CASE	8-97034-422-1	01	1	9712-		●
318	04.109 GASKET; COVER 6VD1 ENG(RLV)	8-97035-567-0	01	1	9712-	●
318	04.109 GASKET; COVER	8-97035-567-0	01	1	9712-		●
319	04.109 BOLT; COVER 6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
319	04.109 BOLT; COVER 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-		●
390	00.797 COVER; DUST,CLU SHIFT 6VD1 ENG(RLV)	8-94380-259-1	01	1	9712-	●
390	00.797 COVER; DUST,CLU SHIFT 4JX1 ENG(RJM),6VE1 ENG(RJQ)	8-94380-259-1	01	1	9712-		●
414	04.317 COVER; DUST,RR COVER 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX) EXC. ANTI LOCK BRAKE SYSTEM(JE5),ONE TOUCH 4X4 SYSTEM(7QY)	8-94310-493-0	01	1	9712-9804	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	02	1	9712-	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97164-952-0	01	1	9712-		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	9712-9902		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	9903-		●	●	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX)	8-97039-529-2	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX)	8-97069-364-5	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6)	8-97069-364-5	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS	8-97069-364-5	01	1	9712-9804		●	●
421	04.317 COVER; RR,TRANS EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97069-364-5	01	1	9805-9812	●	●	●
421	04.317 COVER; RR,TRANS EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9901-9908	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9909-0102	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9909-0102				●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0103-0105	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0103-0105				●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0106-0308	●	●	●	●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97369-829-0	01	1	0309-	●	●	●	●
421	04.317 COVER; RR,TRANS ONE TOUCH 4X4 SYSTEM(7QY)	8-97126-772-1	01	1	9712-9902	●	●	●
421	04.317 COVER; RR,TRANS ONE TOUCH 4X4 SYSTEM(7QY)	8-97126-772-1	01	1	9903-9903	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9903-9903		●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9904-9908	●	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9909-0105	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9909-0105				●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	0106-0308	●	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97369-830-0	01	1	0309-	●	●	●	●
429	04.105 PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	9712-	●
429	04.105 PIN; STRAIGHT	8-97185-155-0	04	1	9712-		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	02	1	9712-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	9712-		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	9712-9902		●	●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	9903-		●	●	●
435	04.103 CASE; TRANS 4JG2 ENG(RJC) (C)	8-97087-054-0	01	1	9712-0002	●
435	04.103 CASE; TRANS 4JG2 ENG(RJC) (C)	8-97252-840-1	01	1	0003-0312	●
435	04.103 CASE; TRANS 4JG2 ENG(RJC) (C)	8-97376-845-0	01	1	0401-	●
435	04.103 CASE; TRANS 6VD1 ENG(RLV) (C)	8-97149-234-1	01	1	9712-9809	●
435	04.103 CASE; TRANS 6VD1 ENG(RLV) (C)	8-97184-472-0	01	1	9810-	●
435	04.103 CASE; TRANS (A)	8-97164-893-0	01	1	9712-		●
435	04.103 CASE; TRANS (B)	8-97164-986-0	01	1	9712-		●
438	00.782 PROTECTOR; HEAT,SLAVE CYL 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-97178-698-0	01	1	9712-	●	●
440	04.302 BOLT; SUPPORT 6VD1 ENG(RLV) 04.525 M10X25 FLANGE	0-28181-025-0	03	1	9712-	●
441	04.302 DOWEL; SUPPORT 6VD1 ENG(RLV)	8-97049-712-0	02	1	9712-9904	●
441	04.302 DOWEL; SUPPORT 6VD1 ENG(RLV)	8-97218-289-0	02	1	9905-	●
442	04.302 PIN; SHIFT FORK 6VD1 ENG(RLV)	8-94377-424-1	01	1	9712-	●
442	04.302 PIN; SHIFT FORK	8-94377-424-1	01	1	9712-		●
443	04.302 PIN; SNAP,SHIFT FORK 6VD1 ENG(RLV) 04.662 L=27.7	1-09747-005-0	01	1	9712-	●
443	04.302 PIN; SNAP,SHIFT FORK 04.662 L=27.7	1-09747-005-0	01	1	9712-		●
445	00.782 BOLT; HEAT PROTECTOR 4JX1 ENG(RJM),6VE1 ENG(RJQ),6VD1 ENG(RLV) 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●	●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	9712-	●

123 533 417 47 123 297 299 421 90 77 257 86 86 76 50 430 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9712-9902	●	●	●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS ALSO INCLUDED IN GASKET SET(M/T). 04.105 ID=17	8-97115-712-0	01	1	9903-	●	●	●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (C) ID=17	8-97115-712-0	02	1	9712-	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97164-900-0	01	1	9712-		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17	8-97115-712-0	01	1	9712-9902		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). (A) ID=17	8-97115-712-0	01	1	9903-		●	●	●
74	04.510 CASE ASM; TRANSFER	8-97149-125-1	01	1	9712-	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9712-9902		●	●
74	04.510 CASE ASM; TRANSFER	8-97164-349-0	01	1	9903-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	0106-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	0106-		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	02	1	9712-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	02	1	9712-	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9712-9902		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-700-0	01	1	9903-0105		●	●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9712-9902		●	●
76	04.510 SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-701-2	01	1	9903-		●	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9712-9902	●	●	●
77	04.510 PIN; KNOCK,TRANSFER CASE OD=10 L=20	8-97135-423-0	02	1	9903-	●	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9712-9902	●	●	●
86	04.317 BOLT; RR COVER (B) M10X18,M10X35 L=63	8-94367-310-1	02	1	9903-	●	●	●	●
86	04.317 BOLT; RR COVER (A) M10X35 FLANGE	8-94448-818-1	09	1	9712-9805	●	●	●
86	04.317 BOLT; RR COVER 00.685 (A) M10X35 FLANGE	0-28081-035-0	09	1	9806-9902	●	●	●
86	04.317 BOLT; RR COVER 00.685 (A) M10X35 FLANGE	0-28081-035-0	09	1	9903-	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9712-9902	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-706-0	01	1	9903-0010	●	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9712-9902	●	●	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-707-2	01	1	9903-	●	●	●	●
123	00.206 DOWEL; TRANS CASE 6VE1 ENG(RJQ),6VD1 ENG(RLV)	8-94325-506-1	02	1	9712-	●	●	●
257	02.559 CLIP; HARNESS	8-97167-997-0	01	1	9712-		●
257	02.559 CLIP; HARNESS 4 DOOR LONG(UB***F) 6VE1 ENG(RJQ) TORQUE ON DEMAND<7HA> ID=22	8-97022-767-0	01	1	0106-			●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97172-677-1	01	1	9712-	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9712-9902		●	●
297	04.104 BREATHER; AIR,TRANSFER CASE	8-97173-541-1	01	1	9903-		●	●	●
299	04.317 PLUG; SHIFTER ROD ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	9712-9908	●	●	●
299	04.317 PLUG; SHIFTER ROD SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	9909-0105	●	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	0106-	●	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	9712-9908	●	●	●
299	04.317 PLUG; SHIFTER ROD EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY) 04.309 OD=14	5-09609-004-0	03	1	9909-0105	●	●	●	●
299	04.317 PLUG; SHIFTER ROD SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA> 04.309 OD=14	5-09609-004-0	02	1	0106-	●	●	●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	02	1	9712-	●
417	04.105 PLUG; OIL FILLER,TRANS (B)	8-97164-952-0	01	1	9712-		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	9712-9902		●	●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	9903-		●	●	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) SHIFT ON THE FLY(7EX)	8-97039-529-2	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC) FINAL GEAR RATIO 43/9(S2J) EXC. SHIFT ON THE FLY(7EX)	8-97069-364-5	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS 4JG2 ENG(RJC),6VD1 ENG(RLV) FINAL GEAR RATIO 41/9(HC6)	8-97069-364-5	01	1	9712-9804	●
421	04.317 COVER; RR,TRANS	8-97069-364-5	01	1	9712-9804		●	●
421	04.317 COVER; RR,TRANS EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97069-364-5	01	1	9805-9812	●	●	●
421	04.317 COVER; RR,TRANS EXC. ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9901-9908	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9909-0102	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	9909-0102				●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0103-0105	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0103-0105				●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97219-929-0	01	1	0106-0308	●	●	●	●
421	04.317 COVER; RR,TRANS EXC. TORQUE ON DEMAND<7HA>,ONE TOUCH 4X4 SYSTEM(7QY)	8-97369-829-0	01	1	0309-	●	●	●	●
421	04.317 COVER; RR,TRANS ONE TOUCH 4X4 SYSTEM(7QY)	8-97126-772-1	01	1	9712-9902	●	●	●
421	04.317 COVER; RR,TRANS ONE TOUCH 4X4 SYSTEM(7QY)	8-97126-772-1	01	1	9903-9903	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9903-9903		●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9904-9908	●	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9909-0105	●	●	●
421	04.317 COVER; RR,TRANS 4JX1 ENG(RJM) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	9909-0105				●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97220-601-0	01	1	0106-0308	●	●	●	●
421	04.317 COVER; RR,TRANS SHIFT ON THE FLY(7EX) ONE TOUCH 4X4 SYSTEM(7QY) EXC. TORQUE ON DEMAND<7HA>	8-97369-830-0	01	1	0309-	●	●	●	●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	02	1	9712-	●
430	04.105 PLUG; OIL DRAIN (B)	8-97164-953-0	01	1	9712-		●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	9712-9902		●	●
430	04.105 PLUG; OIL DRAIN (A)	9-09662-004-0	01	1	9903-		●	●	●
533	04.104 CAP; AIR BREATHER EXC. TORQUE ON DEMAND<7HA>	8-94362-237-0	01	1	9712-9809		●	●	●
533	04.104 CAP; AIR BREATHER	8-94362-237-0	01	1	9810-9902		●	●
533	04.104 CAP; AIR BREATHER	8-94362-237-0	01	1	9903-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
