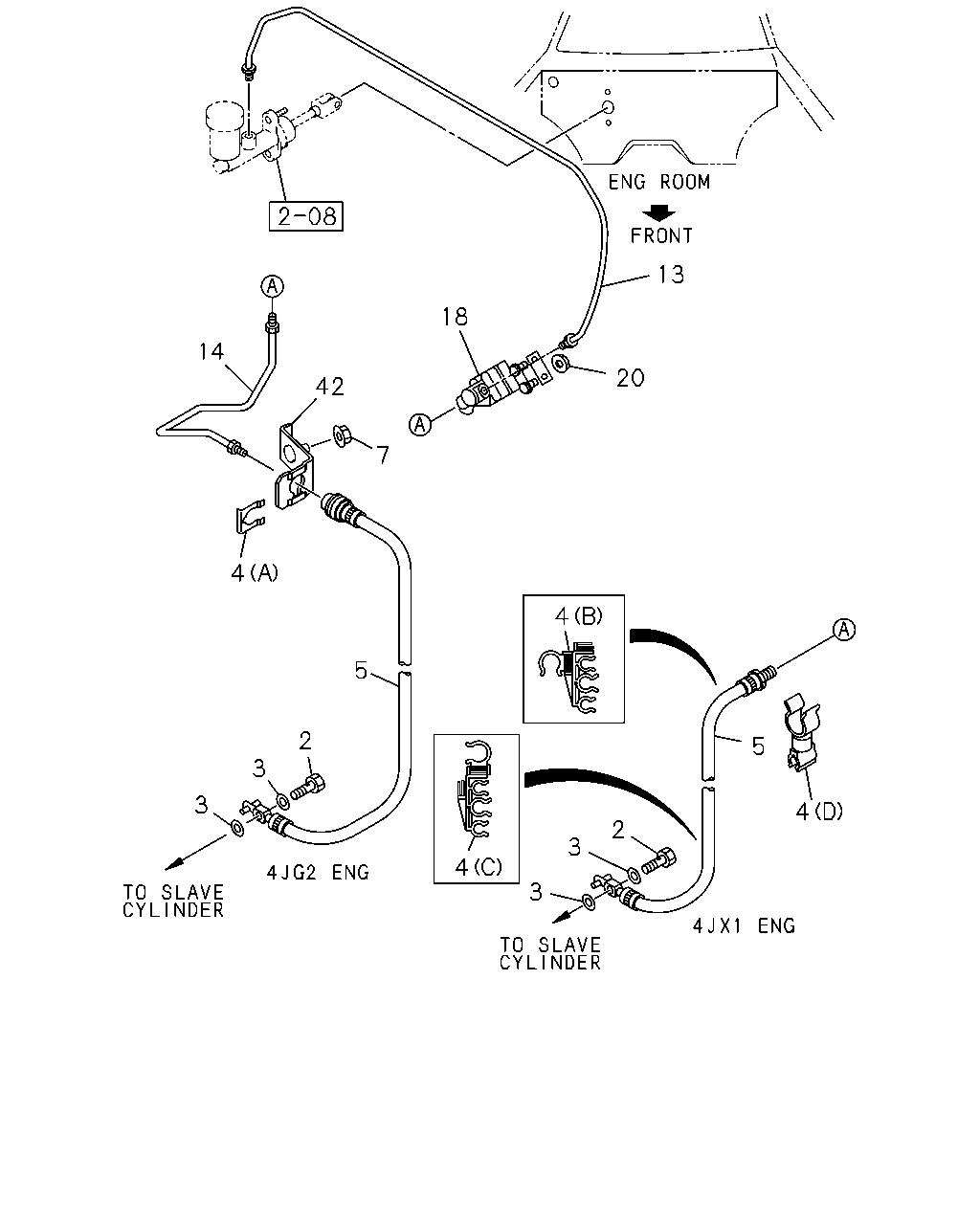

2-05 — CLUTCH PIPING (#73255) — 54 parça

13 18 20 14 4 42 7 5 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.782 BOLT; EYE,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.665 M10X22	5-09675-017-0	01	1	9712-	●	●	●	●
3	00.785 GASKET; FLEX HOSE,CLU M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-	●	●	●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A)	8-94436-216-0	01	1	9712-	●		●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT (D)	8-97191-379-0	02	1	9712-9712		●
4	00.785 CLIP; FLEX HOSE,CLU CONT (B)	8-97204-216-0	01	1	9801-9908		●
4	00.785 CLIP; FLEX HOSE,CLU CONT M/T AR-5 5 SPEED(RNK) (B)	8-97204-216-0	01	1	9909-		●
4	00.785 CLIP; FLEX HOSE,CLU CONT (C)	8-97204-217-0	01	1	9801-9908		●
4	00.785 CLIP; FLEX HOSE,CLU CONT M/T AR-5 5 SPEED(RNK) (C)	8-97204-217-0	01	1	9909-		●
5	00.785 HOSE; FLEX,CLU PIPE M/T MUA 5 SPEED(RMN)	8-97066-439-0	01	1	9712-	●
5	00.785 HOSE; FLEX,CLU PIPE	8-97190-915-0	01	1	9712-9908		●
5	00.785 HOSE; FLEX,CLU PIPE M/T AR-5 5 SPEED(RNK)	8-97190-915-0	01	1	9909-		●
5	00.785 HOSE; FLEX,CLU PIPE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97020-579-1	01	1	9712-			●	●
7	00.785 NUT; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-9908	●		●	●
7	00.785 NUT; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 07.633 M8 FLANGE	0-91150-108-0	01	1	9909-	●		●	●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL M/T MUA 5 SPEED(RMN)	8-97130-570-4	01	1	9712-	●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL	8-97200-729-1	01	1	9712-9908		●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL M/T AR-5 5 SPEED(RNK)	8-97200-729-2	01	1	9909-		●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-94374-846-5	01	1	9712-			●	●
14	00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV M/T MUA 5 SPEED(RMN)	8-97066-883-3	01	1	9712-	●
14	00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97035-074-4	01	1	9712-			●	●
18	00.830 DAMPER ASM; CLU OIL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97132-841-0	01	1	9712-	●		●	●
18	00.830 DAMPER ASM; CLU OIL	8-97190-926-0	01	1	9712-9712		●
18	00.830 DAMPER ASM; CLU OIL	8-97190-926-0	01	1	9806-9908		●
18	00.830 DAMPER ASM; CLU OIL M/T AR-5 5 SPEED(RNK)	8-97190-926-0	01	1	9909-		●
20	00.837 NUT; CLU OIL DAMPER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-	●	●	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN)	8-97130-249-1	01	1	9712-	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97182-767-3	01	1	9712-			●	●

13 18 14 20 42 7 4 4 5 2 5 3 3 4 2 3 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.782 BOLT; EYE,SLAVE CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.665 M10X22	5-09675-017-0	01	1	9712-	●	●	●	●
3	00.785 GASKET; FLEX HOSE,CLU M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-	●	●	●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) (A)	8-94436-216-0	01	1	9712-	●		●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT (D)	8-97191-379-0	02	1	9712-9712		●
4	00.785 CLIP; FLEX HOSE,CLU CONT (B)	8-97204-216-0	01	1	9801-9908		●
4	00.785 CLIP; FLEX HOSE,CLU CONT M/T AR-5 5 SPEED(RNK) (B)	8-97204-216-0	01	1	9909-		●
4	00.785 CLIP; FLEX HOSE,CLU CONT (C)	8-97204-217-0	01	1	9801-9908		●
4	00.785 CLIP; FLEX HOSE,CLU CONT M/T AR-5 5 SPEED(RNK) (C)	8-97204-217-0	01	1	9909-		●
5	00.785 HOSE; FLEX,CLU PIPE M/T MUA 5 SPEED(RMN)	8-97066-439-0	01	1	9712-	●
5	00.785 HOSE; FLEX,CLU PIPE	8-97190-915-0	01	1	9712-9908		●
5	00.785 HOSE; FLEX,CLU PIPE M/T AR-5 5 SPEED(RNK)	8-97190-915-0	01	1	9909-		●
5	00.785 HOSE; FLEX,CLU PIPE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97020-579-1	01	1	9712-			●	●
7	00.785 NUT; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-9908	●		●	●
7	00.785 NUT; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 07.633 M8 FLANGE	0-91150-108-0	01	1	9909-	●		●	●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL M/T MUA 5 SPEED(RMN)	8-97130-570-4	01	1	9712-	●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL	8-97200-729-1	01	1	9712-9908		●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL M/T AR-5 5 SPEED(RNK)	8-97200-729-2	01	1	9909-		●
13	00.785 PIPE; OIL,FLEX HOSE TO CLU M/CYL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-94374-846-5	01	1	9712-			●	●
14	00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV M/T MUA 5 SPEED(RMN)	8-97066-883-3	01	1	9712-	●
14	00.785 PIPE ASM; OIL,OIL DAMPER TO SLAV M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97035-074-4	01	1	9712-			●	●
18	00.830 DAMPER ASM; CLU OIL M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97132-841-0	01	1	9712-	●		●	●
18	00.830 DAMPER ASM; CLU OIL	8-97190-926-0	01	1	9712-9712		●
18	00.830 DAMPER ASM; CLU OIL	8-97190-926-0	01	1	9806-9908		●
18	00.830 DAMPER ASM; CLU OIL M/T AR-5 5 SPEED(RNK)	8-97190-926-0	01	1	9909-		●
20	00.837 NUT; CLU OIL DAMPER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 04.594 M6 FLANGE	0-91150-106-0	02	1	9712-	●	●	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN)	8-97130-249-1	01	1	9712-	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK)	8-97182-767-3	01	1	9712-			●	●
