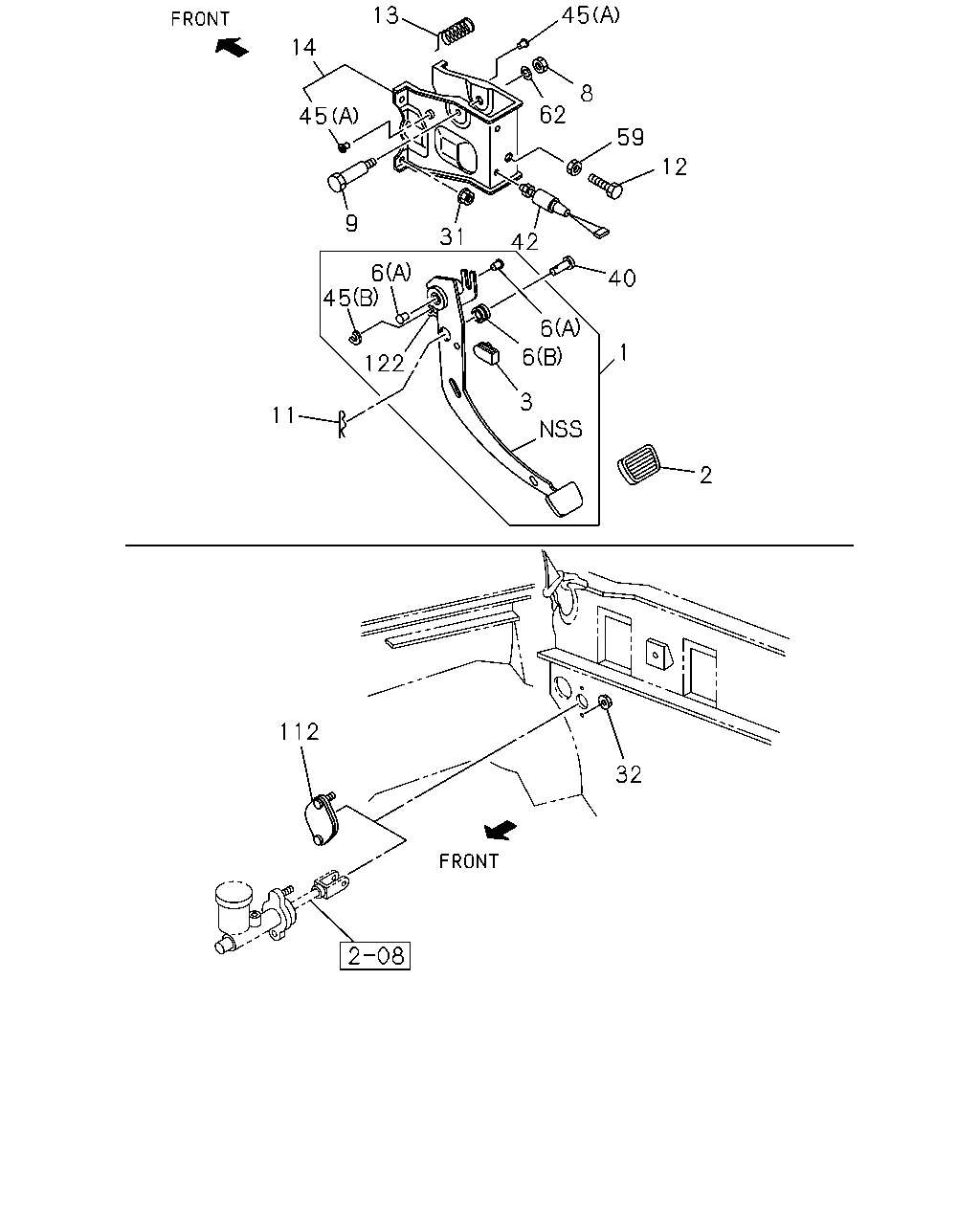

1 |
00.830 PEDAL; CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-97078-568-0 |
01 |
1 |
9712- |
● |
● |
| |
2 |
04.630 COVER; CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-94222-524-1 |
01 |
1 |
9712- |
● |
● |
| |
3 |
00.785 RUBBER; STOPPER,CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-94463-258-0 |
01 |
1 |
9712- |
● |
● |
| |
6 |
00.831 BUSHING; CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
00.833
(A)
|
8-94244-439-0 |
02 |
1 |
9712- |
● |
● |
| |
6 |
00.831 BUSHING; CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
00.833
(B)
|
8-97035-885-0 |
01 |
1 |
9712-9809 |
● |
● |
| |
8 |
00.833 NUT; PIN TO PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9712- |
● |
● |
| |
9 |
00.833 PIN; CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-94455-308-0 |
01 |
1 |
9712- |
● |
● |
| |
11 |
00.833 PIN; SNAP,PUSH ROD TO PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
04.662
L=27.7
|
1-09747-005-0 |
01 |
1 |
9712- |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
EXC. AUTO CRUISE CONT<K30>
00.805
M10X35
|
0-20801-035-0 |
01 |
1 |
9712-0105 |
● |
● |
| |
12 |
00.841 BOLT; CLU PEDAL ADJ
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
EXC. EUROPE EQUIPMENT(EK4),AUTO CRUISE
CONT<K30>
00.805
M10X35
|
0-20801-035-0 |
01 |
1 |
0106- |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
00.837
|
8-97036-041-0 |
01 |
1 |
9712-0109 |
● |
● |
| |
13 |
00.844 SPRING; ASSIST,CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-97312-882-0 |
01 |
1 |
0110- |
● |
● |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-97129-789-0 |
01 |
1 |
9712-0101 |
● |
● |
| |
14 |
00.829 BRACKET ASM; CLU PEDAL MTG
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-97309-439-0 |
01 |
1 |
0102- |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
9712-0103 |
● |
● |
| |
31 |
01.153 NUT; MTG BRKT TO BODY
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
00.854
M8 FLANGE
|
5-09440-005-0 |
04 |
1 |
0104- |
● |
● |
| |
32 |
00.777 NUT; BRKT TO CLU M/CYL
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9712- |
● |
● |
| |
40 |
00.833 PIN; JOINT,CLU DAMPER
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-94432-133-1 |
01 |
1 |
9712- |
● |
● |
| |
42 |
04.054 SWITCH; CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
AUTO CRUISE CONT<K30>
|
8-94368-343-0 |
01 |
1 |
9712-0105 |
● |
● |
| |
42 |
04.054 SWITCH; CLU
6VE1 ENG(RJQ)
M/T AR-5 5 SPEED(RNK)
EUROPE EQUIPMENT(EK4)
|
8-94368-343-0 |
01 |
1 |
0106-0211 |
● |
● |
| |
42 |
04.054 SWITCH; CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
AUTO CRUISE CONT<K30>
EXC. EUROPE EQUIPMENT(EK4)
|
8-94368-343-0 |
01 |
1 |
0106-0211 |
● |
● |
| |
42 |
04.054 SWITCH; CLU
6VE1 ENG(RJQ)
M/T AR-5 5 SPEED(RNK)
EUROPE EQUIPMENT(EK4)
03.636
|
8-97358-315-0 |
01 |
1 |
0212- |
● |
● |
| |
42 |
04.054 SWITCH; CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
AUTO CRUISE CONT<K30>
EXC. EUROPE EQUIPMENT(EK4)
03.636
|
8-97358-315-0 |
01 |
1 |
0212- |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
(A)
|
8-94175-433-0 |
02 |
1 |
9712- |
● |
● |
| |
45 |
00.831 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
(B)
|
8-94175-434-0 |
01 |
1 |
9712- |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
EXC. AUTO CRUISE CONT<K30>
09.011
M10
|
9-09110-410-0 |
01 |
1 |
9712-0105 |
● |
● |
| |
59 |
00.833 NUT; CLU PEDAL ADJ
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
EXC. EUROPE EQUIPMENT(EK4),AUTO CRUISE
CONT<K30>
09.011
M10
|
9-09110-410-0 |
01 |
1 |
0106- |
● |
● |
| |
62 |
00.833 WASHER; LK,PIN TO PEDAL
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
00.002
ID=10.2
|
9-09150-510-0 |
01 |
1 |
9712- |
● |
● |
| |
112 |
00.785 PLUG; METAL,M/CYL
A/T AISIN(RMD),A/T THM(RMQ)
|
8-94325-869-0 |
01 |
1 |
9712-0007 |
● |
● |
| |
112 |
00.785 PLUG; METAL,M/CYL
A/T AISIN(RMD),A/T THM(RMQ)
|
8-97259-210-0 |
01 |
1 |
0008- |
● |
● |
| |
122 |
00.831 BUSHING; ASSIST PEDAL,CLU
M/T MUA 5 SPEED(RMN),M/T AR-5 5
SPEED(RNK)
|
8-94175-434-0 |
01 |
1 |
9712- |
● |
● |
