2-01 — CLUTCH (#73253) — 67 parça

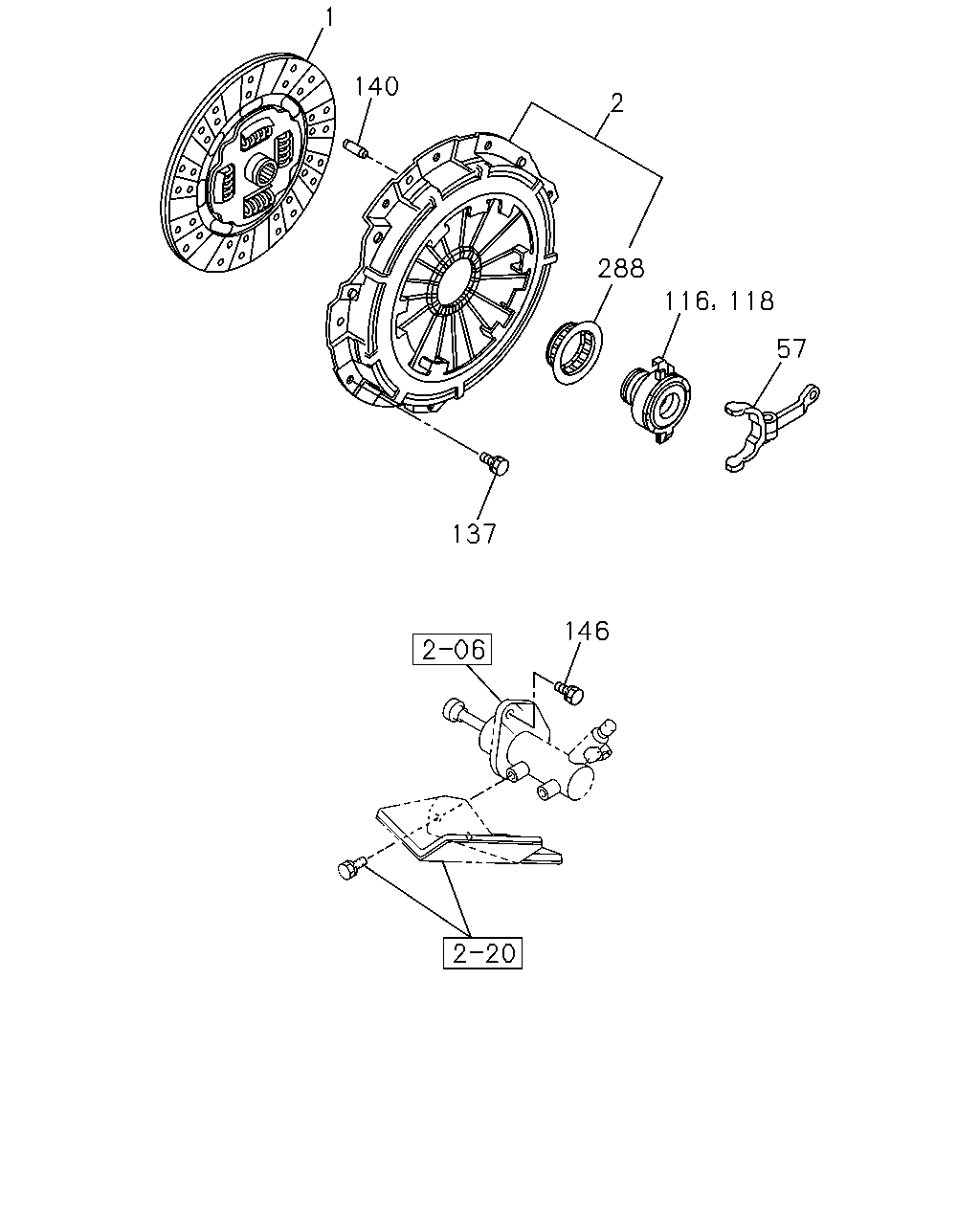

1 140 2 288 116 118 57 137 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97135-492-0	01	1	9712-9806	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97207-245-0	01	1	9807-9809	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97217-985-0	01	1	9810-0008	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97257-124-0	01	1	0009-0403	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97377-899-0	01	1	0404-	●
1	00.886 DISC; CLUTCH	8-97143-146-1	01	1	9712-9908		●
1	00.886 DISC; CLUTCH M/T AR-5 5 SPEED(RNK)	8-97143-146-1	01	1	9909-		●
1	00.886 DISC; CLUTCH M/T AR-5 5 SPEED(RNK)	8-97163-194-0	01	1	9712-			●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97138-135-0	01	1	9712-0309				●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97138-138-0	01	1	0310-				●
2	00.859 PLATE ASM; PRESSURE,CLU M/T MUA 5 SPEED(RMN)	8-97109-246-0	01	1	9712-	●
2	00.859 PLATE ASM; PRESSURE,CLU M/T AR-5 5 SPEED(RNK)	8-97136-535-0	01	1	9712-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU M/T MUA 5 SPEED(RMN)	8-94374-897-8	01	1	9712-				●
57	00.795 FORK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-97039-266-0	01	1	9712-0305	●
57	00.795 FORK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-97365-654-0	01	1	0306-	●
57	00.795 FORK; SHIFT,CLU M/T AR-5 5 SPEED(RNK)	8-94370-379-3	01	1	9712-		●	●
57	00.795 FORK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-94370-379-3	01	1	9712-				●
116	00.799 BLOCK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-94379-441-0	01	1	9712-0112	●
116	00.799 BLOCK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-94377-417-1	01	1	9810-				●
118	00.799 BEARING; CLU RELEASE M/T MUA 5 SPEED(RMN) KOYO	8-94379-499-0	01	1	9712-0112	●
118	00.799 BEARING; CLU RELEASE M/T MUA 5 SPEED(RMN) NSK	8-97316-591-0	01	1	0201-	●
118	00.799 BEARING; CLU RELEASE M/T AR-5 5 SPEED(RNK)	8-94377-417-1	01	1	9712-9809		●	●
118	00.799 BEARING; CLU RELEASE M/T MUA 5 SPEED(RMN)	8-94377-417-1	01	1	9712-9809				●
118	00.799 BEARING; CLU RELEASE M/T AR-5 5 SPEED(RNK)	8-94377-417-1	01	1	9810-		●	●
137	00.862 BOLT; CLU COVER M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9712-	●
137	00.862 BOLT; CLU COVER M/T AR-5 5 SPEED(RNK) 01.062 M8X16 FLANGE	0-28080-816-0	09	1	9712-		●
137	00.862 BOLT; CLU COVER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 01.062 M8X16 FLANGE	0-28080-816-0	09	1	9712-			●	●
140	00.862 PIN; STRAIGHT M/T MUA 5 SPEED(RMN) OD=6 L=24	9-09878-532-0	02	1	9712-	●
140	00.862 PIN; STRAIGHT M/T AR-5 5 SPEED(RNK) OD=6 L=24	9-09878-532-0	03	1	9712-			●
140	00.862 PIN; STRAIGHT M/T MUA 5 SPEED(RMN) OD=6 L=24	9-09878-532-0	03	1	9712-				●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE M/T MUA 5 SPEED(RMN) M12X85 FLANGE	8-94480-345-1	02	1	9712-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9712-		●	●	●
288	00.863 COLLAR; WEDGE M/T AR-5 5 SPEED(RNK)	8-97065-073-0	01	1	9909-		●	●
288	00.863 COLLAR; WEDGE M/T MUA 5 SPEED(RMN)	8-97065-073-0	01	1	9909-				●

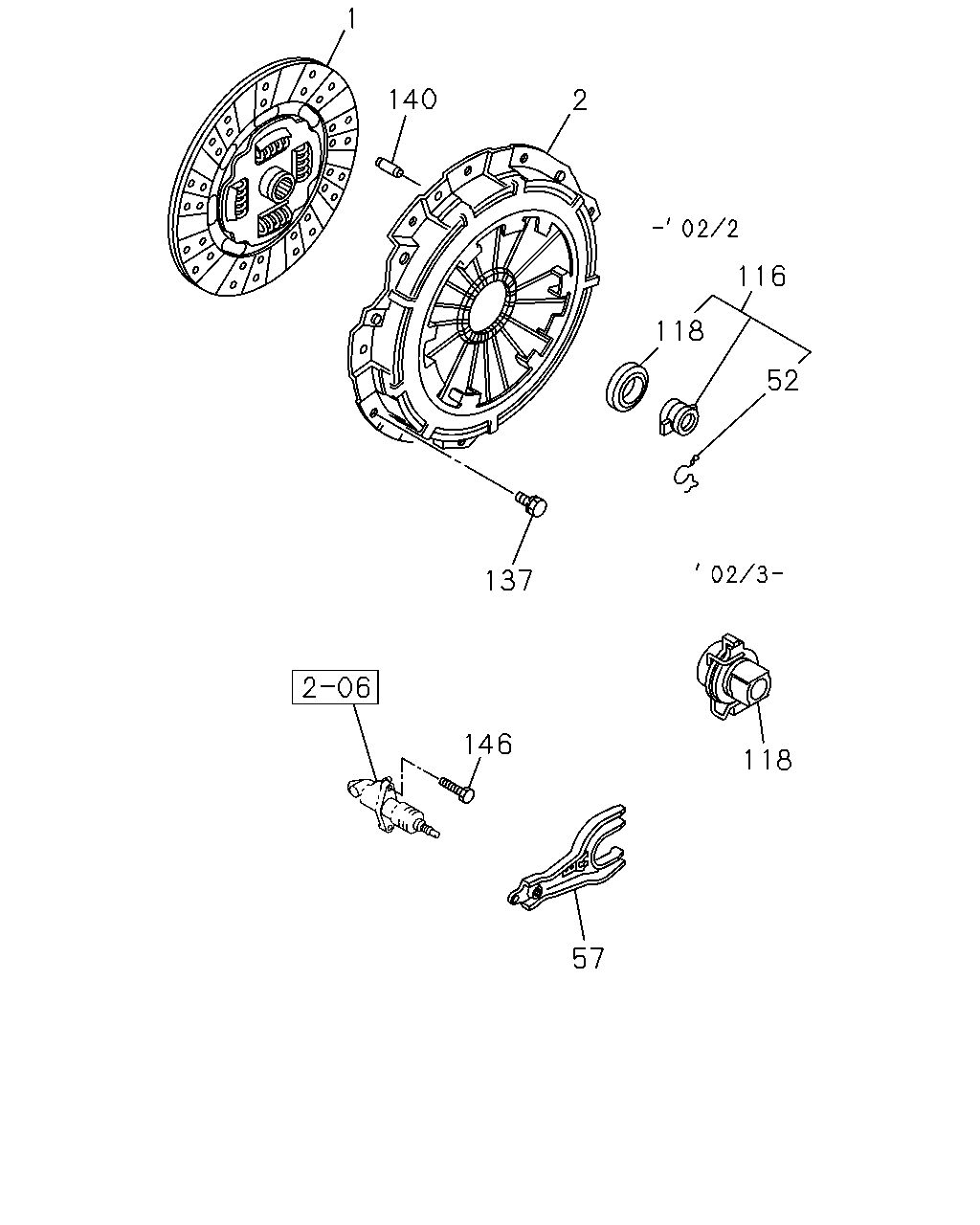

1 140 2 116 118 52 137 146 118 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97135-492-0	01	1	9712-9806	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97207-245-0	01	1	9807-9809	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97217-985-0	01	1	9810-0008	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97257-124-0	01	1	0009-0403	●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97377-899-0	01	1	0404-	●
1	00.886 DISC; CLUTCH	8-97143-146-1	01	1	9712-9908		●
1	00.886 DISC; CLUTCH M/T AR-5 5 SPEED(RNK)	8-97143-146-1	01	1	9909-		●
1	00.886 DISC; CLUTCH M/T AR-5 5 SPEED(RNK)	8-97163-194-0	01	1	9712-			●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97138-135-0	01	1	9712-0309				●
1	00.886 DISC; CLUTCH M/T MUA 5 SPEED(RMN)	8-97138-138-0	01	1	0310-				●
2	00.859 PLATE ASM; PRESSURE,CLU M/T MUA 5 SPEED(RMN)	8-97109-246-0	01	1	9712-	●
2	00.859 PLATE ASM; PRESSURE,CLU M/T AR-5 5 SPEED(RNK)	8-97136-535-0	01	1	9712-		●	●
2	00.859 PLATE ASM; PRESSURE,CLU M/T MUA 5 SPEED(RMN)	8-94374-897-8	01	1	9712-				●
52	00.797 SPRING; SHIFT BLOCK TO FORK M/T MUA 5 SPEED(RMN)	8-94311-807-0	01	1	9712-0112	●
57	00.795 FORK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-97039-266-0	01	1	9712-0305	●
57	00.795 FORK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-97365-654-0	01	1	0306-	●
57	00.795 FORK; SHIFT,CLU M/T AR-5 5 SPEED(RNK)	8-94370-379-3	01	1	9712-		●	●
57	00.795 FORK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-94370-379-3	01	1	9712-				●
116	00.799 BLOCK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-94379-441-0	01	1	9712-0112	●
116	00.799 BLOCK; SHIFT,CLU M/T MUA 5 SPEED(RMN)	8-94377-417-1	01	1	9810-				●
118	00.799 BEARING; CLU RELEASE M/T MUA 5 SPEED(RMN) KOYO	8-94379-499-0	01	1	9712-0112	●
118	00.799 BEARING; CLU RELEASE M/T MUA 5 SPEED(RMN) NSK	8-97316-591-0	01	1	0201-	●
118	00.799 BEARING; CLU RELEASE M/T AR-5 5 SPEED(RNK)	8-94377-417-1	01	1	9712-9809		●	●
118	00.799 BEARING; CLU RELEASE M/T MUA 5 SPEED(RMN)	8-94377-417-1	01	1	9712-9809				●
118	00.799 BEARING; CLU RELEASE M/T AR-5 5 SPEED(RNK)	8-94377-417-1	01	1	9810-		●	●
137	00.862 BOLT; CLU COVER M/T MUA 5 SPEED(RMN) 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9712-	●
137	00.862 BOLT; CLU COVER M/T AR-5 5 SPEED(RNK) 01.062 M8X16 FLANGE	0-28080-816-0	09	1	9712-		●
137	00.862 BOLT; CLU COVER M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 01.062 M8X16 FLANGE	0-28080-816-0	09	1	9712-			●	●
140	00.862 PIN; STRAIGHT M/T MUA 5 SPEED(RMN) OD=6 L=24	9-09878-532-0	02	1	9712-	●
140	00.862 PIN; STRAIGHT M/T AR-5 5 SPEED(RNK) OD=6 L=24	9-09878-532-0	03	1	9712-			●
140	00.862 PIN; STRAIGHT M/T MUA 5 SPEED(RMN) OD=6 L=24	9-09878-532-0	03	1	9712-				●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE M/T MUA 5 SPEED(RMN) M12X85 FLANGE	8-94480-345-1	02	1	9712-	●
146	00.780 BOLT; SLAVE CYL TO TRANS CASE M/T MUA 5 SPEED(RMN),M/T AR-5 5 SPEED(RNK) 08.900 M10X30 FLANGE	0-28781-030-0	02	1	9712-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
