1-50 — EXHAUST PIPE AND SILENCER (#73251) — 863 parça

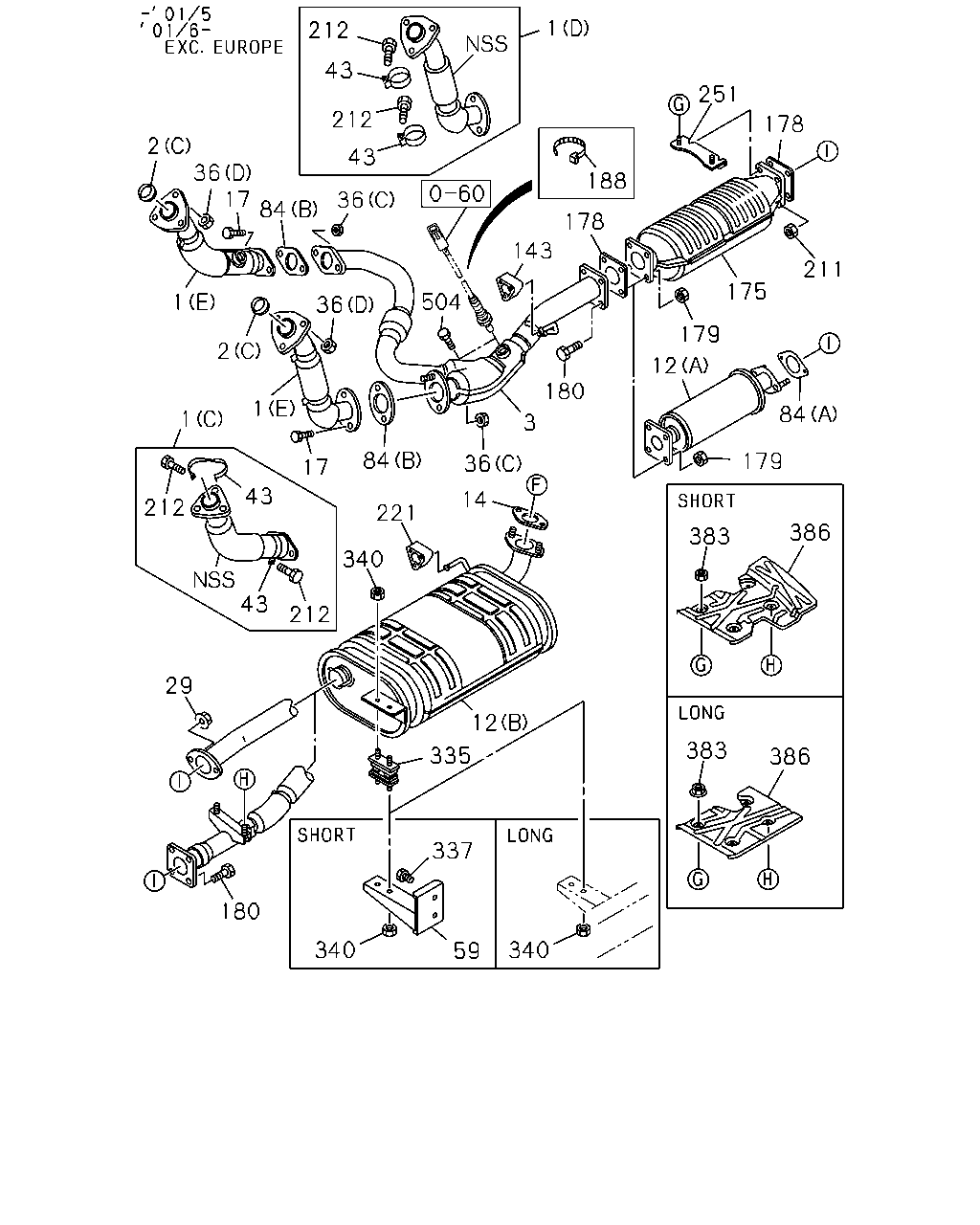

çizim 17556
1 212 43 251 212 178 2 36 17 84 43 188 36 178 143 211 175 504 1 36 179 2 12 180 1 84 1 3 84 179 36 17 43 14 212 221 386 383 340 43 212 29 12 383 335 386 337 180 340 340 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9712- ●
1 03.609 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9712- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97114-609-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97302-456-2 01 1 0106- ●
1 03.609 PIPE; EXH
(B) 		8-97169-424-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-424-2 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97169-424-2 01 1 0209- ●
1 03.609 PIPE; EXH
(A) 		8-97174-540-0 01 1 9712-9908 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97219-341-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97300-845-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97300-845-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97219-340-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97300-844-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97262-541-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97331-876-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (A) 		8-97331-876-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97300-844-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97331-878-0 01 1 0202-0301 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97331-878-0 01 1 0302- ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97230-029-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97300-846-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97262-542-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97331-877-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97331-877-0 01 1 0209- ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-329-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-328-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (B) 		8-97262-356-0 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97262-356-0 01 1 0209-0303 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97366-926-0 01 1 0304- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
(C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9712- ●
2 03.611 GASKET; PIPE TO MANIF
(A) ID=55 		8-97093-574-1 01 1 0107- ●
2 03.611 GASKET; PIPE TO MANIF
(B) 		8-97069-287-0 01 1 9712- ● ●
2 03.611 GASKET; PIPE TO MANIF
(C) 		8-97102-031-1 02 1 9712- ● ●
3 03.609 PIPE; EXH,CENTER
TORQUE ON DEMAND<7HA> 		8-97169-429-0 01 1 9712-0105 ●
3 03.609 PIPE; EXH,CENTER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97169-429-0 01 1 9712-0105 ●
3 03.609 PIPE; EXH,CENTER
TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) 		8-97169-429-0 01 1 0106- ●
3 03.609 PIPE; EXH,CENTER
A/T THM(RMQ) TORQUE ON DEMAND<7HA> 		8-97169-429-0 01 1 0106- ●
3 03.609 PIPE; EXH,CENTER
EXC. TORQUE ON DEMAND<7HA> 		8-97169-428-1 01 1 9712- ●
3 03.609 PIPE; EXH,CENTER
A/T THM(RMQ) EXC. TORQUE ON DEMAND<7HA> 		8-97169-428-1 01 1 9712- ●
3 03.609 PIPE; EXH,CENTER
M/T MUA 5 SPEED(RMN) 		8-97178-055-1 01 1 9712- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97165-833-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-077-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (C) 		8-97258-077-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97165-834-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97258-078-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) (C) 		8-97258-078-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97169-427-1 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-080-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (C) 		8-97262-760-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EURO3 SPECIFICATION(NT3) (C) 		8-97262-760-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97169-426-0 01 1 9712-9712 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97169-426-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97258-079-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97201-582-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-081-1 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-081-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-081-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (C) 		8-97262-358-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (C) 		8-97262-358-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C) 		8-97262-357-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (C) 		8-97262-357-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 0012-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97302-394-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97305-602-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-2 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-433-0 01 1 0012- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9901- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9901- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0209- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO3 SPECIFICATION(NT3) ID=64.7 		8-94328-352-0 01 1 0209- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0209- ●
17 03.613 BOLT; EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
17 03.613 BOLT; EXH PIPE
EUROPE EQUIPMENT(EK4) M10X40 FLANGE 		0-28681-040-0 02 1 0106- ●
17 03.613 BOLT; EXH PIPE
2 DOOR SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) M10X40 FLANGE 		0-28681-040-0 03 1 0106- ● ●
17 03.613 BOLT; EXH PIPE
4 DOOR LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> M10X40 FLANGE 		0-28681-040-0 03 1 0106- ● ●
17 03.613 BOLT; EXH PIPE
4 DOOR LONG(UB***F) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
29 03.613 NUT; PIPE CLAMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
29 03.613 NUT; PIPE CLAMP
EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
36 03.613 NUT; EXH PIPE
EUROPE EQUIPMENT(EK4) 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 0106- ● ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
43 03.611 CLAMP; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.708 		8-94472-880-0 02 1 9712- ● ●
59 03.704 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9712- ● ● ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 0106-0106 ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 0106-0106 ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 02 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 02 1 0106- ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
143 03.704 RUBBER; SUPPORT
M/T MUA 5 SPEED(RMN) 03.706 		8-97120-442-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 9801-0105 ●
143 03.704 RUBBER; SUPPORT
A/T AISIN(RMD) 		8-97080-694-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4) 		8-97261-046-1 01 1 0106-0208 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION(NT3) 		8-97261-046-1 01 1 0209- ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4) 		8-97222-877-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) 		8-97222-876-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97222-876-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97219-826-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97181-594-0 01 1 9712-0105 ● ●
175 03.685 CONVERTER; CATALYST
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97181-594-0 01 1 0106- ● ●
178 03.611 GASKET; CONV TO MANIF
EUROPE EQUIPMENT(EK4) 		8-97263-123-0 01 1 0106-0208 ●
178 03.611 GASKET; CONV TO MANIF
EURO3 SPECIFICATION(NT3) 		8-97263-123-0 01 1 0209- ●
178 03.611 GASKET; CONV TO MANIF
EXC. CATALYSIS CONTROL(6MZ) ID=71 		8-94324-194-0 01 1 9712- ● ●
178 03.611 GASKET; CONV TO MANIF
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) ID=71 		8-94324-194-0 02 1 9712-0105 ● ●
178 03.611 GASKET; CONV TO MANIF
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) ID=71 		8-94324-194-0 02 1 0106- ● ●
179 03.611 NUT; CONV TO PIPE
03.613 M10 		8-94201-308-1 04 1 9712-0105 ● ●
179 03.611 NUT; CONV TO PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.613 M10 		8-94201-308-1 04 1 0106- ● ●
179 03.611 NUT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0106- ●
180 03.708 BOLT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) M8X43 		8-94449-110-0 02 1 0106-0208 ●
180 03.708 BOLT; CONV TO PIPE
EURO3 SPECIFICATION(NT3) M8X43 		8-94449-110-0 02 1 0209- ●
180 03.708 BOLT; CONV TO PIPE
03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
180 03.708 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
180 03.708 BOLT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 0106- ●
180 03.708 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
180 03.708 BOLT; CONV TO PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
188 03.682 CLIP; OXYGEN SENSOR
SOUTH AFRICA EQUIPMENT(SW2) 03.162 L=140 		5-09707-031-1 01 1 0001-0102 ●
211 03.685 NUT; CONV
EUROPE EQUIPMENT(EK4) 03.613 M8 FLANGE 		8-97161-607-0 02 1 0106-0208 ●
211 03.685 NUT; CONV
EURO3 SPECIFICATION(NT3) 03.613 M8 FLANGE 		8-97161-607-0 02 1 0209- ●
211 03.685 NUT; CONV
CATALYSIS CONTROL(6MZ) 03.613 M10 		8-94201-308-1 02 1 9712-0105 ● ●
211 03.685 NUT; CONV
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 03.613 M10 		8-94201-308-1 02 1 0106- ● ●
212 03.704 BOLT; BRKT
EXC. EUROPE EQUIPMENT(EK4) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
221 03.704 CLAMP; EXH SILENCER
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ● ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9801-0105 ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 0106- ●
221 03.704 CLAMP; EXH SILENCER
EUROPE EQUIPMENT(EK4) 		8-97080-694-0 01 1 0106- ●
251 03.685 BRACKET; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) 		8-97044-896-3 01 1 9712-0105 ● ●
251 03.685 BRACKET; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 		8-97044-896-3 01 1 0106- ● ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9712- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ●
383 03.602 NUT; PROTECTOR
CATALYSIS CONTROL(6MZ) 04.594 M6 FLANGE 		0-91150-106-0 04 1 9712-0105 ● ●
383 03.602 NUT; PROTECTOR
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 04.594 M6 FLANGE 		0-91150-106-0 04 1 0106- ● ●
386 03.602 PANEL; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 		8-97134-610-0 01 1 9712-0105 ● ●
386 03.602 PANEL; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 		8-97134-610-0 01 1 0106- ● ●
386 03.602 PANEL; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) 		8-97134-609-0 01 1 9712-0105 ● ●
386 03.602 PANEL; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 		8-97134-609-0 01 1 0106- ● ●
504 03.613 PLUG; EXH PIPE
EUROPE EQUIPMENT(EK4) 04.104 M18X12 		9-99202-318-0 01 1 9712-0105 ●
504 03.613 PLUG; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 04.104 M18X12 		9-99202-318-0 01 1 9712-0105 ●
504 03.613 PLUG; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 04.104 M18X12 		9-99202-318-0 01 1 0106- ●

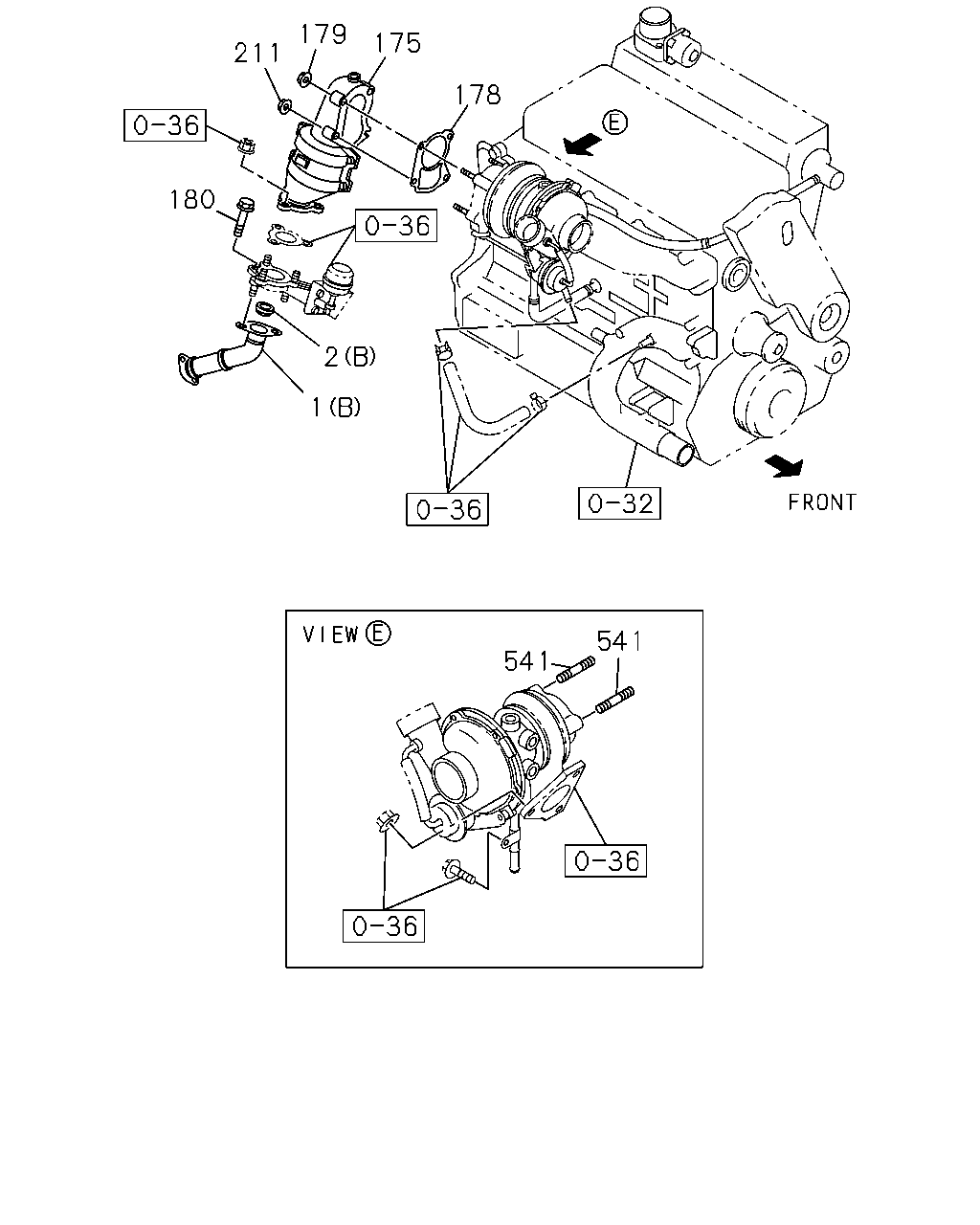

çizim 68962
179 175 211 178 180 2 1 541 541
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9712- ●
1 03.609 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9712- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97114-609-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97302-456-2 01 1 0106- ●
1 03.609 PIPE; EXH
(B) 		8-97169-424-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-424-2 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97169-424-2 01 1 0209- ●
1 03.609 PIPE; EXH
(A) 		8-97174-540-0 01 1 9712-9908 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97219-341-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97300-845-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97300-845-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97219-340-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97300-844-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97262-541-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97331-876-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (A) 		8-97331-876-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97300-844-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97331-878-0 01 1 0202-0301 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97331-878-0 01 1 0302- ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97230-029-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97300-846-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97262-542-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97331-877-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97331-877-0 01 1 0209- ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-329-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-328-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (B) 		8-97262-356-0 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97262-356-0 01 1 0209-0303 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97366-926-0 01 1 0304- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
(C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9712- ●
2 03.611 GASKET; PIPE TO MANIF
(A) ID=55 		8-97093-574-1 01 1 0107- ●
2 03.611 GASKET; PIPE TO MANIF
(B) 		8-97069-287-0 01 1 9712- ● ●
2 03.611 GASKET; PIPE TO MANIF
(C) 		8-97102-031-1 02 1 9712- ● ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4) 		8-97261-046-1 01 1 0106-0208 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION(NT3) 		8-97261-046-1 01 1 0209- ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4) 		8-97222-877-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) 		8-97222-876-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97222-876-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97219-826-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97181-594-0 01 1 9712-0105 ● ●
175 03.685 CONVERTER; CATALYST
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97181-594-0 01 1 0106- ● ●
178 03.611 GASKET; CONV TO MANIF
EUROPE EQUIPMENT(EK4) 		8-97263-123-0 01 1 0106-0208 ●
178 03.611 GASKET; CONV TO MANIF
EURO3 SPECIFICATION(NT3) 		8-97263-123-0 01 1 0209- ●
178 03.611 GASKET; CONV TO MANIF
EXC. CATALYSIS CONTROL(6MZ) ID=71 		8-94324-194-0 01 1 9712- ● ●
178 03.611 GASKET; CONV TO MANIF
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) ID=71 		8-94324-194-0 02 1 9712-0105 ● ●
178 03.611 GASKET; CONV TO MANIF
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) ID=71 		8-94324-194-0 02 1 0106- ● ●
179 03.611 NUT; CONV TO PIPE
03.613 M10 		8-94201-308-1 04 1 9712-0105 ● ●
179 03.611 NUT; CONV TO PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.613 M10 		8-94201-308-1 04 1 0106- ● ●
179 03.611 NUT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0106- ●
180 03.708 BOLT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) M8X43 		8-94449-110-0 02 1 0106-0208 ●
180 03.708 BOLT; CONV TO PIPE
EURO3 SPECIFICATION(NT3) M8X43 		8-94449-110-0 02 1 0209- ●
180 03.708 BOLT; CONV TO PIPE
03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
180 03.708 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
180 03.708 BOLT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 0106- ●
180 03.708 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
180 03.708 BOLT; CONV TO PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
211 03.685 NUT; CONV
EUROPE EQUIPMENT(EK4) 03.613 M8 FLANGE 		8-97161-607-0 02 1 0106-0208 ●
211 03.685 NUT; CONV
EURO3 SPECIFICATION(NT3) 03.613 M8 FLANGE 		8-97161-607-0 02 1 0209- ●
211 03.685 NUT; CONV
CATALYSIS CONTROL(6MZ) 03.613 M10 		8-94201-308-1 02 1 9712-0105 ● ●
211 03.685 NUT; CONV
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 03.613 M10 		8-94201-308-1 02 1 0106- ● ●
541 03.708 STUD; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 03.670 M8X25 L=36 		8-94156-470-2 01 1 0106-0208 ●
541 03.708 STUD; CONV TO PIPE
EURO3 SPECIFICATION(NT3) 03.670 M8X25 L=36 		8-94156-470-2 01 1 0209- ●
541 03.708 STUD; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 03.342 M8X41 L=52 		8-97188-452-0 01 1 0106-0208 ●
541 03.708 STUD; CONV TO PIPE
EURO3 SPECIFICATION(NT3) 03.342 M8X41 L=52 		8-97188-452-0 01 1 0209- ●

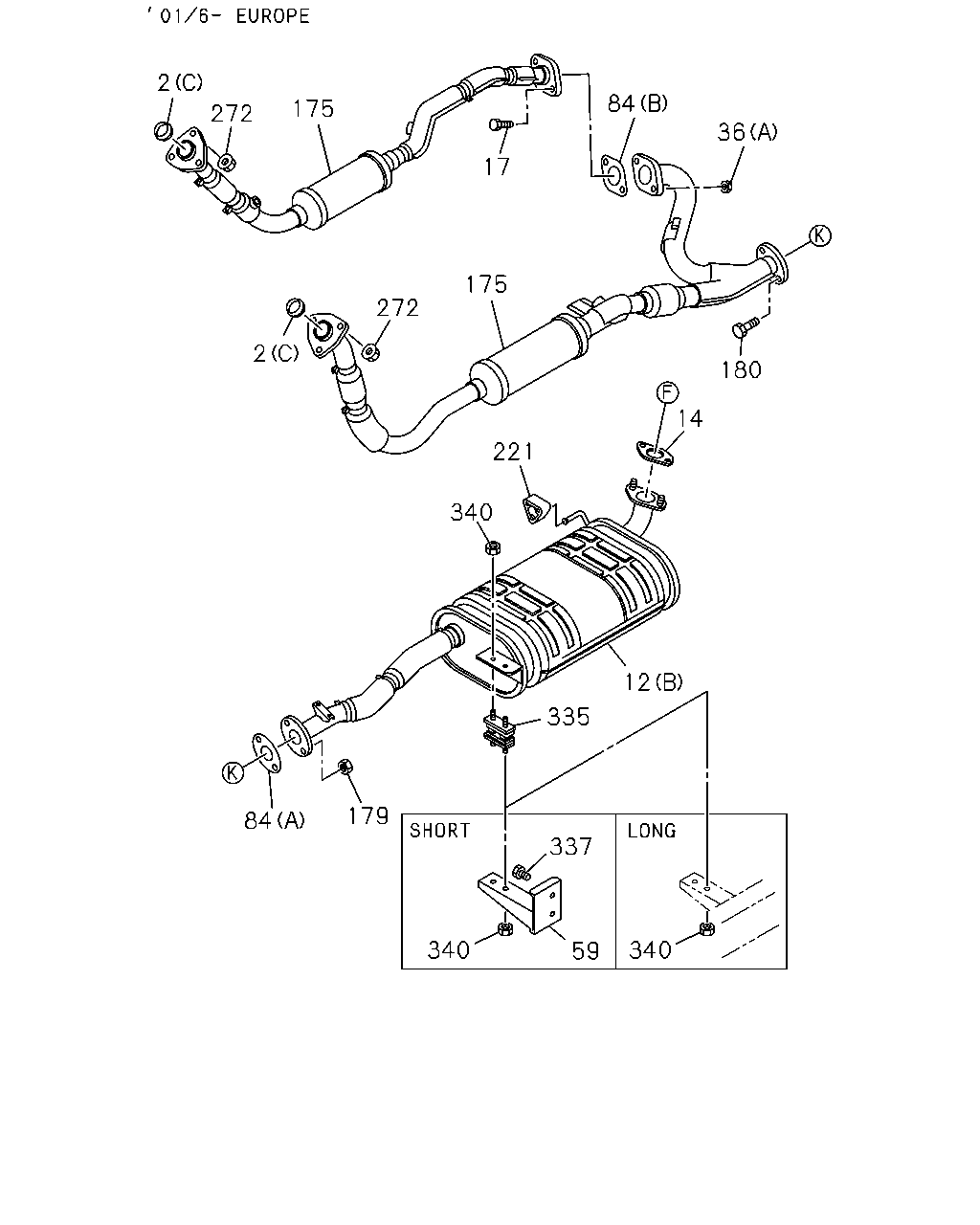

çizim 69430
2 84 175 272 36 17 175 272 2 180 14 221 340 12 335 179 84 337 340 340 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 03.611 GASKET; PIPE TO MANIF
(A) ID=55 		8-97093-574-1 01 1 0107- ●
2 03.611 GASKET; PIPE TO MANIF
(B) 		8-97069-287-0 01 1 9712- ● ●
2 03.611 GASKET; PIPE TO MANIF
(C) 		8-97102-031-1 02 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97165-833-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-077-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (C) 		8-97258-077-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97165-834-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97258-078-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) (C) 		8-97258-078-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97169-427-1 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-080-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (C) 		8-97262-760-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EURO3 SPECIFICATION(NT3) (C) 		8-97262-760-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97169-426-0 01 1 9712-9712 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97169-426-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97258-079-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97201-582-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-081-1 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-081-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-081-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (C) 		8-97262-358-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (C) 		8-97262-358-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C) 		8-97262-357-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (C) 		8-97262-357-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 0012-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97302-394-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97305-602-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-2 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-433-0 01 1 0012- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9901- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9901- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0209- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO3 SPECIFICATION(NT3) ID=64.7 		8-94328-352-0 01 1 0209- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0209- ●
17 03.613 BOLT; EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
17 03.613 BOLT; EXH PIPE
EUROPE EQUIPMENT(EK4) M10X40 FLANGE 		0-28681-040-0 02 1 0106- ●
17 03.613 BOLT; EXH PIPE
2 DOOR SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) M10X40 FLANGE 		0-28681-040-0 03 1 0106- ● ●
17 03.613 BOLT; EXH PIPE
4 DOOR LONG(UB***F) EXC. EUROPE EQUIPMENT(EK4),TORQUE ON DEMAND<7HA> M10X40 FLANGE 		0-28681-040-0 03 1 0106- ● ●
17 03.613 BOLT; EXH PIPE
4 DOOR LONG(UB***F) TORQUE ON DEMAND<7HA> EXC. EUROPE EQUIPMENT(EK4) M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
36 03.613 NUT; EXH PIPE
EUROPE EQUIPMENT(EK4) 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 0106- ● ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
59 03.704 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9712- ● ● ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 0106-0106 ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 0106-0106 ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 02 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 02 1 0106- ● ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4) 		8-97261-046-1 01 1 0106-0208 ●
175 03.685 CONVERTER; CATALYST
EURO3 SPECIFICATION(NT3) 		8-97261-046-1 01 1 0209- ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4) 		8-97222-877-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) 		8-97222-876-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) EXC. TORQUE ON DEMAND<7HA> 		8-97222-876-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) TORQUE ON DEMAND<7HA> 		8-97219-826-1 01 1 0106- ●
175 03.685 CONVERTER; CATALYST
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 		8-97181-594-0 01 1 9712-0105 ● ●
175 03.685 CONVERTER; CATALYST
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97181-594-0 01 1 0106- ● ●
179 03.611 NUT; CONV TO PIPE
03.613 M10 		8-94201-308-1 04 1 9712-0105 ● ●
179 03.611 NUT; CONV TO PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.613 M10 		8-94201-308-1 04 1 0106- ● ●
179 03.611 NUT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 08.917 M10 FLANGE 		0-91150-210-0 02 1 0106- ●
180 03.708 BOLT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) M8X43 		8-94449-110-0 02 1 0106-0208 ●
180 03.708 BOLT; CONV TO PIPE
EURO3 SPECIFICATION(NT3) M8X43 		8-94449-110-0 02 1 0209- ●
180 03.708 BOLT; CONV TO PIPE
03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
180 03.708 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 9712-0105 ● ●
180 03.708 BOLT; CONV TO PIPE
EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 0106- ●
180 03.708 BOLT; CONV TO PIPE
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
180 03.708 BOLT; CONV TO PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.613 M10X40 FLANGE 		0-28681-040-0 04 1 0106- ● ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
221 03.704 CLAMP; EXH SILENCER
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ● ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9801-0105 ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 0106- ●
221 03.704 CLAMP; EXH SILENCER
EUROPE EQUIPMENT(EK4) 		8-97080-694-0 01 1 0106- ●
272 03.685 NUT; FLANGE
EUROPE EQUIPMENT(EK4) 03.613 M12 FLANGE 		8-97170-524-1 06 1 0106- ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9712- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ●

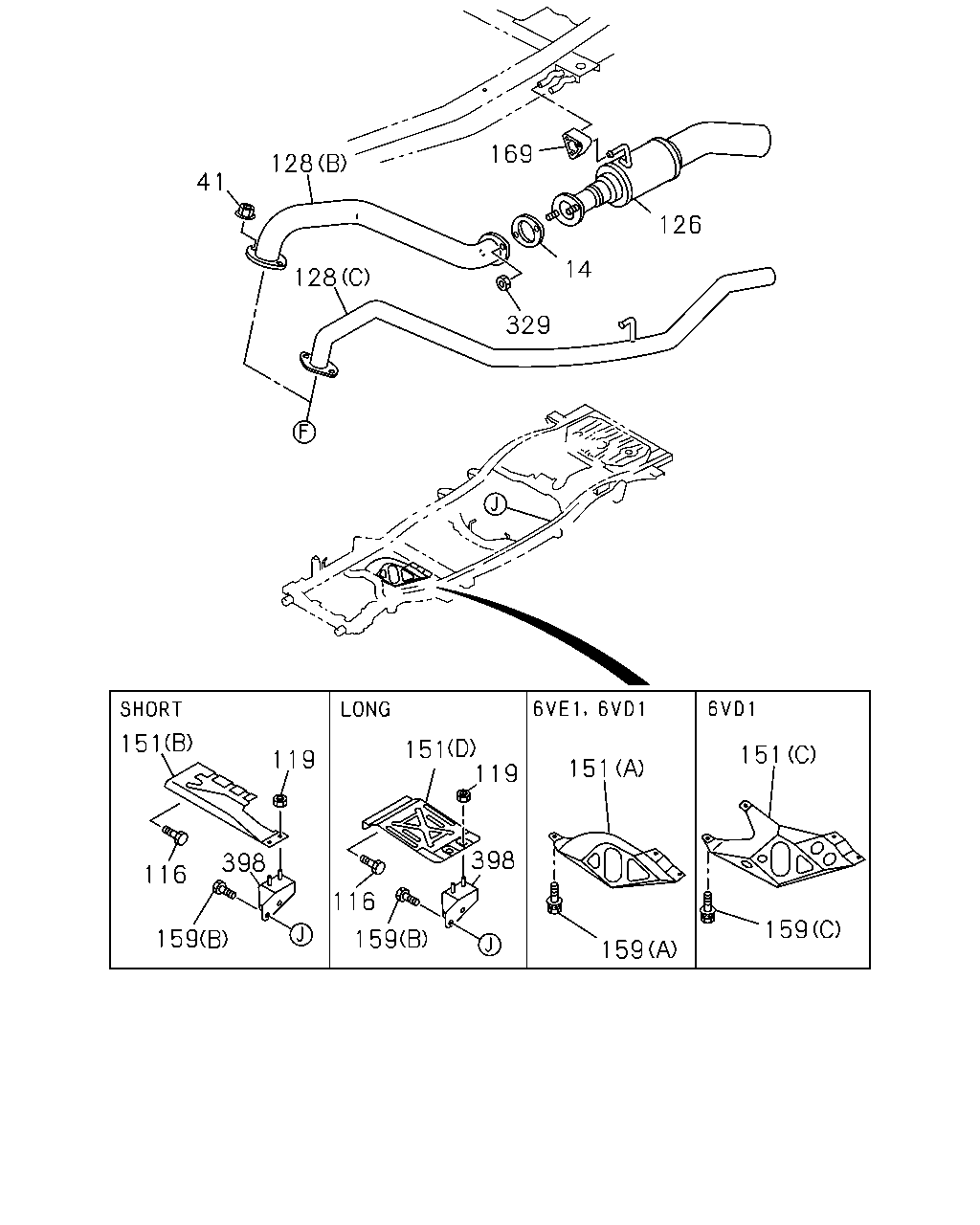

çizim 69557
169 128 41 126 14 128 329 119 398 151 119 151 398 116 116 159 159 159 159 151 151
BalonParca AdiParca NoAdetTipApplied Date A B C D
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0209- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO3 SPECIFICATION(NT3) ID=64.7 		8-94328-352-0 01 1 0209- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0209- ●
41 03.704 NUT; EXH PIPE TO EXH SILENCER
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-9802 ● ● ● ●
41 03.704 NUT; EXH PIPE TO EXH SILENCER
03.613 M10 		8-94201-308-1 02 1 9803- ● ● ● ●
116 03.704 BOLT; BRKT
CATALYSIS CONTROL(6MZ) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 9712-0105 ● ●
116 03.704 BOLT; BRKT
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0106- ● ●
119 03.704 NUT; BRKT
CATALYSIS CONTROL(6MZ) 04.594 M6 FLANGE 		0-91150-106-0 02 1 9712-0105 ● ●
119 03.704 NUT; BRKT
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ● ●
126 03.705 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) 		8-97165-821-2 01 1 9712-0208 ●
126 03.705 PIPE; EXH,RR
EURO3 SPECIFICATION(NT3) 		8-97165-821-2 01 1 0209- ●
126 03.705 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97169-799-0 01 1 9712-0105 ●
126 03.705 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) 		8-97169-799-0 01 1 0106- ●
128 03.609 PIPE; EXH,RR
(A) 		8-97165-817-0 01 1 9712-0208 ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97165-817-0 01 1 9712-0208 ●
128 03.609 PIPE; EXH,RR
(A) 		8-97165-817-0 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97165-817-0 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97165-820-0 01 1 9712-9712 ●
128 03.609 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97165-820-0 01 1 9712-9712 ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 9801-0105 ●
128 03.609 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 9801-0105 ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 0106-0208 ● ●
128 03.609 PIPE; EXH,RR
EURO3 SPECIFICATION(NT3) (B) 		8-97201-583-1 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 9712-0105 ● ●
128 03.609 PIPE; EXH,RR
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 9712-0105 ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 0106- ● ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
03.602 (A) 		8-97018-375-2 01 1 9712-0105 ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
A/T THM(RMQ) 03.602 (A) 		8-97018-375-2 01 1 9712-0105 ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 03.602 (A) 		8-97018-375-3 01 1 0106- ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
A/T THM(RMQ) 03.602 (A) 		8-97018-375-3 01 1 0106- ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) (B) 		8-97047-568-3 01 1 9712-0105 ● ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97047-568-3 01 1 0106- ● ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) (D) 		8-97047-569-1 01 1 9712-0105 ● ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97047-569-1 01 1 0106- ● ●
151 03.704 PROTECTOR; HEAT,EXH PIPE
M/T MUA 5 SPEED(RMN) 03.602 (C) 		8-97018-374-2 01 1 9712- ●
159 03.690 BOLT; HEAT PROTECTOR
(A) M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9712-0105 ●
159 03.690 BOLT; HEAT PROTECTOR
A/T THM(RMQ) (A) M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9712-0105 ●
159 03.690 BOLT; HEAT PROTECTOR
EXC. EUROPE EQUIPMENT(EK4) (A) M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0106- ●
159 03.690 BOLT; HEAT PROTECTOR
A/T THM(RMQ) (A) M10X28 W/LK&PL WASHER 		8-97104-788-1 03 1 0106- ●
159 03.690 BOLT; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 9712-0105 ● ●
159 03.690 BOLT; HEAT PROTECTOR
CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0106- ● ●
159 03.690 BOLT; HEAT PROTECTOR
M/T MUA 5 SPEED(RMN) (C) M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 9712- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97120-442-0 01 1 9712-9712 ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97120-442-0 01 1 9801-0105 ● ● ●
169 03.706 RING; DAMPER,EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 		8-97120-442-0 01 1 0106- ● ● ●
169 03.706 RING; DAMPER,EXH PIPE
03.704 		8-97080-694-0 01 1 9801-0105 ●
169 03.706 RING; DAMPER,EXH PIPE
03.704 		8-97080-694-0 01 1 0106- ●
169 03.706 RING; DAMPER,EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 		8-97080-694-0 01 1 0106- ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0208 ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0208 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
329 03.613 NUT; EXH PIPE TO PIPE
EURO3 SPECIFICATION(NT3) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
398 03.706 BRACKET; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) 		8-97065-926-0 01 1 9712-0105 ● ●
398 03.706 BRACKET; HEAT PROTECTOR
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 		8-97065-926-0 01 1 0106- ● ●
398 03.706 BRACKET; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) 		8-97065-927-0 01 1 9712-0105 ● ●
398 03.706 BRACKET; HEAT PROTECTOR
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) 		8-97065-927-0 01 1 0106- ● ●

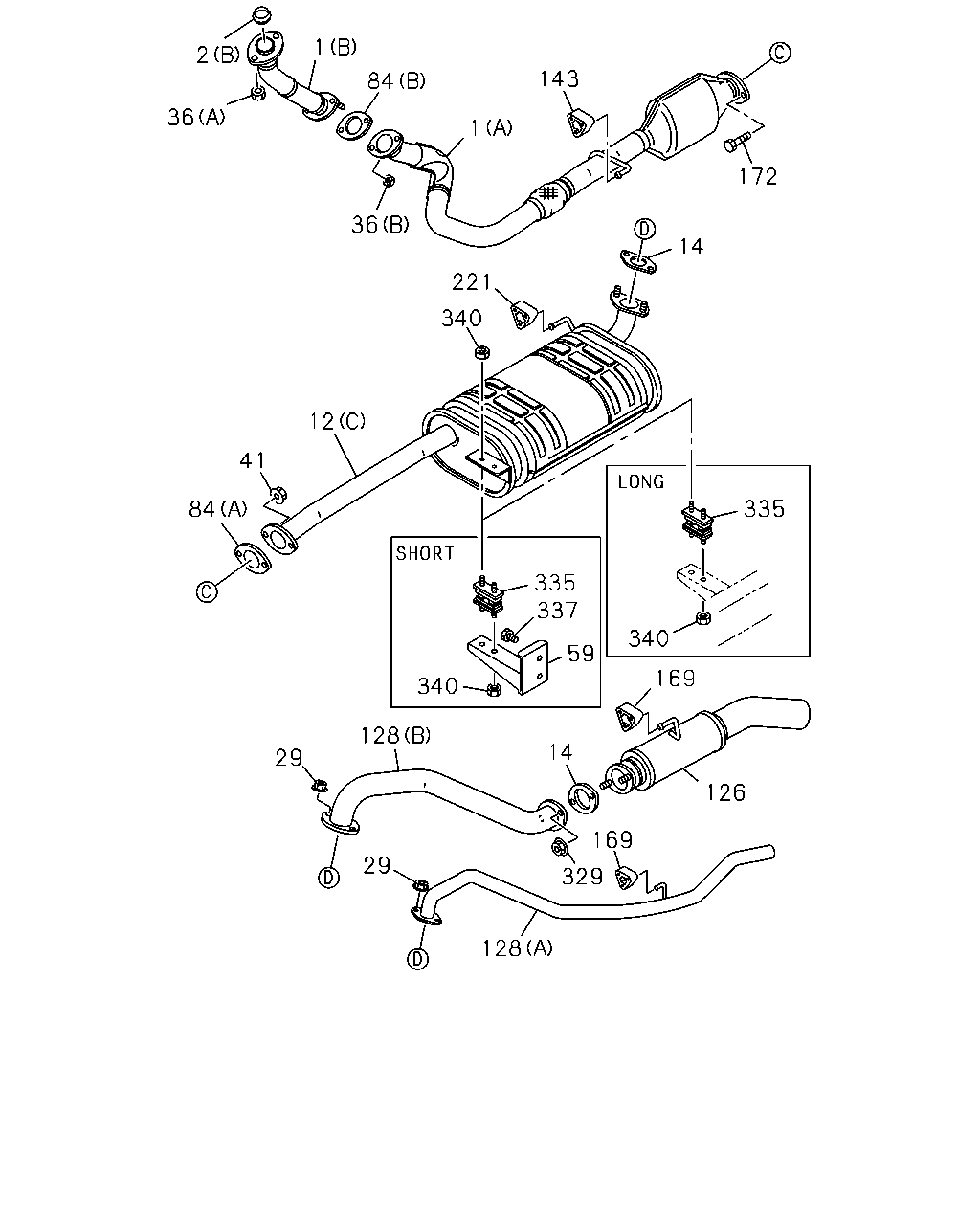

çizim 69561
1 2 143 84 36 1 172 36 14 221 340 12 41 335 84 335 337 340 59 169 340 128 14 29 126 169 29 329 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9712- ●
1 03.609 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9712- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97114-609-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97302-456-2 01 1 0106- ●
1 03.609 PIPE; EXH
(B) 		8-97169-424-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-424-2 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97169-424-2 01 1 0209- ●
1 03.609 PIPE; EXH
(A) 		8-97174-540-0 01 1 9712-9908 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97219-341-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97300-845-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97300-845-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97219-340-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97300-844-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97262-541-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97331-876-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (A) 		8-97331-876-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97300-844-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97331-878-0 01 1 0202-0301 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97331-878-0 01 1 0302- ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97230-029-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97300-846-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97262-542-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97331-877-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97331-877-0 01 1 0209- ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-329-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-328-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (B) 		8-97262-356-0 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97262-356-0 01 1 0209-0303 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97366-926-0 01 1 0304- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
(C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9712- ●
2 03.611 GASKET; PIPE TO MANIF
(A) ID=55 		8-97093-574-1 01 1 0107- ●
2 03.611 GASKET; PIPE TO MANIF
(B) 		8-97069-287-0 01 1 9712- ● ●
2 03.611 GASKET; PIPE TO MANIF
(C) 		8-97102-031-1 02 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97165-833-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-077-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (C) 		8-97258-077-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97165-834-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97258-078-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) (C) 		8-97258-078-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97169-427-1 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-080-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (C) 		8-97262-760-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EURO3 SPECIFICATION(NT3) (C) 		8-97262-760-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97169-426-0 01 1 9712-9712 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97169-426-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97258-079-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97201-582-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-081-1 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-081-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-081-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (C) 		8-97262-358-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (C) 		8-97262-358-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C) 		8-97262-357-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (C) 		8-97262-357-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 0012-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97302-394-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97305-602-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-2 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-433-0 01 1 0012- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9901- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9901- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0209- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO3 SPECIFICATION(NT3) ID=64.7 		8-94328-352-0 01 1 0209- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0209- ●
29 03.613 NUT; PIPE CLAMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
29 03.613 NUT; PIPE CLAMP
EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
36 03.613 NUT; EXH PIPE
EUROPE EQUIPMENT(EK4) 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 0106- ● ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
41 03.704 NUT; EXH PIPE TO EXH SILENCER
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-9802 ● ● ● ●
41 03.704 NUT; EXH PIPE TO EXH SILENCER
03.613 M10 		8-94201-308-1 02 1 9803- ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9712- ● ● ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 0106-0106 ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 0106-0106 ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 02 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 02 1 0106- ● ●
126 03.705 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) 		8-97165-821-2 01 1 9712-0208 ●
126 03.705 PIPE; EXH,RR
EURO3 SPECIFICATION(NT3) 		8-97165-821-2 01 1 0209- ●
126 03.705 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 		8-97169-799-0 01 1 9712-0105 ●
126 03.705 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) 		8-97169-799-0 01 1 0106- ●
128 03.609 PIPE; EXH,RR
(A) 		8-97165-817-0 01 1 9712-0208 ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97165-817-0 01 1 9712-0208 ●
128 03.609 PIPE; EXH,RR
(A) 		8-97165-817-0 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97165-817-0 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97165-820-0 01 1 9712-9712 ●
128 03.609 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97165-820-0 01 1 9712-9712 ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 9801-0105 ●
128 03.609 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 9801-0105 ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 0106-0208 ● ●
128 03.609 PIPE; EXH,RR
EURO3 SPECIFICATION(NT3) (B) 		8-97201-583-1 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 9712-0105 ● ●
128 03.609 PIPE; EXH,RR
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 9712-0105 ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 0106- ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
143 03.704 RUBBER; SUPPORT
M/T MUA 5 SPEED(RMN) 03.706 		8-97120-442-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 9801-0105 ●
143 03.704 RUBBER; SUPPORT
A/T AISIN(RMD) 		8-97080-694-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 0106- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97120-442-0 01 1 9712-9712 ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97120-442-0 01 1 9801-0105 ● ● ●
169 03.706 RING; DAMPER,EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 		8-97120-442-0 01 1 0106- ● ● ●
169 03.706 RING; DAMPER,EXH PIPE
03.704 		8-97080-694-0 01 1 9801-0105 ●
169 03.706 RING; DAMPER,EXH PIPE
03.704 		8-97080-694-0 01 1 0106- ●
169 03.706 RING; DAMPER,EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 		8-97080-694-0 01 1 0106- ●
172 03.708 BOLT
03.613 M10X40 FLANGE 		0-28681-040-0 02 1 9712-0105 ●
172 03.708 BOLT
A/T AISIN(RMD) 03.613 M10X40 FLANGE 		0-28681-040-0 02 1 0106- ●
172 03.708 BOLT
03.613 M10X40 FLANGE 		0-28681-040-0 02 1 0106- ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
221 03.704 CLAMP; EXH SILENCER
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ● ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9801-0105 ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 0106- ●
221 03.704 CLAMP; EXH SILENCER
EUROPE EQUIPMENT(EK4) 		8-97080-694-0 01 1 0106- ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0208 ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0208 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
329 03.613 NUT; EXH PIPE TO PIPE
EURO3 SPECIFICATION(NT3) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9712- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ●
çizim 69827
2 143 2 1 1 36 84 84 36 329 32 2 143 2 52 49 1 1 36 84 45 84 36 329 32 2 143 2 1 1 36 84 36
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9712- ●
1 03.609 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9712- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97114-609-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97302-456-2 01 1 0106- ●
1 03.609 PIPE; EXH
(B) 		8-97169-424-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-424-2 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97169-424-2 01 1 0209- ●
1 03.609 PIPE; EXH
(A) 		8-97174-540-0 01 1 9712-9908 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97219-341-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97300-845-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97300-845-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97219-340-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97300-844-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97262-541-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97331-876-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (A) 		8-97331-876-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97300-844-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97331-878-0 01 1 0202-0301 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97331-878-0 01 1 0302- ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97230-029-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97300-846-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97262-542-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97331-877-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97331-877-0 01 1 0209- ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-329-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-328-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (B) 		8-97262-356-0 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97262-356-0 01 1 0209-0303 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97366-926-0 01 1 0304- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
(C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9712- ●
2 03.611 GASKET; PIPE TO MANIF
(A) ID=55 		8-97093-574-1 01 1 0107- ●
2 03.611 GASKET; PIPE TO MANIF
(B) 		8-97069-287-0 01 1 9712- ● ●
2 03.611 GASKET; PIPE TO MANIF
(C) 		8-97102-031-1 02 1 9712- ● ●
32 03.609 PIPE; EXH,FRT
M/T MUA 5 SPEED(RMN) 		8-97130-204-0 01 1 9712- ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
36 03.613 NUT; EXH PIPE
EUROPE EQUIPMENT(EK4) 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 0106- ● ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
45 03.613 BOLT; BRKT
EXC. TURBOCHARGER<K51> 03.704 M8X40 FLANGE 		0-28680-840-0 01 1 9712- ●
49 03.613 BRACKET; EXH PIPE TO TRANS
EXC. TURBOCHARGER<K51> 		8-97092-867-0 01 1 9712- ●
52 03.613 NUT; BRKT
EXC. TURBOCHARGER<K51> 01.540 M8 FLANGE 		0-91150-208-0 01 1 9712-0109 ●
52 03.613 NUT; BRKT
EXC. TURBOCHARGER<K51> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0110- ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 0106-0106 ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 0106-0106 ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 02 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 02 1 0106- ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
143 03.704 RUBBER; SUPPORT
M/T MUA 5 SPEED(RMN) 03.706 		8-97120-442-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 9801-0105 ●
143 03.704 RUBBER; SUPPORT
A/T AISIN(RMD) 		8-97080-694-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 0106- ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0208 ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0106-0208 ● ●
329 03.613 NUT; EXH PIPE TO PIPE
M/T MUA 5 SPEED(RMN) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
329 03.613 NUT; EXH PIPE TO PIPE
EURO3 SPECIFICATION(NT3) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
329 03.613 NUT; EXH PIPE TO PIPE
EUROPE EQUIPMENT(EK4) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0209- ●
çizim 72096
2 2 1 36 143 84 1 169 128 29 14 221 340 41 12 335 335 337 84 340 340 59
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> (B) 		8-97126-884-1 01 1 9712- ●
1 03.609 PIPE; EXH
TURBOCHARGER<K51> (A) 		8-97114-606-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (A) 		8-97126-077-0 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. TURBOCHARGER<K51> (B) 		8-97126-886-0 01 1 9712- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97114-609-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) TURBOCHARGER<K51> (B) 		8-97302-456-2 01 1 0106- ●
1 03.609 PIPE; EXH
(B) 		8-97169-424-2 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-424-2 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3) (B) 		8-97169-424-2 01 1 0209- ●
1 03.609 PIPE; EXH
(A) 		8-97174-540-0 01 1 9712-9908 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97219-341-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97300-845-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97300-845-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9) (A) 		8-97331-879-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97219-340-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97300-844-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97262-541-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (A) 		8-97331-876-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (A) 		8-97331-876-0 01 1 0209- ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97300-844-1 01 1 0106-0201 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) (A) 		8-97331-878-0 01 1 0202-0301 ●
1 03.609 PIPE; EXH
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97331-878-0 01 1 0302- ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97230-029-0 01 1 9909-0103 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97300-846-0 01 1 0104-0105 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97262-542-2 01 1 0106-0201 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97331-877-0 01 1 0202-0208 ●
1 03.609 PIPE; EXH
M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A) 		8-97331-877-0 01 1 0209- ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-329-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (E) 		8-97176-328-1 01 1 9712-0105 ●
1 03.609 PIPE; EXH
EUROPE EQUIPMENT(EK4) (B) 		8-97262-356-0 01 1 0106-0208 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97262-356-0 01 1 0209-0303 ●
1 03.609 PIPE; EXH
EURO3 SPECIFICATION(NT3) (B) 		8-97366-926-0 01 1 0304- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
A/T THM(RMQ) (D) 		8-97127-479-1 01 1 9712- ●
1 03.609 PIPE; EXH
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
(C) 		8-97127-477-1 01 1 9712- ●
1 03.609 PIPE; EXH
M/T MUA 5 SPEED(RMN) (D) 		8-97127-478-1 01 1 9712- ●
2 03.611 GASKET; PIPE TO MANIF
(A) ID=55 		8-97093-574-1 01 1 0107- ●
2 03.611 GASKET; PIPE TO MANIF
(B) 		8-97069-287-0 01 1 9712- ● ●
2 03.611 GASKET; PIPE TO MANIF
(C) 		8-97102-031-1 02 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97165-833-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-077-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (C) 		8-97258-077-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97165-834-0 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97258-078-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) (C) 		8-97258-078-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97169-427-1 01 1 9712-0006 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) (C) 		8-97258-080-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-080-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T AISIN(RMD) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-080-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (C) 		8-97262-760-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EURO3 SPECIFICATION(NT3) (C) 		8-97262-760-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) (C) 		8-97169-426-0 01 1 9712-9712 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97169-426-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) (C) 		8-97258-079-0 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-079-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-079-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97201-582-1 01 1 9801-0006 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) (C) 		8-97258-081-1 01 1 0007-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97258-081-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3) (C) 		8-97258-081-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (C) 		8-97262-358-1 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (C) 		8-97262-358-1 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C) 		8-97262-357-0 01 1 0106-0208 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (C) 		8-97262-357-0 01 1 0209- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97169-431-3 01 1 0012-0105 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EUROPE EQUIPMENT(EK4) (B) 		8-97302-394-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97169-430-2 01 1 9712-0105 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) A/T THM(RMQ) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-430-2 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EUROPE EQUIPMENT(EK4) (B) 		8-97305-602-0 01 1 0106- ●
12 03.701 SILENCER ASM; EXH
EXC. CATALYSIS CONTROL(6MZ) (A) 		8-97103-020-2 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ● ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-433-0 01 1 9712-0011 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4) (B) 		8-97169-433-0 01 1 0012- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) CATALYSIS CONTROL(6MZ) EXC. EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) M/T AR-5 5 SPEED(RNK) AUSTRALIA EQUIPMENT(RR3) (B) 		8-97169-432-0 01 1 9712- ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
2 DOOR SHORT(UB***C) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-831-0 01 1 9901- ● ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9712-9812 ●
12 03.701 SILENCER ASM; EXH
4 DOOR LONG(UB***F) EXC. CATALYSIS CONTROL(6MZ) (B) 		8-97165-832-0 01 1 9901- ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0106-0208 ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0209- ● ● ● ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EURO3 SPECIFICATION(NT3) ID=64.7 		8-94328-352-0 01 1 0209- ●
14 03.704 GASKET; SILENCER TO EXH PIPE
EUROPE EQUIPMENT(EK4) ID=64.7 		8-94328-352-0 01 1 0209- ●
29 03.613 NUT; PIPE CLAMP
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
29 03.613 NUT; PIPE CLAMP
EXC. CATALYSIS CONTROL(6MZ) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ● ●
36 03.613 NUT; EXH PIPE
EUROPE EQUIPMENT(EK4) 04.785 (A) M10 FLANGE 		0-91150-110-0 02 1 0106- ●
36 03.613 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 02 1 9712- ● ●
36 03.613 NUT; EXH PIPE
04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 04.785 (C) M10 FLANGE 		0-91150-110-0 04 1 0106- ● ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 9712-0105 ● ●
36 03.613 NUT; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
36 03.613 NUT; EXH PIPE
(D) M12 FLANGE 		8-97170-524-1 06 1 0106- ●
41 03.704 NUT; EXH PIPE TO EXH SILENCER
04.785 M10 FLANGE 		0-91150-110-0 02 1 9712-9802 ● ● ● ●
41 03.704 NUT; EXH PIPE TO EXH SILENCER
03.613 M10 		8-94201-308-1 02 1 9803- ● ● ● ●
59 03.704 BRACKET; EXH SILENCER,FRT
2 DOOR SHORT(UB***C) 		8-97043-723-1 01 1 9712- ● ● ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
M/T MUA 5 SPEED(RMN) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
EXC. CATALYSIS CONTROL(6MZ) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 (A) ID=64.7 		8-94328-352-0 01 1 0106- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 01 1 0106-0106 ● ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-0 01 1 0106-0106 ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 01 1 0107- ●
84 03.611 GASKET; EXH PIPE
(B) ID=55 		8-97093-574-0 02 1 9712-0105 ● ●
84 03.611 GASKET; EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) (B) ID=55 		8-97093-574-1 02 1 0106- ● ●
128 03.609 PIPE; EXH,RR
(A) 		8-97165-817-0 01 1 9712-0208 ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97165-817-0 01 1 9712-0208 ●
128 03.609 PIPE; EXH,RR
(A) 		8-97165-817-0 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97165-817-0 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97165-820-0 01 1 9712-9712 ●
128 03.609 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97165-820-0 01 1 9712-9712 ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 9801-0105 ●
128 03.609 PIPE; EXH,RR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 9801-0105 ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 0106-0208 ● ●
128 03.609 PIPE; EXH,RR
EURO3 SPECIFICATION(NT3) (B) 		8-97201-583-1 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EUROPE EQUIPMENT(EK4) (B) 		8-97201-583-1 01 1 0209- ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 9712-0105 ● ●
128 03.609 PIPE; EXH,RR
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 9712-0105 ●
128 03.609 PIPE; EXH,RR
EXC. EUROPE EQUIPMENT(EK4) (C) 		8-97165-819-1 01 1 0106- ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
143 03.704 RUBBER; SUPPORT
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
143 03.704 RUBBER; SUPPORT
M/T MUA 5 SPEED(RMN) 03.706 		8-97120-442-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 9801-0105 ●
143 03.704 RUBBER; SUPPORT
A/T AISIN(RMD) 		8-97080-694-0 01 1 0106- ●
143 03.704 RUBBER; SUPPORT 8-97080-694-0 01 1 0106- ●
169 03.706 RING; DAMPER,EXH PIPE 8-97120-442-0 01 1 9712-9712 ● ● ● ●
169 03.706 RING; DAMPER,EXH PIPE 8-97120-442-0 01 1 9801-0105 ● ● ●
169 03.706 RING; DAMPER,EXH PIPE
EXC. EUROPE EQUIPMENT(EK4) 		8-97120-442-0 01 1 0106- ● ● ●
169 03.706 RING; DAMPER,EXH PIPE
03.704 		8-97080-694-0 01 1 9801-0105 ●
169 03.706 RING; DAMPER,EXH PIPE
03.704 		8-97080-694-0 01 1 0106- ●
169 03.706 RING; DAMPER,EXH PIPE
EUROPE EQUIPMENT(EK4) 03.704 		8-97080-694-0 01 1 0106- ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9712-9712 ● ● ● ●
221 03.704 CLAMP; EXH SILENCER
03.706 		8-97120-442-0 01 1 9801-0105 ● ● ●
221 03.704 CLAMP; EXH SILENCER
EXC. EUROPE EQUIPMENT(EK4) 03.706 		8-97120-442-0 01 1 0106- ● ● ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 9801-0105 ●
221 03.704 CLAMP; EXH SILENCER 8-97080-694-0 01 1 0106- ●
221 03.704 CLAMP; EXH SILENCER
EUROPE EQUIPMENT(EK4) 		8-97080-694-0 01 1 0106- ●
335 03.706 RUBBER; SUPPORT,SILENCER 8-97038-816-2 01 1 9712- ● ● ● ●
337 03.706 BOLT; RUBBER,SUPPORT
2 DOOR SHORT(UB***C) 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9712- ● ● ● ●
340 03.706 NUT; RUBBER,SUPPORT
07.633 M8 FLANGE 		0-91150-108-0 04 1 9712- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
