Sayfa 8-21 - Isuzu EPC

8-21 — METER ASM (#7325) — 167 parça

11 151 1 105 157 134 31 344 199 86 199 191 357 87 2 209 1 353 121 82 344 22 238 8 121 118 269 269 129 239 21 118 269 115 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-168-2	01	1	9906-9910
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-685-1	01	1	9911-
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>,SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-167-2	01	1	9906-9910
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>,SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-684-0	01	1	9911-
1	METER COMPL; CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83115-187-0	01	1	9906-
2	PANEL; CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (C)	1-83119-430-0	01	1	9906-
2	PANEL; CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A)	1-83119-644-0	01	1	9906-
2	PANEL; CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B)	1-83119-652-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-859-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-795-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-794-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-858-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8> SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-791-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-847-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7> SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-792-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-849-0	01	1	9906-
11	CLUSTER ASM; METER METER PANEL GRAIN OF WOOD<NAY>	1-72418-014-7	01	1	9906-
11	CLUSTER ASM; METER EXC. METER PANEL GRAIN OF WOOD<NAY>	1-72418-012-7	01	1	9906-
21	HARNESS; TACHOGRAPH THAILAND EQUIPMENT(PM9) TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-82624-665-1	01	1	9906-
22	RHEOSTAT; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83119-470-0	01	1	9906-
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9906-
82	CASE ASM; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83119-483-0	01	1	9906-
82	CASE ASM; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-653-0	01	1	9906-
86	TACHOMETER; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83120-695-0	01	1	9906-
86	TACHOMETER; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-879-0	01	1	9906-
87	SPEEDOMETER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-490-1	01	1	9906-
87	SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,SHIFT INDICATOR T/M GEAR POSITION<WS1>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-844-0	01	1	9906-
105	GAUGE; THERMO & FUEL,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83180-275-0	01	1	9906-
105	GAUGE; THERMO & FUEL,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83180-281-0	01	1	9906-
115	CIRCUIT; PRINTED,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83189-357-0	01	1	9906-
115	CIRCUIT; PRINTED,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83189-372-0	01	1	9906-
118	BULB; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (A) 24V 3W GREEN SOCKET	1-82194-061-0	05	1	9906-
118	BULB; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	23	1	9906-
118	BULB; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9906-
118	BULB; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (D) M4 TAPPING	1-83119-442-0	08	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (C) M3 TAPPING	1-83119-084-0	01	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) M4 TAPPING	1-83119-442-0	05	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) M3 TAPPING	1-83119-676-0	02	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (C) M3 TAPPING	1-83119-052-0	10	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) M3 TAPPING	1-83119-657-0	09	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) M3 TAPPING	1-83119-675-0	06	1	9906-
134	GAUGE; OIL PRESSURE & VOLTAGE SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83180-224-0	01	1	9906-
134	GAUGE; OIL PRESSURE & VOLTAGE EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83180-283-0	01	1	9906-
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	9906-
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83150-214-0	01	1	9906-9910
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83150-235-0	01	1	9911-
157	METER; AIR PRESSURE,CLUSTER METER EXC. DUAL AIR GAUGE<UG2>,SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83150-217-0	01	1	9906-
157	METER; AIR PRESSURE,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83150-182-0	01	1	9906-
191	KNOB; BULB CHECK SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83119-431-0	01	1	9906-
191	KNOB; BULB CHECK EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-672-0	01	1	9906-
199	LENS; WARNING LAMP SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (A)	1-83119-485-0	01	1	9906-
199	LENS; WARNING LAMP SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (B)	1-83119-635-0	01	1	9906-
199	LENS; WARNING LAMP EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A)	1-83119-683-0	01	1	9906-
199	LENS; WARNING LAMP EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B)	1-83119-684-0	01	1	9906-
209	BULB; SPEEDOMETER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET	1-82194-061-0	02	1	9906-
209	BULB; SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,SHIFT INDICATOR T/M GEAR POSITION<WS1>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	9906-
238	PANEL; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83129-311-0	01	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> 24V 1.4W	5-82194-034-0	03	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> SHIFT INDICATOR T/M GEAR POSITION<WS1> 24V 1.8W	1-82194-076-0	03	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> 24V 1.4W	1-82194-101-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (A) M3X8	1-83119-058-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (C) M3 TAPPING	1-83119-440-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (D) M3 TAPPING	1-83119-441-0	11	1	9906-
269	SCREW; METER CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) M3	1-83119-273-0	02	1	9906-
269	SCREW; METER CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) M3 TAPPING	1-83119-677-0	05	1	9906-
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9906-
353	KNOB; RHEOSTAT SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83119-471-0	01	1	9906-
357	INDICATOR; ZF T/M SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83119-494-0	01	1	9906-

110 2 134 145 415 157 105 86 417 2 419 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PANEL; CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (C)	1-83119-430-0	01	1	9906-
2	PANEL; CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A)	1-83119-644-0	01	1	9906-
2	PANEL; CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B)	1-83119-652-0	01	1	9906-
86	TACHOMETER; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83120-695-0	01	1	9906-
86	TACHOMETER; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-879-0	01	1	9906-
105	GAUGE; THERMO & FUEL,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83180-275-0	01	1	9906-
105	GAUGE; THERMO & FUEL,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83180-281-0	01	1	9906-
110	GLASS; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-646-0	01	1	9906-
134	GAUGE; OIL PRESSURE & VOLTAGE SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83180-224-0	01	1	9906-
134	GAUGE; OIL PRESSURE & VOLTAGE EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83180-283-0	01	1	9906-
145	GROMMET; GLASS,KNOB HOLE,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-680-0	01	1	9906-
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83150-214-0	01	1	9906-9910
157	METER; AIR PRESSURE,CLUSTER METER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83150-235-0	01	1	9911-
157	METER; AIR PRESSURE,CLUSTER METER EXC. DUAL AIR GAUGE<UG2>,SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83150-217-0	01	1	9906-
157	METER; AIR PRESSURE,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83150-182-0	01	1	9906-
415	KNOB; TRIP,METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-674-0	01	1	9906-
417	DISPLAY; ODO & TRIP,METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-671-0	01	1	9906-
419	SPACER; CIRCUIT,METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-678-0	02	1	9906-

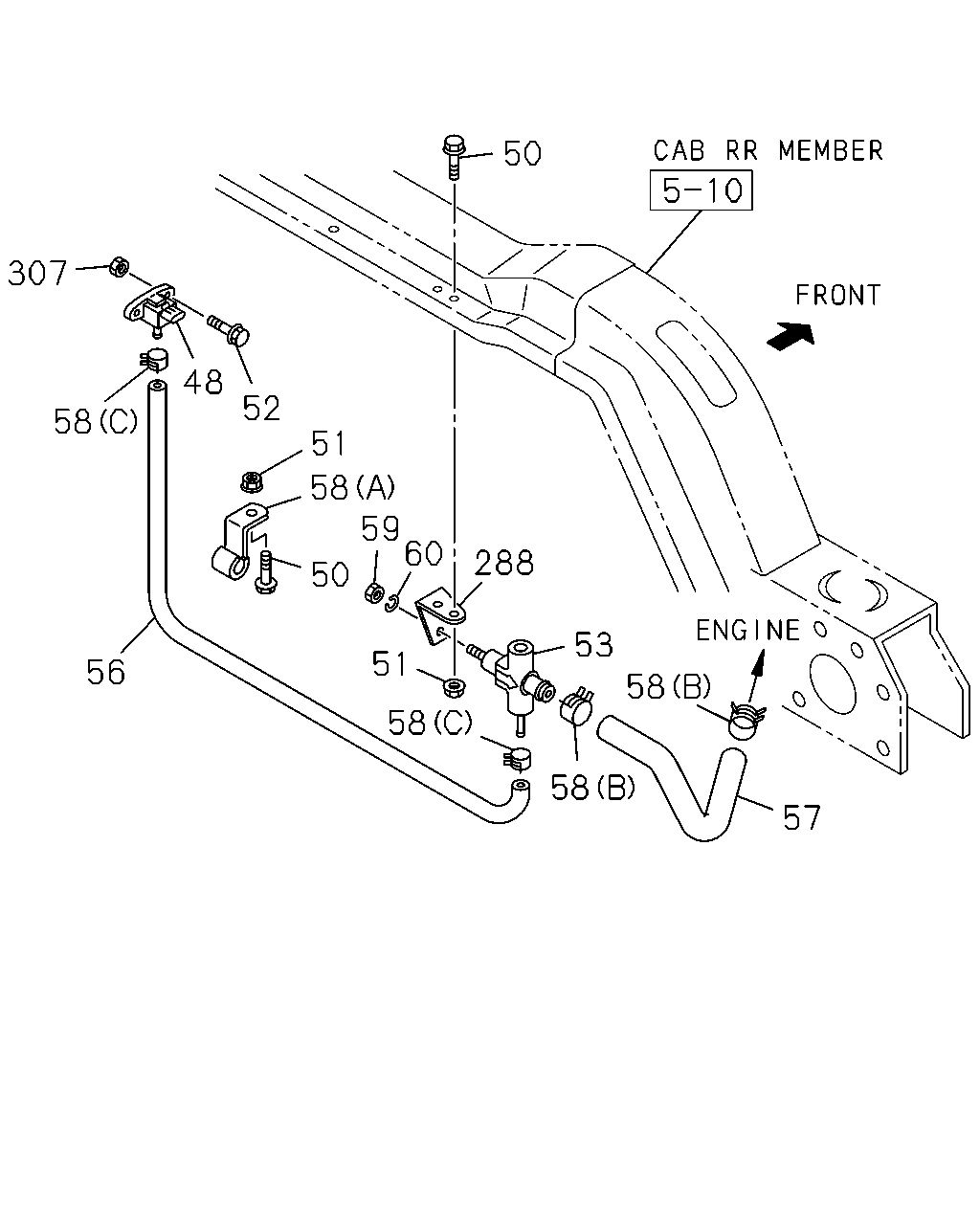

50 307 48 52 58 51 58 59 60 288 50 53 58 51 56 58 58 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	SENSOR; BOOST ELECTRONIC GOV RED3(KG5)	1-81531-011-0	01	1	9906-
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	04	1	9906-9909
50	BOLT; FIX ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	03	1	9910-
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	04	1	9906-9909
51	NUT; FIX ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	03	1	9910-
52	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M6X16 FLANGE	0-28680-616-0	02	1	9906-
53	UNION; BOOST UNIT ELECTRONIC GOV RED3(KG5)	1-09661-017-0	01	1	9906-
56	HOSE; NIPPLE TO SENSOR ELECTRONIC GOV RED3(KG5) L=560 SERVICED BY L=3000	0-04740-300-0	01	1	9906-
57	HOSE; BOOST ELECTRONIC GOV RED3(KG5)	1-83159-017-0	01	1	9906-
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9906-9909
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9910-
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (B) ID=20.8	8-94125-862-1	02	1	9906-
58	CLIP; HOSE ELECTRONIC GOV RED3(KG5) (C) ID=7.8	8-94246-958-0	02	1	9906-
59	NUT; UNION ELECTRONIC GOV RED3(KG5) M10	9-09111-410-0	01	1	9906-
60	WASHER; LK,UNION ELECTRONIC GOV RED3(KG5) ID=10.2	9-09150-510-0	01	1	9906-
288	BRACKET ELECTRONIC GOV RED3(KG5)	1-47477-469-0	01	1	9906-9909
288	BRACKET ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG>	1-47477-469-0	01	1	9910-
288	BRACKET ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG>	1-47477-379-0	01	1	9910-
307	NUT ELECTRONIC GOV RED3(KG5) M6	9-09110-406-0	02	1	9906-

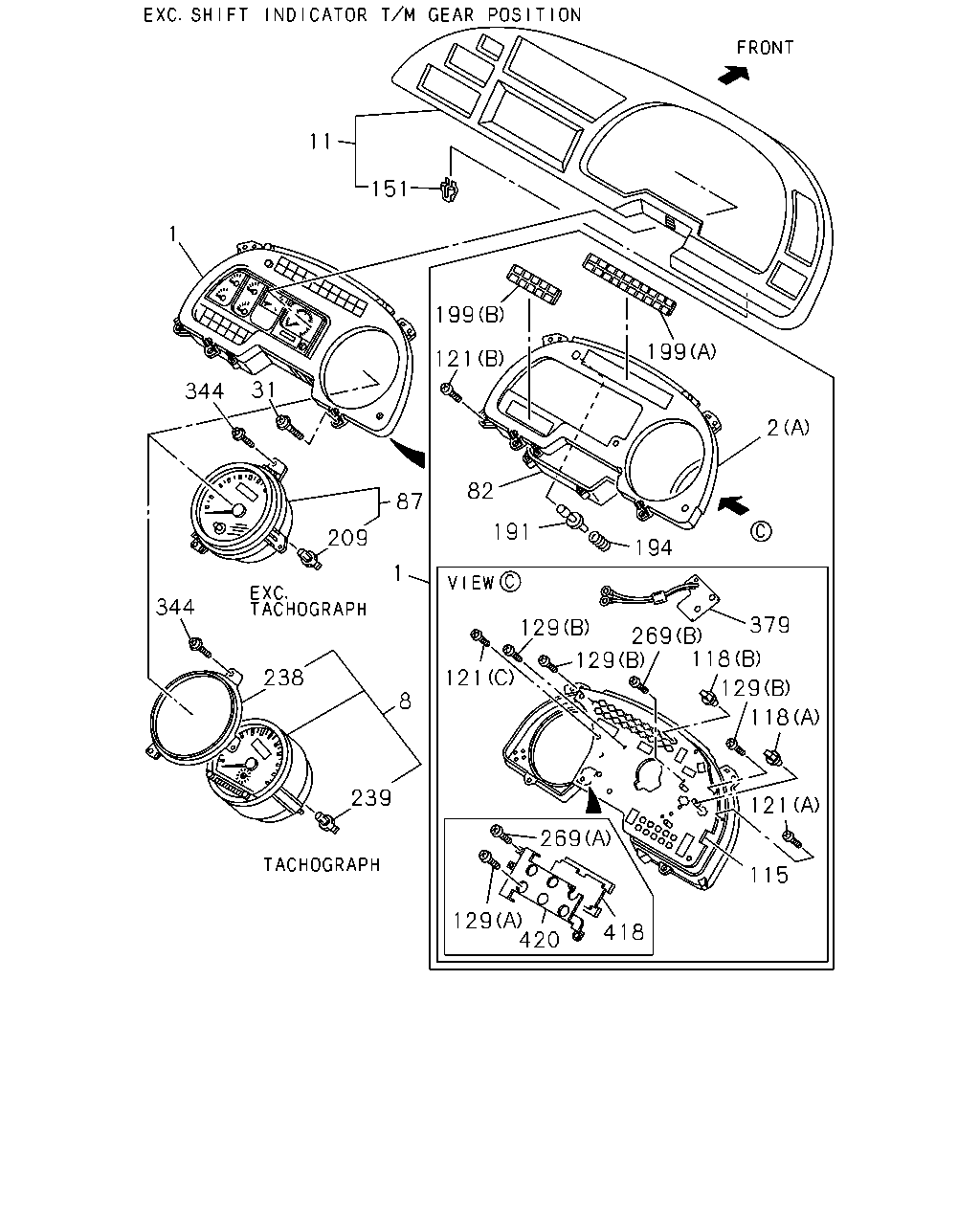

11 151 1 199 199 121 31 344 2 82 87 191 209 194 1 344 379 129 269 129 118 238 121 129 8 118 239 121 269 115 129 420 418

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-168-2	01	1	9906-9910
1	METER COMPL; CLUSTER DUAL AIR GAUGE<UG2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-685-1	01	1	9911-
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>,SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-167-2	01	1	9906-9910
1	METER COMPL; CLUSTER EXC. DUAL AIR GAUGE<UG2>,SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83115-684-0	01	1	9911-
1	METER COMPL; CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83115-187-0	01	1	9906-
2	PANEL; CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (C)	1-83119-430-0	01	1	9906-
2	PANEL; CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A)	1-83119-644-0	01	1	9906-
2	PANEL; CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B)	1-83119-652-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-859-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-795-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-794-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-858-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8> SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-791-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 120KM/H<SM8> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-847-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7> SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-792-0	01	1	9906-
8	TACHOGRAPH; CLUSTER METER TACHOGRAPH 140KM/H<WC7> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83120-849-0	01	1	9906-
11	CLUSTER ASM; METER METER PANEL GRAIN OF WOOD<NAY>	1-72418-014-7	01	1	9906-
11	CLUSTER ASM; METER EXC. METER PANEL GRAIN OF WOOD<NAY>	1-72418-012-7	01	1	9906-
31	SCREW; METER,INST PANEL M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9906-
82	CASE ASM; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83119-483-0	01	1	9906-
82	CASE ASM; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-653-0	01	1	9906-
87	SPEEDOMETER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-490-1	01	1	9906-
87	SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,SHIFT INDICATOR T/M GEAR POSITION<WS1>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83120-844-0	01	1	9906-
115	CIRCUIT; PRINTED,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83189-357-0	01	1	9906-
115	CIRCUIT; PRINTED,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83189-372-0	01	1	9906-
118	BULB; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (A) 24V 3W GREEN SOCKET	1-82194-061-0	05	1	9906-
118	BULB; CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	23	1	9906-
118	BULB; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 24V 3W GREEN SOCKET	1-82194-061-0	04	1	9906-
118	BULB; CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) 24V 1.8W BROWN SOCKET	1-82194-062-0	28	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (D) M4 TAPPING	1-83119-442-0	08	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (C) M3 TAPPING	1-83119-084-0	01	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) M4 TAPPING	1-83119-442-0	05	1	9906-
121	SCREW; PANEL FIX,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) M3 TAPPING	1-83119-676-0	02	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (C) M3 TAPPING	1-83119-052-0	10	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) M3 TAPPING	1-83119-657-0	09	1	9906-
129	SCREW; PRINTED CIRCUIT,CLUSTER METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) M3 TAPPING	1-83119-675-0	06	1	9906-
151	CLIP; METER CLUSTER	8-97217-066-0	10	1	9906-
191	KNOB; BULB CHECK SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2>	1-83119-431-0	01	1	9906-
191	KNOB; BULB CHECK EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-672-0	01	1	9906-
194	SPRING; BULB CHECK KNOB EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-673-0	01	1	9906-
199	LENS; WARNING LAMP SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (A)	1-83119-485-0	01	1	9906-
199	LENS; WARNING LAMP SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (B)	1-83119-635-0	01	1	9906-
199	LENS; WARNING LAMP EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A)	1-83119-683-0	01	1	9906-
199	LENS; WARNING LAMP EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B)	1-83119-684-0	01	1	9906-
209	BULB; SPEEDOMETER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET	1-82194-061-0	02	1	9906-
209	BULB; SPEEDOMETER EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,SHIFT INDICATOR T/M GEAR POSITION<WS1>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET	1-82194-061-0	01	1	9906-
238	PANEL; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2>	1-83129-311-0	01	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> 24V 1.4W	5-82194-034-0	03	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> SHIFT INDICATOR T/M GEAR POSITION<WS1> 24V 1.8W	1-82194-076-0	03	1	9906-
239	BULB; TACHOGRAPH TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> 24V 1.4W	1-82194-101-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (A) M3X8	1-83119-058-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (B) M3 TAPPING	1-83119-439-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (C) M3 TAPPING	1-83119-440-0	03	1	9906-
269	SCREW; METER CLUSTER SHIFT INDICATOR T/M GEAR POSITION<WS1> EXC. DUAL AIR GAUGE<UG2> (D) M3 TAPPING	1-83119-441-0	11	1	9906-
269	SCREW; METER CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) M3	1-83119-273-0	02	1	9906-
269	SCREW; METER CLUSTER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (B) M3 TAPPING	1-83119-677-0	05	1	9906-
344	SCREW; SPEEDOMETER M6X20 TAPPING W/PL WASHER	0-74110-620-0	03	1	9906-
379	CIRCUIT; DROP EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83189-369-0	01	1	9906-
418	CIRCUIT; CONTROL,METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83189-376-0	01	1	9906-
420	HEAT SINK; METER EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1>	1-83119-679-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
