1-40 — FUEL TANK (#73248) — 122 parça

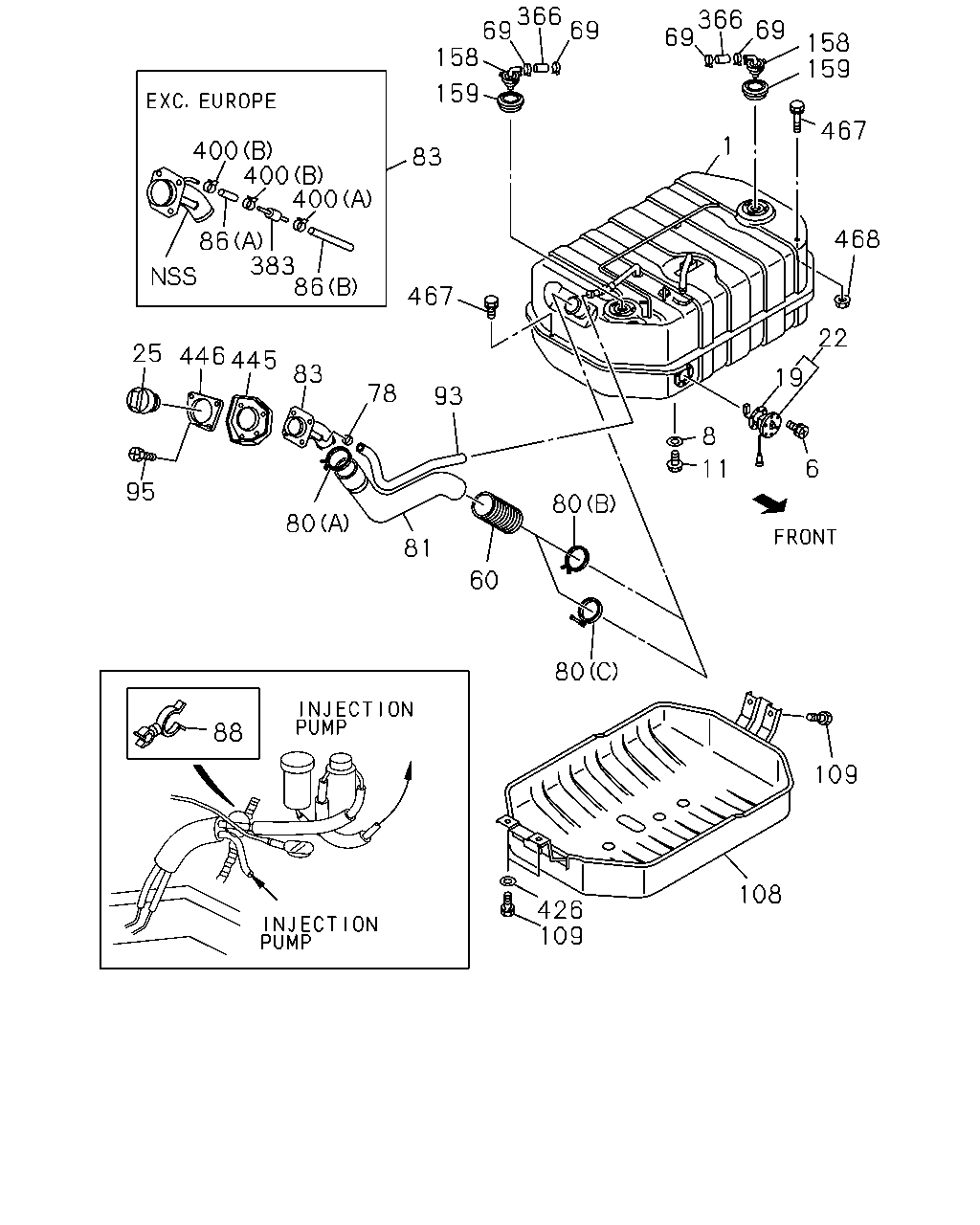

366 69 69 158 366 69 69 158 159 159 467 1 400 400 400 83 468 86 383 86 467 22 25 446 445 83 19 78 93 8 6 11 95 80 80 81 60 80 88 109 108 426 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97357-018-0	01	1	0209-0301	●	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97363-819-0	01	1	0302-	●	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97176-264-3	01	1	9712-0208	●	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97176-263-6	01	1	9712-0211		●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97357-017-0	01	1	0212-0301		●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97361-179-1	01	1	0302-		●
1	03.001 TANK; FUEL	8-97161-528-3	01	1	9712-0211			●	●
1	03.001 TANK; FUEL	8-97357-019-0	01	1	0212-0301			●	●
1	03.001 TANK; FUEL	8-97361-180-0	01	1	0302-			●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9712-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9712-	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9712-	●	●	●	●
22	03.107 UNIT; FUEL TANK	8-97129-725-0	01	1	9712-	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9712-	●	●	●	●
60	03.008 PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9712-	●	●	●	●
69	03.145 CLIP; FUEL TANK TO EVAP PIPE EUROPE EQUIPMENT(EK4) 03.162 ID=8.5	8-94166-071-0	04	1	9712-0211		●
78	03.003 CLIP; BREATHER HOSE 03.162 ID=19	8-97240-196-0	01	1	0210-			●	●
78	03.003 CLIP; BREATHER HOSE 06.672 ID=21	8-94242-034-0	01	1	9712-0209	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 ID=21	8-94242-034-0	01	1	0210-	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=60	9-09915-265-1	01	1	9712-	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (B) ID=54	9-09915-412-1	01	1	9712-0110	●	●	●	●
80	03.008 CLIP; FILLER HOSE 03.609 (C) ID=57	9-09915-036-1	01	1	0111-	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-1	01	1	9712-0105	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-1	01	1	0106-0209	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-1	01	1	0210-	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97164-299-2	01	1	0106-0209			●	●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97081-009-2	01	1	9712-	●	●
83	03.003 NECK; FUEL FILLER EUROPE EQUIPMENT(EK4)	8-97017-771-1	01	1	9712-9804		●
83	03.003 NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9712-9804			●	●
83	03.003 NECK; FUEL FILLER EUROPE EQUIPMENT(EK4)	8-97017-771-1	01	1	9805-		●
83	03.003 NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9805-			●	●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ) FUEL FILLER NECK LARGE SIZE HOLE<7WV>	8-97017-771-1	01	1	9805-			●	●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97017-699-2	01	1	9712-9804			●	●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ) EXC. FUEL FILLER NECK LARGE SIZE HOLE<7WV>	8-97017-699-2	01	1	9805-			●	●
86	03.163 HOSE; EVAP EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=130 SERVICED BY L=3000	0-04750-300-0	01	1	9712-	●	●
86	03.163 HOSE; EVAP EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=310 SERVICED BY L=3000	0-04750-300-0	01	1	9712-	●	●
88	03.162 CLIP; FUEL HOSE 03.680 ID=25.5 & 8.0	8-94363-538-0	01	1	9712-9712	●	●
88	03.162 CLIP; FUEL HOSE 03.680 ID=25.5 & 8.0	8-94363-538-0	01	1	9801-0105	●
88	03.162 CLIP; FUEL HOSE 03.145 ID=25 & 11	8-97068-799-0	01	1	0106-	●
93	03.003 HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9712-0105	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	0106-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK L=520	8-97174-656-0	01	1	0106-0209			●	●
93	03.003 HOSE; BREATHER,FUEL TANK L=520	8-97353-639-0	01	1	0210-			●	●
95	03.028 SCREW; FILLER NECK M6X16 W/LK&PL WASHER	8-97116-224-1	03	1	9712-	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9712-	●	●	●	●
109	03.015 BOLT; HEAT PROTECTOR 01.276 M8X24	8-97034-130-1	04	1	9712-	●	●	●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPE EQUIPMENT(EK4) 03.130	8-94173-276-0	02	1	9712-		●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9712-			●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EUROPE EQUIPMENT(EK4) 03.163	8-94246-338-2	02	1	9712-		●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 03.163	8-94246-338-2	02	1	9712-			●	●
366	03.145 HOSE; EVAP EUROPE EQUIPMENT(EK4) 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9712-		●
366	03.145 HOSE; EVAP 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	03	1	9712-			●	●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97178-373-0	01	1	9712-0211	●	●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97178-373-0	01	1	0212-	●	●
383	03.162 VALVE; 2 WAY	8-97076-391-0	01	1	9712-0211			●	●
400	03.162 CLIP; HOSE,EVAP EXC. EUROPE EQUIPMENT(EK4) (A) ID=8.5	8-94166-071-0	01	1	9712-0105	●	●
400	03.162 CLIP; HOSE,EVAP EXC. EUROPE EQUIPMENT(EK4) 03.163 (B) ID=11	8-94238-570-0	02	1	9712-	●	●
426	03.162 WASHER; PL 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9712-	●	●	●	●
445	03.001 RUBBER; RECEIVER	8-97022-669-3	01	1	9712-	●	●	●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9712-	●	●	●	●
467	03.163 BOLT 01.276 M8X24	8-97034-130-1	06	1	9712-	●	●	●	●
468	03.162 NUT 03.023 M8 FLANGE	8-94328-243-1	03	1	9712-	●	●	●	●

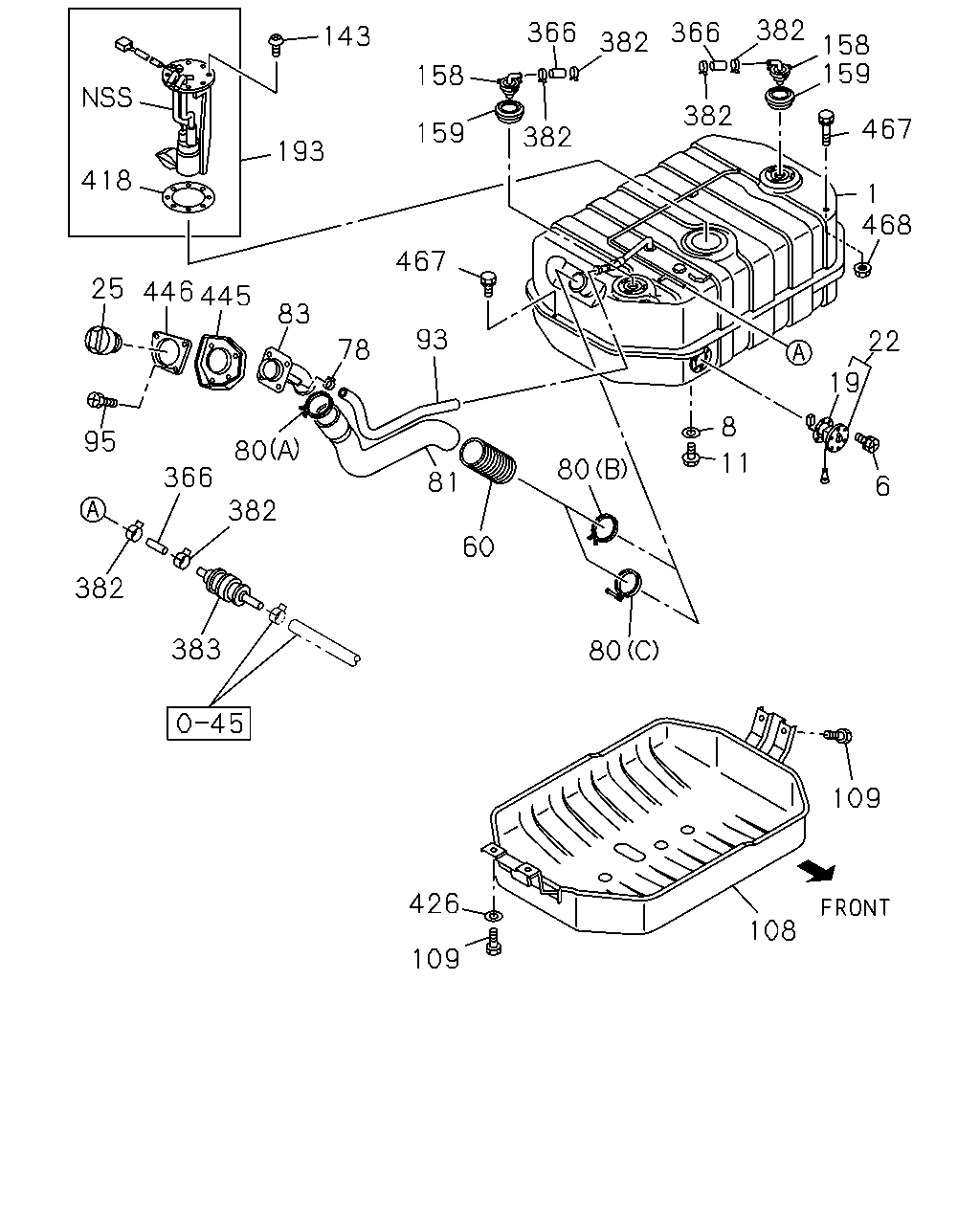

382 366 366 143 382 158 159 158 382 467 159 382 193 418 1 468 467 25 446 445 83 93 22 78 19 8 95 80 11 80 366 81 6 382 60 382 383 80 109 426 108 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97357-018-0	01	1	0209-0301	●	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97363-819-0	01	1	0302-	●	●
1	03.001 TANK; FUEL EXC. EUROPE EQUIPMENT(EK4)	8-97176-264-3	01	1	9712-0208	●	●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97176-263-6	01	1	9712-0211		●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97357-017-0	01	1	0212-0301		●
1	03.001 TANK; FUEL EUROPE EQUIPMENT(EK4)	8-97361-179-1	01	1	0302-		●
1	03.001 TANK; FUEL	8-97161-528-3	01	1	9712-0211			●	●
1	03.001 TANK; FUEL	8-97357-019-0	01	1	0212-0301			●	●
1	03.001 TANK; FUEL	8-97361-180-0	01	1	0302-			●	●
6	03.115 SCREW; TANK UNIT TO SUB FUEL TAN 08.913 M5X12 W/LK WASHER	9-03910-512-0	05	1	9712-	●	●	●	●
8	03.890 GASKET; DRAIN PLUG,FUEL TANK 08.955 ID=8.2 OD=17	9-09572-008-0	01	1	9712-	●	●	●	●
11	03.890 PLUG; DRAIN,FUEL TANK 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9712-	●	●	●	●
19	03.112 GASKET; FUEL TANK UNIT	5-83148-001-0	01	1	9712-	●	●	●	●
22	03.107 UNIT; FUEL TANK	8-97129-725-0	01	1	9712-	●	●	●	●
25	03.028 CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	9712-	●	●	●	●
60	03.008 PROTECTOR; FUEL FILLER	8-97114-063-0	01	1	9712-	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 03.162 ID=19	8-97240-196-0	01	1	0210-			●	●
78	03.003 CLIP; BREATHER HOSE 06.672 ID=21	8-94242-034-0	01	1	9712-0209	●	●	●	●
78	03.003 CLIP; BREATHER HOSE 06.672 ID=21	8-94242-034-0	01	1	0210-	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (A) ID=60	9-09915-265-1	01	1	9712-	●	●	●	●
80	03.008 CLIP; FILLER HOSE 01.166 (B) ID=54	9-09915-412-1	01	1	9712-0110	●	●	●	●
80	03.008 CLIP; FILLER HOSE 03.609 (C) ID=57	9-09915-036-1	01	1	0111-	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-1	01	1	9712-0105	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-1	01	1	0106-0209	●	●
81	03.003 HOSE; FUEL FILLER	8-97012-158-1	01	1	0210-	●	●	●	●
81	03.003 HOSE; FUEL FILLER	8-97164-299-2	01	1	0106-0209			●	●
83	03.003 NECK; FUEL FILLER EXC. EUROPE EQUIPMENT(EK4)	8-97081-009-2	01	1	9712-	●	●
83	03.003 NECK; FUEL FILLER EUROPE EQUIPMENT(EK4)	8-97017-771-1	01	1	9712-9804		●
83	03.003 NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9712-9804			●	●
83	03.003 NECK; FUEL FILLER EUROPE EQUIPMENT(EK4)	8-97017-771-1	01	1	9805-		●
83	03.003 NECK; FUEL FILLER EXC. CATALYSIS CONTROL(6MZ)	8-97017-771-1	01	1	9805-			●	●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ) FUEL FILLER NECK LARGE SIZE HOLE<7WV>	8-97017-771-1	01	1	9805-			●	●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ)	8-97017-699-2	01	1	9712-9804			●	●
83	03.003 NECK; FUEL FILLER CATALYSIS CONTROL(6MZ) EXC. FUEL FILLER NECK LARGE SIZE HOLE<7WV>	8-97017-699-2	01	1	9805-			●	●
93	03.003 HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	9712-0105	●	●	●	●
93	03.003 HOSE; BREATHER,FUEL TANK L=560 SERVICED BY L=1400	8-94152-003-0	01	1	0106-	●	●
93	03.003 HOSE; BREATHER,FUEL TANK L=520	8-97174-656-0	01	1	0106-0209			●	●
93	03.003 HOSE; BREATHER,FUEL TANK L=520	8-97353-639-0	01	1	0210-			●	●
95	03.028 SCREW; FILLER NECK M6X16 W/LK&PL WASHER	8-97116-224-1	03	1	9712-	●	●	●	●
108	03.015 PROTECTOR; FUEL TANK	8-97018-490-4	01	1	9712-	●	●	●	●
109	03.015 BOLT; HEAT PROTECTOR 01.276 M8X24	8-97034-130-1	04	1	9712-	●	●	●	●
143	03.107 SCREW; FUEL PUMP 03.485 M5X10 W/LK WASHER	9-03910-510-0	08	1	9712-			●	●
158	03.164 VALVE; ROLL OVER & FLOAT EUROPE EQUIPMENT(EK4) 03.130	8-94173-276-0	02	1	9712-		●
158	03.164 VALVE; ROLL OVER & FLOAT 03.130	8-94173-276-0	02	1	9712-			●	●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE EUROPE EQUIPMENT(EK4) 03.163	8-94246-338-2	02	1	9712-		●
159	03.015 SEAL; ROLL OVER & FLOAT VALVE 03.163	8-94246-338-2	02	1	9712-			●	●
193	03.107 PUMP; FUEL	8-97168-910-0	01	1	9712-			●	●
366	03.145 HOSE; EVAP EUROPE EQUIPMENT(EK4) 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	02	1	9712-		●
366	03.145 HOSE; EVAP 03.163 L=90 SERVICED BY L=3000	8-94128-826-0	03	1	9712-			●	●
382	03.145 CLIP; RUBBER HOSE 03.162 ID=8.5	8-94166-071-0	06	1	9712-0211			●	●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97178-373-0	01	1	9712-0211	●	●
383	03.162 VALVE; 2 WAY EXC. EUROPE EQUIPMENT(EK4)	8-97178-373-0	01	1	0212-	●	●
383	03.162 VALVE; 2 WAY	8-97076-391-0	01	1	9712-0211			●	●
418	03.107 GASKET; FUEL PUMP	8-94386-449-0	01	1	9712-			●	●
426	03.162 WASHER; PL 07.633 ID=8.4 OD=22	9-09164-708-0	02	1	9712-	●	●	●	●
445	03.001 RUBBER; RECEIVER	8-97022-669-3	01	1	9712-	●	●	●	●
446	03.001 PLATE; FIXING	8-94340-181-0	01	1	9712-	●	●	●	●
467	03.163 BOLT 01.276 M8X24	8-97034-130-1	06	1	9712-	●	●	●	●
468	03.162 NUT 03.023 M8 FLANGE	8-94328-243-1	03	1	9712-	●	●	●	●
