Sayfa 1-35 - Isuzu EPC

1-35 — CHARGE AIR COOLER (#73247) — 182 parça

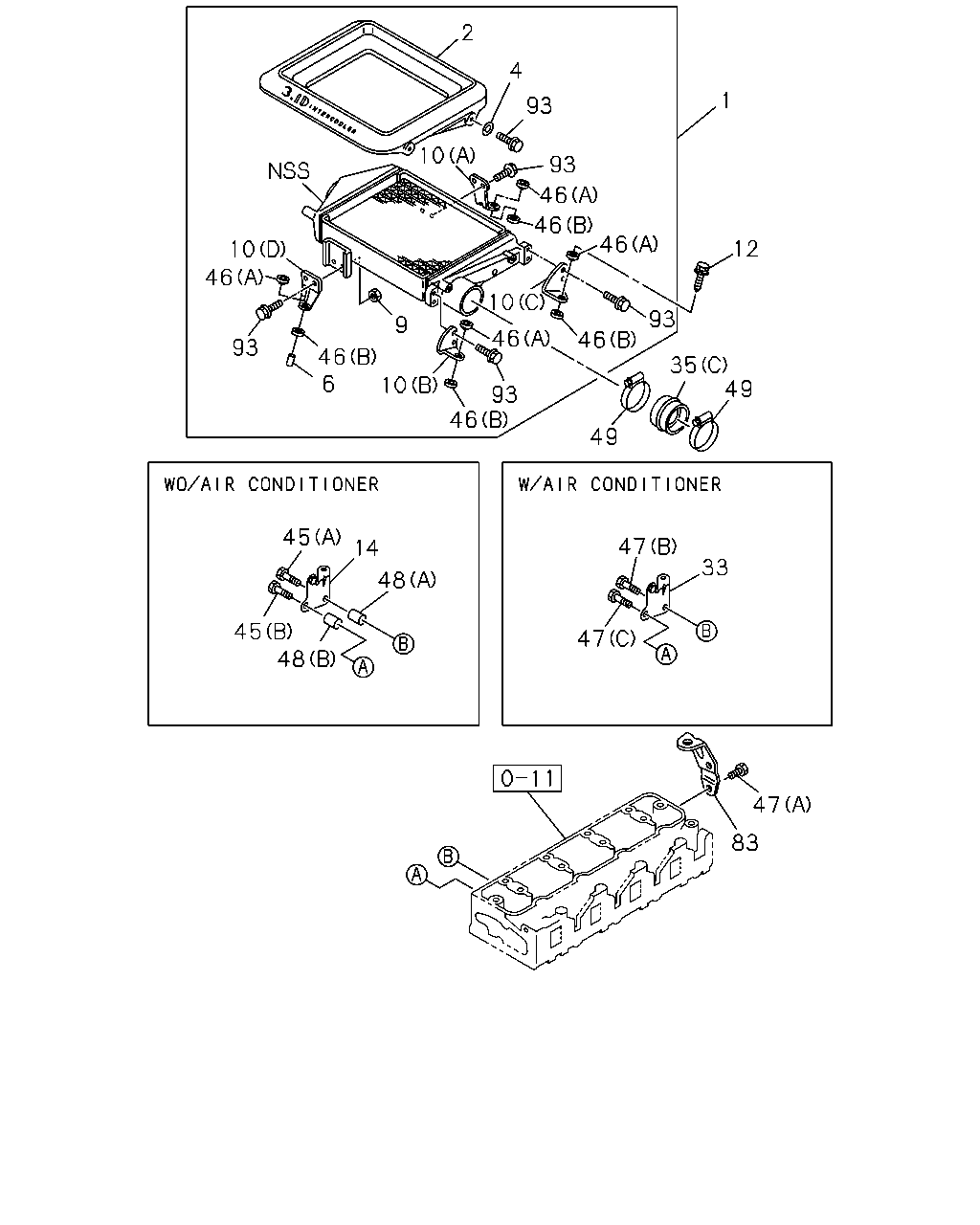

2 4 1 93 10 93 46 46 46 12 10 46 10 93 9 46 46 93 46 6 35 49 10 93 46 49 45 47 14 33 48 45 48 47 47 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.374 COOLER; CHARGE AIR TURBOCHARGER<K51>	8-97089-943-4	01	1	9712-	●
1	03.374 COOLER; CHARGE AIR	8-97181-092-1	01	1	9712-9908		●
1	03.374 COOLER; CHARGE AIR	8-97228-966-1	01	1	9909-0105		●
1	03.374 COOLER; CHARGE AIR EXC. EUROPE EQUIPMENT(EK4)	8-97228-966-1	01	1	0106-0208		●
1	03.374 COOLER; CHARGE AIR EXC. EURO3 SPECIFICATION(NT3)	8-97228-966-1	01	1	0209-		●
1	03.374 COOLER; CHARGE AIR EUROPE EQUIPMENT(EK4)	8-97239-614-1	01	1	0106-0208		●
1	03.374 COOLER; CHARGE AIR EURO3 SPECIFICATION(NT3)	8-97239-614-1	01	1	0209-		●
2	01.540 COVER; CHARGE AIR COOLER TURBOCHARGER<K51>	8-97089-944-3	01	1	9712-	●
2	01.540 COVER; CHARGE AIR COOLER	8-97187-608-0	01	1	9712-0104		●
2	01.540 COVER; CHARGE AIR COOLER	8-97309-040-0	01	1	0105-		●
4	01.540 COLLAR; CHARGE AIR COOLER TURBOCHARGER<K51> OD=26 T=1.6	8-97089-945-0	04	1	9712-	●
6	01.540 COLLAR; MTG,CHARGE AIR COOLER TURBOCHARGER<K51>	8-97107-898-0	04	1	9712-	●
9	01.540 NUT; CHARGE AIR COOLER TURBOCHARGER<K51> 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (A)	8-97142-556-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (B)	8-97142-557-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (C)	8-97142-558-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (D)	8-97142-559-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (E)	8-97232-775-0	01	1	9712-		●
12	01.540 BOLT; CHARGE AIR COOLER TURBOCHARGER<K51> M8X40	8-94369-183-1	04	1	9712-0008	●
12	01.540 BOLT; CHARGE AIR COOLER M8X40	8-94369-183-1	04	1	9712-0008		●
12	01.540 BOLT; CHARGE AIR COOLER TURBOCHARGER<K51> M8X41 W/PL WASHER	8-97264-622-0	04	1	0009-	●
12	01.540 BOLT; CHARGE AIR COOLER M8X41 W/PL WASHER	8-97264-622-0	04	1	0009-		●
14	01.540 BRACKET; CHARGE AIR COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94340-612-3	01	1	9712-9908	●
14	01.540 BRACKET; CHARGE AIR COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68)	8-94340-612-3	01	1	9909-	●
14	01.540 BRACKET; CHARGE AIR COOLER	8-97144-891-4	01	1	9712-9712		●
14	01.540 BRACKET; CHARGE AIR COOLER	8-97204-980-0	01	1	9801-0105		●
14	01.540 BRACKET; CHARGE AIR COOLER EXC. EUROPE EQUIPMENT(EK4)	8-97204-980-0	01	1	0106-0208		●
14	01.540 BRACKET; CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NT3)	8-97204-980-0	01	1	0209-		●
14	01.540 BRACKET; CHARGE AIR COOLER EUROPE EQUIPMENT(EK4)	8-97239-619-0	01	1	0106-0208		●
14	01.540 BRACKET; CHARGE AIR COOLER EURO3 SPECIFICATION(NT3)	8-97239-619-0	01	1	0209-		●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60)	8-94340-612-3	01	1	9712-	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97172-089-0	01	1	9712-		●
35	01.540 HOSE; CONNECTING TURBOCHARGER<K51> (C)	8-97120-725-0	01	1	9712-	●
35	01.540 HOSE; CONNECTING (A)	8-97145-617-0	01	1	9712-0105		●
35	01.540 HOSE; CONNECTING EXC. EUROPE EQUIPMENT(EK4) (A)	8-97145-617-0	01	1	0106-0208		●
35	01.540 HOSE; CONNECTING EXC. EURO3 SPECIFICATION(NT3) (A)	8-97145-617-1	01	1	0209-		●
35	01.540 HOSE; CONNECTING (B)	8-97145-618-1	01	1	9712-9712		●
35	01.540 HOSE; CONNECTING (B)	8-97205-204-1	01	1	9801-9908		●
35	01.540 HOSE; CONNECTING (B)	8-97228-984-2	01	1	9909-		●
35	01.540 HOSE; CONNECTING EUROPE EQUIPMENT(EK4) (A)	8-97309-060-1	01	1	0106-0208		●
35	01.540 HOSE; CONNECTING EURO3 SPECIFICATION(NT3) (A)	8-97309-060-1	01	1	0209-		●
45	01.540 BOLT; BRKT TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) 01.271 (A) M8X40 FLANGE	0-28080-840-0	01	1	9712-9908	●
45	01.540 BOLT; BRKT TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 01.271 (A) M8X40 FLANGE	0-28080-840-0	01	1	9909-	●
45	01.540 BOLT; BRKT TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.685 (B) M10X45 FLANGE	0-28081-045-0	01	1	9712-9908	●
45	01.540 BOLT; BRKT TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 00.685 (B) M10X45 FLANGE	0-28081-045-0	01	1	9909-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER TURBOCHARGER<K51> (A)	8-97118-759-0	04	1	9712-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER TURBOCHARGER<K51> (B)	8-97135-366-0	04	1	9712-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	9712-		●
47	01.540 BOLT; CHARGE AIR COOLER BRKT TURBOCHARGER<K51> 04.785 (A) M8X18 W/LK WASHER	0-50040-818-0	02	1	9712-0111	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT TURBOCHARGER<K51> 01.062 (A) M8X16 FLANGE	0-28080-816-0	02	1	0112-	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60) 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-	●
47	01.540 BOLT; CHARGE AIR COOLER BRKT TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60) 00.004 (C) M10X45 W/LK WASHER	0-50041-045-0	01	1	9712-	●
48	01.540 SPACER; BRKT TO COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) (A) OD=17.3	8-94328-221-1	01	1	9712-9908	●
48	01.540 SPACER; BRKT TO COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) (A) OD=17.3	8-94328-221-1	01	1	9909-	●
48	01.540 SPACER; BRKT TO COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60) (B) OD=20	8-94369-182-0	01	1	9712-9908	●
48	01.540 SPACER; BRKT TO COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) (B) OD=20	8-94369-182-0	01	1	9909-	●
49	01.540 CLIP; CONN HOSE TURBOCHARGER<K51> 03.273 ID=65-82	8-97131-942-0	02	1	9712-	●
49	01.540 CLIP; CONN HOSE 03.407 ID=50-69	8-94316-991-0	04	1	9712-9908		●
49	01.540 CLIP; CONN HOSE ID=53.4	8-97188-451-1	04	1	9909-		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR TURBOCHARGER<K51>	8-97044-045-0	01	1	9712-	●
83	01.540 BRACKET; CHARGE AIR COOLER,RR	8-97172-090-1	01	1	9712-		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR EUROPE EQUIPMENT(EK4)	8-97247-587-0	01	1	0106-0208		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR EURO3 SPECIFICATION(NT3)	8-97247-587-0	01	1	0209-		●
93	01.540 BOLT; COVER TURBOCHARGER<K51> 01.062 M8X16 FLANGE	0-28080-816-0	12	1	9712-	●

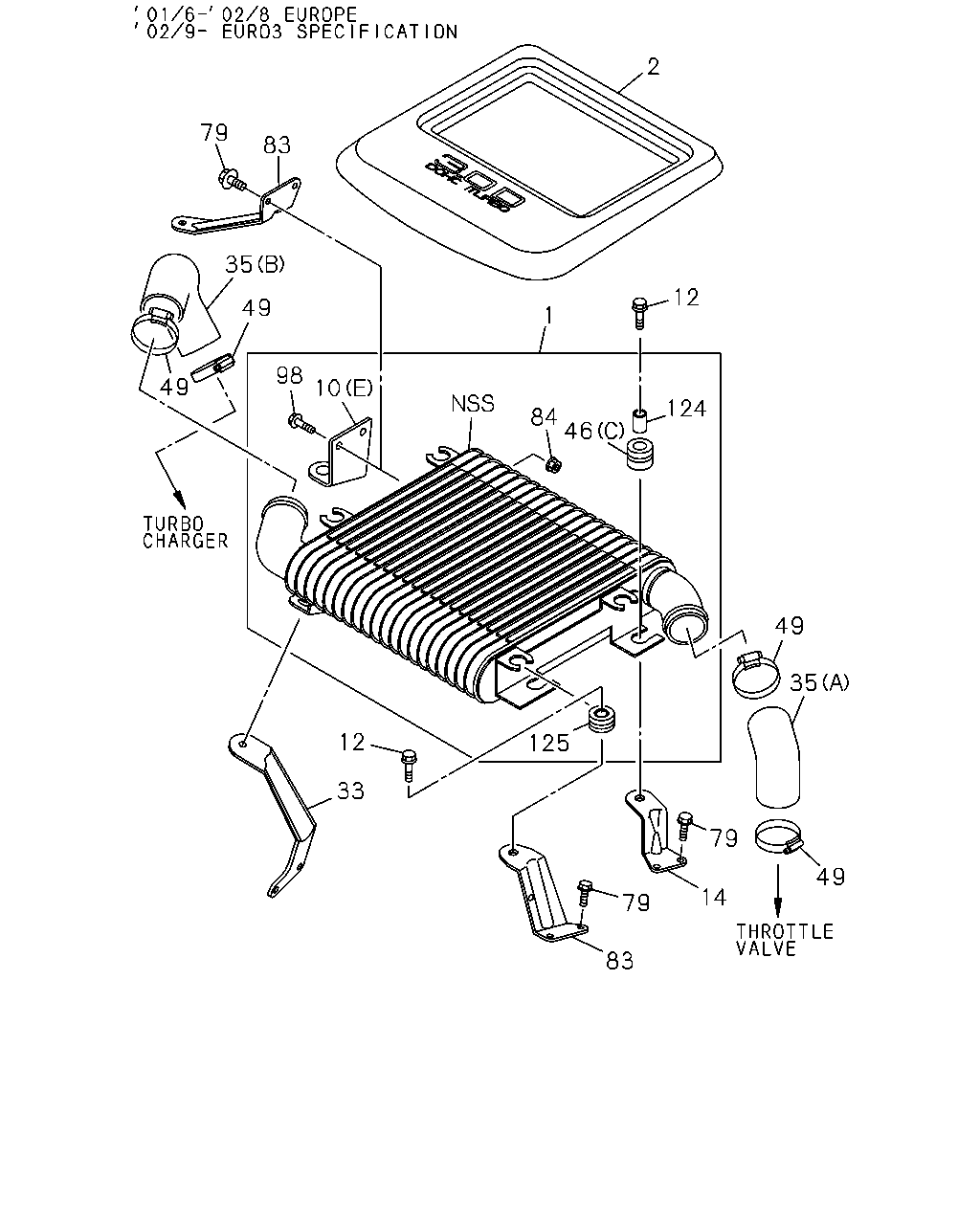

2 79 83 35 12 49 1 98 49 10 124 84 46 49 35 12 125 33 79 49 14 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.374 COOLER; CHARGE AIR TURBOCHARGER<K51>	8-97089-943-4	01	1	9712-	●
1	03.374 COOLER; CHARGE AIR	8-97181-092-1	01	1	9712-9908		●
1	03.374 COOLER; CHARGE AIR	8-97228-966-1	01	1	9909-0105		●
1	03.374 COOLER; CHARGE AIR EXC. EUROPE EQUIPMENT(EK4)	8-97228-966-1	01	1	0106-0208		●
1	03.374 COOLER; CHARGE AIR EXC. EURO3 SPECIFICATION(NT3)	8-97228-966-1	01	1	0209-		●
1	03.374 COOLER; CHARGE AIR EUROPE EQUIPMENT(EK4)	8-97239-614-1	01	1	0106-0208		●
1	03.374 COOLER; CHARGE AIR EURO3 SPECIFICATION(NT3)	8-97239-614-1	01	1	0209-		●
2	01.540 COVER; CHARGE AIR COOLER TURBOCHARGER<K51>	8-97089-944-3	01	1	9712-	●
2	01.540 COVER; CHARGE AIR COOLER	8-97187-608-0	01	1	9712-0104		●
2	01.540 COVER; CHARGE AIR COOLER	8-97309-040-0	01	1	0105-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (A)	8-97142-556-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (B)	8-97142-557-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (C)	8-97142-558-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (D)	8-97142-559-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (E)	8-97232-775-0	01	1	9712-		●
12	01.540 BOLT; CHARGE AIR COOLER TURBOCHARGER<K51> M8X40	8-94369-183-1	04	1	9712-0008	●
12	01.540 BOLT; CHARGE AIR COOLER M8X40	8-94369-183-1	04	1	9712-0008		●
12	01.540 BOLT; CHARGE AIR COOLER TURBOCHARGER<K51> M8X41 W/PL WASHER	8-97264-622-0	04	1	0009-	●
12	01.540 BOLT; CHARGE AIR COOLER M8X41 W/PL WASHER	8-97264-622-0	04	1	0009-		●
14	01.540 BRACKET; CHARGE AIR COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94340-612-3	01	1	9712-9908	●
14	01.540 BRACKET; CHARGE AIR COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68)	8-94340-612-3	01	1	9909-	●
14	01.540 BRACKET; CHARGE AIR COOLER	8-97144-891-4	01	1	9712-9712		●
14	01.540 BRACKET; CHARGE AIR COOLER	8-97204-980-0	01	1	9801-0105		●
14	01.540 BRACKET; CHARGE AIR COOLER EXC. EUROPE EQUIPMENT(EK4)	8-97204-980-0	01	1	0106-0208		●
14	01.540 BRACKET; CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NT3)	8-97204-980-0	01	1	0209-		●
14	01.540 BRACKET; CHARGE AIR COOLER EUROPE EQUIPMENT(EK4)	8-97239-619-0	01	1	0106-0208		●
14	01.540 BRACKET; CHARGE AIR COOLER EURO3 SPECIFICATION(NT3)	8-97239-619-0	01	1	0209-		●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60)	8-94340-612-3	01	1	9712-	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97172-089-0	01	1	9712-		●
35	01.540 HOSE; CONNECTING TURBOCHARGER<K51> (C)	8-97120-725-0	01	1	9712-	●
35	01.540 HOSE; CONNECTING (A)	8-97145-617-0	01	1	9712-0105		●
35	01.540 HOSE; CONNECTING EXC. EUROPE EQUIPMENT(EK4) (A)	8-97145-617-0	01	1	0106-0208		●
35	01.540 HOSE; CONNECTING EXC. EURO3 SPECIFICATION(NT3) (A)	8-97145-617-1	01	1	0209-		●
35	01.540 HOSE; CONNECTING (B)	8-97145-618-1	01	1	9712-9712		●
35	01.540 HOSE; CONNECTING (B)	8-97205-204-1	01	1	9801-9908		●
35	01.540 HOSE; CONNECTING (B)	8-97228-984-2	01	1	9909-		●
35	01.540 HOSE; CONNECTING EUROPE EQUIPMENT(EK4) (A)	8-97309-060-1	01	1	0106-0208		●
35	01.540 HOSE; CONNECTING EURO3 SPECIFICATION(NT3) (A)	8-97309-060-1	01	1	0209-		●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER TURBOCHARGER<K51> (A)	8-97118-759-0	04	1	9712-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER TURBOCHARGER<K51> (B)	8-97135-366-0	04	1	9712-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	9712-		●
49	01.540 CLIP; CONN HOSE TURBOCHARGER<K51> 03.273 ID=65-82	8-97131-942-0	02	1	9712-	●
49	01.540 CLIP; CONN HOSE 03.407 ID=50-69	8-94316-991-0	04	1	9712-9908		●
49	01.540 CLIP; CONN HOSE ID=53.4	8-97188-451-1	04	1	9909-		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER 08.900 M8X12 FLANGE	0-28080-812-0	06	1	9712-0105		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-0208		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0209-		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EUROPE EQUIPMENT(EK4) 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0106-0208		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EURO3 SPECIFICATION(NT3) 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0209-		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EUROPE EQUIPMENT(EK4) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0106-0208		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NT3) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0209-		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR TURBOCHARGER<K51>	8-97044-045-0	01	1	9712-	●
83	01.540 BRACKET; CHARGE AIR COOLER,RR	8-97172-090-1	01	1	9712-		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR EUROPE EQUIPMENT(EK4)	8-97247-587-0	01	1	0106-0208		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR EURO3 SPECIFICATION(NT3)	8-97247-587-0	01	1	0209-		●
84	01.540 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
98	01.540 BOLT; BRKT TO CHARGE AIR COOLER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-		●
124	01.540 BUSHING; MTG RUBBER,CHARGE AIR C	8-97107-898-0	04	1	9712-		●
125	01.540 RUBBER; MTG RUBBER,CHARGE AIR CO	8-97181-886-0	04	1	9712-		●

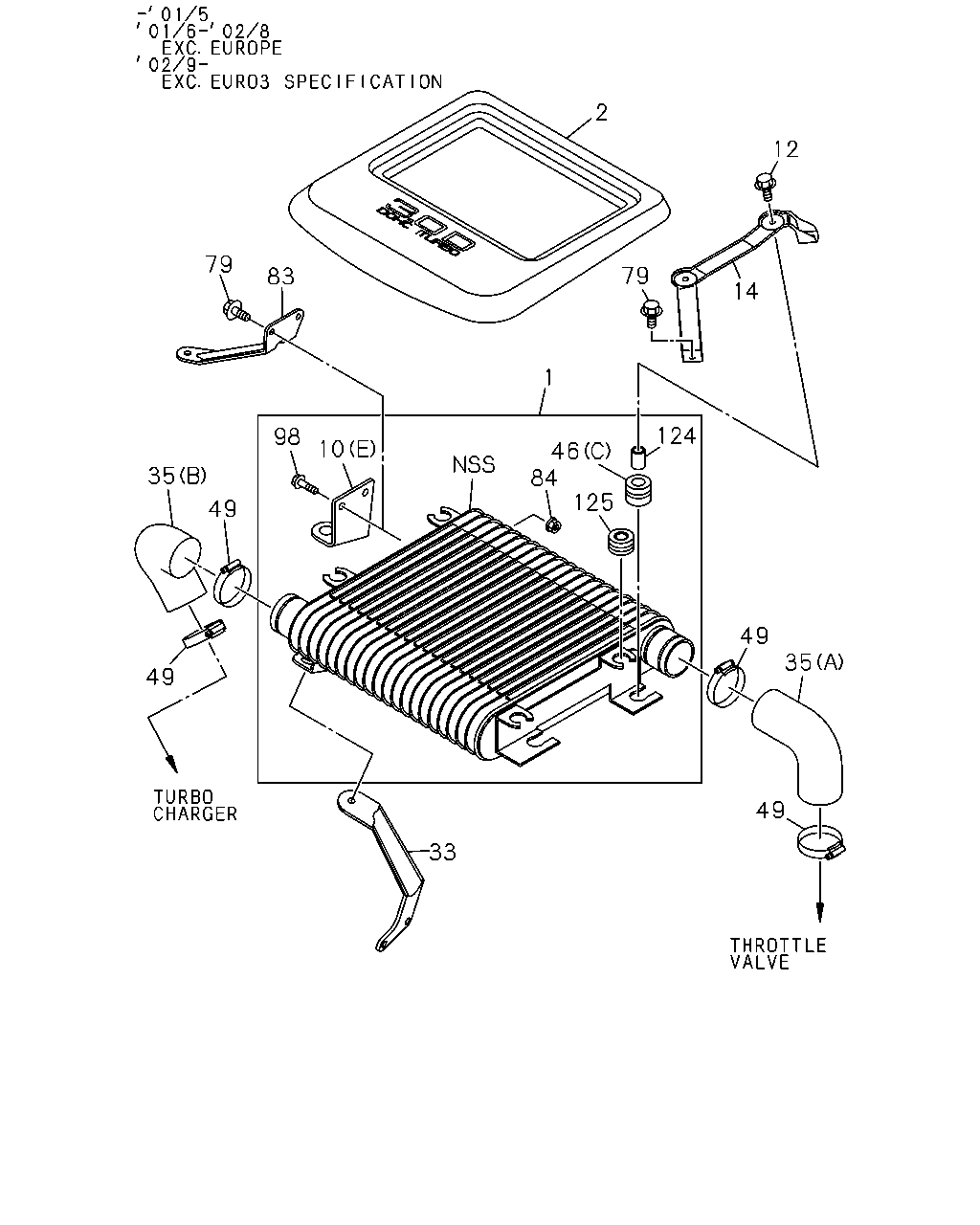

2 12 79 79 83 14 1 124 98 10 46 84 35 125 49 49 35 49 49 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.374 COOLER; CHARGE AIR TURBOCHARGER<K51>	8-97089-943-4	01	1	9712-	●
1	03.374 COOLER; CHARGE AIR	8-97181-092-1	01	1	9712-9908		●
1	03.374 COOLER; CHARGE AIR	8-97228-966-1	01	1	9909-0105		●
1	03.374 COOLER; CHARGE AIR EXC. EUROPE EQUIPMENT(EK4)	8-97228-966-1	01	1	0106-0208		●
1	03.374 COOLER; CHARGE AIR EXC. EURO3 SPECIFICATION(NT3)	8-97228-966-1	01	1	0209-		●
1	03.374 COOLER; CHARGE AIR EUROPE EQUIPMENT(EK4)	8-97239-614-1	01	1	0106-0208		●
1	03.374 COOLER; CHARGE AIR EURO3 SPECIFICATION(NT3)	8-97239-614-1	01	1	0209-		●
2	01.540 COVER; CHARGE AIR COOLER TURBOCHARGER<K51>	8-97089-944-3	01	1	9712-	●
2	01.540 COVER; CHARGE AIR COOLER	8-97187-608-0	01	1	9712-0104		●
2	01.540 COVER; CHARGE AIR COOLER	8-97309-040-0	01	1	0105-		●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (A)	8-97142-556-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (B)	8-97142-557-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (C)	8-97142-558-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER TURBOCHARGER<K51> (D)	8-97142-559-0	01	1	9712-	●
10	01.540 BRACKET; STAY,CHARGE AIR COOLER (E)	8-97232-775-0	01	1	9712-		●
12	01.540 BOLT; CHARGE AIR COOLER TURBOCHARGER<K51> M8X40	8-94369-183-1	04	1	9712-0008	●
12	01.540 BOLT; CHARGE AIR COOLER M8X40	8-94369-183-1	04	1	9712-0008		●
12	01.540 BOLT; CHARGE AIR COOLER TURBOCHARGER<K51> M8X41 W/PL WASHER	8-97264-622-0	04	1	0009-	●
12	01.540 BOLT; CHARGE AIR COOLER M8X41 W/PL WASHER	8-97264-622-0	04	1	0009-		●
14	01.540 BRACKET; CHARGE AIR COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60)	8-94340-612-3	01	1	9712-9908	●
14	01.540 BRACKET; CHARGE AIR COOLER TURBOCHARGER<K51> EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68)	8-94340-612-3	01	1	9909-	●
14	01.540 BRACKET; CHARGE AIR COOLER	8-97144-891-4	01	1	9712-9712		●
14	01.540 BRACKET; CHARGE AIR COOLER	8-97204-980-0	01	1	9801-0105		●
14	01.540 BRACKET; CHARGE AIR COOLER EXC. EUROPE EQUIPMENT(EK4)	8-97204-980-0	01	1	0106-0208		●
14	01.540 BRACKET; CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NT3)	8-97204-980-0	01	1	0209-		●
14	01.540 BRACKET; CHARGE AIR COOLER EUROPE EQUIPMENT(EK4)	8-97239-619-0	01	1	0106-0208		●
14	01.540 BRACKET; CHARGE AIR COOLER EURO3 SPECIFICATION(NT3)	8-97239-619-0	01	1	0209-		●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT TURBOCHARGER<K51> AIR CONDITIONER MANUAL CONT(C60)	8-94340-612-3	01	1	9712-	●
33	01.540 BRACKET; CHARGE AIR COOLER,FRT	8-97172-089-0	01	1	9712-		●
35	01.540 HOSE; CONNECTING TURBOCHARGER<K51> (C)	8-97120-725-0	01	1	9712-	●
35	01.540 HOSE; CONNECTING (A)	8-97145-617-0	01	1	9712-0105		●
35	01.540 HOSE; CONNECTING EXC. EUROPE EQUIPMENT(EK4) (A)	8-97145-617-0	01	1	0106-0208		●
35	01.540 HOSE; CONNECTING EXC. EURO3 SPECIFICATION(NT3) (A)	8-97145-617-1	01	1	0209-		●
35	01.540 HOSE; CONNECTING (B)	8-97145-618-1	01	1	9712-9712		●
35	01.540 HOSE; CONNECTING (B)	8-97205-204-1	01	1	9801-9908		●
35	01.540 HOSE; CONNECTING (B)	8-97228-984-2	01	1	9909-		●
35	01.540 HOSE; CONNECTING EUROPE EQUIPMENT(EK4) (A)	8-97309-060-1	01	1	0106-0208		●
35	01.540 HOSE; CONNECTING EURO3 SPECIFICATION(NT3) (A)	8-97309-060-1	01	1	0209-		●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER TURBOCHARGER<K51> (A)	8-97118-759-0	04	1	9712-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER TURBOCHARGER<K51> (B)	8-97135-366-0	04	1	9712-	●
46	01.540 RUBBER; MTG,CHARGE AIR COOLER (C)	8-97232-774-0	04	1	9712-		●
49	01.540 CLIP; CONN HOSE TURBOCHARGER<K51> 03.273 ID=65-82	8-97131-942-0	02	1	9712-	●
49	01.540 CLIP; CONN HOSE 03.407 ID=50-69	8-94316-991-0	04	1	9712-9908		●
49	01.540 CLIP; CONN HOSE ID=53.4	8-97188-451-1	04	1	9909-		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER 08.900 M8X12 FLANGE	0-28080-812-0	06	1	9712-0105		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-0208		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0209-		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EUROPE EQUIPMENT(EK4) 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0106-0208		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EURO3 SPECIFICATION(NT3) 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0209-		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EUROPE EQUIPMENT(EK4) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0106-0208		●
79	03.374 BOLT; BRKT,CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NT3) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0209-		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR TURBOCHARGER<K51>	8-97044-045-0	01	1	9712-	●
83	01.540 BRACKET; CHARGE AIR COOLER,RR	8-97172-090-1	01	1	9712-		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR EUROPE EQUIPMENT(EK4)	8-97247-587-0	01	1	0106-0208		●
83	01.540 BRACKET; CHARGE AIR COOLER,RR EURO3 SPECIFICATION(NT3)	8-97247-587-0	01	1	0209-		●
84	01.540 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	9712-		●
98	01.540 BOLT; BRKT TO CHARGE AIR COOLER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-		●
124	01.540 BUSHING; MTG RUBBER,CHARGE AIR C	8-97107-898-0	04	1	9712-		●
125	01.540 RUBBER; MTG RUBBER,CHARGE AIR CO	8-97181-886-0	04	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
