1-31 — AIR DUCT (#73246) — 121 parça

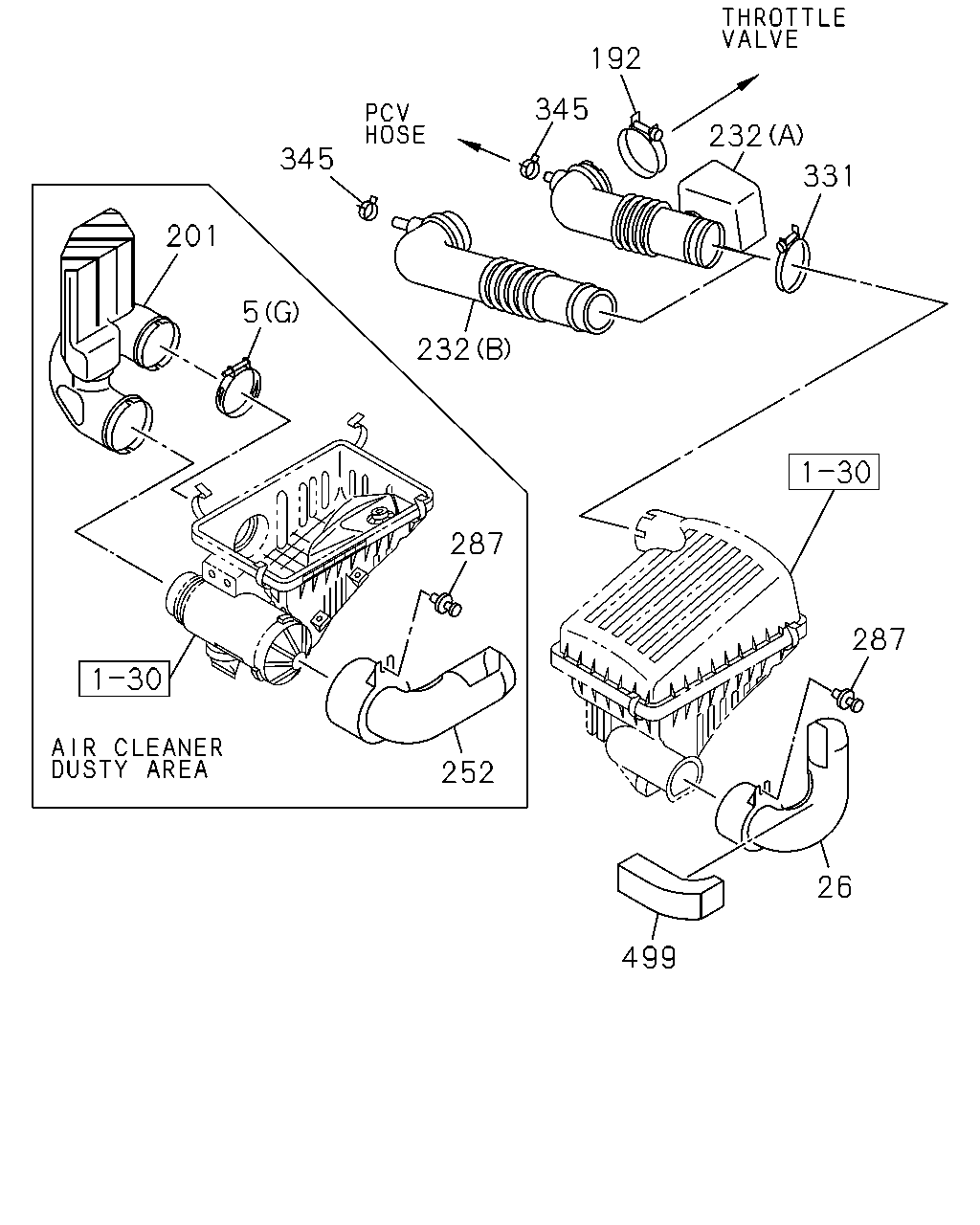

192 345 232 345 331 201 5 232 287 287 252 26 499

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-114-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT 03.417 (A) ID=58-79	8-94126-771-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT 01.159 (A) ID=58-76	1-09707-203-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT 03.003 (E) D6X11 POP RIVET	8-94298-119-0	01	1	9712-	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-94238-570-0	01	1	9712-9904	●
5	03.407 CLIP; AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11	8-94238-570-0	01	1	9712-9904		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	9905-0208	●
5	03.407 CLIP; AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11	8-97173-219-0	01	1	9905-0208		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	0209-0301	●
5	03.407 CLIP; AIR DUCT EXC. EURO3 SPECIFICATION(NT3) 03.163 (F) ID=11	8-97173-219-0	01	1	0209-0301		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	0302-	●
5	03.407 CLIP; AIR DUCT 03.163 (F) ID=11	8-97173-219-0	01	1	0302-		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (C) ID=50-69	8-94316-991-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (C) ID=50-65	1-09707-204-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (D) ID=68-85	8-94320-428-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (D) ID=68-85	1-09707-202-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT (B) ID=65-70	8-94126-769-0	01	1	9712-		●
5	03.407 CLIP; AIR DUCT AIR CLEANER DUSTY AREA(K46) (G) ID=75	8-94101-706-0	01	1	9712-			●	●
26	03.417 DUCT; AIR INT	8-97133-651-1	01	1	9712-	●
26	03.417 DUCT; AIR INT EXC. AIR CLEANER DUSTY AREA(K46)	8-97163-237-2	01	1	9712-			●	●
192	03.407 CLIP; HOSE EUROPE EQUIPMENT(EK4) ID=75	8-94101-706-0	01	1	0106-			●
192	03.407 CLIP; HOSE 03.374 ID=80	8-94111-621-0	01	1	9712-0105			●	●
192	03.407 CLIP; HOSE EXC. EUROPE EQUIPMENT(EK4) 03.374 ID=80	8-94111-621-0	01	1	0106-			●	●
201	03.407 DUCT; SUB ACL AIR CLEANER DUSTY AREA(K46)	8-97185-178-1	01	1	9712-			●	●
232	03.417 HOSE; CONN A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (A)	8-97163-240-2	01	1	9712-0105			●
232	03.417 HOSE; CONN A/T THM(RMQ) EUROPE EQUIPMENT(EK4) (A)	8-97194-710-1	01	1	0106-			●
232	03.417 HOSE; CONN M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A)	8-97174-891-2	01	1	9712-0105			●
232	03.417 HOSE; CONN M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A)	8-97194-706-1	01	1	0106-			●
232	03.417 HOSE; CONN EXC. EUROPE EQUIPMENT(EK4) (B)	8-97130-563-3	01	1	9712-			●	●
252	03.417 DUCT; AIR INT AIR CLEANER DUSTY AREA(K46)	8-97168-882-0	01	1	9712-			●	●
287	03.417 CLIP; AIR DUCT BLACK	8-94161-518-0	02	1	9712-			●	●
331	03.417 CLIP; CONN HOSE,AIR FLOW SENSOR 03.330 ID=90	8-94156-938-0	01	1	9712-0305			●	●
331	03.417 CLIP; CONN HOSE,AIR FLOW SENSOR ID=90	8-97367-377-0	01	1	0306-			●	●
345	03.417 CLIP; PCV HOSE 01.762 ID=19	8-94238-569-0	01	1	9712-			●	●
499	03.417 SPONGE; INLET DUCT	8-97187-551-1	01	1	9712-			●	●

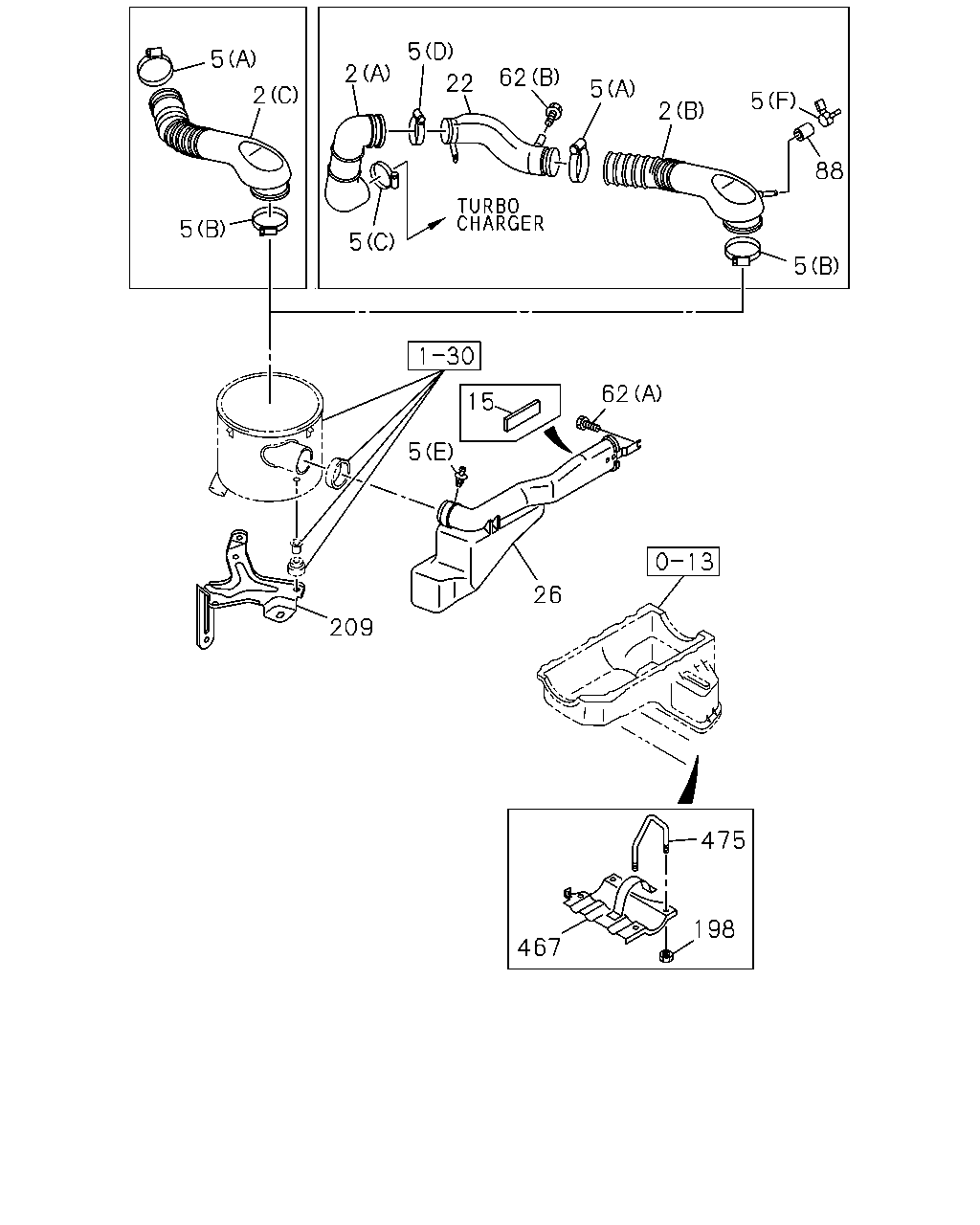

5 5 2 62 22 5 2 5 2 88 5 5 5 62 15 5 26 209 475 198 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	03.417 HOSE; ACL TURBOCHARGER<K51> (A)	8-97117-272-0	01	1	9712-	●
2	03.417 HOSE; ACL TURBOCHARGER<K51> (B)	8-97132-799-0	01	1	9712-	●
2	03.417 HOSE; ACL EXC. TURBOCHARGER<K51> (C)	8-97120-089-1	01	1	9712-	●
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-114-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT 03.417 (A) ID=58-79	8-94126-771-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT 01.159 (A) ID=58-76	1-09707-203-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT 03.003 (E) D6X11 POP RIVET	8-94298-119-0	01	1	9712-	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-94238-570-0	01	1	9712-9904	●
5	03.407 CLIP; AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11	8-94238-570-0	01	1	9712-9904		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	9905-0208	●
5	03.407 CLIP; AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11	8-97173-219-0	01	1	9905-0208		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	0209-0301	●
5	03.407 CLIP; AIR DUCT EXC. EURO3 SPECIFICATION(NT3) 03.163 (F) ID=11	8-97173-219-0	01	1	0209-0301		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	0302-	●
5	03.407 CLIP; AIR DUCT 03.163 (F) ID=11	8-97173-219-0	01	1	0302-		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (C) ID=50-69	8-94316-991-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (C) ID=50-65	1-09707-204-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (D) ID=68-85	8-94320-428-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (D) ID=68-85	1-09707-202-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT (B) ID=65-70	8-94126-769-0	01	1	9712-		●
5	03.407 CLIP; AIR DUCT AIR CLEANER DUSTY AREA(K46) (G) ID=75	8-94101-706-0	01	1	9712-			●	●
15	03.417 INSULATOR FRIGID ZONE<YL3>	8-97105-329-0	01	1	9712-	●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE TURBOCHARGER<K51> EXC. VAUXHALL EQUIPMENT<EK3>	8-97128-957-0	01	1	9712-9908	●
22	03.417 HOSE; CONNECTOR,ENG TO PIPE TURBOCHARGER<K51>	8-97128-957-0	01	1	9909-	●
26	03.417 DUCT; AIR INT	8-97133-651-1	01	1	9712-	●
26	03.417 DUCT; AIR INT EXC. AIR CLEANER DUSTY AREA(K46)	8-97163-237-2	01	1	9712-			●	●
62	03.417 BOLT; AIR INT DUCT 08.155 (A) M8X16 FLANGE	0-28480-816-0	01	1	9712-	●
62	03.417 BOLT; AIR INT DUCT TURBOCHARGER<K51> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9712-	●
62	03.417 BOLT; AIR INT DUCT 02.559 (C) M6X25 FLANGE	0-28480-625-0	01	1	9712-9804		●
62	03.417 BOLT; AIR INT DUCT 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9805-		●
88	03.407 CAP; RUBBER,AIR DUCT TURBOCHARGER<K51> 03.672 ID=5.4	8-94156-209-0	01	1	9712-0208	●
88	03.407 CAP; RUBBER,AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.672 ID=5.4	8-94156-209-0	01	1	9712-0208		●
88	03.407 CAP; RUBBER,AIR DUCT TURBOCHARGER<K51> 03.672 ID=5.4	8-94156-209-0	01	1	0209-0301	●
88	03.407 CAP; RUBBER,AIR DUCT EXC. EURO3 SPECIFICATION(NT3) 03.672 ID=5.4	8-94156-209-0	01	1	0209-0301		●
88	03.407 CAP; RUBBER,AIR DUCT TURBOCHARGER<K51> 03.672 ID=5.4	8-94156-209-0	01	1	0302-	●
88	03.407 CAP; RUBBER,AIR DUCT 03.672 ID=5.4	8-94156-209-0	01	1	0302-		●
198	03.417 NUT; CLAMP EXC. SHIFT ON THE FLY(7EX) 07.633 M8 FLANGE	0-91150-108-0	04	1	9712-	●
209	03.405 BRACKET; ACL	8-94386-831-1	01	1	9712-	●
209	03.405 BRACKET; ACL	8-97144-901-2	01	1	9712-		●
467	03.417 COVER; UNDER,ENGINE EXC. SHIFT ON THE FLY(7EX)	8-97086-982-1	01	1	9712-	●
475	03.417 U-BOLT; UNDER COVER EXC. SHIFT ON THE FLY(7EX)	8-97087-000-0	02	1	9712-	●

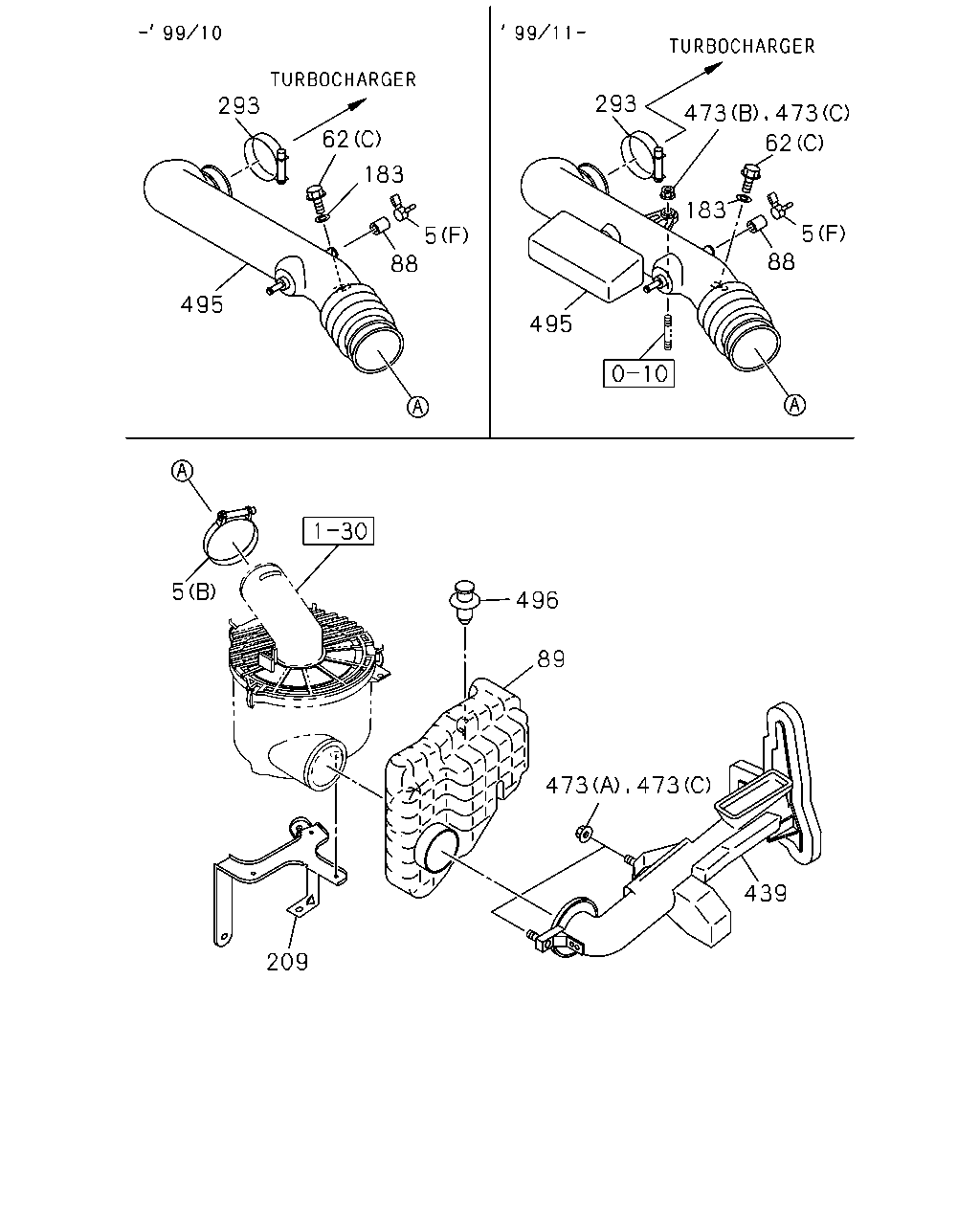

293 293 62 62 183 183 5 88 5 88 495 495 5 496 89 473 439 209 473 473 473

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-114-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT (B) ID=77-95	1-09707-198-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT 03.417 (A) ID=58-79	8-94126-771-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT 01.159 (A) ID=58-76	1-09707-203-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT 03.003 (E) D6X11 POP RIVET	8-94298-119-0	01	1	9712-	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-94238-570-0	01	1	9712-9904	●
5	03.407 CLIP; AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11	8-94238-570-0	01	1	9712-9904		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	9905-0208	●
5	03.407 CLIP; AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.163 (F) ID=11	8-97173-219-0	01	1	9905-0208		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	0209-0301	●
5	03.407 CLIP; AIR DUCT EXC. EURO3 SPECIFICATION(NT3) 03.163 (F) ID=11	8-97173-219-0	01	1	0209-0301		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> 03.163 (F) ID=11	8-97173-219-0	01	1	0302-	●
5	03.407 CLIP; AIR DUCT 03.163 (F) ID=11	8-97173-219-0	01	1	0302-		●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (C) ID=50-69	8-94316-991-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (C) ID=50-65	1-09707-204-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (D) ID=68-85	8-94320-428-0	01	1	9712-0403	●
5	03.407 CLIP; AIR DUCT TURBOCHARGER<K51> (D) ID=68-85	1-09707-202-0	01	1	0404-	●
5	03.407 CLIP; AIR DUCT (B) ID=65-70	8-94126-769-0	01	1	9712-		●
5	03.407 CLIP; AIR DUCT AIR CLEANER DUSTY AREA(K46) (G) ID=75	8-94101-706-0	01	1	9712-			●	●
62	03.417 BOLT; AIR INT DUCT 08.155 (A) M8X16 FLANGE	0-28480-816-0	01	1	9712-	●
62	03.417 BOLT; AIR INT DUCT TURBOCHARGER<K51> 01.062 (B) M8X16 FLANGE	0-28080-816-0	02	1	9712-	●
62	03.417 BOLT; AIR INT DUCT 02.559 (C) M6X25 FLANGE	0-28480-625-0	01	1	9712-9804		●
62	03.417 BOLT; AIR INT DUCT 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	9805-		●
88	03.407 CAP; RUBBER,AIR DUCT TURBOCHARGER<K51> 03.672 ID=5.4	8-94156-209-0	01	1	9712-0208	●
88	03.407 CAP; RUBBER,AIR DUCT EXC. EUROPE EQUIPMENT(EK4) 03.672 ID=5.4	8-94156-209-0	01	1	9712-0208		●
88	03.407 CAP; RUBBER,AIR DUCT TURBOCHARGER<K51> 03.672 ID=5.4	8-94156-209-0	01	1	0209-0301	●
88	03.407 CAP; RUBBER,AIR DUCT EXC. EURO3 SPECIFICATION(NT3) 03.672 ID=5.4	8-94156-209-0	01	1	0209-0301		●
88	03.407 CAP; RUBBER,AIR DUCT TURBOCHARGER<K51> 03.672 ID=5.4	8-94156-209-0	01	1	0302-	●
88	03.407 CAP; RUBBER,AIR DUCT 03.672 ID=5.4	8-94156-209-0	01	1	0302-		●
89	03.402 SILENCER ASM; INT,ACL	8-97144-876-3	01	1	9712-		●
183	03.403 WASHER; PL,AIR DUCT 02.334 ID=6.4 OD=22	9-09164-806-0	01	1	9805-9908		●
209	03.405 BRACKET; ACL	8-94386-831-1	01	1	9712-	●
209	03.405 BRACKET; ACL	8-97144-901-2	01	1	9712-		●
293	03.374 CLIP; AIR DUCT TO TURBO ID=60-65	8-94111-622-1	01	1	9712-9805		●
293	03.374 CLIP; AIR DUCT TO TURBO 03.407 ID=50-69	8-94316-991-0	01	1	9806-0403		●
293	03.374 CLIP; AIR DUCT TO TURBO 03.407 ID=50-65	1-09707-204-0	01	1	0404-		●
439	03.417 DUCT; AIR,ACL	8-97144-878-3	01	1	9712-		●
473	03.417 NUT; DUCT 01.062 (A) M6 FLANGE	0-91150-206-0	02	1	9712-0110		●
473	03.417 NUT; DUCT 04.594 (B) M6 FLANGE	0-91150-106-0	01	1	9911-0110		●
473	03.417 NUT; DUCT 04.594 (C) M6 FLANGE	0-91150-106-0	03	1	0111-		●
495	03.417 DUCT; INTAKE,TURBO	8-97144-875-4	01	1	9712-9910		●
495	03.417 DUCT; INTAKE,TURBO	8-97248-658-2	01	1	9911-		●
496	03.417 CLIP; ACL 08.155 OD=8	1-09983-125-0	01	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
