1-11 — RADIATOR HOSE AND SUB TANK (#73244) — 51 parça

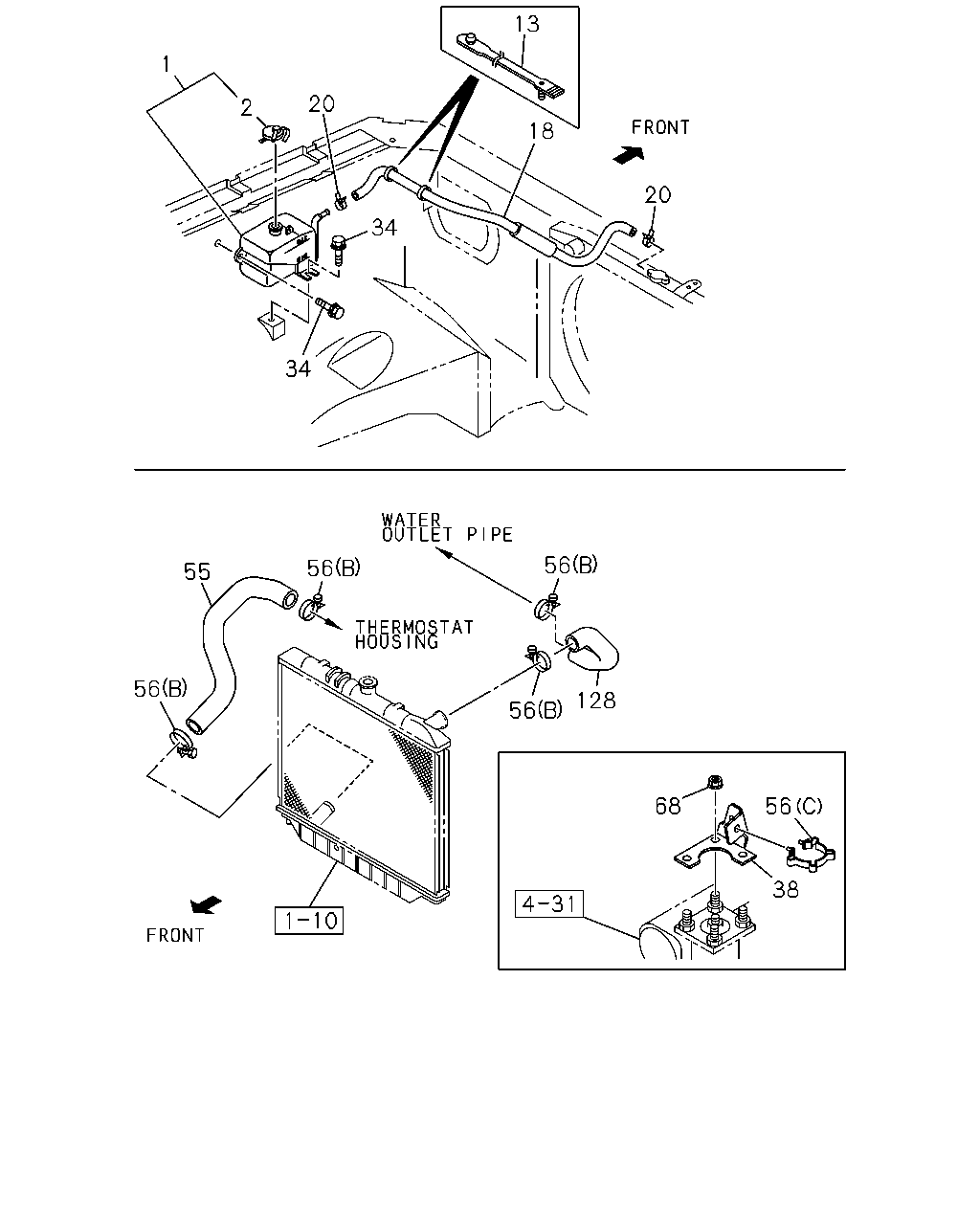

çizim 68732
13 1 20 2 18 20 34 34 56 56 55 56 128 56 68 56 38
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 TANK; SURGE,RAD 8-97039-036-5 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-1 01 1 9712- ● ●
2 01.203 CAP; SURGE TANK 8-97064-897-0 01 1 9712- ● ●
2 01.203 CAP; SURGE TANK 8-97130-964-0 01 1 9712- ● ●
13 01.240 CLIP; HOSE,SURGE TANK
02.559 L=103 		8-94239-339-0 02 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=350 W/INSULATOR 		8-97039-297-3 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=990 W/INSULATOR 		8-97174-766-0 01 1 9712- ● ●
20 01.166 CLIP; HOSE,RAD
01.219 ID=12 		8-94238-610-0 02 1 9712-0103 ● ● ● ●
34 01.203 BOLT; RESERVE TANK
M8X25 		8-97091-076-0 02 1 9712-0203 ● ●
34 01.203 BOLT; RESERVE TANK
03.162 M8X25 		8-97327-634-0 02 1 0204- ● ●
38 01.219 BRACKET; RUBBER HOSE 8-97162-981-0 01 1 9801- ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94375-170-2 01 1 9712- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97200-776-0 01 1 9712-9903 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97210-156-0 01 1 9904- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94375-171-2 01 1 9712- ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		8-97213-216-0 03 1 9712- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 01 1 9712-9806 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		8-97209-203-0 01 1 9807- ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		8-97213-216-0 04 1 9712- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=46 		8-97023-235-1 01 1 9712- ● ●
68 01.219 NUT; BRKT
04.785 M10 FLANGE 		0-91150-110-0 03 1 9801- ● ●
128 01.159 HOSE; WATER,RAD INL 8-94375-167-1 01 1 9712- ●
128 01.159 HOSE; WATER,RAD INL 8-97169-068-0 01 1 9712- ●
128 01.159 HOSE; WATER,RAD INL
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97164-267-1 01 1 9712-0102 ● ●
128 01.159 HOSE; WATER,RAD INL
EXC. RADIATOR KIT VAR.1<64J> 		8-97164-267-1 01 1 0103- ● ●
128 01.159 HOSE; WATER,RAD INL
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97183-647-0 01 1 9712-0102 ● ●
128 01.159 HOSE; WATER,RAD INL
RADIATOR KIT VAR.1<64J> 		8-97183-647-0 01 1 0103- ● ●

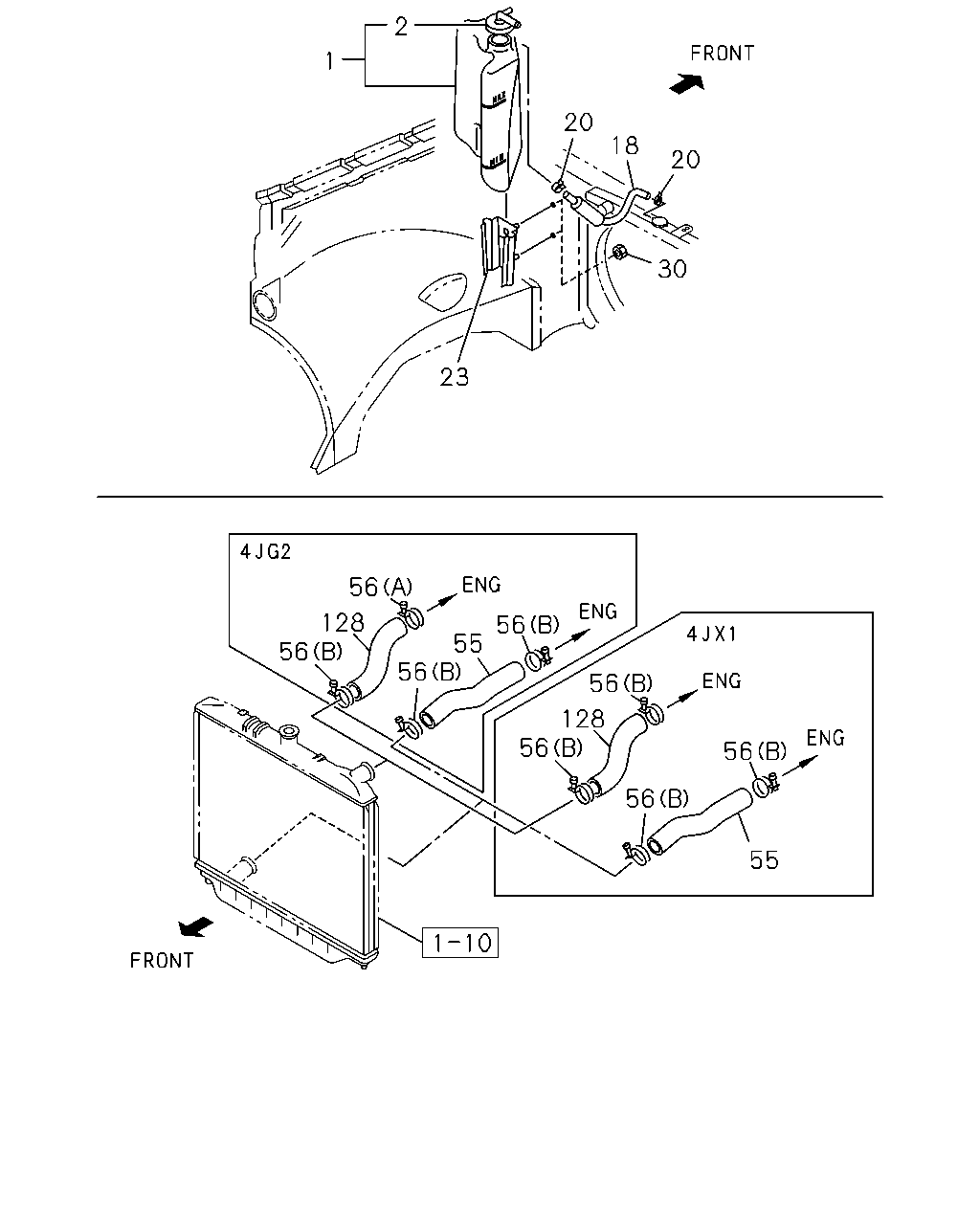

çizim 69667
2 1 20 18 20 30 23 56 128 56 56 55 56 56 128 56 56 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 TANK; SURGE,RAD 8-97039-036-5 01 1 9712- ● ●
1 01.219 TANK; SURGE,RAD 8-97101-191-1 01 1 9712- ● ●
2 01.203 CAP; SURGE TANK 8-97064-897-0 01 1 9712- ● ●
2 01.203 CAP; SURGE TANK 8-97130-964-0 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=350 W/INSULATOR 		8-97039-297-3 01 1 9712- ● ●
18 01.240 HOSE; RAD TO SURGE TANK
L=990 W/INSULATOR 		8-97174-766-0 01 1 9712- ● ●
20 01.166 CLIP; HOSE,RAD
01.219 ID=12 		8-94238-610-0 02 1 9712-0103 ● ● ● ●
23 01.219 BRACKET; RESERVE TANK 8-97043-993-1 01 1 9712- ● ●
30 01.203 NUT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9712- ● ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94375-170-2 01 1 9712- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97200-776-0 01 1 9712-9903 ●
55 01.173 HOSE; WATER,RAD OUTLET 8-97210-156-0 01 1 9904- ●
55 01.173 HOSE; WATER,RAD OUTLET 8-94375-171-2 01 1 9712- ● ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		8-97213-216-0 03 1 9712- ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		9-09915-042-1 01 1 9712-9806 ●
56 01.166 CLIP; WATER HOSE,RAD
(A) ID=42 		8-97209-203-0 01 1 9807- ●
56 01.166 CLIP; WATER HOSE,RAD
(B) ID=48 		8-97213-216-0 04 1 9712- ● ● ●
56 01.166 CLIP; WATER HOSE,RAD
(C) ID=46 		8-97023-235-1 01 1 9712- ● ●
128 01.159 HOSE; WATER,RAD INL 8-94375-167-1 01 1 9712- ●
128 01.159 HOSE; WATER,RAD INL 8-97169-068-0 01 1 9712- ●
128 01.159 HOSE; WATER,RAD INL
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97164-267-1 01 1 9712-0102 ● ●
128 01.159 HOSE; WATER,RAD INL
EXC. RADIATOR KIT VAR.1<64J> 		8-97164-267-1 01 1 0103- ● ●
128 01.159 HOSE; WATER,RAD INL
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97183-647-0 01 1 9712-0102 ● ●
128 01.159 HOSE; WATER,RAD INL
RADIATOR KIT VAR.1<64J> 		8-97183-647-0 01 1 0103- ● ●
