1-10 — RADIATOR (#73243) — 204 parça

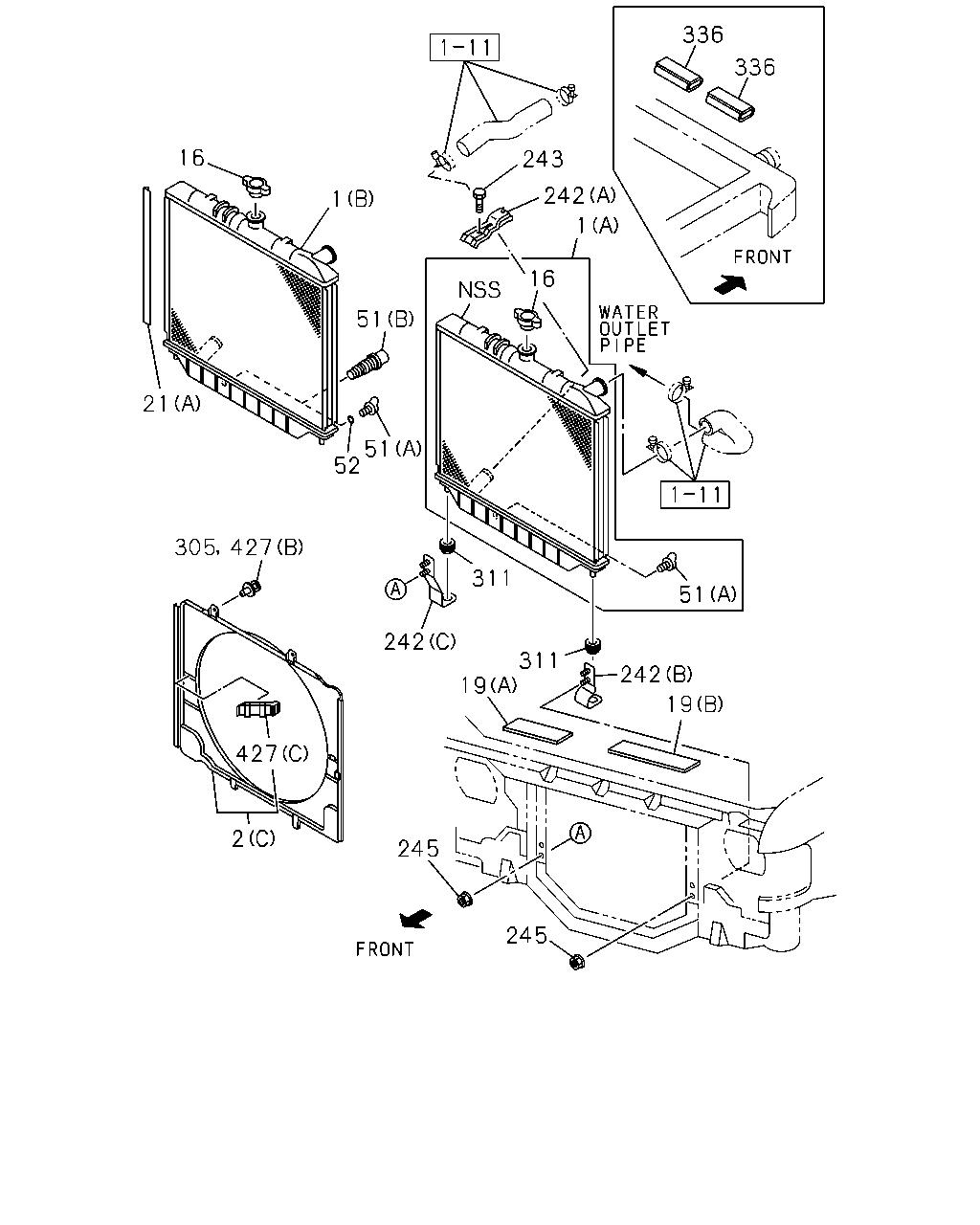

çizim 71049
336 336 16 243 242 1 1 16 51 21 51 52 305 427 311 51 242 311 242 19 19 427 2 245 245
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> (A) 		8-97237-051-0 01 1 0106- ● ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> (A) 		8-97169-025-0 01 1 0106- ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A) 		8-97169-024-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97169-024-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (A) 		8-97169-024-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97129-190-0 01 1 9712-0102 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) RADIATOR KIT VAR.1<64J> (B) 		8-97129-190-0 01 1 0103- ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97036-935-1 01 1 9712-0102 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (B) 		8-97036-935-1 01 1 0103- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97315-055-0 01 1 0106- ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T AISIN(RMD) (B) 		8-97212-528-1 01 1 9905-9908 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) (B) 		8-97212-528-1 01 1 9909-0102 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97212-528-1 01 1 0103-0105 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) EXC. THAILAND EQUIPMENT(PM9),RADIATOR KIT VAR.1<64J> (B) 		8-97212-528-1 01 1 0106- ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (A) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (A) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (B) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (B) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97171-430-0 01 1 0103- ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97171-430-0 01 1 0103- ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97036-933-3 01 1 9802-0102 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) RADIATOR KIT VAR.1<64J> (B) 		8-97036-933-3 01 1 0103- ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-188-0 01 1 9712-9904 ● ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) A/T THM(RMQ) (A) 		8-97164-188-0 01 1 9905-9908 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-188-0 01 1 9905-9908 ● ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) A/T THM(RMQ) (B) 		8-97171-431-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97171-431-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97171-431-0 01 1 0103-0105 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97036-932-1 01 1 9802-0102 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (B) 		8-97036-932-1 01 1 0103- ● ●
2 01.277 GUIDE; FAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-94375-339-2 01 1 9712-0102 ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (C) 		8-94375-339-2 01 1 0103- ●
2 01.277 GUIDE; FAN
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97186-587-1 01 1 9712-0102 ● ●
2 01.277 GUIDE; FAN
EXC. RADIATOR KIT VAR.1<64J> (C) 		8-97186-587-1 01 1 0103- ● ●
2 01.277 GUIDE; FAN
A/T THM(RMQ) (A) 		8-97033-101-2 01 1 9712- ● ●
2 01.277 GUIDE; FAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-94375-337-5 01 1 9802-0102 ● ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) RADIATOR KIT VAR.1<64J> (B) 		8-94375-337-5 01 1 0103- ● ●
2 01.277 GUIDE; FAN
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97166-239-0 01 1 9712-0102 ● ●
2 01.277 GUIDE; FAN
EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97166-239-0 01 1 0103- ● ●
16 01.203 CAP; RAD
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97104-194-0 01 1 9712-9801 ●
16 01.203 CAP; RAD
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97104-194-0 01 1 9802-0102 ● ● ●
16 01.203 CAP; RAD
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> 		8-97104-194-0 01 1 0103- ● ● ●
16 01.203 CAP; RAD
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97171-436-0 01 1 9712-9908 ● ● ● ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-97171-436-0 01 1 9909-0102 ●
16 01.203 CAP; RAD
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-436-0 01 1 0103-0105 ●
16 01.203 CAP; RAD
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-436-0 01 1 0106- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) EXC. THAILAND EQUIPMENT(PM9),RADIATOR KIT VAR.1<64J> 		8-97171-436-0 01 1 0106- ●
16 01.203 CAP; RAD
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97239-187-0 01 1 9909-0102 ● ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0103-0105 ● ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0106- ● ● ● ●
16 01.203 CAP; RAD
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0106- ●
19 01.270 SEAL; RAD UPR
(A) L=300 		8-97164-207-1 01 1 9712-9801 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) L=300 		8-97164-207-1 01 1 9802-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (A) L=300 		8-97164-207-1 01 1 0103- ● ● ● ●
19 01.270 SEAL; RAD UPR
(B) L=360 		8-97164-208-0 01 1 9712-9801 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) L=360 		8-97164-208-1 01 1 9802-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (B) L=360 		8-97164-208-1 01 1 0103- ● ● ● ●
19 01.270 SEAL; RAD UPR
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) L=300 		8-97110-821-0 01 1 9802-0102 ● ● ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (A) L=300 		8-97110-821-0 01 1 0103- ● ● ● ●
19 01.270 SEAL; RAD UPR
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) L=380 		8-97110-822-0 01 1 9802-0102 ● ● ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (B) L=380 		8-97110-822-0 01 1 0103- ● ● ● ●
21 01.276 SEAL; RAD
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-937-0 02 1 9712-9801 ●
21 01.276 SEAL; RAD
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-937-0 02 1 9802-0102 ● ● ●
21 01.276 SEAL; RAD
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (A) 		8-97036-937-0 02 1 0103- ●
21 01.276 SEAL; RAD
A/T THM(RMQ) RADIATOR KIT VAR.1<64J> (A) 		8-97036-937-0 02 1 0103- ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (B) 		8-97033-102-3 01 1 9712- ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (B) 		8-97047-002-3 01 1 9712- ● ●
51 08.951 PLUG; DRAIN
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-939-0 01 1 9712-9801 ●
51 08.951 PLUG; DRAIN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-939-0 01 1 9802-0102 ● ● ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> (A) 		8-97036-939-0 01 1 0103- ● ● ●
51 08.951 PLUG; DRAIN
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) W/GASKET 		8-97171-437-0 01 1 9712-0102 ● ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> (A) W/GASKET 		8-97171-437-0 01 1 0103-0105 ● ● ● ●
51 08.951 PLUG; DRAIN
EXC. RADIATOR KIT VAR.1<64J> (A) W/GASKET 		8-97171-437-0 01 1 0106- ● ● ●
51 08.951 PLUG; DRAIN
M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> (A) W/GASKET 		8-97171-437-0 01 1 0106- ●
51 08.951 PLUG; DRAIN
4 DOOR LONG(UB***F) A/T AISIN(RMD) (B) 		8-97212-527-0 01 1 9905-9908 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) (B) 		8-97212-527-0 01 1 9909-0102 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97212-527-0 01 1 0103- ●
52 08.951 GASKET; DRAIN PLUG
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.133 ID=9.8 		9-09561-110-0 01 1 9712-9801 ●
52 08.951 GASKET; DRAIN PLUG
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.133 ID=9.8 		9-09561-110-0 01 1 9802-0102 ● ● ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> 04.133 ID=9.8 		9-09561-110-0 01 1 0103- ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97123-089-1 01 1 9712- ● ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9712- ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9712- ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-862-0 02 1 9712-9801 ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-862-0 02 1 9802-0102 ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> 		8-97043-862-0 02 1 0103- ● ● ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9712-9910 ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911- ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9712-0206 ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.277 (B) 		8-97043-862-0 02 1 9712-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> 01.277 (B) 		8-97043-862-0 02 1 0103- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97066-962-0 04 1 9712-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> (C) 		8-97066-962-0 04 1 0103- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T THM(RMQ) (A) 		8-97043-199-0 02 1 9712- ● ●

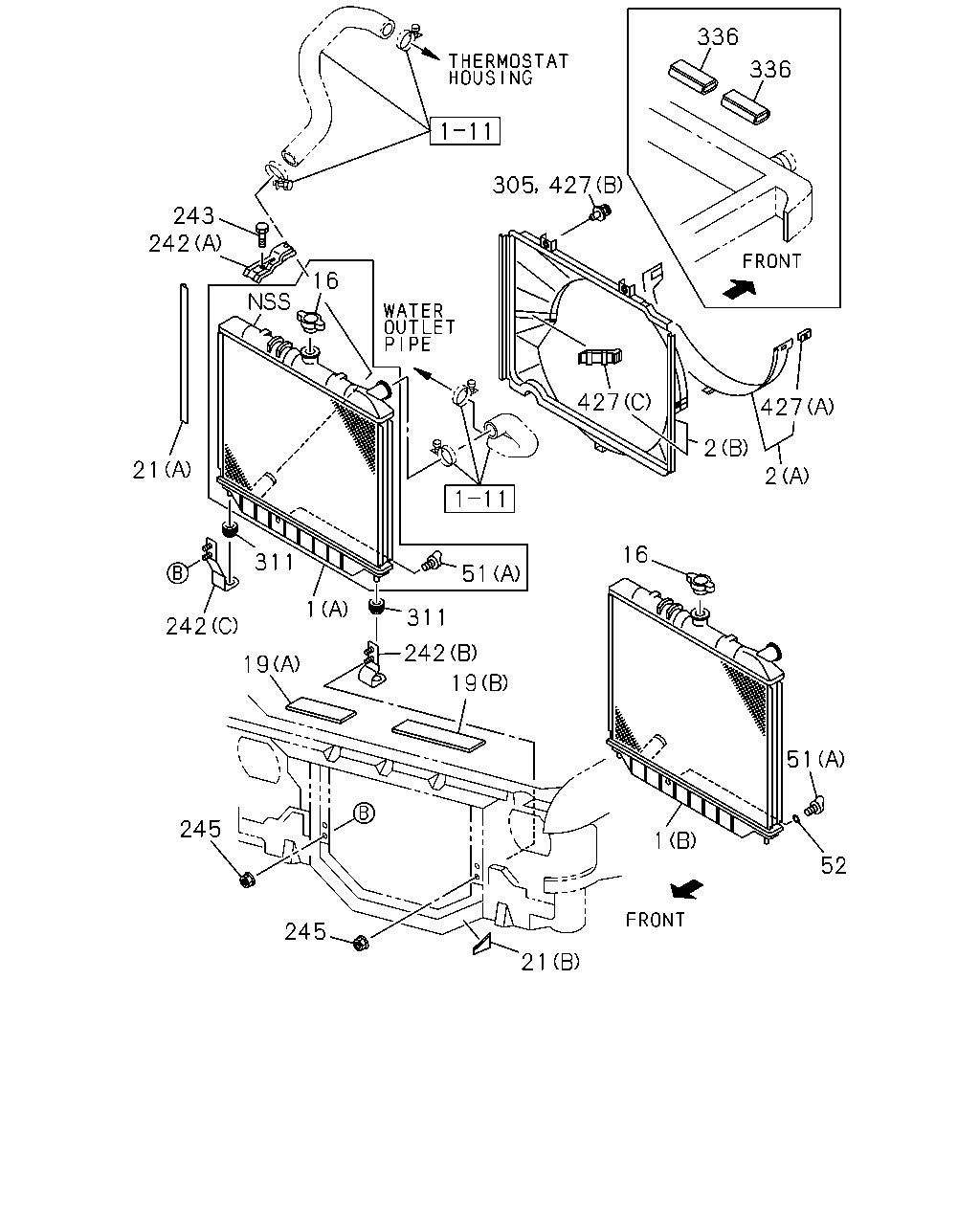

çizim 71254
336 336 305 427 243 242 16 427 427 2 21 2 16 311 51 1 311 242 242 19 19 51 245 1 52 245 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> (A) 		8-97237-051-0 01 1 0106- ● ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> (A) 		8-97169-025-0 01 1 0106- ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A) 		8-97169-024-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97169-024-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (A) 		8-97169-024-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T AISIN(RMD) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97129-190-0 01 1 9712-0102 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) RADIATOR KIT VAR.1<64J> (B) 		8-97129-190-0 01 1 0103- ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97036-935-1 01 1 9712-0102 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (B) 		8-97036-935-1 01 1 0103- ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97315-055-0 01 1 0106- ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T AISIN(RMD) (B) 		8-97212-528-1 01 1 9905-9908 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) (B) 		8-97212-528-1 01 1 9909-0102 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97212-528-1 01 1 0103-0105 ●
1 01.219 RADIATOR ASM
A/T AISIN(RMD) EXC. THAILAND EQUIPMENT(PM9),RADIATOR KIT VAR.1<64J> (B) 		8-97212-528-1 01 1 0106- ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (A) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-187-0 01 1 9712-9905 ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (A) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (A) 		8-97164-187-0 01 1 9906-9908 ● ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) (B) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) (B) 		8-97171-430-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97171-430-0 01 1 0103- ● ●
1 01.219 RADIATOR ASM
M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97171-430-0 01 1 0103- ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97036-933-3 01 1 9802-0102 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) RADIATOR KIT VAR.1<64J> (B) 		8-97036-933-3 01 1 0103- ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-188-0 01 1 9712-9904 ● ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) A/T THM(RMQ) (A) 		8-97164-188-0 01 1 9905-9908 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97164-188-0 01 1 9905-9908 ● ●
1 01.219 RADIATOR ASM
2 DOOR SHORT(UB***C) A/T THM(RMQ) (B) 		8-97171-431-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) A/T THM(RMQ) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97171-431-0 01 1 9909-0102 ● ●
1 01.219 RADIATOR ASM
A/T THM(RMQ) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97171-431-0 01 1 0103-0105 ● ●
1 01.219 RADIATOR ASM
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97036-932-1 01 1 9802-0102 ●
1 01.219 RADIATOR ASM
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (B) 		8-97036-932-1 01 1 0103- ● ●
2 01.277 GUIDE; FAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-94375-339-2 01 1 9712-0102 ●
2 01.277 GUIDE; FAN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (C) 		8-94375-339-2 01 1 0103- ●
2 01.277 GUIDE; FAN
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97186-587-1 01 1 9712-0102 ● ●
2 01.277 GUIDE; FAN
EXC. RADIATOR KIT VAR.1<64J> (C) 		8-97186-587-1 01 1 0103- ● ●
2 01.277 GUIDE; FAN
A/T THM(RMQ) (A) 		8-97033-101-2 01 1 9712- ● ●
2 01.277 GUIDE; FAN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-94375-337-5 01 1 9802-0102 ● ●
2 01.277 GUIDE; FAN
M/T MUA 5 SPEED(RMN),A/T THM(RMQ) RADIATOR KIT VAR.1<64J> (B) 		8-94375-337-5 01 1 0103- ● ●
2 01.277 GUIDE; FAN
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) 		8-97166-239-0 01 1 9712-0102 ● ●
2 01.277 GUIDE; FAN
EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97166-239-0 01 1 0103- ● ●
16 01.203 CAP; RAD
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97104-194-0 01 1 9712-9801 ●
16 01.203 CAP; RAD
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97104-194-0 01 1 9802-0102 ● ● ●
16 01.203 CAP; RAD
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> 		8-97104-194-0 01 1 0103- ● ● ●
16 01.203 CAP; RAD
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97171-436-0 01 1 9712-9908 ● ● ● ●
16 01.203 CAP; RAD
A/T AISIN(RMD) 		8-97171-436-0 01 1 9909-0102 ●
16 01.203 CAP; RAD
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-436-0 01 1 0103-0105 ●
16 01.203 CAP; RAD
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> 		8-97171-436-0 01 1 0106- ●
16 01.203 CAP; RAD
A/T AISIN(RMD) EXC. THAILAND EQUIPMENT(PM9),RADIATOR KIT VAR.1<64J> 		8-97171-436-0 01 1 0106- ●
16 01.203 CAP; RAD
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97239-187-0 01 1 9909-0102 ● ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0103-0105 ● ● ● ●
16 01.203 CAP; RAD
M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0106- ● ● ● ●
16 01.203 CAP; RAD
A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. RADIATOR KIT VAR.1<64J> 		8-97239-187-0 01 1 0106- ●
19 01.270 SEAL; RAD UPR
(A) L=300 		8-97164-207-1 01 1 9712-9801 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) L=300 		8-97164-207-1 01 1 9802-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (A) L=300 		8-97164-207-1 01 1 0103- ● ● ● ●
19 01.270 SEAL; RAD UPR
(B) L=360 		8-97164-208-0 01 1 9712-9801 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) L=360 		8-97164-208-1 01 1 9802-0102 ● ● ● ●
19 01.270 SEAL; RAD UPR
EXC. RADIATOR KIT VAR.1<64J> (B) L=360 		8-97164-208-1 01 1 0103- ● ● ● ●
19 01.270 SEAL; RAD UPR
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) L=300 		8-97110-821-0 01 1 9802-0102 ● ● ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (A) L=300 		8-97110-821-0 01 1 0103- ● ● ● ●
19 01.270 SEAL; RAD UPR
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) L=380 		8-97110-822-0 01 1 9802-0102 ● ● ●
19 01.270 SEAL; RAD UPR
RADIATOR KIT VAR.1<64J> (B) L=380 		8-97110-822-0 01 1 0103- ● ● ● ●
21 01.276 SEAL; RAD
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-937-0 02 1 9712-9801 ●
21 01.276 SEAL; RAD
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-937-0 02 1 9802-0102 ● ● ●
21 01.276 SEAL; RAD
M/T MUA 5 SPEED(RMN) RADIATOR KIT VAR.1<64J> (A) 		8-97036-937-0 02 1 0103- ●
21 01.276 SEAL; RAD
A/T THM(RMQ) RADIATOR KIT VAR.1<64J> (A) 		8-97036-937-0 02 1 0103- ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (B) 		8-97033-102-3 01 1 9712- ● ●
21 01.276 SEAL; RAD
A/T THM(RMQ) (B) 		8-97047-002-3 01 1 9712- ● ●
51 08.951 PLUG; DRAIN
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-939-0 01 1 9712-9801 ●
51 08.951 PLUG; DRAIN
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) 		8-97036-939-0 01 1 9802-0102 ● ● ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> (A) 		8-97036-939-0 01 1 0103- ● ● ●
51 08.951 PLUG; DRAIN
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (A) W/GASKET 		8-97171-437-0 01 1 9712-0102 ● ● ● ●
51 08.951 PLUG; DRAIN
M/T MUA 5 SPEED(RMN),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> (A) W/GASKET 		8-97171-437-0 01 1 0103-0105 ● ● ● ●
51 08.951 PLUG; DRAIN
EXC. RADIATOR KIT VAR.1<64J> (A) W/GASKET 		8-97171-437-0 01 1 0106- ● ● ●
51 08.951 PLUG; DRAIN
M/T AR-5 5 SPEED(RNK) EXC. RADIATOR KIT VAR.1<64J> (A) W/GASKET 		8-97171-437-0 01 1 0106- ●
51 08.951 PLUG; DRAIN
4 DOOR LONG(UB***F) A/T AISIN(RMD) (B) 		8-97212-527-0 01 1 9905-9908 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) (B) 		8-97212-527-0 01 1 9909-0102 ●
51 08.951 PLUG; DRAIN
A/T AISIN(RMD) EXC. RADIATOR KIT VAR.1<64J> (B) 		8-97212-527-0 01 1 0103- ●
52 08.951 GASKET; DRAIN PLUG
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.133 ID=9.8 		9-09561-110-0 01 1 9712-9801 ●
52 08.951 GASKET; DRAIN PLUG
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.133 ID=9.8 		9-09561-110-0 01 1 9802-0102 ● ● ●
52 08.951 GASKET; DRAIN PLUG
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> 04.133 ID=9.8 		9-09561-110-0 01 1 0103- ● ● ●
242 01.219 BRACKET; RAD
(B) 		8-97084-635-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(C) 		8-97084-636-1 01 1 9712- ● ● ● ●
242 01.219 BRACKET; RAD
(A) 		8-97123-089-1 01 1 9712- ● ● ● ●
243 01.219 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 9712- ● ● ● ●
245 01.219 NUT; BRKT
04.010 M8 FLANGE 		8-97046-127-0 04 1 9712- ● ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-862-0 02 1 9712-9801 ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-862-0 02 1 9802-0102 ● ● ●
305 01.277 CLIP; FAN COVER TO FAN GUIDE
A/T AISIN(RMD),M/T MUA 5 SPEED(RMN), A/TTHM(RMQ) RADIATOR KIT VAR.1<64J> 		8-97043-862-0 02 1 0103- ● ● ●
311 01.270 RUBBER; MTG,RAD 8-94375-183-1 02 1 9712-9910 ● ● ● ●
311 01.270 RUBBER; MTG,RAD 8-97231-024-0 02 1 9911- ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97124-393-0 02 1 9712-0206 ● ● ● ●
336 01.270 SEAL; LWR,RAD 8-97257-011-0 02 1 0207- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.277 (B) 		8-97043-862-0 02 1 9712-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> 01.277 (B) 		8-97043-862-0 02 1 0103- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (C) 		8-97066-962-0 04 1 9712-0102 ● ● ● ●
427 01.240 CLIP; FAN GUIDE
EXC. RADIATOR KIT VAR.1<64J> (C) 		8-97066-962-0 04 1 0103- ● ● ● ●
427 01.240 CLIP; FAN GUIDE
A/T THM(RMQ) (A) 		8-97043-199-0 02 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
