◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-05 - AUTO CRUISE ACTUATOR ▶
1-05 — AUTO CRUISE ACTUATOR (#73242) — 18 parça

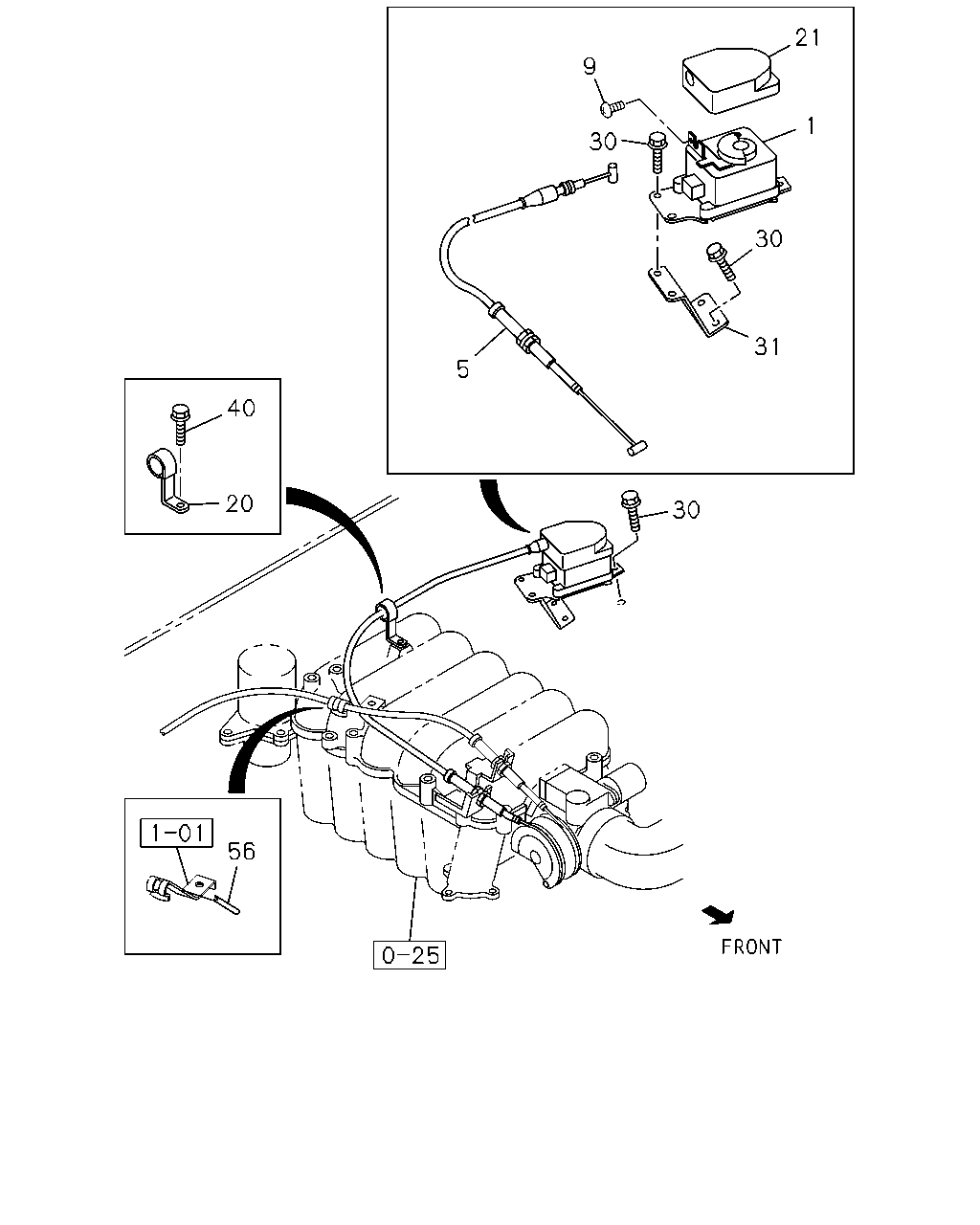

çizim 68893
21 9 1 30 30 31 5 40 20 30 56
BalonParca AdiParca NoAdetTipApplied Date A B
1 03.885 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-97166-082-1 01 1 9712-0105 ● ●
1 03.885 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		8-97166-082-1 01 1 0106- ● ●
5 03.880 CABLE; ACTUATOR
AUTO CRUISE CONT<K30> 		8-97166-084-0 01 1 9712-0105 ● ●
5 03.880 CABLE; ACTUATOR
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		8-97166-084-0 01 1 0106- ● ●
9 03.885 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		9-03464-508-0 01 1 9712-0105 ● ●
9 03.885 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		9-03464-508-0 01 1 0106- ● ●
20 03.440 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> 02.559 ID=29 H=50 L=45.5 		1-09701-027-0 01 1 9712-0105 ● ●
20 03.440 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 02.559 ID=29 H=50 L=45.5 		1-09701-027-0 01 1 0106- ● ●
21 03.885 COVER; CRUISE CONT BOX
AUTO CRUISE CONT<K30> 		8-97162-086-0 01 1 9712-0105 ● ●
21 03.885 COVER; CRUISE CONT BOX
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		8-97162-086-0 01 1 0106- ● ●
30 03.440 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> 06.635 M6X16 FLANGE 		0-28480-616-0 05 1 9712-0105 ● ●
30 03.440 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 06.635 M6X16 FLANGE 		0-28480-616-0 05 1 0106- ● ●
31 03.880 BRACKET; ACTUATOR
AUTO CRUISE CONT<K30> 		8-97160-887-0 01 1 9712-0105 ● ●
31 03.880 BRACKET; ACTUATOR
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 		8-97160-887-0 01 1 0106- ● ●
40 03.880 BOLT; CABLE TO BODY
AUTO CRUISE CONT<K30> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712-0105 ● ●
40 03.880 BOLT; CABLE TO BODY
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0106- ● ●
56 03.885 PROTECTOR
AUTO CRUISE CONT<K30> 16.570 L=50 SERVICED BY L=190 		1-71998-300-0 01 1 9712-0105 ● ●
56 03.885 PROTECTOR
AUTO CRUISE CONT<K30> EXC. EUROPE EQUIPMENT(EK4) 16.570 L=50 SERVICED BY L=190 		1-71998-300-0 01 1 0106- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
