◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#73241) — 162 parça
çizim 17295
1 243 65 14 334
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97070-474-1 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97181-154-3 01 1 9712- ●
1 03.451 LEVER; PEDAL SIDE
EUROPE EQUIPMENT(EK4) 		8-97287-543-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
243 03.425 SENSOR; ACCEL 8-97163-164-0 01 1 9712- ●
243 03.425 SENSOR; ACCEL
EUROPE EQUIPMENT(EK4) 		8-97193-713-0 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 9712-0105 ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
EUROPE EQUIPMENT(EK4) 12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
16.069 (B) OD=12 L=14.8 		8-94279-921-0 02 1 9712- ●

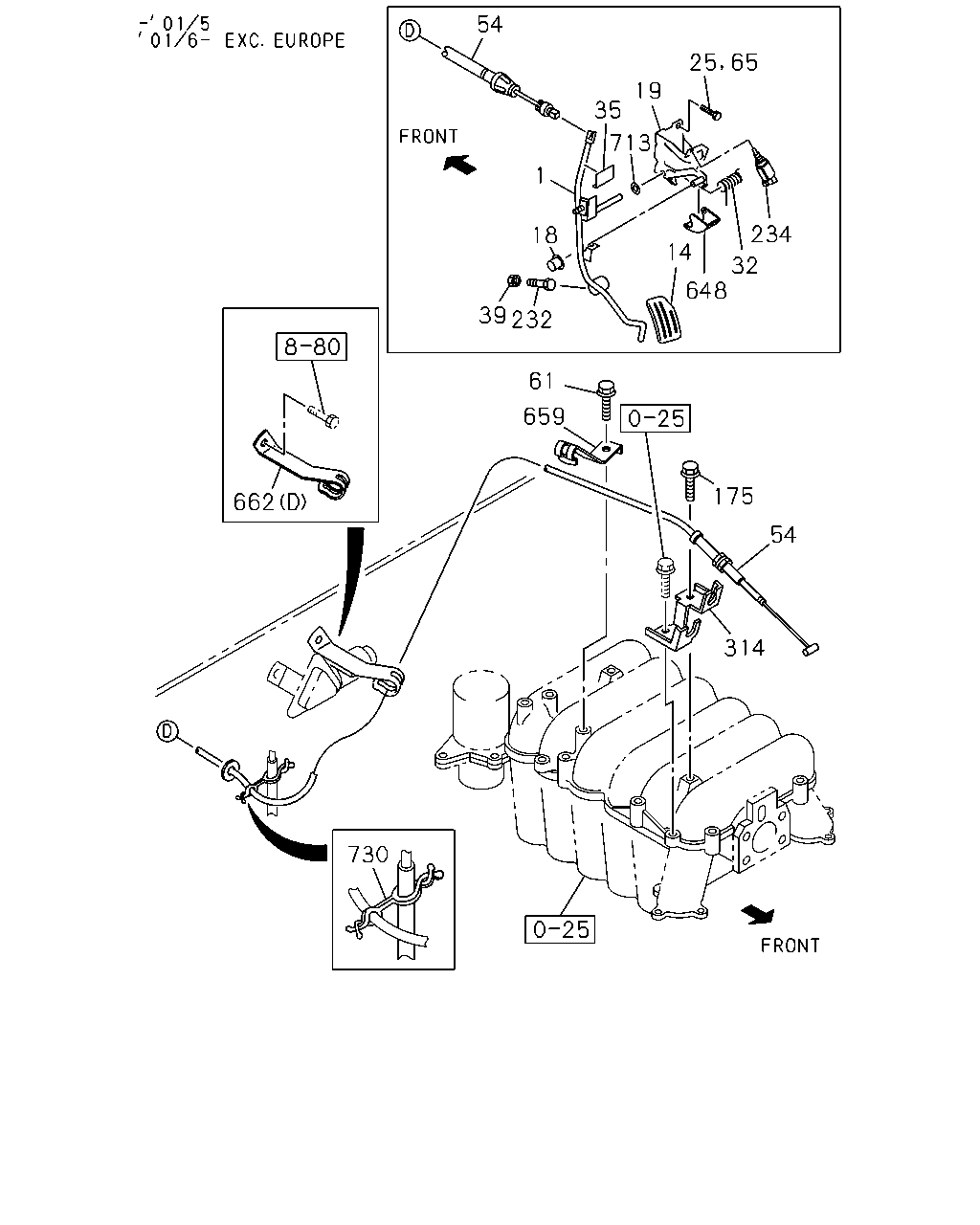

çizim 69515
54 19 35 713 1 234 18 14 32 648 39 232 61 659 175 662 54 314 730 25 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97070-474-1 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97181-154-3 01 1 9712- ●
1 03.451 LEVER; PEDAL SIDE
EUROPE EQUIPMENT(EK4) 		8-97287-543-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 9712-0105 ● ● ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 0106- ● ●
18 03.459 NUT; JOINT LK
EXC. EUROPE EQUIPMENT(EK4) 03.452 D=17.5 		8-94368-617-0 01 1 0106- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-115-1 01 1 9712- ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97117-115-1 01 1 9712- ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4) 		8-97131-826-1 01 1 9712-0105 ●
25 03.452 BOLT; SHAFT SIDE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712-9908 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9712-0105 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 0106- ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97107-141-0 01 1 0106- ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9712-0105 ● ● ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 0106- ● ●
35 03.459 STOPPER; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97036-050-0 02 1 0106- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
06.822 M10 		9-09111-410-0 01 1 9712-0105 ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
06.822 M10 		9-09111-410-0 01 1 0106- ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
EXC. EUROPE EQUIPMENT(EK4) 06.822 M10 		9-09111-410-0 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97115-592-0 01 1 9712-0105 ●
54 03.430 CABLE; ENG CONT 8-97314-219-2 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97168-790-1 01 1 9712-0105 ● ●
54 03.430 CABLE; ENG CONT
EXC. EUROPE EQUIPMENT(EK4) 		8-97168-790-3 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97168-790-3 01 1 0106- ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712-0105 ● ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
EXC. EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0106- ●
61 03.483 BOLT; BRKT TO FRAME ENG CONT CAB
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0106- ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712-0105 ● ●
175 03.483 BOLT; BRKT,ACCEL CABLE
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
175 03.483 BOLT; BRKT,ACCEL CABLE
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9712-0105 ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9712-0105 ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) 04.054 		8-94368-343-0 01 1 9712-0105 ● ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 04.054 		8-94368-343-0 01 1 0106-0211 ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) 04.054 		8-94368-343-0 01 1 0106-0211 ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) EXC. EUROPE EQUIPMENT(EK4) 03.636 		8-97358-315-0 01 1 0212- ●
234 03.452 SWITCH; ACCEL
A/T THM(RMQ) 03.636 		8-97358-315-0 01 1 0212- ●
314 03.481 BRACKET; ACCEL CABLE 8-97136-145-3 01 1 9712-0105 ● ●
314 03.481 BRACKET; ACCEL CABLE
AUSTRALIA EQUIPMENT(RR3) 		8-97136-145-3 01 1 0106- ●
314 03.481 BRACKET; ACCEL CABLE 8-97136-145-3 01 1 0106- ●
648 03.483 PROTECTOR
EUROPE EQUIPMENT(EK4) 		8-97131-825-0 01 1 9712-0105 ●
659 03.483 CLIP; ACCEL CONT CABLE 8-97161-291-0 01 1 9712-0105 ● ●
659 03.483 CLIP; ACCEL CONT CABLE
EXC. EUROPE EQUIPMENT(EK4) 		8-97161-291-0 01 1 0106- ●
659 03.483 CLIP; ACCEL CONT CABLE 8-97161-291-0 01 1 0106- ●
662 03.430 CLIP; ACCEL CONT CABLE
(A) ID=6 & 16.5 		8-94165-402-0 01 1 9712- ●
662 03.430 CLIP; ACCEL CONT CABLE
(B) 		8-97038-935-2 01 1 9712- ●
662 03.430 CLIP; ACCEL CONT CABLE
(C) 		8-97038-936-2 01 1 9712- ●
662 03.430 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 9712-0105 ● ● ●
662 03.430 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 0106- ● ●
662 03.430 CLIP; ACCEL CONT CABLE
EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97070-472-2 01 1 0106- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9712-0105 ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 0106- ● ●
713 03.463 WASHER; PL
EXC. EUROPE EQUIPMENT(EK4) 16.674 ID=8.4 		9-09160-508-0 01 1 0106- ●
730 03.880 CLIP
02.559 ID=8 & 18.5 		8-94132-792-0 01 1 9712-0105 ● ●
730 03.880 CLIP
EXC. EUROPE EQUIPMENT(EK4) 02.559 ID=8 & 18.5 		8-94132-792-0 01 1 0106- ●
730 03.880 CLIP
02.559 ID=8 & 18.5 		8-94132-792-0 01 1 0106- ●
çizim 69875
243 14 1 334 334 25 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97070-474-1 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97181-154-3 01 1 9712- ●
1 03.451 LEVER; PEDAL SIDE
EUROPE EQUIPMENT(EK4) 		8-97287-543-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
25 03.452 BOLT; SHAFT SIDE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712-9908 ● ● ● ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
243 03.425 SENSOR; ACCEL 8-97163-164-0 01 1 9712- ●
243 03.425 SENSOR; ACCEL
EUROPE EQUIPMENT(EK4) 		8-97193-713-0 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 9712-0105 ●
334 03.425 PLUG; ACCEL CABLE
12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
EUROPE EQUIPMENT(EK4) 12.804 (A) 		8-94147-164-1 01 1 0106- ●
334 03.425 PLUG; ACCEL CABLE
16.069 (B) OD=12 L=14.8 		8-94279-921-0 02 1 9712- ●

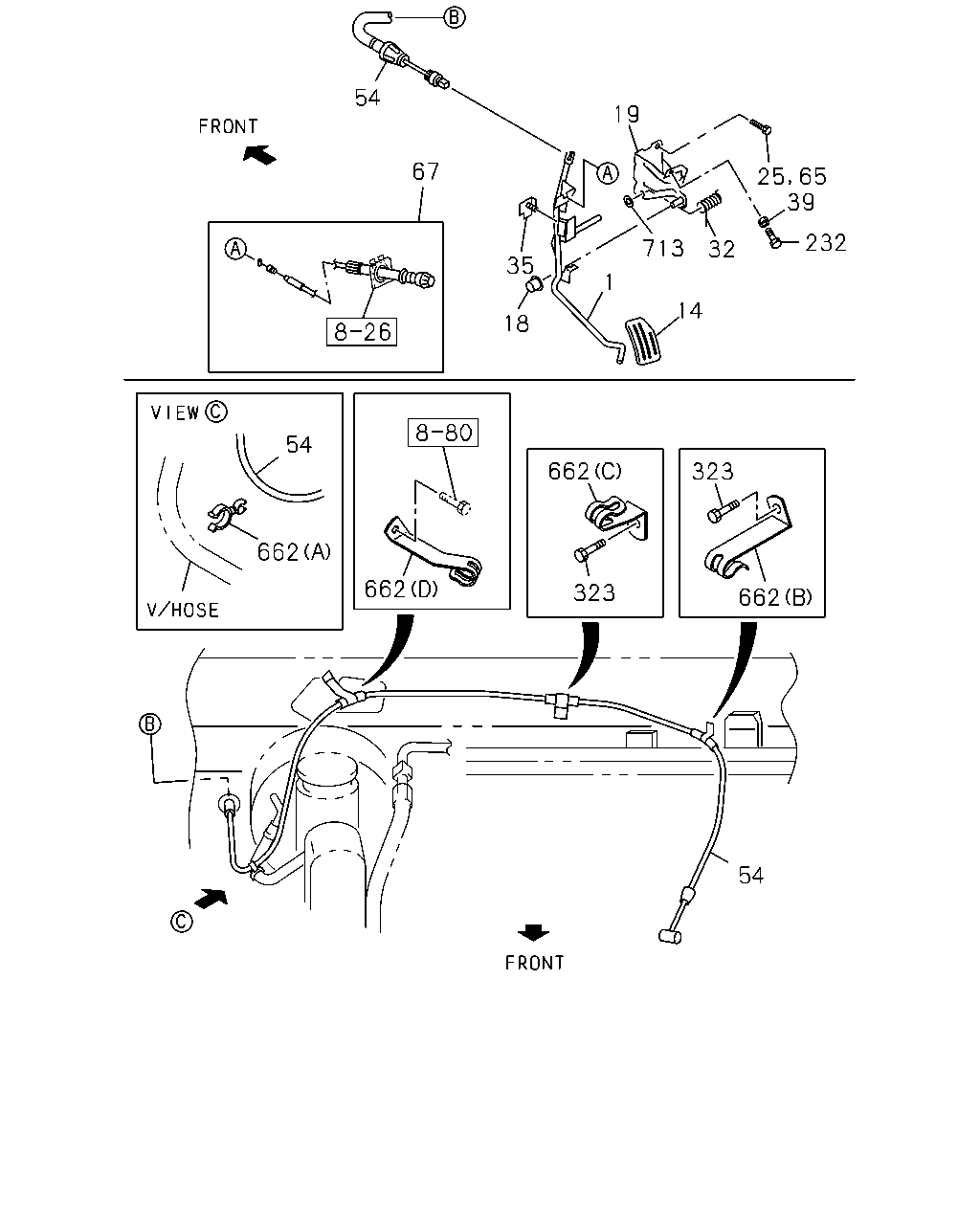

çizim 71281
54 19 67 39 232 713 32 35 1 14 18 54 662 323 662 662 323 662 54 25 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 9712-0105 ● ● ●
1 03.451 LEVER; PEDAL SIDE 8-97070-474-1 01 1 0106- ● ●
1 03.451 LEVER; PEDAL SIDE
EXC. EUROPE EQUIPMENT(EK4) 		8-97070-474-1 01 1 0106- ●
1 03.451 LEVER; PEDAL SIDE 8-97181-154-3 01 1 9712- ●
1 03.451 LEVER; PEDAL SIDE
EUROPE EQUIPMENT(EK4) 		8-97287-543-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9712-0105 ● ● ●
14 03.451 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 0106- ● ●
14 03.451 PAD; PEDAL,ACCEL
EXC. EUROPE EQUIPMENT(EK4) 		8-97044-894-2 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 9712-0105 ●
14 03.451 PAD; PEDAL,ACCEL 8-94473-376-1 01 1 0106- ●
14 03.451 PAD; PEDAL,ACCEL
EUROPE EQUIPMENT(EK4) 		8-94473-376-1 01 1 0106- ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 9712-0105 ● ● ●
18 03.459 NUT; JOINT LK
03.452 D=17.5 		8-94368-617-0 01 1 0106- ● ●
18 03.459 NUT; JOINT LK
EXC. EUROPE EQUIPMENT(EK4) 03.452 D=17.5 		8-94368-617-0 01 1 0106- ●
19 03.452 BRACKET; ACCEL PEDAL 8-97117-115-1 01 1 9712- ● ●
19 03.452 BRACKET; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97117-115-1 01 1 9712- ●
19 03.452 BRACKET; ACCEL PEDAL
EUROPE EQUIPMENT(EK4) 		8-97131-826-1 01 1 9712-0105 ●
25 03.452 BOLT; SHAFT SIDE
02.500 M6X10 FLANGE 		0-28080-610-0 02 1 9712-9908 ● ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9712-0105 ● ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 0106- ● ●
32 03.459 SPRING; RETURN,ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97107-141-0 01 1 0106- ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 9712-0105 ● ● ●
35 03.459 STOPPER; ACCEL PEDAL 8-97036-050-0 02 1 0106- ● ●
35 03.459 STOPPER; ACCEL PEDAL
EXC. EUROPE EQUIPMENT(EK4) 		8-97036-050-0 02 1 0106- ●
39 03.459 NUT; ACCEL PEDAL STOPPER
06.822 M10 		9-09111-410-0 01 1 9712-0105 ● ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
06.822 M10 		9-09111-410-0 01 1 0106- ● ●
39 03.459 NUT; ACCEL PEDAL STOPPER
EXC. EUROPE EQUIPMENT(EK4) 06.822 M10 		9-09111-410-0 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97115-592-0 01 1 9712-0105 ●
54 03.430 CABLE; ENG CONT 8-97314-219-2 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97168-790-1 01 1 9712-0105 ● ●
54 03.430 CABLE; ENG CONT
EXC. EUROPE EQUIPMENT(EK4) 		8-97168-790-3 01 1 0106- ●
54 03.430 CABLE; ENG CONT 8-97168-790-3 01 1 0106- ●
65 03.483 BOLT
16.505 M6X12 FLANGE 		0-28480-612-0 02 1 9909-0111 ● ● ● ●
65 03.483 BOLT
06.635 M6X16 FLANGE 		0-28480-616-0 02 1 0112- ● ● ● ●
67 03.480 CABLE ASM; IDLE CONT
L=450 DARK GRAY 		8-97153-187-1 01 1 9712-9908 ●
67 03.480 CABLE ASM; IDLE CONT
INTERIOR COLOR MEDIUM GRAY(113) L=450 DARK GRAY 		8-97153-187-1 01 1 9909-0105 ●
67 03.480 CABLE ASM; IDLE CONT
2 DOOR SHORT(UB***C) L=450 DARK GRAY 		8-97153-187-2 01 1 0106- ●
67 03.480 CABLE ASM; IDLE CONT
4 DOOR LONG(UB***F) INTERIOR COLOR MEDIUM GRAY(113) L=450 DARK GRAY 		8-97153-187-2 01 1 0106- ●
67 03.480 CABLE ASM; IDLE CONT
INTERIOR COLOR BEIGE(181) 		8-97291-478-1 01 1 9909-0105 ●
67 03.480 CABLE ASM; IDLE CONT
4 DOOR LONG(UB***F) INTERIOR COLOR BEIGE(181) 		8-97291-478-2 01 1 0106- ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9712-0105 ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 9712-0105 ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T MUA 5 SPEED(RMN) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ●
232 03.459 BOLT; STOPPER,ACCEL PEDAL
M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4) 03.162 M10X35 FLANGE 		0-28681-035-0 01 1 0106- ●
323 03.483 BOLT; CLIP
02.559 M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 9712-0111 ●
323 03.483 BOLT; CLIP
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0112- ●
662 03.430 CLIP; ACCEL CONT CABLE
(A) ID=6 & 16.5 		8-94165-402-0 01 1 9712- ●
662 03.430 CLIP; ACCEL CONT CABLE
(B) 		8-97038-935-2 01 1 9712- ●
662 03.430 CLIP; ACCEL CONT CABLE
(C) 		8-97038-936-2 01 1 9712- ●
662 03.430 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 9712-0105 ● ● ●
662 03.430 CLIP; ACCEL CONT CABLE
(D) 		8-97070-472-2 01 1 0106- ● ●
662 03.430 CLIP; ACCEL CONT CABLE
EXC. EUROPE EQUIPMENT(EK4) (D) 		8-97070-472-2 01 1 0106- ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 9712-0105 ● ● ●
713 03.463 WASHER; PL
16.674 ID=8.4 		9-09160-508-0 01 1 0106- ● ●
713 03.463 WASHER; PL
EXC. EUROPE EQUIPMENT(EK4) 16.674 ID=8.4 		9-09160-508-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
