Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10806 - EXZ RHD FUEL TANK 400L
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-20 - METER CABLE
▶
8-20 — METER CABLE
(#7324) — 41 parça
◀

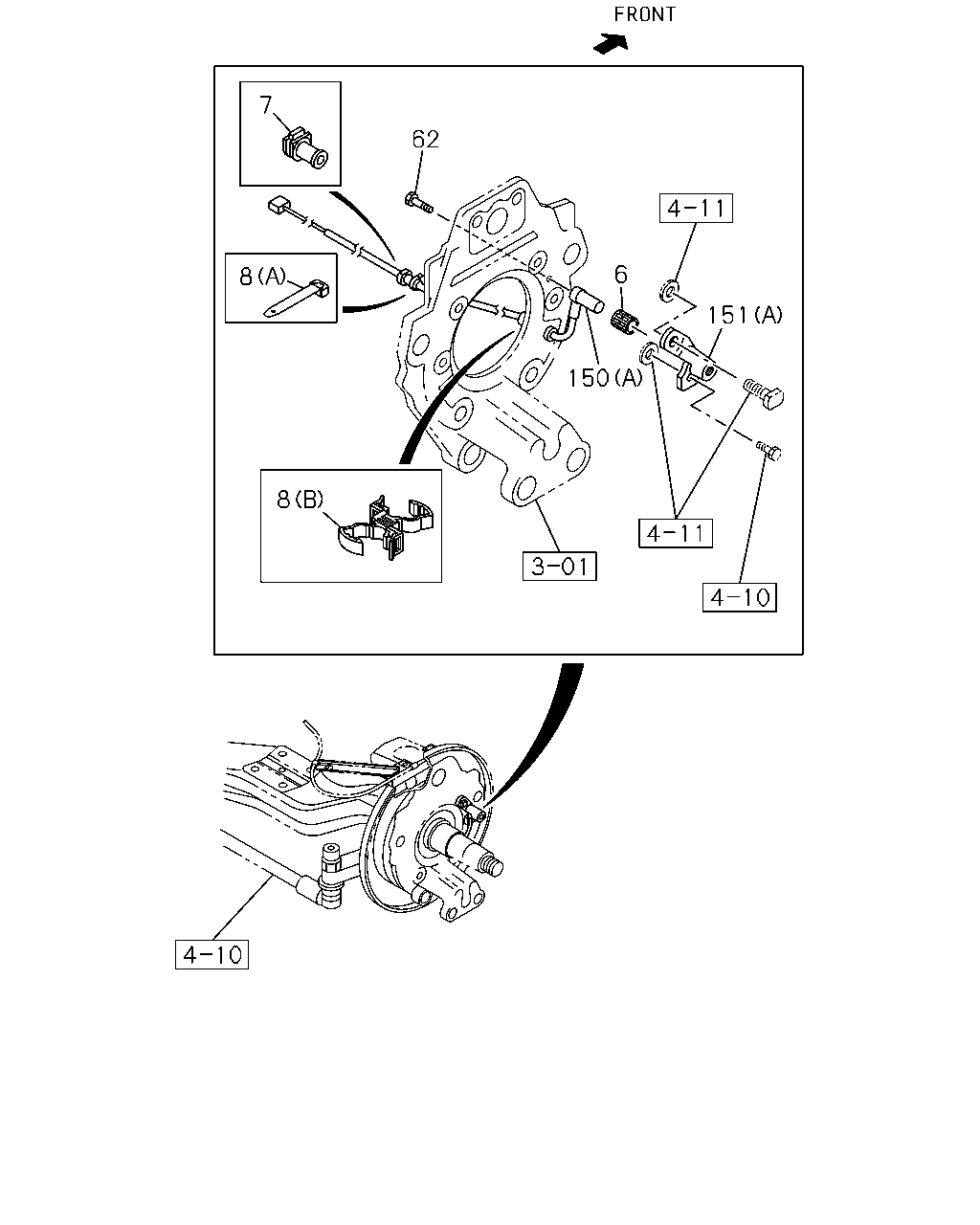

[820A] FRONT AXLE (19 parça)
[820A] MISSION SIDE (1 parça)

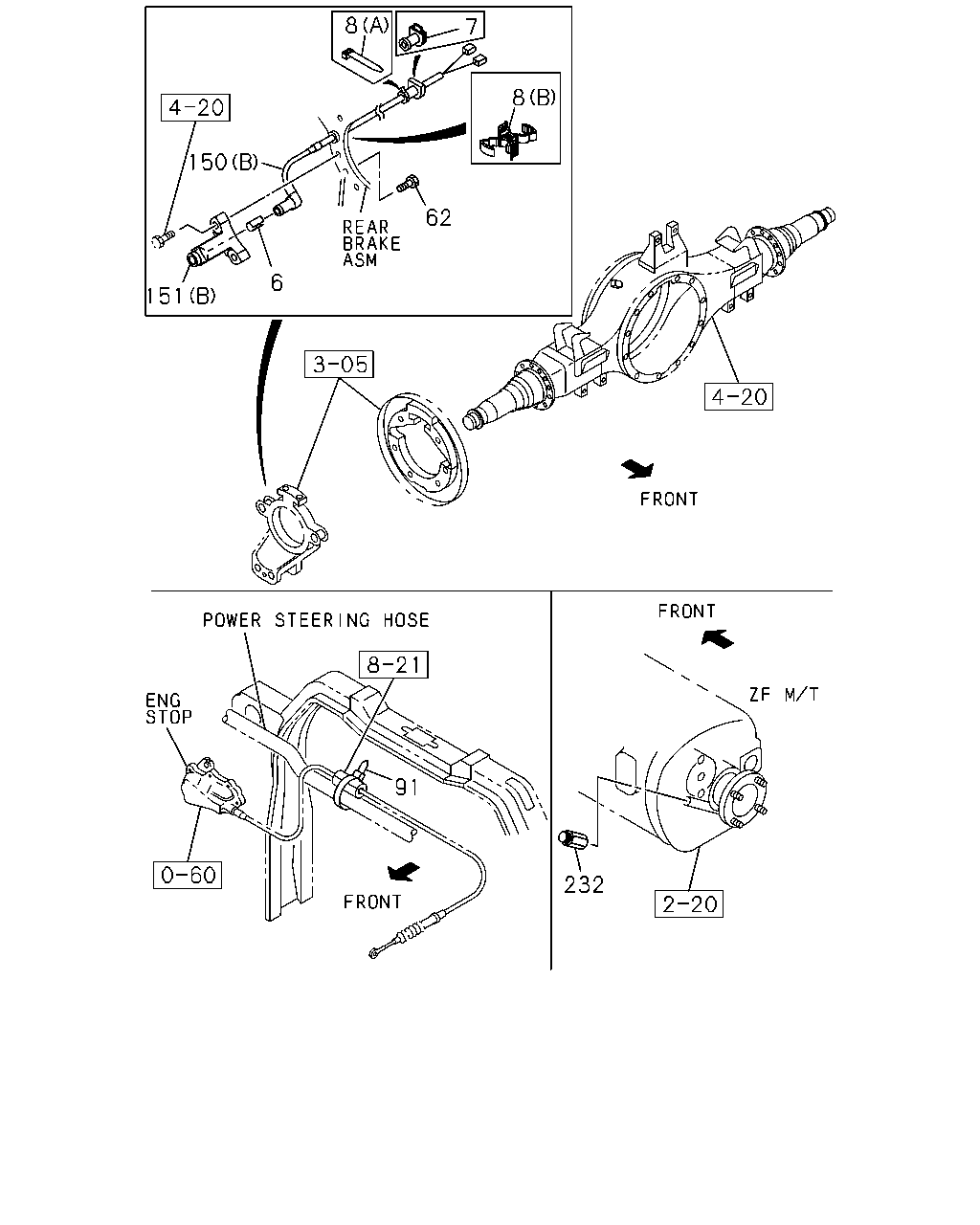

[820A] REAR AXLE (21 parça)
▶
7
62
6
8
151
150
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-260-1
02
1
9906-
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) ID=8
1-82699-740-1
02
1
9906-
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=8
1-82699-740-1
01
1
9906-
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=6-10 & 6-10
1-09709-192-1
01
1
9906-
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=140
5-09707-031-1
02
1
9906-
62
BOLT; SENSOR
ANTILOCK BRAKE SYSTEM(BFA) M8X16
9-05820-816-0
02
1
9906-9912
62
BOLT; SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> M8X16
9-05820-816-0
02
1
0001-
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83127-502-1
02
1
9906-9912
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83127-517-1
02
1
0001-
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-548-1
01
1
9906-0005
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-681-0
01
1
0006-
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-547-1
01
1
9906-0005
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-680-0
01
1
0006-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83129-422-0
01
1
9906-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83129-421-0
01
1
9906-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-326-0
01
1
9906-9909
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-403-0
01
1
9910-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-327-0
01
1
9906-9909
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-404-0
01
1
9910-
228
228
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

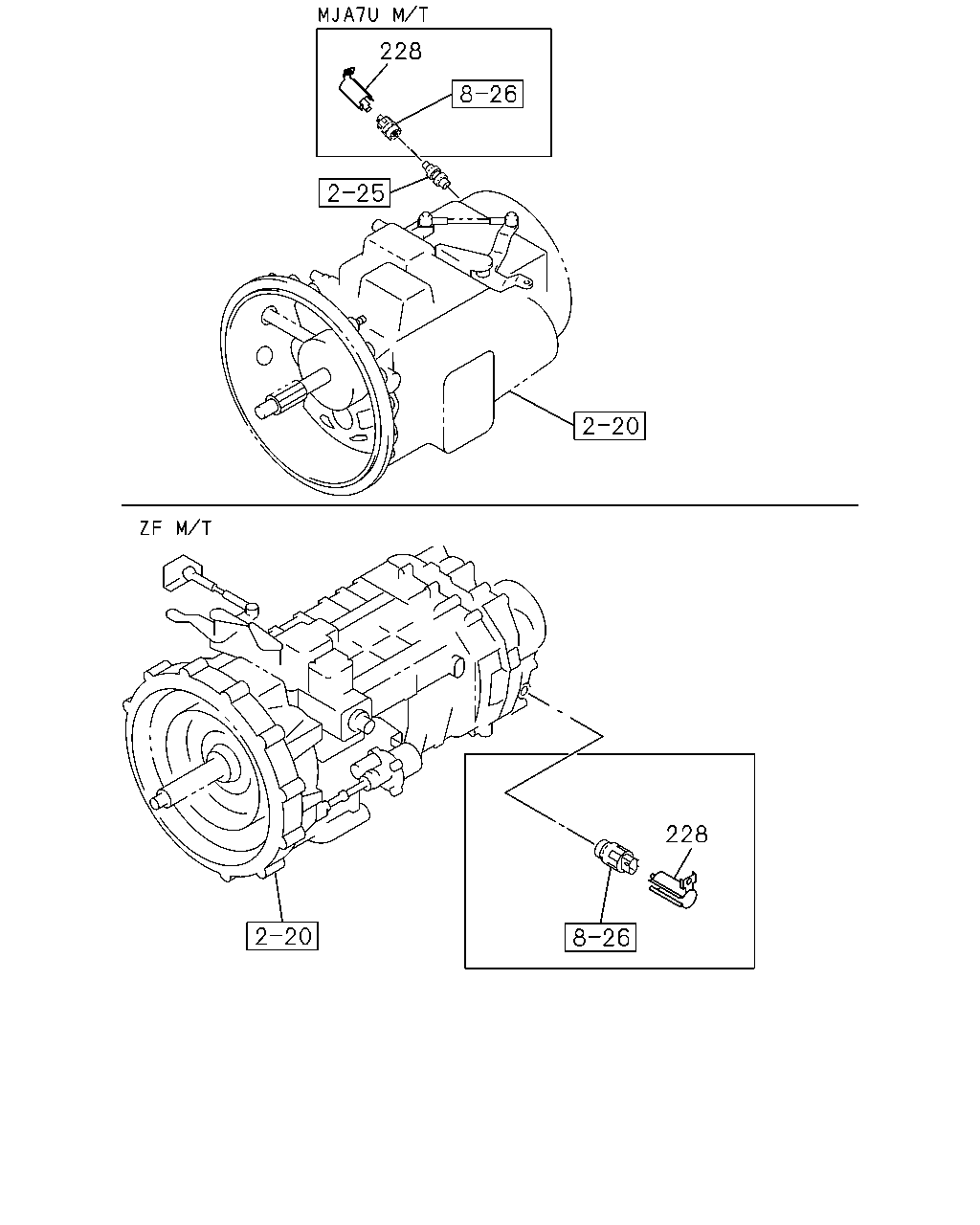

228
PROTECTOR; SENSOR
MJA7U M/T(X6G),TRANSMISSION-ZF 16S221 OD(Y1U), TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)
8-97168-308-0
01
1
9906-
8
7
8
150
62
6
151
91
232
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HOLDER; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA)
1-83129-260-1
02
1
9906-
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) ID=8
1-82699-740-1
02
1
9906-
7
GROMMET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=8
1-82699-740-1
01
1
9906-
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=6-10 & 6-10
1-09709-192-1
01
1
9906-
8
CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (A) L=140
5-09707-031-1
02
1
9906-
62
BOLT; SENSOR
ANTILOCK BRAKE SYSTEM(BFA) M8X16
9-05820-816-0
02
1
9906-9912
62
BOLT; SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> M8X16
9-05820-816-0
02
1
0001-
91
CLIP; BAND
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=140
5-09707-031-1
01
1
9906-
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83127-502-1
02
1
9906-9912
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83127-517-1
02
1
0001-
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-548-1
01
1
9906-0005
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-681-0
01
1
0006-
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-547-1
01
1
9906-0005
150
SENSOR; SPEED,ABS
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83127-680-0
01
1
0006-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83129-422-0
01
1
9906-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) (A)
1-83129-421-0
01
1
9906-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-326-0
01
1
9906-9909
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-403-0
01
1
9910-
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-327-0
01
1
9906-9909
151
BRACKET; SPD SENSOR
ANTILOCK BRAKE SYSTEM(BFA) BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)
1-83129-404-0
01
1
9910-
232
ADAPTER; SPEED SENSOR
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N)
1-80249-006-0
01
1
9906-
