0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#73232) — 258 parça

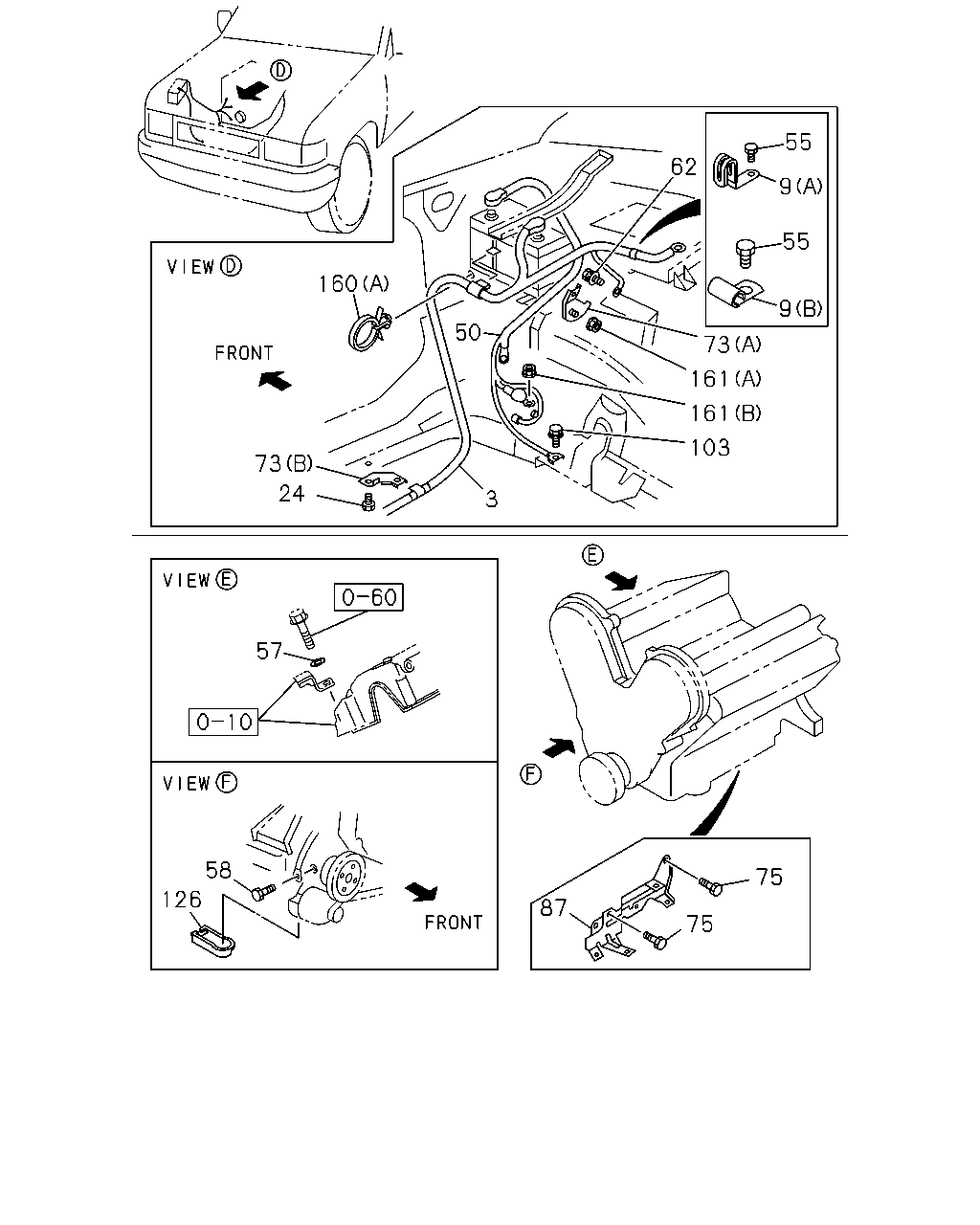

çizim 68830
55 62 9 55 160 9 50 73 161 161 103 73 24 3 57 58 75 126 87 75
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) 		8-97191-483-0 01 1 9712- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY(7EX) 		8-97808-819-1 01 1 9712- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97185-438-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97230-593-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97185-439-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97230-594-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97179-598-1 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97230-590-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97179-597-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97230-589-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97168-572-1 01 1 9712- ● ●
9 02.343 CLIP; BATTERY CABLE
03.162 (A) 		5-09709-095-0 01 1 9801-0004 ● ●
9 02.343 CLIP; BATTERY CABLE
01.531 (B) ID=16 L=28 		9-09525-556-0 01 1 0005- ● ●
24 02.343 BOLT; BRKT TO FRAME
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6), SOUTHAFRICA EQUIPMENT(SW2),WEST MALAYSIA EQ UIPMENT(S3D) 		8-97124-755-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97124-755-2 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-2 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPME NT(S3D) 		8-97124-754-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
A/T AISIN(RMD) 		8-97124-754-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97180-885-0 01 1 9712-9712 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97202-004-0 01 1 9801-9812 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97218-533-0 01 1 9901-9908 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97226-020-0 01 1 9909- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) 		8-97168-564-1 01 1 9712-9810 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. AC GENERATOR 12V 90A(7XL) 		8-97168-564-2 01 1 9811-0012 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. AC GENERATOR 12V 90A(7XL) 		8-97289-217-0 01 1 0101-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) AC GENERATOR 12V 90A(7XL) 		8-97218-532-0 01 1 9811-0012 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) AC GENERATOR 12V 90A(7XL) 		8-97289-219-0 01 1 0101-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) 		8-97289-219-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
AC GENERATOR 12V 90A(7XL) EXC. EUROPE EQUIPMENT(EK4) 		8-97218-531-0 01 1 9811-0012 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
AC GENERATOR 12V 90A(7XL) EXC. EUROPE EQUIPMENT(EK4) 		8-97289-218-1 01 1 0101- ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4) 		8-97168-561-1 01 1 9712-9810 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4),AC GENERATOR12V 90A(7XL) 		8-97168-561-2 01 1 9811-0012 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4),AC GENERATOR12V 90A(7XL) 		8-97289-216-1 01 1 0101- ● ●
55 02.334 BOLT; CLIP,BATTERY CABLE
03.704 M8X16 W/LK WASHER 		0-50040-816-0 01 1 9801- ● ●
57 02.343 WASHER; PL,BATTERY CABLE
02.587 ID=6.4 OD=18 		9-09160-706-0 01 1 9712- ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9712-9712 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9801- ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9801- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9712 ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9712 ● ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9801-0012 ● ●
58 02.343 BOLT; CABLE,BATTERY
00.002 M8X25 FLANGE 		0-28690-825-0 01 1 0101-0105 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9712- ● ● ● ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97189-357-0 01 1 9712- ●
73 02.333 BRACKET; BATTERY CABLE
(B) 		8-97803-052-0 02 1 9712- ● ● ● ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97168-577-3 01 1 9712- ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712-9712 ● ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712-9712 ●
75 02.333 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9801- ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9801- ●
75 02.333 BOLT; BRKT
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
03.604 M10X16 FLANGE 		0-28181-016-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ● ●
87 02.343 BRACKET; HARNESS
FRIGID ZONE<YL3> 		8-97185-616-0 01 1 9712-9712 ●
87 02.343 BRACKET; HARNESS
FRIGID ZONE<YL3> 		8-97204-539-1 01 1 9801- ●
87 02.343 BRACKET; HARNESS 8-97130-483-1 01 1 9712- ● ●
103 02.343 BOLT; BATTERY CABLE
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9712- ● ● ● ●
126 02.049 CAP; TERMINAL,AC GEN 8-97087-081-1 01 1 9712-9908 ●
126 02.049 CAP; TERMINAL,AC GEN 8-97228-316-0 01 1 9909- ●
126 02.049 CAP; TERMINAL,AC GEN
AC GENERATOR 12V 90A(7XL) 		8-97218-500-0 01 1 9811- ● ●
160 02.343 CLIP; BATTERY CABLE
04.594 (B) L=100 		5-09707-036-1 01 1 9712- ●
160 02.343 CLIP; BATTERY CABLE
(A) ID=20 		8-94410-200-0 01 1 9712- ● ● ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9712-9908 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9712-9908 ● ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9909-9912 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9909-9912 ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPME NT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0001-0102 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0001-0102 ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0103-0105 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0103-0105 ● ●
161 02.343 NUT; BATTERY CABLE
A/T AISIN(RMD) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ● ●
161 02.343 NUT; BATTERY CABLE
04.309 (B) M8 W/LK WASHER 		8-94413-537-0 01 1 9909- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ●

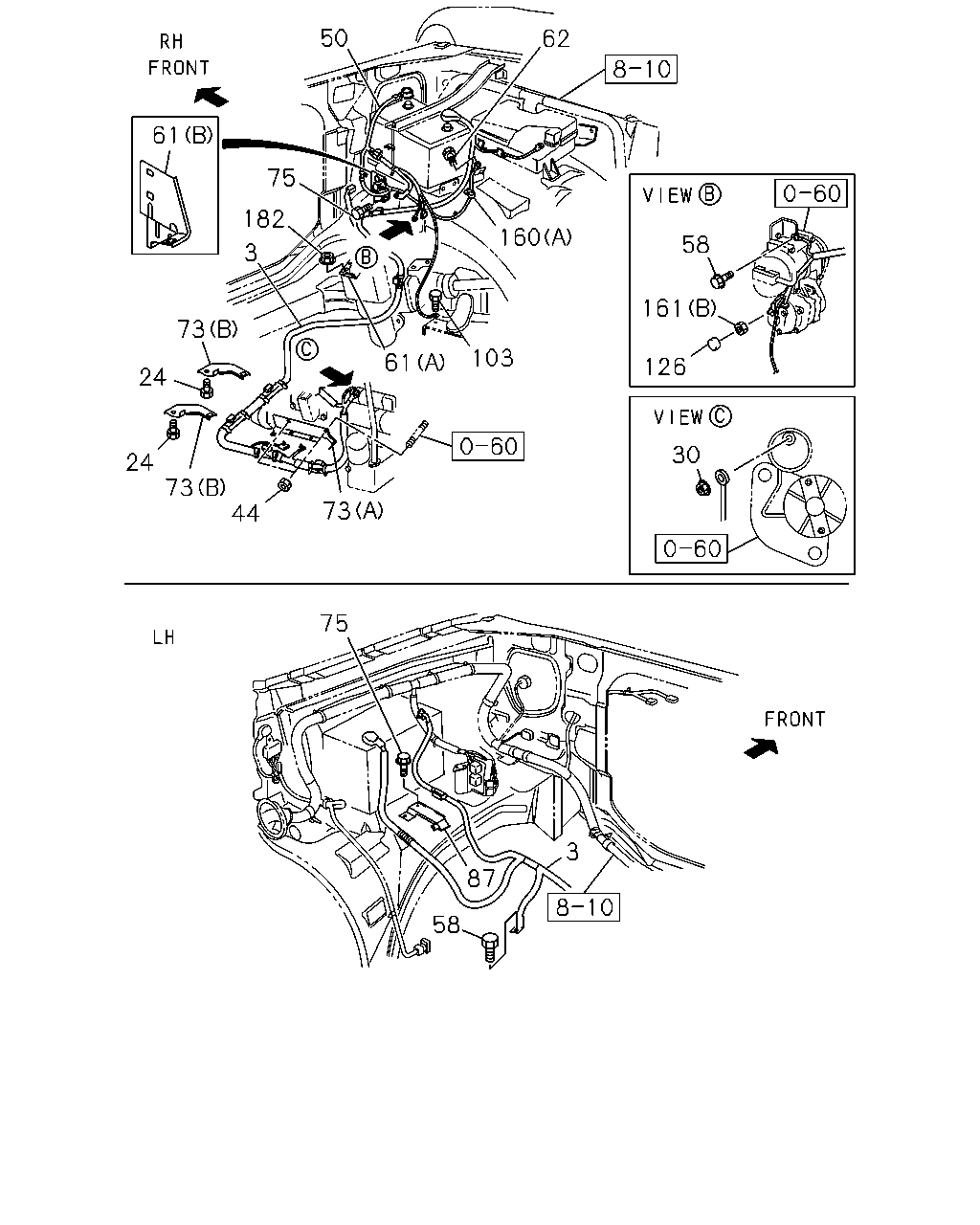

çizim 71133
50 62 61 75 182 160 58 3 161 73 103 61 126 24 30 24 73 73 44 75 3 87 58
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) 		8-97191-483-0 01 1 9712- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY(7EX) 		8-97808-819-1 01 1 9712- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97185-438-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97230-593-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97185-439-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97230-594-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97179-598-1 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97230-590-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97179-597-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97230-589-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97168-572-1 01 1 9712- ● ●
24 02.343 BOLT; BRKT TO FRAME
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9712- ● ●
44 02.343 NUT; BRKT
04.594 M6 FLANGE 		0-91150-106-0 02 1 9801- ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6), SOUTHAFRICA EQUIPMENT(SW2),WEST MALAYSIA EQ UIPMENT(S3D) 		8-97124-755-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97124-755-2 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-2 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPME NT(S3D) 		8-97124-754-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
A/T AISIN(RMD) 		8-97124-754-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97180-885-0 01 1 9712-9712 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97202-004-0 01 1 9801-9812 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97218-533-0 01 1 9901-9908 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97226-020-0 01 1 9909- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) 		8-97168-564-1 01 1 9712-9810 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. AC GENERATOR 12V 90A(7XL) 		8-97168-564-2 01 1 9811-0012 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. AC GENERATOR 12V 90A(7XL) 		8-97289-217-0 01 1 0101-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) AC GENERATOR 12V 90A(7XL) 		8-97218-532-0 01 1 9811-0012 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) AC GENERATOR 12V 90A(7XL) 		8-97289-219-0 01 1 0101-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) 		8-97289-219-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
AC GENERATOR 12V 90A(7XL) EXC. EUROPE EQUIPMENT(EK4) 		8-97218-531-0 01 1 9811-0012 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
AC GENERATOR 12V 90A(7XL) EXC. EUROPE EQUIPMENT(EK4) 		8-97289-218-1 01 1 0101- ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4) 		8-97168-561-1 01 1 9712-9810 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4),AC GENERATOR12V 90A(7XL) 		8-97168-561-2 01 1 9811-0012 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4),AC GENERATOR12V 90A(7XL) 		8-97289-216-1 01 1 0101- ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9712-9712 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9801- ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9801- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9712 ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9712 ● ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9801-0012 ● ●
58 02.343 BOLT; CABLE,BATTERY
00.002 M8X25 FLANGE 		0-28690-825-0 01 1 0101-0105 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97807-570-2 01 1 9712- ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97808-512-0 01 1 9712- ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9712- ● ● ● ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97189-357-0 01 1 9712- ●
73 02.333 BRACKET; BATTERY CABLE
(B) 		8-97803-052-0 02 1 9712- ● ● ● ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97168-577-3 01 1 9712- ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712-9712 ● ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712-9712 ●
75 02.333 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9801- ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9801- ●
75 02.333 BOLT; BRKT
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
03.604 M10X16 FLANGE 		0-28181-016-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ● ●
87 02.343 BRACKET; HARNESS
FRIGID ZONE<YL3> 		8-97185-616-0 01 1 9712-9712 ●
87 02.343 BRACKET; HARNESS
FRIGID ZONE<YL3> 		8-97204-539-1 01 1 9801- ●
87 02.343 BRACKET; HARNESS 8-97130-483-1 01 1 9712- ● ●
103 02.343 BOLT; BATTERY CABLE
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9712- ● ● ● ●
126 02.049 CAP; TERMINAL,AC GEN 8-97087-081-1 01 1 9712-9908 ●
126 02.049 CAP; TERMINAL,AC GEN 8-97228-316-0 01 1 9909- ●
126 02.049 CAP; TERMINAL,AC GEN
AC GENERATOR 12V 90A(7XL) 		8-97218-500-0 01 1 9811- ● ●
160 02.343 CLIP; BATTERY CABLE
04.594 (B) L=100 		5-09707-036-1 01 1 9712- ●
160 02.343 CLIP; BATTERY CABLE
(A) ID=20 		8-94410-200-0 01 1 9712- ● ● ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9712-9908 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9712-9908 ● ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9909-9912 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9909-9912 ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPME NT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0001-0102 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0001-0102 ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0103-0105 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0103-0105 ● ●
161 02.343 NUT; BATTERY CABLE
A/T AISIN(RMD) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ● ●
161 02.343 NUT; BATTERY CABLE
04.309 (B) M8 W/LK WASHER 		8-94413-537-0 01 1 9909- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ●
182 02.343 NUT; CLIP
04.785 M10 FLANGE 		0-91150-110-0 01 1 9712- ● ●

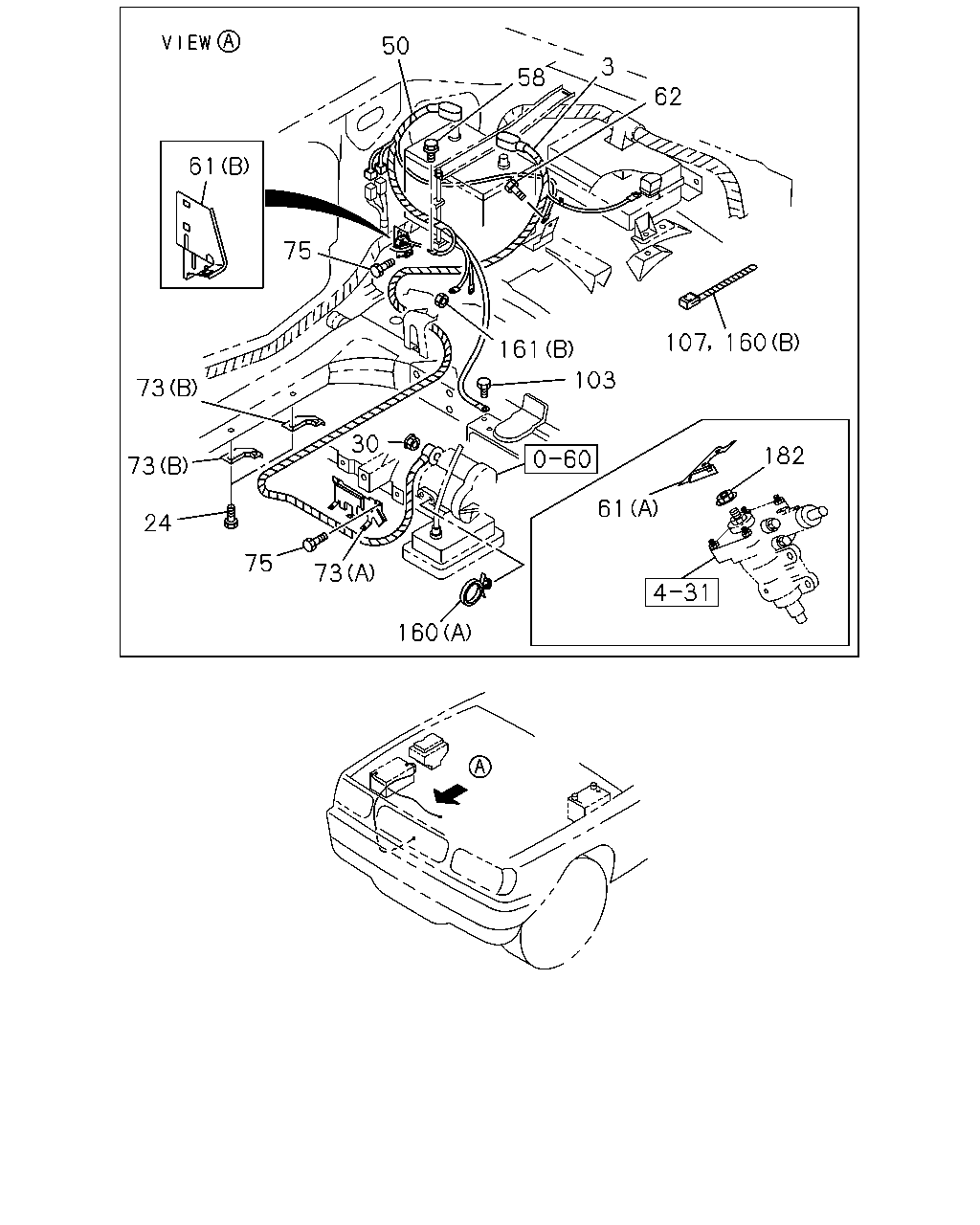

çizim 71285
50 3 58 62 61 75 107 160 161 103 73 30 182 73 61 24 75 73 160
BalonParca AdiParca NoAdetTipApplied Date A B C D
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) 		8-97191-483-0 01 1 9712- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. SHIFT ON THE FLY(7EX) 		8-97808-819-1 01 1 9712- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97185-438-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> SHIFT ON THE FLY(7EX) 		8-97230-593-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97185-439-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
FRIGID ZONE<YL3> EXC. SHIFT ON THE FLY(7EX) 		8-97230-594-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97179-598-1 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
EXC. FRIGID ZONE<YL3>,SHIFT ON THE FLY(7EX) 		8-97230-590-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97179-597-2 01 1 9712-9908 ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE
SHIFT ON THE FLY(7EX) EXC. FRIGID ZONE<YL3> 		8-97230-589-0 01 1 9909- ●
3 02.525 HARNESS; CABLE,BATTERY TO STARTE 8-97168-572-1 01 1 9712- ● ●
24 02.343 BOLT; BRKT TO FRAME
04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9712- ● ● ● ●
30 02.334 NUT; CABLE,STARTER TO BATTERY
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9712- ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6), SOUTHAFRICA EQUIPMENT(SW2),WEST MALAYSIA EQ UIPMENT(S3D) 		8-97124-755-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) 		8-97124-755-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 		8-97124-755-2 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-755-2 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 9712-9912 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPME NT(S3D) 		8-97124-754-1 01 1 0001-0102 ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 0103-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
A/T AISIN(RMD) 		8-97124-754-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97124-754-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97180-885-0 01 1 9712-9712 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97202-004-0 01 1 9801-9812 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97218-533-0 01 1 9901-9908 ●
50 02.341 CABLE; BATTERY TO BODY (-) 8-97226-020-0 01 1 9909- ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) 		8-97168-564-1 01 1 9712-9810 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. AC GENERATOR 12V 90A(7XL) 		8-97168-564-2 01 1 9811-0012 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) EXC. AC GENERATOR 12V 90A(7XL) 		8-97289-217-0 01 1 0101-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) AC GENERATOR 12V 90A(7XL) 		8-97218-532-0 01 1 9811-0012 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) AC GENERATOR 12V 90A(7XL) 		8-97289-219-0 01 1 0101-0105 ●
50 02.341 CABLE; BATTERY TO BODY (-)
EUROPE EQUIPMENT(EK4) 		8-97289-219-1 01 1 0106- ●
50 02.341 CABLE; BATTERY TO BODY (-)
AC GENERATOR 12V 90A(7XL) EXC. EUROPE EQUIPMENT(EK4) 		8-97218-531-0 01 1 9811-0012 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
AC GENERATOR 12V 90A(7XL) EXC. EUROPE EQUIPMENT(EK4) 		8-97289-218-1 01 1 0101- ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4) 		8-97168-561-1 01 1 9712-9810 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4),AC GENERATOR12V 90A(7XL) 		8-97168-561-2 01 1 9811-0012 ● ●
50 02.341 CABLE; BATTERY TO BODY (-)
EXC. EUROPE EQUIPMENT(EK4),AC GENERATOR12V 90A(7XL) 		8-97289-216-1 01 1 0101- ● ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9712-9712 ●
58 02.343 BOLT; CABLE,BATTERY
AIR CONDITIONER MANUAL CONT(C60) 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9801- ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 02.559 M10X16 FLANGE 		0-28081-016-0 01 1 9801- ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 9712- ●
58 02.343 BOLT; CABLE,BATTERY
FRIGID ZONE<YL3> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9712 ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9712-9712 ● ●
58 02.343 BOLT; CABLE,BATTERY
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9801-0012 ● ●
58 02.343 BOLT; CABLE,BATTERY
00.002 M8X25 FLANGE 		0-28690-825-0 01 1 0101-0105 ● ●
58 02.343 BOLT; CABLE,BATTERY
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
61 02.333 BRACKET; BATTERY CABLE
(A) 		8-97807-570-2 01 1 9712- ● ●
61 02.333 BRACKET; BATTERY CABLE
(B) 		8-97808-512-0 01 1 9712- ● ●
62 02.343 BOLT; EARTH CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9712- ● ● ● ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97189-357-0 01 1 9712- ●
73 02.333 BRACKET; BATTERY CABLE
(B) 		8-97803-052-0 02 1 9712- ● ● ● ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97168-577-3 01 1 9712- ●
73 02.333 BRACKET; BATTERY CABLE
(A) 		8-97803-308-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712-9712 ● ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9712-9712 ●
75 02.333 BOLT; BRKT
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9801- ●
75 02.333 BOLT; BRKT
FRIGID ZONE<YL3> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9801- ●
75 02.333 BOLT; BRKT
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
03.604 M10X16 FLANGE 		0-28181-016-0 01 1 9712- ● ●
75 02.333 BOLT; BRKT
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 9712- ● ●
103 02.343 BOLT; BATTERY CABLE
M6X20 W/LK&PL WASHER 		8-97086-824-0 01 1 9712- ● ● ● ●
107 02.343 CLIP; BAND
SHIFT ON THE FLY(7EX) 02.559 L=250 		5-09707-030-1 01 1 9712-0105 ●
107 02.343 CLIP; BAND
SHIFT ON THE FLY(7EX) 03.162 L=140 		5-09707-031-1 01 1 0106- ●
160 02.343 CLIP; BATTERY CABLE
04.594 (B) L=100 		5-09707-036-1 01 1 9712- ●
160 02.343 CLIP; BATTERY CABLE
(A) ID=20 		8-94410-200-0 01 1 9712- ● ● ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9712-9908 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9712-9908 ● ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 9909-9912 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 9909-9912 ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPME NT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0001-0102 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0001-0102 ● ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0103-0105 ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0103-0105 ● ●
161 02.343 NUT; BATTERY CABLE
A/T AISIN(RMD) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ●
161 02.343 NUT; BATTERY CABLE
4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ●
161 02.343 NUT; BATTERY CABLE
(B) M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ● ●
161 02.343 NUT; BATTERY CABLE
04.309 (B) M8 W/LK WASHER 		8-94413-537-0 01 1 9909- ●
161 02.343 NUT; BATTERY CABLE
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9712- ● ●
182 02.343 NUT; CLIP
04.785 M10 FLANGE 		0-91150-110-0 01 1 9712- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
