◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50757 - UBS-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#73231) — 478 parça

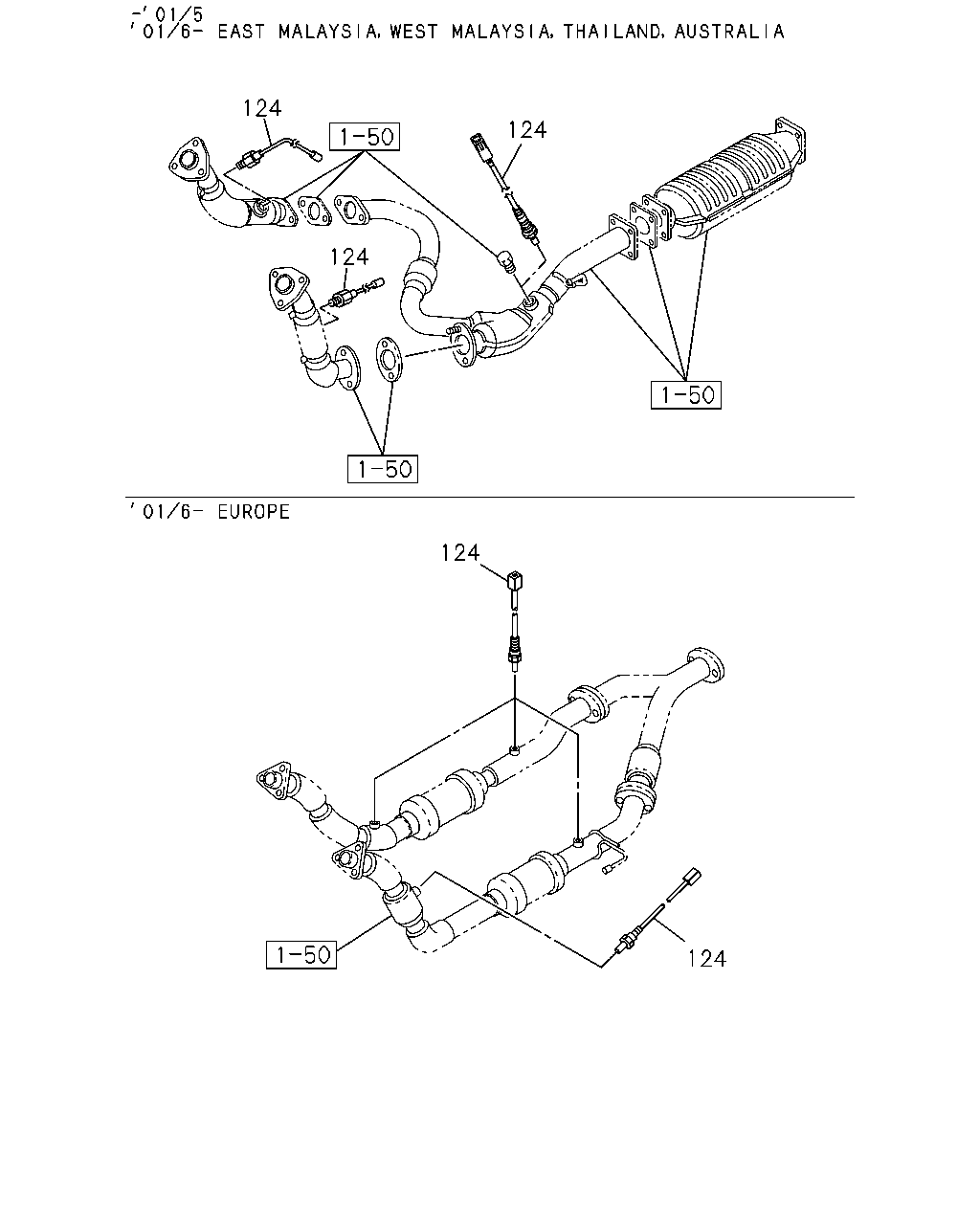

çizim 17555
124 124 124 124 124
BalonParca AdiParca NoAdetTipApplied Date A B C D
124 01.150 SENSOR; OXYGEN
SOUTH AFRICA EQUIPMENT(SW2) 		8-97187-607-0 01 1 0001-0102 ●
124 01.150 SENSOR; OXYGEN
EUROPE EQUIPMENT(EK4) 		8-97172-293-0 02 1 9712-0105 ● ●
124 01.150 SENSOR; OXYGEN
EUROPE EQUIPMENT(EK4) 		8-97224-011-0 04 1 0106- ●
124 01.150 SENSOR; OXYGEN
EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),AUSTRALIA EQUIPMENT(RR3), WEST MALAYSIA EQUIPMENT(S3D) 		8-97172-293-0 01 1 9712- ● ●

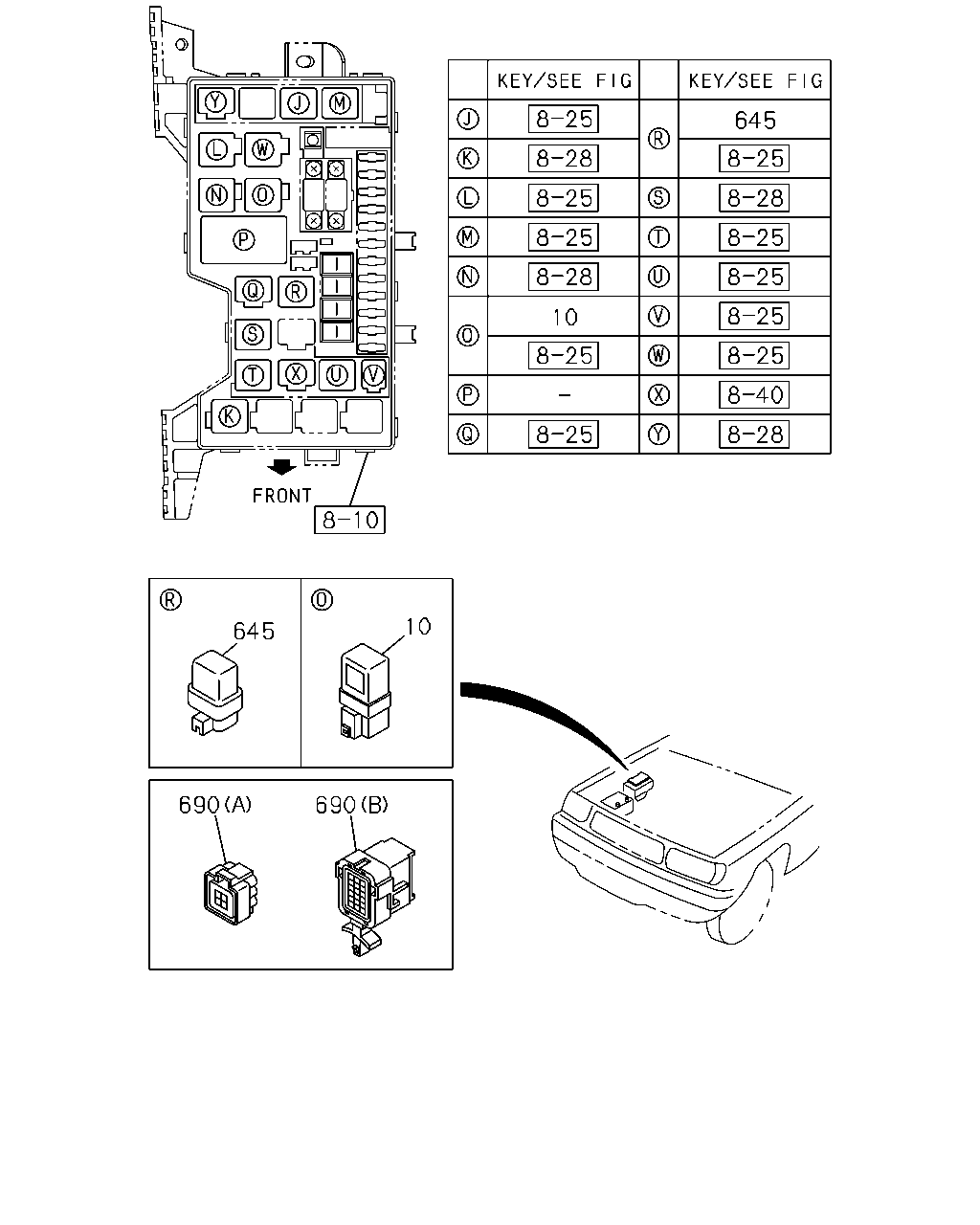

çizim 18035
645 10 10 645 690 690
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
02.510 12V 35A 		8-97180-794-1 01 1 9712- ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9712- ● ●
645 02.510 RELAY; ENG CONT
02.515 12V 20A 		8-97093-910-1 02 1 9712- ●
645 02.510 RELAY; ENG CONT
02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
690 01.150 CONNECTOR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A) 		8-97304-354-0 01 1 0106- ●
690 01.150 CONNECTOR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97304-355-0 01 1 0106- ●

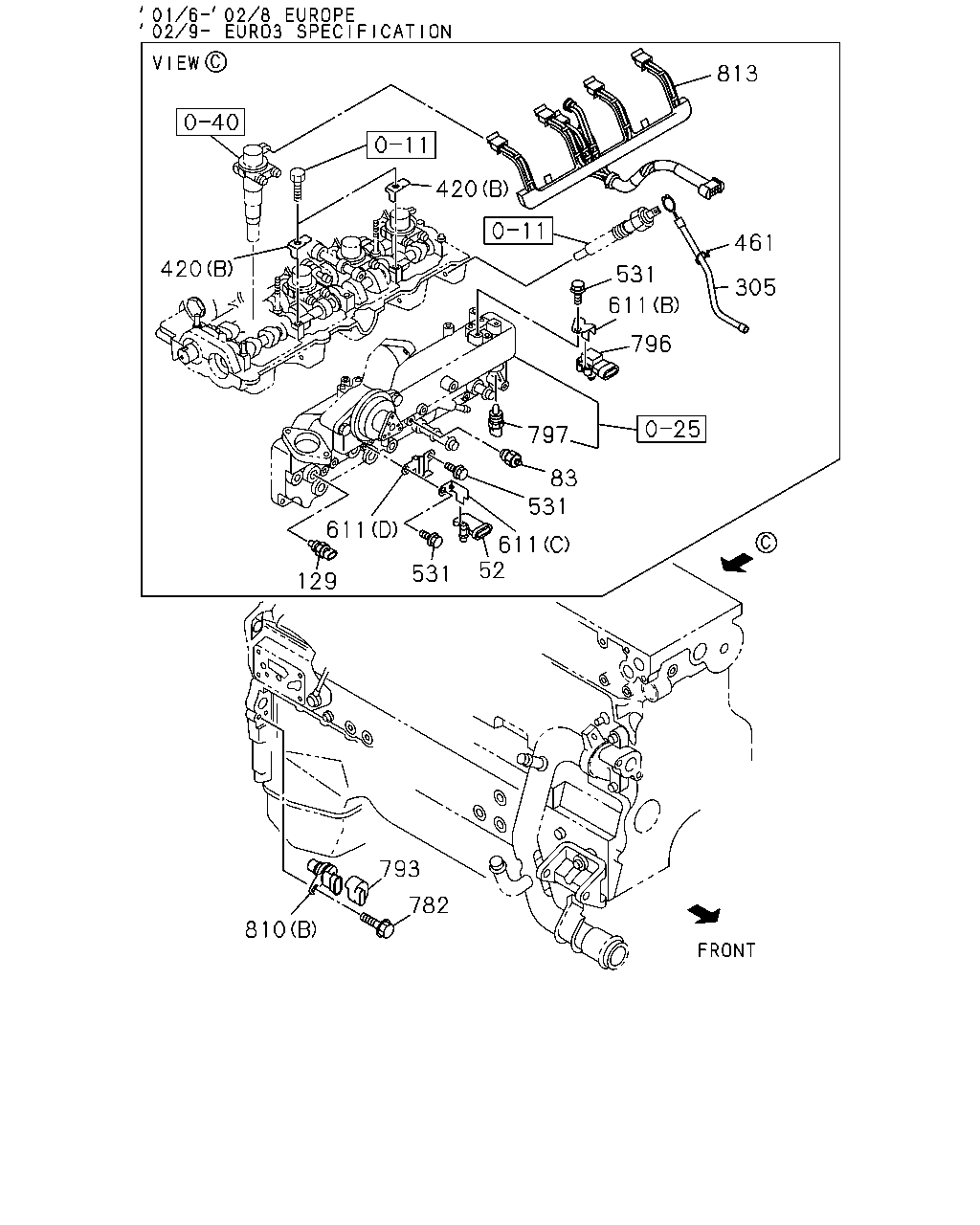

çizim 67160
813 420 461 420 531 305 611 796 797 83 531 611 611 52 531 129 793 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C D
52 03.337 SENSOR; EGR GAS
EUROPE EQUIPMENT(EK4) 01.800 		8-16258-659-0 01 1 0106-0208 ●
52 03.337 SENSOR; EGR GAS
EURO3 SPECIFICATION(NT3) 01.800 		8-16258-659-0 01 1 0209- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-12146-312-0 01 1 9712-0108 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-15326-386-0 01 1 0109- ●
305 02.480 HARNESS; EXT,GLOW PLUG 8-97038-742-3 01 1 9712-9908 ●
305 02.480 HARNESS; EXT,GLOW PLUG
M/T AR-5 5 SPEED(RNK) 		8-97038-742-3 01 1 9712-9908 ●
305 02.480 HARNESS; EXT,GLOW PLUG 8-97038-742-3 01 1 9909- ●
305 02.480 HARNESS; EXT,GLOW PLUG
A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) 		8-97038-742-3 01 1 9909- ●
420 02.183 BRACKET; HARNESS
A/T AISIN(RMD) 02.483 (C) 		8-94315-284-0 01 1 9909- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-884-3 02 1 9712- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97201-754-1 01 1 9712-0105 ●
420 02.183 BRACKET; HARNESS
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97201-754-1 01 1 0106-0208 ●
420 02.183 BRACKET; HARNESS
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97201-754-1 01 1 0209- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97168-852-0 01 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 0106- ●
461 02.559 CLIP; PURSE LOCK
AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30 		8-94315-423-0 02 1 9712-9908 ● ●
461 02.559 CLIP; PURSE LOCK
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 01.540 ID=30 		8-94315-423-0 02 1 9909- ● ●
461 02.559 CLIP; PURSE LOCK
EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20 		1-09709-068-0 02 1 9712-9908 ● ●
461 02.559 CLIP; PURSE LOCK
EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 16.065 ID=20 		1-09709-068-0 02 1 9909- ● ●
531 02.510 BOLT; SENSOR BRKT
16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 9712-0105 ●
531 02.510 BOLT; SENSOR BRKT
EXC. EUROPE EQUIPMENT(EK4) 16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 0106-0208 ●
531 02.510 BOLT; SENSOR BRKT
EXC. EURO3 SPECIFICATION(NT3) 16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 0209- ●
531 02.510 BOLT; SENSOR BRKT
EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE 		0-28080-610-0 03 1 0106-0208 ●
531 02.510 BOLT; SENSOR BRKT
EURO3 SPECIFICATION(NT3) 02.500 M6X10 FLANGE 		0-28080-610-0 03 1 0209- ●
611 01.150 BRACKET; SENSOR
(E) 		8-97038-641-0 01 1 9712- ●
611 01.150 BRACKET; SENSOR
(A) 		8-97160-909-4 01 1 9712-0105 ●
611 01.150 BRACKET; SENSOR
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97160-909-4 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97160-909-4 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (B) 		8-97241-133-2 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (B) 		8-97241-133-2 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (C) 		8-97263-338-0 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (C) 		8-97263-338-0 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (D) 		8-97263-339-1 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (D) 		8-97263-339-1 01 1 0209- ●
782 02.510 BOLT; SENSOR
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ●
782 02.510 BOLT; SENSOR
03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 9712-0105 ●
782 02.510 BOLT; SENSOR
EXC. EUROPE EQUIPMENT(EK4) 03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 0106-0208 ●
782 02.510 BOLT; SENSOR
EXC. EURO3 SPECIFICATION(NT3) 03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 0209- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712-0105 ● ●
782 02.510 BOLT; SENSOR
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
793 02.510 BOOT 8-25338-841-0 01 1 0112- ●
796 01.150 SENSOR; MAP
03.320 		8-16040-609-0 01 1 9712-0105 ●
796 01.150 SENSOR; MAP
EXC. EUROPE EQUIPMENT(EK4) 03.320 		8-16040-609-0 01 1 0106-0208 ●
796 01.150 SENSOR; MAP
EXC. EURO3 SPECIFICATION(NT3) 03.320 		8-16040-609-1 01 1 0209-0209 ●
796 01.150 SENSOR; MAP
EXC. EURO3 SPECIFICATION(NT3) 		8-12569-241-0 01 1 0210- ●
796 01.150 SENSOR; MAP
EUROPE EQUIPMENT(EK4) 03.682 		8-97180-655-0 01 1 0106-0208 ●
796 01.150 SENSOR; MAP
EURO3 SPECIFICATION(NT3) 03.682 		8-97180-655-0 01 1 0209- ●
797 01.150 SENSOR; MAT 8-12146-830-0 01 1 9712- ●
810 01.150 SENSOR; CRANK ANGLE
(A) 		8-10456-250-0 01 1 9712-9912 ●
810 01.150 SENSOR; CRANK ANGLE
(A) 		8-10456-660-0 01 1 0001- ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-571-1 01 1 9712-9810 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-613-1 01 1 9811-9912 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-661-0 01 1 0001-0105 ●
810 01.150 SENSOR; CRANK ANGLE
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-10456-661-0 01 1 0106-0111 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-661-0 01 1 0112- ●
810 01.150 SENSOR; CRANK ANGLE
EUROPE EQUIPMENT(EK4) (B) 		8-97261-945-0 01 1 0106-0111 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-25339-914-0 01 1 0112- ●
813 02.480 HARNESS; INJECTOR 8-97146-336-7 01 1 9712-0105 ●
813 02.480 HARNESS; INJECTOR
EXC. EUROPE EQUIPMENT(EK4) 		8-97146-336-8 01 1 0106-0208 ●
813 02.480 HARNESS; INJECTOR
EXC. EURO3 SPECIFICATION(NT3) 		8-97146-336-8 01 1 0209- ●
813 02.480 HARNESS; INJECTOR
EUROPE EQUIPMENT(EK4) 		8-97287-435-0 01 1 0106-0208 ●
813 02.480 HARNESS; INJECTOR
EURO3 SPECIFICATION(NT3) 		8-97287-435-0 01 1 0209- ●

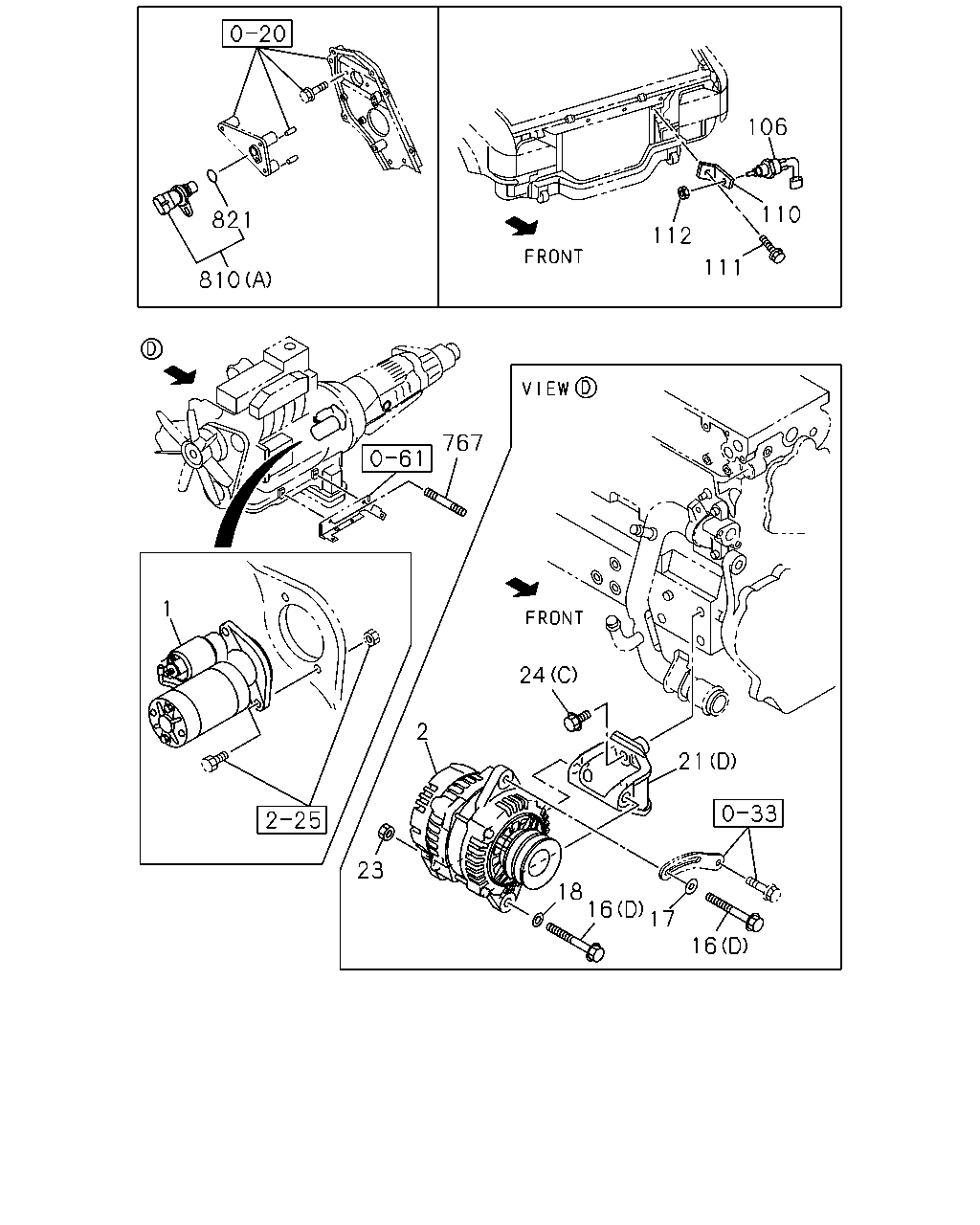

çizim 67195
106 110 821 112 111 810 767 1 24 2 21 23 18 16 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW 		8-97146-338-3 01 1 9712-9803 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW 		8-97210-505-0 01 1 9804-9906 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97223-653-0 01 1 9907-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97323-437-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97147-851-0 01 1 9712-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 9802-0005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), SOUTHAFRICA EQUIPMENT(SW2),WEST MALAYSIA EQ UIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 0006-0102 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 60A 		8-97187-655-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 9712-0005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 0006-0102 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97145-386-3 01 1 9712-9804 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97184-531-0 01 1 9805-9812 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97219-253-0 01 1 9901-9908 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97215-992-2 01 1 9909-9909 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 100A(8CK) 12V 90A 		8-97215-992-3 01 1 9910- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 100A(8CK) 12V 100A 		8-97233-824-1 01 1 9910- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712-9809 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 90A(7XL) 12V 75A 		8-97187-304-0 01 1 9810- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 90A(7XL) 12V 90A 		8-97210-373-0 01 1 9810- ● ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
(D) M10X120 FLANGE 		0-28086-012-0 01 1 9712-9903 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-0 01 1 9904- ●
16 02.277 BOLT; GEN
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9712-9712 ●
16 02.277 BOLT; GEN
02.559 (D) M8X25 FLANGE 		0-28680-825-0 01 1 9801- ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ● ●
17 02.277 WASHER; PL,GEN
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9712- ●
18 02.317 WASHER; LK,GEN
16.682 ID=10.5 OD=22 		9-09160-610-0 01 1 9712- ●
21 02.277 BRACKET; GEN
(B) 		8-97160-604-1 01 1 9712-0012 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97289-024-0 01 1 0101-0201 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0202- ● ●
21 02.277 BRACKET; GEN
(C) 		8-94437-276-2 01 1 9712- ●
21 02.277 BRACKET; GEN
(D) 		8-97137-864-4 01 1 9712- ●
21 02.277 BRACKET; GEN
(A) 		8-97160-605-1 01 1 9712-0111 ● ●
21 02.277 BRACKET; GEN
(A) 		8-97941-401-0 01 1 0112- ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9712- ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 9712- ●
24 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28081-045-0 03 1 9712- ●
106 01.150 SWITCH; THERMO,AIR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-749-0 01 1 9712- ●
106 01.150 SWITCH; THERMO,AIR 8-97043-749-0 01 1 9712- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-565-0 01 1 9712- ●
110 01.251 BRACKET; THERMO SW CONNECTOR 8-97043-565-0 01 1 9712- ●
111 01.251 BOLT; SWITCH BRKT
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
111 01.251 BOLT; SWITCH BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
112 01.251 NUT; SWITCH BRKT
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.681 M16 		9-99111-416-0 01 1 9712- ●
112 01.251 NUT; SWITCH BRKT
04.681 M16 		9-99111-416-0 01 1 9712- ●
767 02.277 STUD; BRKT
08.981 M6X16 L=25 		9-04110-616-0 02 1 9712- ●
810 01.150 SENSOR; CRANK ANGLE
(A) 		8-10456-250-0 01 1 9712-9912 ●
810 01.150 SENSOR; CRANK ANGLE
(A) 		8-10456-660-0 01 1 0001- ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-571-1 01 1 9712-9810 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-613-1 01 1 9811-9912 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-661-0 01 1 0001-0105 ●
810 01.150 SENSOR; CRANK ANGLE
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-10456-661-0 01 1 0106-0111 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-661-0 01 1 0112- ●
810 01.150 SENSOR; CRANK ANGLE
EUROPE EQUIPMENT(EK4) (B) 		8-97261-945-0 01 1 0106-0111 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-25339-914-0 01 1 0112- ●
821 02.510 GASKET; CRANKSHAFT SENSOR
04.765 		9-09561-214-0 01 1 9712-9912 ●

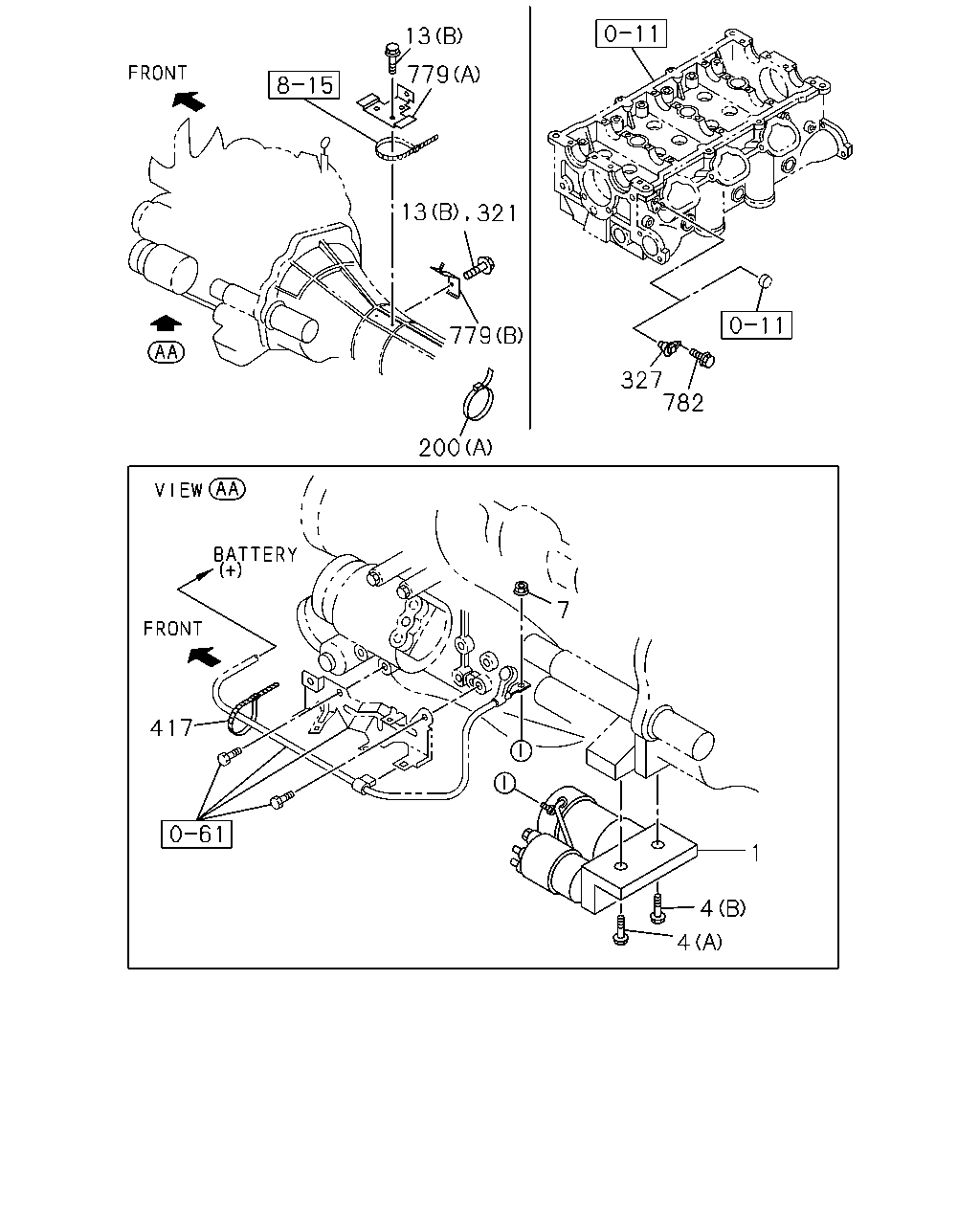

çizim 71099
13 779 779 327 782 200 7 417 1 4 4 13 321
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW 		8-97146-338-3 01 1 9712-9803 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW 		8-97210-505-0 01 1 9804-9906 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97223-653-0 01 1 9907-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97323-437-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ● ●
4 02.042 BOLT; STARTER
04.898 (C) M12X50 		0-10806-250-0 02 1 9712-0309 ●
4 02.042 BOLT; STARTER
00.685 (C) M12X45 FLANGE 		0-28081-245-0 02 1 0310- ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9712- ● ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9712- ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9712-0309 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0310- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9712- ● ●
13 02.100 BOLT; BRKT
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ● ●
13 02.100 BOLT; BRKT
03.704 (E) M8X40 FLANGE 		0-28680-840-0 02 1 9712-0108 ● ●
13 02.100 BOLT; BRKT
16.545 (E) M8X40 FLANGE 		0-28690-840-0 02 1 0109- ● ●
13 02.100 BOLT; BRKT
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0106- ●
13 02.100 BOLT; BRKT
M/T AR-5 5 SPEED(RNK) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 01 1 9712- ●
13 02.100 BOLT; BRKT
09.171 (A) M8X90 FLANGE 		0-28080-890-0 02 1 9712- ● ●
13 02.100 BOLT; BRKT
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 9902-0009 ● ●
200 01.152 CLIP; OXYGEN SENSOR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97143-183-0 01 1 0106- ●
200 01.152 CLIP; OXYGEN SENSOR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.430 (A) L=200 		8-94464-835-0 01 1 0106- ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 03.430 (A) L=200 		8-94464-835-0 01 1 9712-9712 ● ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 03.162 (A) L=140 		5-09707-031-1 01 1 9801-9912 ● ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUI PMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 03.162 (A) L=140 		5-09707-031-1 01 1 0001-0102 ● ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 03.162 (A) L=140 		5-09707-031-1 01 1 0103- ● ●
321 02.510 BOLT; BRKT
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0010- ● ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 9712-0105 ● ●
327 02.361 SENSOR; CAMSHAFT POSITION
AUSTRALIA EQUIPMENT(RR3) 		8-10456-598-0 01 1 0106-0106 ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-598-0 01 1 0106-0106 ●
327 02.361 SENSOR; CAMSHAFT POSITION
AUSTRALIA EQUIPMENT(RR3) 		8-10456-541-0 01 1 0106- ●
327 02.361 SENSOR; CAMSHAFT POSITION 8-10456-541-0 01 1 0106- ●
417 02.420 CLIP
EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.430 L=200 		8-94464-835-0 02 1 0106- ●
779 02.277 BRACKET; CONNECTOR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C) 		8-97209-842-0 01 1 0106- ●
779 02.277 BRACKET; CONNECTOR
M/T AR-5 5 SPEED(RNK) (A) 		8-97163-788-0 01 1 9712- ●
779 02.277 BRACKET; CONNECTOR
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 01.150 (B) 		8-97183-098-0 01 1 9902- ● ●
782 02.510 BOLT; SENSOR
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ●
782 02.510 BOLT; SENSOR
03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 9712-0105 ●
782 02.510 BOLT; SENSOR
EXC. EUROPE EQUIPMENT(EK4) 03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 0106-0208 ●
782 02.510 BOLT; SENSOR
EXC. EURO3 SPECIFICATION(NT3) 03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 0209- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712-0105 ● ●
782 02.510 BOLT; SENSOR
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
çizim 71836
2 23 305 461 24 24 16 24 21 108 83 4 1 7 106 110 112 111
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 9712- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW 		8-97146-338-3 01 1 9712-9803 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.5KW 		8-97210-505-0 01 1 9804-9906 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97223-653-0 01 1 9907-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.8KW 		8-97323-437-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW 		8-94384-314-1 01 1 9712- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97147-851-0 01 1 9712-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 9802-0005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), SOUTHAFRICA EQUIPMENT(SW2),WEST MALAYSIA EQ UIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 0006-0102 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 60A 		8-97187-655-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 9712-0005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 0006-0102 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97145-386-3 01 1 9712-9804 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97184-531-0 01 1 9805-9812 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97219-253-0 01 1 9901-9908 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97215-992-2 01 1 9909-9909 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 100A(8CK) 12V 90A 		8-97215-992-3 01 1 9910- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 100A(8CK) 12V 100A 		8-97233-824-1 01 1 9910- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712-9809 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 90A(7XL) 12V 75A 		8-97187-304-0 01 1 9810- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 90A(7XL) 12V 90A 		8-97210-373-0 01 1 9810- ● ●
4 02.042 BOLT; STARTER
04.898 (C) M12X50 		0-10806-250-0 02 1 9712-0309 ●
4 02.042 BOLT; STARTER
00.685 (C) M12X45 FLANGE 		0-28081-245-0 02 1 0310- ●
4 02.042 BOLT; STARTER
08.900 (A) M10X50 FLANGE 		0-28181-050-0 01 1 9712- ● ●
4 02.042 BOLT; STARTER
04.085 (B) M10X80 FLANGE 		0-28181-080-0 01 1 9712- ● ●
7 02.042 NUT; STARTER
05.816 M12 		9-99110-412-0 02 1 9712-0309 ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0310- ●
7 02.042 NUT; STARTER
04.309 M8 W/LK WASHER 		8-94413-537-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
(D) M10X120 FLANGE 		0-28086-012-0 01 1 9712-9903 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-0 01 1 9904- ●
16 02.277 BOLT; GEN
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9712-9712 ●
16 02.277 BOLT; GEN
02.559 (D) M8X25 FLANGE 		0-28680-825-0 01 1 9801- ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ● ●
21 02.277 BRACKET; GEN
(B) 		8-97160-604-1 01 1 9712-0012 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97289-024-0 01 1 0101-0201 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0202- ● ●
21 02.277 BRACKET; GEN
(C) 		8-94437-276-2 01 1 9712- ●
21 02.277 BRACKET; GEN
(D) 		8-97137-864-4 01 1 9712- ●
21 02.277 BRACKET; GEN
(A) 		8-97160-605-1 01 1 9712-0111 ● ●
21 02.277 BRACKET; GEN
(A) 		8-97941-401-0 01 1 0112- ● ●
23 02.277 NUT; GEN
08.917 M10 FLANGE 		0-91150-210-0 01 1 9712- ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 9712- ●
24 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28081-045-0 03 1 9712- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ●
106 01.150 SWITCH; THERMO,AIR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-749-0 01 1 9712- ●
106 01.150 SWITCH; THERMO,AIR 8-97043-749-0 01 1 9712- ●
108 01.150 SWITCH; THERMO 8-97069-786-1 01 1 9712- ●
110 01.251 BRACKET; THERMO SW CONNECTOR
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 		8-97043-565-0 01 1 9712- ●
110 01.251 BRACKET; THERMO SW CONNECTOR 8-97043-565-0 01 1 9712- ●
111 01.251 BOLT; SWITCH BRKT
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
111 01.251 BOLT; SWITCH BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712- ●
112 01.251 NUT; SWITCH BRKT
EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 04.681 M16 		9-99111-416-0 01 1 9712- ●
112 01.251 NUT; SWITCH BRKT
04.681 M16 		9-99111-416-0 01 1 9712- ●
305 02.480 HARNESS; EXT,GLOW PLUG 8-97038-742-3 01 1 9712-9908 ●
305 02.480 HARNESS; EXT,GLOW PLUG
M/T AR-5 5 SPEED(RNK) 		8-97038-742-3 01 1 9712-9908 ●
305 02.480 HARNESS; EXT,GLOW PLUG 8-97038-742-3 01 1 9909- ●
305 02.480 HARNESS; EXT,GLOW PLUG
A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) 		8-97038-742-3 01 1 9909- ●
461 02.559 CLIP; PURSE LOCK
AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30 		8-94315-423-0 02 1 9712-9908 ● ●
461 02.559 CLIP; PURSE LOCK
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 01.540 ID=30 		8-94315-423-0 02 1 9909- ● ●
461 02.559 CLIP; PURSE LOCK
EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20 		1-09709-068-0 02 1 9712-9908 ● ●
461 02.559 CLIP; PURSE LOCK
EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 16.065 ID=20 		1-09709-068-0 02 1 9909- ● ●

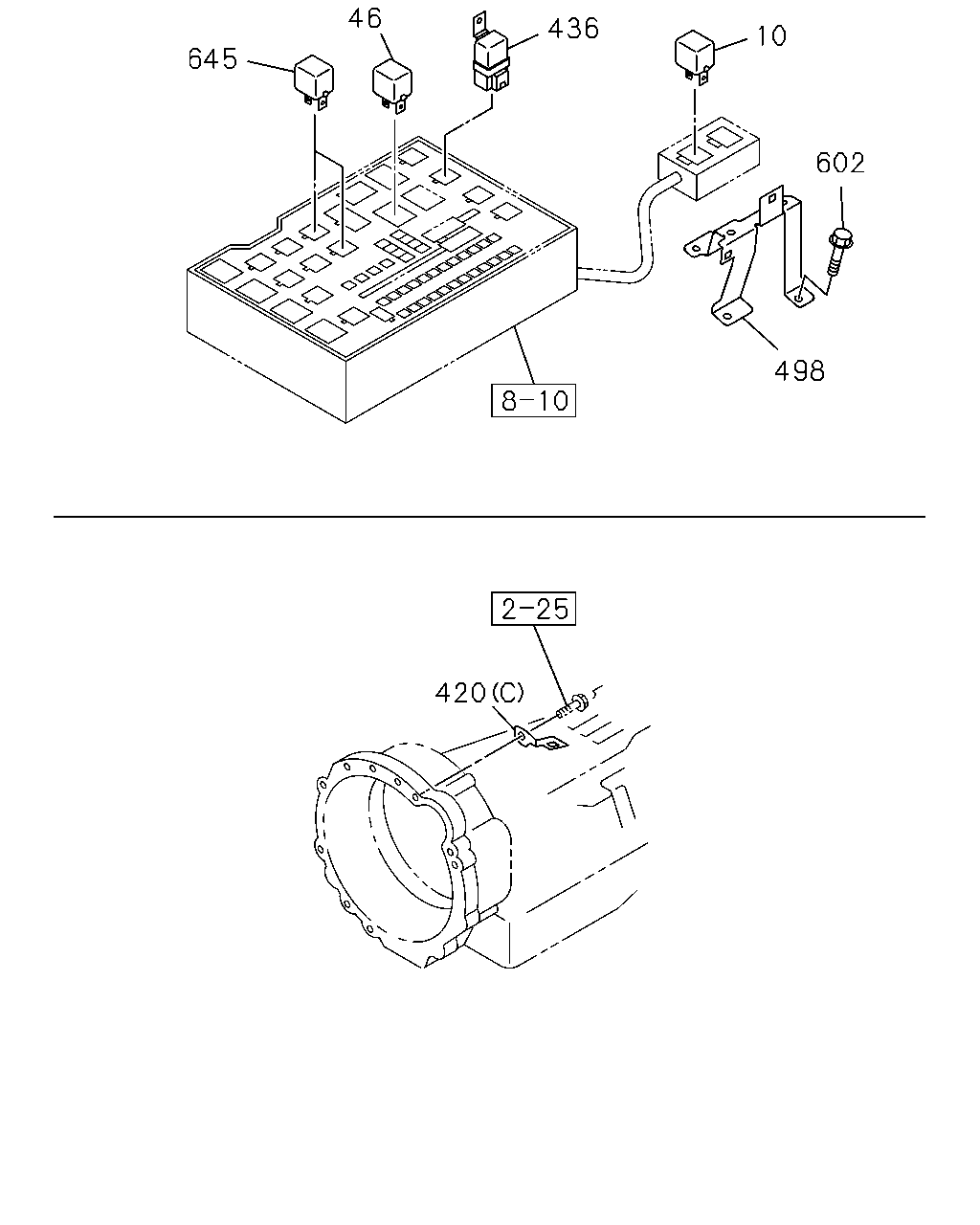

çizim 71837
46 436 10 645 602 498 420
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 02.100 RELAY; STARTER
02.510 12V 35A 		8-97180-794-1 01 1 9712- ●
10 02.100 RELAY; STARTER
02.510 12V 15A 		8-94147-095-0 01 1 9712- ● ●
46 02.510 RELAY; GLOW PLUG
12V 35A 		8-97180-794-1 01 1 9712- ●
420 02.183 BRACKET; HARNESS
A/T AISIN(RMD) 02.483 (C) 		8-94315-284-0 01 1 9909- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-884-3 02 1 9712- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97201-754-1 01 1 9712-0105 ●
420 02.183 BRACKET; HARNESS
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97201-754-1 01 1 0106-0208 ●
420 02.183 BRACKET; HARNESS
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97201-754-1 01 1 0209- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97168-852-0 01 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 0106- ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
EUROPE EQUIPMENT(EK4),AUSTRALIA EQUIPMENT(RR3) ENG QUICK WARM UP SYSTEM<6JZ> EXC. CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 9712-0105 ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 9712-0105 ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
EUROPE EQUIPMENT(EK4) CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 0106- ●
436 02.510 RELAY; FAST IDLE (Q-CONTROL)
ENG QUICK WARM UP SYSTEM<6JZ> EXC. CERAMIC HEATER<6YX> 02.515 12V 20A 		8-97093-910-1 01 1 0106- ●
498 02.510 BRACKET; RELAY 8-94389-761-4 01 1 9712- ●
498 02.510 BRACKET; RELAY 8-97172-710-1 01 1 9712- ●
602 02.510 BOLT; BRKT
06.635 M6X16 FLANGE 		0-28480-616-0 03 1 9712- ●
645 02.510 RELAY; ENG CONT
02.515 12V 20A 		8-97093-910-1 02 1 9712- ●
645 02.510 RELAY; ENG CONT
02.515 12V 20A 		8-97093-910-1 01 1 9712- ● ●
çizim 71838
420 420 420 813 153 461 305 797 782 782 348 348 83 565 796 129 611 531 793 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C D
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-12146-312-0 01 1 9712-0108 ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-15326-386-0 01 1 0109- ●
153 02.510 BOLT; BRKT FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9712-9810 ●
153 02.510 BOLT; BRKT FIX
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9811-0105 ●
153 02.510 BOLT; BRKT FIX
EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0106-0208 ●
153 02.510 BOLT; BRKT FIX
EXC. EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0209- ●
153 02.510 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) 02.500 M6X10 FLANGE 		0-28080-610-0 05 1 0106- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 05 1 0106- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 05 1 9712-0105 ● ●
153 02.510 BOLT; BRKT FIX
EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0106- ●
305 02.480 HARNESS; EXT,GLOW PLUG 8-97038-742-3 01 1 9712-9908 ●
305 02.480 HARNESS; EXT,GLOW PLUG
M/T AR-5 5 SPEED(RNK) 		8-97038-742-3 01 1 9712-9908 ●
305 02.480 HARNESS; EXT,GLOW PLUG 8-97038-742-3 01 1 9909- ●
305 02.480 HARNESS; EXT,GLOW PLUG
A/T AISIN(RMD),M/T AR-5 5 SPEED(RNK) 		8-97038-742-3 01 1 9909- ●
348 02.420 CLIP; HOSE
01.097 ID=11 		8-94238-925-0 02 1 9712-0105 ●
348 02.420 CLIP; HOSE
EXC. EUROPE EQUIPMENT(EK4) 01.097 ID=11 		8-94238-925-0 02 1 0106-0208 ●
348 02.420 CLIP; HOSE
EXC. EURO3 SPECIFICATION(NT3) 01.097 ID=11 		8-94238-925-0 02 1 0209- ●
420 02.183 BRACKET; HARNESS
A/T AISIN(RMD) 02.483 (C) 		8-94315-284-0 01 1 9909- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-884-3 02 1 9712- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97201-754-1 01 1 9712-0105 ●
420 02.183 BRACKET; HARNESS
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97201-754-1 01 1 0106-0208 ●
420 02.183 BRACKET; HARNESS
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97201-754-1 01 1 0209- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97168-852-0 01 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 0106- ●
461 02.559 CLIP; PURSE LOCK
AIR CONDITIONER MANUAL CONT(C60) 01.540 ID=30 		8-94315-423-0 02 1 9712-9908 ● ●
461 02.559 CLIP; PURSE LOCK
AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68) 01.540 ID=30 		8-94315-423-0 02 1 9909- ● ●
461 02.559 CLIP; PURSE LOCK
EXC. AIR CONDITIONER MANUAL CONT(C60) 16.065 ID=20 		1-09709-068-0 02 1 9712-9908 ● ●
461 02.559 CLIP; PURSE LOCK
EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68) 16.065 ID=20 		1-09709-068-0 02 1 9909- ● ●
531 02.510 BOLT; SENSOR BRKT
16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 9712-0105 ●
531 02.510 BOLT; SENSOR BRKT
EXC. EUROPE EQUIPMENT(EK4) 16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 0106-0208 ●
531 02.510 BOLT; SENSOR BRKT
EXC. EURO3 SPECIFICATION(NT3) 16.550 M6X16 W/PL WASHER 		1-09981-438-0 02 1 0209- ●
531 02.510 BOLT; SENSOR BRKT
EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE 		0-28080-610-0 03 1 0106-0208 ●
531 02.510 BOLT; SENSOR BRKT
EURO3 SPECIFICATION(NT3) 02.500 M6X10 FLANGE 		0-28080-610-0 03 1 0209- ●
565 03.672 HOSE; RUBBER 8-97161-536-3 01 1 9712-0105 ●
565 03.672 HOSE; RUBBER
EXC. EUROPE EQUIPMENT(EK4) 		8-97161-536-3 01 1 0106-0208 ●
565 03.672 HOSE; RUBBER
EXC. EURO3 SPECIFICATION(NT3) 		8-97161-536-3 01 1 0209- ●
611 01.150 BRACKET; SENSOR
(E) 		8-97038-641-0 01 1 9712- ●
611 01.150 BRACKET; SENSOR
(A) 		8-97160-909-4 01 1 9712-0105 ●
611 01.150 BRACKET; SENSOR
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97160-909-4 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97160-909-4 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (B) 		8-97241-133-2 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (B) 		8-97241-133-2 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (C) 		8-97263-338-0 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (C) 		8-97263-338-0 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (D) 		8-97263-339-1 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (D) 		8-97263-339-1 01 1 0209- ●
782 02.510 BOLT; SENSOR
02.500 M6X10 FLANGE 		0-28080-610-0 01 1 9712- ●
782 02.510 BOLT; SENSOR
03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 9712-0105 ●
782 02.510 BOLT; SENSOR
EXC. EUROPE EQUIPMENT(EK4) 03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 0106-0208 ●
782 02.510 BOLT; SENSOR
EXC. EURO3 SPECIFICATION(NT3) 03.330 M5X30 W/PL WASHER 		8-97045-438-0 02 1 0209- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 9712-0105 ● ●
782 02.510 BOLT; SENSOR
AUSTRALIA EQUIPMENT(RR3) 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
782 02.510 BOLT; SENSOR
01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0106- ●
793 02.510 BOOT 8-25338-841-0 01 1 0112- ●
796 01.150 SENSOR; MAP
03.320 		8-16040-609-0 01 1 9712-0105 ●
796 01.150 SENSOR; MAP
EXC. EUROPE EQUIPMENT(EK4) 03.320 		8-16040-609-0 01 1 0106-0208 ●
796 01.150 SENSOR; MAP
EXC. EURO3 SPECIFICATION(NT3) 03.320 		8-16040-609-1 01 1 0209-0209 ●
796 01.150 SENSOR; MAP
EXC. EURO3 SPECIFICATION(NT3) 		8-12569-241-0 01 1 0210- ●
796 01.150 SENSOR; MAP
EUROPE EQUIPMENT(EK4) 03.682 		8-97180-655-0 01 1 0106-0208 ●
796 01.150 SENSOR; MAP
EURO3 SPECIFICATION(NT3) 03.682 		8-97180-655-0 01 1 0209- ●
797 01.150 SENSOR; MAT 8-12146-830-0 01 1 9712- ●
810 01.150 SENSOR; CRANK ANGLE
(A) 		8-10456-250-0 01 1 9712-9912 ●
810 01.150 SENSOR; CRANK ANGLE
(A) 		8-10456-660-0 01 1 0001- ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-571-1 01 1 9712-9810 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-613-1 01 1 9811-9912 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-661-0 01 1 0001-0105 ●
810 01.150 SENSOR; CRANK ANGLE
EXC. EUROPE EQUIPMENT(EK4) (B) 		8-10456-661-0 01 1 0106-0111 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-10456-661-0 01 1 0112- ●
810 01.150 SENSOR; CRANK ANGLE
EUROPE EQUIPMENT(EK4) (B) 		8-97261-945-0 01 1 0106-0111 ●
810 01.150 SENSOR; CRANK ANGLE
(B) 		8-25339-914-0 01 1 0112- ●
813 02.480 HARNESS; INJECTOR 8-97146-336-7 01 1 9712-0105 ●
813 02.480 HARNESS; INJECTOR
EXC. EUROPE EQUIPMENT(EK4) 		8-97146-336-8 01 1 0106-0208 ●
813 02.480 HARNESS; INJECTOR
EXC. EURO3 SPECIFICATION(NT3) 		8-97146-336-8 01 1 0209- ●
813 02.480 HARNESS; INJECTOR
EUROPE EQUIPMENT(EK4) 		8-97287-435-0 01 1 0106-0208 ●
813 02.480 HARNESS; INJECTOR
EURO3 SPECIFICATION(NT3) 		8-97287-435-0 01 1 0209- ●

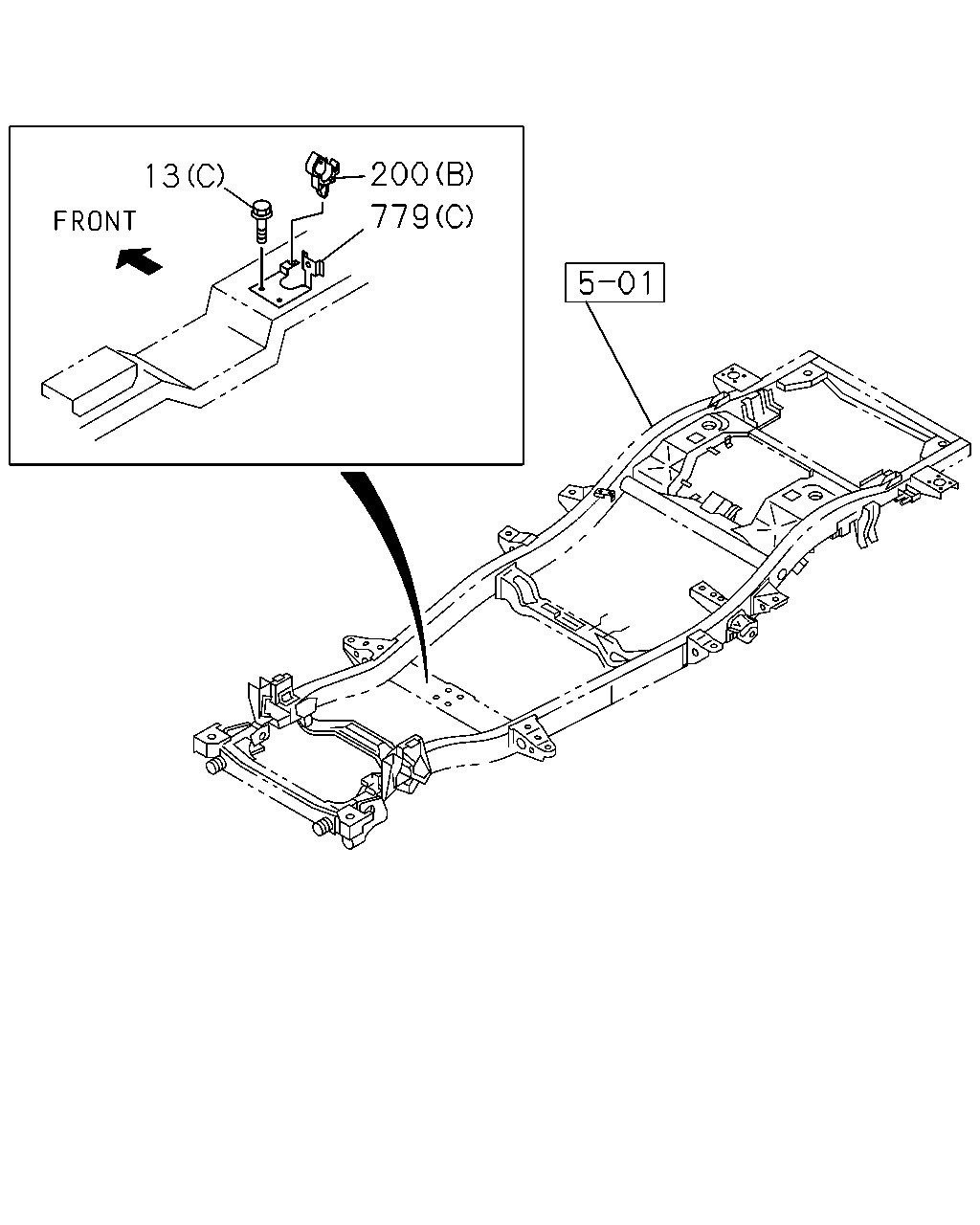

çizim 72040
200 13 779
BalonParca AdiParca NoAdetTipApplied Date A B C D
13 02.100 BOLT; BRKT
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ● ●
13 02.100 BOLT; BRKT
03.704 (E) M8X40 FLANGE 		0-28680-840-0 02 1 9712-0108 ● ●
13 02.100 BOLT; BRKT
16.545 (E) M8X40 FLANGE 		0-28690-840-0 02 1 0109- ● ●
13 02.100 BOLT; BRKT
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0106- ●
13 02.100 BOLT; BRKT
M/T AR-5 5 SPEED(RNK) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 01 1 9712- ●
13 02.100 BOLT; BRKT
09.171 (A) M8X90 FLANGE 		0-28080-890-0 02 1 9712- ● ●
13 02.100 BOLT; BRKT
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 9902-0009 ● ●
200 01.152 CLIP; OXYGEN SENSOR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (B) 		8-97143-183-0 01 1 0106- ●
200 01.152 CLIP; OXYGEN SENSOR
M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 03.430 (A) L=200 		8-94464-835-0 01 1 0106- ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 03.430 (A) L=200 		8-94464-835-0 01 1 9712-9712 ● ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 03.162 (A) L=140 		5-09707-031-1 01 1 9801-9912 ● ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUI PMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 03.162 (A) L=140 		5-09707-031-1 01 1 0001-0102 ● ●
200 01.152 CLIP; OXYGEN SENSOR
EUROPE EQUIPMENT(EK4),EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),WEST MALAYSIA EQU IPMENT(S3D) 03.162 (A) L=140 		5-09707-031-1 01 1 0103- ● ●
779 02.277 BRACKET; CONNECTOR
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (C) 		8-97209-842-0 01 1 0106- ●
779 02.277 BRACKET; CONNECTOR
M/T AR-5 5 SPEED(RNK) (A) 		8-97163-788-0 01 1 9712- ●
779 02.277 BRACKET; CONNECTOR
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 01.150 (B) 		8-97183-098-0 01 1 9902- ● ●

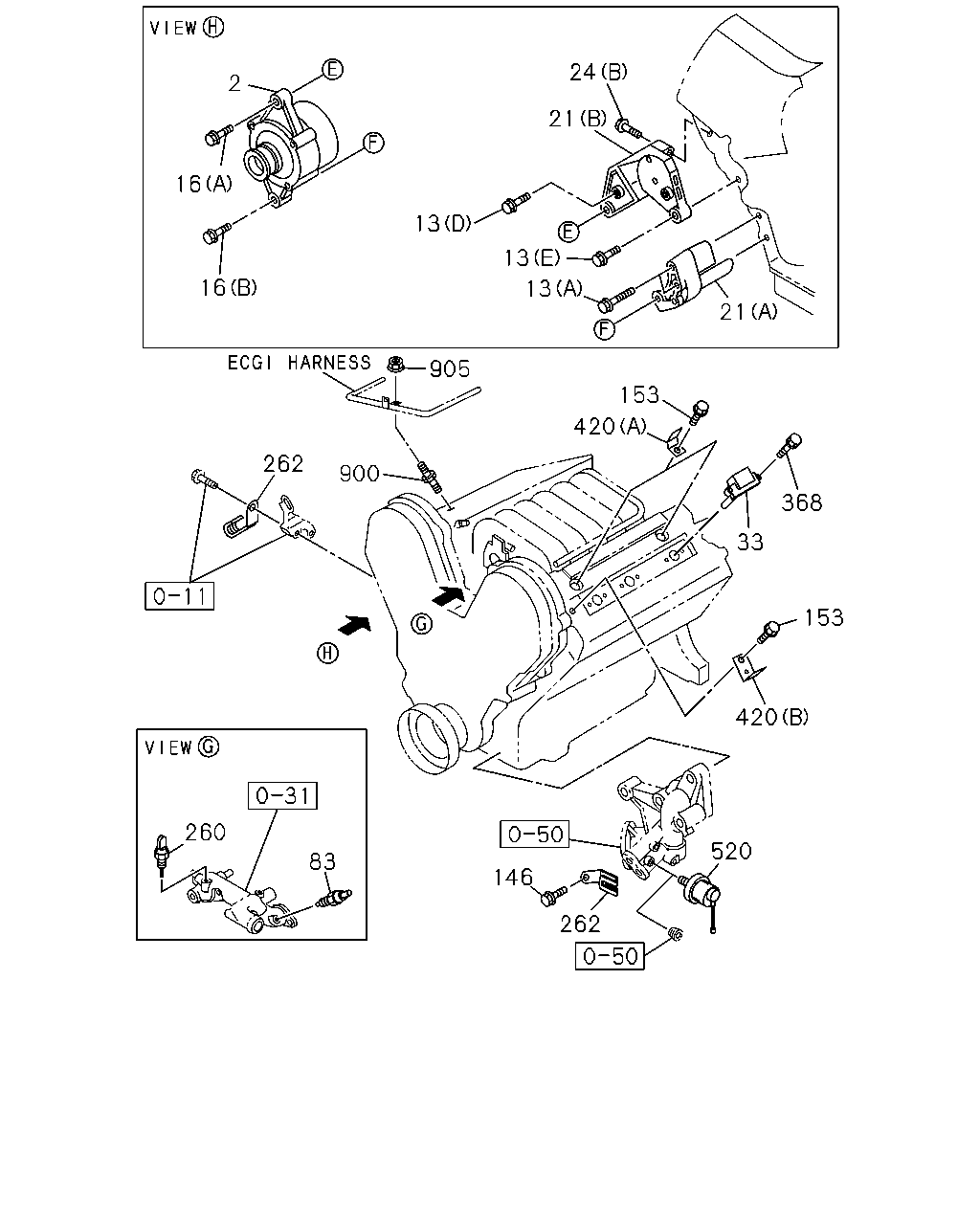

çizim 72200
24 2 21 16 13 13 16 13 21 905 153 420 262 900 368 33 153 420 260 520 83 146 262
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97147-851-0 01 1 9712-9801 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 9802-0005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EAST MALAYSIA EQUIPMENT(PM6), SOUTHAFRICA EQUIPMENT(SW2),WEST MALAYSIA EQ UIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 0006-0102 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 60A 		8-97187-655-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. TURBOCHARGER<K51> 12V 60A 		8-97187-655-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 9712-0005 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EAST MALAYSIA EQUIPMENT(PM6),SOUTH AFRICA EQUIPMENT(SW2),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 0006-0102 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 12V 80A 		8-97133-854-0 01 1 0103- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 60A 		8-97145-386-3 01 1 9712-9804 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97184-531-0 01 1 9805-9812 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 70A 		8-97219-253-0 01 1 9901-9908 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 90A 		8-97215-992-2 01 1 9909-9909 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 100A(8CK) 12V 90A 		8-97215-992-3 01 1 9910- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 100A(8CK) 12V 100A 		8-97233-824-1 01 1 9910- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 75A 		8-97187-304-0 01 1 9712-9809 ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 90A(7XL) 12V 75A 		8-97187-304-0 01 1 9810- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 90A(7XL) 12V 90A 		8-97210-373-0 01 1 9810- ● ●
13 02.100 BOLT; BRKT
04.686 (D) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ● ●
13 02.100 BOLT; BRKT
03.704 (E) M8X40 FLANGE 		0-28680-840-0 02 1 9712-0108 ● ●
13 02.100 BOLT; BRKT
16.545 (E) M8X40 FLANGE 		0-28690-840-0 02 1 0109- ● ●
13 02.100 BOLT; BRKT
A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0106- ●
13 02.100 BOLT; BRKT
M/T AR-5 5 SPEED(RNK) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 01 1 9712- ●
13 02.100 BOLT; BRKT
09.171 (A) M8X90 FLANGE 		0-28080-890-0 02 1 9712- ● ●
13 02.100 BOLT; BRKT
A/T THM(RMQ) EUROPE EQUIPMENT(EK4) 04.439 (B) M6X16 FLANGE 		0-28680-616-0 01 1 9902-0009 ● ●
16 02.277 BOLT; GEN
(C) M10X130 FLANGE 		0-28086-013-0 01 1 9712- ●
16 02.277 BOLT; GEN
(D) M10X120 FLANGE 		0-28086-012-0 01 1 9712-9903 ●
16 02.277 BOLT; GEN
(D) M10X125 FLANGE 		8-97226-470-0 01 1 9904- ●
16 02.277 BOLT; GEN
02.664 (D) M8X20 FLANGE 		0-28680-820-0 01 1 9712-9712 ●
16 02.277 BOLT; GEN
02.559 (D) M8X25 FLANGE 		0-28680-825-0 01 1 9801- ●
16 02.277 BOLT; GEN
(A) M10X90 FLANGE 		0-28081-090-0 01 1 9712- ● ●
16 02.277 BOLT; GEN
04.686 (B) M8X30 FLANGE 		0-28680-830-0 01 1 9712- ● ●
21 02.277 BRACKET; GEN
(B) 		8-97160-604-1 01 1 9712-0012 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97289-024-0 01 1 0101-0201 ● ●
21 02.277 BRACKET; GEN
(B) 		8-97328-364-0 01 1 0202- ● ●
21 02.277 BRACKET; GEN
(C) 		8-94437-276-2 01 1 9712- ●
21 02.277 BRACKET; GEN
(D) 		8-97137-864-4 01 1 9712- ●
21 02.277 BRACKET; GEN
(A) 		8-97160-605-1 01 1 9712-0111 ● ●
21 02.277 BRACKET; GEN
(A) 		8-97941-401-0 01 1 0112- ● ●
24 02.277 BOLT; GEN BRKT
09.171 (A) M10X35 W/LK WASHER 		0-50041-035-0 01 1 9712- ●
24 02.277 BOLT; GEN BRKT
(B) M10X70 W/LK WASHER 		0-50041-070-0 02 1 9712- ●
24 02.277 BOLT; GEN BRKT
00.685 (C) M10X45 FLANGE 		0-28081-045-0 03 1 9712- ●
33 02.170 COIL ASM; IGN
EUROPE EQUIPMENT(EK4) NO.1-NO.5 CYLINDER 		8-19005-249-0 05 1 0106- ●
33 02.170 COIL ASM; IGN
EUROPE EQUIPMENT(EK4) NO.6 CYLINDER 		8-19005-250-1 01 1 0106- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 9712-0105 ● ●
33 02.170 COIL ASM; IGN
AUSTRALIA EQUIPMENT(RR3) 		8-97136-325-0 06 1 0106- ●
33 02.170 COIL ASM; IGN 8-97136-325-0 06 1 0106- ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9712- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94247-437-1 01 1 9712- ● ●
146 02.195 BOLT; CLIP
00.206 M8X10 FLANGE 		0-28080-810-0 01 1 9712- ● ●
153 02.510 BOLT; BRKT FIX
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 9712-9810 ●
153 02.510 BOLT; BRKT FIX
08.900 M8X12 FLANGE 		0-28080-812-0 01 1 9811-0105 ●
153 02.510 BOLT; BRKT FIX
EXC. EUROPE EQUIPMENT(EK4) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0106-0208 ●
153 02.510 BOLT; BRKT FIX
EXC. EURO3 SPECIFICATION(NT3) 08.900 M8X12 FLANGE 		0-28080-812-0 01 1 0209- ●
153 02.510 BOLT; BRKT FIX
AUSTRALIA EQUIPMENT(RR3) 02.500 M6X10 FLANGE 		0-28080-610-0 05 1 0106- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 05 1 0106- ●
153 02.510 BOLT; BRKT FIX
02.500 M6X10 FLANGE 		0-28080-610-0 05 1 9712-0105 ● ●
153 02.510 BOLT; BRKT FIX
EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE 		0-28080-610-0 04 1 0106- ●
260 01.150 SENSOR; WATER TEMP 8-12146-312-0 01 1 9712-0105 ● ●
260 01.150 SENSOR; WATER TEMP 8-15326-386-0 01 1 0106- ● ●
262 02.559 CLIP; HARNESS
ID=12 		5-09700-331-0 03 1 9712- ● ●
368 02.240 BOLT; COIL HARNESS CLIP
03.162 M5X20 W/LK WASHER 		8-94428-007-0 12 1 9712- ● ●
420 02.183 BRACKET; HARNESS
A/T AISIN(RMD) 02.483 (C) 		8-94315-284-0 01 1 9909- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-884-3 02 1 9712- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97201-754-1 01 1 9712-0105 ●
420 02.183 BRACKET; HARNESS
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97201-754-1 01 1 0106-0208 ●
420 02.183 BRACKET; HARNESS
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97201-754-1 01 1 0209- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(A) 		8-97168-851-0 03 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 9712-0105 ● ●
420 02.183 BRACKET; HARNESS
AUSTRALIA EQUIPMENT(RR3) (B) 		8-97168-852-0 01 1 0106- ●
420 02.183 BRACKET; HARNESS
(B) 		8-97168-852-0 01 1 0106- ●
520 01.800 SENSOR; PRESSURE 8-97106-478-2 01 1 9712-0105 ● ●
520 01.800 SENSOR; PRESSURE
EXC. TORQUE ON DEMAND<7HA> 		8-97106-478-2 01 1 0106- ● ●
900 02.559 STUD; HARNESS
EUROPE EQUIPMENT(EK4) 01.428 M6X12 L=21 		9-04110-612-0 01 1 0106- ●
905 02.559 NUT; HARNESS
EUROPE EQUIPMENT(EK4) 02.343 M6 W/LK WASHER 		8-94424-179-0 01 1 0106- ●

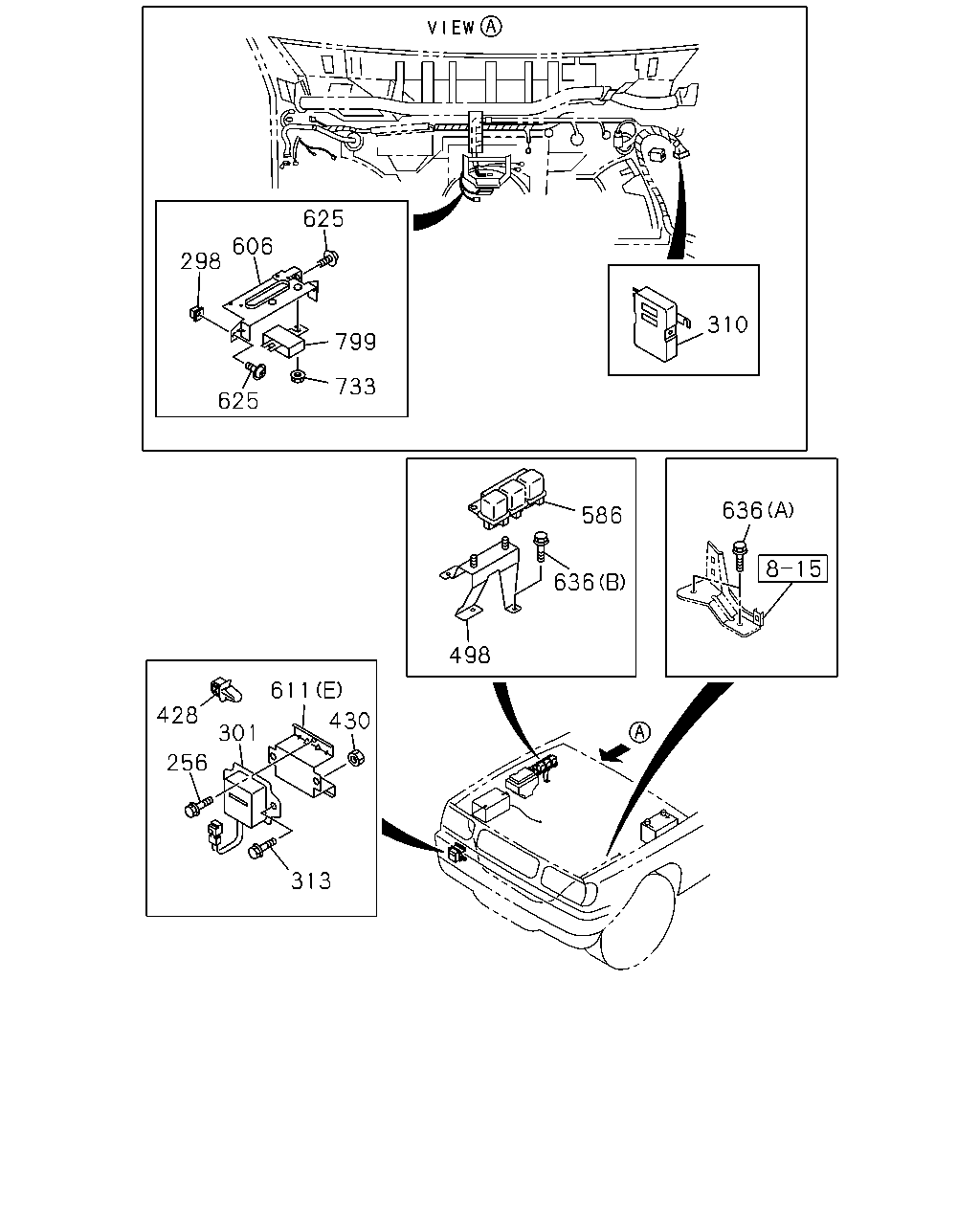

çizim 72293
625 606 298 310 799 733 625 636 586 636 498 611 428 430 301 256 313
BalonParca AdiParca NoAdetTipApplied Date A B C D
256 02.510 BOLT; BRKT,RESISTOR
16.085 M6X14 W/LK&PL WASHER 		1-09980-549-0 02 1 9712- ●
298 02.510 GROMMET; SCREW
09.190 D=9.7X9.7 L=8 		8-94222-314-0 02 1 9712- ●
301 02.510 RESISTOR; DROPPING 8-94389-802-1 01 1 9712- ●
310 02.510 CONTROLLER; QOS
EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97047-029-0 01 1 9712- ●
313 02.500 BOLT; RESISTOR TO BRKT
16.085 M6X14 W/LK&PL WASHER 		1-09980-549-0 02 1 9712- ●
428 02.559 CLIP; HARNESS
08.077 		8-94225-098-0 01 1 9712- ●
430 02.100 NUT; RELAY FIX
04.594 M6 FLANGE 		0-91150-106-0 02 1 9712- ●
498 02.510 BRACKET; RELAY 8-94389-761-4 01 1 9712- ●
498 02.510 BRACKET; RELAY 8-97172-710-1 01 1 9712- ●
586 02.100 RELAY; QOS 8-94389-760-1 01 1 9712- ●
606 03.680 BRACKET; CONT UNIT
EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97110-369-0 01 1 9712- ●
606 03.680 BRACKET; CONT UNIT
EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97110-327-0 01 1 9712- ●
611 01.150 BRACKET; SENSOR
(E) 		8-97038-641-0 01 1 9712- ●
611 01.150 BRACKET; SENSOR
(A) 		8-97160-909-4 01 1 9712-0105 ●
611 01.150 BRACKET; SENSOR
EXC. EUROPE EQUIPMENT(EK4) (A) 		8-97160-909-4 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EXC. EURO3 SPECIFICATION(NT3) (A) 		8-97160-909-4 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (B) 		8-97241-133-2 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (B) 		8-97241-133-2 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (C) 		8-97263-338-0 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (C) 		8-97263-338-0 01 1 0209- ●
611 01.150 BRACKET; SENSOR
EUROPE EQUIPMENT(EK4) (D) 		8-97263-339-1 01 1 0106-0208 ●
611 01.150 BRACKET; SENSOR
EURO3 SPECIFICATION(NT3) (D) 		8-97263-339-1 01 1 0209- ●
625 02.270 SCREW; CONT UNIT
16.585 M6X14 W/PL WASHER 		9-03900-614-0 03 1 9712- ●
636 02.510 BOLT; BRKT
01.428 (A) M6X12 FLANGE 		0-28080-612-0 02 1 9712- ●
636 02.510 BOLT; BRKT
06.635 (B) M6X16 FLANGE 		0-28480-616-0 03 1 9712- ●
733 02.343 NUT; BRKT
03.671 M5 FLANGE 		8-94178-699-0 02 1 9712- ●
799 02.510 CONTROLLER; EGR/QOS
EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 		8-97110-340-1 01 1 9712- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
