◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10806 - EXZ RHD FUEL TANK 400L ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#7323) — 578 parça

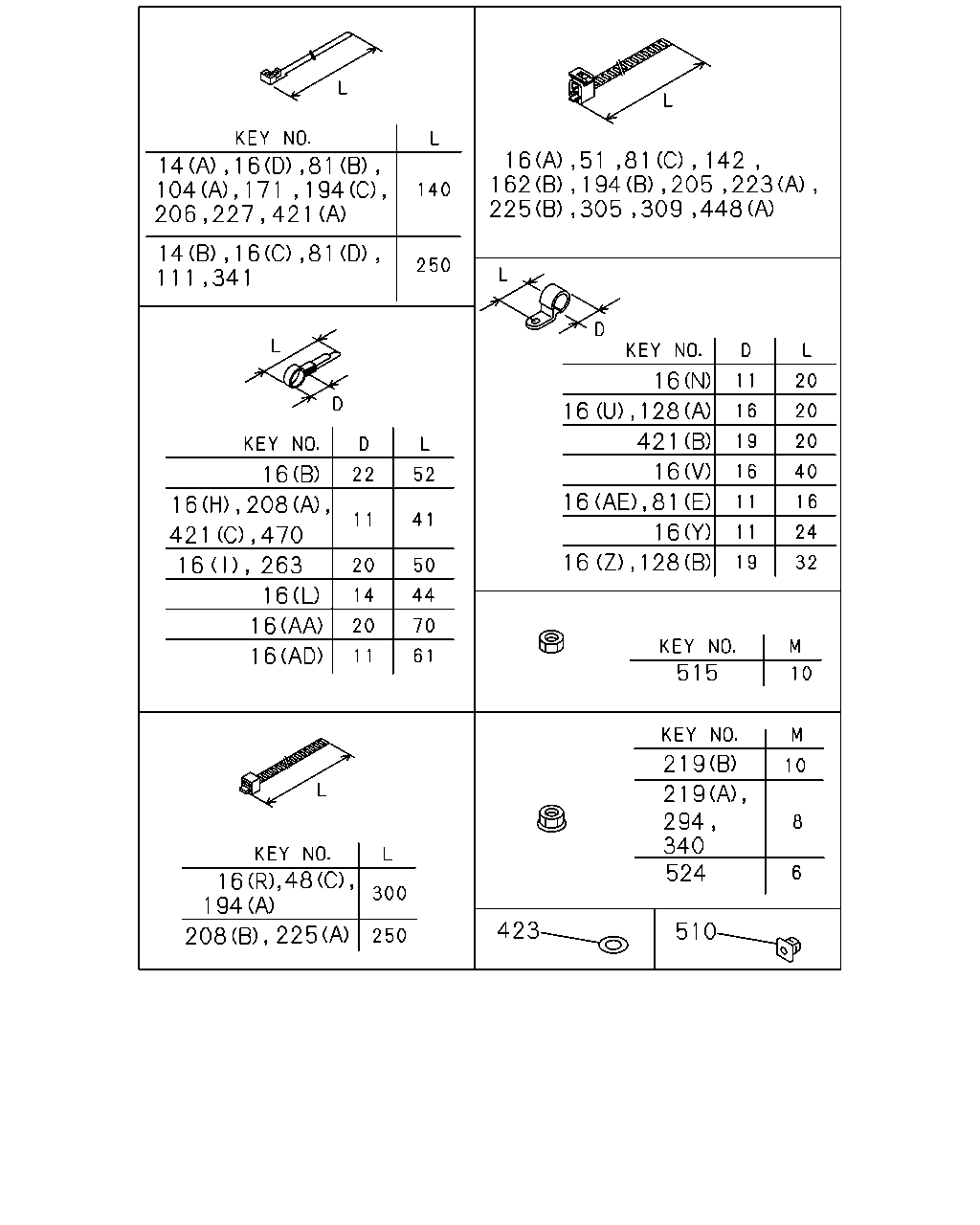

çizim 7533
14 16 81 104 171 194 206 227 421 14 16 81 111 341 16 16 208 421 470 16 263 16 16 16 16 48 194 208 225 423 510 340 524 219 219 294 515 16 128 16 81 16 16 421 16 128 16 225 305 309 448 223 205 194 162 16 51 81 142
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250 		5-09707-030-1 02 1 9906-
14 CLIP; BAND,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140 		5-09707-031-1 01 1 9906-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9906-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 04 1 9906-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9906-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9906-0005
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9906-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9906-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9906-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9906-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9906-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9906-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9906-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9906-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9906-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(AC) 		8-94403-348-0 01 1 9906-0005
16 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (AC) 		8-94403-348-0 01 1 0006-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9906-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9906-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9906-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) ID=11 L=61 		1-09700-484-0 04 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) L=140 		5-09707-031-1 06 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11 L=20 		9-09525-035-0 02 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		9-09525-025-0 01 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (Y) ID=11 L=24 		9-09525-045-0 01 1 9906-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9906-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (T) L=36 		8-94224-891-1 01 1 9906-
16 CLIP; HARNESS
HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 02 1 9906-
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9906-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
SHIFT INDICATOR T/M GEAR POSITION<WS1> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9906-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 04 1 9906-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (I) ID=20 L=50 		9-09917-430-0 07 1 9906-
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (I) ID=20 L=50 		9-09917-430-0 08 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 9906-0008
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0009-
16 CLIP; HARNESS
ZF M/T<X9E> (F) OD=9 H=6 		1-09709-178-0 03 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (V) ID=16 L=40 		9-09525-576-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (AB) ID=42.7 L=38 		1-09700-583-1 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (J) ID=20 H=23 L=27 		1-09700-861-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (Z) ID=19 L=32 		1-09701-235-0 01 1 9906-9907
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=19 L=32 		1-09701-235-0 01 1 9908-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) (AB) ID=32 L=35 		1-09701-244-0 01 1 9908-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 9906-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9906-
48 CLIP; FRAME HARNESS
EXC. CAB UP +110MM<TGG> (B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9906-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9906-0005
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0006-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 9906-0005
48 CLIP; FRAME HARNESS
CAB UP +110MM<TGG> (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0006-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 9906-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 06 1 9906-
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=300 		1-09707-001-1 05 1 9906-0005
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=300 		1-09707-001-1 04 1 0006-
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0006-
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM(47W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0006-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 9906-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9906-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=16 		9-09525-025-0 01 1 9906-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 9906-9907
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 02 1 9908-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 9908-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (C) L=180 		1-09707-162-1 02 1 9906-
81 CLIP; HARNESS
EXC. REINFORCEMENT BUMPER<VG7> (B) L=140 		5-09707-031-1 02 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5 		1-09709-290-0 08 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 9906-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 9906-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9906-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9906-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L),6WA1 TC-S(56L) L=180 		1-09707-162-1 01 1 9906-9906
142 CLIP; HARNESS,ENG
6WA1 TC-C(55L) L=180 		1-09707-162-1 01 1 9907-
142 CLIP; HARNESS,ENG
6WG1 TC-N(71L) L=180 		1-09707-162-1 02 1 9906-
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> (B) L=180 		1-09707-162-1 01 1 9906-
162 CLIP; SW HARNESS
EXC. CAB UP +110MM<TGG> (A) OD=9 H=6 		1-09709-178-0 01 1 9906-
171 CLIP; STARTER HARNESS
L=140 		5-09707-031-1 05 1 9906-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 9906-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 9906-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 9906-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 9906-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9906-
208 CLIP; HARNESS,MAG VLV
(B) L=250 		1-09707-126-0 01 1 9906-
208 CLIP; HARNESS,MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=41 		1-09700-403-0 01 1 9906-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 9906-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 9906-9908
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 9906-9908
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 9909-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 9906-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 9909-
219 NUT
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (B) M10 FLANGE 		0-91150-210-0 01 1 9906-
219 NUT
MJA7 M/T<X9Q> (B) M10 FLANGE 		0-91150-210-0 01 1 9906-
219 NUT
ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 02 1 9906-9908
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 9906-9908
219 NUT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8 FLANGE 		0-91150-108-0 02 1 9909-
219 NUT
6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8 FLANGE 		0-91150-108-0 01 1 9906-9907
219 NUT
6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8 FLANGE 		0-91150-108-0 01 1 9906-9907
219 NUT
EXC. ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 9906-9907
219 NUT
6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8 FLANGE 		0-91150-108-0 01 1 9908-9908
219 NUT
EXC. ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 9908-9908
219 NUT
FULLER M/T<X9B>,ZF M/T<X9E> (A) M8 FLANGE 		0-91150-108-0 01 1 9909-
219 NUT
6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8 FLANGE 		0-91150-108-0 01 1 9909-
223 CLIP; AIR TANK HARNESS
SILENCER SINGLE VERTICAL<N28> EXC. THAILAND EQUIPMENT(PM9) (C) ID=13-18 L=14.5 		1-09709-290-0 02 1 9906-
223 CLIP; AIR TANK HARNESS
EXC. SILENCER SINGLE VERTICAL<N28> (D) ID=5-12 L=18 		1-09709-287-0 01 1 9906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 9906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (B) OD=9 H=9.5 		1-09709-179-0 01 1 9906-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 9906-
225 CLIP; AIR TANK HARNESS
HONG KONG EQUIPMENT(PQ1) (B) L=180 		1-09707-162-1 01 1 9906-
225 CLIP; AIR TANK HARNESS
EXC. SILENCER SINGLE VERTICAL<N28> (A) L=250 		1-09707-126-0 01 1 9906-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 9906-
227 CLIP; FOG LAMP HARNESS
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> L=140 		5-09707-031-1 02 1 9906-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 01 1 9906-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9906-9907
294 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9906-9907
294 NUT
FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 9906-9907
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 01 1 9906-9907
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
ISUZU M/T<X9A>,FULLER M/T<X9B> M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 01 1 9908-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9909-
294 NUT
ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 9909-
294 NUT
CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9909-
294 NUT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 01 1 9909-
294 NUT
6WA1 TC-C(55L),6WG1 TC-N(71L) M8 FLANGE 		0-91150-108-0 02 1 9906-9907
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 9906-9907
294 NUT
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 02 1 9908-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 9906-
309 CLIP; HARNESS,HAND BRAKE CABLE
L=180 		1-09707-162-1 01 1 9906-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9906-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 9906-
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 12 1 9906-0101
421 CLIP; FLOOR HARNESS
(C) L=20 		1-09987-246-2 01 1 0102-
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> (C) L=20 		1-09987-246-2 05 1 0102-
421 CLIP; FLOOR HARNESS
VENTILATOR & DEFROSTER WO/HEATER(SAZ),HEATER VENTILATION AIR CONDITIONING DELETE(TFA) (A) L=140 		5-09707-031-1 01 1 9906-
421 CLIP; FLOOR HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) ID=19 L=20 		9-09525-832-0 02 1 9906-
421 CLIP; FLOOR HARNESS
ELECTRONIC GOV RED3(KG5) (B) ID=19 L=20 		9-09525-832-0 02 1 9906-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9906-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 9906-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 9906-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9906-
510 GROMMET; SCREW
ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 02 1 9906-
510 GROMMET; SCREW
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) D=9.7X9.7 L=8 		8-94222-314-0 01 1 9906-
515 NUT; BRKT
EXC. ELECTRONIC GOV RED3(KG5) M10 		9-09110-510-0 02 1 9906-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9906-

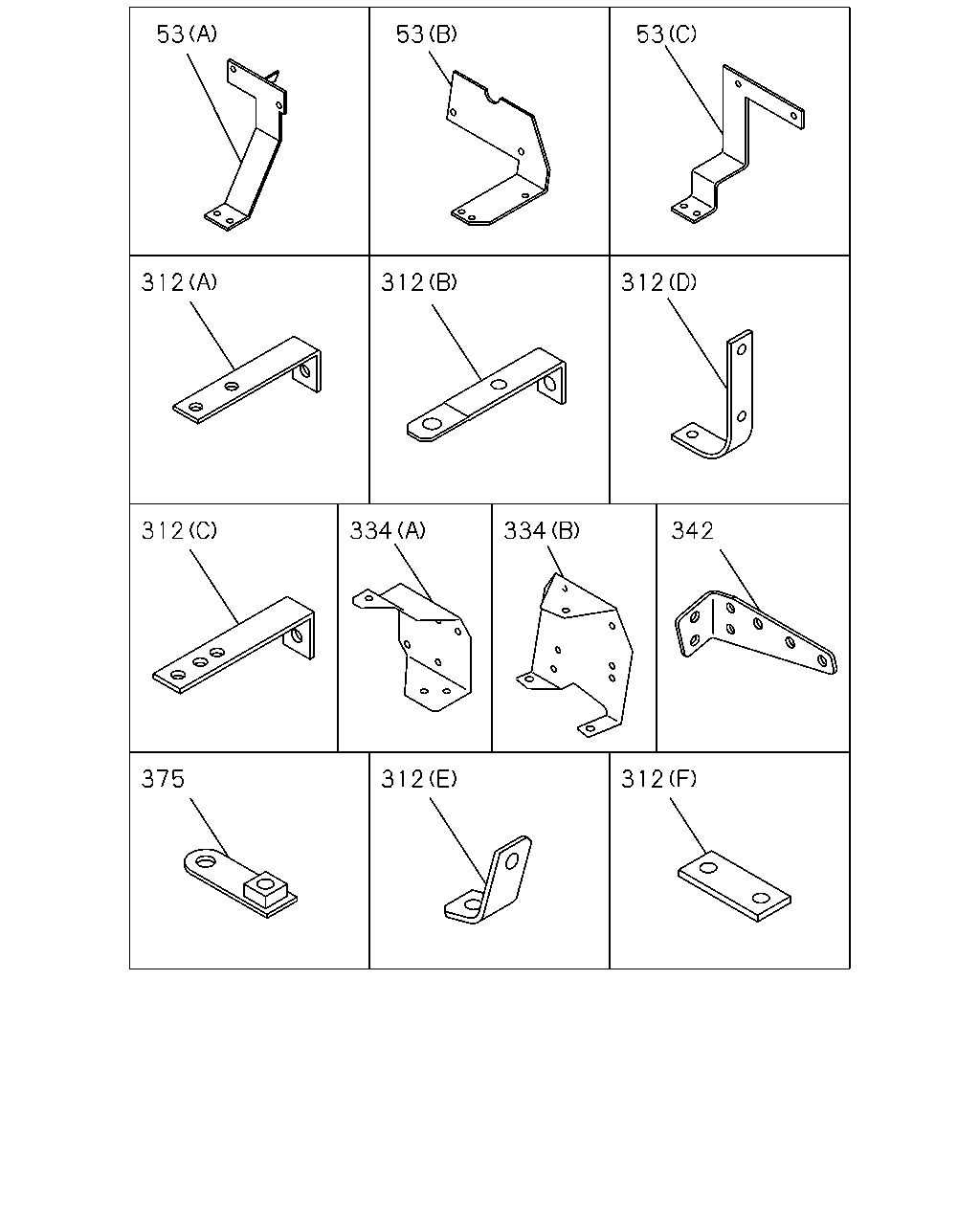

çizim 42671
53 53 53 312 312 312 312 334 334 342 375 312 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
EXC. CAB UP +110MM<TGG> (A) 		1-82699-592-2 01 1 9906-
53 BRACKET; HARNESS
EXC. CAB UP +110MM<TGG> (B) 		1-82699-826-0 01 1 9906-
53 BRACKET; HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) 		1-82699-916-0 01 1 9906-
312 BRACKET; CLIP HARNESS
(A) L=120 		1-82699-465-0 01 1 9906-0007
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (B) L=60 H=30 		1-47477-716-1 01 1 9906-
312 BRACKET; CLIP HARNESS
FULLER M/T<X9B> (C) L=120 H=35 		1-82699-970-0 01 1 9906-9907
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A>,FULLER M/T<X9B> (C) L=120 H=35 		1-82699-970-0 01 1 9908-9908
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (C) L=120 H=35 		1-82699-970-0 01 1 9909-0007
312 BRACKET; CLIP HARNESS
(C) L=120 H=35 		1-82699-970-0 01 1 0008-
312 BRACKET; CLIP HARNESS
ISUZU M/T<X9A> (C) L=120 H=35 		1-82699-970-0 01 1 0008-
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (D) 		1-47477-156-2 01 1 9906-
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (E) 		1-82699-199-0 01 1 9906-
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (F) 		1-82699-239-0 01 1 9906-9907
312 BRACKET; CLIP HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-82699-239-0 01 1 9908-
334 BRACKET
(A) 		1-53458-362-0 01 1 9906-
334 BRACKET
EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-53458-709-1 01 1 9906-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 9906-0007
342 BRACKET; HARNESS CAB MTG
EXC. ZF M/T<X9E> 		1-82699-625-0 01 1 0008-
342 BRACKET; HARNESS CAB MTG
ZF M/T<X9E> 		1-82698-224-0 01 1 0008-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 9906-

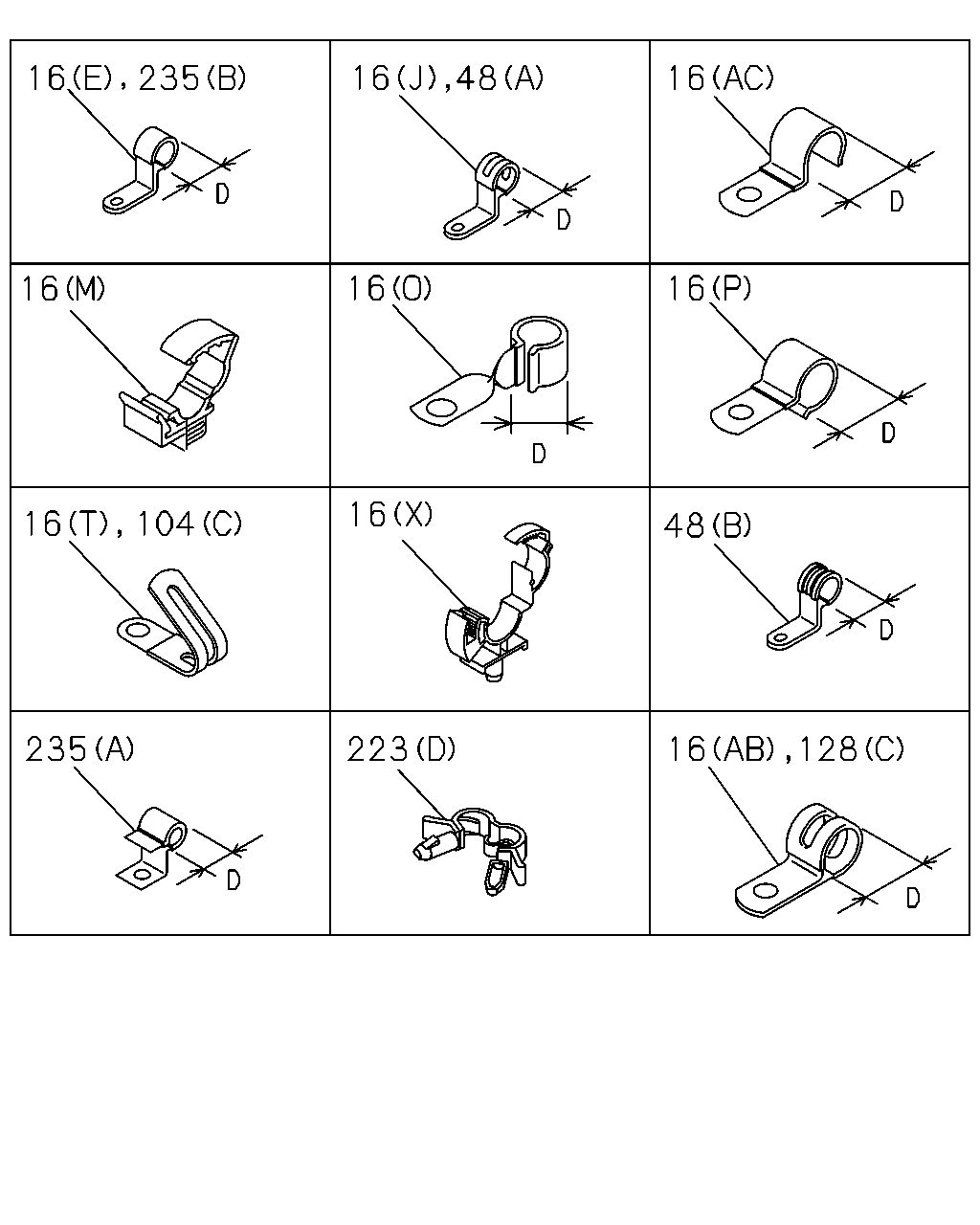

çizim 43048
16 16 16 16 16 16 104 48 235 223 16 128 16 235 16 48
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9906-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 04 1 9906-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9906-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9906-0005
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9906-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9906-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9906-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9906-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9906-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9906-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9906-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9906-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9906-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(AC) 		8-94403-348-0 01 1 9906-0005
16 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (AC) 		8-94403-348-0 01 1 0006-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9906-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9906-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9906-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) ID=11 L=61 		1-09700-484-0 04 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) L=140 		5-09707-031-1 06 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11 L=20 		9-09525-035-0 02 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		9-09525-025-0 01 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (Y) ID=11 L=24 		9-09525-045-0 01 1 9906-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9906-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (T) L=36 		8-94224-891-1 01 1 9906-
16 CLIP; HARNESS
HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 02 1 9906-
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9906-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
SHIFT INDICATOR T/M GEAR POSITION<WS1> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9906-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 04 1 9906-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (I) ID=20 L=50 		9-09917-430-0 07 1 9906-
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (I) ID=20 L=50 		9-09917-430-0 08 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 9906-0008
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0009-
16 CLIP; HARNESS
ZF M/T<X9E> (F) OD=9 H=6 		1-09709-178-0 03 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (V) ID=16 L=40 		9-09525-576-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (AB) ID=42.7 L=38 		1-09700-583-1 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (J) ID=20 H=23 L=27 		1-09700-861-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (Z) ID=19 L=32 		1-09701-235-0 01 1 9906-9907
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=19 L=32 		1-09701-235-0 01 1 9908-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) (AB) ID=32 L=35 		1-09701-244-0 01 1 9908-
48 CLIP; FRAME HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 9906-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9906-
48 CLIP; FRAME HARNESS
EXC. CAB UP +110MM<TGG> (B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9906-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9906-0005
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0006-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 9906-0005
48 CLIP; FRAME HARNESS
CAB UP +110MM<TGG> (A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0006-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 9906-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 06 1 9906-
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=300 		1-09707-001-1 05 1 9906-0005
48 CLIP; FRAME HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (C) L=300 		1-09707-001-1 04 1 0006-
48 CLIP; FRAME HARNESS
WHEEL BASE 4500MM(45W) (A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0006-
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM(47W) (A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0006-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5 		1-09709-290-0 08 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 9906-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9906-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9906-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
223 CLIP; AIR TANK HARNESS
SILENCER SINGLE VERTICAL<N28> EXC. THAILAND EQUIPMENT(PM9) (C) ID=13-18 L=14.5 		1-09709-290-0 02 1 9906-
223 CLIP; AIR TANK HARNESS
EXC. SILENCER SINGLE VERTICAL<N28> (D) ID=5-12 L=18 		1-09709-287-0 01 1 9906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 9906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (B) OD=9 H=9.5 		1-09709-179-0 01 1 9906-
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9906-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=13 H=29 L=30 		1-09700-001-0 01 1 9908-

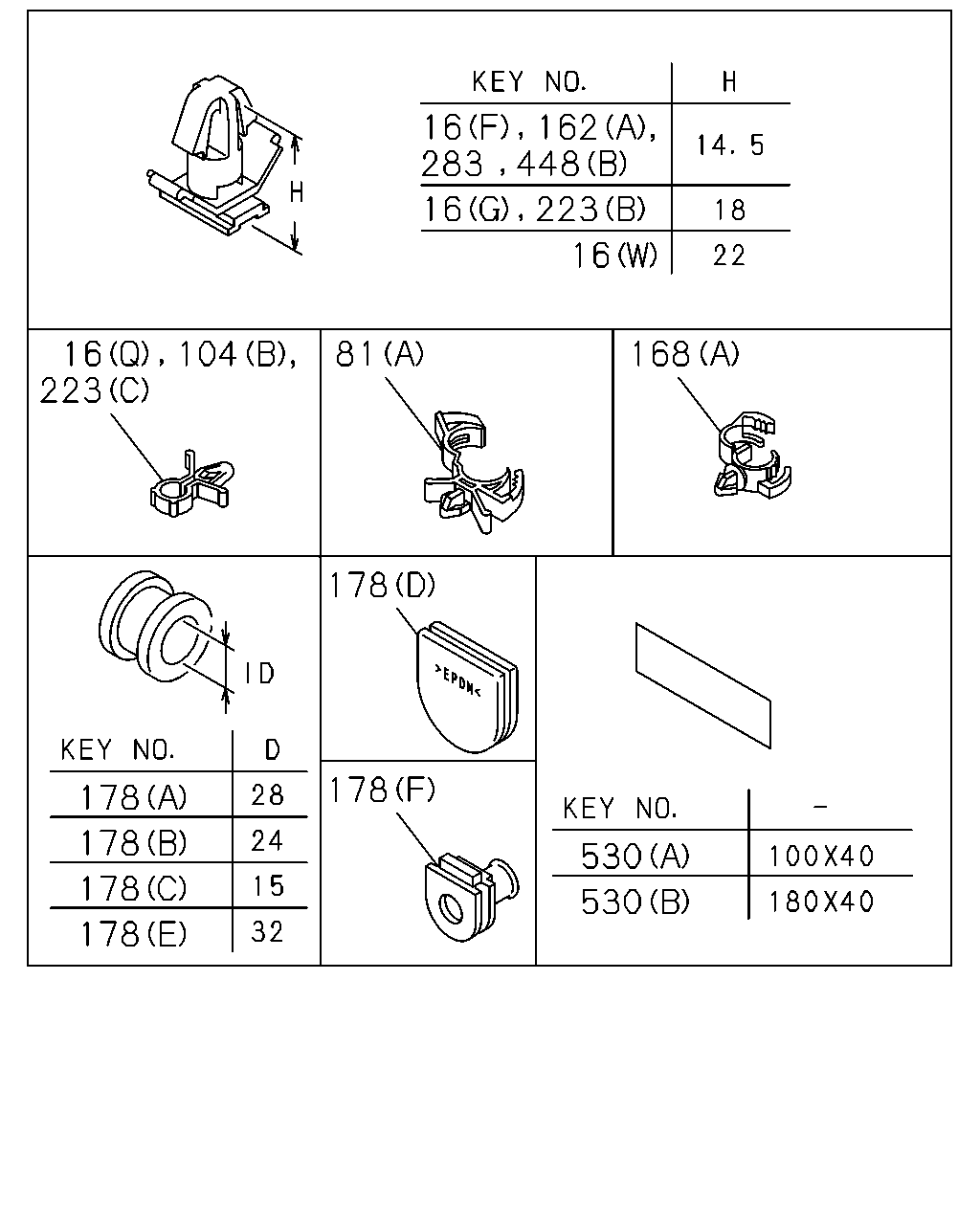

çizim 43549
16 162 16 16 16 223 104 81 168 178 178 178 178 530 178 530 178 283 448 223
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9906-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 04 1 9906-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9906-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9906-0005
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9906-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9906-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9906-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9906-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9906-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9906-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9906-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9906-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9906-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(AC) 		8-94403-348-0 01 1 9906-0005
16 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (AC) 		8-94403-348-0 01 1 0006-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9906-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9906-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9906-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) ID=11 L=61 		1-09700-484-0 04 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) L=140 		5-09707-031-1 06 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11 L=20 		9-09525-035-0 02 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		9-09525-025-0 01 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (Y) ID=11 L=24 		9-09525-045-0 01 1 9906-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9906-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (T) L=36 		8-94224-891-1 01 1 9906-
16 CLIP; HARNESS
HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 02 1 9906-
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9906-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
SHIFT INDICATOR T/M GEAR POSITION<WS1> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9906-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 04 1 9906-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (I) ID=20 L=50 		9-09917-430-0 07 1 9906-
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (I) ID=20 L=50 		9-09917-430-0 08 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 9906-0008
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0009-
16 CLIP; HARNESS
ZF M/T<X9E> (F) OD=9 H=6 		1-09709-178-0 03 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (V) ID=16 L=40 		9-09525-576-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (AB) ID=42.7 L=38 		1-09700-583-1 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (J) ID=20 H=23 L=27 		1-09700-861-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (Z) ID=19 L=32 		1-09701-235-0 01 1 9906-9907
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=19 L=32 		1-09701-235-0 01 1 9908-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) (AB) ID=32 L=35 		1-09701-244-0 01 1 9908-
81 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9906-
81 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) ID=11 L=16 		9-09525-025-0 01 1 9906-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 9906-9907
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 02 1 9908-
81 CLIP; HARNESS
BUMPER W/HEADLAMPS<SLB> EXC. FRONT SPOILER<VP1> (A) ID=7-10 		8-94472-578-0 06 1 9908-
81 CLIP; HARNESS
REINFORCEMENT BUMPER<VG7> (C) L=180 		1-09707-162-1 02 1 9906-
81 CLIP; HARNESS
EXC. REINFORCEMENT BUMPER<VG7> (B) L=140 		5-09707-031-1 02 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (B) ID=13-18 L=14.5 		1-09709-290-0 08 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (A) L=140 		5-09707-031-1 02 1 9906-
104 CLIP; HEADLAMP HARNESS
BUMPER W/HEADLAMPS<SLB> (C) ID=21 L=47.5 		8-94178-108-0 02 1 9906-
162 CLIP; SW HARNESS
CAB UP +110MM<TGG> (B) L=180 		1-09707-162-1 01 1 9906-
162 CLIP; SW HARNESS
EXC. CAB UP +110MM<TGG> (A) OD=9 H=6 		1-09709-178-0 01 1 9906-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 9906-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0102-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9906-
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 9906-0007
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0008-
178 GROMMET; HARNESS
(C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9906-
178 GROMMET; HARNESS
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (C) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9906-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 02 1 9906-
178 GROMMET; HARNESS
(D) 		1-82699-891-0 01 1 9906-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (B) ID=24 OD=30 T=22 		1-09332-104-0 02 1 9906-
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (F) ID=6 		1-82699-468-0 03 1 9906-
223 CLIP; AIR TANK HARNESS
SILENCER SINGLE VERTICAL<N28> EXC. THAILAND EQUIPMENT(PM9) (C) ID=13-18 L=14.5 		1-09709-290-0 02 1 9906-
223 CLIP; AIR TANK HARNESS
EXC. SILENCER SINGLE VERTICAL<N28> (D) ID=5-12 L=18 		1-09709-287-0 01 1 9906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 9906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (B) OD=9 H=9.5 		1-09709-179-0 01 1 9906-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9906-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 9906-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 9906-
530 SEAL; HARNESS
(B) 180X40 		1-72498-019-0 07 1 0102-
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> (B) 180X40 		1-72498-019-0 02 1 0102-
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) 180X40 		1-72498-019-0 01 1 0009-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> (A) 100X40 		1-72498-022-0 01 1 9906-0011
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-0 01 1 0012-
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> (A) 100X40 		1-72498-022-0 01 1 0012-
530 SEAL; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 180X40 		1-72498-019-0 06 1 9906-0101
530 SEAL; HARNESS
ELECTRONIC GOV RED3(KG5) (B) 180X40 		1-72498-019-0 06 1 9906-0101
530 SEAL; HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 180X40 		1-72498-019-0 04 1 0102-
530 SEAL; HARNESS
ELECTRONIC GOV RED3(KG5) (B) 180X40 		1-72498-019-0 04 1 0102-
çizim 44055
5 16 116 148 211 324 168 16 185 224
BalonParca AdiParca NoAdetTipApplied Date
5 GUIDE; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) L=360 		1-82699-476-1 01 1 9906-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9906-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 04 1 9906-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9906-
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9906-0005
16 CLIP; HARNESS
(J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
CAB UP +110MM<TGG> (J) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-
16 CLIP; HARNESS
(J) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9906-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9906-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9906-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9906-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9906-
16 CLIP; HARNESS
(S) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9906-
16 CLIP; HARNESS
(S) W/SPONGE RUBBER 		1-09709-150-0 01 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (F) OD=9 H=6 		1-09709-178-0 02 1 9906-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9906-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9906-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9906-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
FULLER M/T<X9B> (C) L=250 		5-09707-030-1 02 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9908-
16 CLIP; HARNESS
(AC) 		8-94403-348-0 01 1 9906-0005
16 CLIP; HARNESS
EXC. CAB UP +110MM<TGG> (AC) 		8-94403-348-0 01 1 0006-
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9906-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9906-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (U) ID=16 L=20 		9-09525-535-0 01 1 9909-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9906-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9906-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 9906-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9906-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 9906-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (AD) ID=11 L=61 		1-09700-484-0 04 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (D) L=140 		5-09707-031-1 06 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11 L=20 		9-09525-035-0 02 1 9906-
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM(BFA) EXC. ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (H) ID=11 L=41 		1-09700-403-0 02 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (AE) ID=11 L=16 		9-09525-025-0 01 1 9906-
16 CLIP; HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (Y) ID=11 L=24 		9-09525-045-0 01 1 9906-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9906-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9908-9908
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 9909-0001
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
DELUXE CAB(W14) EXC. MIR O/S REMOTE,W/DEFG,WO/WIPER & WASHER<TDD> (D) L=140 		5-09707-031-1 01 1 0002-
16 CLIP; HARNESS
EXC. FULLER M/T<X9B>,ZF M/T<X9E> (T) L=36 		8-94224-891-1 01 1 9906-
16 CLIP; HARNESS
HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 02 1 9906-
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9906-9908
16 CLIP; HARNESS
MJA7 M/T<X9Q> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
SHIFT INDICATOR T/M GEAR POSITION<WS1> (F) OD=9 H=6 		1-09709-178-0 01 1 9909-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9906-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (K) L=20 		1-09987-246-2 04 1 9906-
16 CLIP; HARNESS
TRANSMISSION-ZF 16S221 OD(Y1U) (J) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0009-
16 CLIP; HARNESS
WHEEL BASE 4500MM(45W) (I) ID=20 L=50 		9-09917-430-0 07 1 9906-
16 CLIP; HARNESS
WHEEL BASE 4700MM(47W) (I) ID=20 L=50 		9-09917-430-0 08 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 9906-0008
16 CLIP; HARNESS
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) (E) ID=15 H=30 L=30 		1-09700-832-0 01 1 0009-
16 CLIP; HARNESS
ZF M/T<X9E> (F) OD=9 H=6 		1-09709-178-0 03 1 9906-
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9906-9907
16 CLIP; HARNESS
ZF M/T<X9E> (C) L=250 		5-09707-030-1 03 1 9908-
16 CLIP; HARNESS
EXC. ZF M/T<X9E> (V) ID=16 L=40 		9-09525-576-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (AB) ID=42.7 L=38 		1-09700-583-1 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (J) ID=20 H=23 L=27 		1-09700-861-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (Z) ID=19 L=32 		1-09701-235-0 01 1 9906-9907
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) EXC. ANTILOCK BRAKE SYSTEM(BFA) (Z) ID=19 L=32 		1-09701-235-0 01 1 9908-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9906-
16 CLIP; HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) (AB) ID=32 L=35 		1-09701-244-0 01 1 9908-
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 9906-0009
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 05 1 0010-
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 		1-09987-246-2 03 1 9906-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 9906-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 9906-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 		1-09987-265-0 01 1 0102-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0005-
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM(BFA) L=105 		1-47477-409-0 02 1 9906-
224 SLEEVE; RUBBER,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=32 OD=36 L=50 		1-09337-023-0 01 1 9906-
324 BRACKET; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) L=110 		1-82699-589-0 01 1 9906-
çizim 44097
38 38 38 242 150 38 139 38 516 88 239 38 139 313 64 38 242 313 242 242 133 119 255
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(B) M6X8 		0-20800-608-0 01 1 9906-
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9906-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28080-820-0 01 1 9906-
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 07 1 9906-9907
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 06 1 9908-0005
38 BOLT; CLIP,HARNESS
(G) M8X20 FLANGE 		0-28680-820-0 05 1 0006-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 03 1 9906-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 09 1 9906-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 9906-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9906-
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM(BFA) (G) M8X20 FLANGE 		0-28680-820-0 02 1 9906-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9906-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (G) M8X20 FLANGE 		0-28680-820-0 01 1 9906-9908
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) (G) M8X20 FLANGE 		0-28680-820-0 01 1 9906-9908
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (G) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0005
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (G) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0005
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) (G) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0005
38 BOLT; CLIP,HARNESS
FULLER M/T<X9B>,ZF M/T<X9E> (G) M8X20 FLANGE 		0-28680-820-0 01 1 0006-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (G) M8X20 FLANGE 		0-28680-820-0 01 1 0006-
38 BOLT; CLIP,HARNESS
CAB UP +110MM<TGG> (G) M8X20 FLANGE 		0-28680-820-0 01 1 0006-
38 BOLT; CLIP,HARNESS
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) (G) M8X20 FLANGE 		0-28680-820-0 01 1 0006-
38 BOLT; CLIP,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (C) M8X30 FLANGE 		0-28680-830-0 02 1 9906-
64 SCREW; CLIP
ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 9906-
64 SCREW; CLIP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 9906-
88 BOLT; DOOR HARNESS EARTH
POWER WINDOW<A30> M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9906-
119 SCREW; DOOR HARNESS EARTH
EXC. POWER WINDOW<A30> M5X14 W/PL WASHER 		8-94447-551-0 02 1 9906-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9906-
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE 		0-28680-830-0 02 1 9906-
139 BOLT; BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) M8X25 FLANGE 		0-28680-825-0 01 1 9906-
150 BOLT; CLIP
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X12 W/LK WASHER 		0-50040-812-0 01 1 9906-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9906-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9906-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9906-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9906-
242 BOLT; BRKT,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 02 1 9906-
242 BOLT; BRKT,HARNESS
EXC. CAB UP +110MM<TGG> (C) M8X20 FLANGE 		0-28080-820-0 04 1 9906-9910
242 BOLT; BRKT,HARNESS
EXC. CAB UP +110MM<TGG> (D) M8X18 FLANGE 		0-28080-818-0 04 1 9911-
242 BOLT; BRKT,HARNESS
EXC. ELECTRONIC GOV RED3(KG5) (B) M10X20 FLANGE 		0-28681-020-0 02 1 9906-
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (C) M8X20 FLANGE 		0-28080-820-0 02 1 9906-9910
242 BOLT; BRKT,HARNESS
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. CAB UP +110MM<TGG> (D) M8X18 FLANGE 		0-28080-818-0 02 1 9911-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9906-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9907
313 BOLT; BRKT
CAB UP +110MM<TGG> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9907
313 BOLT; BRKT
FULLER M/T<X9B> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9906-9907
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9908-9908
313 BOLT; BRKT
CAB UP +110MM<TGG> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9908-9908
313 BOLT; BRKT
ISUZU M/T<X9A>,FULLER M/T<X9B> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9908-9908
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9909-
313 BOLT; BRKT
ISUZU M/T<X9A> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9909-
313 BOLT; BRKT
CAB UP +110MM<TGG> (A) M8X30 FLANGE 		0-28680-830-0 01 1 9909-
313 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L) (B) M8X20 FLANGE 		0-28680-820-0 01 1 9906-9907
313 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 9908-
313 BOLT; BRKT
6WA1 TC-C(55L),6WG1 TC-N(71L) (A) M8X30 FLANGE 		0-28680-830-0 02 1 9906-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
