Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#73229) — 177 parça

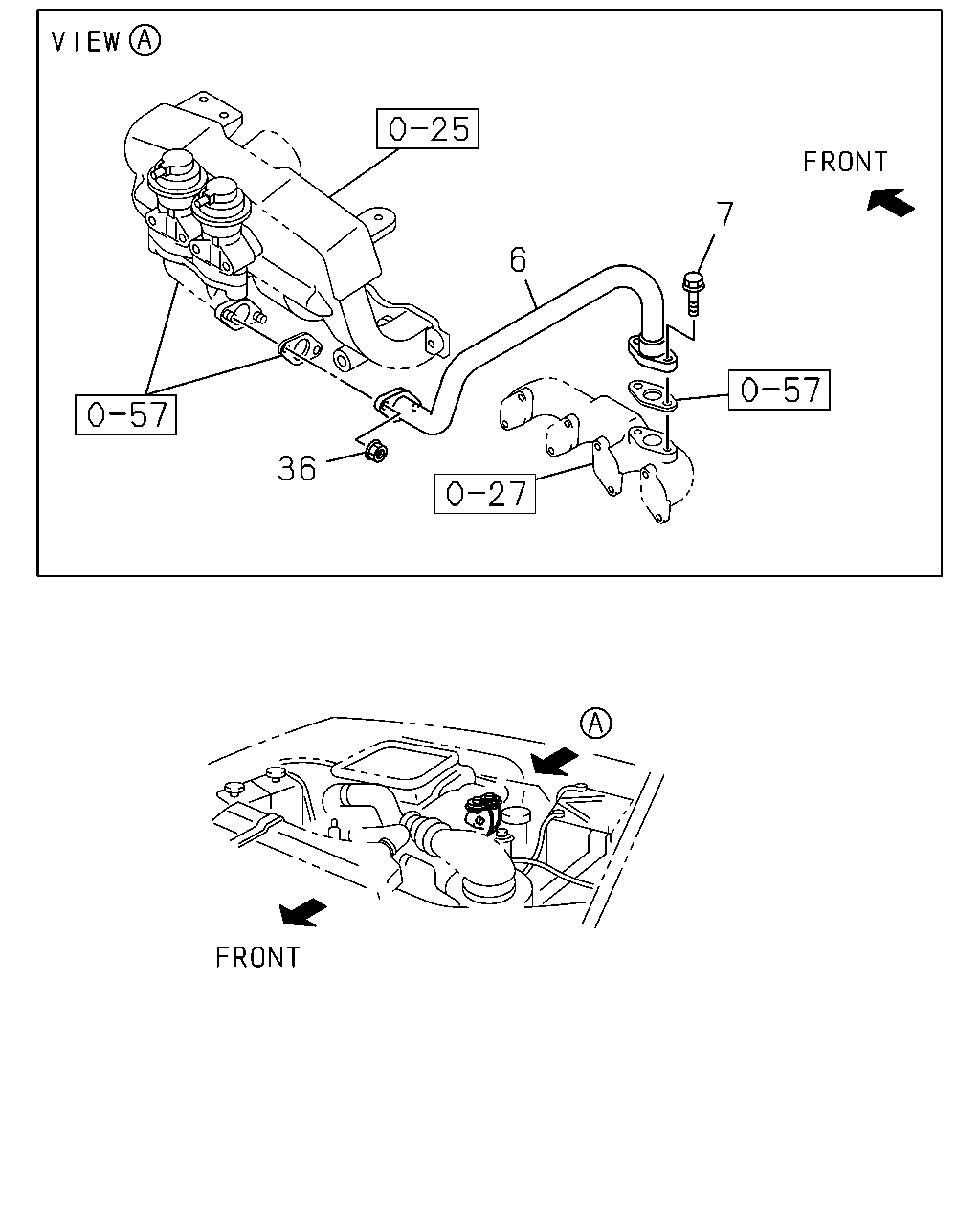

7 6 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	03.675 PIPE; EGR TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97118-378-1	01	1	9712-	●
7	03.670 BOLT; BRKT,EGR PIPE TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) M8X23 FLANGE	8-94103-629-2	02	1	9712-	●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
36	03.680 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	01	1	9712-		●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8 FLANGE	8-97061-401-1	01	1	9712-			●

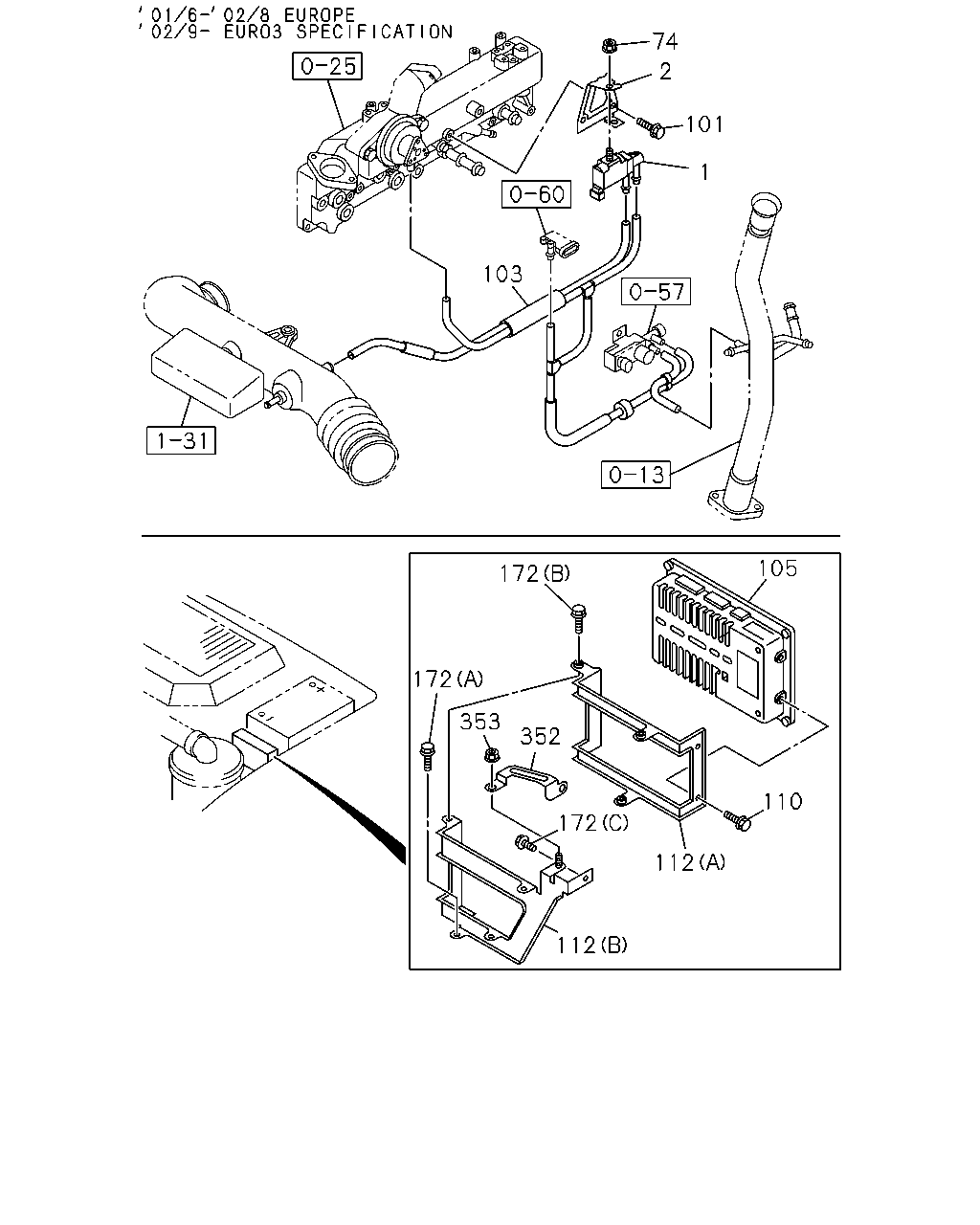

74 2 101 1 103 105 172 172 353 352 110 172 112 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
1	03.670 VALVE; VAC SW	8-97174-867-0	01	1	9712-	●
2	03.671 BRACKET; VSV EUROPE EQUIPMENT(EK4)	8-97305-164-1	01	1	0106-0208	●
2	03.671 BRACKET; VSV EURO3 SPECIFICATION(NT3)	8-97305-164-1	01	1	0209-	●
74	03.670 NUT; VSV 01.062 M6 FLANGE	0-91150-206-0	01	1	9712-	●
101	03.680 BOLT; VSV BRKT EUROPE EQUIPMENT(EK4) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0106-0208	●
101	03.680 BOLT; VSV BRKT EURO3 SPECIFICATION(NT3) 02.500 M6X10 FLANGE	0-28080-610-0	02	1	0209-	●
103	03.675 HOSE; VAC,EGR	8-97180-704-2	01	1	9712-0105	●
103	03.675 HOSE; VAC,EGR EXC. EUROPE EQUIPMENT(EK4)	8-97180-704-3	01	1	0106-0208	●
103	03.675 HOSE; VAC,EGR EXC. EURO3 SPECIFICATION(NT3)	8-97180-704-3	01	1	0209-	●
103	03.675 HOSE; VAC,EGR EUROPE EQUIPMENT(EK4)	8-97309-078-0	01	1	0106-0208	●
103	03.675 HOSE; VAC,EGR EURO3 SPECIFICATION(NT3)	8-97309-078-0	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12205-889-1	01	1	0106-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) IMMOBILIZER SYSTEM<7KC>	8-12205-889-1	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) IMMOBILIZER SYSTEM<7KC>	8-09383-479-1	01	1	0106-	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. IMMOBILIZER SYSTEM<7KC>	8-09383-489-1	01	1	0106-	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12205-899-2	01	1	0106-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE EURO3 SPECIFICATION(NT3) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12205-899-2	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-09383-489-2	01	1	9909-0105	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-09383-479-2	01	1	9909-0105	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC>	8-09383-469-2	01	1	9909-0105	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),IMMOBILIZER SYSTEM<7KC>	8-09383-469-2	01	1	0106-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9),IMMOBILIZER SYSTEM<7KC>	8-09383-469-2	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4)	8-09383-459-2	01	1	9909-0105	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-09383-459-2	01	1	0106-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9)	8-09383-459-2	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12220-729-1	01	1	0106-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) IMMOBILIZER SYSTEM<7KC>	8-12220-729-1	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12220-619-1	01	1	9712-9908	●
105	03.415 CONTROLLER; MODULE,ENGINE EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-709-1	01	1	9712-9908	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12220-679-1	01	1	9909-0105	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-719-1	01	1	0106-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-719-1	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-659-1	01	1	9909-0105	●
105	03.415 CONTROLLER; MODULE,ENGINE EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC>	8-12220-609-1	01	1	9712-9908	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC>	8-12220-669-1	01	1	9909-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3), IMMOBILIZER SYSTEM<7KC>	8-12220-669-1	01	1	0209-	●
105	03.415 CONTROLLER; MODULE,ENGINE IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4)	8-12220-629-1	01	1	9712-9908	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4)	8-12220-689-1	01	1	9909-0208	●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EURO3 SPECIFICATION(NT3)	8-12220-689-1	01	1	0209-	●
110	03.415 BOLT; CONT UNIT 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-	●
112	03.671 BRACKET; ECM (A)	8-97146-899-2	01	1	9712-9712	●
112	03.671 BRACKET; ECM (A)	8-97203-724-0	01	1	9801-	●
112	03.671 BRACKET; ECM (B)	8-97162-094-4	01	1	9712-9712	●
112	03.671 BRACKET; ECM (B)	8-97203-744-1	01	1	9801-	●
172	03.470 BOLT; BRKT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
172	03.470 BOLT; BRKT 04.930 (B) M6X20 FLANGE	0-28680-620-0	03	1	9712-9712	●
172	03.470 BOLT; BRKT 16.320 (B) M6X22	8-94279-147-0	03	1	9801-9807	●
172	03.470 BOLT; BRKT (B) M6X22 W/LK&PL WASHER	8-97892-370-0	03	1	9808-	●
172	03.470 BOLT; BRKT 02.334 (C) M6X16 W/PL WASHER	8-97803-781-0	01	1	9712-	●
352	03.671 SUPPORT; BRKT EXC. FRIGID ZONE<YL3>	8-97203-819-0	01	1	9801-	●
353	03.671 NUT; SUPPORT EXC. FRIGID ZONE<YL3> 04.594 M6 FLANGE	0-91150-106-0	01	1	9801-	●

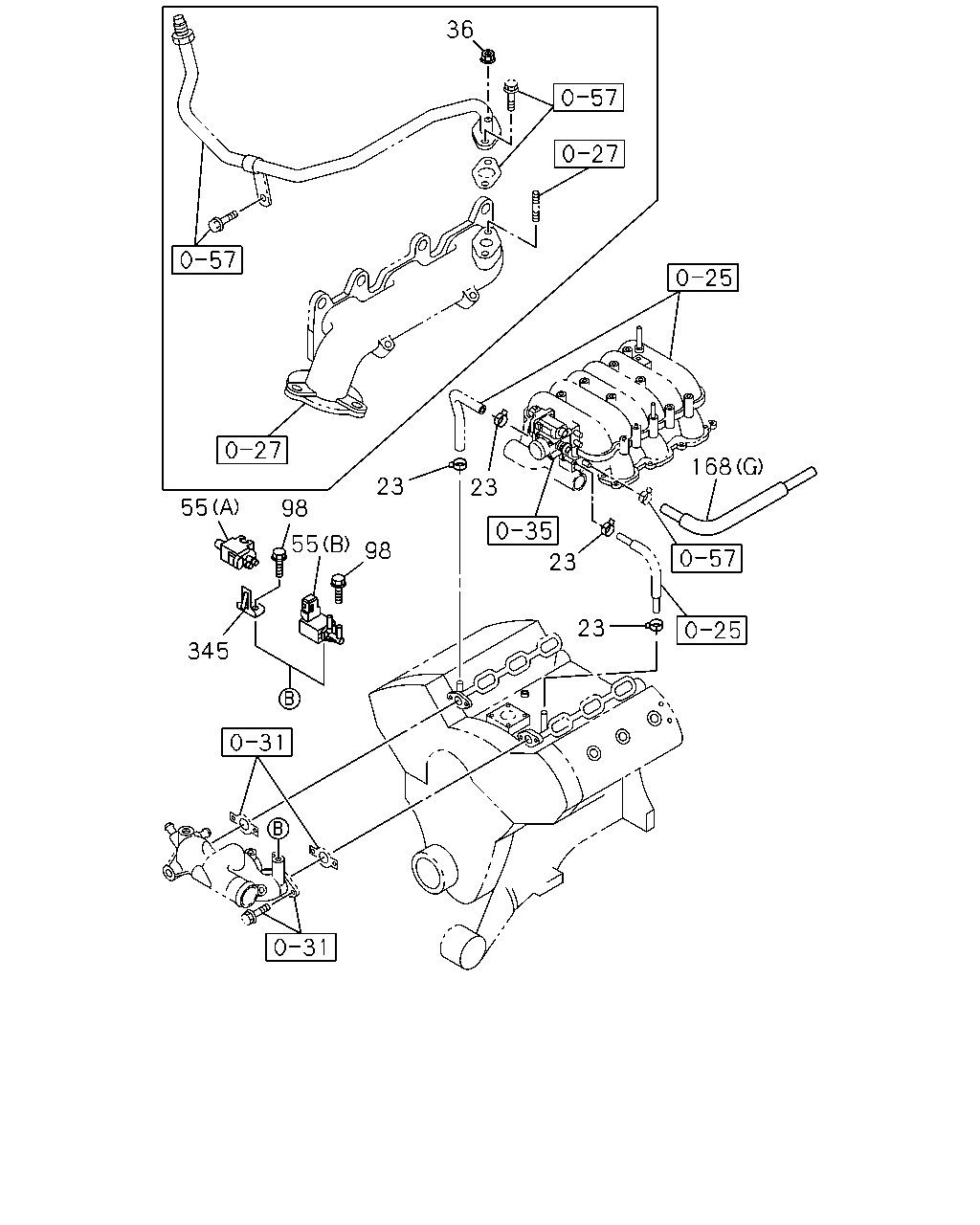

36 168 23 23 55 98 55 98 23 23 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
23	03.162 CLIP; RUBBER HOSE,THROTTLE 01.153 ID=12.8	8-94367-943-0	04	1	9712-		●	●
36	03.680 NUT; EGR PIPE TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
36	03.680 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	01	1	9712-		●
36	03.680 NUT; EGR PIPE EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) 03.613 M8 FLANGE	8-97061-401-1	01	1	9712-			●
55	03.670 SOLENOID; VAC CONT EUROPE EQUIPMENT(EK4) (B)	8-97228-082-1	01	1	0106-		●
55	03.670 SOLENOID; VAC CONT (A)	8-01997-201-0	01	1	9712-0105		●	●
55	03.670 SOLENOID; VAC CONT AUSTRALIA EQUIPMENT(RR3) (A)	8-01997-201-0	01	1	0106-		●
55	03.670 SOLENOID; VAC CONT (A)	8-01997-201-0	01	1	0106-			●
98	03.671 BOLT; SOLENOID 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●	●
168	03.675 HOSE; RUBBER 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9801-0105				●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	0106-0208				●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	0209-				●
168	03.675 HOSE; RUBBER 08.962 (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9801-9807				●
168	03.675 HOSE; RUBBER 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9801-0105				●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0106-0208				●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0209-				●
168	03.675 HOSE; RUBBER 08.962 (D) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	9801-0105				●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (D) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0106-0208				●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (D) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0209-				●
168	03.675 HOSE; RUBBER 08.962 (E) L=80 SERVICED BY L=3000	0-04750-300-0	01	1	9801-0105				●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (E) L=80 SERVICED BY L=3000	0-04750-300-0	01	1	0106-0208				●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (E) L=80 SERVICED BY L=3000	0-04750-300-0	01	1	0209-				●
168	03.675 HOSE; RUBBER 08.963 (F) L=60 SERVICED BY L=3000	0-04751-300-0	01	1	9801-0105				●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.963 (F) L=60 SERVICED BY L=3000	0-04751-300-0	01	1	0106-0208				●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.963 (F) L=60 SERVICED BY L=3000	0-04751-300-0	01	1	0209-				●
168	03.675 HOSE; RUBBER 08.962 (C) L=120 SERVICED BY L=3000	0-04741-300-0	01	1	9808-0105				●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (C) L=120 SERVICED BY L=3000	0-04741-300-0	01	1	0106-0208				●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (C) L=120 SERVICED BY L=3000	0-04741-300-0	01	1	0209-				●
168	03.675 HOSE; RUBBER EUROPE EQUIPMENT(EK4) (G)	8-97233-356-0	01	1	0106-		●
168	03.675 HOSE; RUBBER (G)	8-97145-369-3	01	1	9712-0105		●	●
168	03.675 HOSE; RUBBER AUSTRALIA EQUIPMENT(RR3) (G)	8-97145-369-3	01	1	0106-		●
168	03.675 HOSE; RUBBER (G)	8-97145-369-3	01	1	0106-			●
345	03.675 BRACKET; SOLENOID	8-10475-356-0	01	1	9712-0105		●	●
345	03.675 BRACKET; SOLENOID AUSTRALIA EQUIPMENT(RR3)	8-10475-356-0	01	1	0106-		●
345	03.675 BRACKET; SOLENOID	8-10475-356-0	01	1	0106-			●

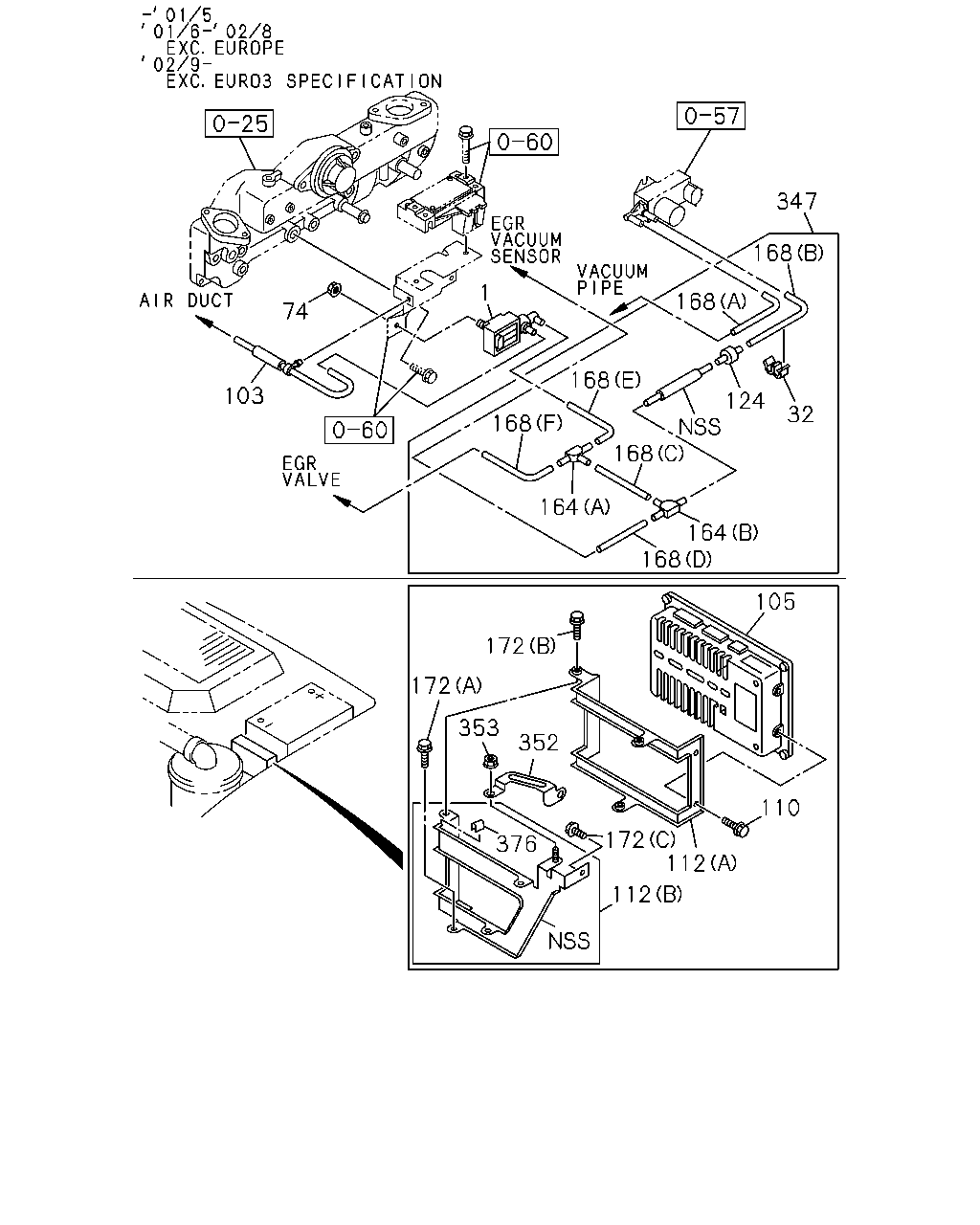

347 168 1 168 74 168 103 124 168 32 168 164 164 168 105 172 172 353 32 110 172 112 376 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
1	03.670 VALVE; VAC SW	8-97174-867-0	01	1	9712-			●
32	03.680 CLIP; EGR HOSE 03.162 ID=6.8X2	8-94126-636-0	01	1	9712-0105			●
32	03.680 CLIP; EGR HOSE EXC. EUROPE EQUIPMENT(EK4) 03.162 ID=6.8X2	8-94126-636-0	01	1	0106-0208			●
32	03.680 CLIP; EGR HOSE EXC. EURO3 SPECIFICATION(NT3) 03.162 ID=6.8X2	8-94126-636-0	01	1	0209-			●
74	03.670 NUT; VSV 01.062 M6 FLANGE	0-91150-206-0	01	1	9712-			●
103	03.675 HOSE; VAC,EGR	8-97180-704-2	01	1	9712-0105			●
103	03.675 HOSE; VAC,EGR EXC. EUROPE EQUIPMENT(EK4)	8-97180-704-3	01	1	0106-0208			●
103	03.675 HOSE; VAC,EGR EXC. EURO3 SPECIFICATION(NT3)	8-97180-704-3	01	1	0209-			●
103	03.675 HOSE; VAC,EGR EUROPE EQUIPMENT(EK4)	8-97309-078-0	01	1	0106-0208			●
103	03.675 HOSE; VAC,EGR EURO3 SPECIFICATION(NT3)	8-97309-078-0	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12205-889-1	01	1	0106-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) IMMOBILIZER SYSTEM<7KC>	8-12205-889-1	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) IMMOBILIZER SYSTEM<7KC>	8-09383-479-1	01	1	0106-			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) THAILAND EQUIPMENT(PM9) EXC. IMMOBILIZER SYSTEM<7KC>	8-09383-489-1	01	1	0106-			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12205-899-2	01	1	0106-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE EURO3 SPECIFICATION(NT3) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12205-899-2	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-09383-489-2	01	1	9909-0105			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-09383-479-2	01	1	9909-0105			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC>	8-09383-469-2	01	1	9909-0105			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9),IMMOBILIZER SYSTEM<7KC>	8-09383-469-2	01	1	0106-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9),IMMOBILIZER SYSTEM<7KC>	8-09383-469-2	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4)	8-09383-459-2	01	1	9909-0105			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4),THAILAND EQUIPMENT(PM9)	8-09383-459-2	01	1	0106-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE A/T AISIN(RMD) IMMOBILIZER SYSTEM<7KC> EXC. EURO3 SPECIFICATION(NT3),THAILAND EQUIPMENT(PM9)	8-09383-459-2	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12220-729-1	01	1	0106-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) IMMOBILIZER SYSTEM<7KC>	8-12220-729-1	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12220-619-1	01	1	9712-9908			●
105	03.415 CONTROLLER; MODULE,ENGINE EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-709-1	01	1	9712-9908			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) IMMOBILIZER SYSTEM<7KC>	8-12220-679-1	01	1	9909-0105			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-719-1	01	1	0106-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-719-1	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) EXC. IMMOBILIZER SYSTEM<7KC>	8-12220-659-1	01	1	9909-0105			●
105	03.415 CONTROLLER; MODULE,ENGINE EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC>	8-12220-609-1	01	1	9712-9908			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EXC. EUROPE EQUIPMENT(EK4),IMMOBILIZER SYSTEM<7KC>	8-12220-669-1	01	1	9909-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) EXC. EURO3 SPECIFICATION(NT3), IMMOBILIZER SYSTEM<7KC>	8-12220-669-1	01	1	0209-			●
105	03.415 CONTROLLER; MODULE,ENGINE IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4)	8-12220-629-1	01	1	9712-9908			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EUROPE EQUIPMENT(EK4)	8-12220-689-1	01	1	9909-0208			●
105	03.415 CONTROLLER; MODULE,ENGINE M/T AR-5 5 SPEED(RNK) IMMOBILIZER SYSTEM<7KC> EXC. EURO3 SPECIFICATION(NT3)	8-12220-689-1	01	1	0209-			●
110	03.415 BOLT; CONT UNIT 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-			●
112	03.671 BRACKET; ECM (A)	8-97146-899-2	01	1	9712-9712			●
112	03.671 BRACKET; ECM (A)	8-97203-724-0	01	1	9801-			●
112	03.671 BRACKET; ECM (B)	8-97162-094-4	01	1	9712-9712			●
112	03.671 BRACKET; ECM (B)	8-97203-744-1	01	1	9801-			●
124	03.670 VALVE; DELAY	8-97145-713-0	01	1	9712-0105			●
124	03.670 VALVE; DELAY EXC. EUROPE EQUIPMENT(EK4)	8-97145-713-0	01	1	0106-0208			●
124	03.670 VALVE; DELAY EXC. EURO3 SPECIFICATION(NT3)	8-97145-713-0	01	1	0209-			●
164	03.675 JOINT; RUBBER HOSE (A)	8-94102-132-0	01	1	9712-0105			●
164	03.675 JOINT; RUBBER HOSE EXC. EUROPE EQUIPMENT(EK4) (A)	8-94102-132-0	01	1	0106-0208			●
164	03.675 JOINT; RUBBER HOSE EXC. EURO3 SPECIFICATION(NT3) (A)	8-94102-132-0	01	1	0209-			●
164	03.675 JOINT; RUBBER HOSE 03.145 (B) 3WAY	8-94237-690-0	01	1	9712-0105			●
164	03.675 JOINT; RUBBER HOSE EXC. EUROPE EQUIPMENT(EK4) 03.145 (B) 3WAY	8-94237-690-0	01	1	0106-0208			●
164	03.675 JOINT; RUBBER HOSE EXC. EURO3 SPECIFICATION(NT3) 03.145 (B) 3WAY	8-94237-690-0	01	1	0209-			●
168	03.675 HOSE; RUBBER 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9801-0105			●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	0106-0208			●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (A) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	0209-			●
168	03.675 HOSE; RUBBER 08.962 (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9801-9807			●
168	03.675 HOSE; RUBBER 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	9801-0105			●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0106-0208			●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (B) L=130 SERVICED BY L=3000	0-04742-300-0	01	1	0209-			●
168	03.675 HOSE; RUBBER 08.962 (D) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	9801-0105			●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (D) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0106-0208			●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (D) L=50 SERVICED BY L=3000	0-04750-300-0	01	1	0209-			●
168	03.675 HOSE; RUBBER 08.962 (E) L=80 SERVICED BY L=3000	0-04750-300-0	01	1	9801-0105			●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (E) L=80 SERVICED BY L=3000	0-04750-300-0	01	1	0106-0208			●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (E) L=80 SERVICED BY L=3000	0-04750-300-0	01	1	0209-			●
168	03.675 HOSE; RUBBER 08.963 (F) L=60 SERVICED BY L=3000	0-04751-300-0	01	1	9801-0105			●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.963 (F) L=60 SERVICED BY L=3000	0-04751-300-0	01	1	0106-0208			●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.963 (F) L=60 SERVICED BY L=3000	0-04751-300-0	01	1	0209-			●
168	03.675 HOSE; RUBBER 08.962 (C) L=120 SERVICED BY L=3000	0-04741-300-0	01	1	9808-0105			●
168	03.675 HOSE; RUBBER EXC. EUROPE EQUIPMENT(EK4) 08.962 (C) L=120 SERVICED BY L=3000	0-04741-300-0	01	1	0106-0208			●
168	03.675 HOSE; RUBBER EXC. EURO3 SPECIFICATION(NT3) 08.962 (C) L=120 SERVICED BY L=3000	0-04741-300-0	01	1	0209-			●
168	03.675 HOSE; RUBBER EUROPE EQUIPMENT(EK4) (G)	8-97233-356-0	01	1	0106-	●
168	03.675 HOSE; RUBBER (G)	8-97145-369-3	01	1	9712-0105	●	●
168	03.675 HOSE; RUBBER AUSTRALIA EQUIPMENT(RR3) (G)	8-97145-369-3	01	1	0106-	●
168	03.675 HOSE; RUBBER (G)	8-97145-369-3	01	1	0106-		●
172	03.470 BOLT; BRKT 01.428 (A) M6X12 FLANGE	0-28080-612-0	02	1	9712-			●
172	03.470 BOLT; BRKT 04.930 (B) M6X20 FLANGE	0-28680-620-0	03	1	9712-9712			●
172	03.470 BOLT; BRKT 16.320 (B) M6X22	8-94279-147-0	03	1	9801-9807			●
172	03.470 BOLT; BRKT (B) M6X22 W/LK&PL WASHER	8-97892-370-0	03	1	9808-			●
172	03.470 BOLT; BRKT 02.334 (C) M6X16 W/PL WASHER	8-97803-781-0	01	1	9712-			●
347	03.675 HOSE ASM; VACUUM,EGR	8-97160-918-4	01	1	9712-9712			●
347	03.675 HOSE ASM; VACUUM,EGR	8-97203-723-1	01	1	9801-0105			●
347	03.675 HOSE ASM; VACUUM,EGR EXC. EUROPE EQUIPMENT(EK4)	8-97203-723-2	01	1	0106-0208			●
347	03.675 HOSE ASM; VACUUM,EGR EXC. EURO3 SPECIFICATION(NT3)	8-97203-723-2	01	1	0209-			●
353	03.671 NUT; SUPPORT EXC. FRIGID ZONE<YL3> 04.594 M6 FLANGE	0-91150-106-0	01	1	9801-			●
376	03.671 PROTECTOR; EDGE	8-97327-172-0	01	1	0208-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
