Sayfa 0-52 - Isuzu EPC

0-52 — OIL AND VACUUM PIPING; ENGINE (#73227) — 298 parça

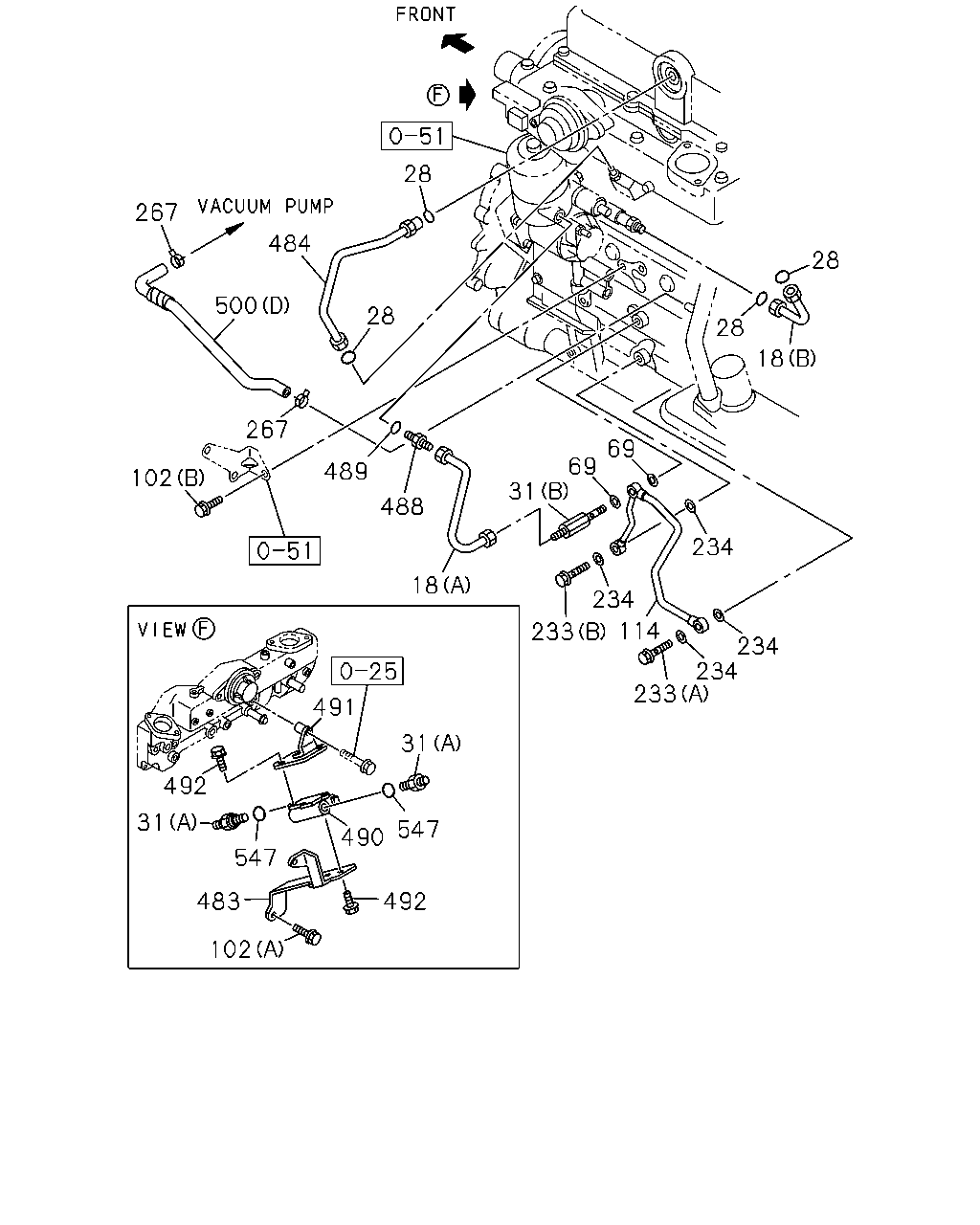

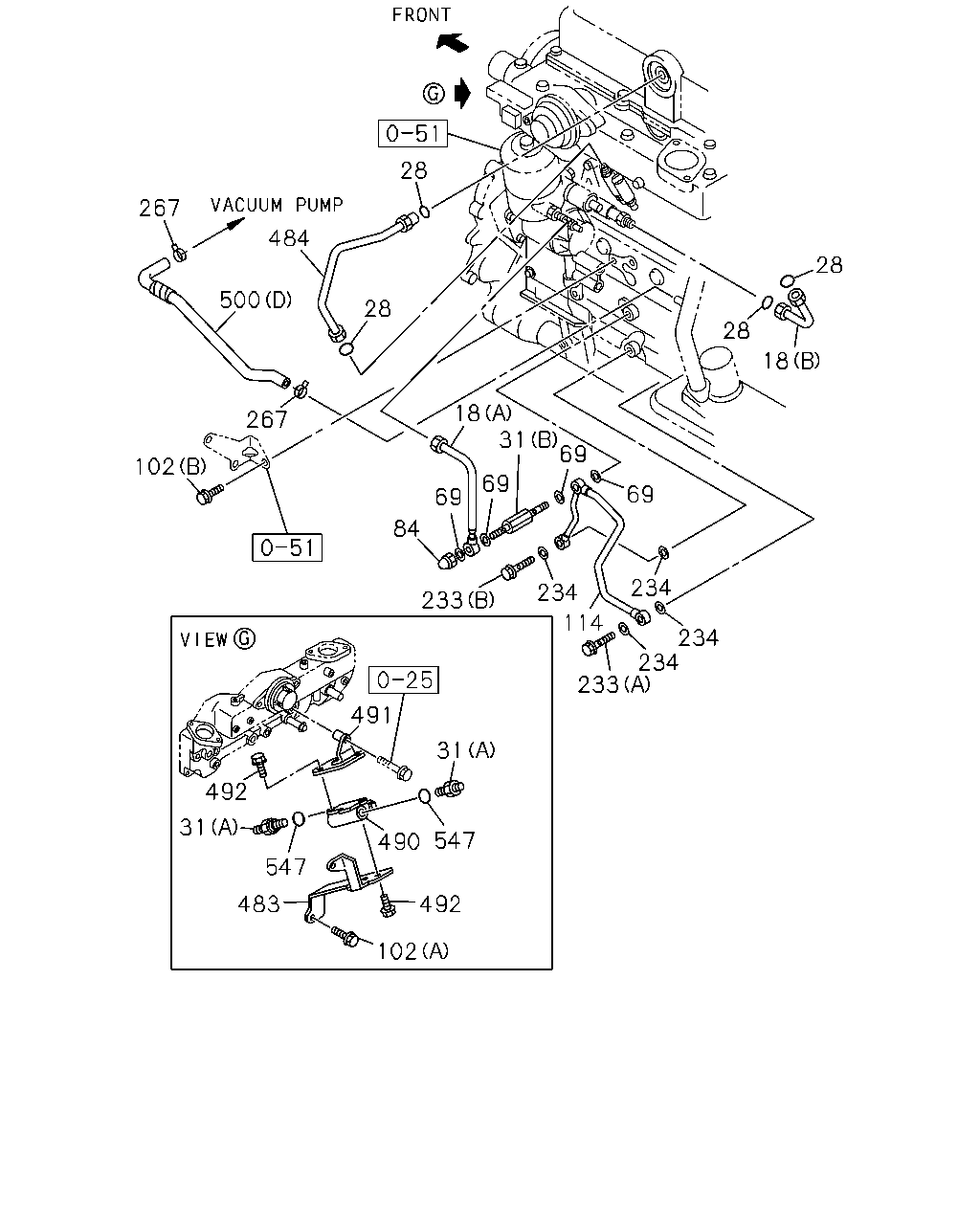

28 267 484 28 500 28 28 18 18 31 69 267 102 69 69 69 84 234 234 233 114 234 234 233 491 31 492 31 547 490 547 483 492 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	01.519 PIPE; OIL,OIL PUMP (A)	8-97137-051-3	01	1	9712-9801	●
18	01.519 PIPE; OIL,OIL PUMP (A)	8-97204-486-0	01	1	9802-	●
18	01.519 PIPE; OIL,OIL PUMP (B)	8-97174-692-3	01	1	9712-	●
18	01.519 PIPE; OIL,OIL PUMP (C)	8-94381-146-3	01	1	9712-0009		●	●
18	01.519 PIPE; OIL,OIL PUMP (C)	8-97226-640-0	01	1	0010-		●	●
28	01.531 GASKET; OIL PIPE 01.516 ID=11	5-09623-002-0	01	1	9712-				●
28	01.531 GASKET; OIL PIPE	8-97184-216-0	04	1	9712-	●
31	01.540 NIPPLE; OIL PIPE (A)	8-97188-518-3	02	1	9712-	●
31	01.540 NIPPLE; OIL PIPE (B)	8-97202-007-0	01	1	9712-9801	●
31	01.540 NIPPLE; OIL PIPE (B)	8-97204-487-1	01	1	9802-	●
69	01.531 GASKET; NIPPLE,OIL PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-9801	●
69	01.531 GASKET; NIPPLE,OIL PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	9802-	●
84	01.531 NUT; CAP,OIL PIPE 03.162 M14	1-09468-002-1	01	1	9802-	●
102	01.531 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-	●
102	01.531 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9712-	●
114	01.519 PIPE ASM; OIL,BODY	8-97202-008-0	01	1	9712-	●
233	01.531 BOLT; EYE (A) M14X33 FLANGE	1-09675-088-0	01	1	9712-9804	●
233	01.531 BOLT; EYE (A) M14X33 FLANGE	8-97210-803-0	01	1	9805-	●
233	01.531 BOLT; EYE 03.280 (B) M10X24	9-09906-205-1	01	1	9712-	●
234	01.531 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-	●
234	01.531 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-	●
267	01.531 CLIP; HOSE 04.930 ID=16	8-94238-568-0	02	1	9712-	●
483	01.750 BRACKET; VLV LWR	8-97174-432-4	01	1	9712-	●
484	01.519 PIPE; OIL,VLV	8-97187-715-1	01	1	9712-9712	●
484	01.519 PIPE; OIL,VLV	8-97203-273-0	01	1	9801-9804	●
484	01.519 PIPE; OIL,VLV	8-97209-198-0	01	1	9805-0105	●
484	01.519 PIPE; OIL,VLV EXC. EUROPE EQUIPMENT(EK4)	8-97209-198-0	01	1	0106-0109	●
484	01.519 PIPE; OIL,VLV EUROPE EQUIPMENT(EK4)	8-97287-614-0	01	1	0106-0109	●
484	01.519 PIPE; OIL,VLV	8-97287-614-2	01	1	0110-	●
490	01.609 VALVE; OIL	8-97174-430-2	01	1	9712-	●
491	01.750 BRACKET; VLV UPR	8-97174-431-3	01	1	9712-	●
492	01.531 BOLT; VLV 08.900 M8X12 FLANGE	0-28080-812-0	04	1	9712-	●
500	04.681 HOSE; VACUUM (D)	8-97182-026-2	01	1	9712-	●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (C)	8-97220-001-1	01	1	0106-0107		●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (C)	8-97321-254-1	01	1	0108-		●
500	04.681 HOSE; VACUUM SHIFT ON THE FLY(7EX) (A)	8-97182-893-1	01	1	9712-0105		●	●
500	04.681 HOSE; VACUUM SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) (A)	8-97182-893-1	01	1	0106-		●	●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) (A)	8-97182-893-1	01	1	0106-		●
500	04.681 HOSE; VACUUM EXC. SHIFT ON THE FLY(7EX) (B)	8-97168-925-1	01	1	9712-9801		●	●
500	04.681 HOSE; VACUUM EXC. SHIFT ON THE FLY(7EX) (B)	8-97189-873-1	01	1	9802-0105		●	●
500	04.681 HOSE; VACUUM EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) (B)	8-97189-873-1	01	1	0106-		●	●
547	01.609 GASKET; VLV,OIL 01.531	8-97184-217-0	02	1	9712-	●

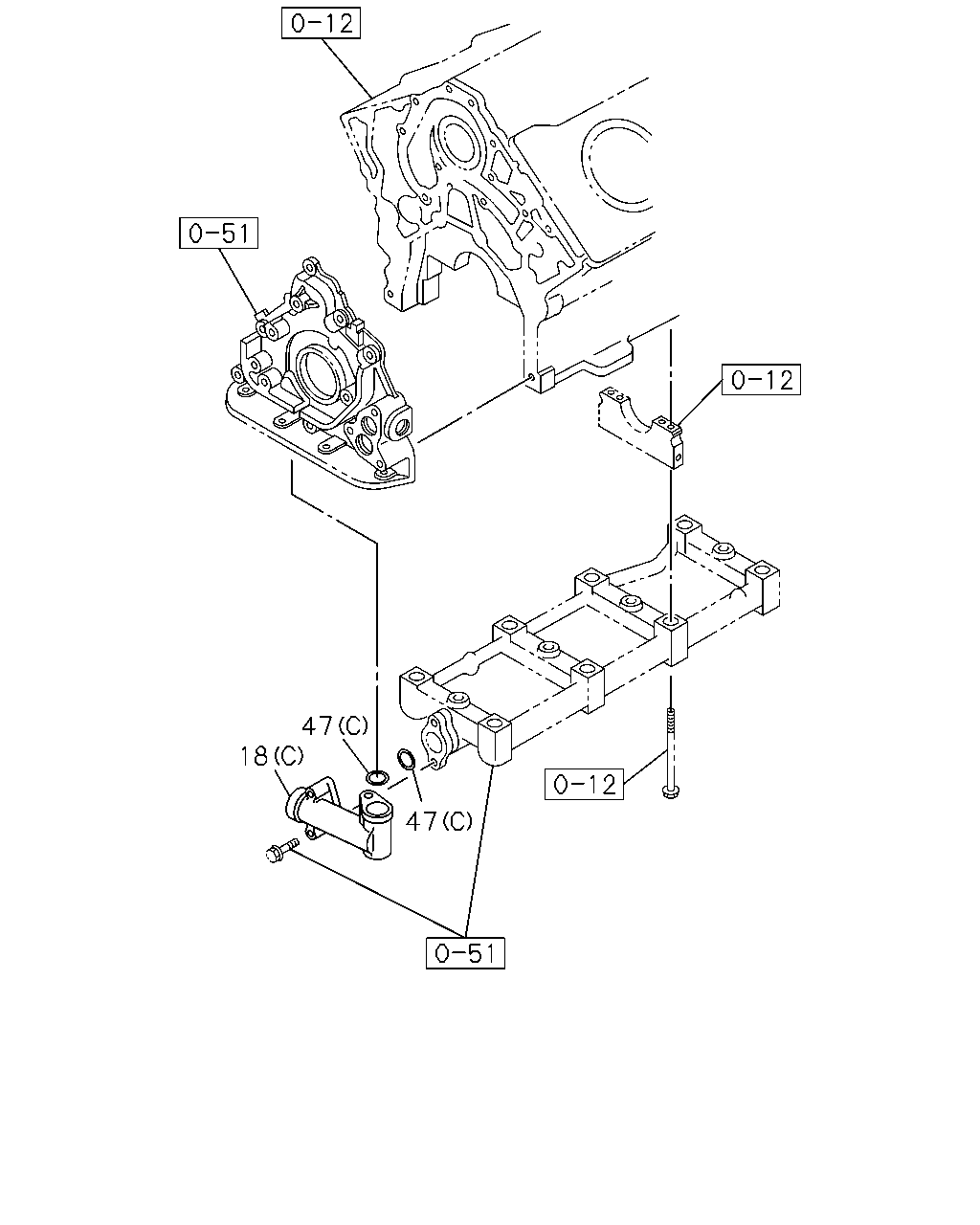

47 18 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	01.519 PIPE; OIL,OIL PUMP (A)	8-97137-051-3	01	1	9712-9801	●
18	01.519 PIPE; OIL,OIL PUMP (A)	8-97204-486-0	01	1	9802-	●
18	01.519 PIPE; OIL,OIL PUMP (B)	8-97174-692-3	01	1	9712-	●
18	01.519 PIPE; OIL,OIL PUMP (C)	8-94381-146-3	01	1	9712-0009		●	●
18	01.519 PIPE; OIL,OIL PUMP (C)	8-97226-640-0	01	1	0010-		●	●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9712-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	03	1	9712-				●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) W/PLATE ID=18.2	8-94329-964-0	02	1	9712-		●	●

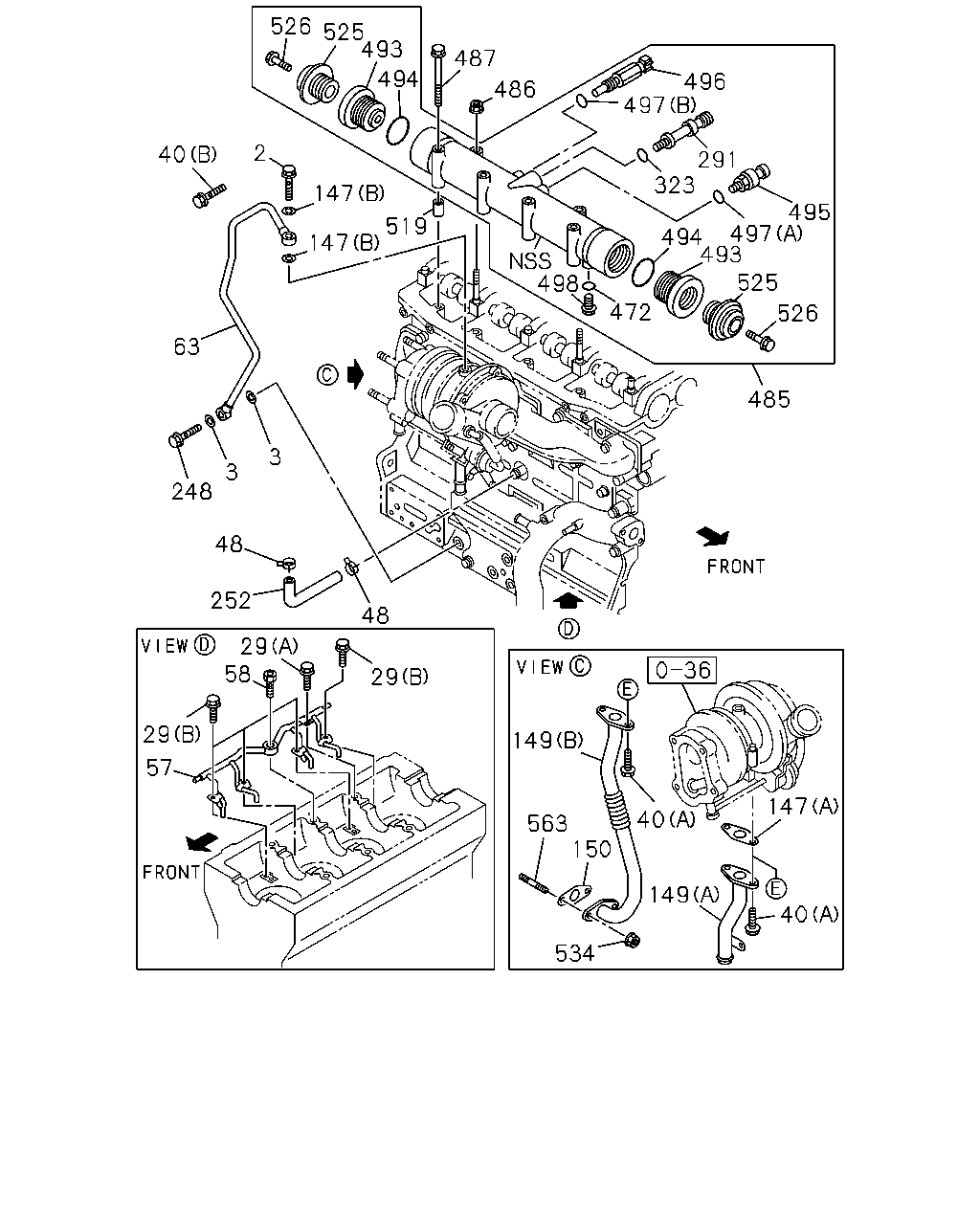

526 525 493 487 494 496 497 486 2 40 291 323 147 495 494 497 493 525 519 147 498 472 526 63 485 3 3 248 48 252 48 29 58 29 29 149 57 147 40 563 150 40 149 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> M10X27	8-94443-535-0	01	1	9712-		●
2	01.531 BOLT; EYE,OIL PIPE M10X27	8-94443-535-0	01	1	9712-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9712-9804		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9805-0202		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-		●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> (B) M6X20	8-97117-298-1	04	1	9712-		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	9712-	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9712-		●
29	01.531 BOLT; OIL PIPE,OIL JET 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9712-9802	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	9803-0202	●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	9712-		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 02.559 (A) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9712-0310		●
40	01.531 BOLT; OIL PIPE 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	9712-0310	●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	0311-		●
40	01.531 BOLT; OIL PIPE 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	0311-	●
40	01.531 BOLT; OIL PIPE EUROPE EQUIPMENT(EK4) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0106-0208	●
40	01.531 BOLT; OIL PIPE EURO3 SPECIFICATION(NT3) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0209-	●
48	01.531 CLIP; OIL PIPE 01.166 ID=20.8	8-94125-862-1	02	1	9712-0105	●
48	01.531 CLIP; OIL PIPE EXC. EUROPE EQUIPMENT(EK4) 01.166 ID=20.8	8-94125-862-1	02	1	0106-0208	●
48	01.531 CLIP; OIL PIPE EXC. EURO3 SPECIFICATION(NT3) 01.166 ID=20.8	8-94125-862-1	02	1	0209-	●
57	01.519 PIPE; OIL,OIL JET TURBOCHARGER<K51>	8-97116-971-1	01	1	9712-		●
57	01.519 PIPE; OIL,OIL JET	8-97145-277-1	01	1	9712-9802	●
57	01.519 PIPE; OIL,OIL JET	8-97207-031-1	01	1	9803-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9712-0104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	0105-	●	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51>	8-97086-341-0	01	1	9712-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97137-045-2	01	1	9712-0010	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97302-076-0	01	1	0011-0012	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97137-045-2	01	1	0101-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EUROPE EQUIPMENT(EK4)	8-97137-045-2	01	1	0106-0208	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NT3)	8-97137-045-2	01	1	0209-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EUROPE EQUIPMENT(EK4)	8-97302-934-0	01	1	0106-0106	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EUROPE EQUIPMENT(EK4)	8-97320-054-0	01	1	0106-0208	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97320-054-0	01	1	0209-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) ID=14	8-97041-638-0	01	1	9712-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9712-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> (C)	8-97162-106-0	01	1	9712-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-97137-184-2	01	1	9712-0105	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. EUROPE EQUIPMENT(EK4) (A)	8-97137-184-2	01	1	0106-0208	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION(NT3) (A)	8-97137-184-2	01	1	0209-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EUROPE EQUIPMENT(EK4) (B)	8-97263-059-1	01	1	0106-0208	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NT3) (B)	8-97263-059-1	01	1	0209-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97045-326-0	01	1	9712-0105		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97045-326-0	01	1	0106-0208		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97045-326-0	01	1	0106-0208	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97045-326-1	01	1	0209-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-97045-326-1	01	1	0209-	●
248	01.519 CONNECTOR; TURBOCHARGER OIL FEED 04.128	1-09675-033-0	01	1	9712-	●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN	8-97147-836-0	01	1	9712-0105	●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN EXC. EUROPE EQUIPMENT(EK4)	8-97147-836-0	01	1	0106-0208	●
252	01.855 HOSE; RUBBER,TURBOCHARGER RETURN EXC. EURO3 SPECIFICATION(NT3)	8-97147-836-0	01	1	0209-	●
291	01.540 PIPE; OIL	8-97146-098-4	01	1	9712-	●
323	01.540 GASKET; OIL PIPE ID=13.8	8-97186-571-0	01	1	9712-	●
472	01.519 GASKET; PLUG	8-97186-574-0	01	1	9712-	●
485	01.519 MANIFOLD; OIL	8-97168-041-9	01	1	9712-	●
486	01.531 NUT; MANIFOLD 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
487	01.531 BOLT; MANIFOLD 09.171 M8X90 FLANGE	0-28080-890-0	04	1	9712-	●
493	01.531 NIPPLE; MANIFOLD	8-97201-609-3	02	1	9712-	●
494	01.531 GASKET; NIPPLE	8-97186-570-1	02	1	9712-	●
495	01.800 SENSOR; OIL PRESS	8-97137-042-1	01	1	9712-	●
496	01.800 SENSOR; OIL THERMO	8-97184-138-0	01	1	9712-	●
497	01.803 GASKET; SENSOR (A)	8-97186-572-0	01	1	9712-	●
497	01.803 GASKET; SENSOR (B)	8-97186-573-0	01	1	9712-	●
498	01.519 PLUG; DRAIN	8-97173-567-3	01	1	9712-	●
519	01.652 DOWEL 00.206 OD=11 L=8	9-11229-058-1	02	1	9712-9807	●
525	01.531 DAMPER; OIL MANIFOLD	8-97201-608-0	02	1	9712-	●
526	01.531 BOLT; DAMPER 00.685 M10X35 FLANGE	0-28081-035-0	02	1	9712-0201	●
526	01.531 BOLT; DAMPER 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0202-	●
534	01.531 NUT; OIL PIPE EUROPE EQUIPMENT(EK4) 00.854 M8 FLANGE	5-09440-005-0	02	1	0106-0208	●
534	01.531 NUT; OIL PIPE EURO3 SPECIFICATION(NT3) 00.854 M8 FLANGE	5-09440-005-0	02	1	0209-	●
563	01.531 STUD; OIL PIPE EUROPE EQUIPMENT(EK4) 01.428 M8X18 L=30	9-04110-818-0	02	1	0106-0208	●
563	01.531 STUD; OIL PIPE EURO3 SPECIFICATION(NT3) 01.428 M8X18 L=30	9-04110-818-0	02	1	0209-	●

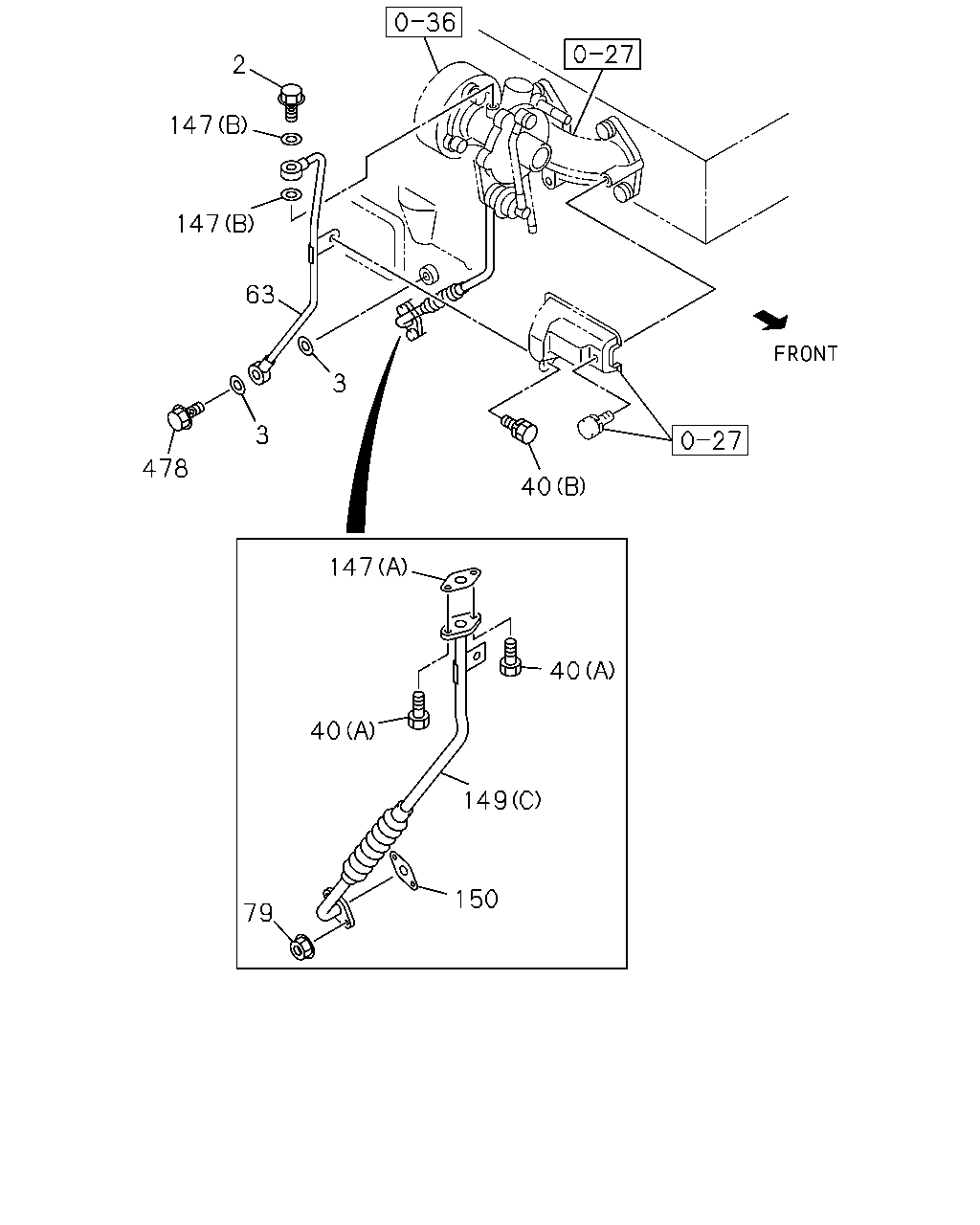

2 147 147 63 3 3 478 40 147 40 40 149 150 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
2	01.531 BOLT; EYE,OIL PIPE TURBOCHARGER<K51> M10X27	8-94443-535-0	01	1	9712-		●
2	01.531 BOLT; EYE,OIL PIPE M10X27	8-94443-535-0	01	1	9712-	●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-		●
3	01.531 GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-	●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	9712-		●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 02.559 (A) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9712-0310		●
40	01.531 BOLT; OIL PIPE 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	9712-0310	●
40	01.531 BOLT; OIL PIPE TURBOCHARGER<K51> 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	0311-		●
40	01.531 BOLT; OIL PIPE 00.738 (A) M6X16 FLANGE	0-28080-616-0	02	1	0311-	●
40	01.531 BOLT; OIL PIPE EUROPE EQUIPMENT(EK4) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0106-0208	●
40	01.531 BOLT; OIL PIPE EURO3 SPECIFICATION(NT3) 01.062 (B) M8X16 FLANGE	0-28080-816-0	01	1	0209-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51>	8-97086-341-0	01	1	9712-		●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97137-045-2	01	1	9712-0010	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97302-076-0	01	1	0011-0012	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED	8-97137-045-2	01	1	0101-0105	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EUROPE EQUIPMENT(EK4)	8-97137-045-2	01	1	0106-0208	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EXC. EURO3 SPECIFICATION(NT3)	8-97137-045-2	01	1	0209-	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EUROPE EQUIPMENT(EK4)	8-97302-934-0	01	1	0106-0106	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EUROPE EQUIPMENT(EK4)	8-97320-054-0	01	1	0106-0208	●
63	01.519 PIPE; OIL,TURBOCHARGER FEED EURO3 SPECIFICATION(NT3)	8-97320-054-0	01	1	0209-	●
79	01.531 NUT; OIL DRAIN PIPE TURBOCHARGER<K51> 00.854 M8 FLANGE	5-09440-005-0	02	1	9712-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. (A) ID=14	8-97041-638-0	01	1	9712-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9712-	●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-		●
147	01.531 GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51> (C)	8-97162-106-0	01	1	9712-		●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER (A)	8-97137-184-2	01	1	9712-0105	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. EUROPE EQUIPMENT(EK4) (A)	8-97137-184-2	01	1	0106-0208	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EXC. EURO3 SPECIFICATION(NT3) (A)	8-97137-184-2	01	1	0209-	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EUROPE EQUIPMENT(EK4) (B)	8-97263-059-1	01	1	0106-0208	●
149	01.519 PIPE; OIL RETURN,TURBOCHARGER EURO3 SPECIFICATION(NT3) (B)	8-97263-059-1	01	1	0209-	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97045-326-0	01	1	9712-0105		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97045-326-0	01	1	0106-0208		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97045-326-0	01	1	0106-0208	●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97045-326-1	01	1	0209-		●
150	01.531 GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EURO3 SPECIFICATION(NT3)	8-97045-326-1	01	1	0209-	●
478	01.531 FILTER TURBOCHARGER<K51> 01.519	8-97132-686-0	01	1	9712-		●

28 267 484 28 500 28 28 18 267 69 102 69 31 489 488 234 18 234 114 233 234 234 233 491 31 492 31 547 490 547 483 492 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	01.519 PIPE; OIL,OIL PUMP (A)	8-97137-051-3	01	1	9712-9801	●
18	01.519 PIPE; OIL,OIL PUMP (A)	8-97204-486-0	01	1	9802-	●
18	01.519 PIPE; OIL,OIL PUMP (B)	8-97174-692-3	01	1	9712-	●
18	01.519 PIPE; OIL,OIL PUMP (C)	8-94381-146-3	01	1	9712-0009		●	●
18	01.519 PIPE; OIL,OIL PUMP (C)	8-97226-640-0	01	1	0010-		●	●
28	01.531 GASKET; OIL PIPE 01.516 ID=11	5-09623-002-0	01	1	9712-				●
28	01.531 GASKET; OIL PIPE	8-97184-216-0	04	1	9712-	●
31	01.540 NIPPLE; OIL PIPE (A)	8-97188-518-3	02	1	9712-	●
31	01.540 NIPPLE; OIL PIPE (B)	8-97202-007-0	01	1	9712-9801	●
31	01.540 NIPPLE; OIL PIPE (B)	8-97204-487-1	01	1	9802-	●
69	01.531 GASKET; NIPPLE,OIL PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-9801	●
69	01.531 GASKET; NIPPLE,OIL PIPE 08.955 ID=14.2 OD=20.0	9-09571-414-0	04	1	9802-	●
102	01.531 BOLT; BRKT 01.062 (A) M8X16 FLANGE	0-28080-816-0	01	1	9712-	●
102	01.531 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9712-	●
114	01.519 PIPE ASM; OIL,BODY	8-97202-008-0	01	1	9712-	●
233	01.531 BOLT; EYE (A) M14X33 FLANGE	1-09675-088-0	01	1	9712-9804	●
233	01.531 BOLT; EYE (A) M14X33 FLANGE	8-97210-803-0	01	1	9805-	●
233	01.531 BOLT; EYE 03.280 (B) M10X24	9-09906-205-1	01	1	9712-	●
234	01.531 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=10.2 OD=16.0	9-09571-410-0	02	1	9712-	●
234	01.531 GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 ID=14.2 OD=20.0	9-09571-414-0	02	1	9712-	●
267	01.531 CLIP; HOSE 04.930 ID=16	8-94238-568-0	02	1	9712-	●
483	01.750 BRACKET; VLV LWR	8-97174-432-4	01	1	9712-	●
484	01.519 PIPE; OIL,VLV	8-97187-715-1	01	1	9712-9712	●
484	01.519 PIPE; OIL,VLV	8-97203-273-0	01	1	9801-9804	●
484	01.519 PIPE; OIL,VLV	8-97209-198-0	01	1	9805-0105	●
484	01.519 PIPE; OIL,VLV EXC. EUROPE EQUIPMENT(EK4)	8-97209-198-0	01	1	0106-0109	●
484	01.519 PIPE; OIL,VLV EUROPE EQUIPMENT(EK4)	8-97287-614-0	01	1	0106-0109	●
484	01.519 PIPE; OIL,VLV	8-97287-614-2	01	1	0110-	●
488	01.540 NIPPLE; OIL PUMP	8-97188-519-0	01	1	9712-9801	●
489	01.531 GASKET; OIL PUMP	8-97184-217-0	02	1	9712-9801	●
490	01.609 VALVE; OIL	8-97174-430-2	01	1	9712-	●
491	01.750 BRACKET; VLV UPR	8-97174-431-3	01	1	9712-	●
492	01.531 BOLT; VLV 08.900 M8X12 FLANGE	0-28080-812-0	04	1	9712-	●
500	04.681 HOSE; VACUUM (D)	8-97182-026-2	01	1	9712-	●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (C)	8-97220-001-1	01	1	0106-0107		●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (C)	8-97321-254-1	01	1	0108-		●
500	04.681 HOSE; VACUUM SHIFT ON THE FLY(7EX) (A)	8-97182-893-1	01	1	9712-0105		●	●
500	04.681 HOSE; VACUUM SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) (A)	8-97182-893-1	01	1	0106-		●	●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) (A)	8-97182-893-1	01	1	0106-		●
500	04.681 HOSE; VACUUM EXC. SHIFT ON THE FLY(7EX) (B)	8-97168-925-1	01	1	9712-9801		●	●
500	04.681 HOSE; VACUUM EXC. SHIFT ON THE FLY(7EX) (B)	8-97189-873-1	01	1	9802-0105		●	●
500	04.681 HOSE; VACUUM EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) (B)	8-97189-873-1	01	1	0106-		●	●
547	01.609 GASKET; VLV,OIL 01.531	8-97184-217-0	02	1	9712-	●

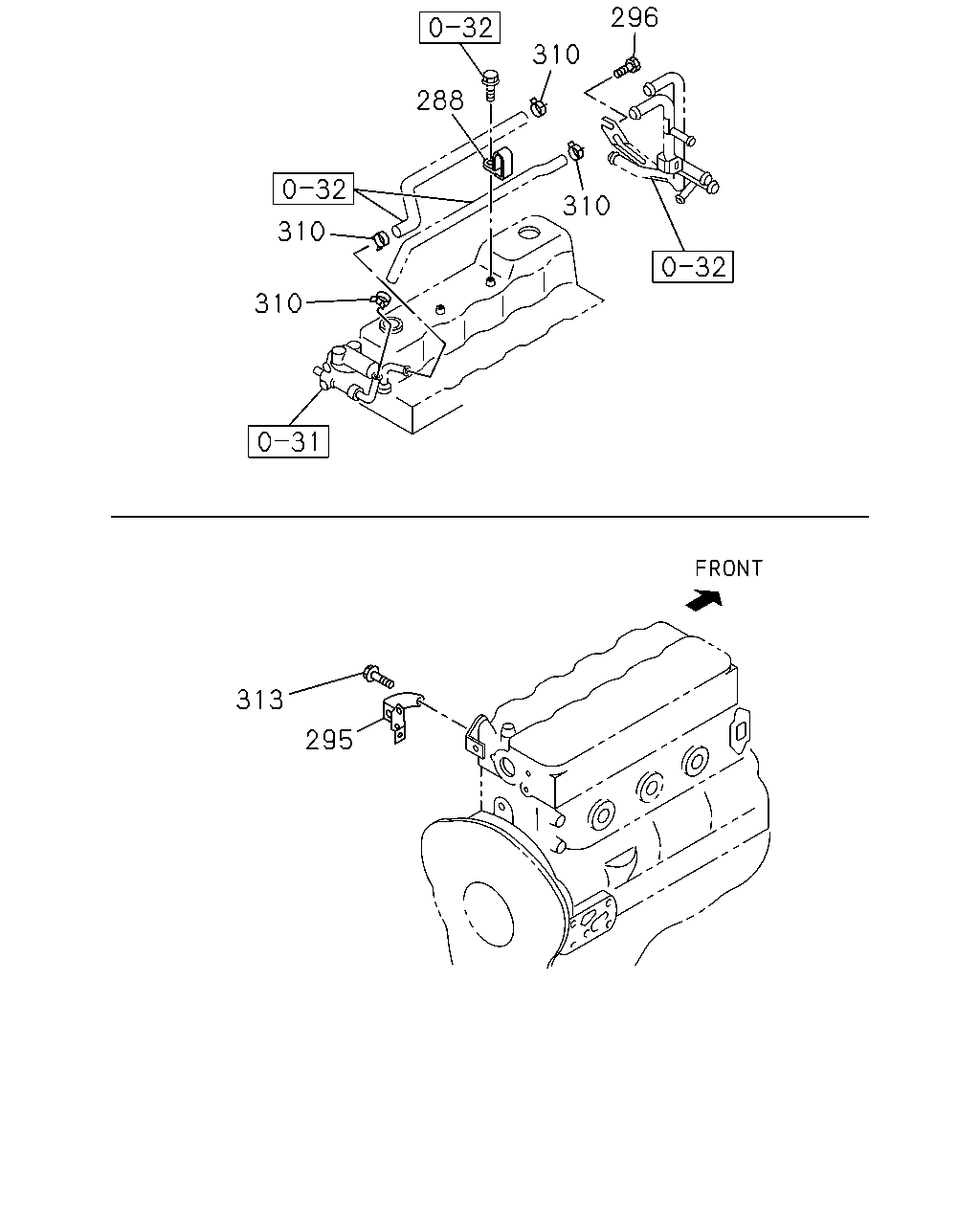

296 310 288 310 310 310 313 295

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
288	01.540 CLIP; HOSE,OIL COOLER EXC. TURBOCHARGER<K51> 08.846	5-83574-006-0	01	1	9712-	●
295	01.540 BRACKET; PIPE OIL COOLER EXC. TURBOCHARGER<K51>	8-97123-892-0	01	1	9712-	●
296	01.540 BOLT; RETURN PIPE EXC. TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER	0-50040-814-0	01	1	9712-	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9712-9908	●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	9909-	●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.150 ID=24	8-97010-605-0	02	1	9712-	●
313	01.540 BOLT; PIPE BRKT EXC. TURBOCHARGER<K51> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9712-	●

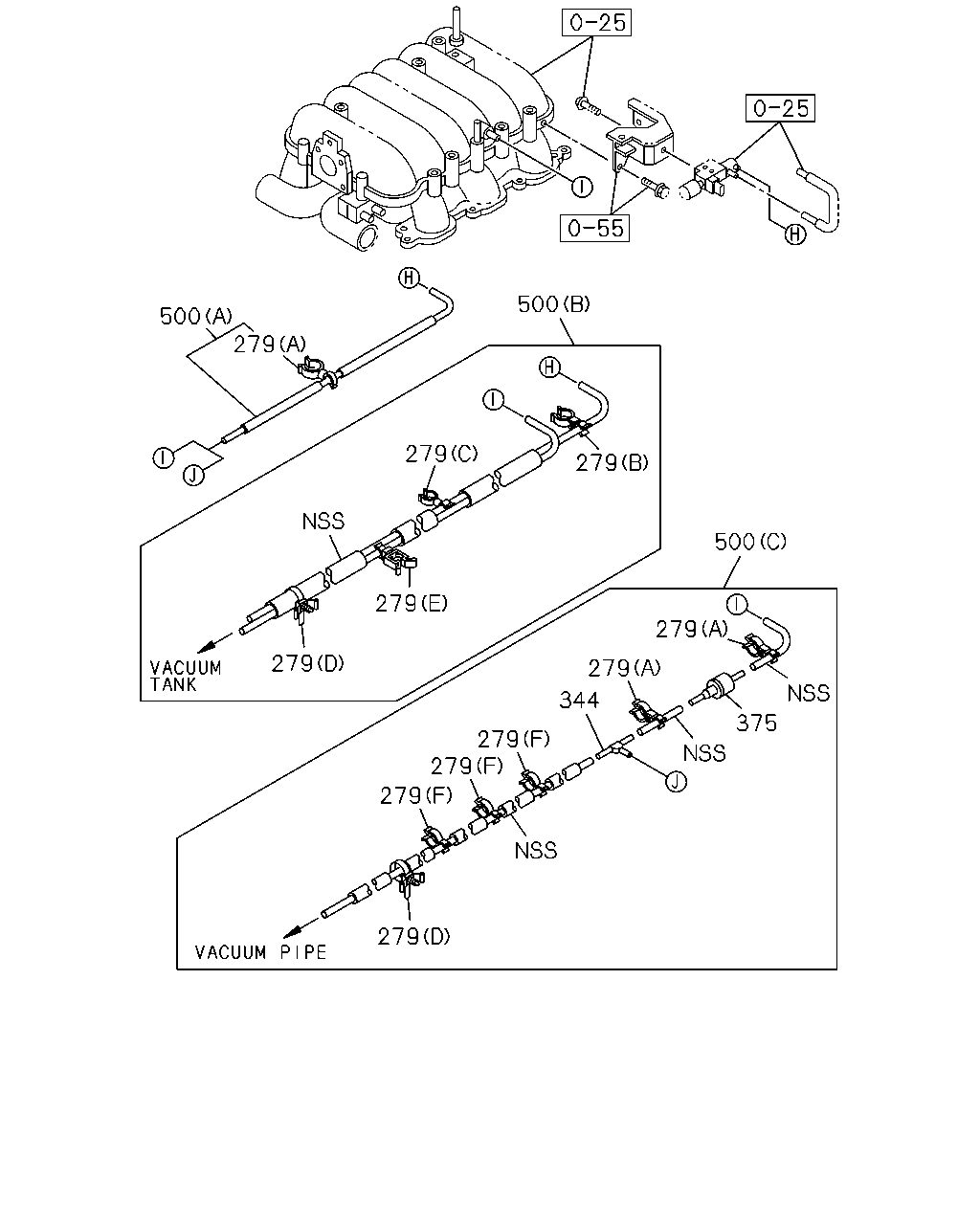

500 500 279 279 279 500 279 279 279 279 344 375 279 279 279 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
279	01.750 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	02	1	0106-0206		●
279	01.750 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 06.008 (A)	8-97200-741-0	02	1	0207-		●
279	01.750 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.680 (F) ID=7.2 & 10	5-09707-056-0	03	1	0106-		●
279	01.750 CLIP; RUBBER HOSE SHIFT ON THE FLY(7EX) 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	9712-0105		●	●
279	01.750 CLIP; RUBBER HOSE SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-		●	●
279	01.750 CLIP; RUBBER HOSE EUROPE EQUIPMENT(EK4) 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0106-		●
279	01.750 CLIP; RUBBER HOSE EXC. SHIFT ON THE FLY(7EX) 03.374 (B)	8-94363-539-0	01	1	9712-0105		●	●
279	01.750 CLIP; RUBBER HOSE EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 03.374 (B)	8-94363-539-0	01	1	0106-		●	●
279	01.750 CLIP; RUBBER HOSE EXC. SHIFT ON THE FLY(7EX) 03.440 (C) ID=7.7 & 11.1	8-94408-387-0	01	1	9712-0105		●	●
279	01.750 CLIP; RUBBER HOSE EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 03.440 (C) ID=7.7 & 11.1	8-94408-387-0	01	1	0106-		●	●
279	01.750 CLIP; RUBBER HOSE EXC. SHIFT ON THE FLY(7EX) 02.559 (D) L=135	8-94473-399-0	01	1	9712-0105		●	●
279	01.750 CLIP; RUBBER HOSE EXC. SHIFT ON THE FLY(7EX) 02.559 (D) L=135	8-94473-399-0	01	1	0106-		●
279	01.750 CLIP; RUBBER HOSE EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 02.559 (D) L=135	8-94473-399-0	01	1	0106-			●
279	01.750 CLIP; RUBBER HOSE EXC. SHIFT ON THE FLY(7EX) 06.008 (E)	8-97180-937-0	01	1	9712-9801		●	●
279	01.750 CLIP; RUBBER HOSE EXC. SHIFT ON THE FLY(7EX) 06.008 (E)	8-97200-741-0	01	1	9802-0105		●	●
279	01.750 CLIP; RUBBER HOSE EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) 06.008 (E)	8-97200-741-0	01	1	0106-		●	●
344	01.531 JOINT; RUBBER HOSE EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.680 3WAY	8-94208-695-0	01	1	0106-		●
375	01.531 VALVE; CHECK EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) 03.670	8-97024-129-2	01	1	0106-		●
500	04.681 HOSE; VACUUM (D)	8-97182-026-2	01	1	9712-	●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (C)	8-97220-001-1	01	1	0106-0107		●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) EXC. SHIFT ON THE FLY(7EX) (C)	8-97321-254-1	01	1	0108-		●
500	04.681 HOSE; VACUUM SHIFT ON THE FLY(7EX) (A)	8-97182-893-1	01	1	9712-0105		●	●
500	04.681 HOSE; VACUUM SHIFT ON THE FLY(7EX) EXC. EUROPE EQUIPMENT(EK4) (A)	8-97182-893-1	01	1	0106-		●	●
500	04.681 HOSE; VACUUM EUROPE EQUIPMENT(EK4) (A)	8-97182-893-1	01	1	0106-		●
500	04.681 HOSE; VACUUM EXC. SHIFT ON THE FLY(7EX) (B)	8-97168-925-1	01	1	9712-9801		●	●
500	04.681 HOSE; VACUUM EXC. SHIFT ON THE FLY(7EX) (B)	8-97189-873-1	01	1	9802-0105		●	●
500	04.681 HOSE; VACUUM EXC. EUROPE EQUIPMENT(EK4),SHIFT ON THEFLY(7EX) (B)	8-97189-873-1	01	1	0106-		●	●

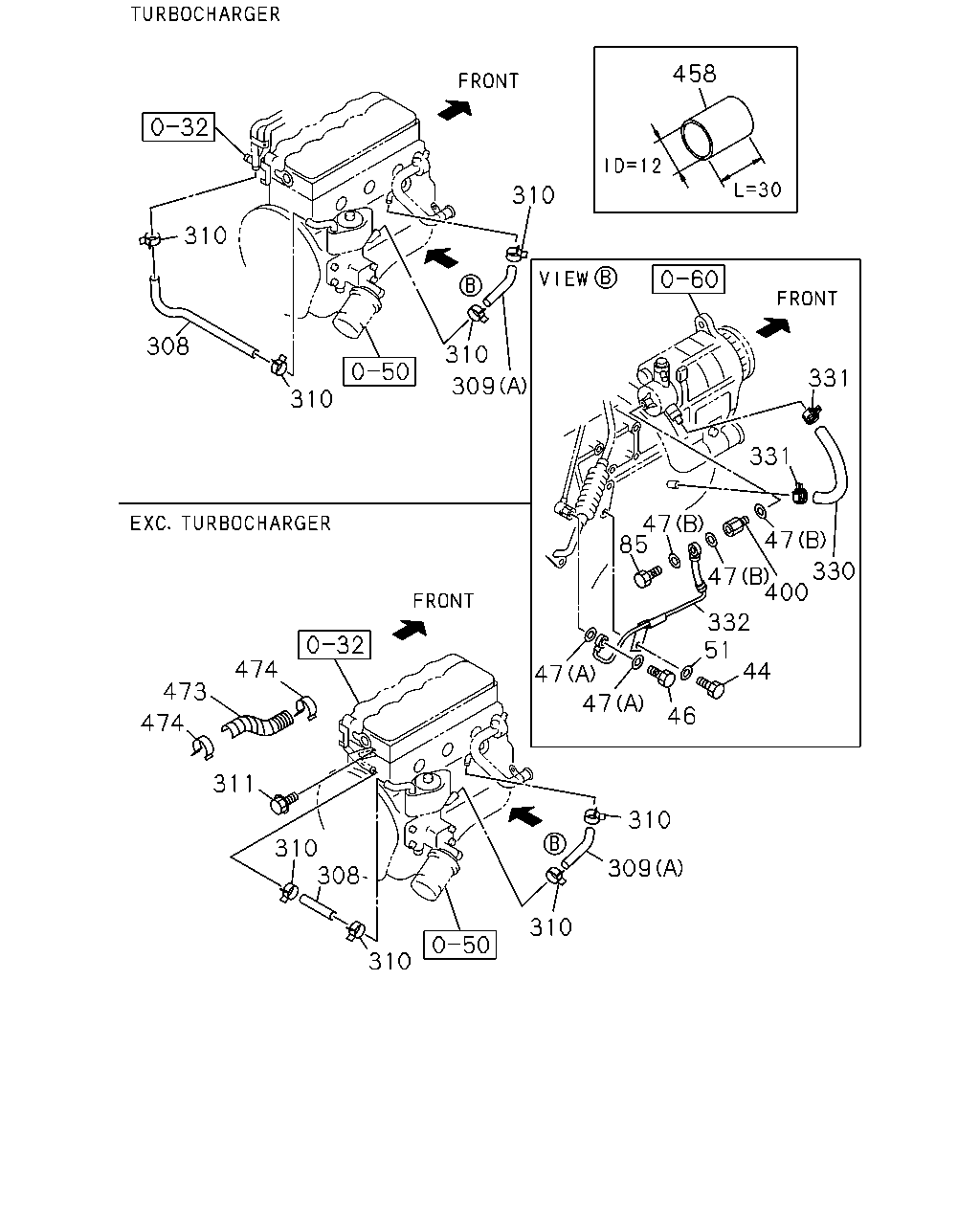

458 310 310 308 310 331 309 310 331 47 85 47 330 47 400 332 51 474 44 47 47 473 46 474 311 310 310 308 309 310 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
44	01.531 BOLT; CLIP,OIL PIPE 03.704 M8X16 W/LK WASHER	0-50040-816-0	01	1	9712-			●
46	01.531 BOLT; JOINT,OIL FEED PIPE,VAC PU M8X20 EYE BOLT	5-09675-018-1	01	1	9712-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 05.398 (A) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9712-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 08.955 (B) ID=10.2 OD=16.0	9-09571-410-0	03	1	9712-			●
47	01.531 GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) (C) W/PLATE ID=18.2	8-94329-964-0	02	1	9712-	●	●
51	01.531 WASHER; PL,OIL PIPE,VAC PUMP 01.276 ID=8.4 OD=18	9-09164-608-0	01	1	9712-			●
85	01.531 BOLT; EYE,OIL PIPE FIX M10X21 FLANGE	1-09675-078-0	01	1	9712-			●
308	01.540 HOSE; OIL COOLER FEED TURBOCHARGER<K51>	8-97039-414-1	01	1	9712-			●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>	8-97101-601-0	01	1	9712-0212			●
308	01.540 HOSE; OIL COOLER FEED EXC. TURBOCHARGER<K51>	8-97351-622-0	01	1	0301-			●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (B)	8-97049-285-0	01	1	9712-			●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (A)	8-97069-793-1	01	1	9712-0212			●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (A)	8-97351-571-1	01	1	0301-			●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51> (A)	8-97147-993-1	01	1	9712-			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9712-9908			●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	9909-			●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.150 ID=24	8-97010-605-0	02	1	9712-			●
311	01.531 BOLT; PIPE FIX TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9712-0201			●
311	01.531 BOLT; PIPE FIX TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-			●
311	01.531 BOLT; PIPE FIX EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-			●
311	01.531 BOLT; PIPE FIX EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9712-			●
330	03.278 HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9712-			●
331	03.278 CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9712-			●
332	01.519 PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9712-			●
400	01.531 NIPPLE; VAC PUMP,OIL	8-97061-857-0	01	1	9712-			●
458	01.426 CAP; RUBBER TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 03.407 ID=12 L=30	8-94249-289-0	01	1	0106-			●
473	01.540 INSULATOR; HOSE EXC. TURBOCHARGER<K51>	8-97102-426-0	01	1	9712-			●
474	01.540 CLIP; INSULATOR EXC. TURBOCHARGER<K51>	8-97101-337-0	02	1	9712-			●

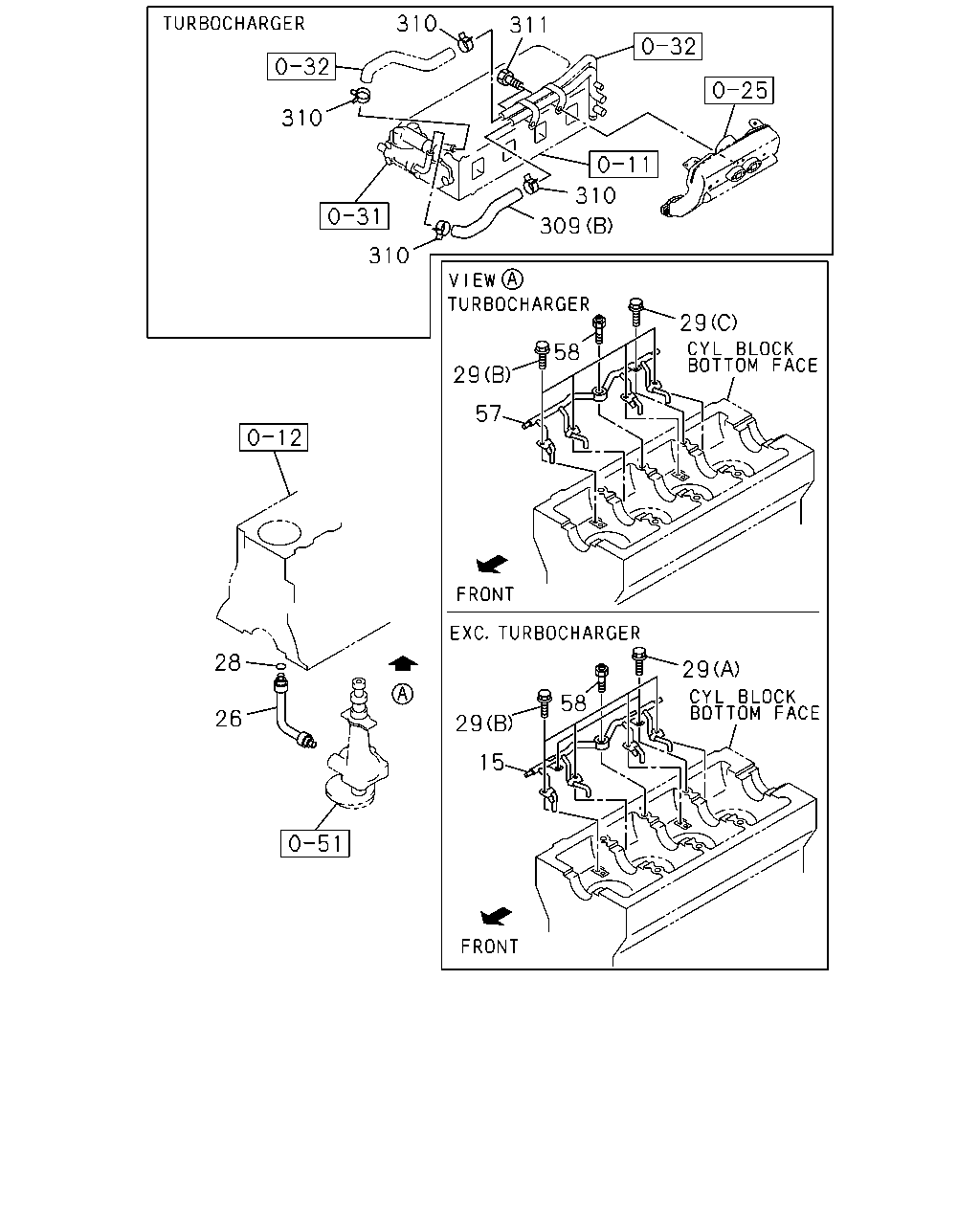

310 311 310 310 309 310 29 58 29 57 28 29 58 26 29 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
15	01.519 PIPE; OIL JET,PISTON COOLING EXC. TURBOCHARGER<K51>	8-97043-741-2	02	1	9712-		●
26	01.519 PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9712-		●
28	01.531 GASKET; OIL PIPE 01.516 ID=11	5-09623-002-0	01	1	9712-		●
28	01.531 GASKET; OIL PIPE	8-97184-216-0	04	1	9712-	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9712-9804		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	02	1	9805-0202		●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	0203-	●	●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> 00.206 (C) M8X12 W/LK WASHER	0-50040-812-0	01	1	9712-		●
29	01.531 BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> (B) M6X20	8-97117-298-1	04	1	9712-		●
29	01.531 BOLT; OIL PIPE,OIL JET (B) M6X20	8-97117-298-1	04	1	9712-	●
29	01.531 BOLT; OIL PIPE,OIL JET EXC. TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9712-		●
29	01.531 BOLT; OIL PIPE,OIL JET 08.900 (A) M8X12 FLANGE	0-28080-812-0	01	1	9712-9802	●
29	01.531 BOLT; OIL PIPE,OIL JET 00.206 (A) M8X10 FLANGE	0-28080-810-0	01	1	9803-0202	●
57	01.519 PIPE; OIL,OIL JET TURBOCHARGER<K51>	8-97116-971-1	01	1	9712-		●
57	01.519 PIPE; OIL,OIL JET	8-97145-277-1	01	1	9712-9802	●
57	01.519 PIPE; OIL,OIL JET	8-97207-031-1	01	1	9803-	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO	8-97145-612-0	01	1	9712-0104	●	●
58	01.531 VALVE; RELIEF,OIL JET,PISTON COO 01.639	8-97311-976-1	01	1	0105-	●	●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (B)	8-97049-285-0	01	1	9712-		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (A)	8-97069-793-1	01	1	9712-0212		●
309	01.540 HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (A)	8-97351-571-1	01	1	0301-		●
309	01.540 HOSE; OIL COOLER RETURN EXC. TURBOCHARGER<K51> (A)	8-97147-993-1	01	1	9712-		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-0	08	1	9712-9908		●
310	01.540 CLIP; WATER HOSE FIX 01.166 ID=20.8	8-94125-862-1	06	1	9909-		●
310	01.540 CLIP; WATER HOSE FIX TURBOCHARGER<K51> 01.150 ID=24	8-97010-605-0	02	1	9712-		●
311	01.531 BOLT; PIPE FIX TURBOCHARGER<K51> 00.206 M8X14 W/LK WASHER	0-50040-814-0	02	1	9712-0201		●
311	01.531 BOLT; PIPE FIX TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0202-		●
311	01.531 BOLT; PIPE FIX EXC. TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9712-		●
311	01.531 BOLT; PIPE FIX EXC. TURBOCHARGER<K51> 00.662 M8X14 FLANGE	0-28080-814-0	01	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
