Sayfa 0-41 - Isuzu EPC

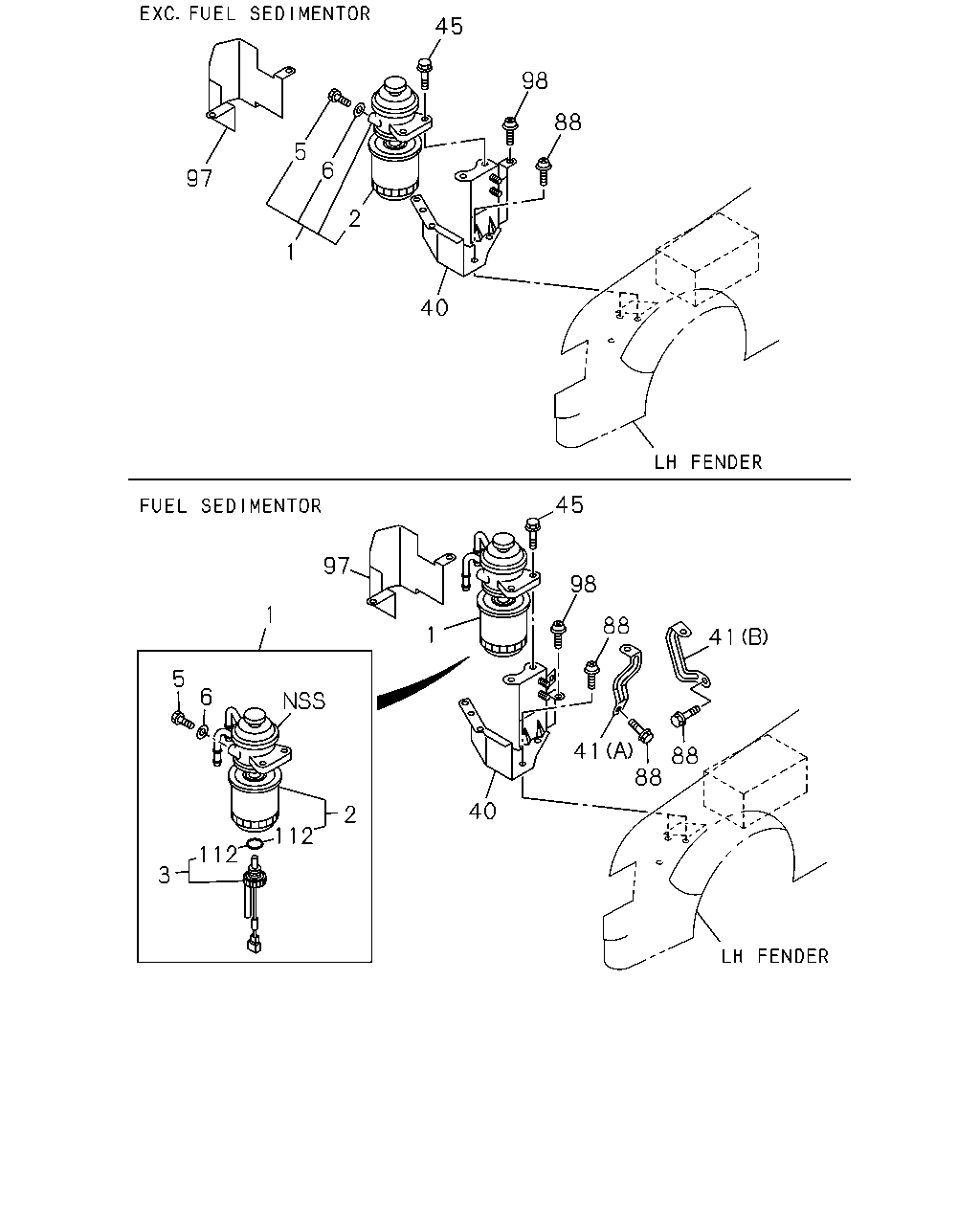

0-41 — FUEL FILTER AND BRACKET (#73223) — 67 parça

1 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9712-	●
1	03.890 FILTER ASM; FUEL	8-97137-117-0	01	1	9712-9805		●
1	03.890 FILTER ASM; FUEL	8-97211-799-0	01	1	9806-9903		●
1	03.890 FILTER ASM; FUEL	8-97224-560-0	01	1	9904-0105		●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER<ET9>	8-97224-560-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER<ET9>	8-97239-199-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9712-			●	●
42	03.890 BOLT; FUEL FILTER 04.439 M6X16 FLANGE	0-28680-616-0	01	1	9712-			●	●

45 98 88 5 6 97 2 1 40 45 97 98 1 88 1 41 5 6 41 88 88 40 2 112 112 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9712-	●
1	03.890 FILTER ASM; FUEL	8-97137-117-0	01	1	9712-9805		●
1	03.890 FILTER ASM; FUEL	8-97211-799-0	01	1	9806-9903		●
1	03.890 FILTER ASM; FUEL	8-97224-560-0	01	1	9904-0105		●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER<ET9>	8-97224-560-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER<ET9>	8-97239-199-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9712-			●	●
2	03.890 ELEMENT KIT; FUEL FILTER 01.836	8-94144-613-0	01	1	9712-	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94394-079-1	01	1	9712-0105		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER<ET9>	8-94394-079-1	01	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER<ET9>	8-94419-532-0	01	1	0106-		●
3	03.890 SENSOR ASM; FUEL FILTER FUEL SEDIMENTER<ET9>	8-97259-085-0	01	1	0106-		●
5	03.890 BOLT; FUEL FILTER	8-94132-674-0	01	1	9712-		●
6	03.890 GASKET; FUEL FILTER	8-94132-675-0	01	1	9712-		●
40	03.890 BRACKET; FUEL FILTER	8-97038-181-1	01	1	9712-	●
40	03.890 BRACKET; FUEL FILTER	8-97173-586-2	01	1	9712-0105		●
40	03.890 BRACKET; FUEL FILTER EXC. FUEL SEDIMENTER<ET9>	8-97173-586-2	01	1	0106-		●
40	03.890 BRACKET; FUEL FILTER FUEL SEDIMENTER<ET9>	8-97239-200-0	01	1	0106-		●
41	03.890 BRACKET; FUEL FILTER FUEL SEDIMENTER<ET9> FRIGID ZONE<YL3> (A)	8-97253-585-0	01	1	0106-		●
41	03.890 BRACKET; FUEL FILTER FUEL SEDIMENTER<ET9> EXC. FRIGID ZONE<YL3> (B)	8-97288-220-0	01	1	0106-		●
45	03.890 BOLT; FUEL FILTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-9901	●
45	03.890 BOLT; FUEL FILTER 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9902-	●
45	03.890 BOLT; FUEL FILTER 02.334 M6X25 FLANGE	0-28680-625-0	02	1	9712-		●
88	03.895 BOLT; BRKT,FUEL FILTER 08.155 M8X16 FLANGE	0-28480-816-0	05	1	9712-	●
88	03.895 BOLT; BRKT,FUEL FILTER 08.155 M8X16 FLANGE	0-28480-816-0	03	1	9712-		●
88	03.895 BOLT; BRKT,FUEL FILTER FUEL SEDIMENTER<ET9> FRIGID ZONE<YL3> 02.334 M6X16 W/PL WASHER	8-97803-781-0	01	1	0106-		●
88	03.895 BOLT; BRKT,FUEL FILTER FUEL SEDIMENTER<ET9> EXC. FRIGID ZONE<YL3> 08.155 M8X16 FLANGE	0-28480-816-0	01	1	0106-		●
97	03.890 PROTECTOR; FUEL FILTER	8-97172-213-2	01	1	9712-9802		●
97	03.890 PROTECTOR; FUEL FILTER	8-97207-611-0	01	1	9803-0105		●
97	03.890 PROTECTOR; FUEL FILTER EXC. FUEL SEDIMENTER<ET9>	8-97207-611-0	01	1	0106-0201		●
97	03.890 PROTECTOR; FUEL FILTER EXC. FUEL SEDIMENTER<ET9>	8-97317-323-0	01	1	0202-		●
97	03.890 PROTECTOR; FUEL FILTER FUEL SEDIMENTER<ET9>	8-97239-202-0	01	1	0106-0201		●
97	03.890 PROTECTOR; FUEL FILTER FUEL SEDIMENTER<ET9>	8-97326-178-0	01	1	0202-		●
98	03.890 BOLT; PROTECTOR 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9712-		●
112	06.605 GASKET; SENSOR TO CASE FUEL SEDIMENTER<ET9> 03.890	8-94419-534-0	01	1	0106-		●

47 88 47 45 1 2 88 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.890 FILTER ASM; FUEL	8-94420-201-0	01	1	9712-	●
1	03.890 FILTER ASM; FUEL	8-97137-117-0	01	1	9712-9805		●
1	03.890 FILTER ASM; FUEL	8-97211-799-0	01	1	9806-9903		●
1	03.890 FILTER ASM; FUEL	8-97224-560-0	01	1	9904-0105		●
1	03.890 FILTER ASM; FUEL EXC. FUEL SEDIMENTER<ET9>	8-97224-560-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL FUEL SEDIMENTER<ET9>	8-97239-199-0	01	1	0106-		●
1	03.890 FILTER ASM; FUEL	8-25055-364-0	01	1	9712-			●	●
2	03.890 ELEMENT KIT; FUEL FILTER 01.836	8-94144-613-0	01	1	9712-	●
2	03.890 ELEMENT KIT; FUEL FILTER	8-94394-079-1	01	1	9712-0105		●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL SEDIMENTER<ET9>	8-94394-079-1	01	1	0106-		●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL SEDIMENTER<ET9>	8-94419-532-0	01	1	0106-		●
40	03.890 BRACKET; FUEL FILTER	8-97038-181-1	01	1	9712-	●
40	03.890 BRACKET; FUEL FILTER	8-97173-586-2	01	1	9712-0105		●
40	03.890 BRACKET; FUEL FILTER EXC. FUEL SEDIMENTER<ET9>	8-97173-586-2	01	1	0106-		●
40	03.890 BRACKET; FUEL FILTER FUEL SEDIMENTER<ET9>	8-97239-200-0	01	1	0106-		●
45	03.890 BOLT; FUEL FILTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9712-9901	●
45	03.890 BOLT; FUEL FILTER 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9902-	●
45	03.890 BOLT; FUEL FILTER 02.334 M6X25 FLANGE	0-28680-625-0	02	1	9712-		●
47	03.890 BOLT; BRKT,FUEL FILTER 03.405 M10X30 FLANGE	0-28681-030-0	02	1	9712-0111	●
47	03.890 BOLT; BRKT,FUEL FILTER 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0112-	●
88	03.895 BOLT; BRKT,FUEL FILTER 08.155 M8X16 FLANGE	0-28480-816-0	05	1	9712-	●
88	03.895 BOLT; BRKT,FUEL FILTER 08.155 M8X16 FLANGE	0-28480-816-0	03	1	9712-		●
88	03.895 BOLT; BRKT,FUEL FILTER FUEL SEDIMENTER<ET9> FRIGID ZONE<YL3> 02.334 M6X16 W/PL WASHER	8-97803-781-0	01	1	0106-		●
88	03.895 BOLT; BRKT,FUEL FILTER FUEL SEDIMENTER<ET9> EXC. FRIGID ZONE<YL3> 08.155 M8X16 FLANGE	0-28480-816-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
