8-10 — WIRING HARNESS AND FUSE (#7322) — 424 parça

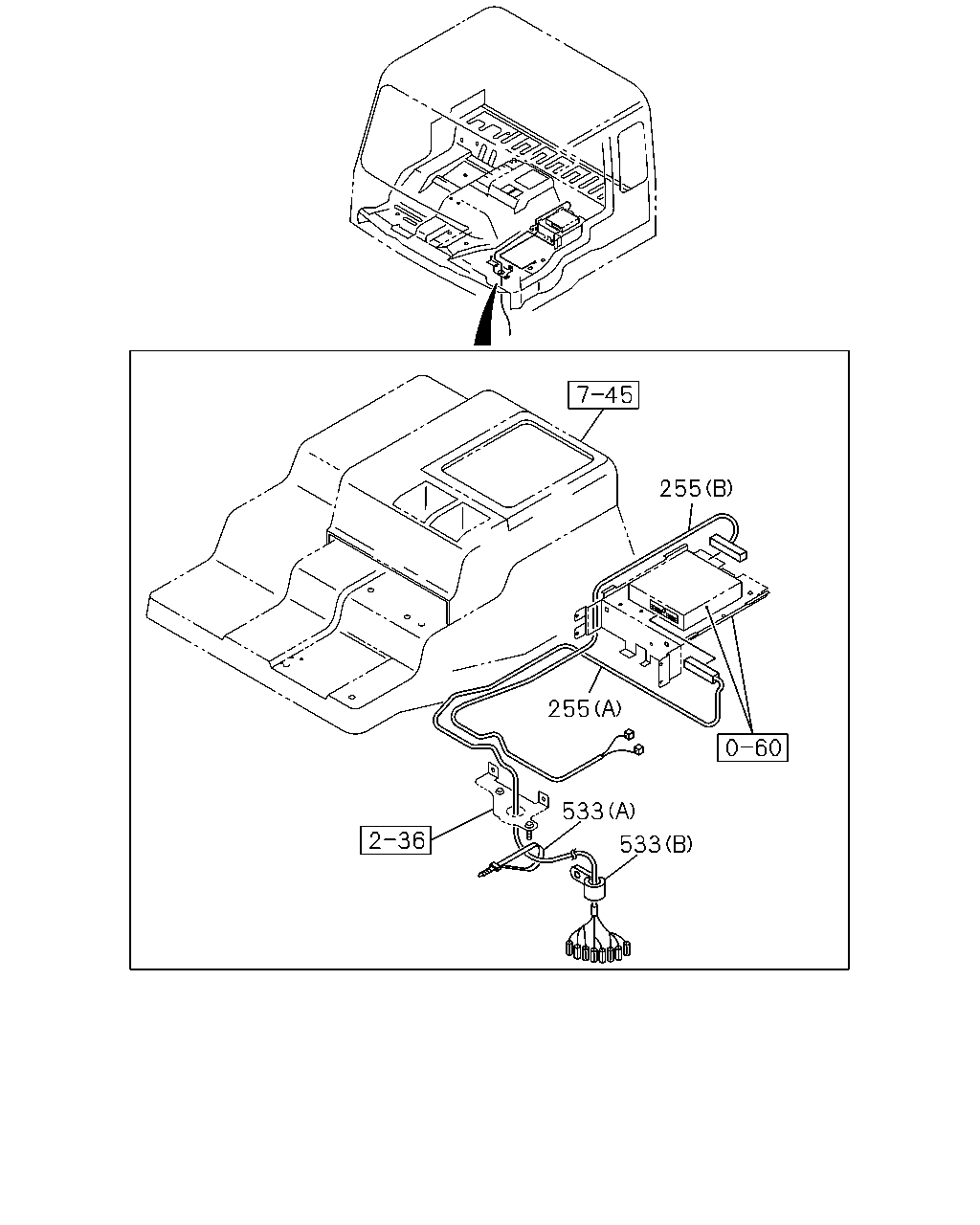

çizim 6071
255 255 533 533
BalonParca AdiParca NoAdetTipApplied Date
255 HARNESS; ELEC GOV
ANTILOCK BRAKE SYSTEM(BFA) ELECTRONIC GOV RED3(KG5) (B) 		1-82628-552-0 01 1 9906-0101
255 HARNESS; ELEC GOV
ANTILOCK BRAKE SYSTEM(BFA) ELECTRONIC GOV RED3(KG5) (B) 		1-82660-223-0 01 1 0102-
255 HARNESS; ELEC GOV
ANTILOCK BRAKE SYSTEM(BFA) ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (A) 		1-82628-548-2 01 1 9906-0101
255 HARNESS; ELEC GOV
ANTILOCK BRAKE SYSTEM(BFA) ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> (A) 		1-82660-212-0 01 1 0102-
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82628-091-2 01 1 9906-0101
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) 		1-82660-218-0 01 1 0102-
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CAB UP +110MM<TGG> (A) 		1-82628-063-2 01 1 9906-0101
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) EXC. ANTILOCK BRAKE SYSTEM(BFA),CAB UP +110MM<TGG> (A) 		1-82660-208-0 01 1 0102-
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82628-065-2 01 1 9906-0101
255 HARNESS; ELEC GOV
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 		1-82660-209-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ANTILOCK BRAKE SYSTEM(BFA) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82628-546-3 01 1 9906-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ANTILOCK BRAKE SYSTEM(BFA) CAB UP +110MM<TGG> EXC. ELECTRONIC GOV RED3(KG5) (A) 		1-82660-206-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ANTILOCK BRAKE SYSTEM(BFA) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-550-0 01 1 9906-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) ANTILOCK BRAKE SYSTEM(BFA) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-216-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5) (B) 		1-82628-090-1 01 1 9906-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5) (B) 		1-82660-214-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-82628-060-3 01 1 9906-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5),CAB UP +110MM<TGG> (A) 		1-82660-202-0 01 1 0102-
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5) (A) 		1-82628-062-3 01 1 9906-0101
255 HARNESS; ELEC GOV
6WA1 TC-C(55L) CAB UP +110MM<TGG> EXC. ANTILOCK BRAKE SYSTEM(BFA),ELECTRONIC GOV RED3(KG5) (A) 		1-82660-203-0 01 1 0102-
533 CLIP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) ID=19 L=32 		1-09701-235-0 01 1 9906-
533 CLIP
ELECTRONIC GOV RED3(KG5) (B) ID=19 L=32 		1-09701-235-0 01 1 9906-
533 CLIP
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) L=250 		5-09707-030-1 03 1 9906-
533 CLIP
ELECTRONIC GOV RED3(KG5) (A) L=250 		5-09707-030-1 03 1 9906-
çizim 6157
488
BalonParca AdiParca NoAdetTipApplied Date
488 HARNESS; EXT,CONVERTER
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> W/FUSE 12V 6.3A 		1-82628-954-0 01 1 0009-

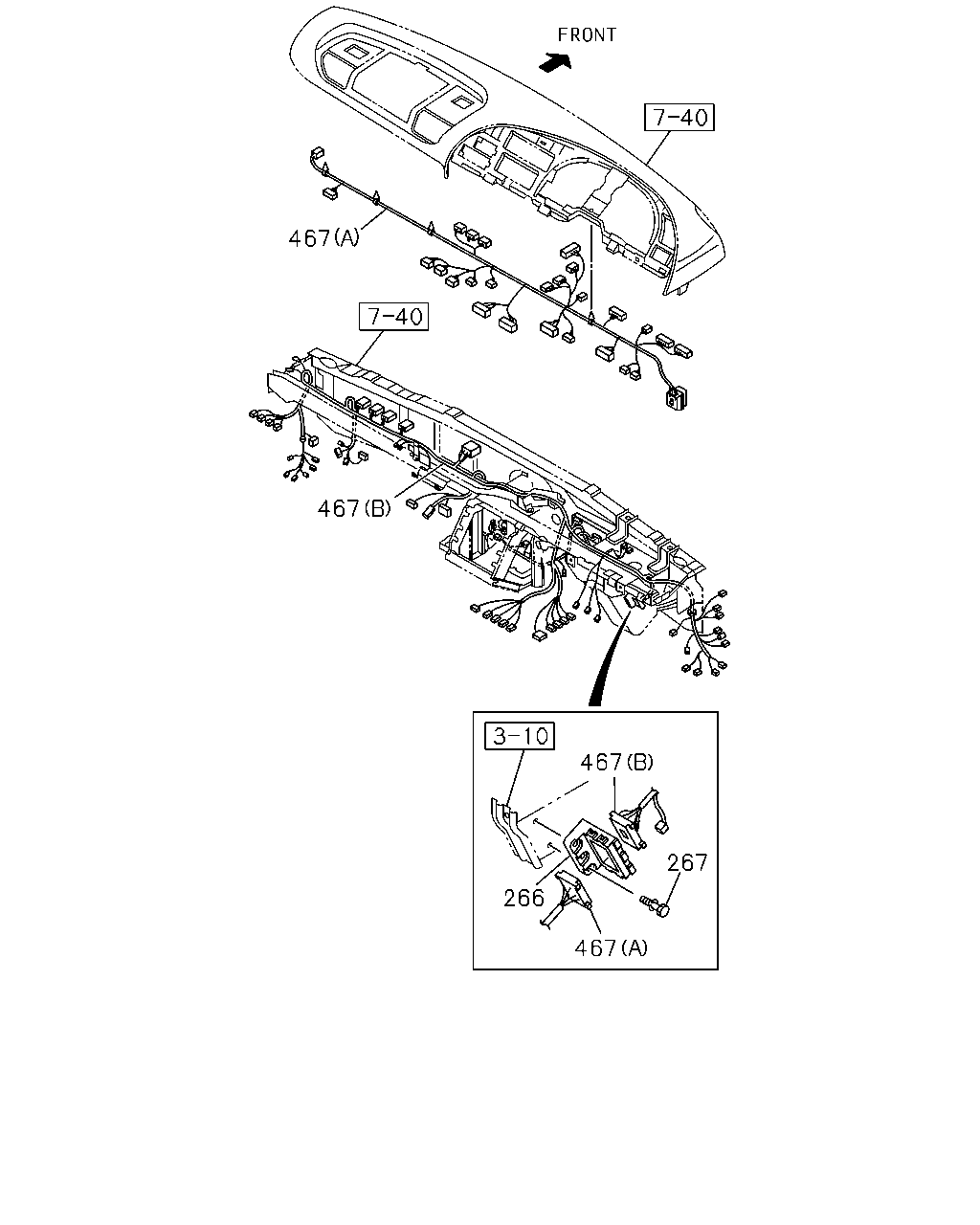

çizim 7531
467 467 467 267 266 467
BalonParca AdiParca NoAdetTipApplied Date
266 BRACKET; CONN BOX 1-82699-580-0 01 1 9906-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 9906-
467 HARNESS; FACIA
EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82628-111-3 01 1 9906-9909
467 HARNESS; FACIA
EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82629-327-0 01 1 9910-
467 HARNESS; FACIA
THAILAND EQUIPMENT(PM9) SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82628-161-1 01 1 9906-
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-075-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82629-332-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-274-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-076-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82629-333-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82660-275-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-077-1 01 1 9906-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-276-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-078-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-324-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8> (B) 		1-82629-324-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8> (B) 		1-82660-279-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-080-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-326-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-326-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-281-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-079-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82660-280-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8> (B) 		1-82629-414-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8> (B) 		1-82660-282-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82629-415-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82660-283-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82629-416-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-284-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-420-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-288-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-421-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82660-289-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-422-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-290-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82629-417-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-285-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82629-418-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82660-286-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-419-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-287-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-S(56L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-072-1 01 1 9906-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-074-1 01 1 9906-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-073-1 01 1 9906-9906

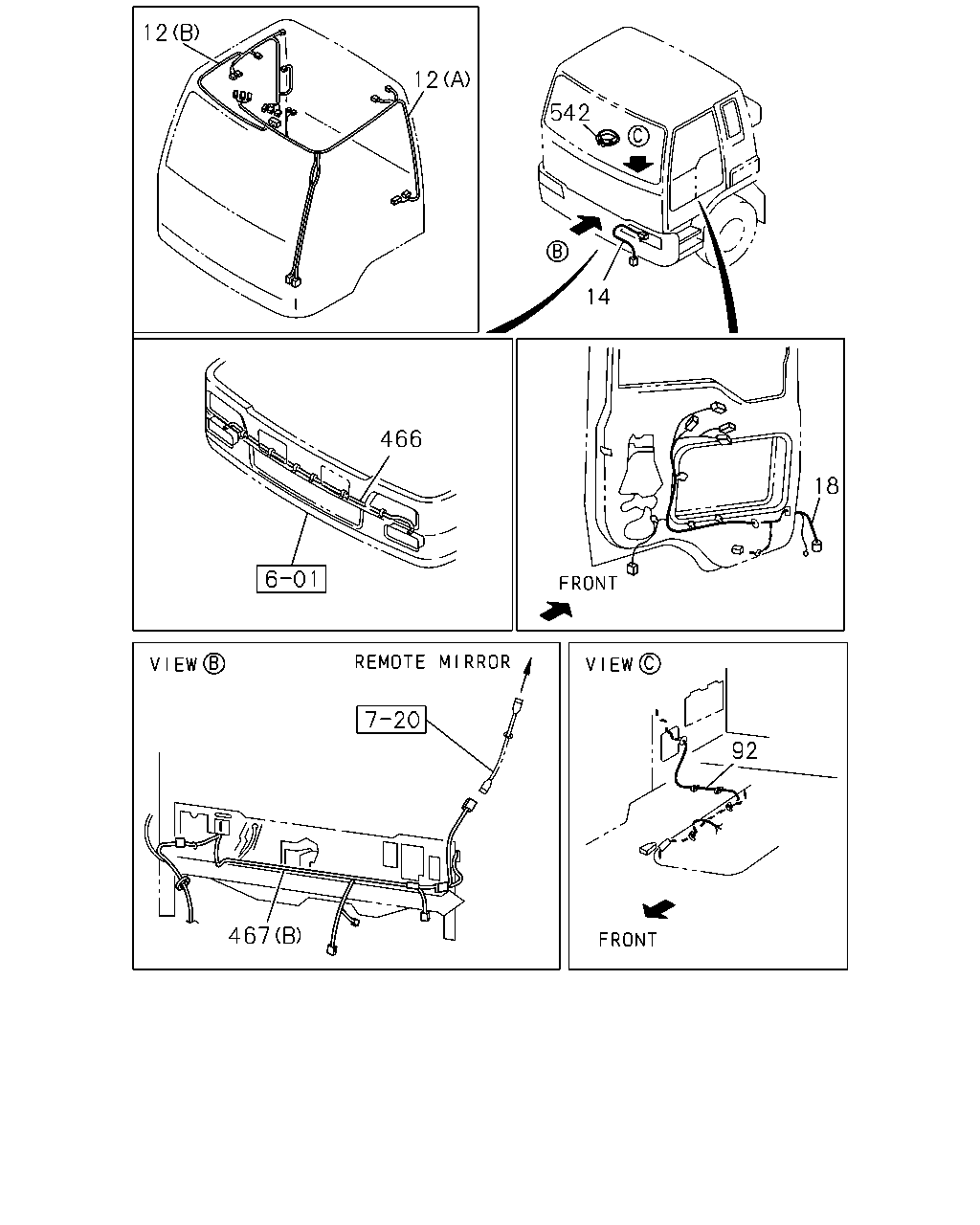

çizim 7532
12 12 542 14 466 18 92 467
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> (B) DRIVER SIDE 		1-82628-105-0 01 1 9906-
12 HARNESS; ROOF
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (A) PASSENGER SIDE 		1-82628-097-3 01 1 9906-
12 HARNESS; ROOF
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> (A) PASSENGER SIDE 		1-82628-101-3 01 1 9906-
12 HARNESS; ROOF
HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> (A) PASSENGER SIDE 		1-82628-104-2 01 1 9906-
12 HARNESS; ROOF
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> EXC. AUTO ROUND CURTAIN<TAR> (A) PASSENGER SIDE 		1-82628-103-3 01 1 9906-0003
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> (A) PASSENGER SIDE 		1-82628-103-3 01 1 0004-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> (A) PASSENGER SIDE 		1-82628-100-1 01 1 9906-
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> (A) PASSENGER SIDE 		1-82628-099-2 01 1 9906-
12 HARNESS; ROOF
SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. AUTO ROUND CURTAIN<TAR> (B) DRIVER SIDE 		1-82628-107-0 01 1 9906-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> FOG LAMP<T96> 		1-82671-664-2 02 1 9906-
14 HARNESS; HEADLAMP
BUMPER W/HEADLAMPS<SLB> EXC. FOG LAMP<T96> 		1-82670-022-1 02 1 9906-
14 HARNESS; HEADLAMP
EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> 		1-82625-150-2 02 1 9906-
14 HARNESS; HEADLAMP
REINFORCEMENT BUMPER<VG7> 		1-82625-986-0 02 1 9906-
18 HARNESS; DOOR
POWER WINDOW<A30> DRIVER SIDE 		1-82628-588-0 01 1 9906-
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> PASSENGER SIDE 		1-82628-396-1 01 1 9906-
18 HARNESS; DOOR
POWER WINDOW<A30> DOOR WITH UNDER VIEW WINDOW<YD8> PASSENGER SIDE 		1-82628-673-0 01 1 9906-
18 HARNESS; DOOR
POWER WINDOW<A30> EXC. DOOR WITH UNDER VIEW WINDOW<YD8> PASSENGER SIDE 		1-82628-582-0 01 1 9906-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> PASSENGER SIDE 		1-82628-581-0 01 1 9906-
18 HARNESS; DOOR
EXC. POWER WINDOW<A30> DRIVER SIDE 		1-82628-589-0 01 1 9906-
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> ELEC OUTLET 12V<TAW> 		1-82628-117-2 01 1 9906-9909
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> ELEC OUTLET 12V<TAW> 		1-82629-330-0 01 1 9910-
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> EXC. ELEC OUTLET 12V<TAW> 		1-82628-113-0 01 1 9906-9909
92 HARNESS; FLOOR
AUTO ROUND CURTAIN<TAR> EXC. ELEC OUTLET 12V<TAW> 		1-82629-328-0 01 1 9910-
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82628-114-0 01 1 9906-9906
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82629-055-0 01 1 9907-9909
92 HARNESS; FLOOR
EXC. AUTO ROUND CURTAIN<TAR>,ELEC OUTLET 12V<TAW> 		1-82629-329-0 01 1 9910-
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. AUTO ROUND CURTAIN<TAR> 		1-82628-118-2 01 1 9906-9909
92 HARNESS; FLOOR
ELEC OUTLET 12V<TAW> EXC. AUTO ROUND CURTAIN<TAR> 		1-82629-331-0 01 1 9910-
466 HARNESS; BUMPER
REINFORCEMENT BUMPER<VG7> 		1-82639-227-3 01 1 9906-
466 HARNESS; BUMPER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82639-281-0 01 1 9906-
467 HARNESS; FACIA
EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82628-111-3 01 1 9906-9909
467 HARNESS; FACIA
EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82629-327-0 01 1 9910-
467 HARNESS; FACIA
THAILAND EQUIPMENT(PM9) SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82628-161-1 01 1 9906-
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-075-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82629-332-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-274-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-076-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82629-333-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82660-275-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-077-1 01 1 9906-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-276-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-078-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-324-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8> (B) 		1-82629-324-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8> (B) 		1-82660-279-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-080-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-326-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-326-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-281-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-079-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82660-280-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8> (B) 		1-82629-414-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8> (B) 		1-82660-282-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82629-415-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82660-283-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82629-416-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-284-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-420-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-288-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-421-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82660-289-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-422-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-290-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82629-417-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-285-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82629-418-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82660-286-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-419-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-287-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-S(56L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-072-1 01 1 9906-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-074-1 01 1 9906-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-073-1 01 1 9906-9906
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 9906-

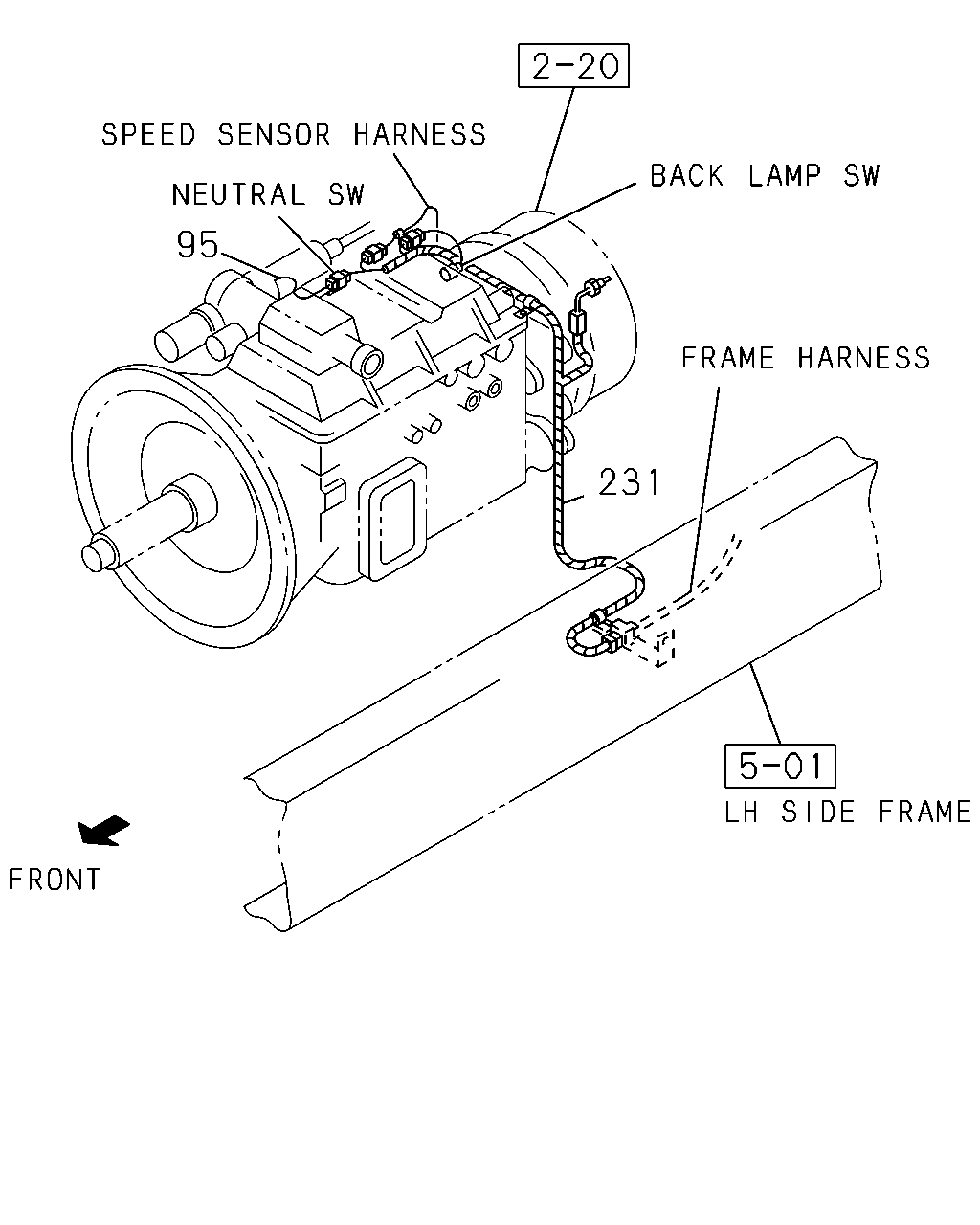

çizim 7537
95 231
BalonParca AdiParca NoAdetTipApplied Date
95 HARNESS; NEUTRAL SW
6WA1 TC-S(56L),6WG1 TC-N(71L) COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-82639-626-0 01 1 9906-9906
95 HARNESS; NEUTRAL SW
6WG1 TC-N(71L) COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-82639-626-0 01 1 9907-9912
95 HARNESS; NEUTRAL SW
COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-82639-626-0 01 1 0001-0002
95 HARNESS; NEUTRAL SW
TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-82639-626-0 01 1 0003-
231 HARNESS; TRANS
FULLER M/T<X9B> 		1-82638-903-3 01 1 9906-
231 HARNESS; TRANS
ISUZU M/T<X9A> 		1-82671-661-1 01 1 9906-

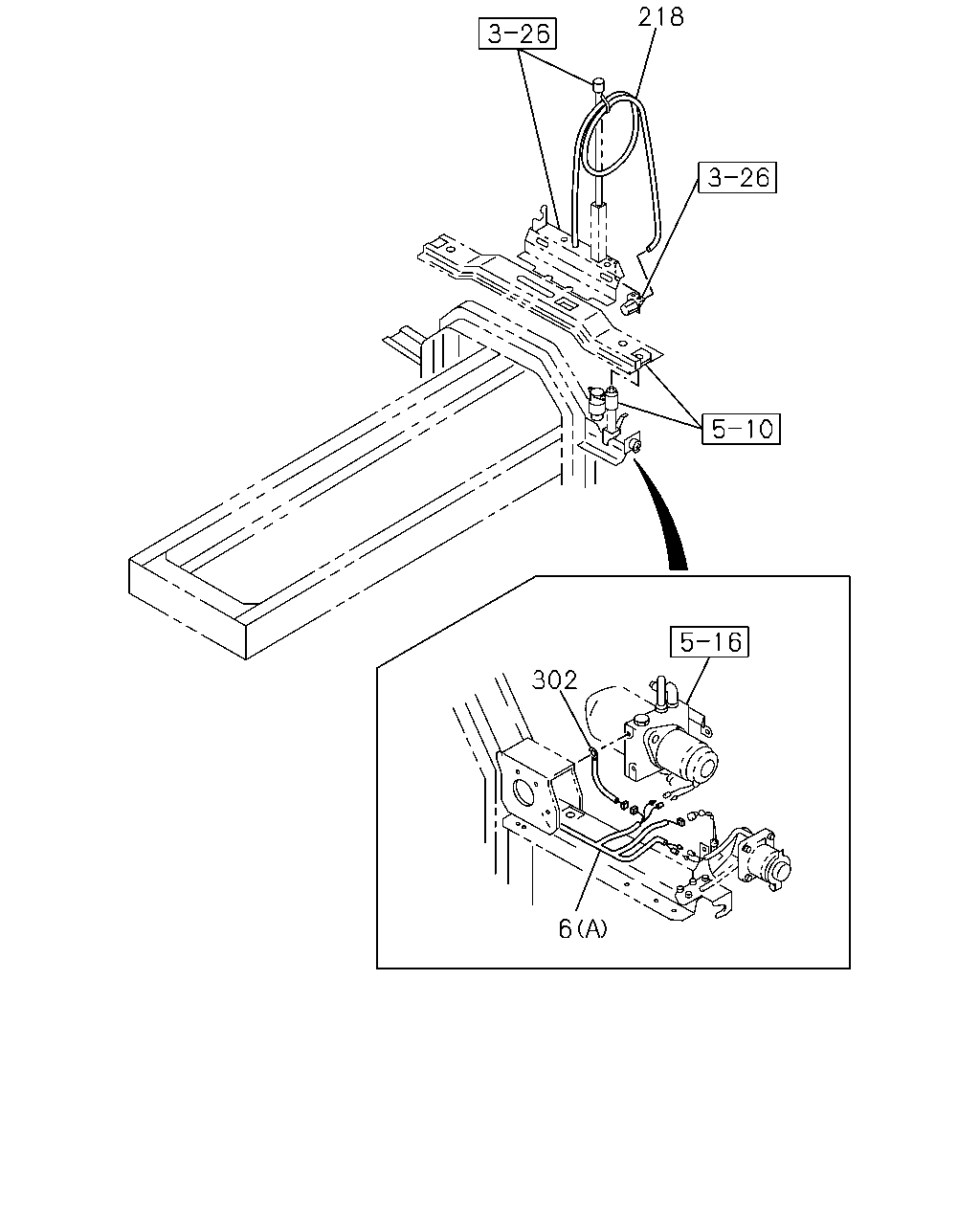

çizim 41310
218 302 6
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-683-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82671-684-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-688-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-687-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-305-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-306-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-309-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-310-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-307-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) FRAME 		1-82673-308-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-311-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82673-312-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-678-1 01 1 9906-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-677-1 01 1 9906-9906
218 CABLE; JUMPER,ABS
ANTILOCK BRAKE SYSTEM(BFA) L=4000 		1-82659-187-1 01 1 9906-
302 HARNESS; POWER CAB TILT
CAB UP +110MM<TGG> 		1-82639-938-0 01 1 9906-
302 HARNESS; POWER CAB TILT
EXC. CAB UP +110MM<TGG> 		1-82639-273-0 01 1 9906-

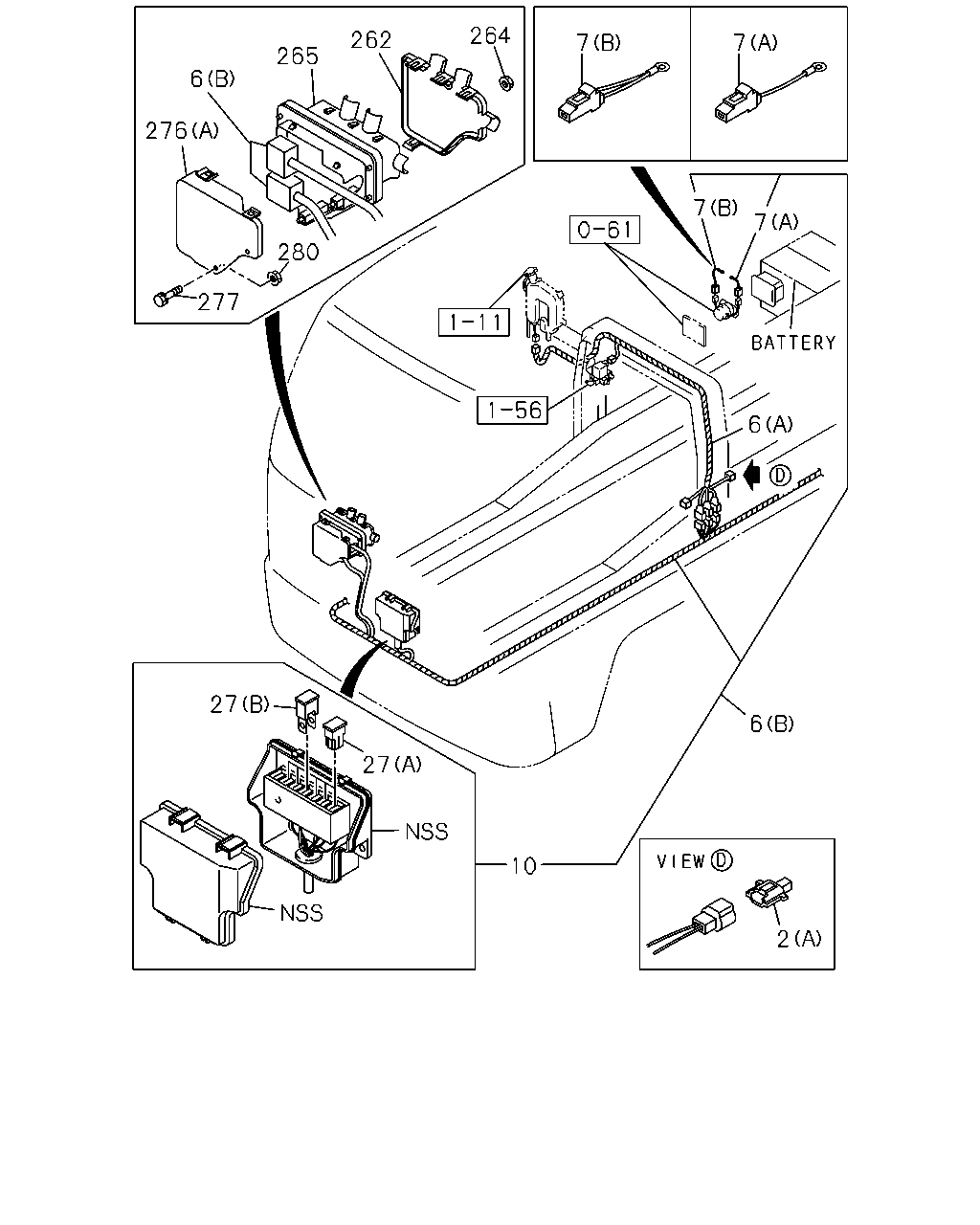

çizim 43640
264 262 7 7 265 6 276 7 7 280 277 6 27 6 27 10 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9906-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-683-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82671-684-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-688-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-687-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-305-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-306-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-309-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-310-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-307-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) FRAME 		1-82673-308-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-311-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82673-312-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-678-1 01 1 9906-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-677-1 01 1 9906-9906
7 LINK ASM; FUSIBLE
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (B) 		1-82659-085-0 01 1 9906-9912
7 LINK ASM; FUSIBLE
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> (B) 		1-82659-085-0 01 1 0001-
7 LINK ASM; FUSIBLE
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (B) 		1-82659-085-0 01 1 0001-
7 LINK ASM; FUSIBLE
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (A) 60A BLUE 		1-82659-119-0 01 1 9906-9912
7 LINK ASM; FUSIBLE
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> (A) 60A BLUE 		1-82659-119-0 01 1 0001-
7 LINK ASM; FUSIBLE
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (A) 60A BLUE 		1-82659-119-0 01 1 0001-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-467-0 01 1 9906-9912
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> 		1-82510-467-0 01 1 0001-0008
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-467-0 01 1 0001-0008
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> 		1-82510-467-0 01 1 0009-
10 BOX; FUSE,HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> 		1-82510-466-0 01 1 0009-
27 FUSE UNIT
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (A) 40A GREEN 		8-94468-662-0 05 1 9906-9912
27 FUSE UNIT
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> (A) 40A GREEN 		8-94468-662-0 05 1 0001-
27 FUSE UNIT
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (A) 40A GREEN 		8-94468-662-0 05 1 0001-
27 FUSE UNIT
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (B) 80A BLACK 		8-94468-671-0 01 1 9906-9912
27 FUSE UNIT
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B>,ZF M/T<X9E> (B) 80A BLACK 		8-94468-671-0 01 1 0001-
27 FUSE UNIT
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,ZF M/T<X9E> (B) 80A BLACK 		8-94468-671-0 01 1 0001-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 9906-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9906-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 9906-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 9906-
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (B) 		1-82699-475-2 01 1 9906-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9906-
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L),6WG1 TC-N(71L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9906-
280 NUT; BOX ASM FIX
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9906-

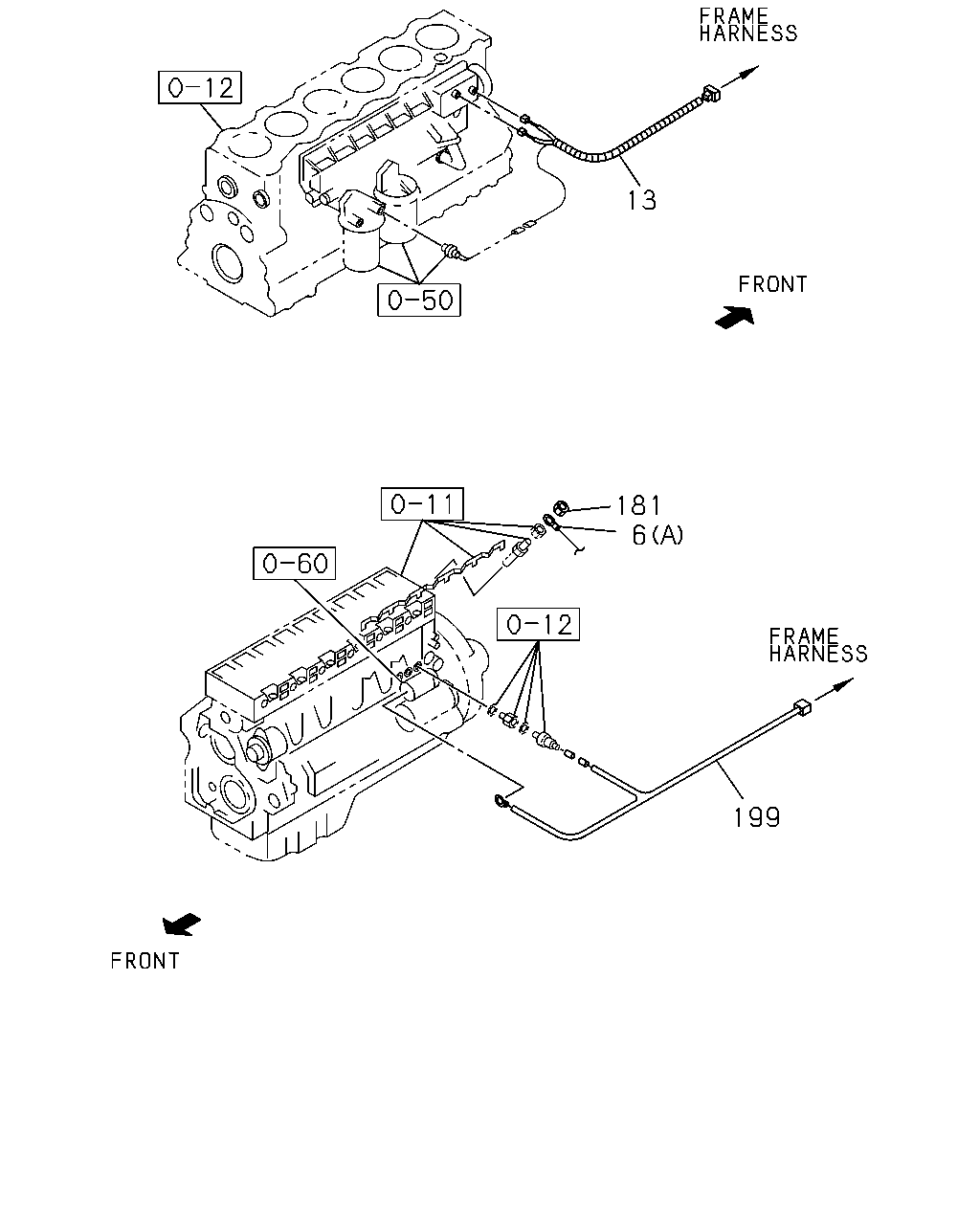

çizim 44059
13 181 6 199
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-683-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82671-684-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-688-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-687-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-305-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-306-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-309-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-310-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-307-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) FRAME 		1-82673-308-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-311-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82673-312-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-678-1 01 1 9906-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-677-1 01 1 9906-9906
13 HARNESS; ENG 1-82640-553-4 01 1 9906-
181 NUT; GLOW PLUG HARNESS
GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M4 FLANGE 		5-09440-007-0 01 1 0001-
199 HARNESS; STARTER 1-82640-734-0 01 1 9906-

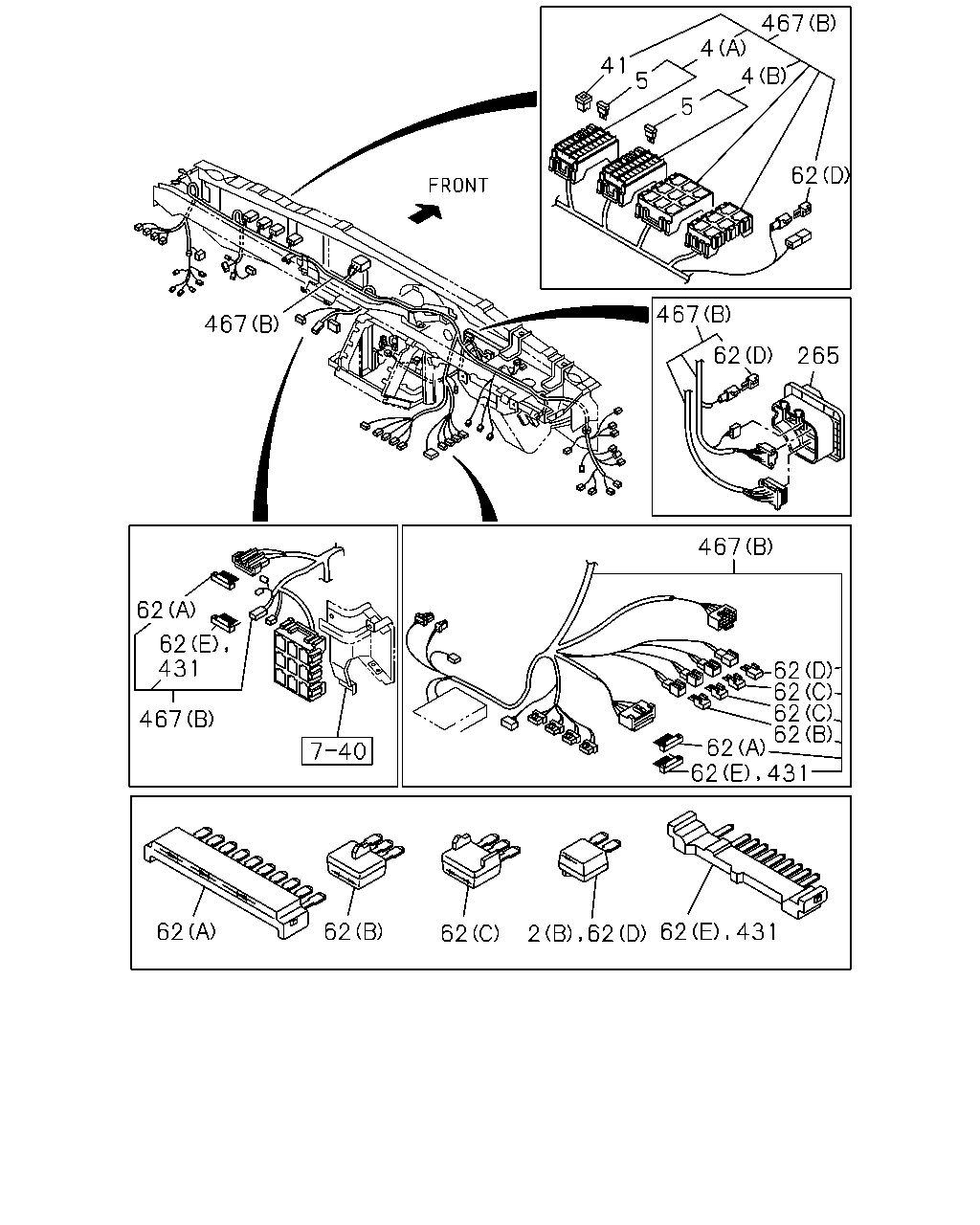

çizim 44096
467 4 4 41 5 5 62 467 467 62 265 467 62 62 431 62 62 62 62 62 467 62 62 62 62 431 431 62 62 2
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
(A) GRAY 2P-1.3A 		1-81514-015-0 01 1 9906-
2 DIODE; CABLE HARNESS
BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A 		8-94422-639-1 01 1 9906-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (B) 15AX22 		1-82510-394-0 01 1 9906-
4 BOX ASM; FUSE,HARNESS
6WG1 TC-N(71L) (B) 15AX22 		1-82510-394-0 01 1 9906-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) ELECTRONIC GOV RED3(KG5) (A) 7.5AX21 		1-82510-420-0 01 1 9906-
4 BOX ASM; FUSE,HARNESS
6WG1 TC-N(71L) (A) 7.5AX21 		1-82510-420-0 01 1 9906-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (A) 7.5AX20 		1-82510-410-0 01 1 9906-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 15AX23 20AX3 		1-82510-546-0 01 1 9906-0101
4 BOX ASM; FUSE,HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) (B) 15AX23 25AX2 		1-82510-575-0 01 1 0102-
4 BOX ASM; FUSE,HARNESS
6WA1 TC-S(56L) (A) 7.5AX17 		1-82510-393-0 01 1 9906-9906
4 BOX ASM; FUSE,HARNESS
6WA1 TC-S(56L) (B) 15AX21 		1-82510-396-0 01 1 9906-9906
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 9906-
5 FUSE; FACIA HARNESS
20A YELLOW 		5-82516-004-0 AR 1 9906-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 9906-
5 FUSE; FACIA HARNESS
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5) 25A CLEAR 		5-82516-005-0 AR 1 0102-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 9906-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 02 1 9906-
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 01 1 9906-0101
62 DIODE; HARNESS
(D) BLACK 2P-1.5A 		8-94422-639-1 02 1 0102-
62 DIODE; HARNESS
(E) 10P BROWN 		1-82699-601-0 02 1 9910-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 01 1 0102-
62 DIODE; HARNESS
(B) BLACK 3P-1.5A 		8-94422-640-1 01 1 0102-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 9906-
431 CONNECTOR; JOINT
10P BROWN 		1-82699-601-0 02 1 9906-
467 HARNESS; FACIA
EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82628-111-3 01 1 9906-9909
467 HARNESS; FACIA
EXC. SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82629-327-0 01 1 9910-
467 HARNESS; FACIA
THAILAND EQUIPMENT(PM9) SHIFT INDICATOR T/M GEAR POSITION<WS1> (A) 		1-82628-161-1 01 1 9906-
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82628-075-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82629-332-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5) (B) 		1-82660-274-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82628-076-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82629-333-0 01 1 9910-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) DELUXE CAB(W14) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS> (B) 		1-82660-275-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82628-077-1 01 1 9906-0101
467 HARNESS; FACIA
6WA1 TC-C(55L) EXC. ELECTRONIC GOV RED3(KG5),CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-276-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-078-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-324-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8> (B) 		1-82629-324-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8> (B) 		1-82660-279-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-080-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-326-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-326-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-281-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-079-1 01 1 9906-9909
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 9910-9912
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82629-325-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82660-280-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8> (B) 		1-82629-414-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8> (B) 		1-82660-282-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82629-415-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> DELUXE CAB(W14) EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS> (B) 		1-82660-283-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82629-416-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> EXC. WARNING BUZZER-SPEED<RF8>,CORNARING LAMP<TDS>, DELUXE CAB(W14) (B) 		1-82660-284-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82629-420-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82660-288-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82629-421-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82660-289-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-422-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> WARNING BUZZER-SPEED<RF8> EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-290-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82629-417-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> CORNARING LAMP<TDS> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) 		1-82660-285-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82629-418-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> DELUXE CAB(W14) EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS> (B) 		1-82660-286-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82629-419-0 01 1 0001-0101
467 HARNESS; FACIA
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRONIC GOV RED3(KG5) WARNING BUZZER-SPEED<RF8> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82660-287-0 01 1 0102-
467 HARNESS; FACIA
6WA1 TC-S(56L) CORNARING LAMP<TDS> DELUXE CAB(W14) (B) 		1-82628-072-1 01 1 9906-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) EXC. CORNARING LAMP<TDS>,DELUXE CAB(W14) (B) 		1-82628-074-1 01 1 9906-9906
467 HARNESS; FACIA
6WA1 TC-S(56L) DELUXE CAB(W14) EXC. CORNARING LAMP<TDS> (B) 		1-82628-073-1 01 1 9906-9906

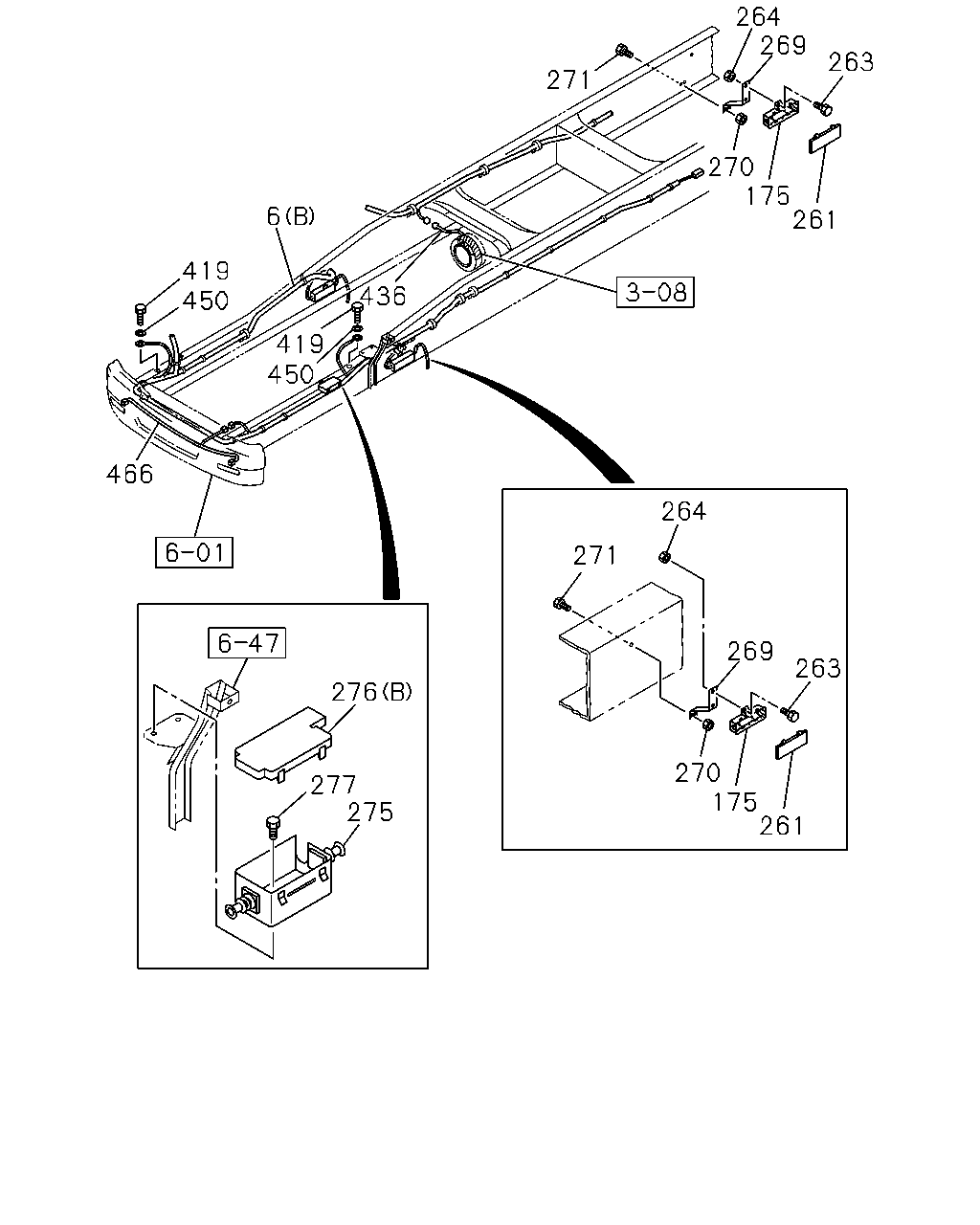

çizim 44166
264 269 263 271 270 175 261 6 419 450 436 419 450 466 264 271 269 263 276 270 175 261 277 275
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
6WA1 TC-C(55L) EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-683-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L) FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (A) MEMBER 		1-82671-684-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-327-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-0 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> (B) FRAME 		1-82672-328-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82672-329-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-1 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ANTILOCK BRAKE SYSTEM(BFA) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82672-330-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-688-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-712-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> (B) FRAME 		1-82671-714-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-687-2 01 1 9906-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-711-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG>, FULLFLOATING CAB(W16) (B) FRAME 		1-82671-713-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-715-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-2 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-716-3 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA),FULL FLOATING CAB(W16) (B) FRAME 		1-82671-717-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-3 01 1 9906-9912
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4500MM(45W) ELECTRICAL AIR HORN W/CONTROL SWITCH<SDG> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. ANTILOCK BRAKE SYSTEM(BFA) (B) FRAME 		1-82671-718-5 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-305-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-306-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6>,FULL FLOATING CAB(W16) (B) FRAME 		1-82673-309-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> (B) FRAME 		1-82673-310-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-307-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ISUZU M/T<X9A>,FULLER M/T<X9B> (B) FRAME 		1-82673-308-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (B) FRAME 		1-82673-311-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-C(55L),6WG1 TC-N(71L) WHEEL BASE 4700MM(47W) GLOW SYSTEM-FAST DIESEL ENGINE<KM6> CAB UP +110MM<TGG> FULL FLOATING CAB(W16) ZF M/T<X9E> (B) FRAME 		1-82673-312-1 01 1 0001-
6 HARNESS; FRAME
6WA1 TC-S(56L) FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-678-1 01 1 9906-9906
6 HARNESS; FRAME
6WA1 TC-S(56L) EXC. FULL FLOATING CAB(W16) (A) MEMBER 		1-82671-677-1 01 1 9906-9906
175 BOX; CONNECTOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-467-0 03 1 9906-
261 COVER; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-320-0 03 1 9906-
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER 		0-50140-830-0 03 1 9906-0103
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER 		8-94279-144-0 03 1 0104-0104
263 BOLT; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X20 W/LK&PL WASHER 		1-09980-622-0 03 1 0105-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 9906-
269 BRACKET; CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) 		1-82699-547-0 03 1 9906-
270 NUT; BRKT,CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE 		0-91150-108-0 06 1 9906-
271 BOLT; BRKT CONNECTOR BOX
ANTILOCK BRAKE SYSTEM(BFA) M8X30 FLANGE 		0-28680-830-0 06 1 9906-
275 BOX ASM; FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) 		1-82699-474-1 01 1 9906-
276 COVER; BOX,FRAME HARNESS
(A) 		1-82699-585-2 01 1 9906-
276 COVER; BOX,FRAME HARNESS
6WA1 TC-C(55L),6WG1 TC-N(71L) (B) 		1-82699-475-2 01 1 9906-
277 BOLT; BOX ASM FIX
M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9906-
277 BOLT; BOX ASM FIX
6WA1 TC-C(55L),6WG1 TC-N(71L) M8X25 W/LK&PL WASHER 		1-09030-027-0 02 1 9906-
419 BOLT; CAB EARTH
M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9906-
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82670-619-0 01 1 9906-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 02 1 9906-
466 HARNESS; BUMPER
REINFORCEMENT BUMPER<VG7> 		1-82639-227-3 01 1 9906-
466 HARNESS; BUMPER
EXC. REINFORCEMENT BUMPER<VG7> 		1-82639-281-0 01 1 9906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
