0-33 — FAN AND FAN BELT (#73218) — 109 parça

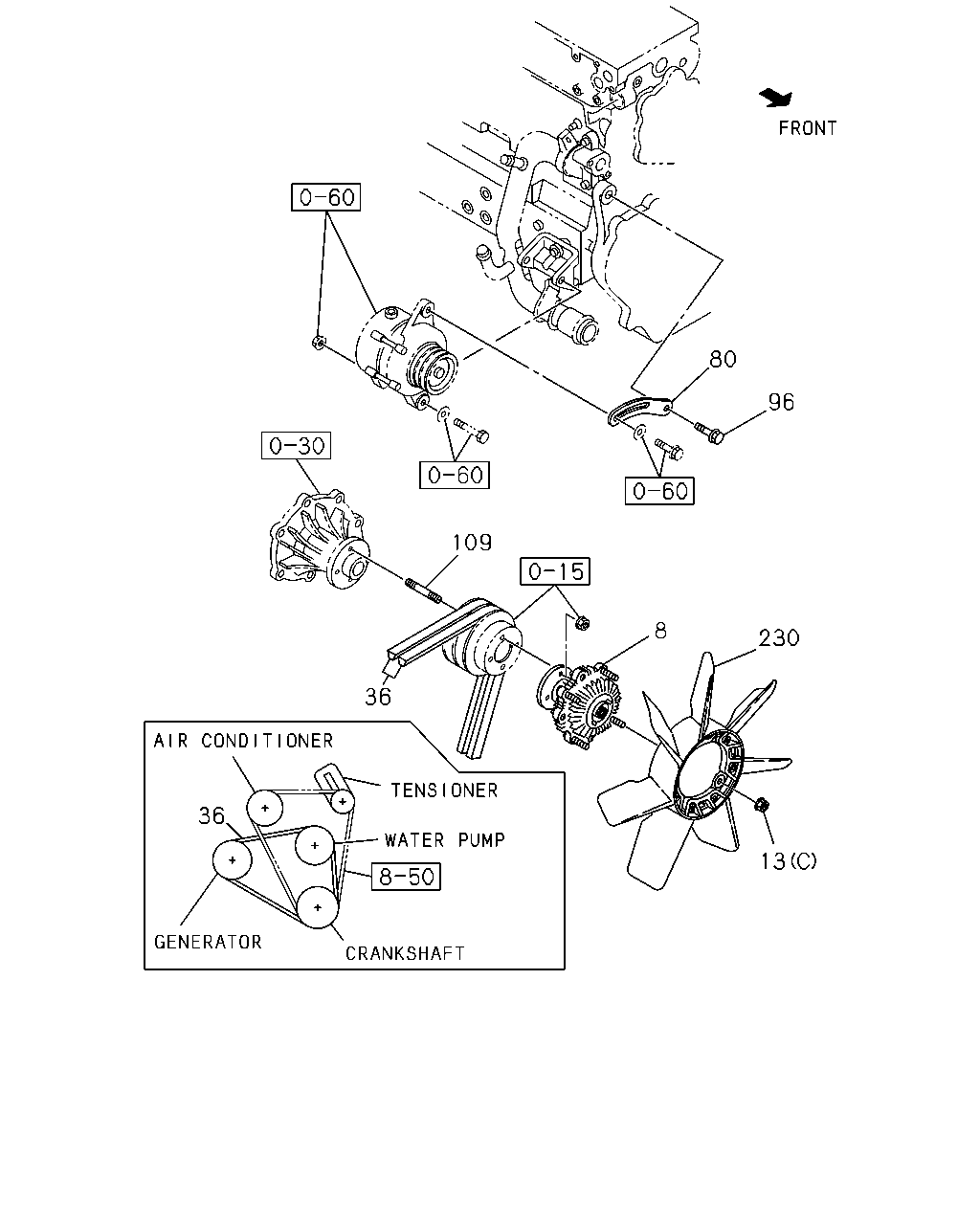

80 96 109 8 230 36 36 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	01.064 CLUTCH; COOLING FAN A/T AISIN(RMD) TURBOCHARGER<K51>	8-97069-783-0	01	1	0106-	●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97039-034-0	01	1	9712-0105	●
8	01.064 CLUTCH; COOLING FAN M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51>	8-97039-034-0	01	1	0106-	●
8	01.064 CLUTCH; COOLING FAN EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97144-874-1	01	1	9712-9908		●
8	01.064 CLUTCH; COOLING FAN	8-97222-421-0	01	1	9909-		●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9712-			●	●
13	01.062 NUT; COOLING FAN 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9712-	●	●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9712-	●
13	01.062 NUT; COOLING FAN 04.594 (A) M6 FLANGE	0-91150-106-0	04	1	9712-			●	●
13	01.062 NUT; COOLING FAN 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
36	01.066 BELT; COOLING FAN EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9712-0011	●
36	01.066 BELT; COOLING FAN 2 DOOR SHORT(UB***C) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0012-0102	●
36	01.066 BELT; COOLING FAN 4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0012-0102	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0103-0206	●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97141-514-0	01	1	0103-0206	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●
36	01.066 BELT; COOLING FAN EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	9712-0105	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	0106-	●
36	01.066 BELT; COOLING FAN L=985 MITSUBOSHI	8-97176-245-1	01	1	9712-9908		●
36	01.066 BELT; COOLING FAN L=1010 MITSUBOSHI	8-97222-419-1	01	1	9909-		●
80	02.317 PLATE; ADJ	8-97132-049-0	01	1	9712-	●
80	02.317 PLATE; ADJ	8-97137-165-0	01	1	9712-9908		●
80	02.317 PLATE; ADJ	8-97223-220-1	01	1	9909-		●
96	02.317 BOLT; ADJ PLATE 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0202-	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-0201	●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-0201	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0202-	●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9712-	●
96	02.317 BOLT; ADJ PLATE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-		●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9712-	●
109	01.062 STUD; FAN CLU 01.073 M6X18 L=27	9-04110-618-0	04	1	9712-		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	9712-	●
230	01.055 FAN; COOLING EXC. TURBOCHARGER<K51> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9712-	●
230	01.055 FAN; COOLING	8-97146-522-1	01	1	9712-		●

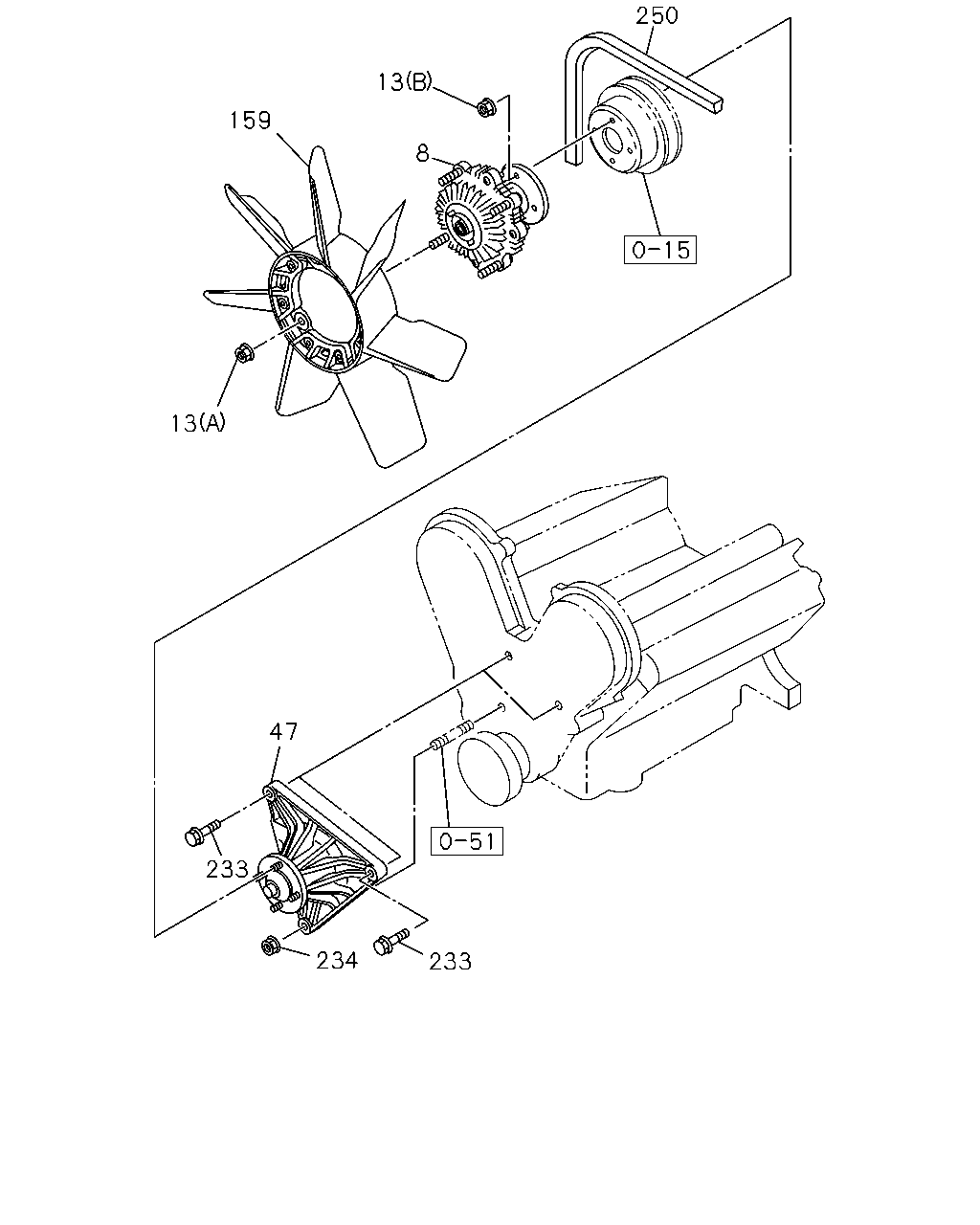

250 13 159 8 13 47 233 234 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	01.064 CLUTCH; COOLING FAN A/T AISIN(RMD) TURBOCHARGER<K51>	8-97069-783-0	01	1	0106-	●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97039-034-0	01	1	9712-0105	●
8	01.064 CLUTCH; COOLING FAN M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51>	8-97039-034-0	01	1	0106-	●
8	01.064 CLUTCH; COOLING FAN EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97144-874-1	01	1	9712-9908		●
8	01.064 CLUTCH; COOLING FAN	8-97222-421-0	01	1	9909-		●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9712-			●	●
13	01.062 NUT; COOLING FAN 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9712-	●	●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9712-	●
13	01.062 NUT; COOLING FAN 04.594 (A) M6 FLANGE	0-91150-106-0	04	1	9712-			●	●
13	01.062 NUT; COOLING FAN 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
47	01.060 BRACKET; FAN	8-97148-675-1	01	1	9712-9906			●	●
47	01.060 BRACKET; FAN	8-97231-718-0	01	1	9907-			●	●
159	01.064 BLADE; COOLING FAN	8-97130-757-1	01	1	9712-			●	●
233	01.060 BOLT; FAN BRKT M8X98 FLANGE	8-97182-861-0	02	1	9712-			●	●
234	01.060 NUT; FAN BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-			●	●
250	01.066 BELT; SERPENTINE DRIVE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER PREPARATORY PACK(S6D) L=2288	8-97130-560-0	01	1	9712-9908			●	●
250	01.066 BELT; SERPENTINE DRIVE AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) L=2288	8-97130-560-0	01	1	9909-			●	●
250	01.066 BELT; SERPENTINE DRIVE EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER PREPARATORY PACK(S6D) L=2038	8-97130-561-0	01	1	9712-9908			●	●
250	01.066 BELT; SERPENTINE DRIVE EXC. AIR CONDITIONER MANUAL CONT(C60), AIR CONDITIONER FULL AUTO CONT(C68),AIR CONDITIONER PREPARATORY PACK(S6D) L=2038	8-97130-561-0	01	1	9909-			●	●

80 247 96 88 96 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	01.066 BELT; COOLING FAN EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9712-0011	●
36	01.066 BELT; COOLING FAN 2 DOOR SHORT(UB***C) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0012-0102	●
36	01.066 BELT; COOLING FAN 4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0012-0102	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0103-0206	●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97141-514-0	01	1	0103-0206	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●
36	01.066 BELT; COOLING FAN EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	9712-0105	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	0106-	●
36	01.066 BELT; COOLING FAN L=985 MITSUBOSHI	8-97176-245-1	01	1	9712-9908		●
36	01.066 BELT; COOLING FAN L=1010 MITSUBOSHI	8-97222-419-1	01	1	9909-		●
80	02.317 PLATE; ADJ	8-97132-049-0	01	1	9712-	●
80	02.317 PLATE; ADJ	8-97137-165-0	01	1	9712-9908		●
80	02.317 PLATE; ADJ	8-97223-220-1	01	1	9909-		●
88	02.317 WASHER; PL,ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9712-	●
96	02.317 BOLT; ADJ PLATE 01.540 M8X45 FLANGE	0-28080-845-0	01	1	0202-	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-0201	●
96	02.317 BOLT; ADJ PLATE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-0201	●
96	02.317 BOLT; ADJ PLATE AIR CONDITIONER MANUAL CONT(C60) 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	0202-	●
96	02.317 BOLT; ADJ PLATE EXC. AIR CONDITIONER MANUAL CONT(C60) 01.073 M8X25 W/LK WASHER	0-50040-825-0	01	1	9712-	●
96	02.317 BOLT; ADJ PLATE 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-		●
247	02.317 SLIDER AIR CONDITIONER MANUAL CONT(C60)	8-97132-048-0	01	1	9712-	●

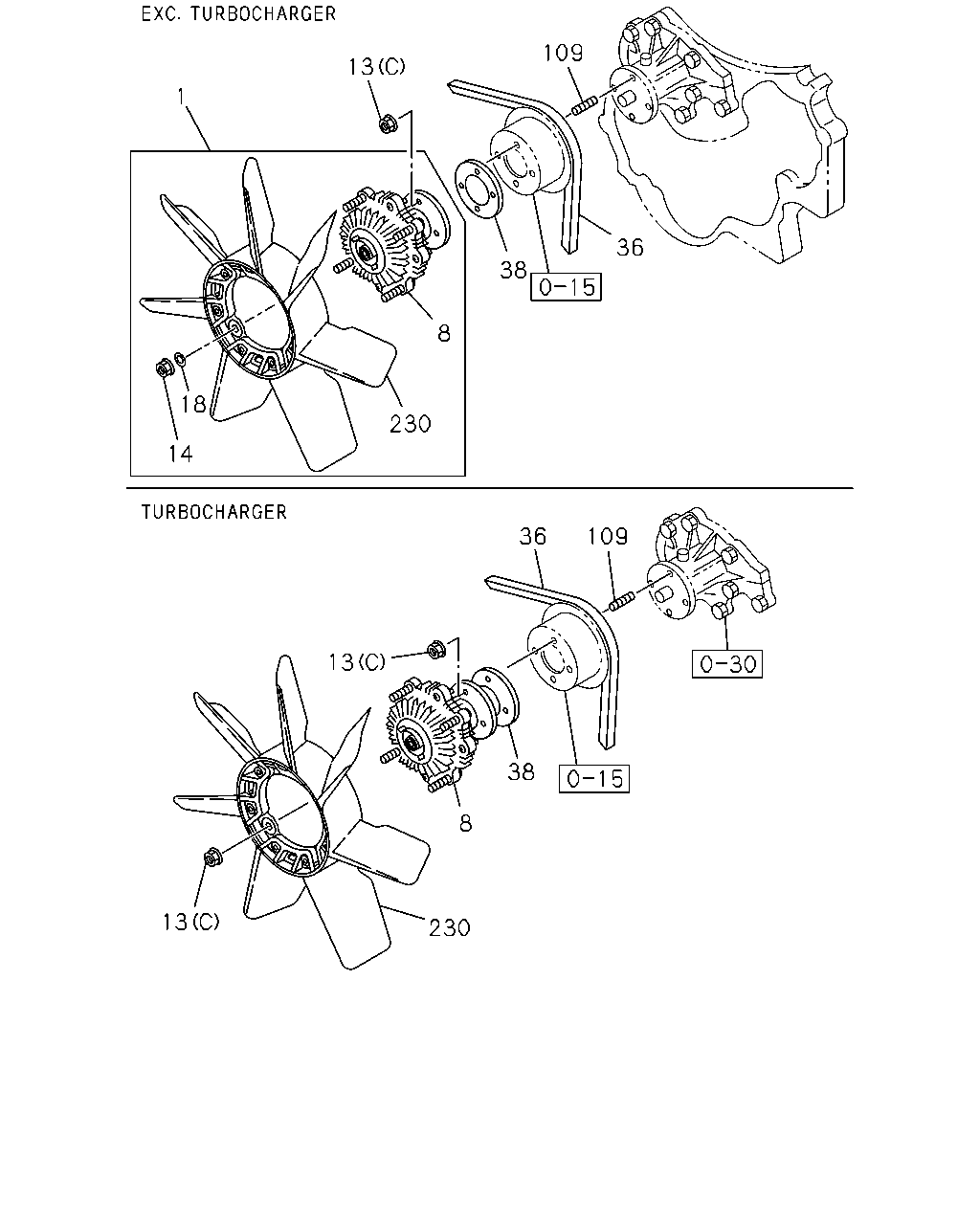

109 13 1 36 38 8 18 230 14 36 109 13 38 8 13 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	01.064 FAN; COOLING EXC. TURBOCHARGER<K51> OD=410	8-94103-469-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN A/T AISIN(RMD) TURBOCHARGER<K51>	8-97069-783-0	01	1	0106-	●
8	01.064 CLUTCH; COOLING FAN TURBOCHARGER<K51>	8-97039-034-0	01	1	9712-0105	●
8	01.064 CLUTCH; COOLING FAN M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51>	8-97039-034-0	01	1	0106-	●
8	01.064 CLUTCH; COOLING FAN EXC. TURBOCHARGER<K51>	8-94244-409-0	01	1	9712-	●
8	01.064 CLUTCH; COOLING FAN	8-97144-874-1	01	1	9712-9908		●
8	01.064 CLUTCH; COOLING FAN	8-97222-421-0	01	1	9909-		●
8	01.064 CLUTCH; COOLING FAN	8-97130-362-1	01	1	9712-			●	●
13	01.062 NUT; COOLING FAN 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9712-	●	●
13	01.062 NUT; COOLING FAN TURBOCHARGER<K51> 07.829 (C) M6 FLANGE	5-09440-004-0	04	1	9712-	●
13	01.062 NUT; COOLING FAN 04.594 (A) M6 FLANGE	0-91150-106-0	04	1	9712-			●	●
13	01.062 NUT; COOLING FAN 07.633 (B) M8 FLANGE	0-91150-108-0	04	1	9712-			●	●
14	01.062 NUT; FAN TO CLU EXC. TURBOCHARGER<K51> 00.413 M6	9-09110-506-0	04	1	9712-	●
18	01.062 WASHER; FAN TO CLU EXC. TURBOCHARGER<K51> 00.206 ID=6.1	9-09150-506-0	04	1	9712-	●
36	01.066 BELT; COOLING FAN EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	9712-0011	●
36	01.066 BELT; COOLING FAN 2 DOOR SHORT(UB***C) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0012-0102	●
36	01.066 BELT; COOLING FAN 4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0012-0102	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97141-514-0	01	1	0103-0206	●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97141-514-0	01	1	0103-0206	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●
36	01.066 BELT; COOLING FAN EXC. TURBOCHARGER<K51> L=1041 MITSUBOSHI	8-97315-153-0	01	1	0207-	●
36	01.066 BELT; COOLING FAN EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	9712-0105	●
36	01.066 BELT; COOLING FAN TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) L=1031 MITSUBOSHI	8-97188-281-0	01	1	0106-	●
36	01.066 BELT; COOLING FAN L=985 MITSUBOSHI	8-97176-245-1	01	1	9712-9908		●
36	01.066 BELT; COOLING FAN L=1010 MITSUBOSHI	8-97222-419-1	01	1	9909-		●
38	01.062 SPACER; FAN	8-94441-848-0	01	1	9712-	●
109	01.062 STUD; FAN CLU M6X25 L=33	8-94340-628-0	04	1	9712-	●
109	01.062 STUD; FAN CLU 01.073 M6X18 L=27	9-04110-618-0	04	1	9712-		●
230	01.055 FAN; COOLING TURBOCHARGER<K51> 01.604 OD=450 8-BLADE	8-97049-499-1	01	1	9712-	●
230	01.055 FAN; COOLING EXC. TURBOCHARGER<K51> 01.064 OD=410 7-BLADE	8-94117-866-0	01	1	9712-	●
230	01.055 FAN; COOLING	8-97146-522-1	01	1	9712-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
