Sayfa 0-32 - Isuzu EPC

2 148 148

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	2	01.097 HOSE; WATER,BY-PASS	8-97167-694-2	01	1	9712-	●	●
	148	01.097 CLIP; BYPASS HOSE 01.540 ID=18.9	8-94478-875-0	02	1	9712-	●	●

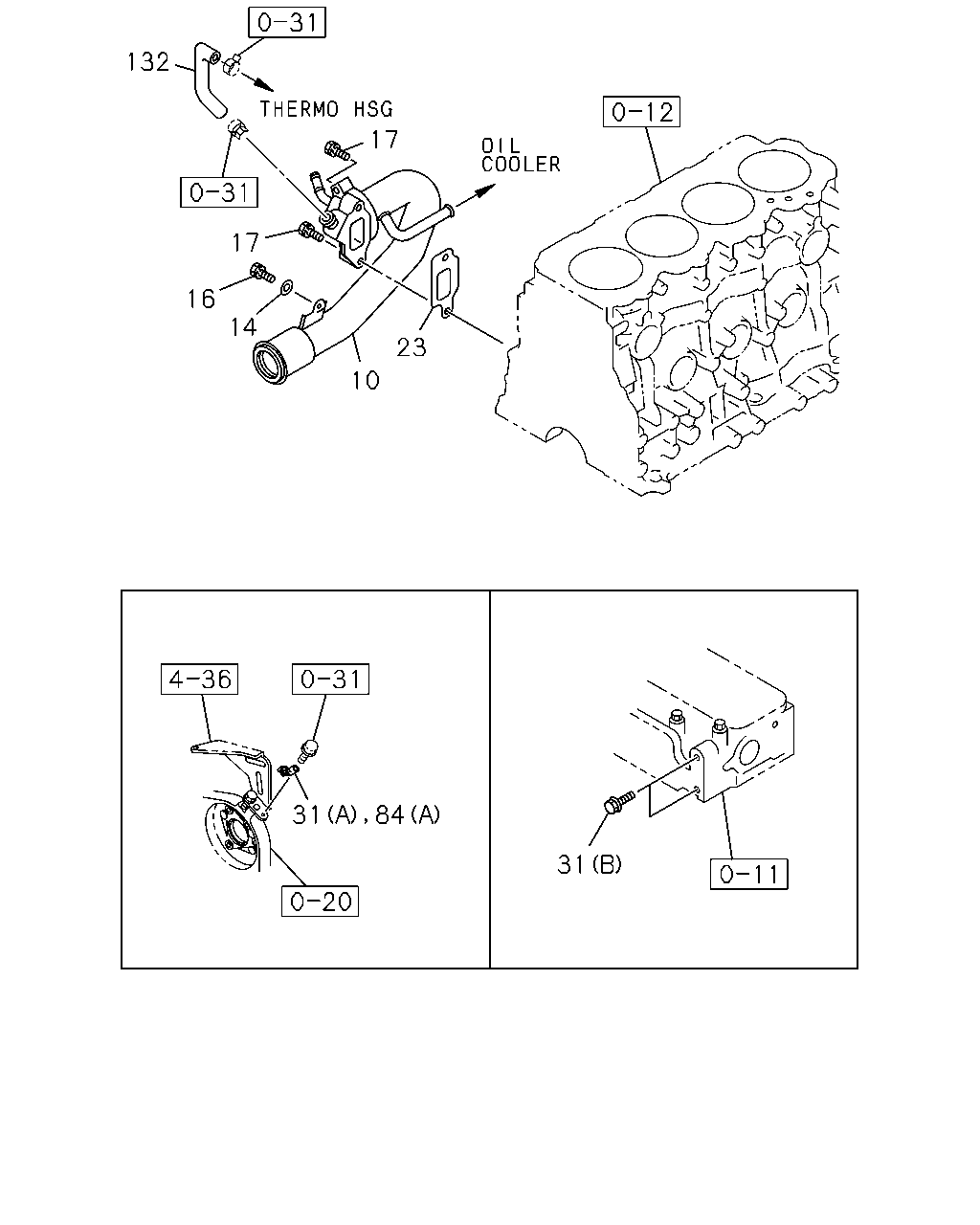

132 17 17 16 14 23 10 31 84 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
10	01.153 PIPE; SUCTION	8-97041-039-4	01	1	9712-0301	●
10	01.153 PIPE; SUCTION	8-97264-247-1	01	1	0302-	●
14	01.159 WASHER; PL,INL PIPE TO BRKT 03.613 ID=8 OD=18 T=3	8-94174-537-0	01	1	9712-	●
16	01.097 BOLT; INL PIPE 08.900 M8X20 W/LK WASHER	0-50040-820-0	01	1	9712-	●
17	01.153 BOLT; SUCTION PIPE 00.727 M8X22 W/LK WASHER	0-50040-822-0	01	1	9712-0212	●
17	01.153 BOLT; SUCTION PIPE 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0301-0301	●
17	01.153 BOLT; SUCTION PIPE 01.252 M8X45 W/LK WASHER	0-50040-845-0	01	1	9712-0301	●
17	01.153 BOLT; SUCTION PIPE 01.531 M8X50 W/LK WASHER	0-50040-850-0	02	1	0302-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	9712-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-97137-810-1	01	1	9712-		●
31	01.159 BOLT; CLIP TURBOCHARGER<K51> 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	9712-9805	●
31	01.159 BOLT; CLIP EXC. TURBOCHARGER<K51> 02.559 (A) ID=12	5-09700-331-0	01	1	9712-0302	●
31	01.159 BOLT; CLIP EXC. TURBOCHARGER<K51> 01.150 (A) ID=12	8-97367-983-0	01	1	0303-	●
84	01.240 CLIP; HOSE,W/CSD 03.162 (B) ID=15.5	8-94221-519-0	04	1	9712-9907	●
84	01.240 CLIP; HOSE,W/CSD 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-	●
84	01.240 CLIP; HOSE,W/CSD TURBOCHARGER<K51> 02.559 (A) ID=12	5-09700-331-0	01	1	9712-0302	●
84	01.240 CLIP; HOSE,W/CSD TURBOCHARGER<K51> 01.150 (A) ID=12	8-97367-983-0	01	1	0303-	●
132	01.153 HOSE; WATER PIPE 01.097	8-94382-247-1	01	1	9712-0402	●

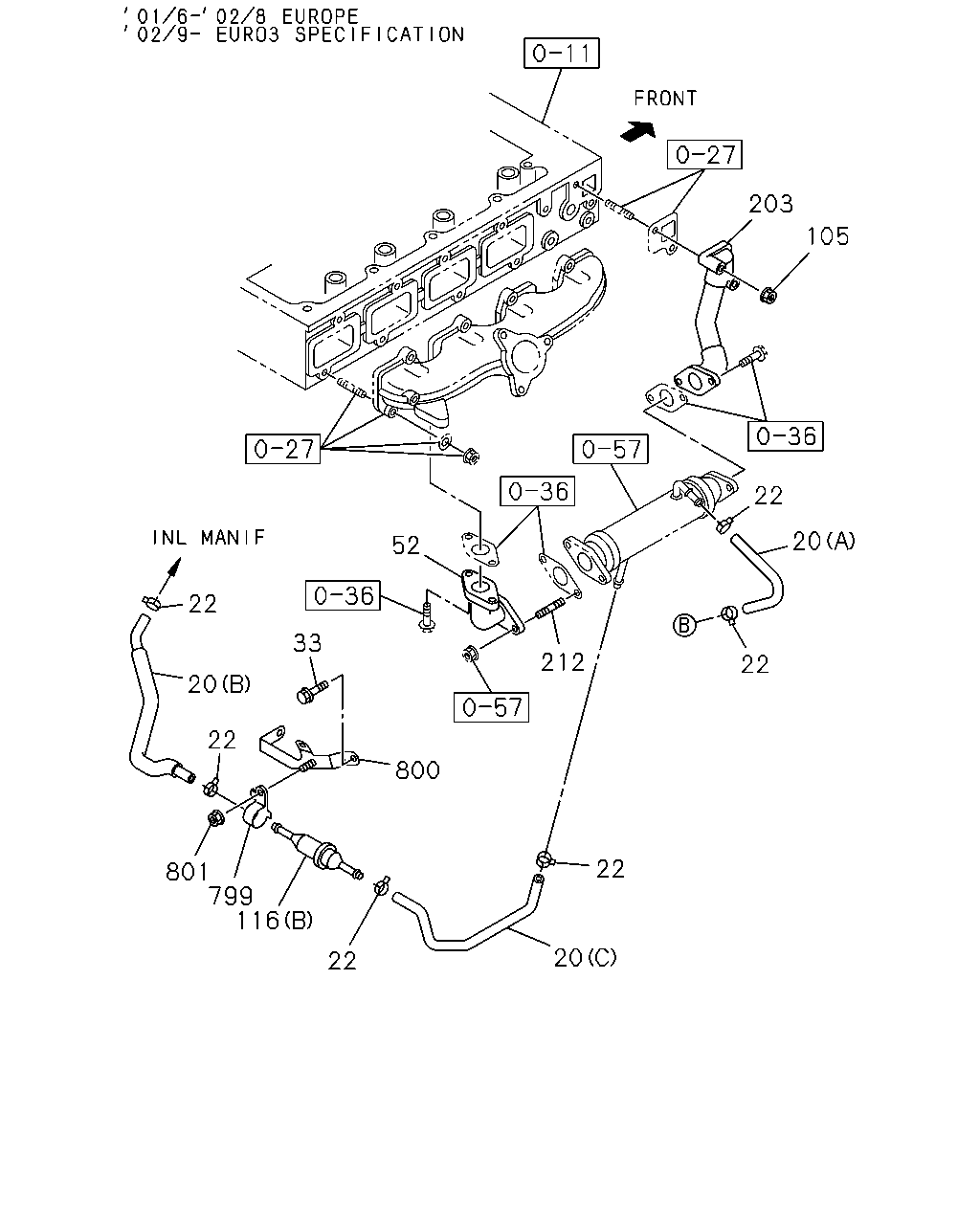

203 105 22 20 52 22 33 212 22 20 22 800 22 801 799 116 20 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
20	01.097 HOSE; WATER PIPE EUROPE EQUIPMENT(EK4) (B)	8-97263-130-0	01	1	0106-0208	●
20	01.097 HOSE; WATER PIPE EURO3 SPECIFICATION(NT3) (B)	8-97263-130-0	01	1	0209-	●
20	01.097 HOSE; WATER PIPE EUROPE EQUIPMENT(EK4) (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0106-0208	●
20	01.097 HOSE; WATER PIPE EURO3 SPECIFICATION(NT3) (A) L=170 SERVICED BY L=3000	0-03559-300-0	01	1	0209-	●
20	01.097 HOSE; WATER PIPE EUROPE EQUIPMENT(EK4) (C)	8-97263-131-1	01	1	0106-0208	●
20	01.097 HOSE; WATER PIPE EURO3 SPECIFICATION(NT3) (C)	8-97263-131-1	01	1	0209-	●
22	01.153 CLIP; WATER HOSE EUROPE EQUIPMENT(EK4) ID=12.8	8-94367-943-0	06	1	0106-0208	●
22	01.153 CLIP; WATER HOSE EURO3 SPECIFICATION(NT3) ID=12.8	8-94367-943-0	06	1	0209-	●
33	01.166 BOLT; BRKT EUROPE EQUIPMENT(EK4) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-0208	●
33	01.166 BOLT; BRKT EURO3 SPECIFICATION(NT3) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0209-	●
52	01.159 PIPE; WATER FEED EUROPE EQUIPMENT(EK4) 01.097	8-97251-881-0	01	1	0106-0208	●
52	01.159 PIPE; WATER FEED EURO3 SPECIFICATION(NT3) 01.097	8-97251-881-0	01	1	0209-	●
105	01.153 NUT; PIPE EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-0208	●
105	01.153 NUT; PIPE EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	02	1	0209-	●
116	01.540 VALVE ASM; THERMO,OIL COOLER (A)	5-21770-001-2	01	1	9712-	●
116	01.540 VALVE ASM; THERMO,OIL COOLER EUROPE EQUIPMENT(EK4) (B)	8-97263-085-0	01	1	0106-0208	●
116	01.540 VALVE ASM; THERMO,OIL COOLER EURO3 SPECIFICATION(NT3) (B)	8-97263-085-0	01	1	0209-	●
203	01.159 PIPE; WATER RETURN EUROPE EQUIPMENT(EK4)	8-97257-374-1	01	1	0106-0208	●
203	01.159 PIPE; WATER RETURN EURO3 SPECIFICATION(NT3)	8-97257-374-1	01	1	0209-	●
212	01.153 STUD; PIPE EUROPE EQUIPMENT(EK4) 03.342 M8X20 L=31	8-97104-508-1	02	1	0106-0208	●
212	01.153 STUD; PIPE EURO3 SPECIFICATION(NT3) 03.342 M8X20 L=31	8-97104-508-1	02	1	0209-	●
799	01.540 CLAMP; THERMO VALVE EUROPE EQUIPMENT(EK4)	8-97306-862-0	01	1	0106-0208	●
799	01.540 CLAMP; THERMO VALVE EURO3 SPECIFICATION(NT3)	8-97306-862-0	01	1	0209-	●
800	01.540 BRACKET; THERMO VALVE EUROPE EQUIPMENT(EK4)	8-97306-828-0	01	1	0106-0208	●
800	01.540 BRACKET; THERMO VALVE EURO3 SPECIFICATION(NT3)	8-97306-828-0	01	1	0209-	●
801	01.540 NUT; CLAMP EUROPE EQUIPMENT(EK4) 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-0208	●
801	01.540 NUT; CLAMP EURO3 SPECIFICATION(NT3) 04.594 M6 FLANGE	0-91150-106-0	01	1	0209-	●

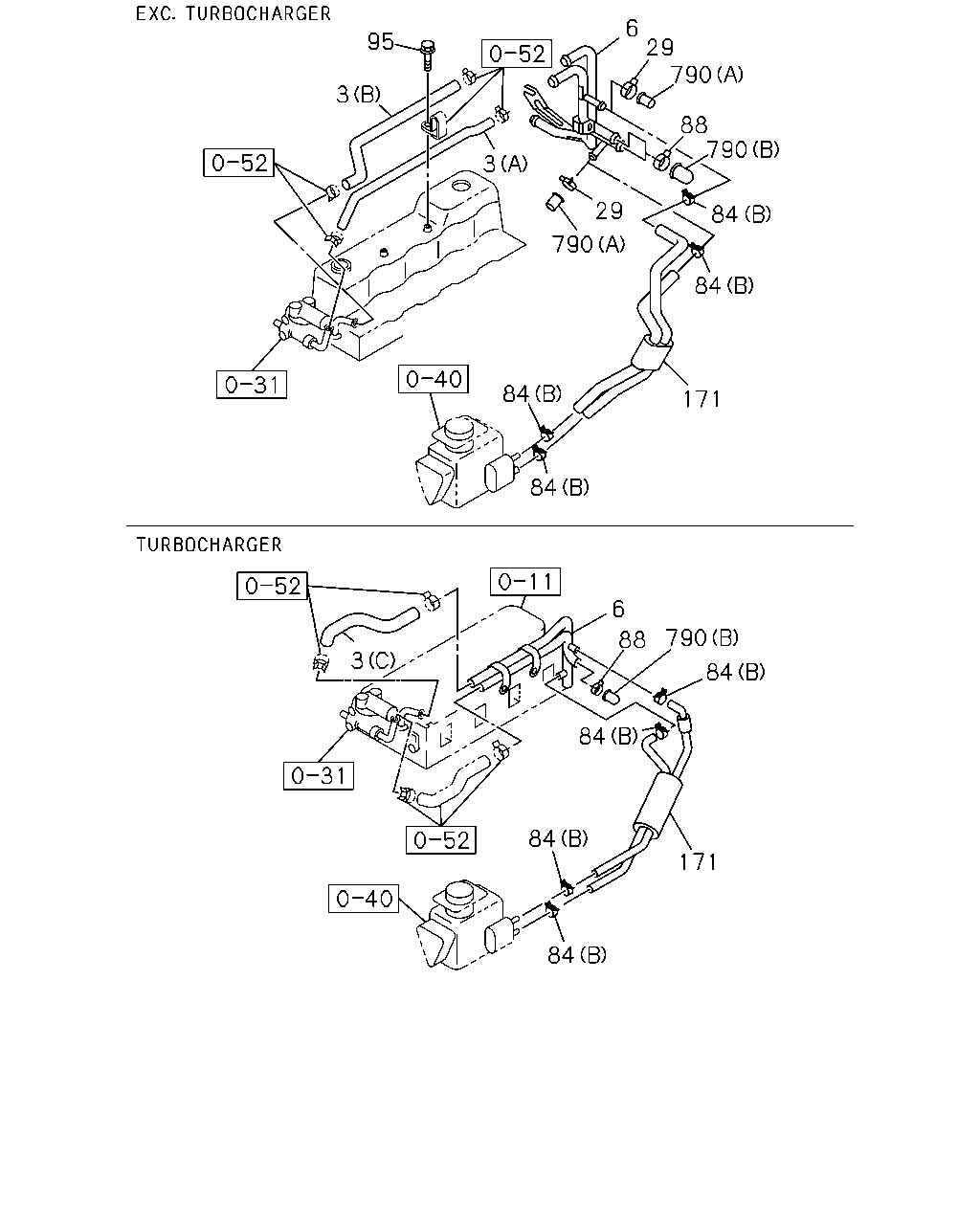

6 29 790 95 3 88 790 3 29 84 790 84 84 171 84 6 790 88 3 84 84 84 171 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C
3	01.540 HOSE; WATER,OIL COOLER TURBOCHARGER<K51> (C)	8-97043-720-1	01	1	9712-0301	●
3	01.540 HOSE; WATER,OIL COOLER TURBOCHARGER<K51> (C)	8-97354-155-1	01	1	0302-	●
3	01.540 HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (A)	8-97110-425-0	01	1	9712-	●
3	01.540 HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (B)	8-97110-426-0	01	1	9712-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE TURBOCHARGER<K51>	8-97049-193-4	01	1	9712-	●
6	09.190 CONNECTOR; HTR & COOLER HOSE EXC. TURBOCHARGER<K51>	8-97110-511-2	01	1	9712-	●
29	01.166 CLIP; PIPE EXC. TURBOCHARGER<K51> 01.097 ID=14.8	8-94448-727-0	02	1	9712-9908	●
29	01.166 CLIP; PIPE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60), TURBOCHARGER<K51> 01.097 ID=14.8	8-94448-727-0	02	1	9909-0105	●
84	01.240 CLIP; HOSE,W/CSD 03.162 (B) ID=15.5	8-94221-519-0	04	1	9712-9907	●
84	01.240 CLIP; HOSE,W/CSD 01.153 (B) ID=12.8	8-94367-943-0	04	1	9908-	●
84	01.240 CLIP; HOSE,W/CSD TURBOCHARGER<K51> 02.559 (A) ID=12	5-09700-331-0	01	1	9712-0302	●
84	01.240 CLIP; HOSE,W/CSD TURBOCHARGER<K51> 01.150 (A) ID=12	8-97367-983-0	01	1	0303-	●
88	01.097 CLIP; HOSE,HTR 01.166 ID=20.8	8-94125-862-1	02	1	9712-0104	●
88	01.097 CLIP; HOSE,HTR EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) 01.166 ID=20.8	8-94125-862-1	02	1	0105-	●
95	01.240 BOLT; CLIP EXC. TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	9712-	●
171	01.240 HOSE; RUBBER,WAX CSD TURBOCHARGER<K51>	8-97049-001-2	01	1	9712-	●
171	01.240 HOSE; RUBBER,WAX CSD EXC. TURBOCHARGER<K51>	8-97110-423-0	01	1	9712-0005	●
171	01.240 HOSE; RUBBER,WAX CSD EXC. TURBOCHARGER<K51>	8-97110-423-0	01	1	0006-0105	●
171	01.240 HOSE; RUBBER,WAX CSD EXC. TURBOCHARGER<K51>	8-97110-423-0	01	1	0106-	●
790	01.097 CAP (B)	8-94414-688-0	02	1	9712-0104	●
790	01.097 CAP EAST MALAYSIA EQUIPMENT(PM6),WEST MALAYSIA EQUIPMENT(S3D) (B)	8-94414-688-0	02	1	0105-	●
790	01.097 CAP EXC. TURBOCHARGER<K51> 08.846 (A)	8-94366-898-1	02	1	9712-9908	●
790	01.097 CAP EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60), TURBOCHARGER<K51> 08.846 (A)	8-94366-898-1	02	1	9909-0105	●

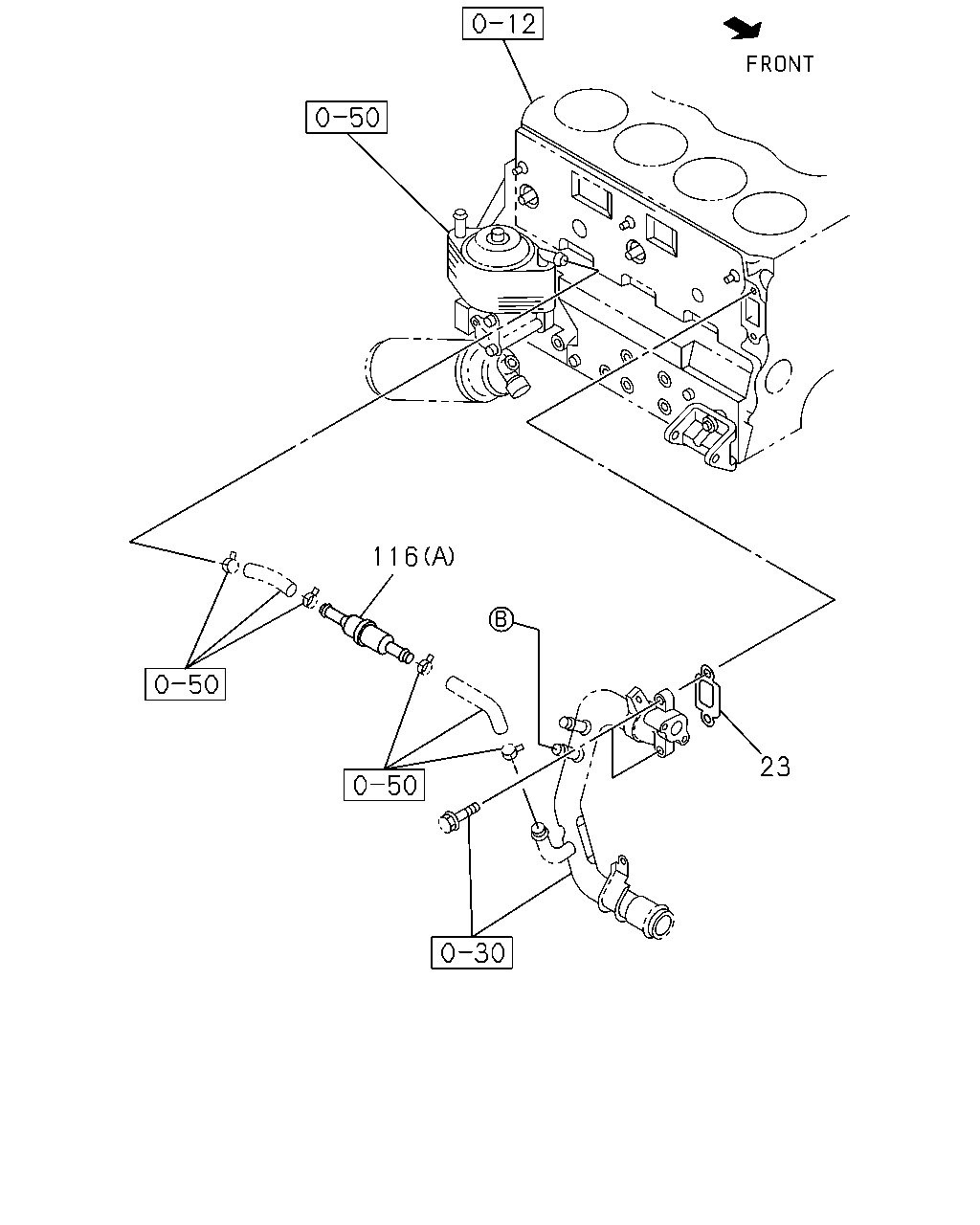

116 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-3	01	1	9712-	●
23	01.079 GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-97137-810-1	01	1	9712-		●
116	01.540 VALVE ASM; THERMO,OIL COOLER (A)	5-21770-001-2	01	1	9712-		●
116	01.540 VALVE ASM; THERMO,OIL COOLER EUROPE EQUIPMENT(EK4) (B)	8-97263-085-0	01	1	0106-0208		●
116	01.540 VALVE ASM; THERMO,OIL COOLER EURO3 SPECIFICATION(NT3) (B)	8-97263-085-0	01	1	0209-		●
