0-28 — VENTILATION SYSTEM (#73214) — 52 parça

13 270 13 12 35 65 32 52 32 32 32 43 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	01.745 VENTILATOR; AIR 2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN)	8-94250-172-0	01	1	9712-0212	●
12	01.745 VENTILATOR; AIR 4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. TURBOCHARGER<K51>	8-94250-172-0	01	1	9712-0212	●
12	01.745 VENTILATOR; AIR 4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-94250-172-0	01	1	9712-0212	●
12	01.745 VENTILATOR; AIR 2 DOOR SHORT(UB***C) M/T MUA 5 SPEED(RMN) 03.415	8-97119-887-0	01	1	0301-	●
12	01.745 VENTILATOR; AIR 4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) EXC. TURBOCHARGER<K51> 03.415	8-97119-887-0	01	1	0301-	●
12	01.745 VENTILATOR; AIR 4 DOOR LONG(UB***F) M/T MUA 5 SPEED(RMN) TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D) 03.415	8-97119-887-0	01	1	0301-	●
13	00.386 SCREW; VENTILATOR TO HD COVER 06.321 M4X8 W/LK WASHER	9-03910-408-0	04	1	9712-	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	04	1	9712-9912	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0001-0001	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0001-0001	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0002-	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 03.265 (A) ID=20.4	8-94121-113-0	02	1	0002-	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9712-	●
32	03.417 CLIP; VENT HOSE 03.265 (B) ID=20.4	8-94121-113-0	05	1	9712-		●
32	03.417 CLIP; VENT HOSE 06.672 (A) ID=21	8-94242-034-0	01	1	9712-		●
35	03.415 GASKET; VENTILATOR TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97138-782-0	01	1	9712-	●
43	03.278 HOSE; PCV TURBOCHARGER<K51> OD=22	8-97039-185-2	01	1	9712-	●
52	03.278 HOSE; PCV TURBOCHARGER<K51> 03.417	8-94437-494-3	01	1	9712-	●
52	03.278 HOSE; PCV EXC. TURBOCHARGER<K51>	8-97110-427-0	01	1	9712-	●
65	01.762 PIPE; BREATHER	8-94250-615-1	01	1	9712-0402	●
270	01.750 COVER; VENTILATOR TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-94163-368-0	01	1	9712-	●

50 32 130 32 32 32 50 50 32 32

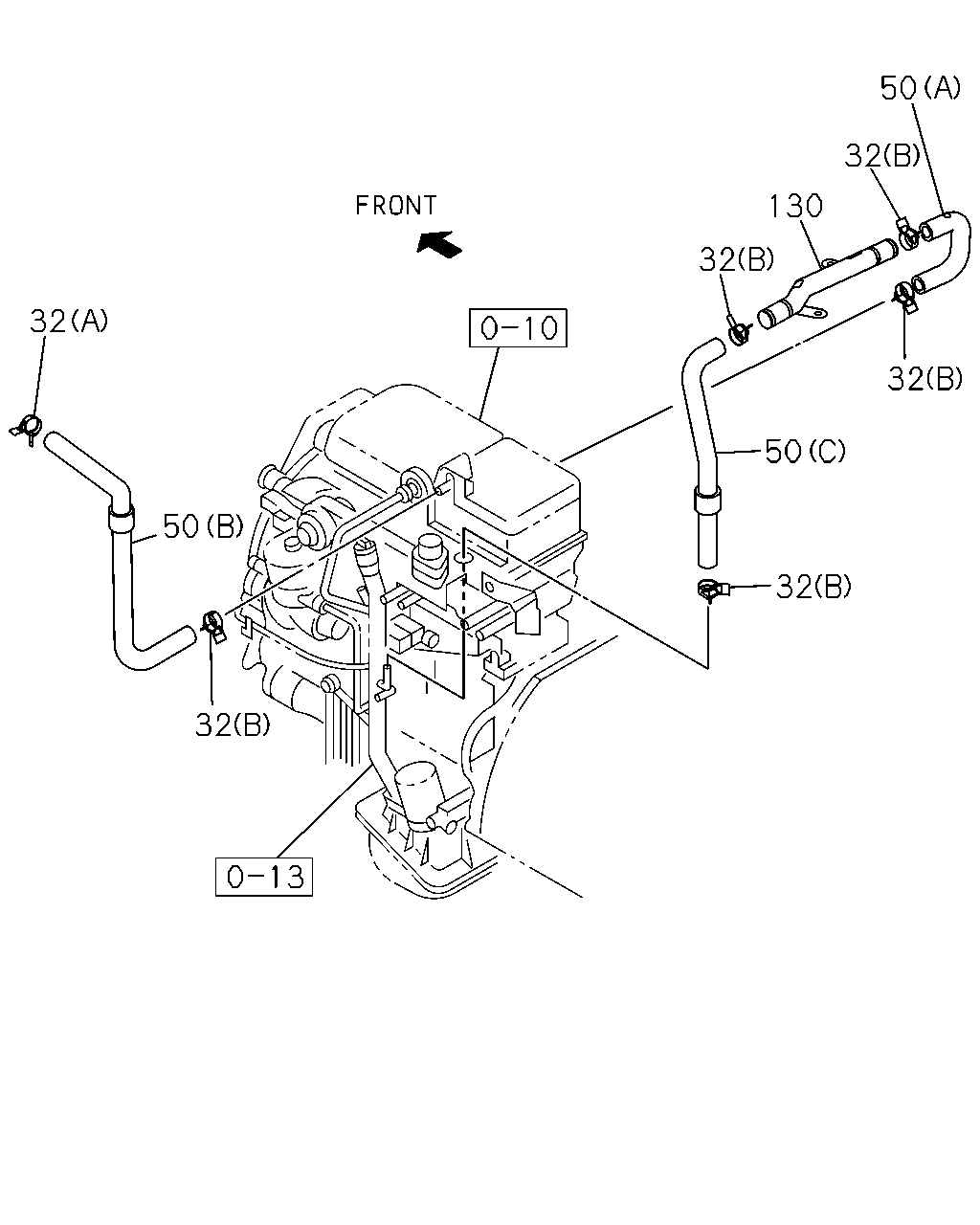

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	04	1	9712-9912	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0001-0001	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0001-0001	●
32	03.417 CLIP; VENT HOSE 03.265 (A) ID=20.4	8-94121-113-0	02	1	0002-	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 03.265 (A) ID=20.4	8-94121-113-0	02	1	0002-	●
32	03.417 CLIP; VENT HOSE TURBOCHARGER<K51> 01.166 (B) ID=21 BLACK	8-94422-733-0	01	1	9712-	●
32	03.417 CLIP; VENT HOSE 03.265 (B) ID=20.4	8-94121-113-0	05	1	9712-		●
32	03.417 CLIP; VENT HOSE 06.672 (A) ID=21	8-94242-034-0	01	1	9712-		●
50	03.265 HOSE; PCV (A)	8-97191-254-1	01	1	9712-9801		●
50	03.265 HOSE; PCV (A)	8-97204-978-0	01	1	9802-		●
50	03.265 HOSE; PCV (B)	8-97191-255-1	01	1	9712-		●
50	03.265 HOSE; PCV (C)	8-97191-256-0	01	1	9712-9801		●
50	03.265 HOSE; PCV (C)	8-97207-095-0	01	1	9802-0105		●
50	03.265 HOSE; PCV EXC. EUROPE EQUIPMENT(EK4) (C)	8-97207-095-0	01	1	0106-0110		●
50	03.265 HOSE; PCV EUROPE EQUIPMENT(EK4) (C)	8-97288-147-0	01	1	0106-0110		●
50	03.265 HOSE; PCV (C)	8-97288-147-0	01	1	0111-		●
130	03.278 PIPE; PCV	8-97191-086-1	01	1	9712-		●

40 40 60 60 40 133 40 133 40 60

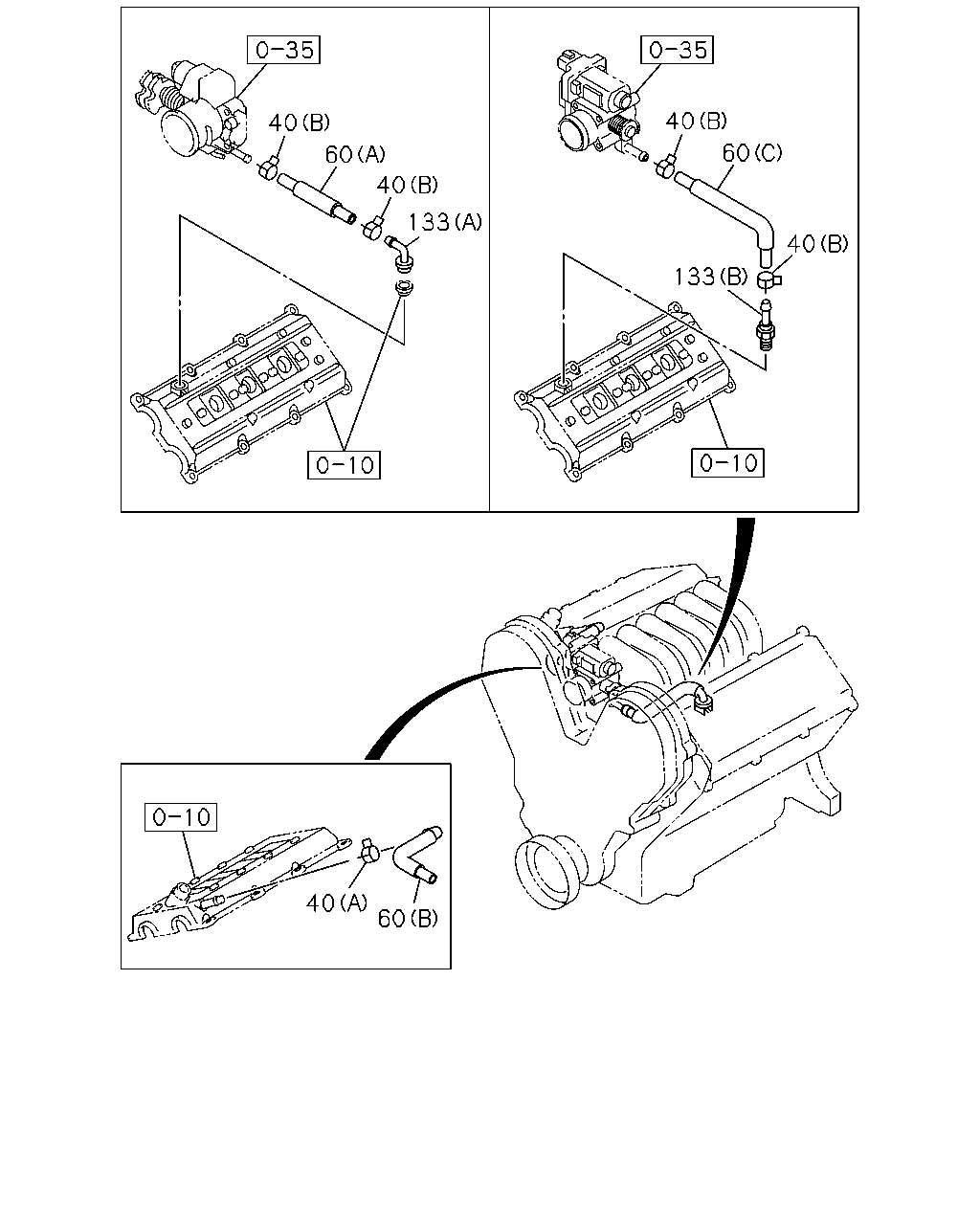

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D
40	03.680 CLIP; PCV HOSE 04.930 (B) ID=16	8-94238-568-0	02	1	9712-0104	●	●
40	03.680 CLIP; PCV HOSE 04.128 (B) ID=15	8-94140-431-0	02	1	0105-	●	●
40	03.680 CLIP; PCV HOSE 01.762 (A) ID=19	8-94238-569-0	01	1	9712-	●	●
60	03.278 HOSE; RUBBER,PCV EUROPE EQUIPMENT(EK4) (C)	8-97289-156-0	01	1	0106-	●
60	03.278 HOSE; RUBBER,PCV (A)	8-97136-216-1	01	1	9712-0105	●	●
60	03.278 HOSE; RUBBER,PCV AUSTRALIA EQUIPMENT(RR3) (A)	8-97136-216-1	01	1	0106-0308	●
60	03.278 HOSE; RUBBER,PCV (A)	8-97136-216-1	01	1	0106-0308		●
60	03.278 HOSE; RUBBER,PCV AUSTRALIA EQUIPMENT(RR3) (A)	8-97302-459-0	01	1	0309-	●
60	03.278 HOSE; RUBBER,PCV (A)	8-97302-459-0	01	1	0309-		●
60	03.278 HOSE; RUBBER,PCV (B)	8-97136-217-0	01	1	9712-	●	●
133	01.750 VALVE; PCV EUROPE EQUIPMENT(EK4) (B)	8-97289-271-0	01	1	0106-	●
133	01.750 VALVE; PCV (A)	8-97118-860-0	01	1	9712-0105	●	●
133	01.750 VALVE; PCV AUSTRALIA EQUIPMENT(RR3) (A)	8-97118-860-0	01	1	0106-	●
133	01.750 VALVE; PCV (A)	8-97118-860-0	01	1	0106-		●
