Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#73213) — 200 parça

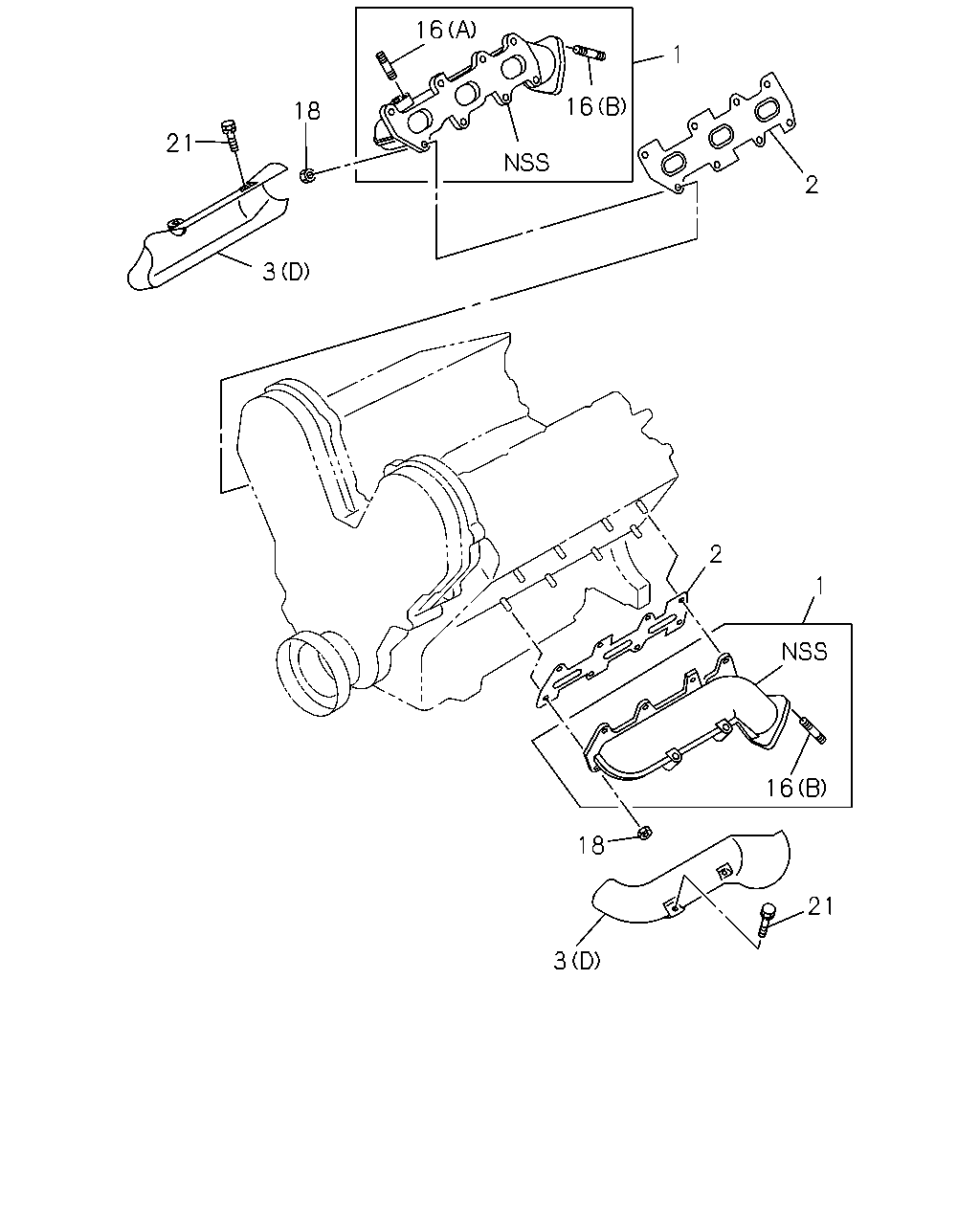

21 18 1 19 2 3 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-473-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-474-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST	8-97137-099-1	01	1	9712-0105		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97137-099-1	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EXC. EURO3 SPECIFICATION(NT3)	8-97137-099-1	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97263-064-0	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION(NT3)	8-97263-064-0	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-062-2	01	1	9712-			●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97167-062-2	01	1	9712-				●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-			●	●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97170-146-0	01	1	9712-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-2	01	1	9712-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-100-0	04	1	9712-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97148-717-0	02	1	9712-			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (B)	8-97038-107-2	01	1	9712-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-1	01	1	9712-0309	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97912-766-0	01	1	0310-0406	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-1	01	1	0407-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51> (C)	8-97131-704-0	01	1	9712-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97164-276-1	01	1	9712-			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97164-278-1	01	1	9712-			●	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9712-	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. TURBOCHARGER<K51> 03.613 (C) M10X38 L=53	5-09302-007-0	02	1	9712-	●
16	03.604 STUD; EXH PIPE TO MANIF (A) M8X18 L=29	8-97061-377-1	01	1	9712-			●
16	03.604 STUD; EXH PIPE TO MANIF EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) (A) M8X18 L=29	8-97061-377-1	01	1	9712-				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	03	1	9712-			●	●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	03	1	9712-			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	10	1	9712-0105		●
18	03.604 NUT; EXH MANIF EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	10	1	0106-0208		●
18	03.604 NUT; EXH MANIF EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	10	1	0209-		●
18	03.604 NUT; EXH MANIF EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	08	1	0106-0208		●
18	03.604 NUT; EXH MANIF EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	08	1	0209-		●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-			●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9712-	●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X30 L=41	8-94111-619-1	06	1	9712-		●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X64 L=76	8-94150-352-0	02	1	9712-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-	●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9712-			●	●

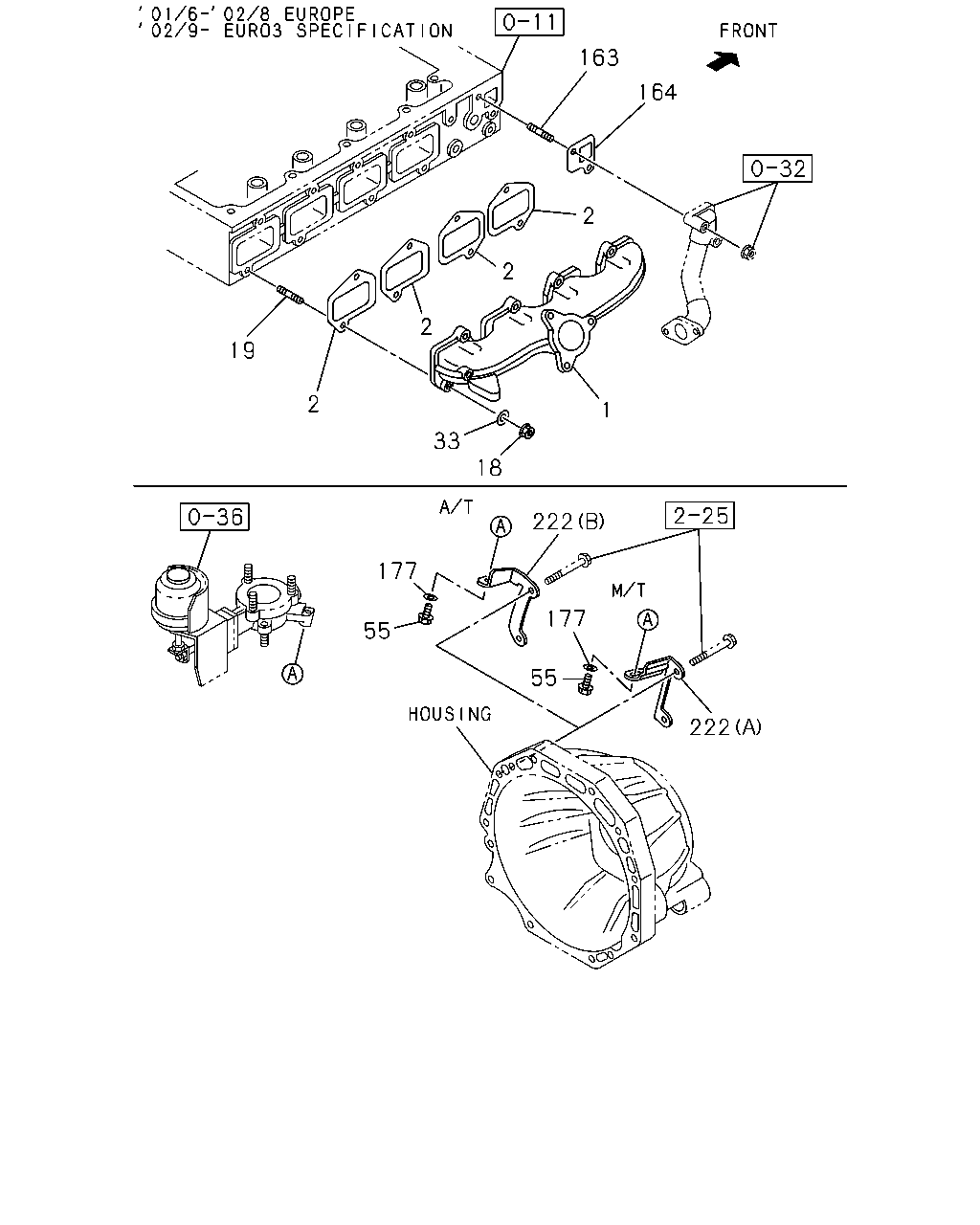

163 164 2 2 2 19 2 1 33 18 222 177 177 55 55 222

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-473-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-474-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST	8-97137-099-1	01	1	9712-0105		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97137-099-1	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EXC. EURO3 SPECIFICATION(NT3)	8-97137-099-1	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97263-064-0	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION(NT3)	8-97263-064-0	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-062-2	01	1	9712-			●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97167-062-2	01	1	9712-				●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-			●	●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97170-146-0	01	1	9712-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-2	01	1	9712-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-100-0	04	1	9712-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97148-717-0	02	1	9712-			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	10	1	9712-0105		●
18	03.604 NUT; EXH MANIF EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	10	1	0106-0208		●
18	03.604 NUT; EXH MANIF EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	10	1	0209-		●
18	03.604 NUT; EXH MANIF EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	08	1	0106-0208		●
18	03.604 NUT; EXH MANIF EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	08	1	0209-		●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-			●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9712-	●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X30 L=41	8-94111-619-1	06	1	9712-		●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X64 L=76	8-94150-352-0	02	1	9712-		●
33	03.604 WASHER; EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	10	1	9712-0006		●
33	03.604 WASHER; EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	10	1	0007-0105		●
33	03.604 WASHER; EXH MANIF EXC. EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4	8-97257-914-0	10	1	0106-0208		●
33	03.604 WASHER; EXH MANIF EXC. EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4	8-97257-914-0	10	1	0209-		●
33	03.604 WASHER; EXH MANIF EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4	8-97257-914-0	08	1	0106-0208		●
33	03.604 WASHER; EXH MANIF EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4	8-97257-914-0	08	1	0209-		●
55	03.613 BOLT; BRKT EUROPE EQUIPMENT(EK4) 01.540 M10X20 FLANGE	0-28181-020-0	01	1	0106-0208		●
55	03.613 BOLT; BRKT EURO3 SPECIFICATION(NT3) 01.540 M10X20 FLANGE	0-28181-020-0	01	1	0209-		●
163	03.604 STUD; EGR PORT	8-97202-734-0	02	1	9712-		●
164	03.270 GASKET; EGR PORT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-811-1	01	1	9712-		●
177	03.613 WASHER; PL EUROPE EQUIPMENT(EK4) 16.682 ID=10.5 OD=22	9-09160-610-0	01	1	0106-0208		●
177	03.613 WASHER; PL EURO3 SPECIFICATION(NT3) 16.682 ID=10.5 OD=22	9-09160-610-0	01	1	0209-		●
222	03.602 BRACKET; EXH ADAPTOR A/T AISIN(RMD) EUROPE EQUIPMENT(EK4) (B)	8-97309-041-1	01	1	0106-0208		●
222	03.602 BRACKET; EXH ADAPTOR A/T AISIN(RMD) EURO3 SPECIFICATION(NT3) (B)	8-97309-041-1	01	1	0209-		●
222	03.602 BRACKET; EXH ADAPTOR M/T AR-5 5 SPEED(RNK) EUROPE EQUIPMENT(EK4) (A)	8-97309-042-1	01	1	0106-0208		●
222	03.602 BRACKET; EXH ADAPTOR M/T AR-5 5 SPEED(RNK) EURO3 SPECIFICATION(NT3) (A)	8-97309-042-1	01	1	0209-		●

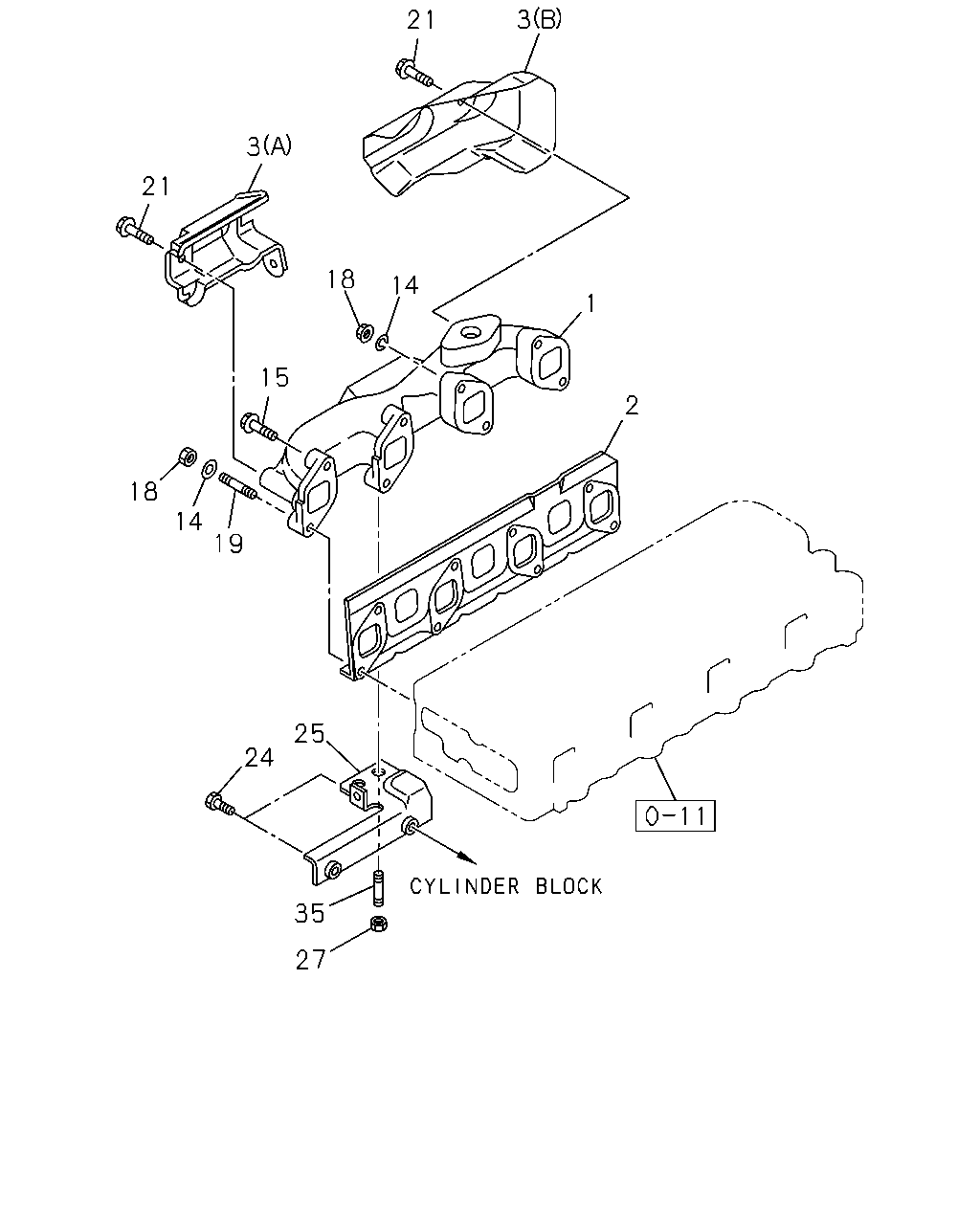

3 21 3 21 18 14 1 15 2 18 14 19 25 24 35 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-473-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-474-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST	8-97137-099-1	01	1	9712-0105		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97137-099-1	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EXC. EURO3 SPECIFICATION(NT3)	8-97137-099-1	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97263-064-0	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION(NT3)	8-97263-064-0	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-062-2	01	1	9712-			●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97167-062-2	01	1	9712-				●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-			●	●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97170-146-0	01	1	9712-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-2	01	1	9712-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-100-0	04	1	9712-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97148-717-0	02	1	9712-			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (B)	8-97038-107-2	01	1	9712-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-1	01	1	9712-0309	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97912-766-0	01	1	0310-0406	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-1	01	1	0407-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51> (C)	8-97131-704-0	01	1	9712-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97164-276-1	01	1	9712-			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97164-278-1	01	1	9712-			●	●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER<K51> 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	02	1	9712-0006	●
14	03.604 WASHER; PL,EXH MANIF TURBOCHARGER<K51> ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0007-	●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	9712-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	10	1	9712-0105		●
18	03.604 NUT; EXH MANIF EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	10	1	0106-0208		●
18	03.604 NUT; EXH MANIF EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	10	1	0209-		●
18	03.604 NUT; EXH MANIF EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	08	1	0106-0208		●
18	03.604 NUT; EXH MANIF EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	08	1	0209-		●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-			●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9712-	●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X30 L=41	8-94111-619-1	06	1	9712-		●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X64 L=76	8-94150-352-0	02	1	9712-		●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-	●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9712-			●	●
24	03.613 BOLT; BRKT,EXH MANIF TURBOCHARGER<K51> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	01	1	9712-	●
24	03.613 BOLT; BRKT,EXH MANIF TURBOCHARGER<K51> 03.890 M10X32 W/LK WASHER	0-50141-032-0	01	1	9712-	●
25	03.602 BRACKET; EXH MANIF TURBOCHARGER<K51>	8-97145-973-0	01	1	9712-	●
27	03.602 NUT; BRKT,EXH MANIF TURBOCHARGER<K51> 01.540 M8 FLANGE	0-91150-208-0	01	1	9712-	●
35	03.604 STUD; BRKT TURBOCHARGER<K51> M8X20 L=29	5-09300-069-0	01	1	9712-	●

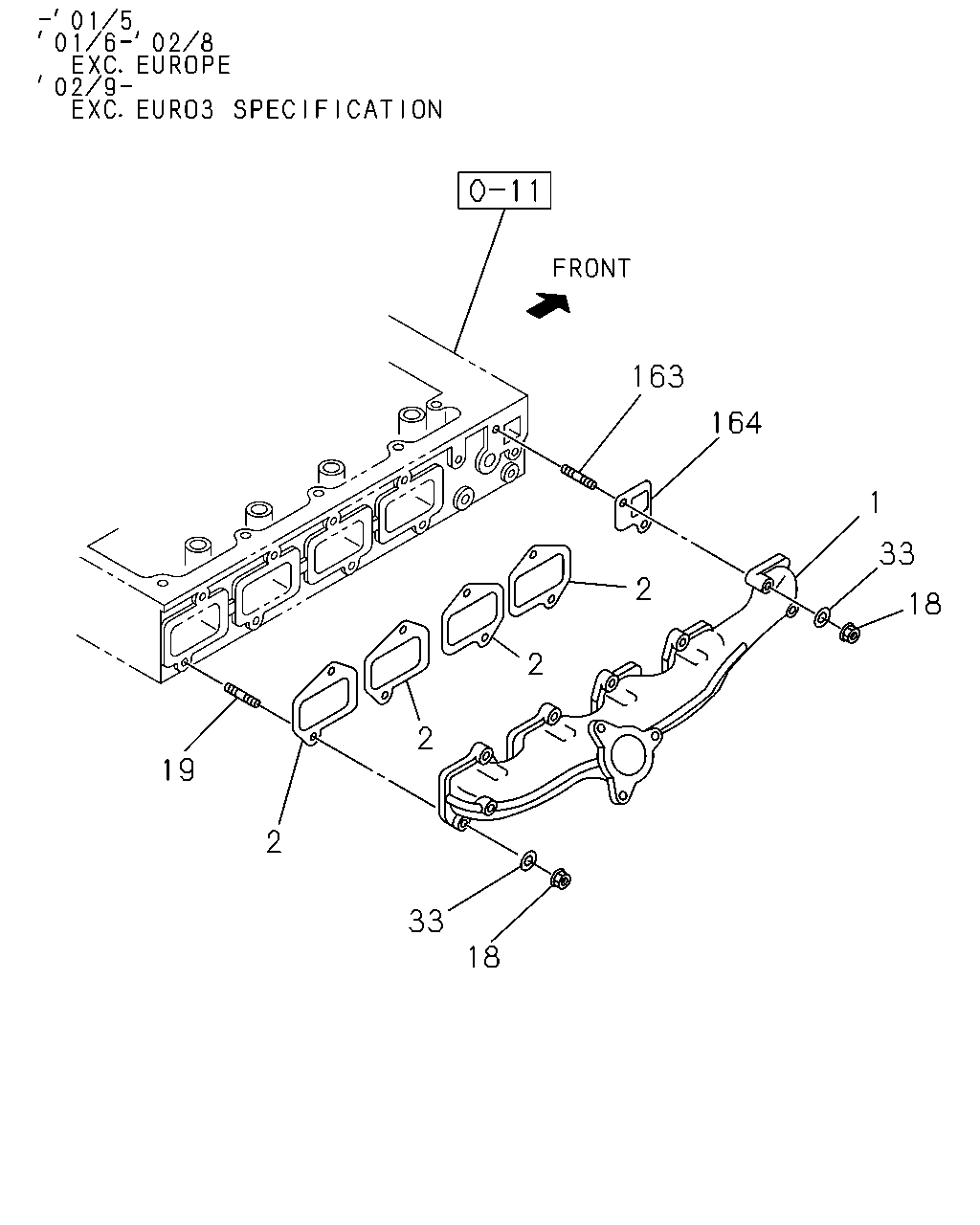

163 164 1 33 2 18 2 2 19 2 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-473-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-474-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST	8-97137-099-1	01	1	9712-0105		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97137-099-1	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EXC. EURO3 SPECIFICATION(NT3)	8-97137-099-1	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97263-064-0	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION(NT3)	8-97263-064-0	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-062-2	01	1	9712-			●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97167-062-2	01	1	9712-				●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-			●	●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97170-146-0	01	1	9712-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-2	01	1	9712-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-100-0	04	1	9712-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97148-717-0	02	1	9712-			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	10	1	9712-0105		●
18	03.604 NUT; EXH MANIF EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	10	1	0106-0208		●
18	03.604 NUT; EXH MANIF EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	10	1	0209-		●
18	03.604 NUT; EXH MANIF EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	08	1	0106-0208		●
18	03.604 NUT; EXH MANIF EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	08	1	0209-		●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-			●	●
19	03.604 STUD; MANIF TO CYL HD M8X35 L=46	8-97048-055-1	02	1	9712-	●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X30 L=41	8-94111-619-1	06	1	9712-		●
19	03.604 STUD; MANIF TO CYL HD 03.342 M8X64 L=76	8-94150-352-0	02	1	9712-		●
33	03.604 WASHER; EXH MANIF 03.332 ID=8.5 OD=15 T=4	1-09503-219-0	10	1	9712-0006		●
33	03.604 WASHER; EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	10	1	0007-0105		●
33	03.604 WASHER; EXH MANIF EXC. EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4	8-97257-914-0	10	1	0106-0208		●
33	03.604 WASHER; EXH MANIF EXC. EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4	8-97257-914-0	10	1	0209-		●
33	03.604 WASHER; EXH MANIF EUROPE EQUIPMENT(EK4) ID=8.5 OD=15 T=4	8-97257-914-0	08	1	0106-0208		●
33	03.604 WASHER; EXH MANIF EURO3 SPECIFICATION(NT3) ID=8.5 OD=15 T=4	8-97257-914-0	08	1	0209-		●
163	03.604 STUD; EGR PORT	8-97202-734-0	02	1	9712-		●
164	03.270 GASKET; EGR PORT ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-811-1	01	1	9712-		●

16 1 16 18 21 2 3 2 1 16 18 21 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	03.601 MANIFOLD; EXHAUST EXC. TURBOCHARGER<K51>	8-97065-960-1	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EXC. EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-473-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST TURBOCHARGER<K51> EAST MALAYSIA EQUIPMENT(PM6),HONG KONG EQUIPMENT(PQ1),WEST MALAYSIA EQUIPMENT(S3D)	8-97039-474-3	01	1	9712-	●
1	03.601 MANIFOLD; EXHAUST	8-97137-099-1	01	1	9712-0105		●
1	03.601 MANIFOLD; EXHAUST EXC. EUROPE EQUIPMENT(EK4)	8-97137-099-1	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EXC. EURO3 SPECIFICATION(NT3)	8-97137-099-1	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST EUROPE EQUIPMENT(EK4)	8-97263-064-0	01	1	0106-0208		●
1	03.601 MANIFOLD; EXHAUST EURO3 SPECIFICATION(NT3)	8-97263-064-0	01	1	0209-		●
1	03.601 MANIFOLD; EXHAUST	8-97167-062-2	01	1	9712-			●
1	03.601 MANIFOLD; EXHAUST EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97167-062-2	01	1	9712-				●
1	03.601 MANIFOLD; EXHAUST	8-97167-063-1	01	1	9712-			●	●
1	03.601 MANIFOLD; EXHAUST EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97170-146-0	01	1	9712-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97109-216-2	01	1	9712-0210	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97350-317-0	01	1	0211-	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97137-100-0	04	1	9712-		●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97148-717-0	02	1	9712-			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (B)	8-97038-107-2	01	1	9712-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-1	01	1	9712-0309	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97912-766-0	01	1	0310-0406	●
3	03.602 PROTECTOR; HEAT,EXH MANIF TURBOCHARGER<K51> (A)	8-97133-936-1	01	1	0407-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF EXC. TURBOCHARGER<K51> (C)	8-97131-704-0	01	1	9712-	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97164-276-1	01	1	9712-			●	●
3	03.602 PROTECTOR; HEAT,EXH MANIF (D)	8-97164-278-1	01	1	9712-			●	●
16	03.604 STUD; EXH PIPE TO MANIF EXC. TURBOCHARGER<K51> 03.613 (C) M10X38 L=53	5-09302-007-0	02	1	9712-	●
16	03.604 STUD; EXH PIPE TO MANIF (A) M8X18 L=29	8-97061-377-1	01	1	9712-			●
16	03.604 STUD; EXH PIPE TO MANIF EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D) (A) M8X18 L=29	8-97061-377-1	01	1	9712-				●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	03	1	9712-			●	●
16	03.604 STUD; EXH PIPE TO MANIF (B) M12X15 L=46.6	8-97115-132-0	03	1	9712-			●	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	9712-	●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	10	1	9712-0105		●
18	03.604 NUT; EXH MANIF EXC. EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	10	1	0106-0208		●
18	03.604 NUT; EXH MANIF EXC. EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	10	1	0209-		●
18	03.604 NUT; EXH MANIF EUROPE EQUIPMENT(EK4) 01.540 M8 FLANGE	0-91150-208-0	08	1	0106-0208		●
18	03.604 NUT; EXH MANIF EURO3 SPECIFICATION(NT3) 01.540 M8 FLANGE	0-91150-208-0	08	1	0209-		●
18	03.604 NUT; EXH MANIF 08.917 M10 FLANGE	0-91150-210-0	16	1	9712-			●	●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9712-	●
21	03.604 BOLT; HEAT PROTECTOR TURBOCHARGER<K51> 01.428 M6X12 FLANGE	0-28080-612-0	02	1	9712-	●
21	03.604 BOLT; HEAT PROTECTOR M8X12 FLANGE	8-97012-320-1	04	1	9712-			●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
