0-22 — ENGINE MOUNTING (#73211) — 152 parça

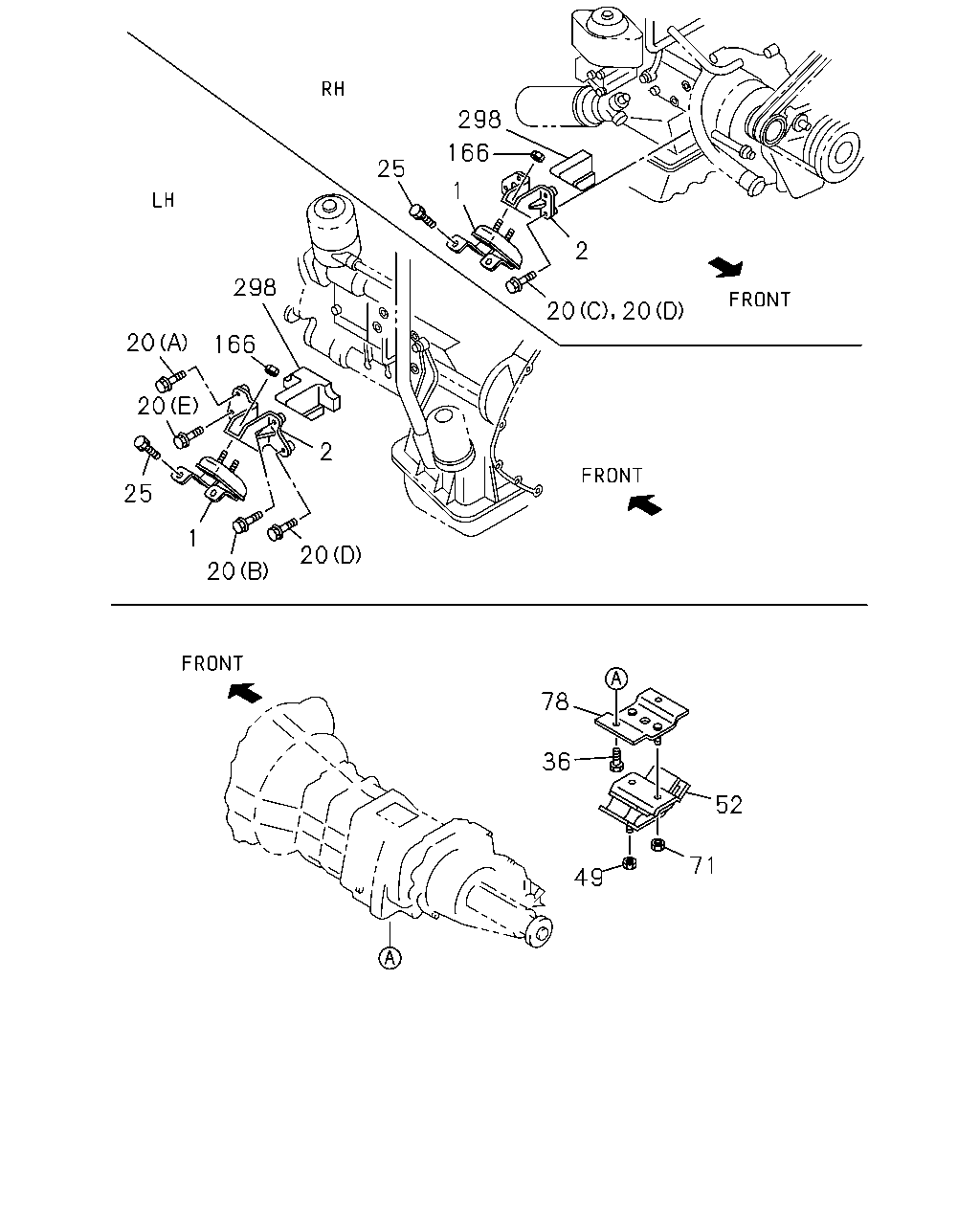

298 166 25 1 2 298 20 166 20 2 25 1 20 20 78 36 52 71 49 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97188-893-0	01	1	9712-9905		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97217-766-0	01	1	9906-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97188-892-0	01	1	9712-9905		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97217-765-0	01	1	9906-		●
1	00.027 RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-158-1	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-157-1	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-283-2	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-282-5	01	1	9712-			●	●
2	00.029 FOOT; ENG	8-97038-196-2	01	1	9712-	●
2	00.029 FOOT; ENG	8-97038-195-2	01	1	9712-	●
2	00.029 FOOT; ENG	8-97144-195-2	01	1	9712-		●
2	00.029 FOOT; ENG	8-97137-821-1	01	1	9712-		●
2	00.029 FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-078-0	01	1	9712-			●	●
2	00.029 FOOT; ENG AIR BAG DRIVER<AJ3>	8-97146-073-0	01	1	9712-			●	●
2	00.029 FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-678-0	01	1	9712-			●	●
2	00.029 FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97179-568-0	01	1	9712-			●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9712-	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-	●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9712-	●
20	00.029 BOLT; ENG FOOT 00.685 (A) M10X50 FLANGE	0-28081-050-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 03.405 (C) M10X30 FLANGE	0-28681-030-0	04	1	9712-9801		●
20	00.029 BOLT; ENG FOOT 03.162 (D) M10X35 FLANGE	0-28681-035-0	01	1	9712-9801		●
20	00.029 BOLT; ENG FOOT 03.162 (D) M10X35 FLANGE	0-28681-035-0	05	1	9802-		●
20	00.029 BOLT; ENG FOOT 09.744 (E) M14X50 FLANGE	0-28881-450-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 04.510 (F) M10X40 FLANGE	0-28181-040-0	01	1	9712-			●	●
20	00.029 BOLT; ENG FOOT 09.181 (F) M10X25 FLANGE	0-28781-025-0	07	1	9712-			●	●
25	00.002 BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9712-	●	●	●	●
36	00.002 BOLT; MTG RUBBER A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9712-9712		●	●	●
36	00.002 BOLT; MTG RUBBER 2 DOOR SHORT(UB***C) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9801-9908	●	●	●	●
36	00.002 BOLT; MTG RUBBER 4 DOOR LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9801-9908	●	●	●	●
36	00.002 BOLT; MTG RUBBER A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9909-	●	●	●	●
49	00.002 NUT; CUSHION RUBBER TO FRAME 04.085 M10 FLANGE	8-94126-973-0	02	1	9712-	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T AISIN(RMD)	8-97039-195-6	01	1	9712-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97039-195-6	01	1	9712-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97039-196-6	01	1	9712-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97183-490-1	01	1	9712-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-94375-288-1	01	1	9712-0006			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-97133-866-0	01	1	0007-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9712-				●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●	●
78	00.029 BRACKET; ENG MTG,RR A/T AISIN(RMD)	8-97063-020-3	01	1	9712-	●
78	00.029 BRACKET; ENG MTG,RR	8-97063-020-3	01	1	9712-		●
78	00.029 BRACKET; ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97063-019-3	01	1	9712-	●
166	00.002 NUT; SUPPORT RUBBER 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9712		●
166	00.002 NUT; SUPPORT RUBBER 08.917 M10 FLANGE	0-91150-210-0	04	1	9801-		●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97194-380-1	01	1	9712-		●
298	00.027 RUBBER; SPACE,ENG FOOT	8-97194-381-1	01	1	9712-		●

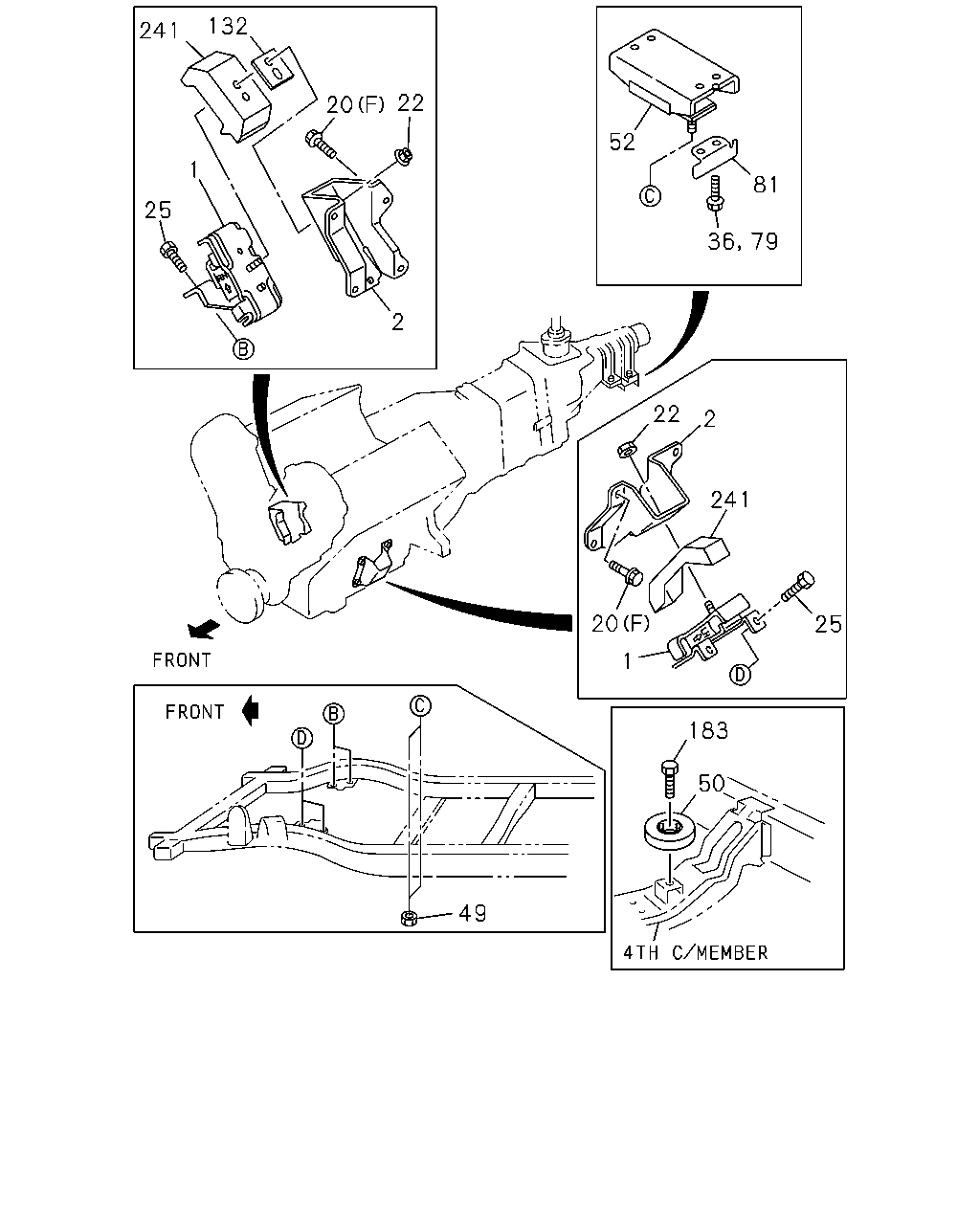

132 241 22 20 52 1 81 25 2 22 2 241 20 25 1 183 50 49 36 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97188-893-0	01	1	9712-9905		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97217-766-0	01	1	9906-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97188-892-0	01	1	9712-9905		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97217-765-0	01	1	9906-		●
1	00.027 RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-158-1	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-157-1	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-283-2	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-282-5	01	1	9712-			●	●
2	00.029 FOOT; ENG	8-97038-196-2	01	1	9712-	●
2	00.029 FOOT; ENG	8-97038-195-2	01	1	9712-	●
2	00.029 FOOT; ENG	8-97144-195-2	01	1	9712-		●
2	00.029 FOOT; ENG	8-97137-821-1	01	1	9712-		●
2	00.029 FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-078-0	01	1	9712-			●	●
2	00.029 FOOT; ENG AIR BAG DRIVER<AJ3>	8-97146-073-0	01	1	9712-			●	●
2	00.029 FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-678-0	01	1	9712-			●	●
2	00.029 FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97179-568-0	01	1	9712-			●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9712-	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-	●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9712-	●
20	00.029 BOLT; ENG FOOT 00.685 (A) M10X50 FLANGE	0-28081-050-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 03.405 (C) M10X30 FLANGE	0-28681-030-0	04	1	9712-9801		●
20	00.029 BOLT; ENG FOOT 03.162 (D) M10X35 FLANGE	0-28681-035-0	01	1	9712-9801		●
20	00.029 BOLT; ENG FOOT 03.162 (D) M10X35 FLANGE	0-28681-035-0	05	1	9802-		●
20	00.029 BOLT; ENG FOOT 09.744 (E) M14X50 FLANGE	0-28881-450-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 04.510 (F) M10X40 FLANGE	0-28181-040-0	01	1	9712-			●	●
20	00.029 BOLT; ENG FOOT 09.181 (F) M10X25 FLANGE	0-28781-025-0	07	1	9712-			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT AIR BAG DRIVER<AJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-			●	●
22	00.002 NUT; CUSHION RUBBER TO BRKT EXC. AIR BAG DRIVER<AJ3> 05.586 M12 FLANGE	0-91150-112-0	02	1	9712-			●	●
25	00.002 BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9712-	●	●	●	●
36	00.002 BOLT; MTG RUBBER A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9712-9712		●	●	●
36	00.002 BOLT; MTG RUBBER 2 DOOR SHORT(UB***C) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9801-9908	●	●	●	●
36	00.002 BOLT; MTG RUBBER 4 DOOR LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9801-9908	●	●	●	●
36	00.002 BOLT; MTG RUBBER A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9909-	●	●	●	●
49	00.002 NUT; CUSHION RUBBER TO FRAME 04.085 M10 FLANGE	8-94126-973-0	02	1	9712-	●	●	●	●
50	00.029 DAMPER; DYNAMIC	8-97184-772-0	01	1	9712-			●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T AISIN(RMD)	8-97039-195-6	01	1	9712-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97039-195-6	01	1	9712-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97039-196-6	01	1	9712-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97183-490-1	01	1	9712-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-94375-288-1	01	1	9712-0006			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-97133-866-0	01	1	0007-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9712-				●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-9712	●			●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9801-	●			●
81	00.029 PROTECTOR; HEAT,ENG MTG	8-97022-766-0	01	1	9712-			●	●
132	00.002 PLATE; ENG MTG AIR BAG DRIVER<AJ3>	8-97139-639-0	01	1	9712-			●	●
183	00.027 BOLT; DAMPER 03.611 M10X20 FLANGE	0-28681-020-0	01	1	9712-			●
241	00.027 COVER; ENG MTG AIR BAG DRIVER<AJ3>	8-97137-834-0	01	1	9712-			●	●
241	00.027 COVER; ENG MTG AIR BAG DRIVER<AJ3>	8-97137-833-0	01	1	9712-			●	●

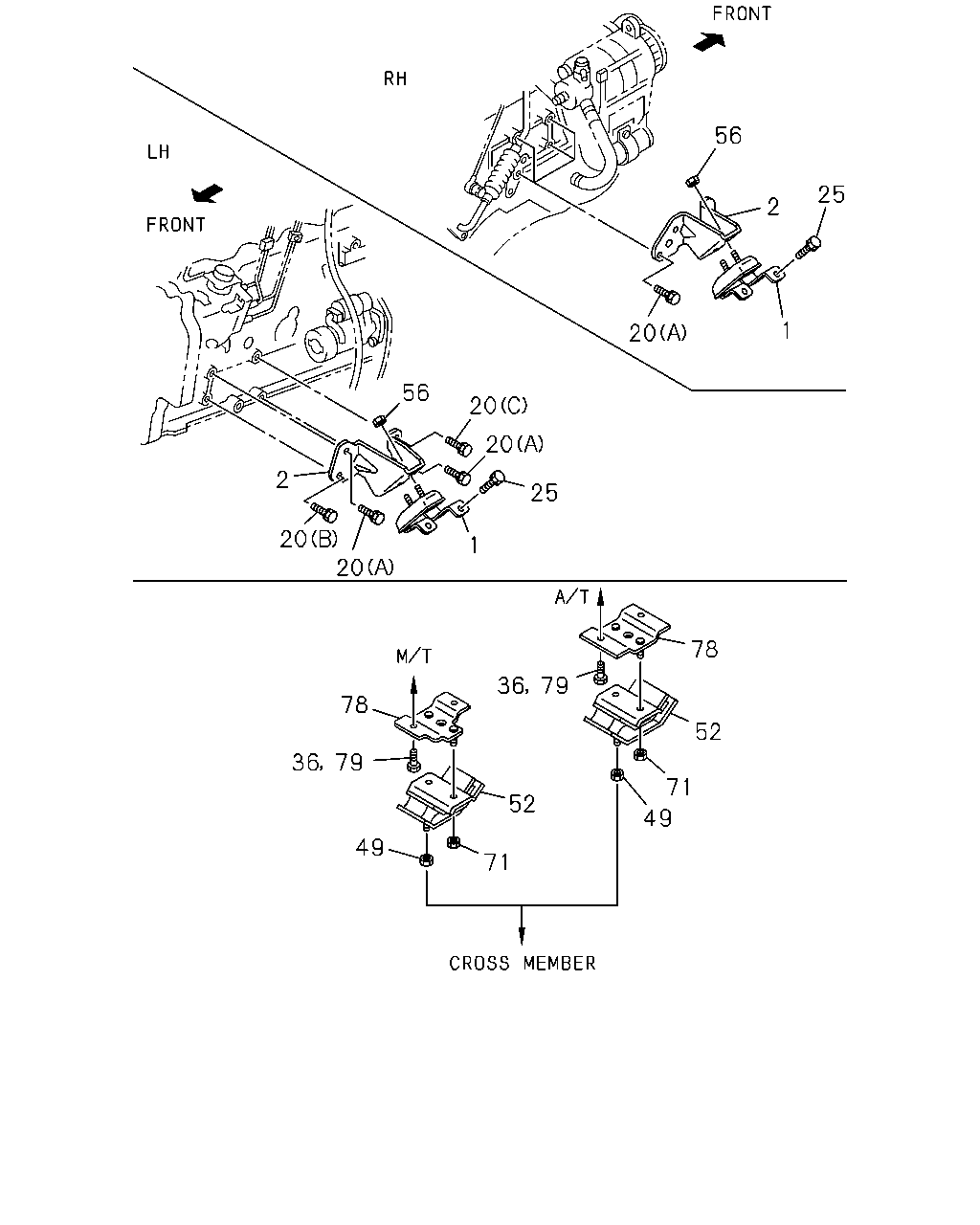

56 25 2 1 20 56 20 20 2 25 20 20 1 78 36 79 78 52 36 79 71 52 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9712-	●
1	00.027 RUBBER; ENG FOOT,FRT	8-97188-893-0	01	1	9712-9905		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97217-766-0	01	1	9906-		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97188-892-0	01	1	9712-9905		●
1	00.027 RUBBER; ENG FOOT,FRT	8-97217-765-0	01	1	9906-		●
1	00.027 RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-158-1	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-157-1	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-283-2	01	1	9712-			●	●
1	00.027 RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-282-5	01	1	9712-			●	●
2	00.029 FOOT; ENG	8-97038-196-2	01	1	9712-	●
2	00.029 FOOT; ENG	8-97038-195-2	01	1	9712-	●
2	00.029 FOOT; ENG	8-97144-195-2	01	1	9712-		●
2	00.029 FOOT; ENG	8-97137-821-1	01	1	9712-		●
2	00.029 FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-078-0	01	1	9712-			●	●
2	00.029 FOOT; ENG AIR BAG DRIVER<AJ3>	8-97146-073-0	01	1	9712-			●	●
2	00.029 FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-678-0	01	1	9712-			●	●
2	00.029 FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97179-568-0	01	1	9712-			●	●
20	00.029 BOLT; ENG FOOT 02.277 (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9712-	●
20	00.029 BOLT; ENG FOOT 09.171 (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9712-	●
20	00.029 BOLT; ENG FOOT 00.002 (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9712-	●
20	00.029 BOLT; ENG FOOT 00.685 (A) M10X50 FLANGE	0-28081-050-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 03.611 (B) M10X20 FLANGE	0-28681-020-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 03.405 (C) M10X30 FLANGE	0-28681-030-0	04	1	9712-9801		●
20	00.029 BOLT; ENG FOOT 03.162 (D) M10X35 FLANGE	0-28681-035-0	01	1	9712-9801		●
20	00.029 BOLT; ENG FOOT 03.162 (D) M10X35 FLANGE	0-28681-035-0	05	1	9802-		●
20	00.029 BOLT; ENG FOOT 09.744 (E) M14X50 FLANGE	0-28881-450-0	01	1	9712-		●
20	00.029 BOLT; ENG FOOT 04.510 (F) M10X40 FLANGE	0-28181-040-0	01	1	9712-			●	●
20	00.029 BOLT; ENG FOOT 09.181 (F) M10X25 FLANGE	0-28781-025-0	07	1	9712-			●	●
25	00.002 BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9712-	●	●	●	●
36	00.002 BOLT; MTG RUBBER A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9712-9712		●	●	●
36	00.002 BOLT; MTG RUBBER 2 DOOR SHORT(UB***C) A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9801-9908	●	●	●	●
36	00.002 BOLT; MTG RUBBER 4 DOOR LONG(UB***F) A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9801-9908	●	●	●	●
36	00.002 BOLT; MTG RUBBER A/T AISIN(RMD),A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9909-	●	●	●	●
49	00.002 NUT; CUSHION RUBBER TO FRAME 04.085 M10 FLANGE	8-94126-973-0	02	1	9712-	●	●	●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T AISIN(RMD)	8-97039-195-6	01	1	9712-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR	8-97039-195-6	01	1	9712-		●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97039-196-6	01	1	9712-	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ) TORQUE ON DEMAND<7HA>	8-97183-490-1	01	1	9712-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-94375-288-1	01	1	9712-0006			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ),M/T AR-5 5 SPEED(RNK) EXC. TORQUE ON DEMAND<7HA>	8-97133-866-0	01	1	0007-			●	●
52	00.027 RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9712-				●
56	00.002 NUT; ENG MTG 04.785 M10 FLANGE	0-91150-110-0	04	1	9712-9712	●
56	00.002 NUT; ENG MTG 08.917 M10 FLANGE	0-91150-210-0	04	1	9801-	●
71	00.002 NUT; SUPPORT RUBBER TO BRKT 04.785 M10 FLANGE	0-91150-110-0	02	1	9712-	●	●
78	00.029 BRACKET; ENG MTG,RR A/T AISIN(RMD)	8-97063-020-3	01	1	9712-	●
78	00.029 BRACKET; ENG MTG,RR	8-97063-020-3	01	1	9712-		●
78	00.029 BRACKET; ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97063-019-3	01	1	9712-	●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS A/T AISIN(RMD),M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9712-9712	●			●
79	00.002 BOLT; SUPPORT RUBBER TO TRANS M/T MUA 5 SPEED(RMN) 01.652 M10X25 W/LK WASHER	0-50041-025-0	02	1	9801-	●			●
