Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#73210) — 195 parça

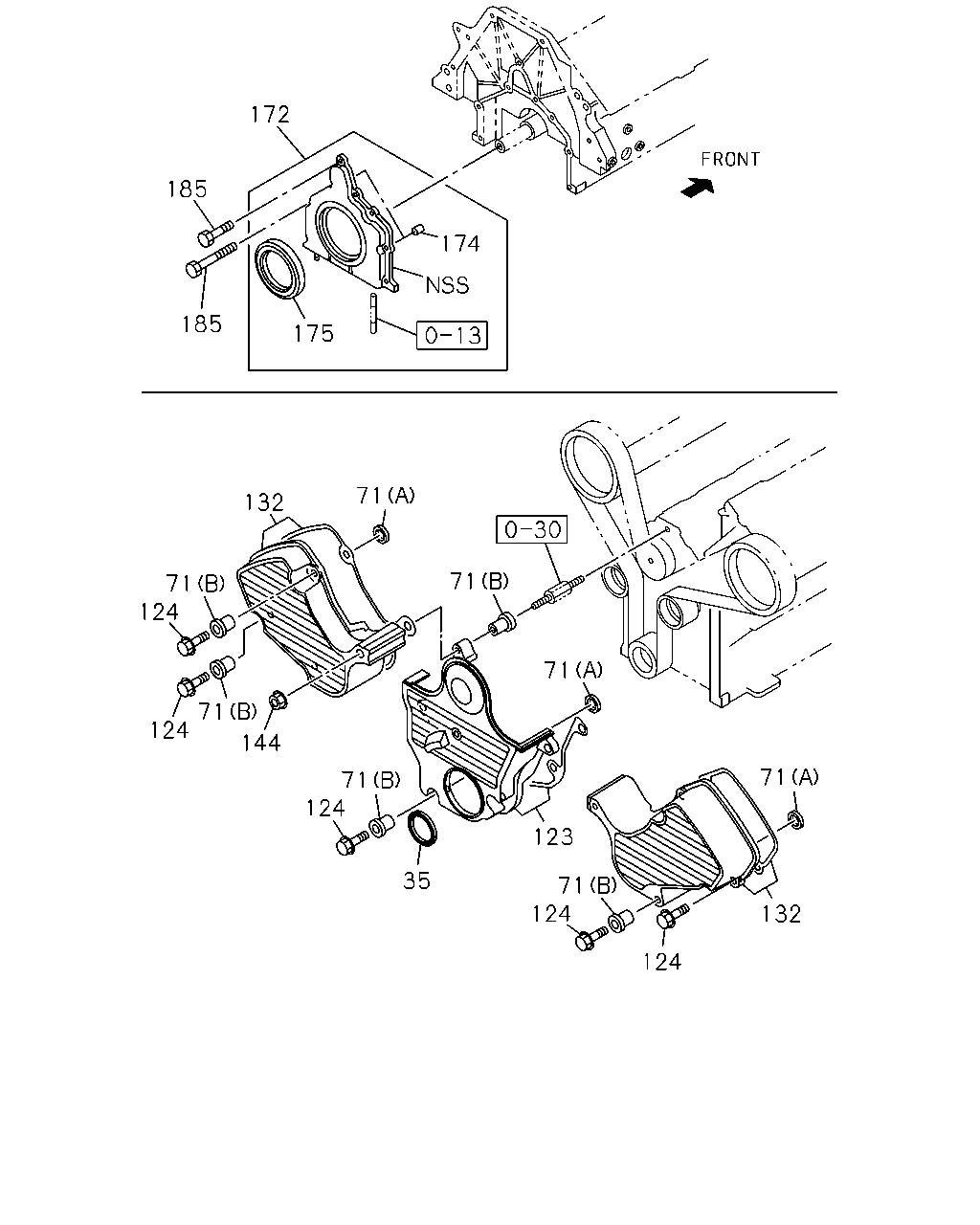

172 185 174 185 175 71 132 71 71 124 71 71 124 144 71 71 124 123 35 71 124 132 124

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
35	00.213 SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9712-	●	●
71	00.206 RUBBER; MTG,COVER (C)	5-19389-002-0	04	1	9712-			●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	10	1	9712-0209				●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	08	1	0210-				●
71	00.206 RUBBER; MTG,COVER (B)	8-97168-200-1	06	1	9712-				●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9712-	●	●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9712-	●	●
123	00.206 COVER; TIMING,LWR	8-97131-872-3	01	1	9712-	●	●
124	00.206 BOLT; TIMING COVER 03.275 M8X30 FLANGE	0-28080-830-0	09	1	9712-	●	●
132	00.206 COVER; TIMING,UPR	8-97131-882-3	01	1	9712-	●	●
132	00.206 COVER; TIMING,UPR	8-97131-883-2	01	1	9712-	●	●
144	00.206 NUT; COVER 07.633 M8 FLANGE	0-91150-108-0	01	1	9712-	●	●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	9712-				●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	9712-	●	●
174	00.683 DOWEL; RET TO C/BL	8-97103-336-0	02	1	9712-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9712-			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9712-	●	●
185	00.727 BOLT; RET TO C/BL 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9712-				●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9712-	●	●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9712-	●	●

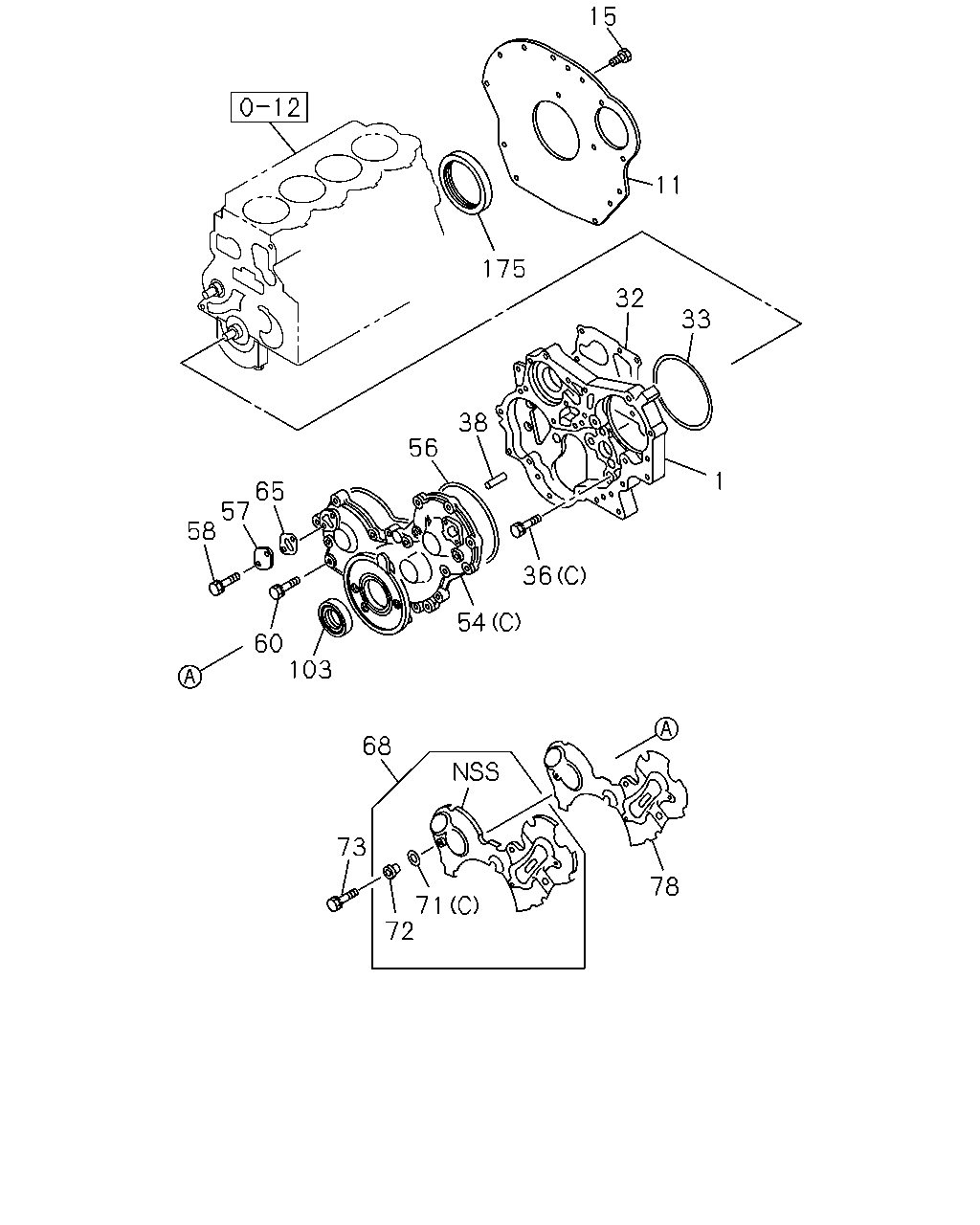

15 11 175 32 33 38 56 1 65 57 58 36 54 60 103 68 73 78 71 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	9712-			●
1	00.206 CASE; TIMING GEAR	8-97137-074-7	01	1	9712-0105				●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-97137-074-7	01	1	0106-0112				●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97228-639-1	01	1	0106-0112				●
1	00.206 CASE; TIMING GEAR	8-97228-639-1	01	1	0201-				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9712-			●
11	00.683 PLATE; RR,C/BL A/T AISIN(RMD)	8-97137-107-2	01	1	9909-				●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9712-9908			●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9909-			●
15	00.683 BOLT; RR PLATE TO C/BL A/T AISIN(RMD) M12X25	5-09000-227-0	03	1	9909-				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	9712-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97137-075-5	01	1	9712-0105				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97137-075-5	01	1	0106-0112				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97263-060-0	01	1	0106-0112				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97263-060-0	01	1	0201-				●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	9712-			●
36	00.206 BOLT; GEAR CASE 08.900 (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	9712-			●
36	00.206 BOLT; GEAR CASE 01.252 (C) M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-			●
36	00.206 BOLT; GEAR CASE 02.559 (A) M8X25 FLANGE	0-28680-825-0	10	1	9712-				●
36	00.206 BOLT; GEAR CASE 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	06	1	9712-				●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9712-0201			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	01	1	9712-				●
54	00.206 COVER; GEAR CASE (C)	8-94155-360-2	01	1	9712-9903			●
54	00.206 COVER; GEAR CASE (C)	8-97219-278-0	01	1	9904-9912			●
54	00.206 COVER; GEAR CASE (C)	8-97231-214-1	01	1	0001-			●
54	00.206 COVER; GEAR CASE (A)	8-97137-077-6	01	1	9712-9808				●
54	00.206 COVER; GEAR CASE (A)	8-97213-233-1	01	1	9809-0105				●
54	00.206 COVER; GEAR CASE EXC. EUROPE EQUIPMENT(EK4) (A)	8-97213-233-1	01	1	0106-0208				●
54	00.206 COVER; GEAR CASE EXC. EURO3 SPECIFICATION(NT3) (A)	8-97213-233-1	01	1	0209-				●
54	00.206 COVER; GEAR CASE (B)	8-97178-189-0	01	1	9712-0209				●
54	00.206 COVER; GEAR CASE EUROPE EQUIPMENT(EK4) (A)	8-97302-651-2	01	1	0106-0208				●
54	00.206 COVER; GEAR CASE EURO3 SPECIFICATION(NT3) (A)	8-97302-651-2	01	1	0209-				●
56	00.207 GASKET; GEAR CASE TO COVER	8-94140-117-1	01	1	9712-9910			●
56	00.207 GASKET; GEAR CASE TO COVER	8-97238-631-0	01	1	9911-0106			●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0107-			●
57	00.206 COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	9712-			●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	04	1	9712-0403			●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	04	1	0404-			●
60	00.206 BOLT; COVER TO CASE 00.727 M8X32 W/LK WASHER	0-50040-832-0	08	1	9712-9906			●
60	00.206 BOLT; COVER TO CASE 03.275 M8X30 FLANGE	0-28080-830-0	08	1	9907-			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X60 W/LK WASHER	0-50040-860-0	01	1	9712-9906			●
60	00.206 BOLT; COVER TO CASE 01.252 M8X58 FLANGE	8-94130-055-1	01	1	9907-			●
60	00.206 BOLT; COVER TO CASE M8X65 W/LK WASHER	8-94205-986-1	06	1	9712-9903			●
60	00.206 BOLT; COVER TO CASE 01.251 M8X60 FLANGE	0-28080-860-0	06	1	9904-0105			●
60	00.206 BOLT; COVER TO CASE 01.840 M8X70 W/LK WASHER	0-50040-870-0	06	1	0106-			●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9712-0107			●
60	00.206 BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0108-			●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97118-698-1	02	1	9712-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9712-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-97178-241-4	01	1	9712-				●
71	00.206 RUBBER; MTG,COVER (C)	5-19389-002-0	04	1	9712-			●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	10	1	9712-0209				●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	08	1	0210-				●
71	00.206 RUBBER; MTG,COVER (B)	8-97168-200-1	06	1	9712-				●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9712-	●	●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9712-	●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9712-			●
72	00.206 BUSHING; SPACER,COVER TO COVER 00.034 OD=13 T=9.5	8-94140-427-1	02	1	9712-0209				●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9712-0403			●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	04	1	0404-			●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-94155-722-3	01	1	9712-0402			●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-97178-469-4	01	1	9712-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9712-0206			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9712-			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9712-	●	●

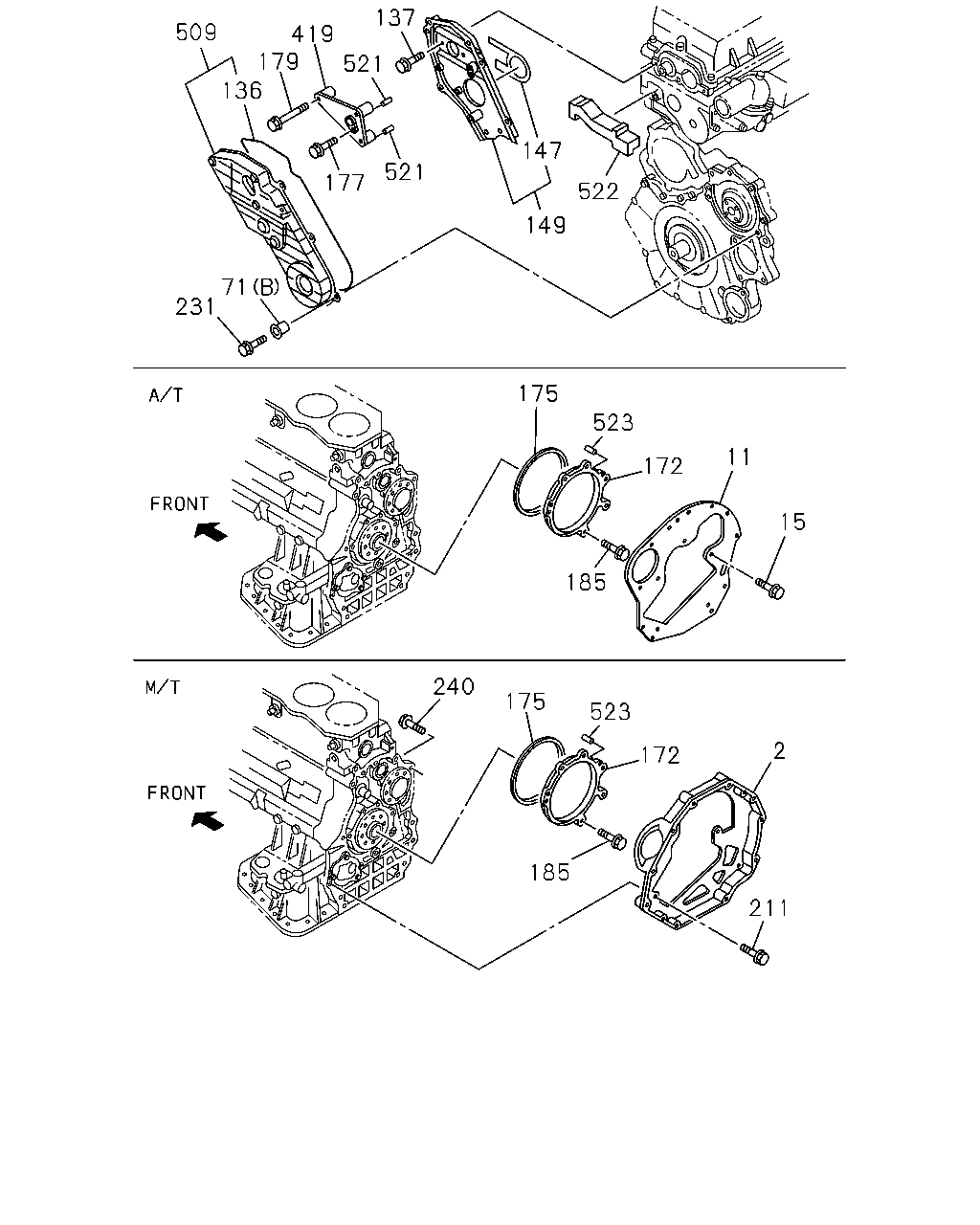

137 509 419 179 521 136 147 521 177 522 149 71 231 175 523 11 172 15 185 240 175 523 2 172 185 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.683 HOUSING; FLYWHEEL	8-97141-174-4	01	1	9712-9908				●
2	00.683 HOUSING; FLYWHEEL M/T AR-5 5 SPEED(RNK)	8-97141-174-4	01	1	9909-				●
11	00.683 PLATE; RR,C/BL	8-94437-923-2	01	1	9712-			●
11	00.683 PLATE; RR,C/BL A/T AISIN(RMD)	8-97137-107-2	01	1	9909-				●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9712-9908			●
15	00.683 BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9909-			●
15	00.683 BOLT; RR PLATE TO C/BL A/T AISIN(RMD) M12X25	5-09000-227-0	03	1	9909-				●
71	00.206 RUBBER; MTG,COVER (C)	5-19389-002-0	04	1	9712-			●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	10	1	9712-0209				●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	08	1	0210-				●
71	00.206 RUBBER; MTG,COVER (B)	8-97168-200-1	06	1	9712-				●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9712-	●	●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9712-	●	●
136	00.207 GASKET; TIMING COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97178-697-1	01	1	9712-9909				●
136	00.207 GASKET; TIMING COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97231-524-0	01	1	9910-				●
137	00.206 BOLT; FRT PLATE 02.559 M8X25 FLANGE	0-28680-825-0	04	1	9712-				●
147	00.207 GASKET; FRT PLATE TO C/BL	8-97178-696-1	01	1	9712-0208				●
149	00.206 PLATE; FRT,C/BL	8-97178-866-2	01	1	9712-0208				●
149	00.206 PLATE; FRT,C/BL	8-97137-188-4	01	1	0209-				●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	9712-				●
172	00.137 RETAINER; CR/SHF	8-97149-390-1	01	1	9712-	●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9712-			●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9712-	●	●
177	00.206 BOLT; SENSOR 02.500 M6X10 FLANGE	0-28080-610-0	01	1	9712-				●
179	00.206 BOLT; BRKT 01.780 M8X50 FLANGE	0-28080-850-0	03	1	9712-				●
185	00.727 BOLT; RET TO C/BL 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9712-				●
185	00.727 BOLT; RET TO C/BL 01.062 M8X16 FLANGE	0-28080-816-0	06	1	9712-	●	●
185	00.727 BOLT; RET TO C/BL 01.531 M8X25 FLANGE	0-28080-825-0	02	1	9712-	●	●
211	00.669 BOLT; HSG 00.683 M12X25	5-09000-227-0	02	1	9712-9908				●
211	00.669 BOLT; HSG M/T AR-5 5 SPEED(RNK) 00.683 M12X25	5-09000-227-0	02	1	9909-				●
211	00.669 BOLT; HSG M12X31	8-97145-954-0	02	1	9712-9908				●
211	00.669 BOLT; HSG M/T AR-5 5 SPEED(RNK) M12X31	8-97145-954-0	02	1	9909-				●
231	00.206 BOLT; COVER 04.686 M6X25 FLANGE	0-28080-625-0	06	1	9712-				●
231	00.206 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9712-				●
240	00.669 PIN; FLYWHEEL HSG	8-97145-762-1	01	1	9712-9908				●
240	00.669 PIN; FLYWHEEL HSG M/T AR-5 5 SPEED(RNK)	8-97145-762-1	01	1	9909-				●
419	00.206 BRACKET; SENSOR	8-97163-206-1	01	1	9712-				●
509	00.206 COVER; BELT	8-97137-187-4	01	1	9712-9909				●
509	00.206 COVER; BELT	8-97231-569-0	01	1	9910-				●
521	00.685 PIN; FRT PLATE	9-08150-312-0	02	1	9712-0008				●
521	00.685 PIN; FRT PLATE	9-08160-312-0	02	1	0009-				●
522	00.206 RUBBER; SPACE,FRT PLATE	8-97163-155-1	01	1	9712-				●
523	00.685 PIN; RETAINER 00.862 ID=6 L=12	9-08160-612-0	02	1	0106-0312				●

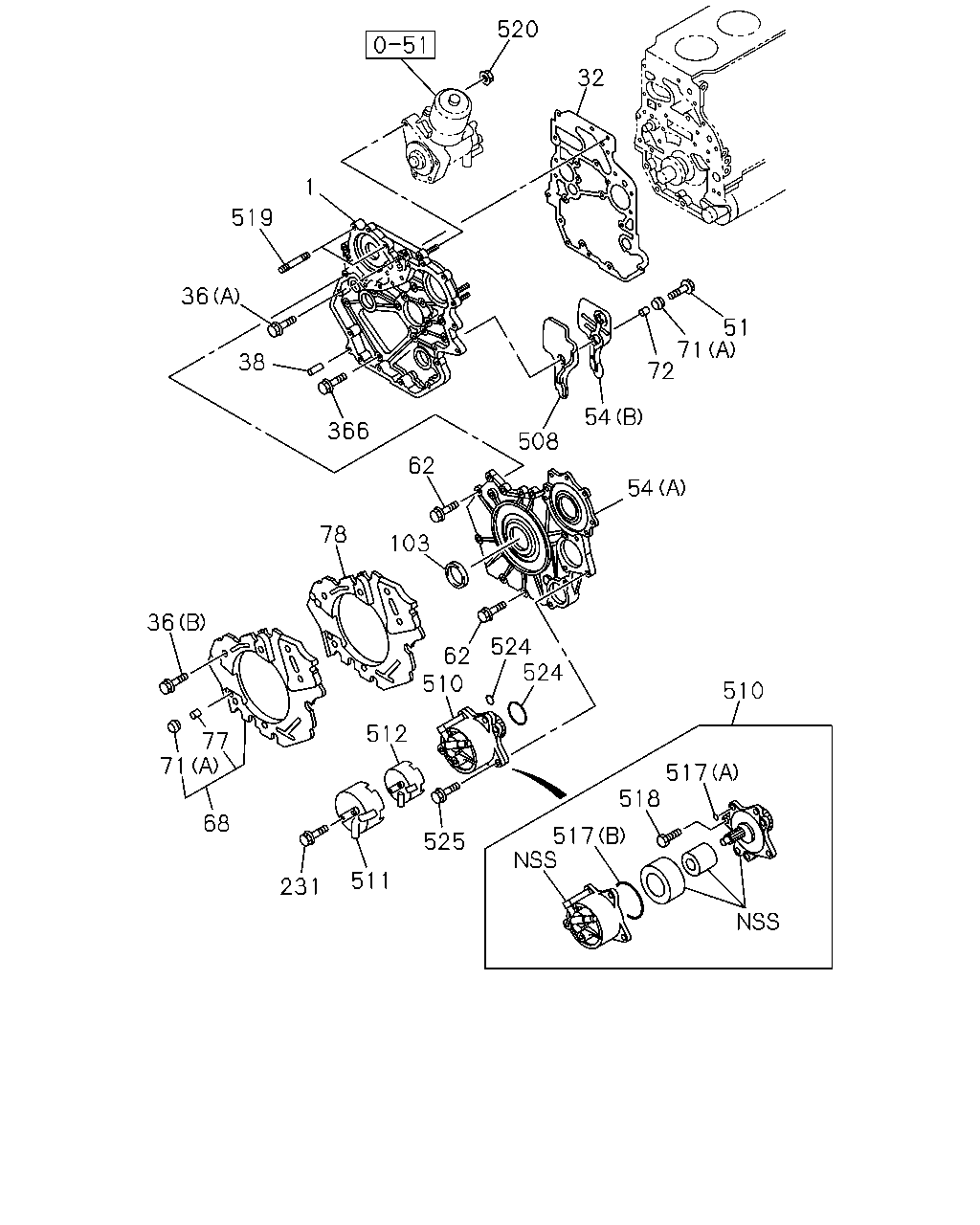

520 32 1 519 36 51 71 72 38 54 366 508 62 54 78 103 36 524 524 62 510 510 512 77 71 517 518 68 517 525 511 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.206 CASE; TIMING GEAR	8-97129-982-3	01	1	9712-			●
1	00.206 CASE; TIMING GEAR	8-97137-074-7	01	1	9712-0105				●
1	00.206 CASE; TIMING GEAR EXC. EUROPE EQUIPMENT(EK4)	8-97137-074-7	01	1	0106-0112				●
1	00.206 CASE; TIMING GEAR EUROPE EQUIPMENT(EK4)	8-97228-639-1	01	1	0106-0112				●
1	00.206 CASE; TIMING GEAR	8-97228-639-1	01	1	0201-				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	9712-			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97137-075-5	01	1	9712-0105				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE EQUIPMENT(EK4)	8-97137-075-5	01	1	0106-0112				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE EQUIPMENT(EK4)	8-97263-060-0	01	1	0106-0112				●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97263-060-0	01	1	0201-				●
36	00.206 BOLT; GEAR CASE 08.900 (C) M8X20 W/LK WASHER	0-50040-820-0	06	1	9712-			●
36	00.206 BOLT; GEAR CASE 01.252 (C) M8X45 W/LK WASHER	0-50040-845-0	02	1	9712-			●
36	00.206 BOLT; GEAR CASE 02.559 (A) M8X25 FLANGE	0-28680-825-0	10	1	9712-				●
36	00.206 BOLT; GEAR CASE 09.005 (B) M8X25 W/LK&PL WASHER	1-09980-548-0	06	1	9712-				●
38	00.685 PIN; GEAR CASE COVER 00.669 OD=10 L=20	9-08151-020-0	02	1	9712-0201			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0202-			●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	01	1	9712-				●
51	00.206 BOLT; GEAR CASE COVER 09.005 M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-0209				●
54	00.206 COVER; GEAR CASE (C)	8-94155-360-2	01	1	9712-9903			●
54	00.206 COVER; GEAR CASE (C)	8-97219-278-0	01	1	9904-9912			●
54	00.206 COVER; GEAR CASE (C)	8-97231-214-1	01	1	0001-			●
54	00.206 COVER; GEAR CASE (A)	8-97137-077-6	01	1	9712-9808				●
54	00.206 COVER; GEAR CASE (A)	8-97213-233-1	01	1	9809-0105				●
54	00.206 COVER; GEAR CASE EXC. EUROPE EQUIPMENT(EK4) (A)	8-97213-233-1	01	1	0106-0208				●
54	00.206 COVER; GEAR CASE EXC. EURO3 SPECIFICATION(NT3) (A)	8-97213-233-1	01	1	0209-				●
54	00.206 COVER; GEAR CASE (B)	8-97178-189-0	01	1	9712-0209				●
54	00.206 COVER; GEAR CASE EUROPE EQUIPMENT(EK4) (A)	8-97302-651-2	01	1	0106-0208				●
54	00.206 COVER; GEAR CASE EURO3 SPECIFICATION(NT3) (A)	8-97302-651-2	01	1	0209-				●
62	00.206 BOLT; COVER 01.780 M8X50 FLANGE	0-28080-850-0	06	1	9712-				●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	9712-				●
68	00.206 COVER ASM; GEAR CASE COVER	8-94155-721-1	01	1	9712-			●
68	00.206 COVER ASM; GEAR CASE COVER	8-97178-241-4	01	1	9712-				●
71	00.206 RUBBER; MTG,COVER (C)	5-19389-002-0	04	1	9712-			●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	10	1	9712-0209				●
71	00.206 RUBBER; MTG,COVER 00.034 (A) OD=22	8-94140-428-1	08	1	0210-				●
71	00.206 RUBBER; MTG,COVER (B)	8-97168-200-1	06	1	9712-				●
71	00.206 RUBBER; MTG,COVER (A)	8-97149-003-0	10	1	9712-	●	●
71	00.206 RUBBER; MTG,COVER (B)	8-97149-253-0	11	1	9712-	●	●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	04	1	9712-			●
72	00.206 BUSHING; SPACER,COVER TO COVER 00.034 OD=13 T=9.5	8-94140-427-1	02	1	9712-0209				●
77	00.206 BUSHING; MTG RUBBER,NOISE COVER 00.034 OD=13 T=9.5	8-94140-427-1	08	1	9712-				●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-94155-722-3	01	1	9712-0402			●
78	00.206 SPACER; MTG RUBBER,NOISE COVER	8-97178-469-4	01	1	9712-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9712-0206			●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0207-			●	●
231	00.206 BOLT; COVER 04.686 M6X25 FLANGE	0-28080-625-0	06	1	9712-				●
231	00.206 BOLT; COVER 00.034 M8X22 W/LK&PL WASHER	8-94329-953-1	02	1	9712-				●
366	00.206 BOLT; GEAR CASE 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9712-0105				●
366	00.206 BOLT; GEAR CASE EXC. EUROPE EQUIPMENT(EK4) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-0112				●
366	00.206 BOLT; GEAR CASE EUROPE EQUIPMENT(EK4) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0112				●
366	00.206 BOLT; GEAR CASE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0201-				●
508	00.206 RUBBER; SPACE,GEAR CASE	8-97178-315-1	01	1	9712-0209				●
510	04.895 PUMP ASM; VACUUM	8-97178-214-2	01	1	9712-9809				●
510	04.895 PUMP ASM; VACUUM	8-97217-325-0	01	1	9810-9911				●
510	04.895 PUMP ASM; VACUUM	8-97245-318-0	01	1	9912-				●
511	04.895 COVER; VAC PUMP	8-97178-215-3	01	1	9712-				●
512	04.895 RUBBER; SPACE	8-97178-216-1	01	1	9712-				●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97184-174-0	01	1	9712-				●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97184-175-0	01	1	9712-				●
518	04.895 BOLT; VAC PUMP	8-97184-180-0	03	1	9712-				●
519	04.895 STUD; OIL PUMP	8-97186-101-1	03	1	9712-				●
520	04.895 NUT; OIL PUMP 07.633 M8 FLANGE	0-91150-108-0	03	1	9712-				●
524	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=5.8	9-09565-106-0	01	1	9712-				●
524	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=70.6	9-09565-271-0	01	1	9712-				●
525	04.895 BOLT; VAC PUMP 01.540 M8X45 FLANGE	0-28080-845-0	03	1	9712-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
