0-14 — CAMSHAFT AND VALVE (#73208) — 440 parça

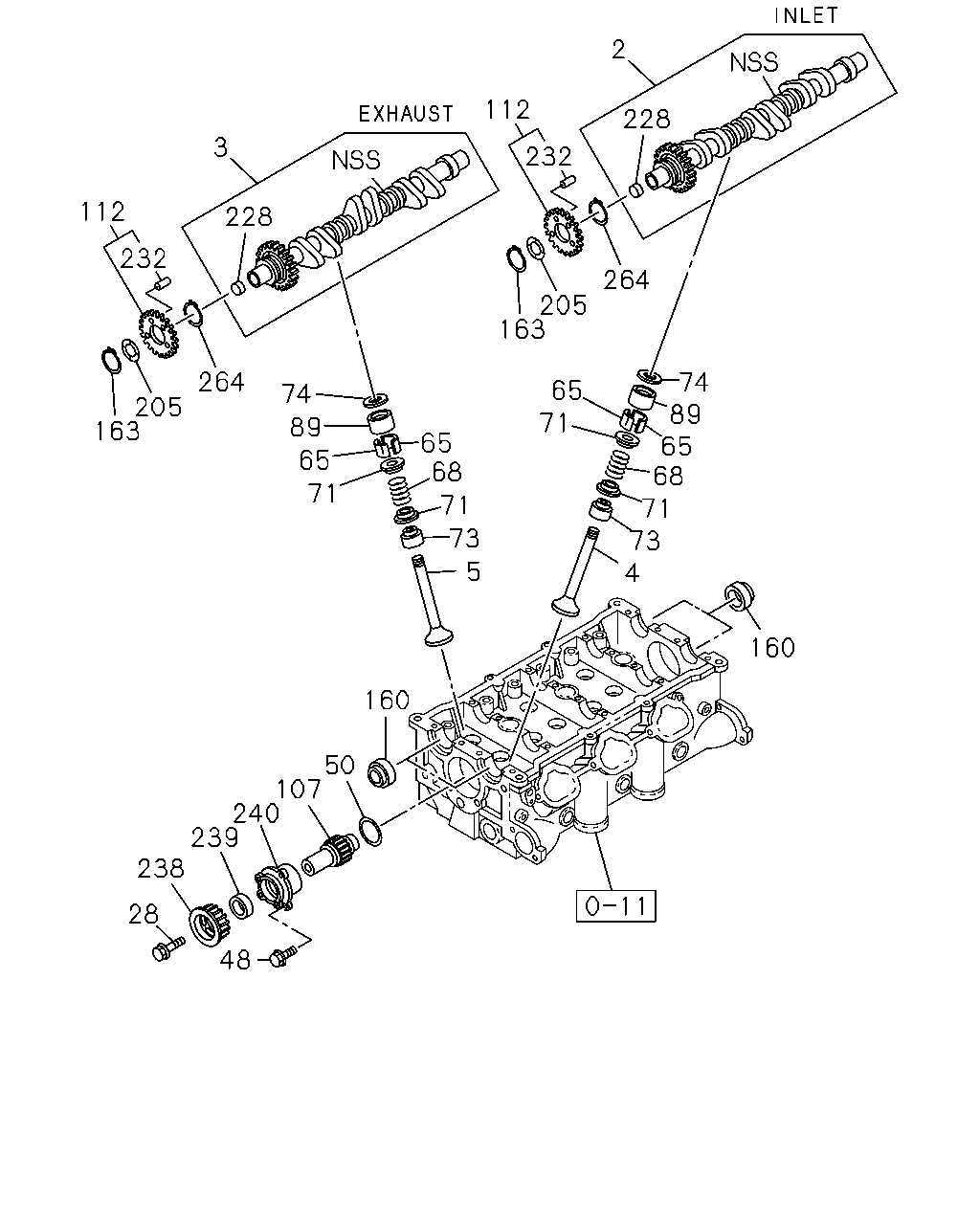

2 112 228 3 232 112 228 232 264 205 163 264 74 89 65 68 71 3 4 65 71 74 205 163 89 65 68 65 71 71 73 5 160 160 50 107 240 239 238 28 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL	8-97174-822-1	01	1	9712-	●
2	00.519 CAMSHAFT; INL	8-97146-570-1	01	1	9712-		●	●
2	00.519 CAMSHAFT; INL	8-97146-569-1	01	1	9712-		●	●
3	00.519 CAMSHAFT; EXH	8-97174-823-0	01	1	9712-	●
3	00.519 CAMSHAFT; EXH	8-97146-572-1	02	1	9712-		●	●
4	00.296 VALVE; INL	8-97131-729-1	04	1	9712-				●
4	00.296 VALVE; INL	8-97137-154-0	08	1	9712-	●
4	00.296 VALVE; INL AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-807-0	12	1	9712-0105		●
4	00.296 VALVE; INL EXC. THAILAND EQUIPMENT(PM9)	8-97169-807-0	12	1	9712-0105			●
4	00.296 VALVE; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97169-807-0	12	1	0106-			●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-97131-961-0	12	1	9712-0105		●
4	00.296 VALVE; INL THAILAND EQUIPMENT(PM9)	8-97131-961-0	12	1	9712-0105			●
4	00.296 VALVE; INL	8-97131-961-0	12	1	0106-		●
4	00.296 VALVE; INL EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97131-961-0	12	1	0106-			●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-97043-861-2	04	1	9712-				●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-1	04	1	9712-				●
5	00.297 VALVE; EXH	8-97137-155-1	08	1	9712-	●
5	00.297 VALVE; EXH AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-808-0	12	1	9712-0105		●
5	00.297 VALVE; EXH EXC. THAILAND EQUIPMENT(PM9)	8-97169-808-0	12	1	9712-0105			●
5	00.297 VALVE; EXH EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97169-808-0	12	1	0106-			●
5	00.297 VALVE; EXH EUROPE EQUIPMENT(EK4)	8-97131-962-0	12	1	9712-0105		●
5	00.297 VALVE; EXH THAILAND EQUIPMENT(PM9)	8-97131-962-0	12	1	9712-0105			●
5	00.297 VALVE; EXH	8-97131-962-0	12	1	0106-		●
5	00.297 VALVE; EXH EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97131-962-0	12	1	0106-			●
28	00.738 BOLT; CAM PULLEY	8-97149-393-0	02	1	9712-0204		●	●
28	00.738 BOLT; CAM PULLEY	8-97330-881-0	02	1	0205-		●	●
48	00.724 BOLT; RET M6X30 FLANGE	0-28690-630-0	03	1	9712-		●	●
48	00.724 BOLT; RET M6X20 FLANGE	0-28690-620-0	03	1	9712-		●	●
50	00.724 GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97149-238-0	02	1	9712-		●	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9712-				●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	9712-	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-		●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9712-				●
68	00.303 SPRING; VLV	8-97145-470-1	16	1	9712-0107	●
68	00.303 SPRING; VLV	8-97251-827-0	16	1	0108-	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-0108		●	●
68	00.303 SPRING; VLV	8-97314-228-0	24	1	0109-		●	●
71	00.309 SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9712-				●
71	00.309 SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9712-				●
71	00.309 SEAT; SPR LOWER	8-97144-584-0	16	1	9712-	●
71	00.309 SEAT; SPR UPPER	8-97184-935-0	16	1	9712-	●
71	00.309 SEAT; SPR LOWER OD=24.2	8-97136-329-1	24	1	9712-		●	●
71	00.309 SEAT; SPR UPPER OD=27	8-97149-155-0	24	1	9712-		●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) INLET	8-94324-158-1	12	1	9712-0207		●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) INLET	8-97332-359-0	12	1	0208-		●	●
73	00.309 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) EXHAUST	8-97146-733-0	12	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.80	8-97184-936-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.82	8-97184-937-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.84	8-97184-938-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.86	8-97184-939-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.88	8-97184-940-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.90	8-97184-941-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.92	8-97184-942-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.94	8-97184-943-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.96	8-97184-944-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.98	8-97184-945-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.00	8-97184-946-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.02	8-97184-947-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.04	8-97184-948-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.06	8-97184-949-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.08	8-97184-950-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.10	8-97184-951-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.12	8-97184-952-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.14	8-97184-953-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.16	8-97184-954-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.18	8-97184-955-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.20	8-97184-956-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.65	8-97186-865-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.60	8-97186-867-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.63	8-97186-868-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.68	8-97186-870-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.70	8-97186-871-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.73	8-97186-872-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.75	8-97186-873-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.78	8-97186-874-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.23	8-97187-169-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.25	8-97187-170-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.28	8-97187-171-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.30	8-97187-172-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.33	8-97187-173-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.35	8-97187-174-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.38	8-97187-175-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.40	8-97187-176-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.40	8-97149-262-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.42	8-97149-263-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.44	8-97149-264-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.46	8-97149-265-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.48	8-97149-266-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.50	8-97149-267-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.52	8-97149-268-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.54	8-97149-269-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.56	8-97149-270-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.58	8-97149-271-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.60	8-97149-272-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.62	8-97149-273-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.64	8-97149-274-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.66	8-97149-275-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.68	8-97149-276-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.70	8-97149-277-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.72	8-97149-278-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.74	8-97149-279-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.76	8-97149-280-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.78	8-97149-281-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.80	8-97149-282-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.82	8-97149-283-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.84	8-97149-284-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.86	8-97149-285-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.88	8-97149-286-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.90	8-97149-287-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.92	8-97149-288-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.94	8-97149-289-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.96	8-97149-290-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.98	8-97149-291-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.00	8-97149-292-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.02	8-97149-293-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.04	8-97149-294-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.06	8-97149-295-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.08	8-97149-296-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.10	8-97149-297-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.12	8-97149-298-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.14	8-97149-299-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.16	8-97149-300-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.18	8-97149-301-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.20	8-97149-302-0	AR	1	9712-9906		●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	9712-				●
89	00.459 TAPPET; VLV	8-97184-934-1	16	1	9712-9802	●
89	00.459 TAPPET; VLV	8-97202-691-0	16	1	9803-	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9712-		●	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-870-0	01	1	0110-		●	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-871-0	01	1	0110-		●	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR	8-97179-970-0	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-966-1	01	1	9712-		●	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-965-1	01	1	9712-		●	●
112	00.724 GEAR; IDLE SUMITOMO ELECTRIC INDUSTRIES Z=40	8-97322-153-0	04	1	0201-		●	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9712-				●
112	00.724 GEAR; IDLE	8-97173-756-3	01	1	9712-	●
112	00.724 GEAR; IDLE TOKYO BUHIN KOGYO CO.LTD Z=40	8-97136-655-1	04	1	9712-		●	●
160	00.533 PLUG; CM/SHF END	8-97160-866-0	01	1	9712-	●
160	00.533 PLUG; CM/SHF END	8-97149-338-0	08	1	9712-		●	●
163	00.724 RING; SNAP,IDLE	8-97149-334-0	04	1	9712-		●	●
205	00.724 WASHER; LK,IDLE	8-97136-589-0	04	1	9712-		●	●
228	00.738 CUP; SEALING,CAMSHAFT OD=8	8-97039-526-0	04	1	9712-		●	●
232	00.662 PIN; GEAR SET SUMITOMO ELECTRIC INDUSTRIES OD=5 L=7	8-97173-670-0	04	1	0201-		●	●
232	00.662 PIN; GEAR SET 00.738 TOKYO BUHIN KOGYO CO.LTD OD=5 L=6	9-09878-626-0	04	1	9712-		●	●
238	00.659 PULLEY; TIMING,CAM	8-97136-327-0	02	1	9712-		●	●
239	00.533 SEAL; OIL,IDLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-94389-593-1	02	1	9712-		●	●
240	00.724 RETAINER; IDLE	8-97132-365-1	01	1	9712-		●	●
240	00.724 RETAINER; IDLE	8-97132-364-1	01	1	9712-		●	●
264	00.349 SPRING; GEAR 00.659	8-97136-343-0	04	1	9712-		●	●

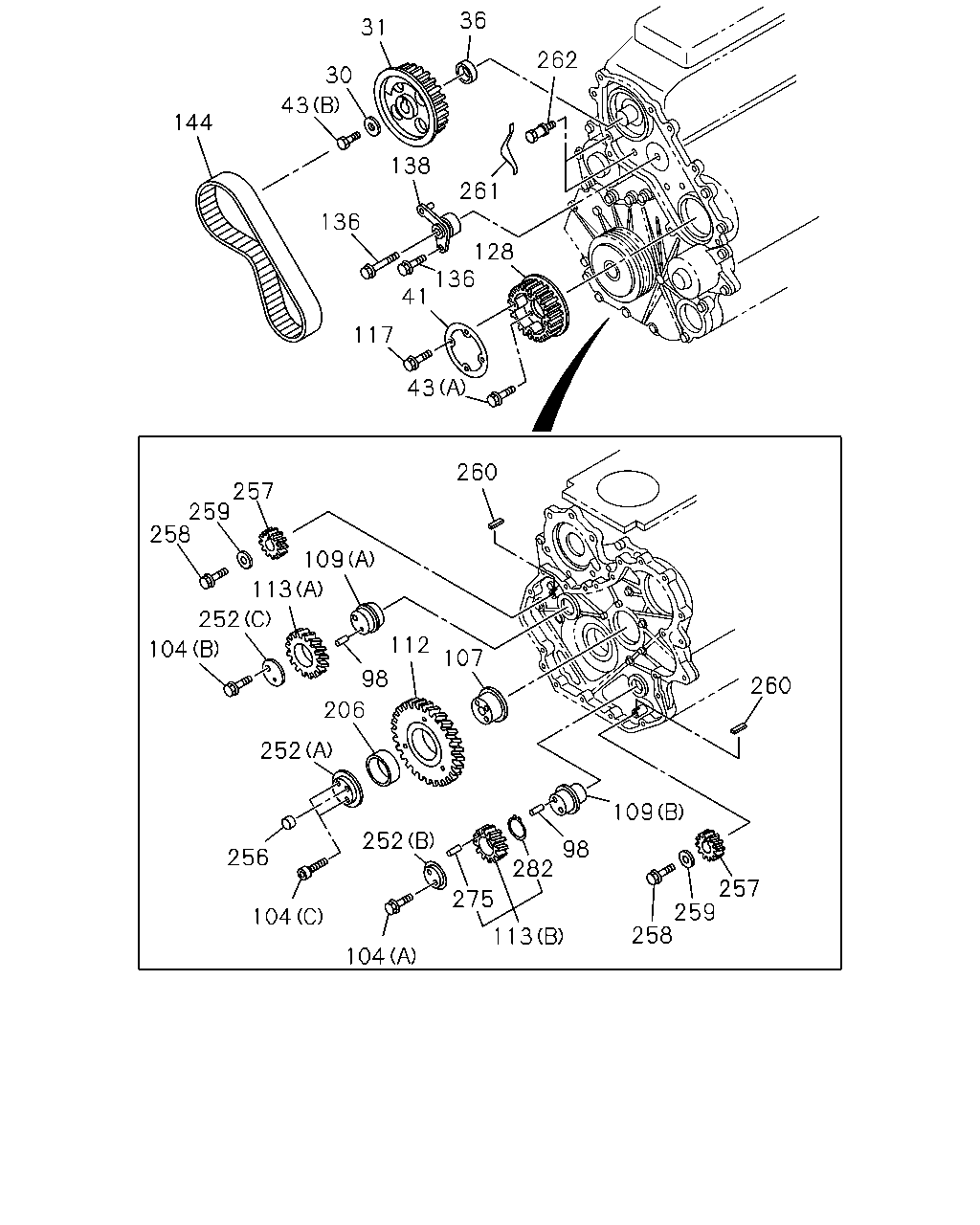

36 31 262 30 43 144 138 261 136 128 136 41 117 43 260 257 259 258 109 113 252 112 104 107 98 260 206 252 109 252 98 282 256 257 259 258 275 104 113 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	00.662 WASHER; PULLEY 00.738 ID=13 OD=36	5-12519-002-1	01	1	9712-	●
31	00.736 SPROCKET; CM/SHF	8-97137-857-2	01	1	9712-	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) 00.748 OD=47	5-09625-053-2	01	1	9712-0003	●
36	00.533 SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD ) OD=47	8-97252-710-0	01	1	0004-	●
41	00.662 FLANGE; CAM PULLEY	8-97168-425-0	01	1	9712-	●
43	00.662 BOLT; PULLEY 04.439 (A) M6X16 FLANGE	0-28680-616-0	04	1	9712-	●
43	00.662 BOLT; PULLEY (B) M12X53	8-97145-664-0	01	1	9712-	●
98	00.373 PIN; SHAFT SET 00.738 OD=5 L=10	9-08160-510-0	02	1	9712-	●
104	00.724 BOLT; SHAFT IDLE (D)	8-94109-706-1	01	1	9712-				●
104	00.724 BOLT; SHAFT IDLE 01.276 (A) M8X50 FLANGE	0-28090-850-0	01	1	9712-	●
104	00.724 BOLT; SHAFT IDLE 07.068 (B) M10X50 FLANGE	0-28091-050-0	01	1	9712-	●
104	00.724 BOLT; SHAFT IDLE 03.275 (C) M8X50	9-05820-850-0	02	1	9712-0105	●
104	00.724 BOLT; SHAFT IDLE EXC. EUROPE EQUIPMENT(EK4) 03.275 (C) M8X50	9-05820-850-0	02	1	0106-0109	●
104	00.724 BOLT; SHAFT IDLE EUROPE EQUIPMENT(EK4) 03.163 (C) M8X50	0-58310-850-0	02	1	0106-0109	●
104	00.724 BOLT; SHAFT IDLE 03.163 (C) M8X50	0-58310-850-0	02	1	0110-	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-870-0	01	1	0110-		●	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-871-0	01	1	0110-		●	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR	8-97179-970-0	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-966-1	01	1	9712-		●	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-965-1	01	1	9712-		●	●
109	00.724 SHAFT; IDLE GEAR (C)	8-94109-913-1	01	1	9712-				●
109	00.724 SHAFT; IDLE GEAR (A)	8-97179-971-0	01	1	9712-	●
109	00.724 SHAFT; IDLE GEAR (B)	8-97179-972-1	01	1	9712-	●
112	00.724 GEAR; IDLE SUMITOMO ELECTRIC INDUSTRIES Z=40	8-97322-153-0	04	1	0201-		●	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9712-				●
112	00.724 GEAR; IDLE	8-97173-756-3	01	1	9712-	●
112	00.724 GEAR; IDLE TOKYO BUHIN KOGYO CO.LTD Z=40	8-97136-655-1	04	1	9712-		●	●
113	00.724 GEAR; IDLE (C) Z=37	8-94139-761-0	01	1	9712-				●
113	00.724 GEAR; IDLE (A)	8-97173-761-1	01	1	9712-	●
113	00.724 GEAR; IDLE (B)	8-97173-814-2	01	1	9712-	●
117	00.662 BOLT; FLANGE 02.500 M6X10 FLANGE	0-28080-610-0	04	1	9712-	●
128	00.724 PULLEY; TIMING,OIL PUMP	8-97137-859-0	01	1	9712-	●
136	00.724 BOLT; TENSIONER 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9712-	●
136	00.724 BOLT; TENSIONER 00.683 M10X55 FLANGE	8-94399-863-1	01	1	9712-	●
138	00.724 TENSIONER; TIMING BELT	8-97137-148-0	01	1	9712-	●
144	00.724 BELT; TIMING	8-97143-724-0	01	1	9712-	●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9712-		●	●
206	00.724 BUSHING; IDLE GEAR AFTER PRESS FITTING, MACHINE IT.	8-97163-012-0	01	1	9712-	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97144-346-2	01	1	9712-9807	●
252	00.724 FLANGE; IDLE SHAFT (A)	8-97211-823-0	01	1	9808-	●
252	00.724 FLANGE; IDLE SHAFT (B)	8-97144-602-0	01	1	9712-	●
252	00.724 FLANGE; IDLE SHAFT (C)	8-97144-658-0	01	1	9712-	●
256	00.724 GASKET; IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97184-515-0	01	1	9712-9807	●
256	00.724 GASKET; IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97184-515-0	02	1	9808-	●
257	00.724 GEAR; BALANCE	8-97173-768-3	01	1	9712-	●
257	00.724 GEAR; BALANCE	8-97173-767-3	01	1	9712-	●
258	00.724 BOLT; GEAR M8X16 FLANGE	0-28090-816-0	02	1	9712-	●
259	00.724 WASHER; SHAFT	9-09164-408-0	02	1	9712-9809	●
259	00.724 WASHER; SHAFT	8-97211-353-0	02	1	9810-	●
260	00.724 KEY; GEAR	9-08030-410-0	02	1	9712-	●
261	00.303 SPRING; TENSION	8-97163-783-0	01	1	9712-	●
262	00.724 STOPPER; SPRING	8-97163-200-0	02	1	9712-	●
275	00.724 PIN; IDLE GEAR	9-08160-322-0	01	1	9712-	●
282	00.738 SPRING; GEAR T=0.550	8-97174-144-0	01	1	9712-	●

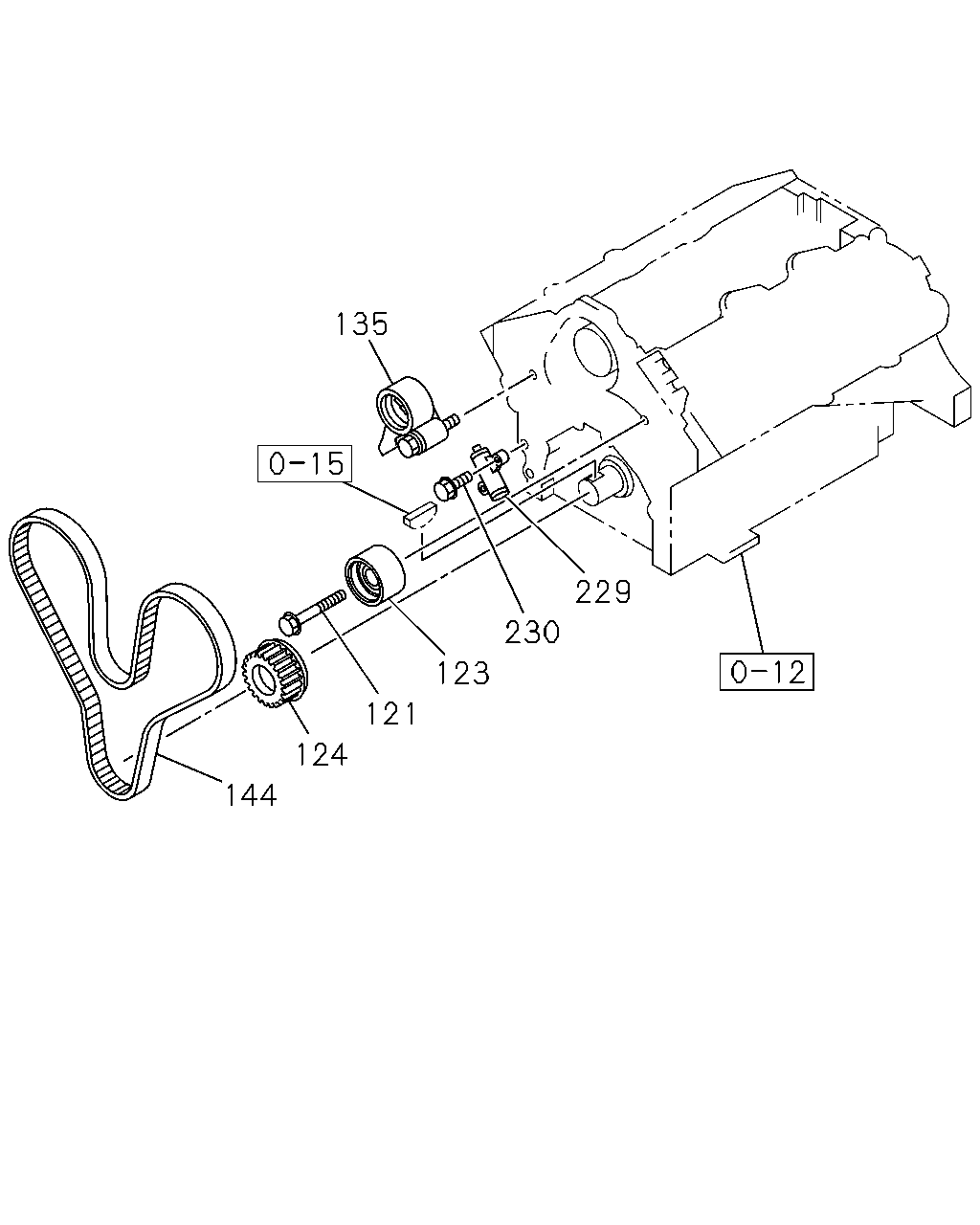

135 229 230 123 121 124 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
121	00.724 BOLT; IDLE PULLEY 03.613 M10X40 FLANGE	0-28681-040-0	01	1	9712-		●	●
123	00.724 PULLEY; IDLE,TIMING	8-97146-877-0	01	1	9712-		●	●
124	00.659 PULLEY; TIMING,CR/SHF Z=26	8-97136-326-0	01	1	9712-		●	●
135	00.724 PULLEY; TENSIONER	8-97136-256-1	01	1	9712-		●	●
144	00.724 BELT; TIMING	8-97143-724-0	01	1	9712-	●
144	00.724 BELT; TIMING	8-97136-321-0	01	1	9712-		●	●
229	00.724 ROD ASM; PUSH,TENSIONER	8-97136-257-0	01	1	9712-0401		●	●
229	00.724 ROD ASM; PUSH,TENSIONER	8-97328-512-0	01	1	0402-		●	●
230	00.724 BOLT; PUSH ROD 02.183 M8X35 FLANGE	0-28680-835-0	02	1	9712-		●	●

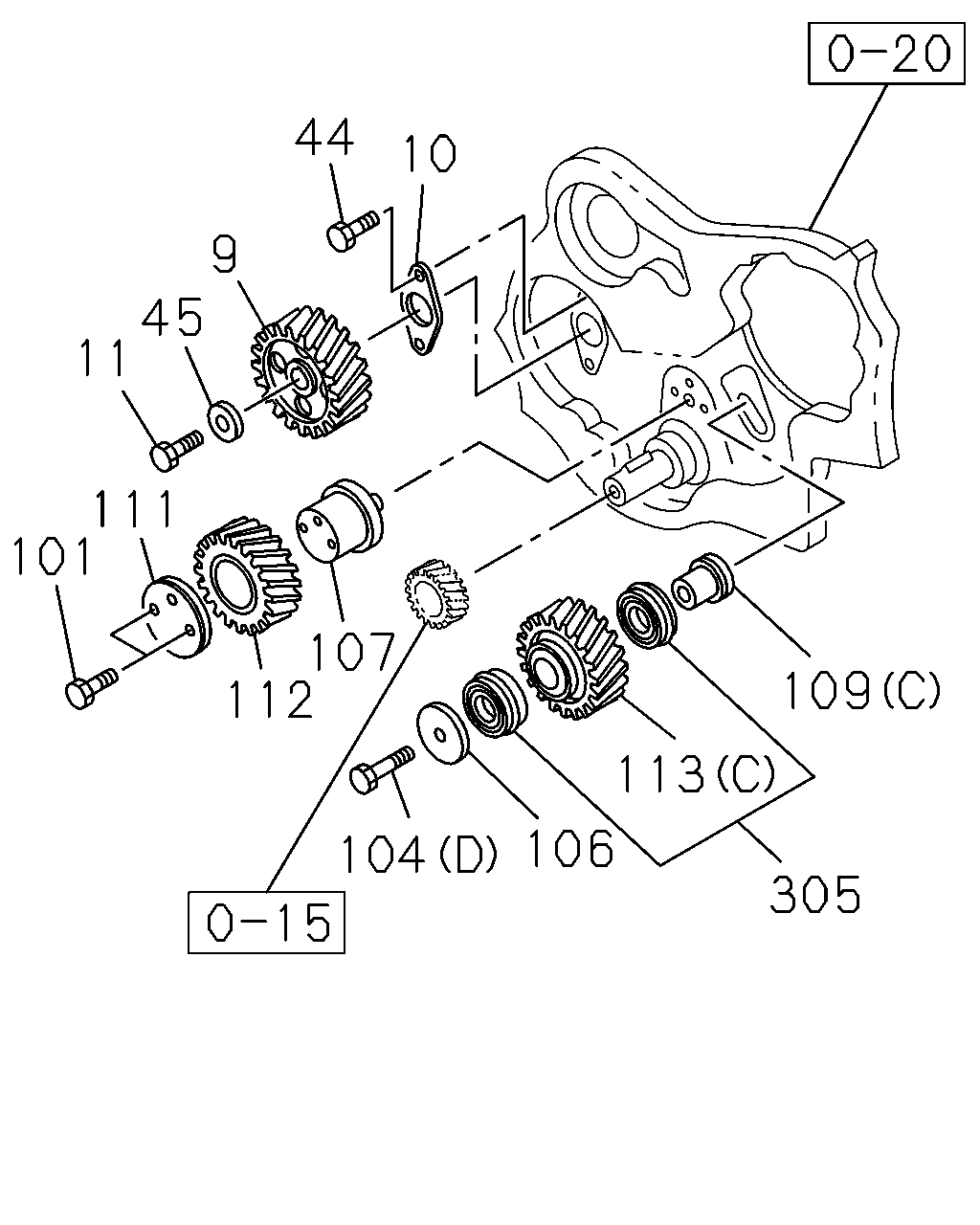

44 10 9 45 11 111 101 107 112 109 113 106 104 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	00.736 GEAR; CM/SHF Z=42	8-97079-212-1	01	1	9712-				●
10	00.533 PLATE; THRUST	8-94110-480-1	01	1	9712-				●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9712-				●
44	00.738 BOLT 03.704 M8X16 W/LK WASHER	0-50040-816-0	02	1	9712-0102				●
44	00.738 BOLT 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0103-				●
45	00.738 WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9712-				●
101	00.724 BOLT; THRUST COLLAR 03.330 M8X55 W/LK WASHER	5-09000-084-1	02	1	9712-9904				●
101	00.724 BOLT; THRUST COLLAR M8X53 FLANGE	8-97223-999-0	02	1	9905-				●
104	00.724 BOLT; SHAFT IDLE (D)	8-94109-706-1	01	1	9712-				●
104	00.724 BOLT; SHAFT IDLE 01.276 (A) M8X50 FLANGE	0-28090-850-0	01	1	9712-	●
104	00.724 BOLT; SHAFT IDLE 07.068 (B) M10X50 FLANGE	0-28091-050-0	01	1	9712-	●
104	00.724 BOLT; SHAFT IDLE 03.275 (C) M8X50	9-05820-850-0	02	1	9712-0105	●
104	00.724 BOLT; SHAFT IDLE EXC. EUROPE EQUIPMENT(EK4) 03.275 (C) M8X50	9-05820-850-0	02	1	0106-0109	●
104	00.724 BOLT; SHAFT IDLE EUROPE EQUIPMENT(EK4) 03.163 (C) M8X50	0-58310-850-0	02	1	0106-0109	●
104	00.724 BOLT; SHAFT IDLE 03.163 (C) M8X50	0-58310-850-0	02	1	0110-	●
106	00.724 WASHER; IDLE GEAR SHAFT 00.738 ID=13 OD=36	5-12519-002-1	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-870-0	01	1	0110-		●	●
107	00.724 SHAFT; IDLE GEAR WARNER TEC	8-97322-871-0	01	1	0110-		●	●
107	00.724 SHAFT; IDLE GEAR	8-94139-758-1	01	1	9712-				●
107	00.724 SHAFT; IDLE GEAR	8-97179-970-0	01	1	9712-	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-966-1	01	1	9712-		●	●
107	00.724 SHAFT; IDLE GEAR AIKOR	8-97131-965-1	01	1	9712-		●	●
109	00.724 SHAFT; IDLE GEAR (C)	8-94109-913-1	01	1	9712-				●
109	00.724 SHAFT; IDLE GEAR (A)	8-97179-971-0	01	1	9712-	●
109	00.724 SHAFT; IDLE GEAR (B)	8-97179-972-1	01	1	9712-	●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	0310-				●
111	00.724 COLLAR; THRUST,IDLE GEAR	8-94141-937-1	01	1	9712-0309				●
112	00.724 GEAR; IDLE SUMITOMO ELECTRIC INDUSTRIES Z=40	8-97322-153-0	04	1	0201-		●	●
112	00.724 GEAR; IDLE Z=31	8-97164-773-0	01	1	9712-				●
112	00.724 GEAR; IDLE	8-97173-756-3	01	1	9712-	●
112	00.724 GEAR; IDLE TOKYO BUHIN KOGYO CO.LTD Z=40	8-97136-655-1	04	1	9712-		●	●
113	00.724 GEAR; IDLE (C) Z=37	8-94139-761-0	01	1	9712-				●
113	00.724 GEAR; IDLE (A)	8-97173-761-1	01	1	9712-	●
113	00.724 GEAR; IDLE (B)	8-97173-814-2	01	1	9712-	●
305	00.724 BEARING; IDLE GEAR	8-94110-271-0	01	1	9810-				●

87 55 86 56 85 86 83 81 53 54 95 78 84 78 56 55 65 65 71 68 72 71 88 89 5 4 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.519 CAMSHAFT	8-94127-797-4	01	1	9712-0012				●
1	00.519 CAMSHAFT	8-97287-657-0	01	1	0101-				●
4	00.296 VALVE; INL	8-97131-729-1	04	1	9712-				●
4	00.296 VALVE; INL	8-97137-154-0	08	1	9712-	●
4	00.296 VALVE; INL AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-807-0	12	1	9712-0105		●
4	00.296 VALVE; INL EXC. THAILAND EQUIPMENT(PM9)	8-97169-807-0	12	1	9712-0105			●
4	00.296 VALVE; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97169-807-0	12	1	0106-			●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-97131-961-0	12	1	9712-0105		●
4	00.296 VALVE; INL THAILAND EQUIPMENT(PM9)	8-97131-961-0	12	1	9712-0105			●
4	00.296 VALVE; INL	8-97131-961-0	12	1	0106-		●
4	00.296 VALVE; INL EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97131-961-0	12	1	0106-			●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-97043-861-2	04	1	9712-				●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-1	04	1	9712-				●
5	00.297 VALVE; EXH	8-97137-155-1	08	1	9712-	●
5	00.297 VALVE; EXH AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-808-0	12	1	9712-0105		●
5	00.297 VALVE; EXH EXC. THAILAND EQUIPMENT(PM9)	8-97169-808-0	12	1	9712-0105			●
5	00.297 VALVE; EXH EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97169-808-0	12	1	0106-			●
5	00.297 VALVE; EXH EUROPE EQUIPMENT(EK4)	8-97131-962-0	12	1	9712-0105		●
5	00.297 VALVE; EXH THAILAND EQUIPMENT(PM9)	8-97131-962-0	12	1	9712-0105			●
5	00.297 VALVE; EXH	8-97131-962-0	12	1	0106-		●
5	00.297 VALVE; EXH EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97131-962-0	12	1	0106-			●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9712-				●
14	00.738 KEY; CM/SHF	9-08030-413-0	01	1	9712-9901	●
14	00.738 KEY; CM/SHF	8-97225-903-0	01	1	9902-	●
53	00.353 SHAFT; ROCKER ARM	8-94343-205-0	01	1	9712-0005				●
53	00.353 SHAFT; ROCKER ARM	8-97036-197-0	01	1	0103-				●
54	00.349 WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9712-				●
55	00.356 PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9712-				●
56	00.349 RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9712-				●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9712-				●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	9712-	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-		●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9712-				●
68	00.303 SPRING; VLV	8-97145-470-1	16	1	9712-0107	●
68	00.303 SPRING; VLV	8-97251-827-0	16	1	0108-	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-0108		●	●
68	00.303 SPRING; VLV	8-97314-228-0	24	1	0109-		●	●
71	00.309 SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9712-				●
71	00.309 SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9712-				●
71	00.309 SEAT; SPR LOWER	8-97144-584-0	16	1	9712-	●
71	00.309 SEAT; SPR UPPER	8-97184-935-0	16	1	9712-	●
71	00.309 SEAT; SPR LOWER OD=24.2	8-97136-329-1	24	1	9712-		●	●
71	00.309 SEAT; SPR UPPER OD=27	8-97149-155-0	24	1	9712-		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9712-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97173-692-0	16	1	9712-	●
78	00.333 ARM; ROCKER	8-94152-344-0	08	1	9712-				●
81	00.429 SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9712-				●
83	00.787 NUT; ADJ SCREW,LK 08.915 M8	9-09111-508-0	08	1	9712-				●
84	00.349 BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9712-				●
85	00.349 BOLT; BRKT TURBOCHARGER<K51> M8X15,M10X60 L=82	8-94433-304-0	02	1	9712-				●
85	00.349 BOLT; BRKT TURBOCHARGER<K51> M8X37 & M10X60 L=104	8-94437-493-1	01	1	9712-				●
85	00.349 BOLT; BRKT EXC. TURBOCHARGER<K51> M8X15,M10X60 L=82	8-94433-304-0	03	1	9712-				●
86	00.349 WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9712-				●
87	00.349 BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9712-				●
88	00.426 ROD; PUSH	8-97071-673-0	08	1	9712-				●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	9712-				●
89	00.459 TAPPET; VLV	8-97184-934-1	16	1	9712-9802	●
89	00.459 TAPPET; VLV	8-97202-691-0	16	1	9803-	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9712-		●	●
95	00.376 SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9712-				●

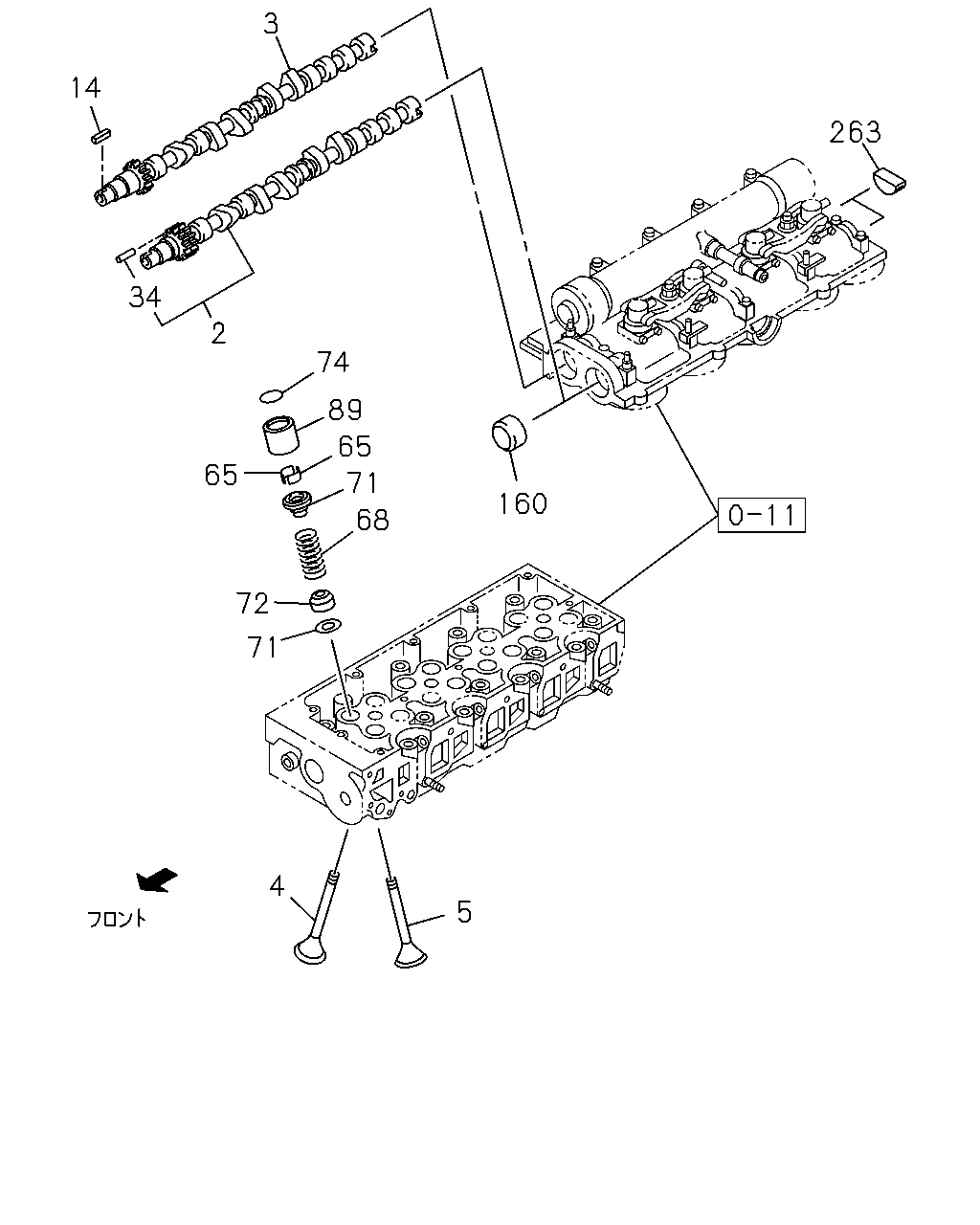

3 14 263 34 2 74 89 65 65 71 160 11 68 72 71 4 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	00.519 CAMSHAFT; INL	8-97174-822-1	01	1	9712-	●
2	00.519 CAMSHAFT; INL	8-97146-570-1	01	1	9712-		●	●
2	00.519 CAMSHAFT; INL	8-97146-569-1	01	1	9712-		●	●
3	00.519 CAMSHAFT; EXH	8-97174-823-0	01	1	9712-	●
3	00.519 CAMSHAFT; EXH	8-97146-572-1	02	1	9712-		●	●
4	00.296 VALVE; INL	8-97131-729-1	04	1	9712-				●
4	00.296 VALVE; INL	8-97137-154-0	08	1	9712-	●
4	00.296 VALVE; INL AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-807-0	12	1	9712-0105		●
4	00.296 VALVE; INL EXC. THAILAND EQUIPMENT(PM9)	8-97169-807-0	12	1	9712-0105			●
4	00.296 VALVE; INL EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97169-807-0	12	1	0106-			●
4	00.296 VALVE; INL EUROPE EQUIPMENT(EK4)	8-97131-961-0	12	1	9712-0105		●
4	00.296 VALVE; INL THAILAND EQUIPMENT(PM9)	8-97131-961-0	12	1	9712-0105			●
4	00.296 VALVE; INL	8-97131-961-0	12	1	0106-		●
4	00.296 VALVE; INL EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97131-961-0	12	1	0106-			●
5	00.297 VALVE; EXH TURBOCHARGER<K51>	8-97043-861-2	04	1	9712-				●
5	00.297 VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-1	04	1	9712-				●
5	00.297 VALVE; EXH	8-97137-155-1	08	1	9712-	●
5	00.297 VALVE; EXH AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2)	8-97169-808-0	12	1	9712-0105		●
5	00.297 VALVE; EXH EXC. THAILAND EQUIPMENT(PM9)	8-97169-808-0	12	1	9712-0105			●
5	00.297 VALVE; EXH EXC. EAST MALAYSIA EQUIPMENT(PM6), THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97169-808-0	12	1	0106-			●
5	00.297 VALVE; EXH EUROPE EQUIPMENT(EK4)	8-97131-962-0	12	1	9712-0105		●
5	00.297 VALVE; EXH THAILAND EQUIPMENT(PM9)	8-97131-962-0	12	1	9712-0105			●
5	00.297 VALVE; EXH	8-97131-962-0	12	1	0106-		●
5	00.297 VALVE; EXH EAST MALAYSIA EQUIPMENT(PM6),THAILAND EQUIPMENT(PM9),WEST MALAYSIA EQUIPMENT(S3D)	8-97131-962-0	12	1	0106-			●
11	00.533 BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9712-				●
14	00.738 KEY; CM/SHF 08.960	9-08000-718-0	01	1	9712-				●
14	00.738 KEY; CM/SHF	9-08030-413-0	01	1	9712-9901	●
14	00.738 KEY; CM/SHF	8-97225-903-0	01	1	9902-	●
34	00.533 PIN; CM/SHF 00.724	9-08160-322-0	01	1	9712-	●
65	00.310 COLLAR; SPLIT	5-12565-004-0	16	1	9712-				●
65	00.310 COLLAR; SPLIT	8-94239-501-0	32	1	9712-	●
65	00.310 COLLAR; SPLIT	8-94429-487-0	48	1	9712-		●	●
68	00.303 SPRING; VLV ID=26.25	8-94433-247-0	08	1	9712-				●
68	00.303 SPRING; VLV	8-97145-470-1	16	1	9712-0107	●
68	00.303 SPRING; VLV	8-97251-827-0	16	1	0108-	●
68	00.303 SPRING; VLV	8-97136-328-0	24	1	9712-0108		●	●
68	00.303 SPRING; VLV	8-97314-228-0	24	1	0109-		●	●
71	00.309 SEAT; SPR LOWER OD=34	5-12563-001-0	08	1	9712-				●
71	00.309 SEAT; SPR UPPER OD=32.8	8-94133-731-2	08	1	9712-				●
71	00.309 SEAT; SPR LOWER	8-97144-584-0	16	1	9712-	●
71	00.309 SEAT; SPR UPPER	8-97184-935-0	16	1	9712-	●
71	00.309 SEAT; SPR LOWER OD=24.2	8-97136-329-1	24	1	9712-		●	●
71	00.309 SEAT; SPR UPPER OD=27	8-97149-155-0	24	1	9712-		●	●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97120-307-0	08	1	9712-				●
72	00.308 SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD )	8-97173-692-0	16	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.80	8-97184-936-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.82	8-97184-937-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.84	8-97184-938-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.86	8-97184-939-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.88	8-97184-940-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.90	8-97184-941-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.92	8-97184-942-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.94	8-97184-943-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.96	8-97184-944-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.98	8-97184-945-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.00	8-97184-946-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.02	8-97184-947-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.04	8-97184-948-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.06	8-97184-949-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.08	8-97184-950-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.10	8-97184-951-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.12	8-97184-952-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.14	8-97184-953-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.16	8-97184-954-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.18	8-97184-955-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.20	8-97184-956-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.65	8-97186-865-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.60	8-97186-867-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.63	8-97186-868-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.68	8-97186-870-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.70	8-97186-871-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.73	8-97186-872-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.75	8-97186-873-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.78	8-97186-874-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.23	8-97187-169-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.25	8-97187-170-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.28	8-97187-171-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.30	8-97187-172-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.33	8-97187-173-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.35	8-97187-174-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.38	8-97187-175-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=3.40	8-97187-176-0	AR	1	9712-	●
74	00.459 ADJUSTER; VLV GAP T=2.40	8-97149-262-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.42	8-97149-263-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.44	8-97149-264-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.46	8-97149-265-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=2.48	8-97149-266-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.50	8-97149-267-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.52	8-97149-268-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.54	8-97149-269-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.56	8-97149-270-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.58	8-97149-271-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.60	8-97149-272-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.62	8-97149-273-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.64	8-97149-274-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.66	8-97149-275-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.68	8-97149-276-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.70	8-97149-277-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.72	8-97149-278-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.74	8-97149-279-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.76	8-97149-280-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.78	8-97149-281-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.80	8-97149-282-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.82	8-97149-283-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.84	8-97149-284-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.86	8-97149-285-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.88	8-97149-286-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.90	8-97149-287-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.92	8-97149-288-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.94	8-97149-289-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.96	8-97149-290-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=2.98	8-97149-291-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.00	8-97149-292-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.02	8-97149-293-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.04	8-97149-294-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.06	8-97149-295-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.08	8-97149-296-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.10	8-97149-297-0	AR	1	9712-		●	●
74	00.459 ADJUSTER; VLV GAP T=3.12	8-97149-298-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.14	8-97149-299-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.16	8-97149-300-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.18	8-97149-301-0	AR	1	9712-9906		●	●
74	00.459 ADJUSTER; VLV GAP T=3.20	8-97149-302-0	AR	1	9712-9906		●	●
89	00.459 TAPPET; VLV	8-94438-305-1	08	1	9712-				●
89	00.459 TAPPET; VLV	8-97184-934-1	16	1	9712-9802	●
89	00.459 TAPPET; VLV	8-97202-691-0	16	1	9803-	●
89	00.459 TAPPET; VLV	8-97148-296-1	24	1	9712-		●	●
160	00.533 PLUG; CM/SHF END	8-97160-866-0	01	1	9712-	●
160	00.533 PLUG; CM/SHF END	8-97149-338-0	08	1	9712-		●	●
263	00.529 GASKET; CAM END 00.293	8-94220-107-1	02	1	9712-0006	●
263	00.529 GASKET; CAM END	8-97259-973-0	02	1	0007-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
