Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#732) — 262 parça

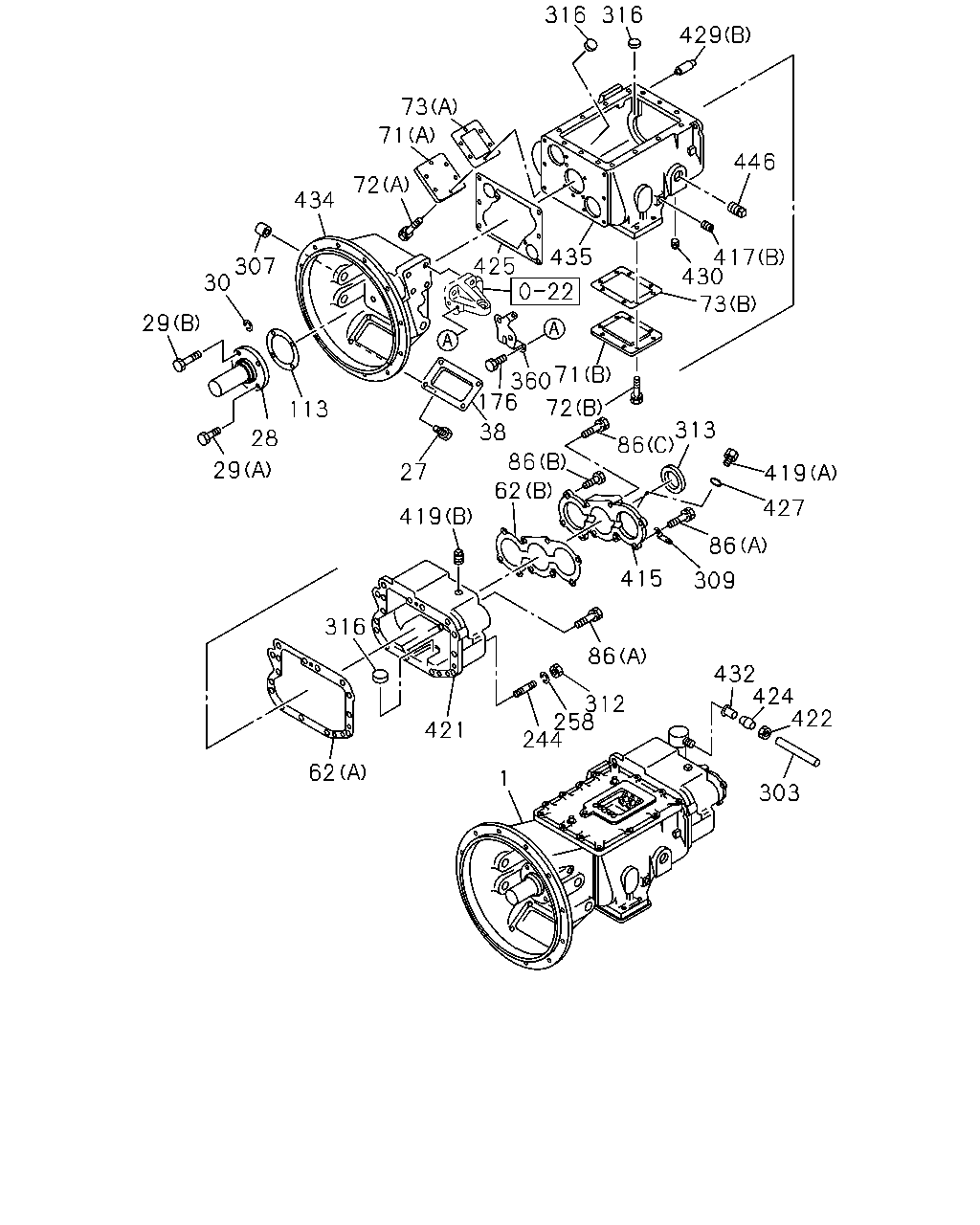

73 316 316 429 71 435 72 446 307 434 425 417 430 30 29 113 33 73 71 72 86 415 360 176 28 38 427 27 29 419 62 86 86 312 258 244 419 86 315 86 237 421 309 430 451 452 415 62 86 432 424 62 429 1 417 316 239 422 303 315 419 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	1-33036-621-1	01	1	9204-	●
1	TRANSMISSION ASM; MANUAL	1-33036-628-1	01	1	9209-		●
1	TRANSMISSION ASM; MANUAL	1-33040-273-0	01	1	9505-			●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9204-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9505-			●
28	COVER; FRT,TRANS CASE	1-87061-762-0	01	1	9204-	●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9209-		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9505-			●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9204-	●	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9204-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9505-			●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9204-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9209-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9505-			●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9204-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-590-0	01	1	9204-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-595-0	01	1	9204-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9505-			●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9204-	●	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9204-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9505-			●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9204-	●	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9204-	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9505-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9204-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9204-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9505-			●
86	BOLT; RR COVER (A)	1-87060-778-0	10	1	9204-	●
86	BOLT; RR COVER (B)	1-87060-786-0	06	1	9204-	●
86	BOLT; RR COVER (C)	1-87061-592-0	11	1	9204-	●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9209-		●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9209-		●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9209-		●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9209-		●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9209-		●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9209-		●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9209-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	9505-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	9505-			●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-546-0	01	1	9204-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-468-0	01	1	9209-		●
176	BOLT; UNION BRKT 6SA1TC ENG(28L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9204-	●
176	BOLT; UNION BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9204-		●
237	CASE; GEAR	1-87061-520-0	01	1	9209-		●
239	GASKET; TRANS	1-87061-491-0	01	1	9209-		●
244	STUD; GEAR CASE	1-87061-593-0	03	1	9204-	●
244	STUD; GEAR CASE	1-87061-208-0	02	1	9209-		●
258	WASHER; LK	1-87060-770-0	03	1	9204-	●
258	WASHER; LK	1-87060-770-0	02	1	9209-		●
303	TUBE; NYLON YELLOW OD=3/8" L=30000	1-09368-250-0	01	1	9204-	●	●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	04	1	9204-	●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	01	1	9209-		●
309	EYE; LIFTING	1-87060-783-0	02	1	9204-	●	●
312	NUT	1-87061-220-0	03	1	9204-	●
312	NUT	1-87061-220-0	02	1	9209-		●
315	BOLT; CASE (A)	1-87061-531-0	01	1	9209-		●
315	BOLT; CASE (B)	1-87061-532-0	14	1	9209-		●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9204-	●	●
360	BRACKET; AIR PIPE 6SA1TC ENG(28L)	1-19199-208-0	01	1	9204-	●
360	BRACKET; AIR PIPE	1-19199-208-0	01	1	9204-		●
415	COVER; BRG	1-87061-596-0	01	1	9204-	●
415	COVER; BRG (A)	1-87061-300-0	02	1	9209-		●
415	COVER; BRG (B)	1-87061-517-0	01	1	9209-		●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9204-	●	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9209-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9505-			●
419	PLUG; RR COVER (B)	1-87061-597-0	01	1	9204-	●
419	PLUG; RR COVER (A)	1-87061-173-0	01	1	9204-	●	●
419	PLUG; RR COVER (B)	1-87061-304-0	01	1	9209-		●
419	PLUG; RR COVER (C)	1-87061-423-0	01	1	9209-		●
421	COVER; RR,TRANS	1-87061-591-0	01	1	9204-	●
421	COVER; RR,TRANS	1-87061-515-0	01	1	9209-		●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9505-			●
422	NUT; SLEEVE OD=3/8"	1-09660-557-0	02	1	9204-	●	●
424	RING; INSERT OD=3/8"	1-09669-108-0	02	1	9204-	●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-547-0	01	1	9204-	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-445-0	01	1	9209-		●
427	GASKET; RR COVER	1-87061-174-0	01	1	9204-	●	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9204-	●	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9209-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9505-			●
430	PLUG; OIL DRAIN	1-87061-223-0	01	1	9204-	●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9209-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9505-			●
432	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9204-	●	●
434	HOUSING; CLU	1-87061-511-0	01	1	9204-	●	●
434	HOUSING; CLU	1-31110-092-2	01	1	9505-			●
435	CASE; TRANS	1-87061-545-0	01	1	9204-	●
435	CASE; TRANS	1-87061-519-0	01	1	9209-		●
435	CASE; TRANS	1-33111-235-0	01	1	9505-			●
446	PLUG; CASE,TRANS	1-87061-548-0	01	1	9204-	●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9209-		●
451	PLATE; RR COVER	1-87061-435-0	01	1	9209-		●
452	SCREW; PLATE	1-87061-523-0	04	1	9209-		●

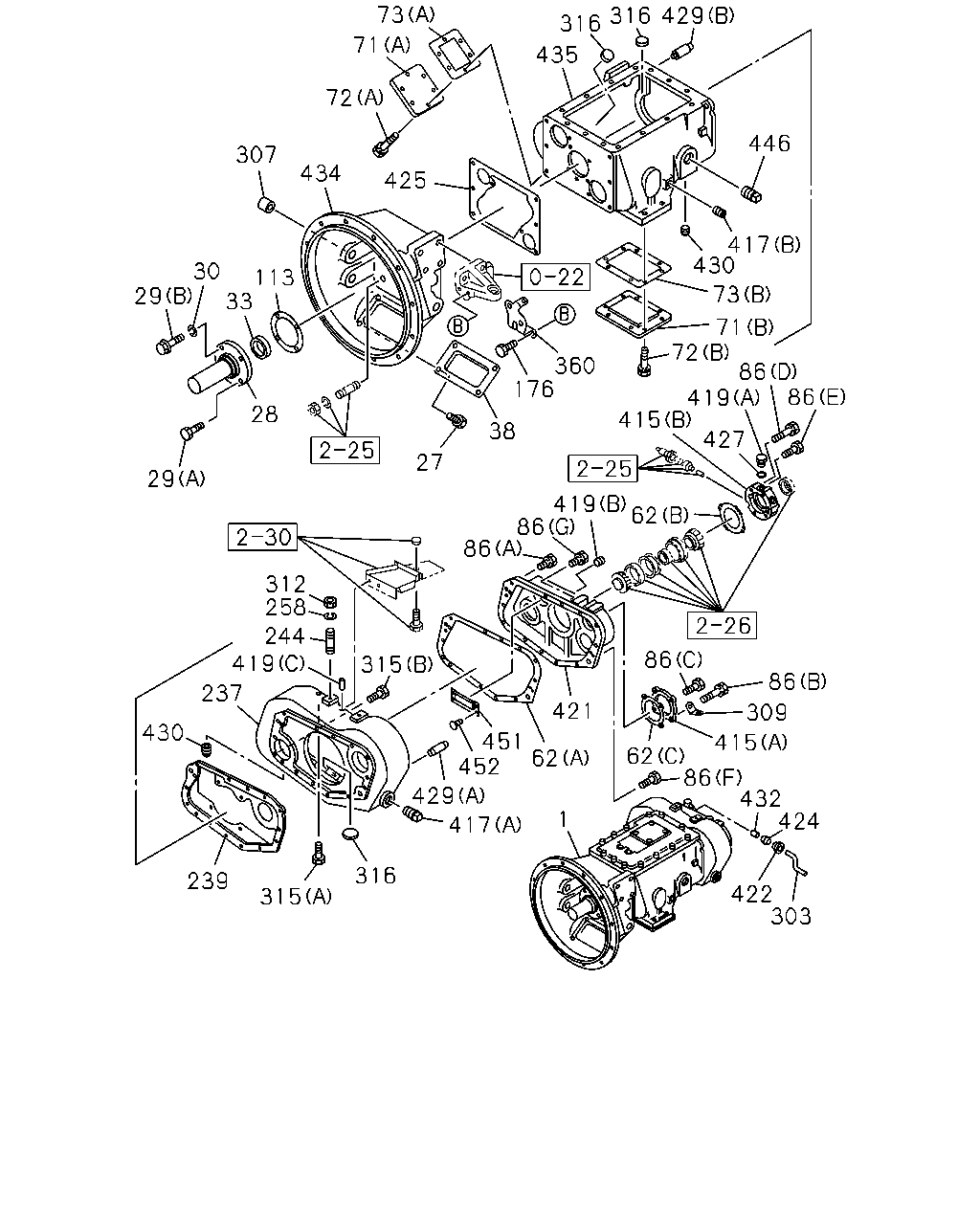

316 316 429 73 71 446 72 434 435 417 430 73 425 307 30 29 71 360 176 72 113 313 86 38 28 86 29 27 419 62 427 419 86 415 309 316 86 432 424 422 312 258 244 421 62 1 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	1-33036-621-1	01	1	9204-	●
1	TRANSMISSION ASM; MANUAL	1-33036-628-1	01	1	9209-		●
1	TRANSMISSION ASM; MANUAL	1-33040-273-0	01	1	9505-			●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9204-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9505-			●
28	COVER; FRT,TRANS CASE	1-87061-762-0	01	1	9204-	●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9209-		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9505-			●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9204-	●	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9204-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9505-			●
30	WASHER; LK,FRT COVER	1-87061-225-0	02	1	9204-	●	●
38	COVER; CHECK HOLE,LWR	1-87061-422-0	01	1	9204-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-590-0	01	1	9204-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-595-0	01	1	9204-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9505-			●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9204-	●	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9204-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9505-			●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9204-	●	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9204-	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9505-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9204-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9204-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9505-			●
86	BOLT; RR COVER (A)	1-87060-778-0	10	1	9204-	●
86	BOLT; RR COVER (B)	1-87060-786-0	06	1	9204-	●
86	BOLT; RR COVER (C)	1-87061-592-0	11	1	9204-	●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9209-		●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9209-		●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9209-		●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9209-		●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9209-		●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9209-		●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9209-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	9505-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	9505-			●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-546-0	01	1	9204-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-468-0	01	1	9209-		●
176	BOLT; UNION BRKT 6SA1TC ENG(28L) M8X16 W/LK WASHER	0-50040-816-0	02	1	9204-	●
176	BOLT; UNION BRKT M8X16 W/LK WASHER	0-50040-816-0	02	1	9204-		●
244	STUD; GEAR CASE	1-87061-593-0	03	1	9204-	●
244	STUD; GEAR CASE	1-87061-208-0	02	1	9209-		●
258	WASHER; LK	1-87060-770-0	03	1	9204-	●
258	WASHER; LK	1-87060-770-0	02	1	9209-		●
303	TUBE; NYLON YELLOW OD=3/8" L=30000	1-09368-250-0	01	1	9204-	●	●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	04	1	9204-	●
307	BUSHING; SHIFT FORK SHAFT	1-87061-485-0	01	1	9209-		●
309	EYE; LIFTING	1-87060-783-0	02	1	9204-	●	●
312	NUT	1-87061-220-0	03	1	9204-	●
312	NUT	1-87061-220-0	02	1	9209-		●
313	SEAL; OIL	1-87061-782-0	01	1	9204-	●
316	MAGNET; TRANS CASE	1-87060-696-0	03	1	9204-	●	●
360	BRACKET; AIR PIPE 6SA1TC ENG(28L)	1-19199-208-0	01	1	9204-	●
360	BRACKET; AIR PIPE	1-19199-208-0	01	1	9204-		●
415	COVER; BRG	1-87061-596-0	01	1	9204-	●
415	COVER; BRG (A)	1-87061-300-0	02	1	9209-		●
415	COVER; BRG (B)	1-87061-517-0	01	1	9209-		●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9204-	●	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9209-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9505-			●
419	PLUG; RR COVER (B)	1-87061-597-0	01	1	9204-	●
419	PLUG; RR COVER (A)	1-87061-173-0	01	1	9204-	●	●
419	PLUG; RR COVER (B)	1-87061-304-0	01	1	9209-		●
419	PLUG; RR COVER (C)	1-87061-423-0	01	1	9209-		●
421	COVER; RR,TRANS	1-87061-591-0	01	1	9204-	●
421	COVER; RR,TRANS	1-87061-515-0	01	1	9209-		●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9505-			●
422	NUT; SLEEVE OD=3/8"	1-09660-557-0	02	1	9204-	●	●
424	RING; INSERT OD=3/8"	1-09669-108-0	02	1	9204-	●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-547-0	01	1	9204-	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-87061-445-0	01	1	9209-		●
427	GASKET; RR COVER	1-87061-174-0	01	1	9204-	●	●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9204-	●	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9209-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9505-			●
430	PLUG; OIL DRAIN	1-87061-223-0	01	1	9204-	●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9209-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9505-			●
432	SLEEVE; TUBE ID=9.75 OD=12.17 L=9.91	1-09666-060-0	02	1	9204-	●	●
434	HOUSING; CLU	1-87061-511-0	01	1	9204-	●	●
434	HOUSING; CLU	1-31110-092-2	01	1	9505-			●
435	CASE; TRANS	1-87061-545-0	01	1	9204-	●
435	CASE; TRANS	1-87061-519-0	01	1	9209-		●
435	CASE; TRANS	1-33111-235-0	01	1	9505-			●
446	PLUG; CASE,TRANS	1-87061-548-0	01	1	9204-	●
446	PLUG; CASE,TRANS	1-87061-521-0	01	1	9209-		●

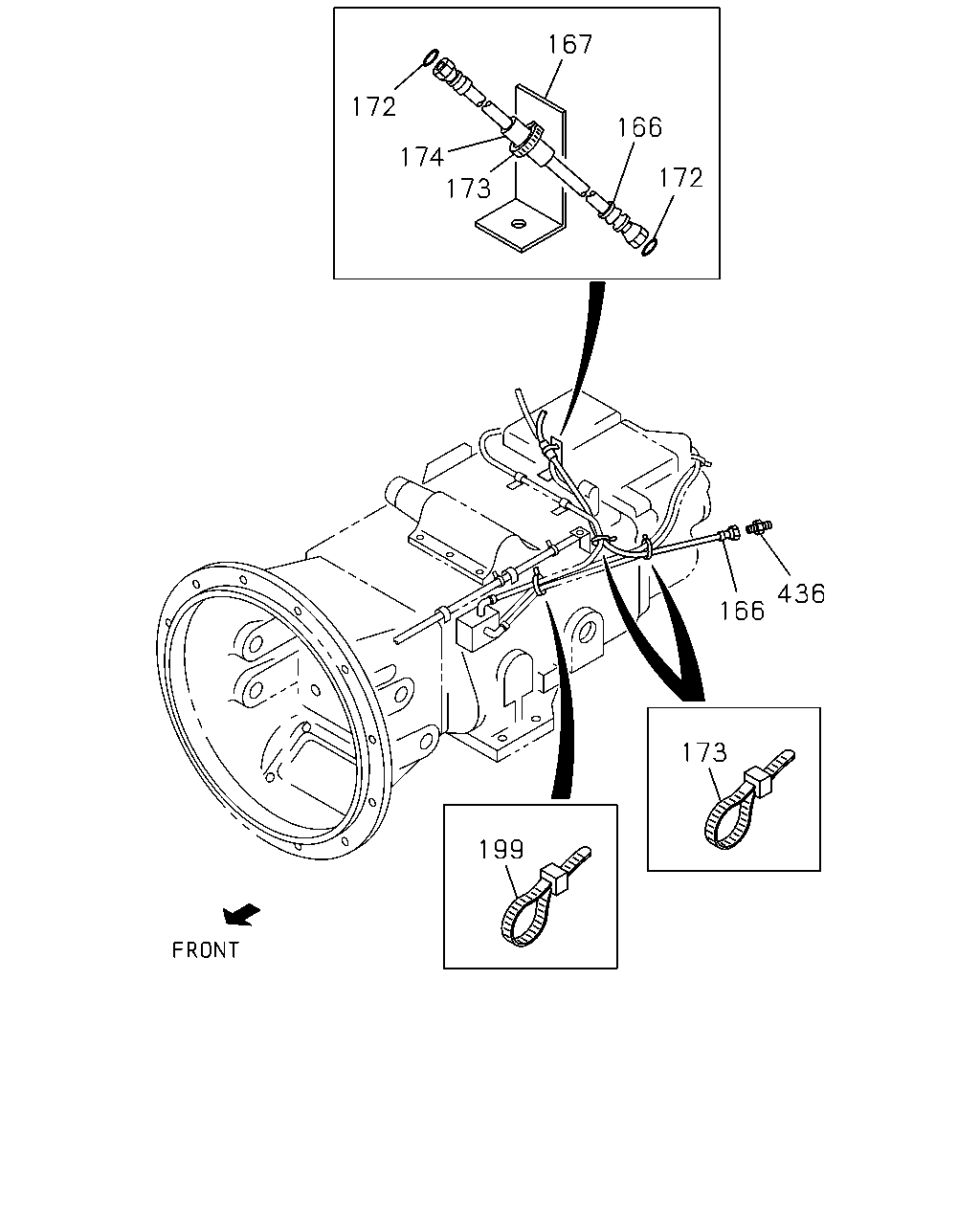

167 172 166 174 173 172 436 166 173 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
166	HOSE; AIR SUPPLY L=550	0-07150-550-0	01	1	9204-	●
166	HOSE; AIR SUPPLY L=710	0-07150-710-0	01	1	9209-		●
167	BRACKET; CLIP,AIR TUBE L=55	1-47476-177-0	01	1	9209-		●
172	GASKET; AIR HOSE ID=11 OD=18	9-09572-510-0	02	1	9204-	●	●
173	CLIP; BAND,AIR HOSE L=250	1-09707-126-0	02	1	9204-	●	●
174	SLEEVE; RUBBER,AIR HOSE ID=15 OD=19 L=50	1-09337-014-0	01	1	9204-	●	●
199	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	9305-	●	●
436	CONNECTOR; AIR HOSE,SUPPLY L=35	1-09660-039-0	01	1	9204-	●	●

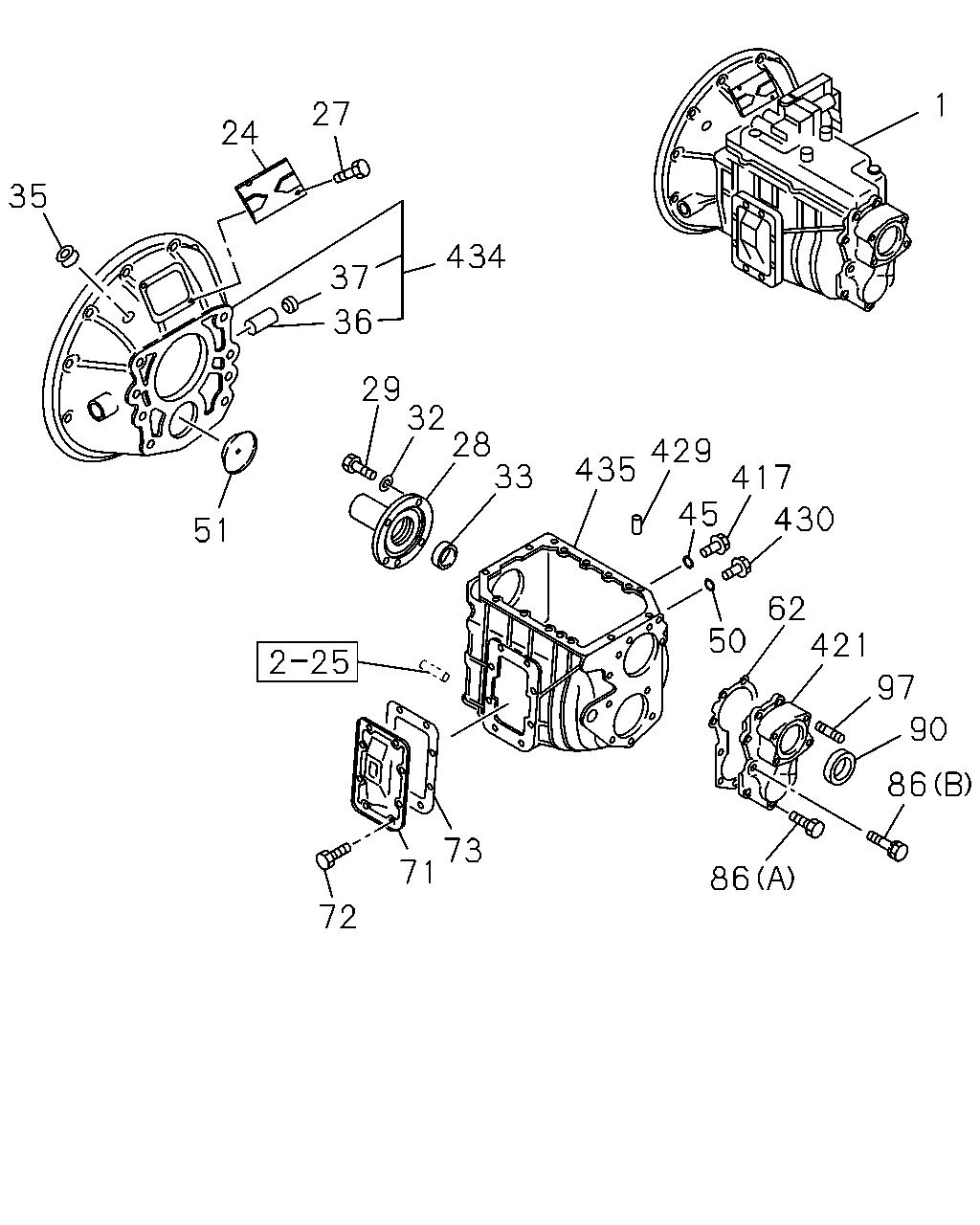

1 27 24 35 434 37 36 29 32 28 33 429 435 417 45 430 51 62 421 50 97 90 86 73 71 86 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL	1-33036-621-1	01	1	9204-	●
1	TRANSMISSION ASM; MANUAL	1-33036-628-1	01	1	9209-		●
1	TRANSMISSION ASM; MANUAL	1-33040-273-0	01	1	9505-			●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9505-			●
27	BOLT; COVER TO CLU HSG	1-87061-534-0	04	1	9204-	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9505-			●
28	COVER; FRT,TRANS CASE	1-87061-762-0	01	1	9204-	●
28	COVER; FRT,TRANS CASE	1-87061-764-0	01	1	9209-		●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9505-			●
29	BOLT; FRT COVER (A)	1-87060-778-0	02	1	9204-	●	●
29	BOLT; FRT COVER (B)	1-87061-530-0	02	1	9204-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9505-			●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9505-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-87061-765-0	01	1	9209-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9505-			●
35	GROMMET; CLU HSG OD=45	9-31139-007-0	01	1	9505-			●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9505-			●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9505-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9505-			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9505-			●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9505-			●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-590-0	01	1	9204-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-595-0	01	1	9204-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87061-120-0	01	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87061-296-0	01	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C)	1-87061-299-0	02	1	9209-		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9505-			●
71	COVER; SIDE,TRANS CASE (A)	1-87060-698-0	01	1	9204-	●	●
71	COVER; SIDE,TRANS CASE (B)	1-87060-701-0	01	1	9204-	●	●
71	COVER; SIDE,TRANS CASE	1-33141-033-0	01	1	9505-			●
72	BOLT; SIDE COVER (A)	1-87060-775-0	06	1	9204-	●	●
72	BOLT; SIDE COVER (B)	1-87060-776-0	08	1	9204-	●	●
72	BOLT; SIDE COVER M10X16 FLANGE	0-28181-016-0	08	1	9505-			●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (A)	1-87060-702-0	01	1	9204-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). (B)	1-87060-703-0	01	1	9204-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33142-036-0	01	1	9505-			●
86	BOLT; RR COVER (A)	1-87060-778-0	10	1	9204-	●
86	BOLT; RR COVER (B)	1-87060-786-0	06	1	9204-	●
86	BOLT; RR COVER (C)	1-87061-592-0	11	1	9204-	●
86	BOLT; RR COVER (C)	1-87060-775-0	06	1	9209-		●
86	BOLT; RR COVER (A)	1-87060-778-0	08	1	9209-		●
86	BOLT; RR COVER (B)	1-87060-786-0	02	1	9209-		●
86	BOLT; RR COVER (F)	1-87061-230-0	02	1	9209-		●
86	BOLT; RR COVER (D)	1-87061-302-0	05	1	9209-		●
86	BOLT; RR COVER (E)	1-87061-303-0	01	1	9209-		●
86	BOLT; RR COVER (G)	1-87061-536-0	09	1	9209-		●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	9505-			●
86	BOLT; RR COVER (B) M12X60	1-09044-084-0	01	1	9505-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9505-			●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	04	1	9505-			●
417	PLUG; OIL FILLER,TRANS (B)	1-87061-522-0	01	1	9204-	●	●
417	PLUG; OIL FILLER,TRANS (A)	1-87060-768-0	01	1	9209-		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9505-			●
421	COVER; RR,TRANS	1-87061-591-0	01	1	9204-	●
421	COVER; RR,TRANS	1-87061-515-0	01	1	9209-		●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9505-			●
429	PIN; STRAIGHT (B)	1-87061-412-0	02	1	9204-	●	●
429	PIN; STRAIGHT (A)	1-87061-165-0	02	1	9209-		●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9505-			●
430	PLUG; OIL DRAIN	1-87061-223-0	01	1	9204-	●
430	PLUG; OIL DRAIN	1-87061-223-0	02	1	9209-		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9505-			●
434	HOUSING; CLU	1-87061-511-0	01	1	9204-	●	●
434	HOUSING; CLU	1-31110-092-2	01	1	9505-			●
435	CASE; TRANS	1-87061-545-0	01	1	9204-	●
435	CASE; TRANS	1-87061-519-0	01	1	9209-		●
435	CASE; TRANS	1-33111-235-0	01	1	9505-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
