◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#73198) — 46 parça

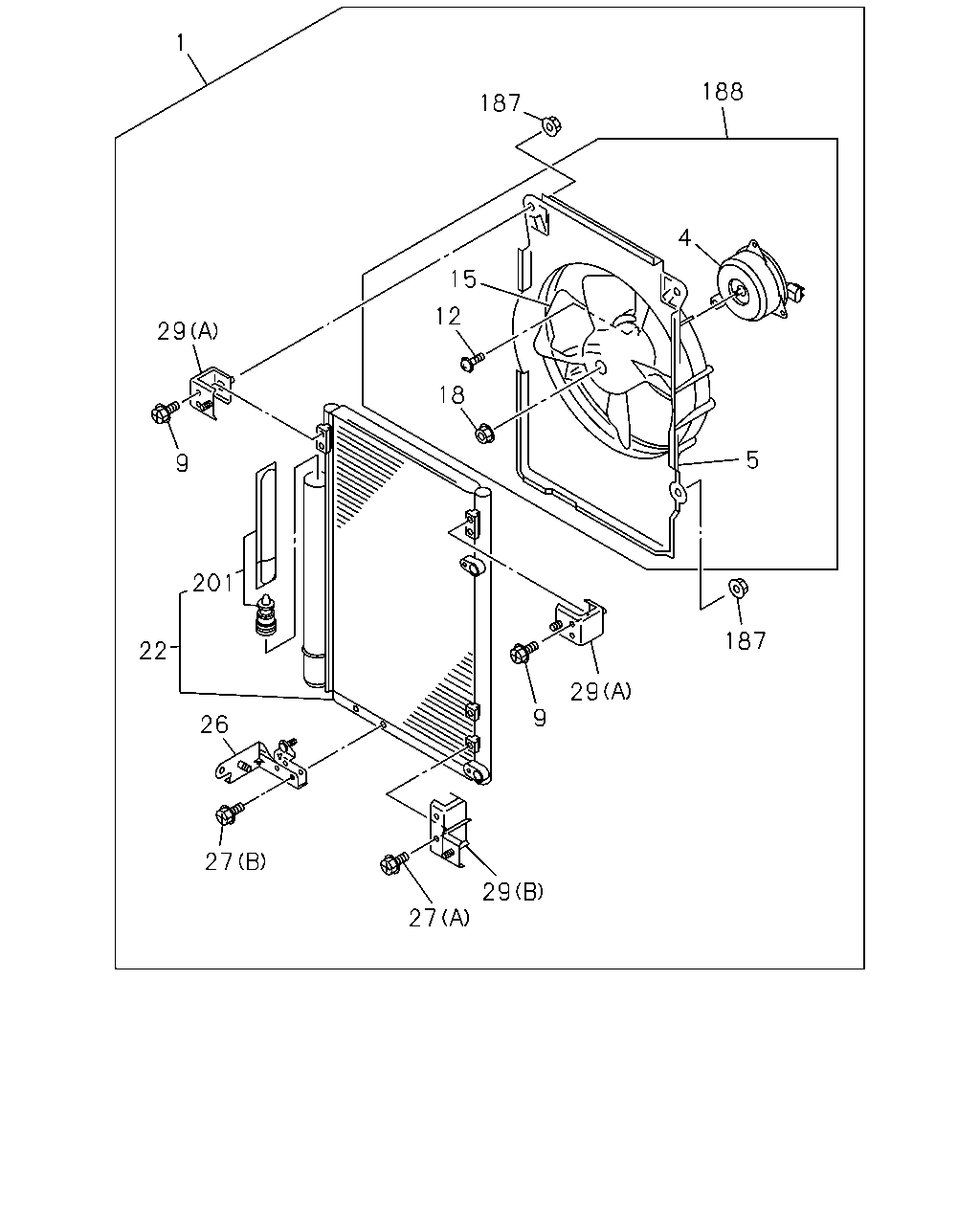

çizim 158326
1 29 9 22 201 26 27 27 9 29 18 12 15 187 188 4 5 187 29
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98164-844-1 01 1 1204-1208 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98164-844-1 01 1 1209- ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98076-091-0 01 1 1204-1208 ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98076-091-0 01 1 1209- ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98076-093-0 01 1 1204-1208 ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98076-093-0 01 1 1209- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X14 THA 		1-83539-382-0 04 1 1204-1208 ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6X14 THA 		1-83539-382-0 04 1 1209- ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97180-269-0 03 1 1204-1208 ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-97180-269-0 03 1 1209- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98152-861-0 01 1 1204-1208 ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		8-98152-861-0 01 1 1209- ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5 FLANGE THA 		8-94157-075-0 01 1 1204-1208 ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5 FLANGE THA 		8-94157-075-0 01 1 1209- ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83534-261-0 01 1 1204-1208 ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83534-261-0 01 1 1209-1409 ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98275-189-0 01 1 1410- ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83573-281-0 01 1 1204-1208 ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83573-281-0 01 1 1209- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X14 THA 		1-83539-382-0 02 1 1204-1208 ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) M6X14 THA 		1-83539-382-0 02 1 1209- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M5X25 THA 		8-97178-770-0 02 1 1204-1208 ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) M5X25 THA 		8-97178-770-0 02 1 1209- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-98065-914-0 02 1 1204-1208 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) THA 		8-98065-914-0 02 1 1209- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-98065-915-0 01 1 1204-1208 ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) THA 		8-98065-915-0 01 1 1209- ● ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA 		1-83539-354-0 04 1 1204-1208 ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M6 THA 		1-83539-354-0 04 1 1209- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98166-696-0 01 1 1204-1208 ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98166-696-0 01 1 1209- ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83535-097-0 01 1 1204-1208 ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> THA 		1-83535-097-0 01 1 1209-1409 ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98282-482-0 01 1 1410- ● ●
çizim 194278
150 35 30 1 35 35 150
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98164-844-1 01 1 1204-1208 ●
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98164-844-1 01 1 1209- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA 		0-28650-820-0 02 1 1204-1208 ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8X20 FLANGE THA 		0-28650-820-0 02 1 1209- ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 05 1 1204-1208 ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M8 FLANGE THA 		0-91180-108-0 05 1 1209- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98041-321-0 01 1 1204-1208 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98041-321-0 01 1 1209-1405 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98270-947-0 01 1 1406- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98041-322-0 01 1 1204-1208 ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98041-322-0 01 1 1209-1409 ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) 		8-98242-412-0 01 1 1410- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
