8-65 — CONTROL LEVER; HEATER AND AIR CON (#73196) — 28 parça

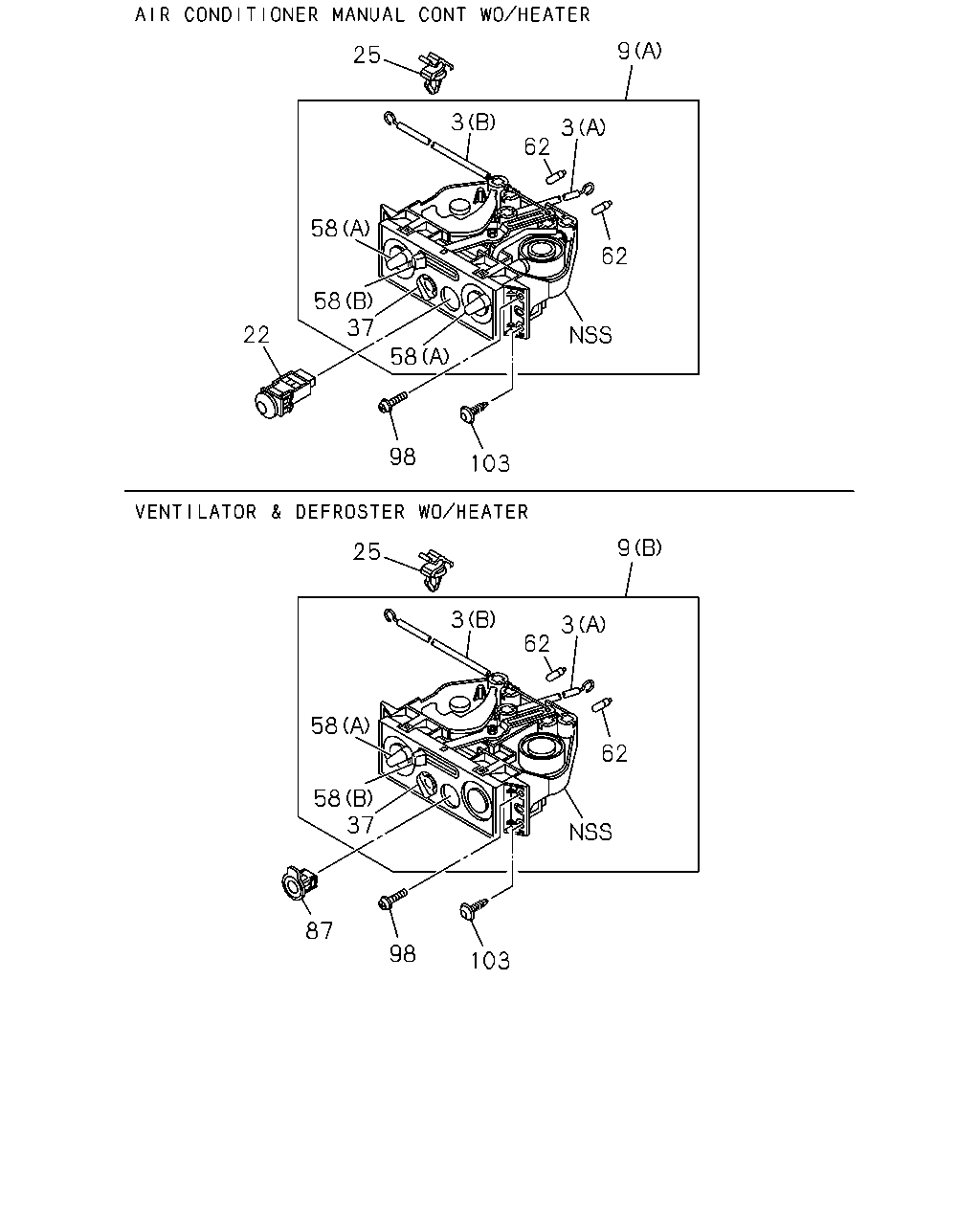

çizim 140862
87 98 103 62 3 62 3 9 58 58 37 25 103 98 58 37 58 22 62 3 62 3 58 9 25
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE 		8-98041-503-1 01 1 1204-1208 ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-98041-503-1 01 1 1209- ● ●
3 CABLE; HTR CONT LVR
(B) R/F 		8-98041-505-2 01 1 1204-1208 ●
3 CABLE; HTR CONT LVR
(B) R/F 		8-98041-505-2 01 1 1209- ● ●
9 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98060-396-1 01 1 1204-1208 ●
9 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98060-396-1 01 1 1209- ● ●
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-807-1 01 1 1204-1208 ●
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-807-1 01 1 1209- ● ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98021-982-0 01 1 1204-1208 ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98021-982-0 01 1 1209- ● ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 03 1 1204-1208 ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 03 1 1209- ● ●
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1204-1208 ●
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 1209- ● ●
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1204-1208 ●
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 1209- ● ●
58 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98037-369-0 02 1 1204-1208 ●
58 KNOB; LVR,HTR CONT LVR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98037-369-0 02 1 1209- ● ●
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98037-369-0 01 1 1204-1208 ●
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (A) 		8-98037-369-0 01 1 1209- ● ●
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1204-1208 ●
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 1209- ● ●
87 CAP; A/C SWITCH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98006-089-0 01 1 1204-1208 ●
87 CAP; A/C SWITCH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98006-089-0 01 1 1209- ● ●
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1204-1208 ●
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1209- ● ●
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 1204-1208 ●
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 1209- ● ●
