◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#73195) — 126 parça

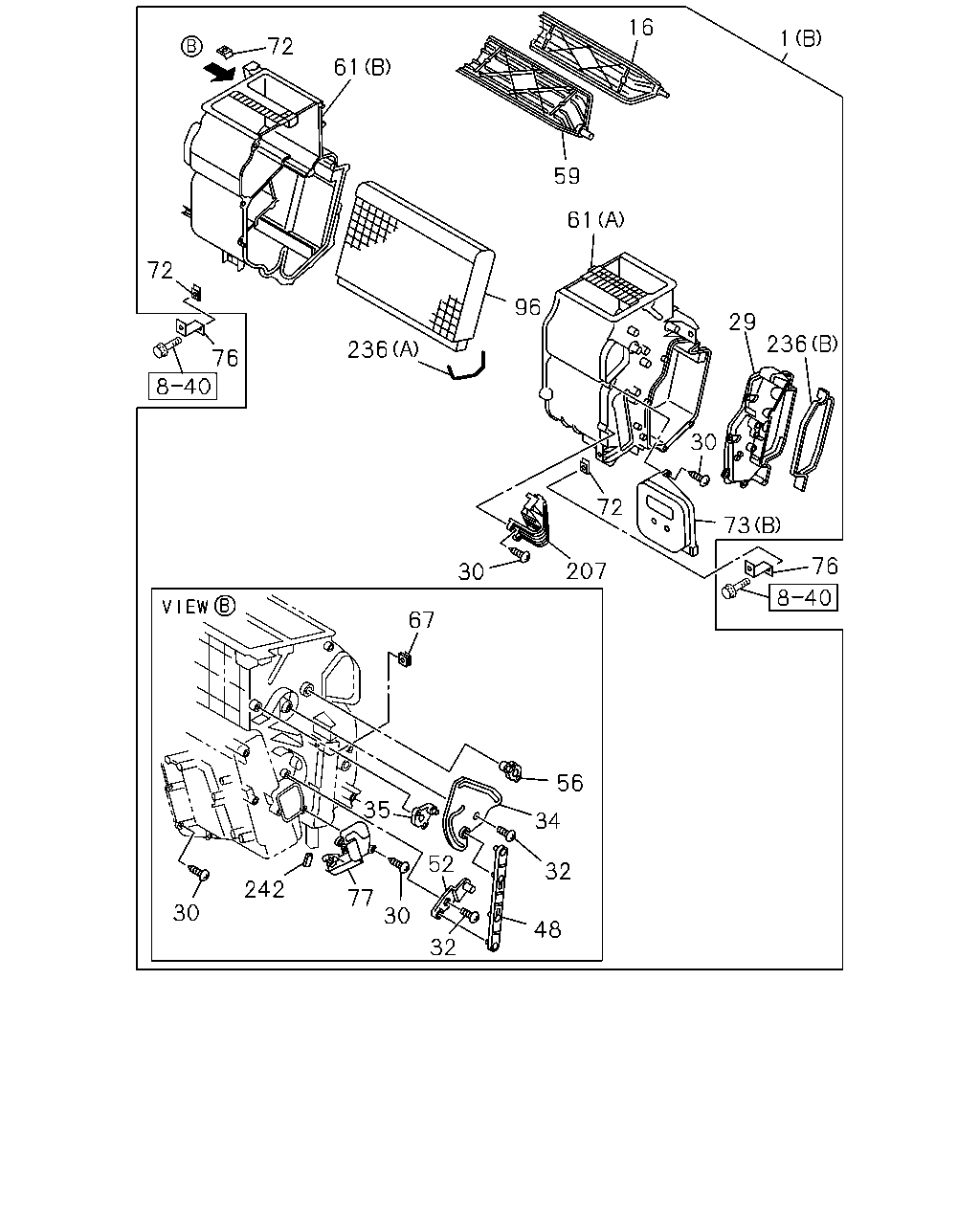

çizim 141155
72 61 72 76 236 96 59 29 61 16 1 236 30 73 72 207 30 76 67 56 34 32 48 32 30 52 77 242 30 35
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 1204-1208 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 1209- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 1204-1208 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 1209-1301 ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98214-400-1 01 1 1302- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1204-1208 ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1209- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1302- ● ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1204-1208 ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1209-1301 ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-119-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1204-1208 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1209- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 1204-1208 ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 1209-1301 ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 02 1 1204-1208 ●
32 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 		8-98047-416-0 02 1 1209- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1204-1208 ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1209- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1204-1208 ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1209- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1204-1208 ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1209- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1204-1208 ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1209- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1204-1208 ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1209- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1204-1208 ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1209- ● ●
61 CASE; HTR UNIT
(A) 		8-98077-422-0 01 1 1204-1208 ●
61 CASE; HTR UNIT
(A) 		8-98077-422-0 01 1 1209- ● ●
61 CASE; HTR UNIT
(B) 		8-98077-423-0 01 1 1204-1208 ●
61 CASE; HTR UNIT
(B) 		8-98077-423-0 01 1 1209- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 01 1 1204-1208 ●
67 CLIP; HTR UNIT 8-98047-417-0 01 1 1209- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1204-1208 ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1209- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 1204-1208 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 1209- ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 1204-1208 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 1209-1301 ● ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1204-1208 ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1209- ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1204-1208 ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1209- ● ●
96 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-815-0 01 1 1204-1208 ●
96 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-815-0 01 1 1209-1301 ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1204-1208 ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1209-1301 ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-379-0 01 1 1302- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1204-1208 ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1209- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1204-1208 ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1209- ● ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-816-0 01 1 1204-1208 ●
242 GASKET; CASE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98048-816-0 01 1 1209-1411 ● ●

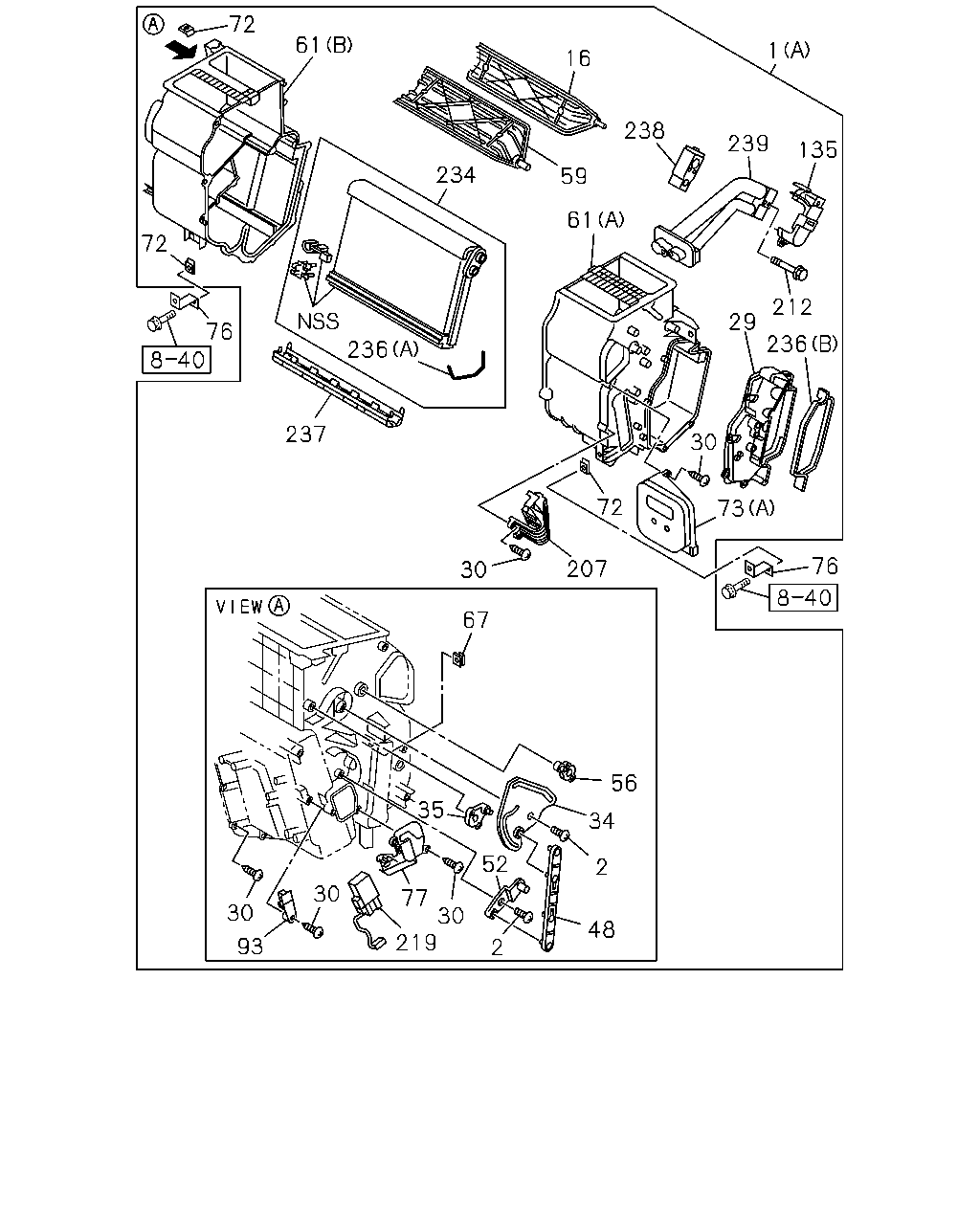

çizim 194279
72 16 1 238 239 59 234 61 135 212 29 30 73 72 76 207 30 67 237 72 76 61 56 34 2 48 52 35 77 30 219 30 30 93 2 236 236
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 1204-1208 ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98057-980-2 01 1 1209- ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 1204-1208 ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98062-757-1 01 1 1209-1301 ● ●
1 HEATER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98214-400-1 01 1 1302- ● ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 		8-98047-416-0 02 1 1204-1208 ●
2 SCREW; LEVER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 		8-98047-416-0 02 1 1209- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1204-1208 ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 1209- ● ●
29 COVER; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98231-367-0 01 1 1302- ● ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1204-1208 ●
29 COVER; HTR UNIT 8-98074-119-0 01 1 1209-1301 ● ●
29 COVER; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-119-0 01 1 1302- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1204-1208 ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M4X16 TAPPING 		8-97957-708-0 27 1 1209- ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 1204-1208 ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 25 1 1209-1301 ● ●
30 SCREW; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M4X16 TAPPING 		8-97957-708-0 20 1 1302- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1204-1208 ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-389-0 01 1 1209- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1204-1208 ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-392-0 01 1 1209- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1204-1208 ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 1209- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1204-1208 ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-390-0 01 1 1209- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1204-1208 ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-393-0 01 1 1209- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1204-1208 ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 1209- ● ●
61 CASE; HTR UNIT
(A) 		8-98077-422-0 01 1 1204-1208 ●
61 CASE; HTR UNIT
(A) 		8-98077-422-0 01 1 1209- ● ●
61 CASE; HTR UNIT
(B) 		8-98077-423-0 01 1 1204-1208 ●
61 CASE; HTR UNIT
(B) 		8-98077-423-0 01 1 1209- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 01 1 1204-1208 ●
67 CLIP; HTR UNIT 8-98047-417-0 01 1 1209- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1204-1208 ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 1209- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 1204-1208 ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) 		8-98077-420-0 01 1 1209- ● ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 1204-1208 ●
73 PLATE; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> (B) 		8-98077-419-0 01 1 1209-1301 ● ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1204-1208 ●
76 BRACKET; HTR UNIT 8-98009-742-1 02 1 1209- ● ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1204-1208 ●
77 COVER; HTR CASE 8-98047-414-0 01 1 1209- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-427-0 01 1 1204-1208 ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-427-0 01 1 1209- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-384-0 01 1 1204-1208 ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-384-0 01 1 1209- ● ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1204-1208 ●
207 CLAMP; HTR UNIT 8-98047-379-0 01 1 1209-1301 ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-379-0 01 1 1302- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X61 		8-98047-415-0 02 1 1204-1208 ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> M5X61 		8-98047-415-0 02 1 1209- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98064-733-0 01 1 1204-1208 ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98064-733-0 01 1 1209- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-116-1 01 1 1204-1208 ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-116-1 01 1 1209- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1204-1208 ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 1209- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1204-1208 ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 1209- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-382-0 01 1 1204-1208 ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-382-0 01 1 1209- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-383-0 01 1 1204-1208 ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98047-383-0 01 1 1209- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-115-0 01 1 1204-1208 ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> 		8-98074-115-0 01 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
