8-28 — CHASSIS ELECTRICAL (#73190) — 108 parça

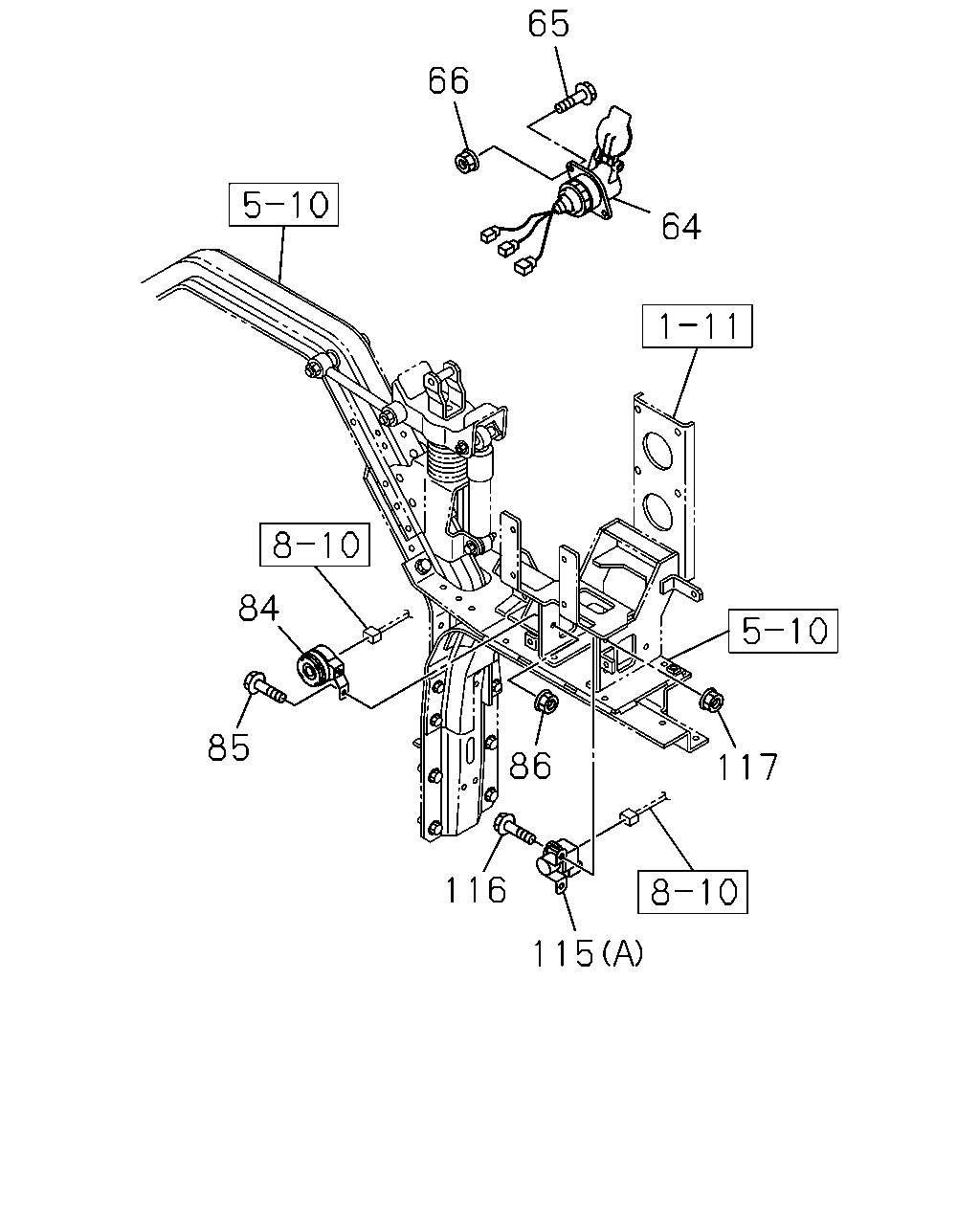

65 66 64 84 85 86 116 115 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SOCKET; TRAILER ANTILOCK BRAKE SYSTEM<BFA> L=860	8-98172-008-0	01	1	1204-	●
65	BOLT; SOCKET FIX ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE THA	0-28650-825-0	02	1	1204-	●
66	NUT; SOCKET FIX ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA	0-91180-108-0	02	1	1204-	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> METRO DENSO	8-98069-860-0	01	1	1204-1208	●
84	BUZZER; POWER CAB TILT AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> METRO DENSO	8-98069-860-0	01	1	1209-	●	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M8X20 FLANGE THA	0-28650-820-0	01	1	1204-1208	●
85	BOLT; BUZZER,POWER CAB TILT AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M8X20 FLANGE THA	0-28650-820-0	01	1	1209-	●	●
86	NUT; BUZZER AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M8 FLANGE THA	0-91180-108-0	01	1	1204-1208	●
86	NUT; BUZZER AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M8 FLANGE THA	0-91180-108-0	01	1	1209-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-1208	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1209-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1204-1208	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1209-	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 FLANGE THA	0-28650-820-0	02	1	1204-1208	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X20 FLANGE THA	0-28650-820-0	02	1	1209-	●	●
116	BOLT; RELAY FIX AUTO CAB TILT<WV2> M8X25 FLANGE THA	0-28650-825-0	02	1	1309-	●	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE THA	0-91180-108-0	02	1	1204-1208	●
117	NUT; RELAY FIX AUTO CAB TILT<WV2> M8 FLANGE THA	0-91180-108-0	02	1	1209-	●	●

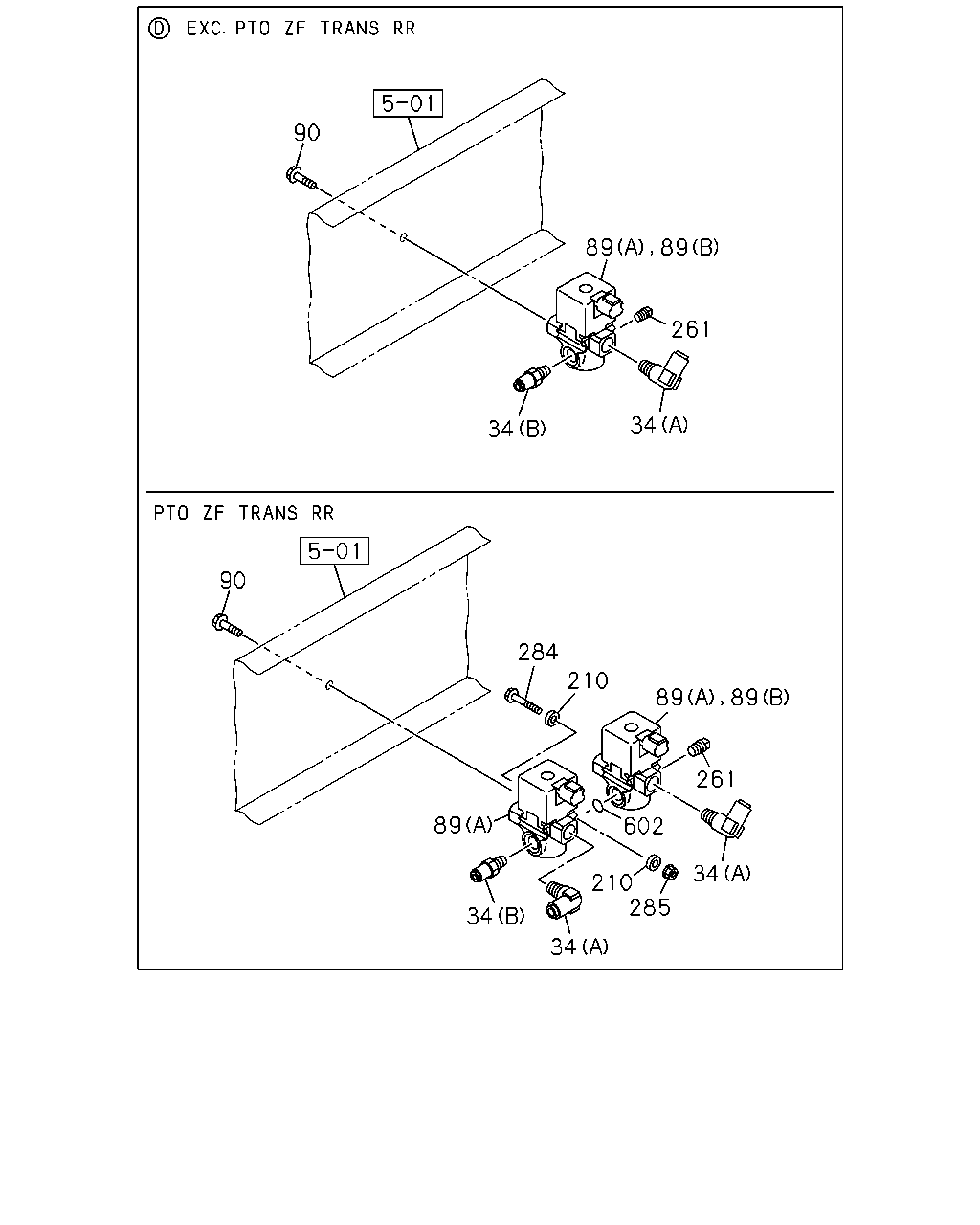

90 89 89 261 34 34 90 284 210 89 89 261 602 34 285 34 34 89 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1206-1208	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1209-	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1206-1208	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1209-	●	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1206-1208	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1209-	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1204-1204	●
34	CONNECTOR; MAG VLV,INL PORT PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	02	1	1204-1204	●
34	CONNECTOR; MAG VLV,INL PORT EXC. PTO ZF TRANS RR<BDM> (A) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1204-1204	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	1206-1208	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	1209-	●	●
89	VALVE; MAG,DIFF LOCK (B) ANODIZING	8-97641-594-0	01	1	1206-1208	●
89	VALVE; MAG,DIFF LOCK (B) ANODIZING	8-97641-594-0	01	1	1209-	●	●
89	VALVE; MAG,DIFF LOCK PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	02	1	1204-1204	●
89	VALVE; MAG,DIFF LOCK EXC. PTO ZF TRANS RR<BDM> (A)	1-82563-871-2	01	1	1204-1204	●
90	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	03	1	1204-1208	●
90	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	03	1	1209-	●	●
90	BOLT; MAG VLV EXC. PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	02	1	1204-1208	●
90	BOLT; MAG VLV EXC. PTO ZF TRANS RR<BDM> M8X25 FLANGE THA	0-28650-825-0	02	1	1209-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	1206-1208	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	1209-	●	●
210	WASHER; PL,BRKT PTO ZF TRANS RR<BDM> THA	1-82569-266-0	02	1	1204-1204	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1206-1208	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1209-	●	●
261	PLUG; MAG VLV PT1/4 THA	9-99204-513-0	01	1	1204-1204	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M6X50 FLANGE THA	0-28050-650-0	01	1	1206-1208	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M6X50 FLANGE THA	0-28050-650-0	01	1	1209-	●	●
284	BOLT; MAG VLV PTO ZF TRANS RR<BDM> M6X50 FLANGE THA	0-28050-650-0	01	1	1204-1204	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1206-1208	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1209-	●	●
285	NUT; MAG VLV PTO ZF TRANS RR<BDM> M6 FLANGE THA	0-91180-106-0	01	1	1204-1204	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	1206-1208	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	1209-	●	●
602	GASKET; MAG VLV PTO ZF TRANS RR<BDM> ID=16.8 THA	9-09565-117-0	01	1	1204-1204	●

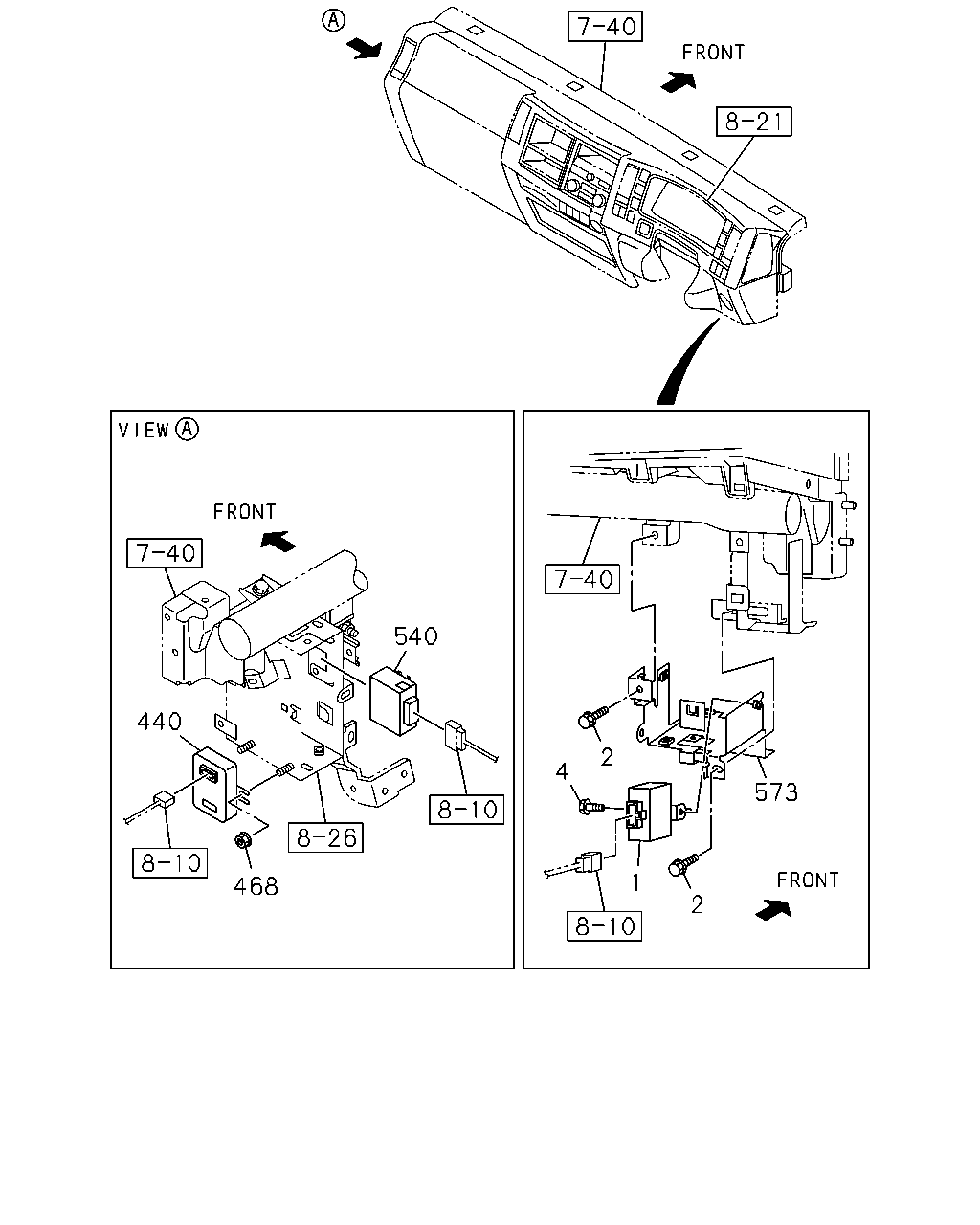

1 2 573 2 4 540 440 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-97613-970-1	01	1	1204-	●
1	UNIT; FLASHER	8-98025-533-1	01	1	1209-		●
2	BOLT; FLASHER UNIT M6X16 FLANGE THA	0-28650-616-0	02	1	1204-1208	●
2	BOLT; FLASHER UNIT M6X16 FLANGE THA	0-28650-616-0	02	1	1209-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE THA	0-28050-616-0	01	1	1204-1208	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE THA	0-28050-616-0	01	1	1209-	●	●
440	MODULE; INFORMATION,ABS ANTILOCK BRAKE SYSTEM<BFA>	1-81510-701-0	01	1	1204-	●
468	NUT; MODULE ANTILOCK BRAKE SYSTEM<BFA> M6 FLANGE THA	0-91180-106-0	02	1	1204-	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1204-1208	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	1209-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1204-1208	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	1209-	●	●

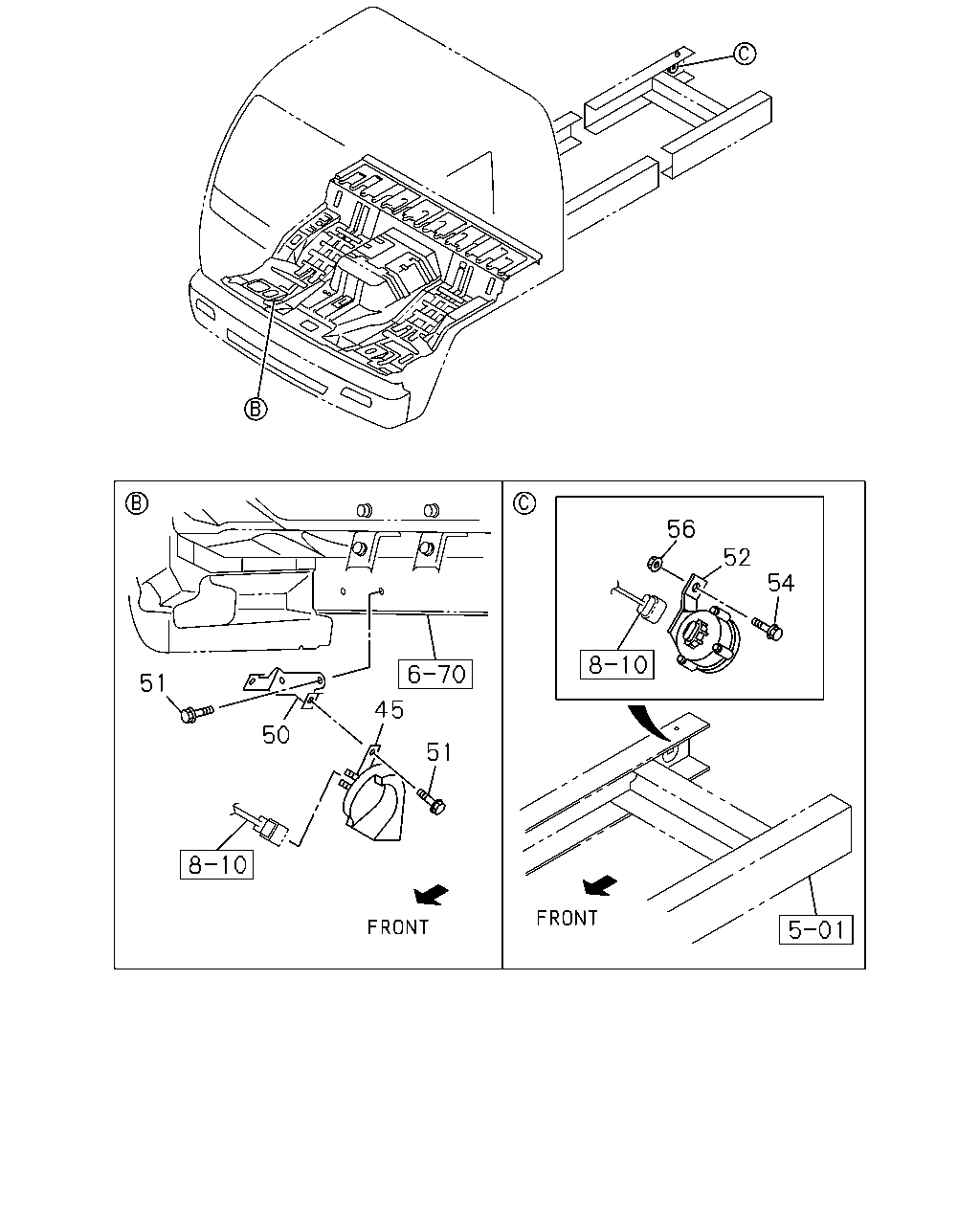

51 50 45 51 56 52 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
45	HORN; LOW NOTE THA	8-97925-172-0	01	1	1204-1208	●
45	HORN; LOW NOTE THA	8-97925-172-0	01	1	1209-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	1204-1208	●
50	BRACKET; HORN	8-97613-300-2	01	1	1209-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1204-1208	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	1209-	●	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	1204-1208	●
52	BUZZER; BACK REVERSING WARNING BUZZER<YM9>	8-97617-027-0	01	1	1209-	●	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE THA	0-28651-030-0	01	1	1204-	●
54	BOLT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10X30 FLANGE THA	0-28651-030-0	01	1	1209-	●	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE THA	0-91180-210-0	01	1	1204-	●
56	NUT; BACK BUZZER REVERSING WARNING BUZZER<YM9> M10 FLANGE THA	0-91180-210-0	01	1	1209-	●	●

744 584 584

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
584	SENSOR; PRESSURE (B)	8-97177-549-0	01	1	1204-1204	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1205-1208	●
584	SENSOR; PRESSURE (B)	8-98214-375-0	01	1	1209-	●	●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	1204-1208	●
584	SENSOR; PRESSURE (A)	8-98020-514-0	01	1	1209-	●	●
744	NUT; SENSOR M6 FLANGE THA	0-91180-106-0	02	1	1204-1208	●
744	NUT; SENSOR M6 FLANGE THA	0-91180-106-0	02	1	1209-	●	●

115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-1208	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1209-	●	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1204-1208	●
115	RELAY; POWER CAB TILT UNIT AUTO CAB TILT<WV2> (A) 24V NIKKO	8-98005-631-1	01	1	1209-	●	●

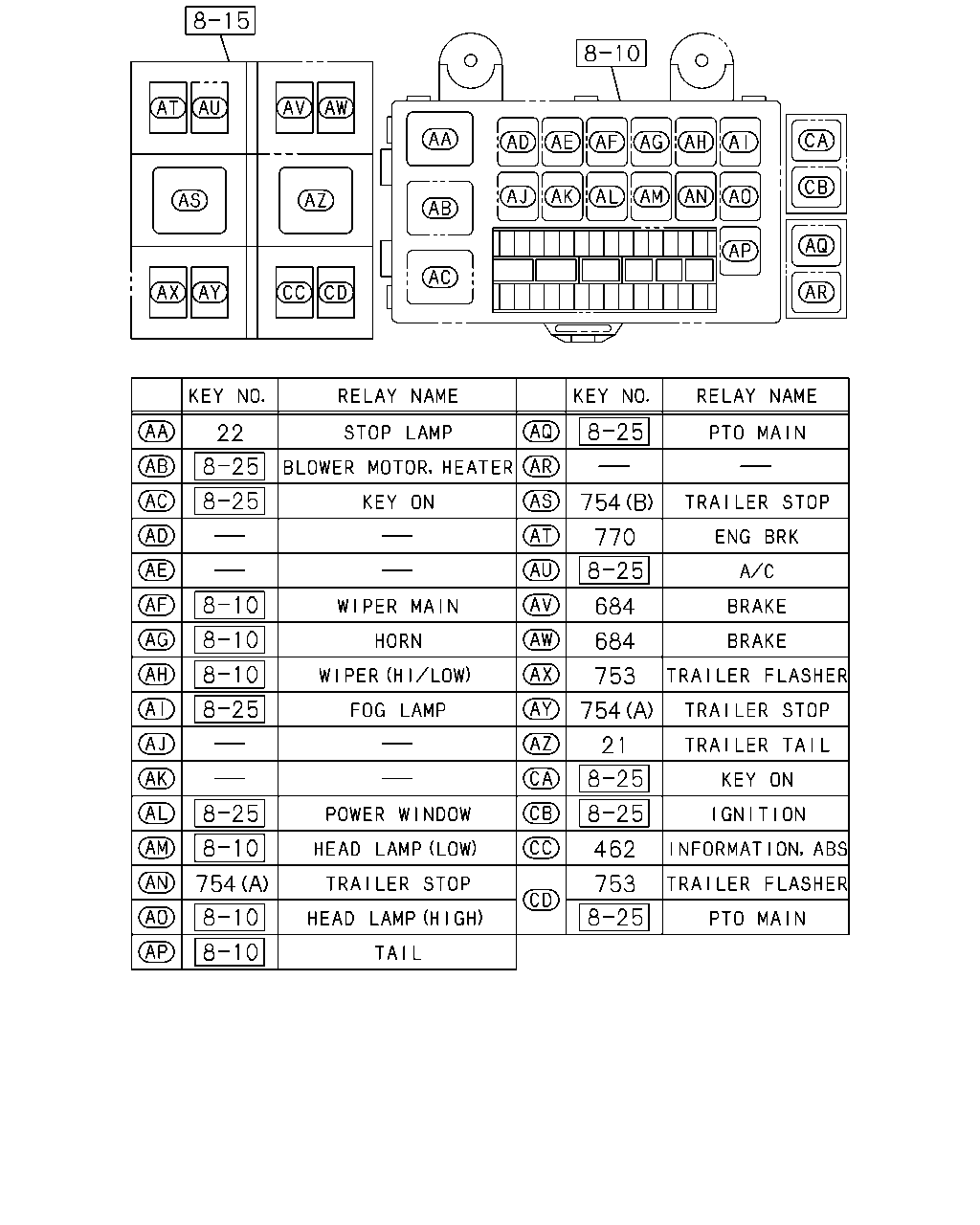

22 754 754 770 684 684 753 754 21 462 753

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	1204-1208	●
21	RELAY; TRAILER TAIL 24V 12.5A PANASONIC	8-97262-933-0	01	1	1209-	●	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1204-1208	●
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	1209-	●	●
462	RELAY; INFORMATION,ABS ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-	●
684	RELAY; BRAKE ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	02	1	1204-	●
753	RELAY; TRAILER FLASHER 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-1212	●
753	RELAY; TRAILER FLASHER ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-1212	●
753	RELAY; TRAILER FLASHER ANTILOCK BRAKE SYSTEM<BFA> 24V 10A PANASONIC THA	8-97173-035-1	02	1	1301-	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1204-1208	●
754	RELAY; TRAILER STOP (B) 24V 12.5A PANASONIC	8-97262-933-0	01	1	1209-	●	●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-1208	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-1208	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1209-	●	●
754	RELAY; TRAILER STOP EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1209-	●
754	RELAY; TRAILER STOP (A) 24V 10A PANASONIC THA	8-97173-035-1	01	1	1209-		●
770	RELAY; ENG BRK 24V 10A PANASONIC THA	8-97173-035-1	01	1	1204-1208	●
770	RELAY; ENG BRK 24V 10A PANASONIC THA	8-97173-035-1	01	1	1209-	●	●

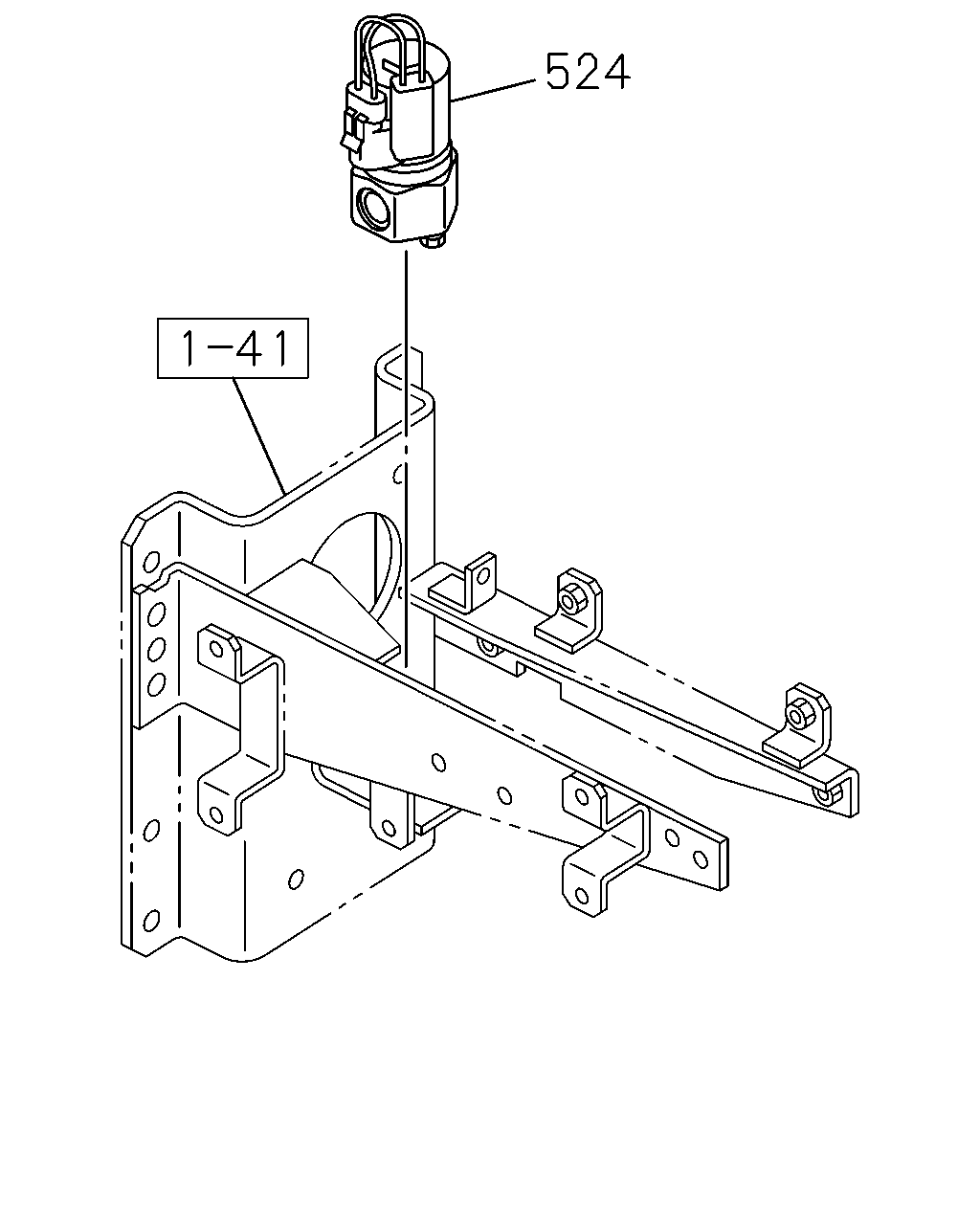

524

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	524	VALVE; MAG,CNG	8-98195-113-0	01	1	1204-1208	●
	524	VALVE; MAG,CNG	8-98195-113-0	01	1	1209-	●	●
