Isuzu WW
▶
TRUCKS
▶
GXZ
▶
11462 - GXZ CNG(THAI)EURO3
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#73189) — 40 parça
Tümü
A - GGZ5MX
B - FGZ5MX
◀

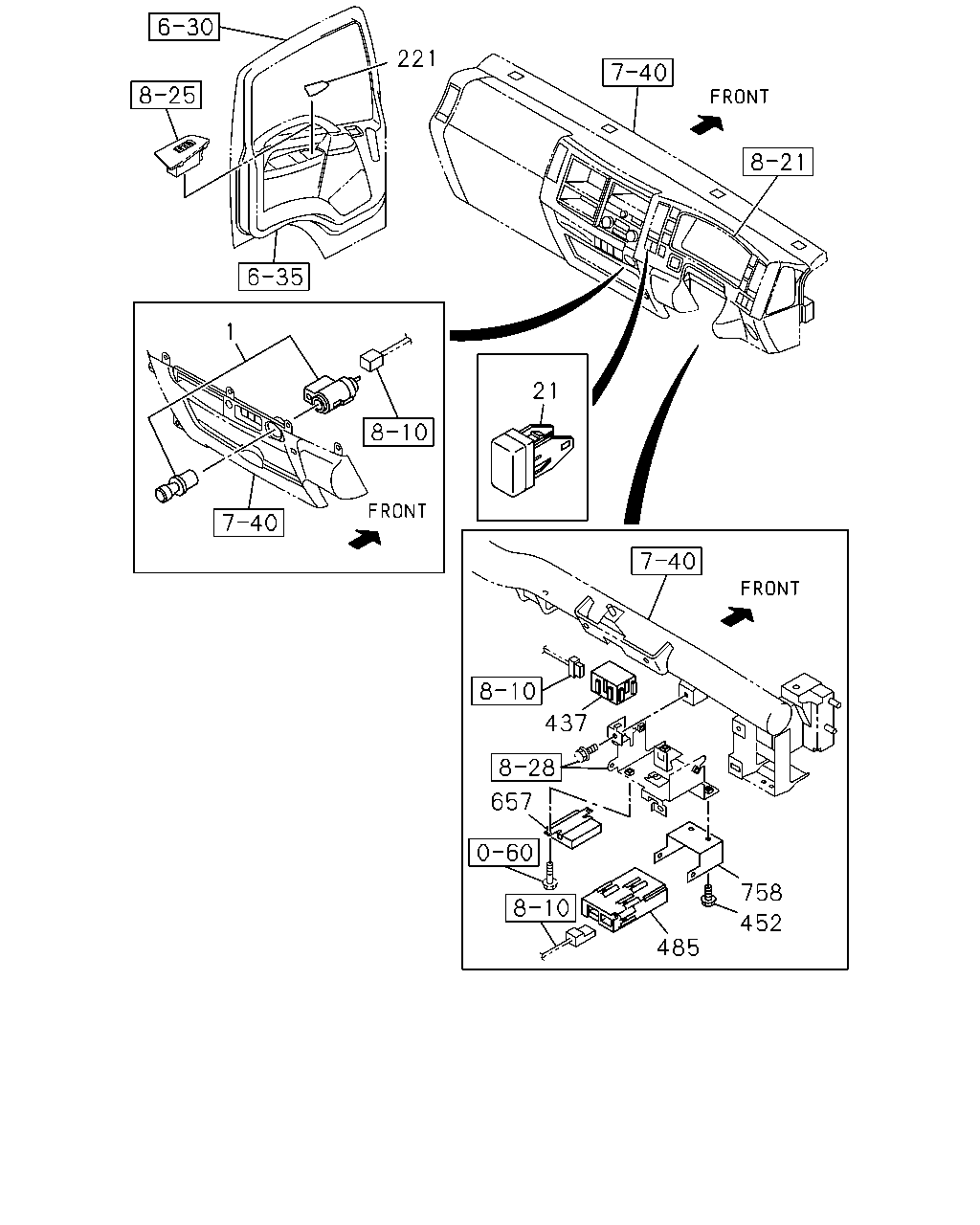

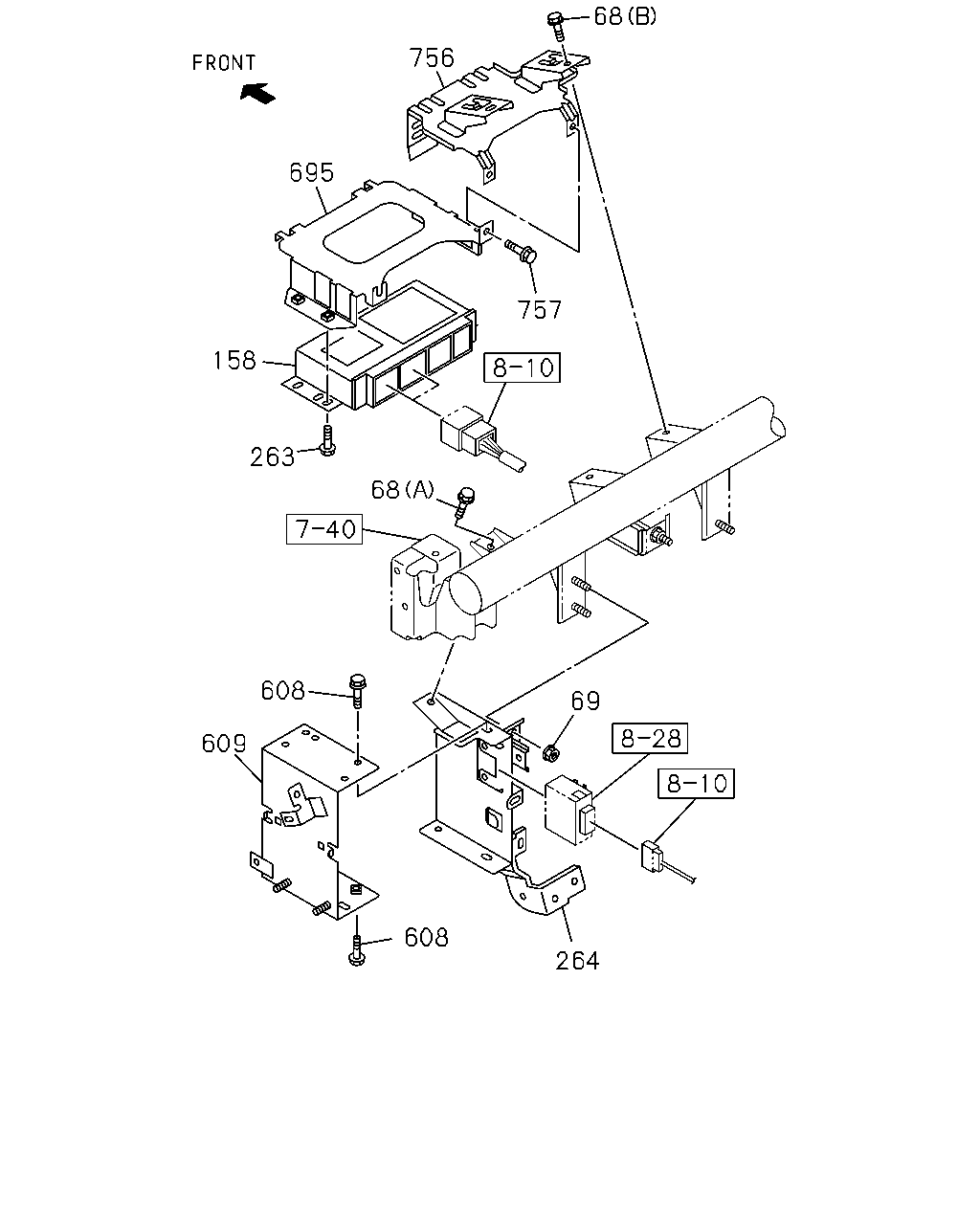

[826A] INST PANEL SIDE NO.2 (15 parça)
[826A] INST PANEL SIDE NO.1 (17 parça)

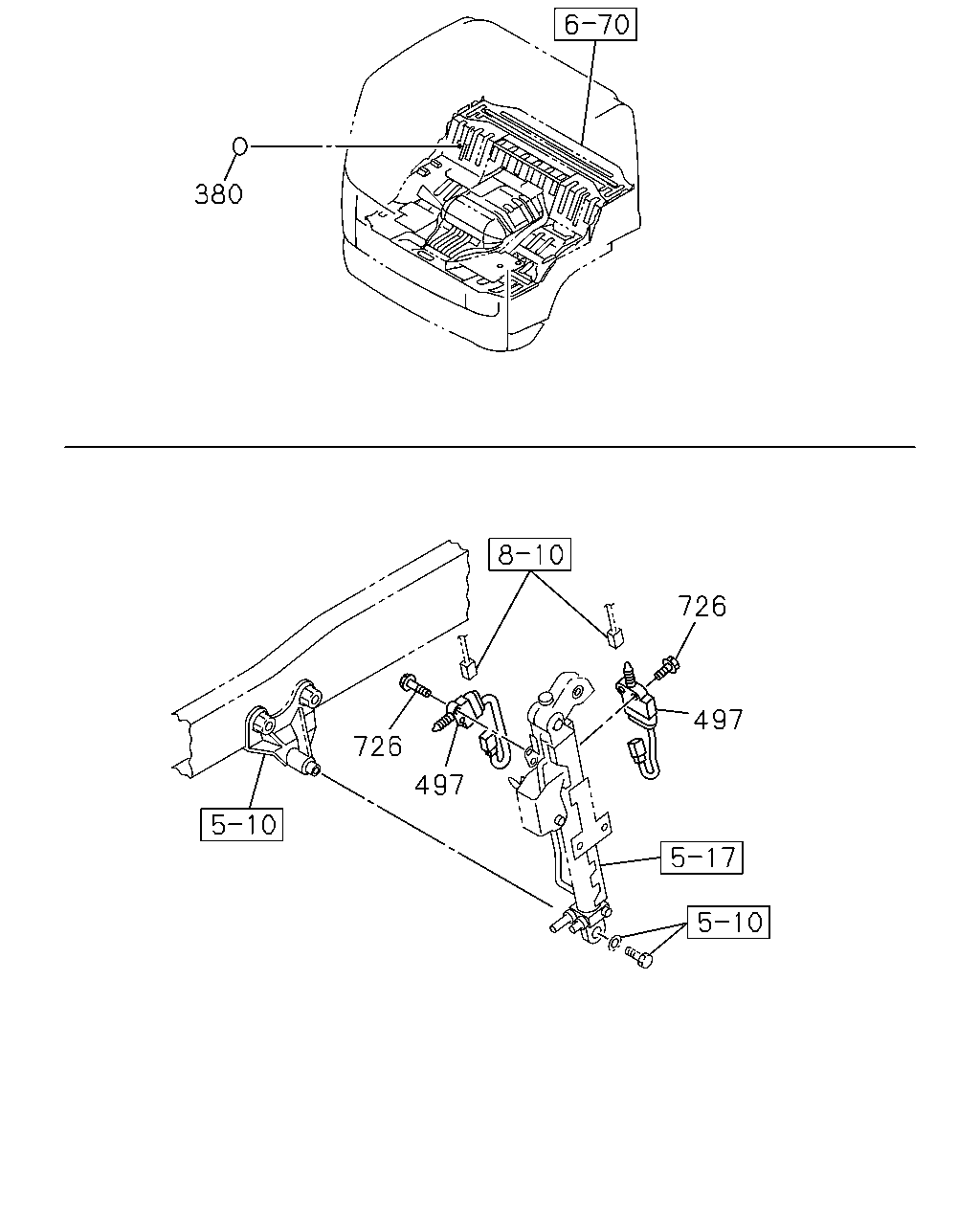

[826A] CAB TILT SWITCH AND SEAL (6 parça)
[826A] CAB SIDE (2 parça)
▶
68
756
695
158
263
757
68
69
608
609
608
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
68
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1204-1208
●
68
BOLT; BRKT
(A) M6X16 FLANGE THA
0-28650-616-0
01
1
1209-
●
●
68
BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M6X16 W/LK&PL WASHER
1-09980-492-0
02
1
1204-
●
69
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1204-1208
●
69
NUT; BRKT
M6 FLANGE THA
0-91180-106-0
01
1
1209-
●
●
158
CONTROLLER; ABS
TIRE 295/80R22.5-152/148K RIB CHINA<5E0>,TIRE 11.00R-22.5-16 RIB<55N> ANTILOCK BRAKE SYSTEM<BFA>
8-98170-648-0
01
1
1204-
●
263
BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE THA
0-28650-616-0
04
1
1204-
●
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1204-1208
●
264
BRACKET; CONT UNIT
8-97609-985-9
01
1
1209-
●
●
608
BOLT; CONT UNIT,AIR SUS
M6X16 FLANGE THA
0-28650-616-0
05
1
1204-
●
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98095-337-0
01
1
1204-1308
●
609
BRACKET ASM; ELEC UNIT,AIR SUS
8-98169-737-1
01
1
1309-
●
695
BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM<BFA>
8-98045-016-1
01
1
1204-
●
756
BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM<BFA>
8-98056-411-3
01
1
1204-
●
757
BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM<BFA> M6X16 FLANGE THA
0-28650-616-0
02
1
1204-
●
221
21
1
437
657
485
758
452
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1204-1208
●
1
LIGHTER; CIGAR
8-98142-962-0
01
1
1209-
●
●
21
COVER; HOLE
8-98025-954-1
01
1
1204-1208
●
21
COVER; HOLE
8-98025-954-1
01
1
1209-
●
●
221
COVER; HOLE,DOOR LOCK SW
8-98029-915-2
01
1
1209-
●
221
COVER; HOLE,DOOR LOCK SW
8-98029-916-2
01
1
1209-
●
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1204-1208
●
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1209-
●
●
452
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
02
1
1204-1208
●
452
BOLT; BRKT
M6X16 FLANGE THA
0-28650-616-0
02
1
1209-
●
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1204-1208
●
485
CONTROL UNIT; SPEED SENSOR
1-80190-063-0
01
1
1209-
●
●
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1204-1208
●
657
CONTROL UNIT; MIMAMORI
8-98013-144-8
01
1
1209-1401
●
●
657
CONTROL UNIT; MIMAMORI
8-98260-912-0
01
1
1402-
●
●
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1204-1208
●
758
BRACKET; ELEC CONT UNIT,SPEED SENSOR
8-98048-743-1
01
1
1209-
●
●
726
497
726
497
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
380
SEAL
OD=25 BLACK THA
1-76798-019-0
01
1
1204-1208
●
380
SEAL
OD=25 BLACK THA
1-76798-019-0
01
1
1209-
●
●
497
SWITCH; CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> STAMP NO
1-82380-172-1
02
1
1204-1208
●
497
SWITCH; CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> STAMP NO
1-82380-172-1
02
1
1209-
●
●
726
BOLT; SW,CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M6X25 FLANGE THA
0-28050-625-0
04
1
1204-1208
●
726
BOLT; SW,CAB TILT
AUTO CAB TILT<WV2>,MANUAL CAB TILT<WV3> M6X25 FLANGE THA
0-28050-625-0
04
1
1209-
●
●
491
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1204-1208
●
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1209-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
