8-15 — FIXING PARTS; WIRING HARNESS (#73185) — 556 parça

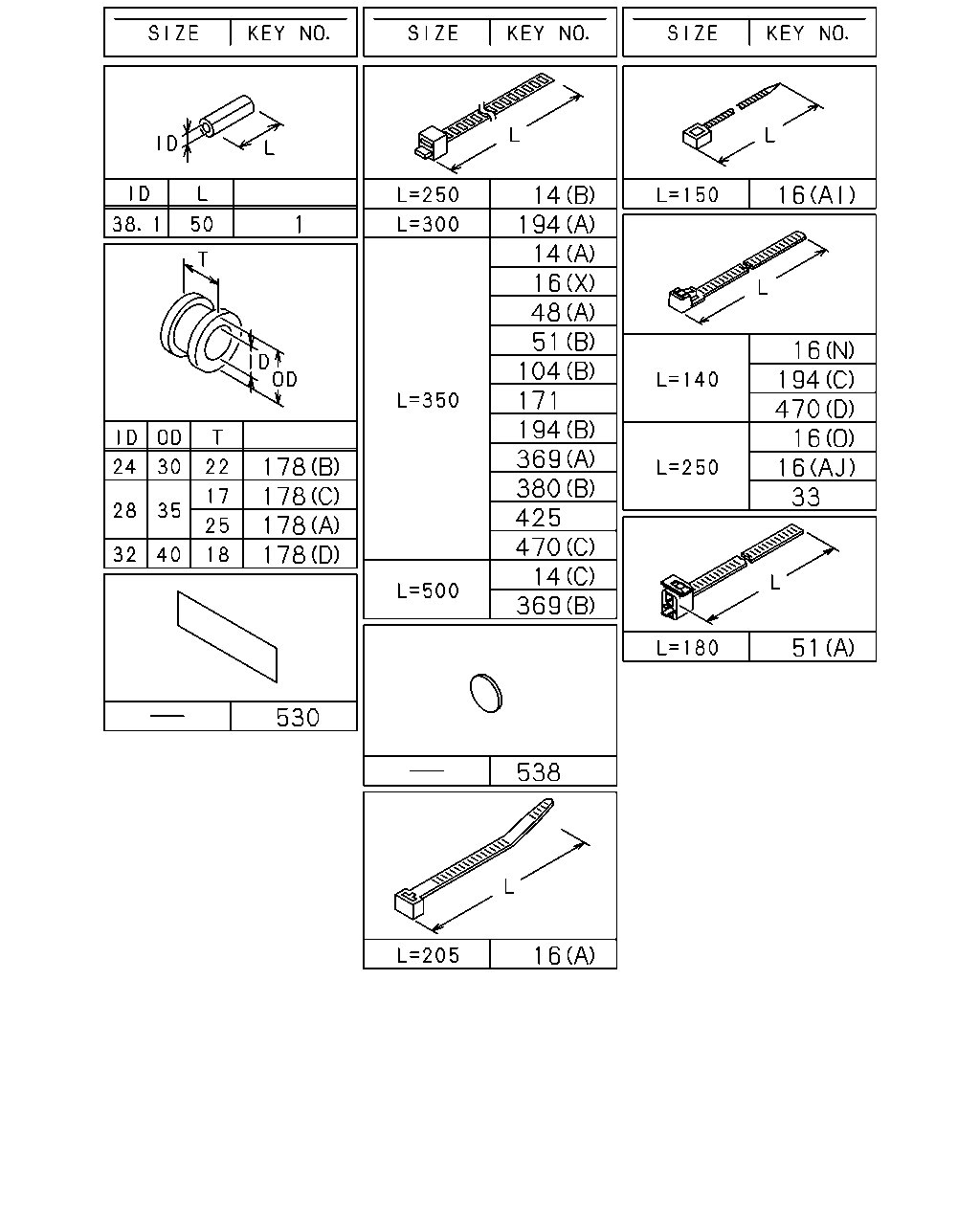

çizim 136612
178 178 178 178 530 16 538 369 14 470 425 380 369 194 171 104 51 48 16 14 194 14 51 33 16 16 470 194 16 16 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=38.1 L=50 		5-09360-835-0 01 1 1204-1208 ●
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> ID=38.1 L=50 		5-09360-835-0 01 1 1209- ● ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) L=250 		1-09707-126-0 02 1 1304- ●
14 CLIP; BAND,HARNESS
(C) L=500 		1-09707-082-1 01 1 1204-1208 ●
14 CLIP; BAND,HARNESS
(C) L=500 		1-09707-082-1 01 1 1209- ● ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 1204-1204 ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) L=250 		1-09707-126-0 02 1 1204-1301 ●
14 CLIP; BAND,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) L=350 		1-09707-183-0 02 1 1204- ●
16 CLIP; HARNESS
(AC) ID=16 		0-95235-533-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(AC) ID=16 		0-95235-533-0 02 1 1209- ● ●
16 CLIP; HARNESS
(AA) ID=16 H=24 L=20 		0-95207-315-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AA) ID=16 H=24 L=20 		0-95207-315-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AB) ID=11 L=20 		0-95235-035-0 10 1 1204-1208 ●
16 CLIP; HARNESS
(AB) ID=11 L=20 		0-95235-035-0 10 1 1209- ● ●
16 CLIP; HARNESS
(AD) L=63 		1-09700-418-1 02 1 1204-1208 ●
16 CLIP; HARNESS
(AD) L=63 		1-09700-418-1 02 1 1209- ● ●
16 CLIP; HARNESS
(AE) ID=31 L=30 		1-09700-969-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AE) ID=31 L=30 		1-09700-969-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AF) ID=18 L=40 		1-09701-111-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AF) ID=18 L=40 		1-09701-111-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AG) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AG) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AH) ID=21 L=47.5 		8-94178-108-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AH) ID=21 L=47.5 		8-94178-108-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AI) L=150 		8-97355-273-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(AI) L=150 		8-97355-273-0 03 1 1209- ● ●
16 CLIP; HARNESS
(AJ) L=250 		8-98216-430-0 14 1 1204-1208 ●
16 CLIP; HARNESS
(AJ) L=250 		8-98216-430-0 14 1 1209- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 12 1 1209- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 1209- ●
16 CLIP; HARNESS
(A) 		8-98040-124-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(A) 		8-98040-124-0 01 1 1209- ● ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 1209- ● ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 1209- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1209- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1209- ● ●
16 CLIP; HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1209- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1209- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1209- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 1204-1208 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=13-18 L=14.5 		1-09709-290-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(Z) ID=13-18 L=14.5 		1-09709-290-0 01 1 1209- ● ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 01 1 1209- ● ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 05 1 1204-1208 ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 05 1 1209- ● ●
16 CLIP; HARNESS
(O) L=250 THA 		5-09707-030-1 02 1 1204-1208 ●
16 CLIP; HARNESS
(O) L=250 THA 		5-09707-030-1 02 1 1209- ● ●
16 CLIP; HARNESS
(N) L=140 THA 		5-09707-031-1 04 1 1204-1208 ●
16 CLIP; HARNESS
(N) L=140 THA 		5-09707-031-1 04 1 1209- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1209- ● ●
16 CLIP; HARNESS
(S) ID=20 & 16.5 		8-94486-835-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(S) ID=20 & 16.5 		8-94486-835-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1204-1208 ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1209- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1209- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1209- ● ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1209- ● ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1209- ● ●
16 CLIP; HARNESS
(L) THA 		8-98052-679-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(L) THA 		8-98052-679-0 02 1 1209- ● ●
16 CLIP; HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1204- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 1209- ● ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 1209- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 		0-95235-025-0 02 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 		0-95325-025-0 01 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) L=175 		1-09707-176-1 01 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 03 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (D) ID=18-24 L=18 		1-09709-294-0 06 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (N) L=140 THA 		5-09707-031-1 05 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (Z) ID=13-18 L=14.5 		1-09709-290-0 03 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 06 1 1204- ●
33 CLIP; HARNESS,VLV
L=250 THA 		5-09707-030-1 01 1 1204-1208 ●
33 CLIP; HARNESS,VLV
L=250 THA 		5-09707-030-1 01 1 1209- ● ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 1209- ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 07 1 1209- ●
48 CLIP; FRAME HARNESS
(H) ID=13-18 L=26 		1-09709-293-0 01 1 1209- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1204-1208 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1209- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1204- ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1204-1208 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1209- ● ●
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1204- ●
48 CLIP; FRAME HARNESS
(E) ID=13-18 L=18 		1-09709-291-0 03 1 1204- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22 		1-09709-295-0 02 1 1204- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 		1-09709-292-0 02 1 1204- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=180 		1-09707-162-1 01 1 1204-1208 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=180 		1-09707-162-1 01 1 1209- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=350 		1-09707-183-0 01 1 1204-1208 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=350 		1-09707-183-0 01 1 1209- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1204-1208 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1209- ● ●
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1204-1208 ●
171 CLIP; STARTER HARNESS
L=350 		1-09707-183-0 03 1 1209- ● ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-126-0 01 1 1204-1208 ●
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-126-0 01 1 1209- ● ●
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=18 		1-09891-003-0 01 1 1204- ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1204-1208 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1204-1208 ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1209- ● ●
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 01 1 1209- ● ●
178 GROMMET; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=28 OD=35 T=25 		1-09332-011-1 03 1 1204- ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 07 1 1209- ●
194 CLIP; BAND
(B) L=350 		1-09707-183-0 06 1 1204- ●
194 CLIP; BAND
(C) L=140 THA 		5-09707-031-1 02 1 1204-1208 ●
194 CLIP; BAND
(C) L=140 THA 		5-09707-031-1 02 1 1209- ● ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=300 		1-09707-001-1 02 1 1204-1208 ●
194 CLIP; BAND
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=300 		1-09707-001-1 02 1 1209- ● ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 06 1 1204- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 07 1 1209- ●
369 CLIP; BAND EDS HARNESS
(A) L=350 		1-09707-183-0 02 1 1204-1208 ●
369 CLIP; BAND EDS HARNESS
(A) L=350 		1-09707-183-0 02 1 1209- ● ●
369 CLIP; BAND EDS HARNESS
(B) L=500 		1-09707-082-1 01 1 1204-1208 ●
369 CLIP; BAND EDS HARNESS
(B) L=500 		1-09707-082-1 01 1 1209- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1204-1208 ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1209- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1204-1208 ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1209- ● ●
425 CLIP; MODULATOR
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 03 1 1204- ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1204- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1204- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		5-09707-031-1 02 1 1204- ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1204-1208 ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 23 1 1209- ● ●
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1204-1208 ●
538 SEAL; HOLE
OD=25 BLACK THA 		1-76798-019-0 01 1 1209- ● ●

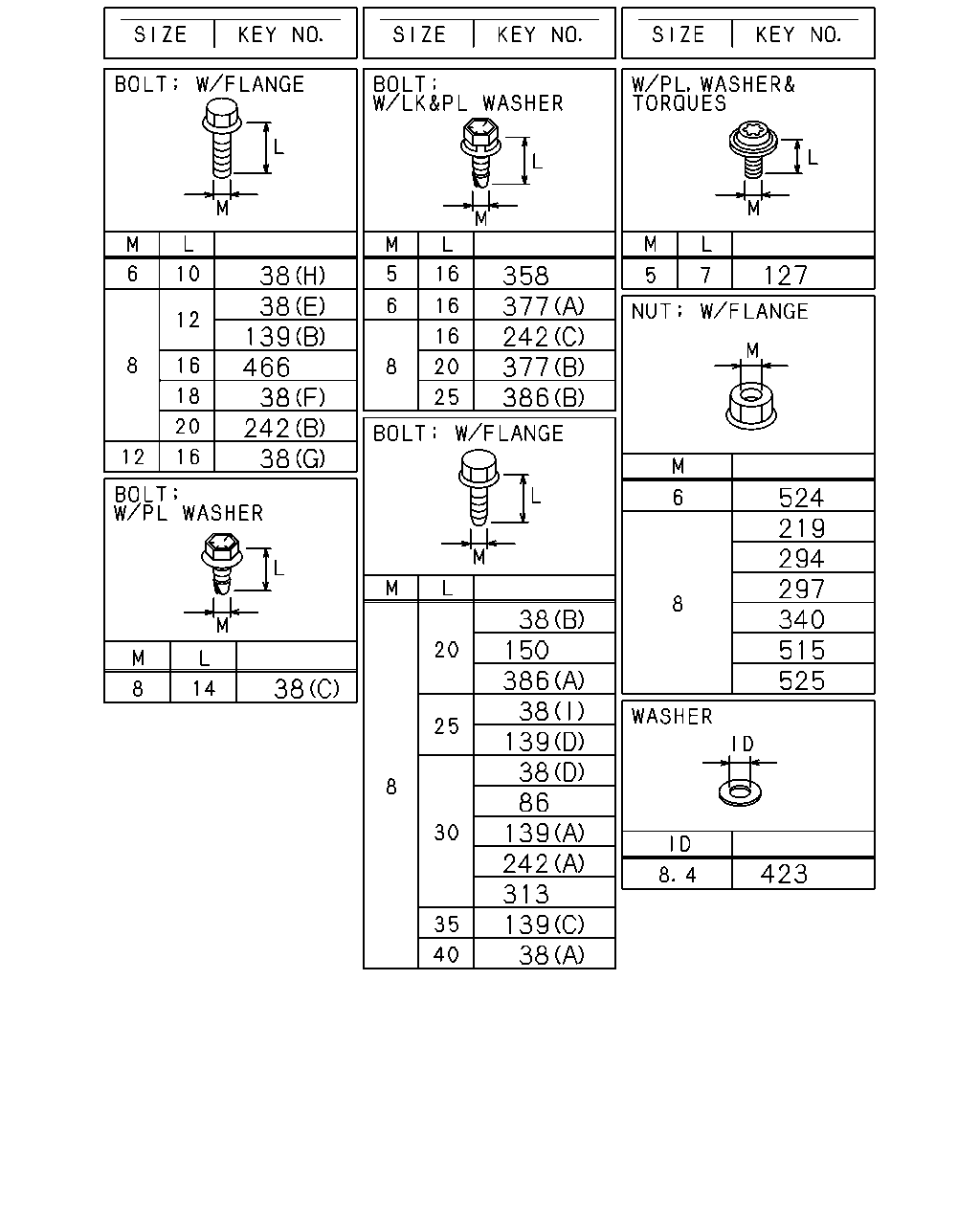

çizim 136753
38 38 139 466 38 242 38 358 377 242 377 386 127 38 524 219 294 297 340 515 525 423 38 150 386 38 139 38 86 139 242 318 139 38
BalonParca AdiParca NoAdetTipApplied Date A B
38 BOLT; CLIP,HARNESS
(H) M6X10 FLANGE THA 		0-28050-610-0 01 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(H) M6X10 FLANGE THA 		0-28050-610-0 01 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE THA 		0-28050-812-0 02 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE THA 		0-28050-812-0 02 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(G) M12X16 FLANGE 		0-28051-216-0 01 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(F) M8X18 FLANGE 		0-28080-818-0 01 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(F) M8X18 FLANGE 		0-28080-818-0 01 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE THA 		0-28650-820-0 04 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(I) M8X25 FLANGE THA 		0-28650-825-0 06 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(I) M8X25 FLANGE THA 		0-28650-825-0 06 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204- ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 02 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 02 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 09 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE THA 		0-28650-830-0 09 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(A) M8X40 FLANGE THA 		0-28650-840-0 01 1 1209- ● ●
38 BOLT; CLIP,HARNESS
(C) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1204-1208 ●
38 BOLT; CLIP,HARNESS
(C) M8X14 W/PL WASHER 		8-98164-837-0 03 1 1209- ● ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 1204- ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA 		0-28650-820-0 02 1 1204-1209 ●
38 BOLT; CLIP,HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X20 FLANGE THA 		0-28650-820-0 03 1 1210- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1204- ●
86 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 02 1 1209- ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1204-1208 ●
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1209- ● ●
139 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 03 1 1209- ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1204-1208 ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1209-1209 ● ●
139 BOLT; BRKT
(B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1210- ● ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 1210- ●
139 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1204-1208 ●
139 BOLT; BRKT
(D) M8X25 FLANGE THA 		0-28650-825-0 01 1 1209- ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ● ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 06 1 1204-1208 ●
139 BOLT; BRKT
(A) M8X30 FLANGE THA 		0-28650-830-0 06 1 1209- ● ●
139 BOLT; BRKT
(C) M8X35 FLANGE THA 		0-28650-835-0 02 1 1204- ●
139 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> (A) M8X30 FLANGE THA 		0-28650-830-0 03 1 1204- ●
139 BOLT; BRKT
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (D) M8X25 FLANGE THA 		0-28650-825-0 03 1 1204- ●
150 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
150 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●
219 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1204- ●
219 NUT
M8 FLANGE THA 		0-91180-108-0 08 1 1204-1208 ●
219 NUT
M8 FLANGE THA 		0-91180-108-0 08 1 1209- ● ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 03 1 1204- ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 02 1 1204-1209 ●
219 NUT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 03 1 1210- ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 1204-1208 ●
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE THA 		0-28050-820-0 01 1 1209- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1204-1208 ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ● ●
242 BOLT; BRKT,HARNESS
(A) M8X30 FLANGE THA 		0-28650-830-0 01 1 1209- ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1204-1208 ●
242 BOLT; BRKT,HARNESS
(C) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1209- ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 09 1 1209- ●
294 NUT
M8 FLANGE THA 		0-91180-108-0 07 1 1204- ●
294 NUT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 03 1 1204- ●
297 NUT; HARNESS ELEC PANEL
M8 FLANGE THA 		0-91180-108-0 04 1 1204-1208 ●
297 NUT; HARNESS ELEC PANEL
M8 FLANGE THA 		0-91180-108-0 04 1 1209- ● ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 06 1 1204- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 07 1 1209- ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE THA 		0-91180-108-0 03 1 1204-1208 ●
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE THA 		0-91180-108-0 03 1 1209- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1204-1208 ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 1209- ● ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1204-1208 ●
377 BOLT; CAB EARTH
(A) M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1209- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1204-1208 ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 1209- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1204-1208 ●
386 BOLT; GRAND HARNESS
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 1209- ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1204-1208 ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 1209- ● ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1204-1208 ●
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 1209- ● ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE THA 		0-28050-816-0 04 1 1204-1208 ●
466 BOLT; HEAT PROTECTOR
M8X16 FLANGE THA 		0-28050-816-0 04 1 1209- ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 09 1 1209- ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 08 1 1204- ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
515 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
515 NUT; BRKT
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE THA 		0-91180-108-0 03 1 1204- ●
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1204-1208 ●
524 NUT; HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1209- ● ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1204-1208 ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1209- ● ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
525 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●

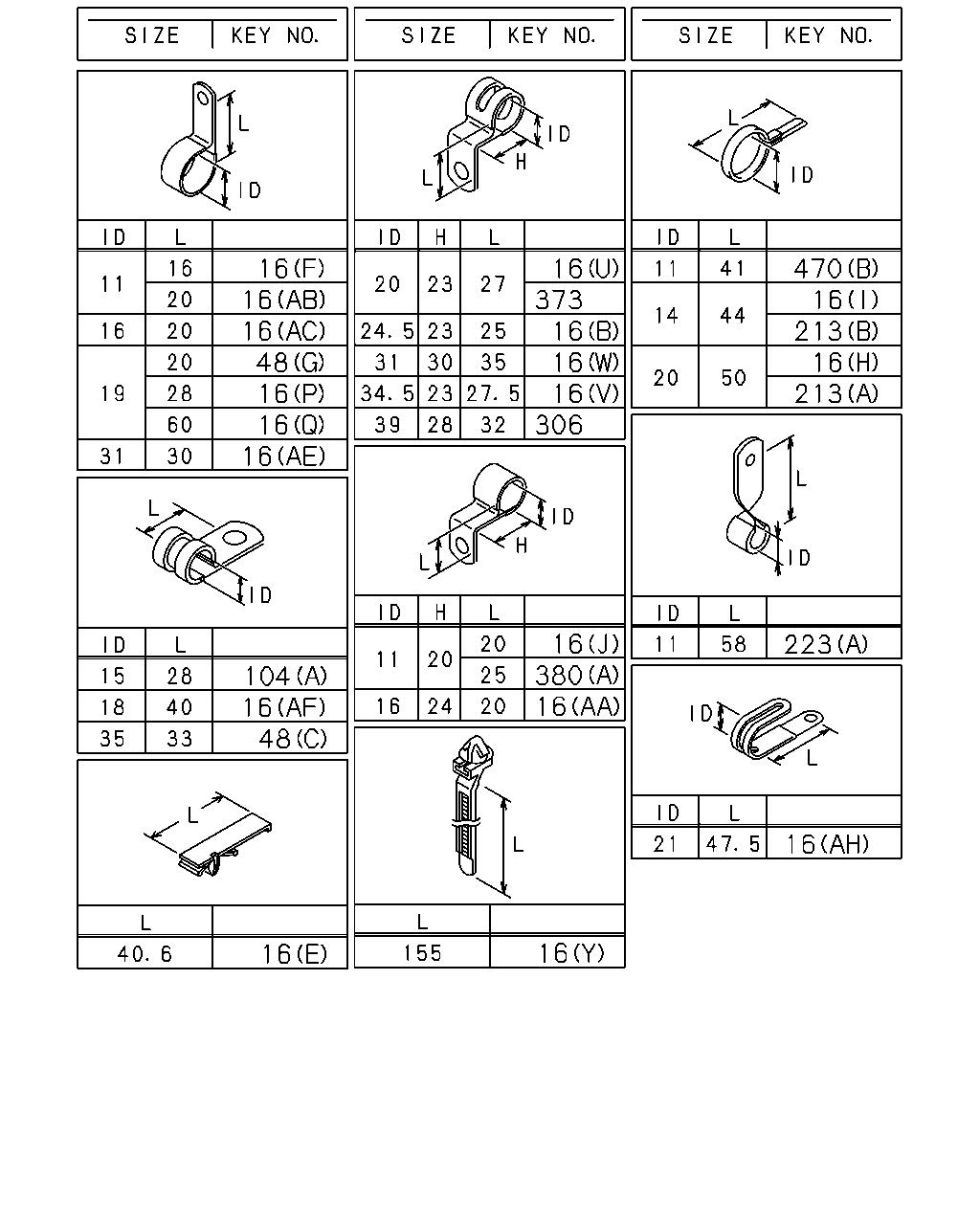

çizim 136884
16 16 16 373 16 16 48 16 16 16 16 16 306 470 16 213 16 213 16 380 223 16 16 16 104 16 48 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(AC) ID=16 		0-95235-533-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(AC) ID=16 		0-95235-533-0 02 1 1209- ● ●
16 CLIP; HARNESS
(AA) ID=16 H=24 L=20 		0-95207-315-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AA) ID=16 H=24 L=20 		0-95207-315-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AB) ID=11 L=20 		0-95235-035-0 10 1 1204-1208 ●
16 CLIP; HARNESS
(AB) ID=11 L=20 		0-95235-035-0 10 1 1209- ● ●
16 CLIP; HARNESS
(AD) L=63 		1-09700-418-1 02 1 1204-1208 ●
16 CLIP; HARNESS
(AD) L=63 		1-09700-418-1 02 1 1209- ● ●
16 CLIP; HARNESS
(AE) ID=31 L=30 		1-09700-969-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AE) ID=31 L=30 		1-09700-969-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AF) ID=18 L=40 		1-09701-111-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AF) ID=18 L=40 		1-09701-111-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AG) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AG) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AH) ID=21 L=47.5 		8-94178-108-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AH) ID=21 L=47.5 		8-94178-108-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AI) L=150 		8-97355-273-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(AI) L=150 		8-97355-273-0 03 1 1209- ● ●
16 CLIP; HARNESS
(AJ) L=250 		8-98216-430-0 14 1 1204-1208 ●
16 CLIP; HARNESS
(AJ) L=250 		8-98216-430-0 14 1 1209- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 12 1 1209- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 1209- ●
16 CLIP; HARNESS
(A) 		8-98040-124-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(A) 		8-98040-124-0 01 1 1209- ● ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 1209- ● ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 1209- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1209- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1209- ● ●
16 CLIP; HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1209- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1209- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1209- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 1204-1208 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=13-18 L=14.5 		1-09709-290-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(Z) ID=13-18 L=14.5 		1-09709-290-0 01 1 1209- ● ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 01 1 1209- ● ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 05 1 1204-1208 ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 05 1 1209- ● ●
16 CLIP; HARNESS
(O) L=250 THA 		5-09707-030-1 02 1 1204-1208 ●
16 CLIP; HARNESS
(O) L=250 THA 		5-09707-030-1 02 1 1209- ● ●
16 CLIP; HARNESS
(N) L=140 THA 		5-09707-031-1 04 1 1204-1208 ●
16 CLIP; HARNESS
(N) L=140 THA 		5-09707-031-1 04 1 1209- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1209- ● ●
16 CLIP; HARNESS
(S) ID=20 & 16.5 		8-94486-835-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(S) ID=20 & 16.5 		8-94486-835-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1204-1208 ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1209- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1209- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1209- ● ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1209- ● ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1209- ● ●
16 CLIP; HARNESS
(L) THA 		8-98052-679-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(L) THA 		8-98052-679-0 02 1 1209- ● ●
16 CLIP; HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1204- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 1209- ● ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 1209- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 		0-95235-025-0 02 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 		0-95325-025-0 01 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) L=175 		1-09707-176-1 01 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 03 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (D) ID=18-24 L=18 		1-09709-294-0 06 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (N) L=140 THA 		5-09707-031-1 05 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (Z) ID=13-18 L=14.5 		1-09709-290-0 03 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 06 1 1204- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 1209- ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 07 1 1209- ●
48 CLIP; FRAME HARNESS
(H) ID=13-18 L=26 		1-09709-293-0 01 1 1209- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1204-1208 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1209- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1204- ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1204-1208 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1209- ● ●
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1204- ●
48 CLIP; FRAME HARNESS
(E) ID=13-18 L=18 		1-09709-291-0 03 1 1204- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22 		1-09709-295-0 02 1 1204- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 		1-09709-292-0 02 1 1204- ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1209- ● ●
213 CLIP; END CROSS HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (A) ID=20 L=50 		9-09917-430-0 03 1 1204- ●
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=14 L=44 		9-09917-427-0 03 1 1204-1208 ●
213 CLIP; END CROSS HARNESS
EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=14 L=44 		9-09917-427-0 03 1 1209- ●
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 03 1 1209- ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=58 		9-09917-135-2 01 1 1204- ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1209- ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 1204-1208 ●
306 CLIP; HARNESS,ELEC GOV
ID=39 H=28 L=32 		1-09701-263-0 03 1 1209- ● ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 06 1 1204- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 07 1 1209- ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1204-1208 ●
373 CLIP; BAND,GEN HARNESS
ID=20 H=23 L=27 		1-09700-861-0 02 1 1209- ● ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1204-1208 ●
380 CLIP; EARTH HARNESS
(A) ID=11 H=20 L=25 		1-09700-848-0 02 1 1209- ● ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1204-1208 ●
380 CLIP; EARTH HARNESS
(B) L=350 		1-09707-183-0 03 1 1209- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1204- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1204- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		5-09707-031-1 02 1 1204- ●

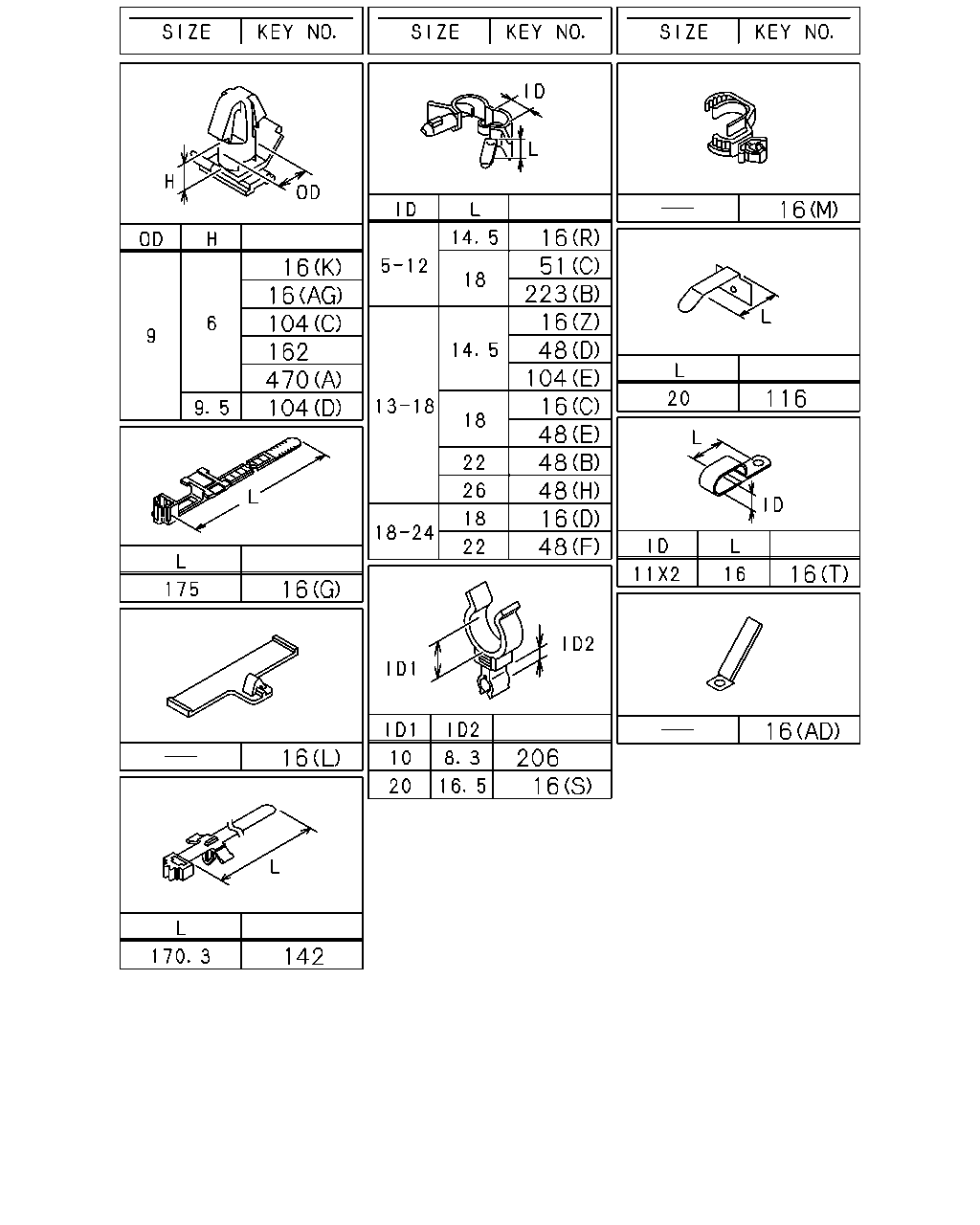

çizim 136889
16 16 16 51 16 223 104 16 162 48 470 104 104 16 116 48 16 48 48 16 48 16 206 16 142 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(AC) ID=16 		0-95235-533-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(AC) ID=16 		0-95235-533-0 02 1 1209- ● ●
16 CLIP; HARNESS
(AA) ID=16 H=24 L=20 		0-95207-315-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AA) ID=16 H=24 L=20 		0-95207-315-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AB) ID=11 L=20 		0-95235-035-0 10 1 1204-1208 ●
16 CLIP; HARNESS
(AB) ID=11 L=20 		0-95235-035-0 10 1 1209- ● ●
16 CLIP; HARNESS
(AD) L=63 		1-09700-418-1 02 1 1204-1208 ●
16 CLIP; HARNESS
(AD) L=63 		1-09700-418-1 02 1 1209- ● ●
16 CLIP; HARNESS
(AE) ID=31 L=30 		1-09700-969-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AE) ID=31 L=30 		1-09700-969-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AF) ID=18 L=40 		1-09701-111-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AF) ID=18 L=40 		1-09701-111-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AG) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AG) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AH) ID=21 L=47.5 		8-94178-108-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(AH) ID=21 L=47.5 		8-94178-108-0 01 1 1209- ● ●
16 CLIP; HARNESS
(AI) L=150 		8-97355-273-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(AI) L=150 		8-97355-273-0 03 1 1209- ● ●
16 CLIP; HARNESS
(AJ) L=250 		8-98216-430-0 14 1 1204-1208 ●
16 CLIP; HARNESS
(AJ) L=250 		8-98216-430-0 14 1 1209- ● ●
16 CLIP; HARNESS
(C) ID=13-18 L=18 		1-09709-291-0 12 1 1209- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 01 1 1209- ●
16 CLIP; HARNESS
(A) 		8-98040-124-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(A) 		8-98040-124-0 01 1 1209- ● ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(F) ID=11 L=16 		0-95235-025-0 01 1 1209- ● ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(P) ID=19 L=28 		0-95235-856-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(Q) ID=19 L=60 		0-95235-896-0 02 1 1209- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1209- ● ●
16 CLIP; HARNESS
(U) ID=20 H=23 L=27 		1-09700-861-0 01 1 1209- ● ●
16 CLIP; HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 1209- ● ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(V) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1209- ● ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(W) ID=31 H=30 L=35 		1-09700-994-0 01 1 1209- ● ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 1204-1208 ●
16 CLIP; HARNESS
(X) L=350 		1-09707-183-0 06 1 1209- ● ●
16 CLIP; HARNESS
(Z) ID=13-18 L=14.5 		1-09709-290-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(Z) ID=13-18 L=14.5 		1-09709-290-0 01 1 1209- ● ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 01 1 1209- ● ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 05 1 1204-1208 ●
16 CLIP; HARNESS
(R) ID=5-12 L=14.5 		1-09987-221-0 05 1 1209- ● ●
16 CLIP; HARNESS
(O) L=250 THA 		5-09707-030-1 02 1 1204-1208 ●
16 CLIP; HARNESS
(O) L=250 THA 		5-09707-030-1 02 1 1209- ● ●
16 CLIP; HARNESS
(N) L=140 THA 		5-09707-031-1 04 1 1204-1208 ●
16 CLIP; HARNESS
(N) L=140 THA 		5-09707-031-1 04 1 1209- ● ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(M) ID=10 & 16 		8-94413-325-0 01 1 1209- ● ●
16 CLIP; HARNESS
(S) ID=20 & 16.5 		8-94486-835-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(S) ID=20 & 16.5 		8-94486-835-0 01 1 1209- ● ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1204-1208 ●
16 CLIP; HARNESS
(Y) L=155 THA 		8-97173-307-0 18 1 1209- ● ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(E) L=40.6 THA 		8-97229-357-0 02 1 1209- ● ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(K) OD=9 H=6 		8-97368-793-0 02 1 1209- ● ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1204-1208 ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1209- ● ●
16 CLIP; HARNESS
(J) ID=11 H=20 L=20 		8-98033-780-0 01 1 1209- ● ●
16 CLIP; HARNESS
(L) THA 		8-98052-679-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(L) THA 		8-98052-679-0 02 1 1209- ● ●
16 CLIP; HARNESS
(I) ID=14 L=44 		9-09917-427-0 01 1 1204- ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 1204-1208 ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 02 1 1209- ● ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 1204-1208 ●
16 CLIP; HARNESS
(H) ID=20 L=50 		9-09917-430-0 03 1 1209- ● ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (F) ID=11 L=16 		0-95235-025-0 02 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (T) ID=11X2 L=16 		0-95325-025-0 01 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (G) L=175 		1-09707-176-1 01 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (X) L=350 		1-09707-183-0 01 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 03 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (D) ID=18-24 L=18 		1-09709-294-0 06 1 1204- ●
16 CLIP; HARNESS
ANTILOCK BRAKE SYSTEM<BFA> (N) L=140 THA 		5-09707-031-1 05 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (Z) ID=13-18 L=14.5 		1-09709-290-0 03 1 1204- ●
16 CLIP; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=13-18 L=18 		1-09709-291-0 06 1 1204- ●
48 CLIP; FRAME HARNESS
(G) ID=19 L=20 		0-95235-836-0 01 1 1209- ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 07 1 1209- ●
48 CLIP; FRAME HARNESS
(H) ID=13-18 L=26 		1-09709-293-0 01 1 1209- ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1204-1208 ●
48 CLIP; FRAME HARNESS
(C) ID=35 L=33 		1-09700-945-0 04 1 1209- ● ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 06 1 1204- ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1204-1208 ●
48 CLIP; FRAME HARNESS
(A) L=350 		1-09707-183-0 08 1 1209- ● ●
48 CLIP; FRAME HARNESS
(D) ID=13-18 L=14.5 		1-09709-290-0 01 1 1204- ●
48 CLIP; FRAME HARNESS
(E) ID=13-18 L=18 		1-09709-291-0 03 1 1204- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> ANTILOCK BRAKE SYSTEM<BFA> (F) ID=18-24 L=22 		1-09709-295-0 02 1 1204- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) ID=13-18 L=22 		1-09709-292-0 02 1 1204- ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=180 		1-09707-162-1 01 1 1204-1208 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (A) L=180 		1-09707-162-1 01 1 1209- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=350 		1-09707-183-0 01 1 1204-1208 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (B) L=350 		1-09707-183-0 01 1 1209- ● ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1204-1208 ●
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONT WO/HEATER<C65> (C) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(A) ID=15 L=28 		1-09701-216-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(B) L=350 		1-09707-183-0 02 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(C) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(D) OD=9 H=9.5 THA 		1-09709-179-0 01 1 1209- ● ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1204-1208 ●
104 CLIP; HEADLAMP HARNESS
(E) ID=13-18 L=14.5 		1-09709-290-0 02 1 1209- ● ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1204-1208 ●
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1209- ● ●
142 CLIP; HARNESS,ENG
L=170.3 		8-97209-720-0 01 1 1204-1208 ●
142 CLIP; HARNESS,ENG
L=170.3 		8-97209-720-0 01 1 1209- ● ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
206 CLIP; FUEL TANK HARNESS
ID=8.3 & 10 		8-94176-792-0 01 1 1204-1208 ●
206 CLIP; FUEL TANK HARNESS
ID=8.3 & 10 		8-94176-792-0 01 1 1209- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=11 L=58 		9-09917-135-2 01 1 1204- ●
223 CLIP; AIR TANK HARNESS
(B) ID=5-12 L=18 THA 		1-09709-287-0 01 1 1209- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 06 1 1204- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 07 1 1209- ●
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 1204- ●
470 CLIP; HARNESS,LICENSE LAMP
(C) L=350 		1-09707-183-0 01 1 1204- ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1204-1208 ●
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 1209- ● ●
470 CLIP; HARNESS,LICENSE LAMP
(D) L=140 THA 		5-09707-031-1 02 1 1204- ●

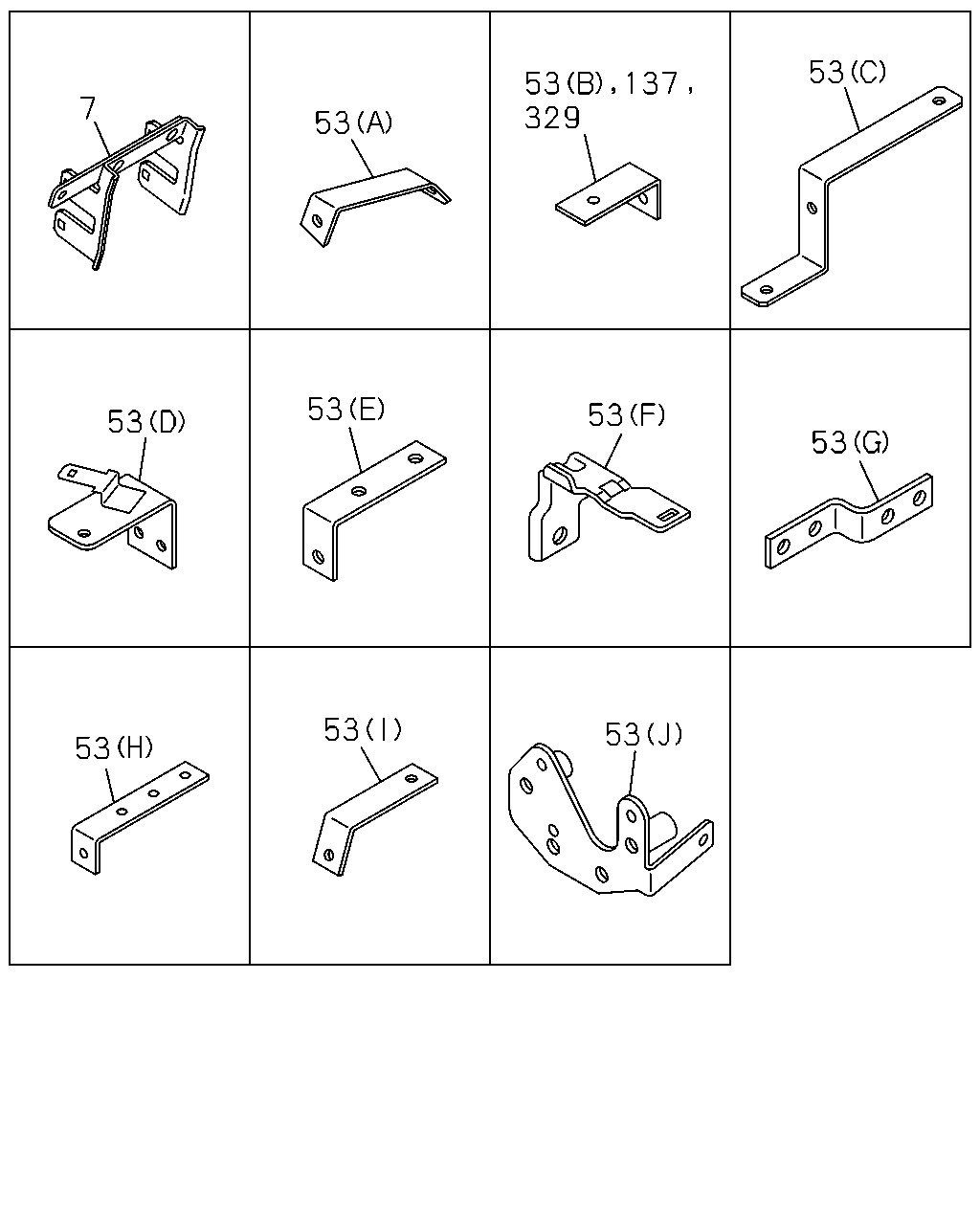

çizim 137197
7 53 53 137 53 329 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1204-1208 ●
7 BRACKET; CONNECTOR
THA 		8-97925-591-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(J) 		8-97611-413-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(J) 		8-97611-413-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(B) L=65 		1-47477-713-0 01 1 1209- ●
53 BRACKET; HARNESS
(B) L=55 		1-47475-304-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(B) L=55 		1-47475-304-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(E) L=82 B=20 		1-47478-420-0 01 1 1209-1404 ● ●
53 BRACKET; HARNESS
(E) L=82 B=20 		8-98259-390-0 01 1 1405- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1204-1208 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 06 1 1209- ● ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 1204-1208 ●
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 1209- ● ●
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(G) 		1-82569-278-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(H) L=120 H=35 		1-82698-088-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(I) 		1-82698-514-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(I) 		1-82698-514-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(F) 		8-98052-458-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(F) 		8-98052-458-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(C) 		8-98078-801-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(C) 		8-98078-801-0 01 1 1209- ● ●
53 BRACKET; HARNESS
(D) 		8-98102-490-0 01 1 1204-1208 ●
53 BRACKET; HARNESS
(D) 		8-98102-490-0 01 1 1209- ● ●
53 BRACKET; HARNESS
WHEEL BASE 4700MM<47W> EXC. ANTILOCK BRAKE SYSTEM<BFA> (B) L=65 		1-47479-064-1 03 1 1204- ●
137 BRACKET; HARNESS CLAMP
ANTILOCK BRAKE SYSTEM<BFA> 25X37 		1-34656-004-0 01 1 1204- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 06 1 1204- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 07 1 1209- ●
329 BRACKET; CLIP,CABLE
L=75 		1-47478-323-0 01 1 1204- ●
çizim 344461
211 312 375 335 335 375 375 600
BalonParca AdiParca NoAdetTipApplied Date A B
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> 		8-97621-353-1 01 1 1204- ●
211 BRACKET; AXLE HARNESS
ANTILOCK BRAKE SYSTEM<BFA> 		8-97621-352-1 01 1 1204- ●
312 BRACKET; CLIP HARNESS
L=120 		8-97619-440-0 01 1 1204- ●
312 BRACKET; CLIP HARNESS
L=120 		8-97619-440-0 02 1 1209- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 06 1 1204- ●
313 BOLT; BRKT
M8X30 FLANGE THA 		0-28650-830-0 07 1 1209- ●
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 1204-1208 ●
335 BRACKET; CONNECTOR
(B) 		1-82698-358-0 01 1 1209- ● ●
335 BRACKET; CONNECTOR
ANTILOCK BRAKE SYSTEM<BFA> (A) 		1-82698-167-0 01 1 1204- ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 1204-1208 ●
375 BRACKET; AC GEN HARNESS CLIP
(A) L=120 H=35 		1-82698-088-0 01 1 1209- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 1204-1208 ●
375 BRACKET; AC GEN HARNESS CLIP
(B) 		1-82698-569-0 01 1 1209- ● ●
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 1204-1208 ●
375 BRACKET; AC GEN HARNESS CLIP
(C) 		1-82698-583-1 01 1 1209- ● ●
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1204-1208 ●
600 PROTECTOR; HEAT 8-97608-456-0 01 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
