◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#73178) — 253 parça

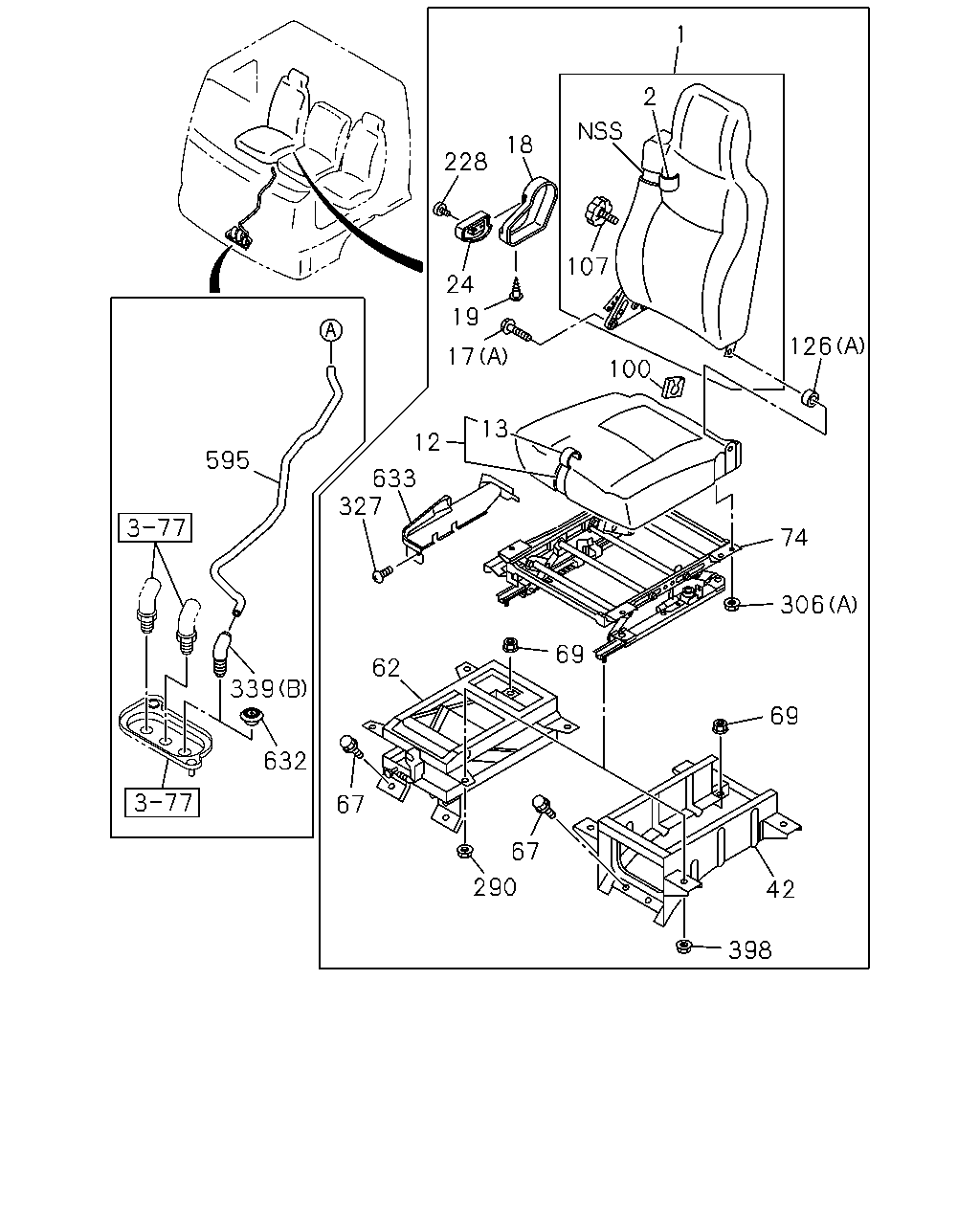

çizim 134143
632 339 595 327 633 12 13 17 19 24 228 18 2 1 107 100 126 74 306 69 69 62 67 67 290 398 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
THA 		8-97924-734-0 01 1 1209- ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-322-0 01 1 1204- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-323-0 01 1 1204- ●
2 COVER; TRIM,FRT SEAT,BACK
THA 		8-97924-750-0 01 1 1209- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-325-0 01 1 1204- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-326-0 01 1 1204- ●
12 CUSHION; SEAT,FRT
THA 		8-97924-748-1 01 1 1209- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-331-0 01 1 1204- ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-332-0 01 1 1204- ●
13 COVER; TRIM,FRT SEAT,CUSHION
THA 		8-97924-749-0 01 1 1209- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-328-0 01 1 1204- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-329-0 01 1 1204- ●
17 BOLT; RECLINING
(A) M10X20 THA 		8-98062-661-0 02 1 1204-1208 ●
17 BOLT; RECLINING
(A) M10X20 THA 		8-98062-661-0 02 1 1209- ● ●
17 BOLT; RECLINING
(B) M8X20 THA 		8-98092-334-0 02 1 1204-1208 ●
17 BOLT; RECLINING
(B) M8X20 THA 		8-98092-334-0 02 1 1209- ● ●
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 1204-1208 ●
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 1209- ● ●
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 1204-1208 ●
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 1209- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 1204-1208 ●
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 1209- ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-1 01 1 1204-1208 ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75558-604-2 01 1 1209- ●
42 STAND; DRIVER SEAT
THA 		1-75558-604-2 01 1 1209- ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-183-7 01 1 1204-1507 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1508- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE THA 		0-28451-020-0 02 1 1204-1208 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE THA 		0-28451-020-0 02 1 1209- ● ●
69 NUT; FRT SEAT
M10 FLANGE THA 		0-91180-110-0 02 1 1204-1208 ●
69 NUT; FRT SEAT
M10 FLANGE THA 		0-91180-110-0 02 1 1209- ● ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
THA 		8-98003-678-0 01 1 1204-1507 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
THA 		8-98291-640-0 01 1 1508- ●
100 COVER; HINGE 8-98203-070-0 01 1 1204-1208 ●
100 COVER; HINGE 8-98203-070-0 01 1 1209- ● ●
107 DIAL; SEAT RECLINING
AIR SUSP DRIVER SEAT<A56> 		8-98063-174-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-327-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 1209- ●
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1204-1208 ●
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1209- ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA 		8-97917-184-0 01 1 1204-1208 ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA 		8-97917-184-0 01 1 1204- ● ●
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 1204-1208 ●
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 1209- ● ●
290 NUT; ADJ TO SUSP
AIR SUSP DRIVER SEAT<A56> M8 FLANGE THA 		1-75538-207-0 04 1 1204- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 08 1 1209- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 06 1 1204- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1204-1208 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1209- ● ●
327 CLIP; COVER
ID=459 		1-09987-273-0 02 1 1204- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) THA 		1-75538-131-3 01 1 1204- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1204- ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA 		1-75538-207-0 04 1 1204-1208 ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA 		1-75538-207-0 04 1 1209- ●
398 NUT; STAND
M8 FLANGE THA 		1-75538-207-0 04 1 1209- ●
595 TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> 		8-98067-762-0 01 1 1204- ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1204-1208 ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1209- ●
632 GROMMET
OD=24 		8-94119-796-0 01 1 1209- ●
633 COVER; ADJ,TILT
GRAY THA 		8-97409-956-0 01 1 1204- ●

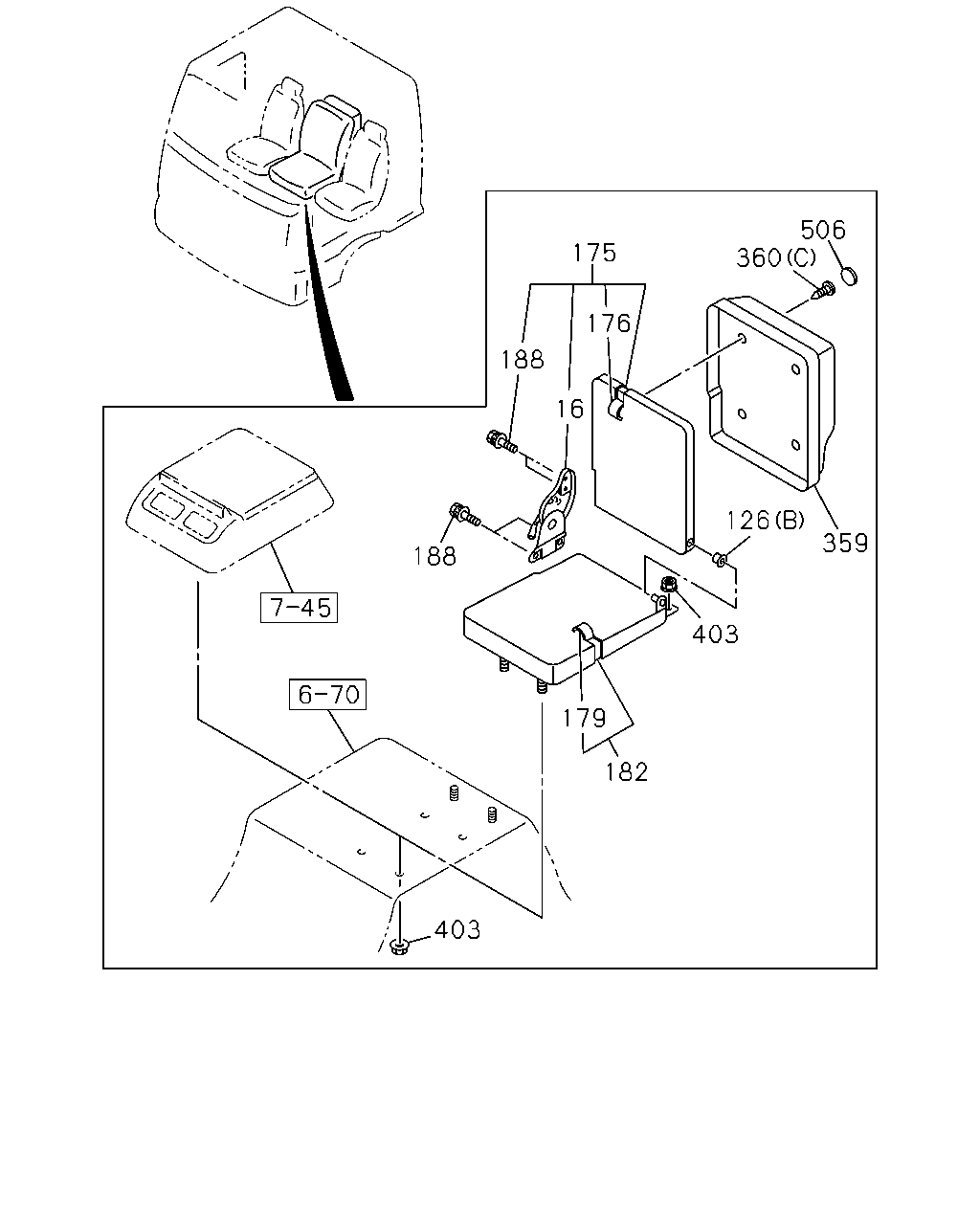

çizim 135023
506 360 175 188 126 176 16 188 403 359 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
CENTER SEAT<SA1> THA 		1-75418-062-1 01 1 1204-1208 ●
16 ADJUSTER ASM; RECLINING
CENTER SEAT<SA1> THA 		1-75418-062-1 01 1 1209- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-327-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 1209- ●
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1204-1208 ●
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1209- ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA 		8-97917-184-0 01 1 1204-1208 ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA 		8-97917-184-0 01 1 1204- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT<SA1> THA 		8-97925-314-0 01 1 1209- ●
175 BACK ASM; PASSENGER CENTER SEAT
CENTER SEAT<SA1> THA 		8-97924-456-1 01 1 1204- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT<SA1> THA 		8-97925-308-0 01 1 1209- ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
CENTER SEAT<SA1> THA 		8-97924-458-0 01 1 1204- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT<SA1> THA 		8-97924-453-0 01 1 1209- ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
CENTER SEAT<SA1> THA 		8-97924-454-0 01 1 1204- ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT<SA1> THA 		8-97924-451-0 01 1 1209- ●
182 CUSHION ASM; CENTER SEAT
CENTER SEAT<SA1> THA 		8-97924-452-0 01 1 1204- ●
188 BOLT; BACK TO CUSHION
CENTER SEAT<SA1> M10X16 FLANGE THA 		1-75198-053-0 04 1 1204-1208 ●
188 BOLT; BACK TO CUSHION
CENTER SEAT<SA1> M10X16 FLANGE THA 		1-75198-053-0 04 1 1209- ● ●
359 BOX; PARCEL
CENTER SEAT<SA1> THA 		8-97924-469-0 01 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (B) M4X16 		0-70040-416-0 06 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (D) M5X20 		9-09829-324-1 02 1 1204- ●
403 NUT; CENTER SEAT
CENTER SEAT<SA1> M8 FLANGE THA 		0-91180-108-0 04 1 1204-1208 ●
403 NUT; CENTER SEAT
CENTER SEAT<SA1> M8 FLANGE THA 		0-91180-108-0 04 1 1209- ● ●
506 CAP; PARCEL BOX
CENTER SEAT<SA1> THA 		8-97924-470-0 04 1 1204- ●

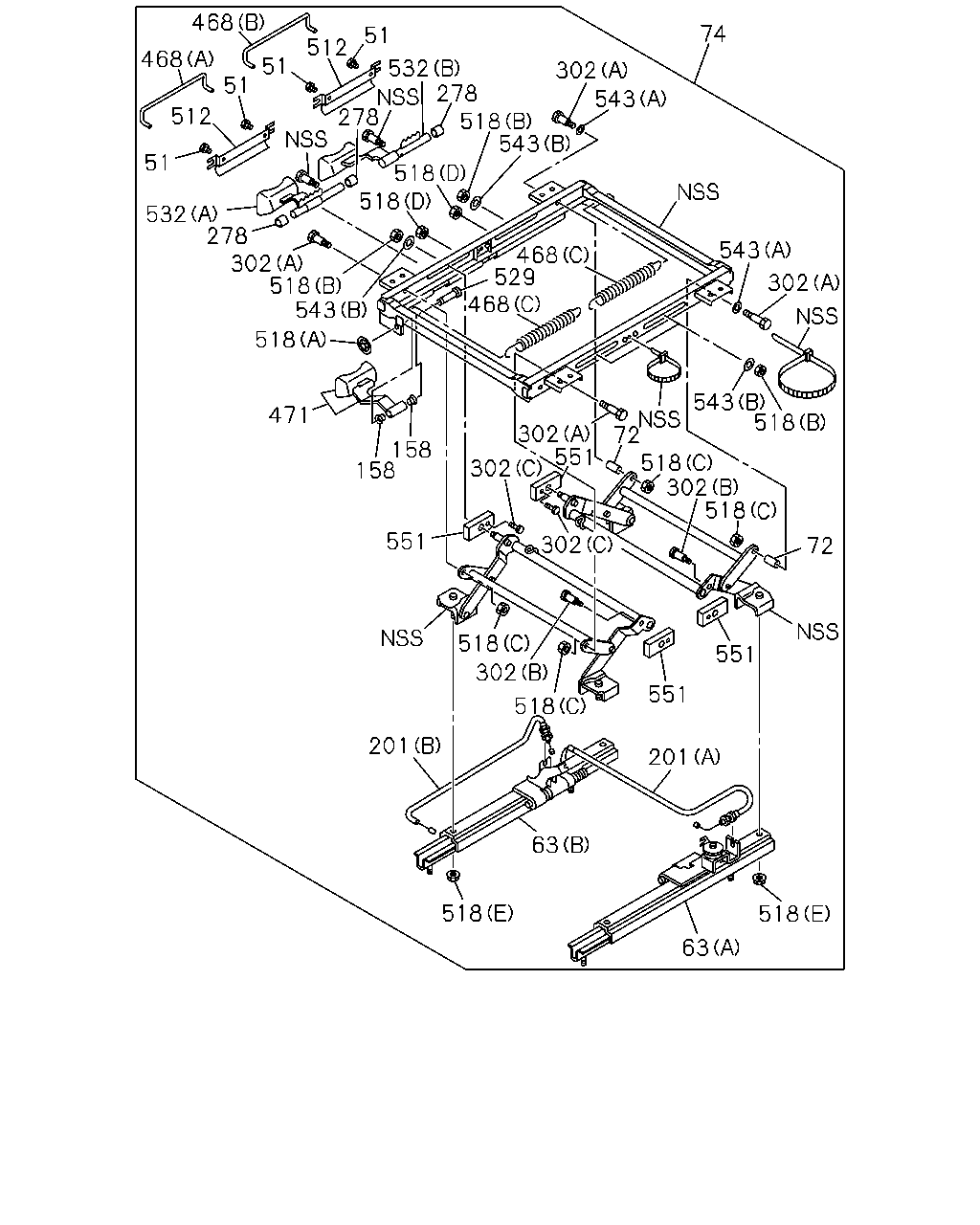

çizim 135102
468 468 512 51 532 278 302 518 543 518 471 51 51 512 51 532 278 278 518 518 518 302 543 543 74 468 529 468 543 302 543 302 302 551 72 518 302 518 302 72 551 551 201 518 63 63 518 302 518 518 201 551 158 158 518
BalonParca AdiParca NoAdetTipApplied Date A B
51 SCREW; COVER
THA 		1-75518-325-1 04 1 1204- ●
63 ADJUSTER; SEAT SLIDE
(A) THA 		1-75518-199-1 01 1 1204- ●
63 ADJUSTER; SEAT SLIDE
(B) THA 		1-75518-323-0 01 1 1204- ●
72 SPACER; SEAT ADJ
THA 		1-75518-334-1 02 1 1204-1507 ●
72 SPACER; SEAT ADJ
THA 		8-98291-668-0 02 1 1508- ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
THA 		8-98003-678-0 01 1 1204-1507 ●
74 ADJUSTER; FRT SEAT,HEIGHT CONT
THA 		8-98291-640-0 01 1 1508- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-327-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 1209- ●
158 BUSHING; LINK ARM
THA 		1-75518-209-0 02 1 1204-1208 ●
158 BUSHING; LINK ARM
THA 		1-75518-209-0 02 1 1209- ● ●
201 CABLE; ADJ
(B) L=605 THA 		1-75518-289-1 01 1 1204-1208 ●
201 CABLE; ADJ
(B) L=605 THA 		1-75518-289-1 01 1 1209- ● ●
201 CABLE; ADJ
(A) L=667 THA 		1-75518-288-0 01 1 1204-1208 ●
201 CABLE; ADJ
(A) L=667 THA 		1-75518-288-0 01 1 1209- ● ●
278 COLLAR; FRT SEAT
THA 		1-75518-244-0 03 1 1204- ●
302 BOLT; ADJ,HEIGHT CONT
(B) THA 		1-75518-266-2 02 1 1204- ●
302 BOLT; ADJ,HEIGHT CONT
(A) THA 		1-75518-270-1 04 1 1204-1507 ●
302 BOLT; ADJ,HEIGHT CONT
(A) THA 		8-98291-667-0 04 1 1508- ●
302 BOLT; ADJ,HEIGHT CONT
(C) THA 		1-75518-336-1 02 1 1204- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) THA 		1-75538-132-0 01 1 1204- ●
468 SPRING; RETURN
(A) THA 		1-75518-206-0 01 1 1204- ●
468 SPRING; RETURN
(B) THA 		1-75518-207-0 01 1 1204- ●
468 SPRING; RETURN
(C) THA 		1-75518-208-0 02 1 1204- ●
471 LEVER; SEAT ADJ
THA 		8-98107-869-0 01 1 1204-1208 ●
471 LEVER; SEAT ADJ
THA 		8-98107-869-0 01 1 1209- ● ●
512 COVER; LEVER
THA 		1-75518-243-1 02 1 1204- ●
518 NUT; TILT ADJ
(C) M8 THA 		1-75518-264-0 04 1 1204- ●
518 NUT; TILT ADJ
(E) M8 FLANGE THA 		1-75538-207-0 04 1 1204- ●
518 NUT; TILT ADJ
(D) M6 LOCK NUT THA 		5-09984-020-0 02 1 1204- ●
518 NUT; TILT ADJ
(B) M8 FLANGE THA 		8-94152-886-0 04 1 1204- ●
518 NUT; TILT ADJ
(A) THA 		1-75518-263-0 01 1 1204-1208 ●
518 NUT; TILT ADJ
(A) THA 		1-75518-263-0 01 1 1209- ● ●
529 PIN; LINK
THA 		1-75518-262-0 01 1 1204-1208 ●
529 PIN; LINK
THA 		1-75518-262-0 01 1 1209- ● ●
532 LEVER ASM; TILT
(A) THA 		1-75518-203-0 01 1 1204- ●
532 LEVER ASM; TILT
(B) THA 		1-75518-204-1 01 1 1204- ●
543 WASHER; HEIGHT ADJUSTER
(A) THA 		1-75518-335-0 02 1 1204-1507 ●
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 THA 		8-98291-669-0 02 1 1508- ●
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 THA 		9-09160-508-0 04 1 1204- ●
551 SLIDER; HEIGHT ADJ
THA 		1-75518-265-0 04 1 1204- ●

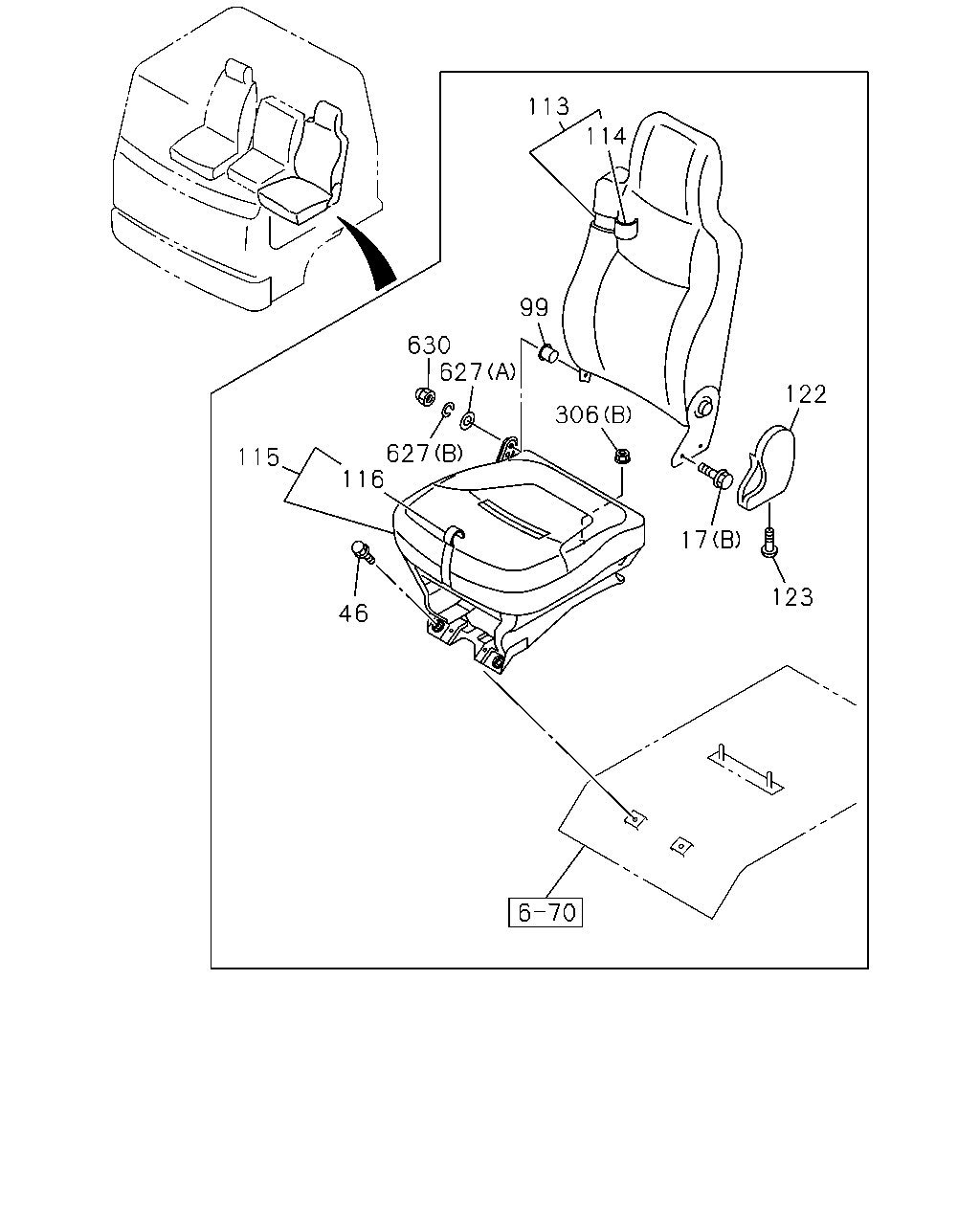

çizim 135175
122 123 17 306 627 99 113 630 147 115 46 116 627
BalonParca AdiParca NoAdetTipApplied Date A B
17 BOLT; RECLINING
(A) M10X20 THA 		8-98062-661-0 02 1 1204-1208 ●
17 BOLT; RECLINING
(A) M10X20 THA 		8-98062-661-0 02 1 1209- ● ●
17 BOLT; RECLINING
(B) M8X20 THA 		8-98092-334-0 02 1 1204-1208 ●
17 BOLT; RECLINING
(B) M8X20 THA 		8-98092-334-0 02 1 1209- ● ●
46 BOLT; STAND TO FLOOR
THA 		8-97925-965-0 02 1 1204-1208 ●
46 BOLT; STAND TO FLOOR
THA 		8-97925-965-0 02 1 1209- ● ●
99 BUSHING; SEAT BACK
THA 		8-98112-751-0 01 1 1204-1208 ●
99 BUSHING; SEAT BACK
THA 		8-98112-751-0 01 1 1209- ● ●
113 BACK ASM; SEAT
THA 		8-97925-324-0 01 1 1204- ●
113 BACK ASM; SEAT
THA 		8-97924-737-0 01 1 1209- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-327-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 1209- ●
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97925-333-0 01 1 1204- ●
115 CUSHION ASM; PASSENGER SEAT
THA 		8-97924-759-0 01 1 1209- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97925-330-0 01 1 1204- ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION
THA 		8-97924-760-0 01 1 1209- ●
122 COVER; ADJ,RECLINING
GRAY THA 		8-97409-967-0 01 1 1204-1208 ●
122 COVER; ADJ,RECLINING
GRAY THA 		8-97409-967-0 01 1 1209- ● ●
123 SCREW; COVER,RECLINING
THA 		8-98070-026-0 01 1 1204-1208 ●
123 SCREW; COVER,RECLINING
THA 		8-98070-026-0 01 1 1209- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 08 1 1209- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 06 1 1204- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1204-1208 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1209- ● ●
627 WASHER; FRT SEAT
(B) THA 		8-98063-224-0 01 1 1204-1208 ●
627 WASHER; FRT SEAT
(B) THA 		8-98063-224-0 01 1 1209- ● ●
627 WASHER; FRT SEAT
(A) THA 		8-98063-223-0 01 1 1204-1208 ●
627 WASHER; FRT SEAT
(A) THA 		8-98063-223-0 01 1 1209- ● ●
630 NUT; CAP
M8 THA 		8-98063-225-0 01 1 1204-1208 ●
630 NUT; CAP
M8 THA 		8-98063-225-0 01 1 1209- ● ●

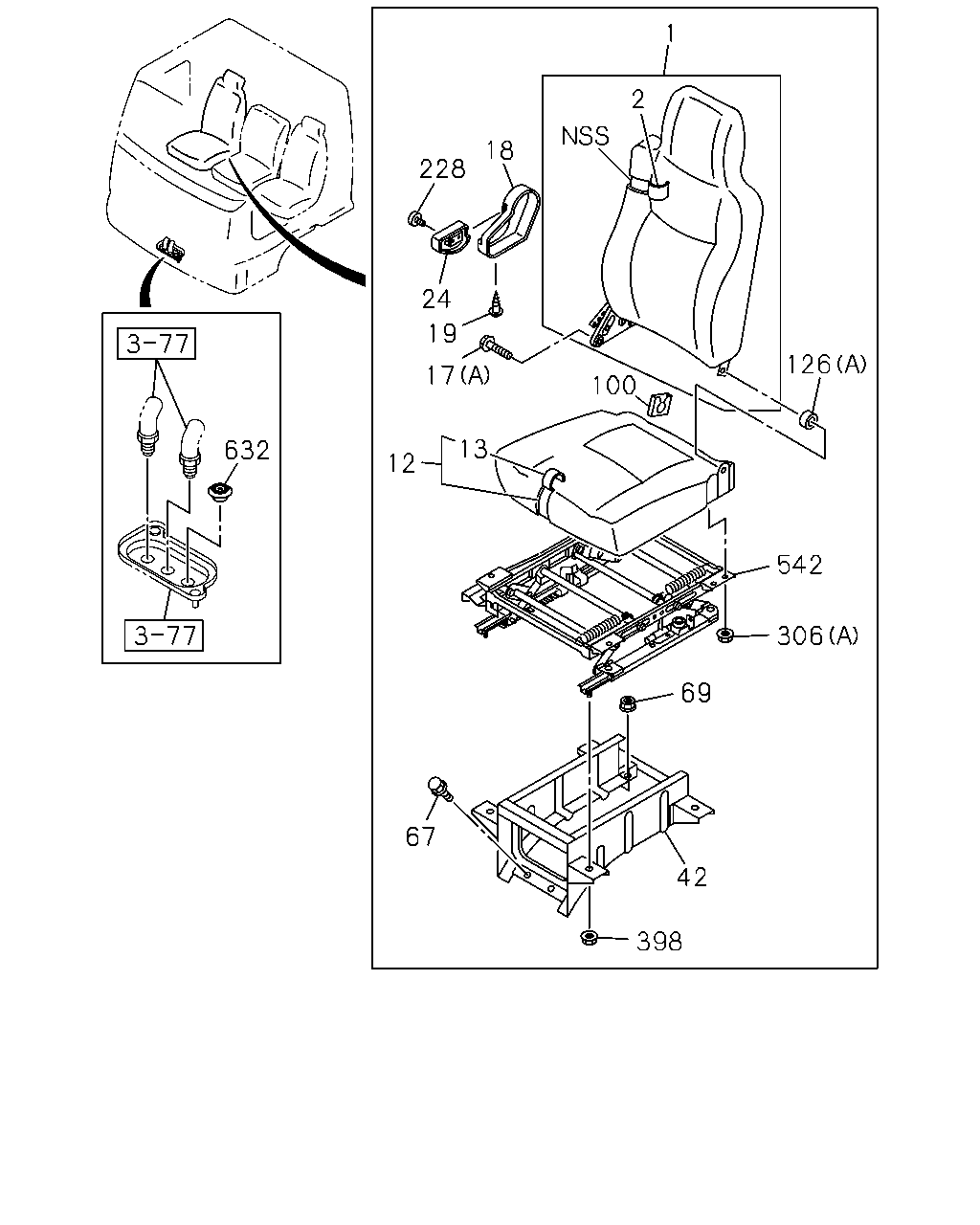

çizim 135229
1 2 18 228 24 19 17 100 126 13 12 542 306 69 67 42 398 632
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT
THA 		8-97924-734-0 01 1 1209- ●
1 BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-322-0 01 1 1204- ●
1 BACK ASM; SEAT
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-323-0 01 1 1204- ●
2 COVER; TRIM,FRT SEAT,BACK
THA 		8-97924-750-0 01 1 1209- ●
2 COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-325-0 01 1 1204- ●
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-326-0 01 1 1204- ●
12 CUSHION; SEAT,FRT
THA 		8-97924-748-1 01 1 1209- ●
12 CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-331-0 01 1 1204- ●
12 CUSHION; SEAT,FRT
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-332-0 01 1 1204- ●
13 COVER; TRIM,FRT SEAT,CUSHION
THA 		8-97924-749-0 01 1 1209- ●
13 COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56> THA 		8-97925-328-0 01 1 1204- ●
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT WO/ARM REST<TAZ> THA 		8-97925-329-0 01 1 1204- ●
17 BOLT; RECLINING
(A) M10X20 THA 		8-98062-661-0 02 1 1204-1208 ●
17 BOLT; RECLINING
(A) M10X20 THA 		8-98062-661-0 02 1 1209- ● ●
17 BOLT; RECLINING
(B) M8X20 THA 		8-98092-334-0 02 1 1204-1208 ●
17 BOLT; RECLINING
(B) M8X20 THA 		8-98092-334-0 02 1 1209- ● ●
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 1204-1208 ●
18 COVER; RECLINING
GRAY THA 		8-97409-332-0 01 1 1209- ● ●
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 1204-1208 ●
19 SCREW; COVER
M5 THA 		8-98062-663-0 01 1 1209- ● ●
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 1204-1208 ●
24 KNOB; RECLINING,FRT,SEAT
GRAY THA 		8-97409-333-0 01 1 1209- ● ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> 		1-75558-604-1 01 1 1204-1208 ●
42 STAND; DRIVER SEAT
RIGID SEAT WO/ARM REST<TAZ> THA 		1-75558-604-2 01 1 1209- ●
42 STAND; DRIVER SEAT
THA 		1-75558-604-2 01 1 1209- ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE THA 		0-28451-020-0 02 1 1204-1208 ●
67 BOLT; FRT SEAT TO BODY
M10X20 FLANGE THA 		0-28451-020-0 02 1 1209- ● ●
69 NUT; FRT SEAT
M10 FLANGE THA 		0-91180-110-0 02 1 1204-1208 ●
69 NUT; FRT SEAT
M10 FLANGE THA 		0-91180-110-0 02 1 1209- ● ●
100 COVER; HINGE 8-98203-070-0 01 1 1204-1208 ●
100 COVER; HINGE 8-98203-070-0 01 1 1209- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-327-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 1209- ●
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1204-1208 ●
126 BUSHING; HINGE,RECLINING
(A) THA 		8-98063-218-0 01 1 1209- ● ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA 		8-97917-184-0 01 1 1204-1208 ●
126 BUSHING; HINGE,RECLINING
CENTER SEAT<SA1> (B) THA 		8-97917-184-0 01 1 1204- ● ●
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 1204-1208 ●
228 SCREW; KNOB
M4 THA 		8-98062-662-0 01 1 1209- ● ●
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 08 1 1209- ●
306 NUT; SEAT ADJ
(A) M8 FLANGE THA 		1-75538-207-0 06 1 1204- ●
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1204-1208 ●
306 NUT; SEAT ADJ
(B) M10 FLANGE THA 		0-91180-110-0 02 1 1209- ● ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA 		1-75538-207-0 04 1 1204-1208 ●
398 NUT; STAND
RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE THA 		1-75538-207-0 04 1 1209- ●
398 NUT; STAND
M8 FLANGE THA 		1-75538-207-0 04 1 1209- ●
542 ADJUSTER ASM; SEAT SLIDE
THA 		8-98093-310-0 01 1 1209- ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1204-1208 ●
632 GROMMET
RIGID SEAT WO/ARM REST<TAZ> OD=24 		8-94119-796-0 01 1 1209- ●
632 GROMMET
OD=24 		8-94119-796-0 01 1 1209- ●

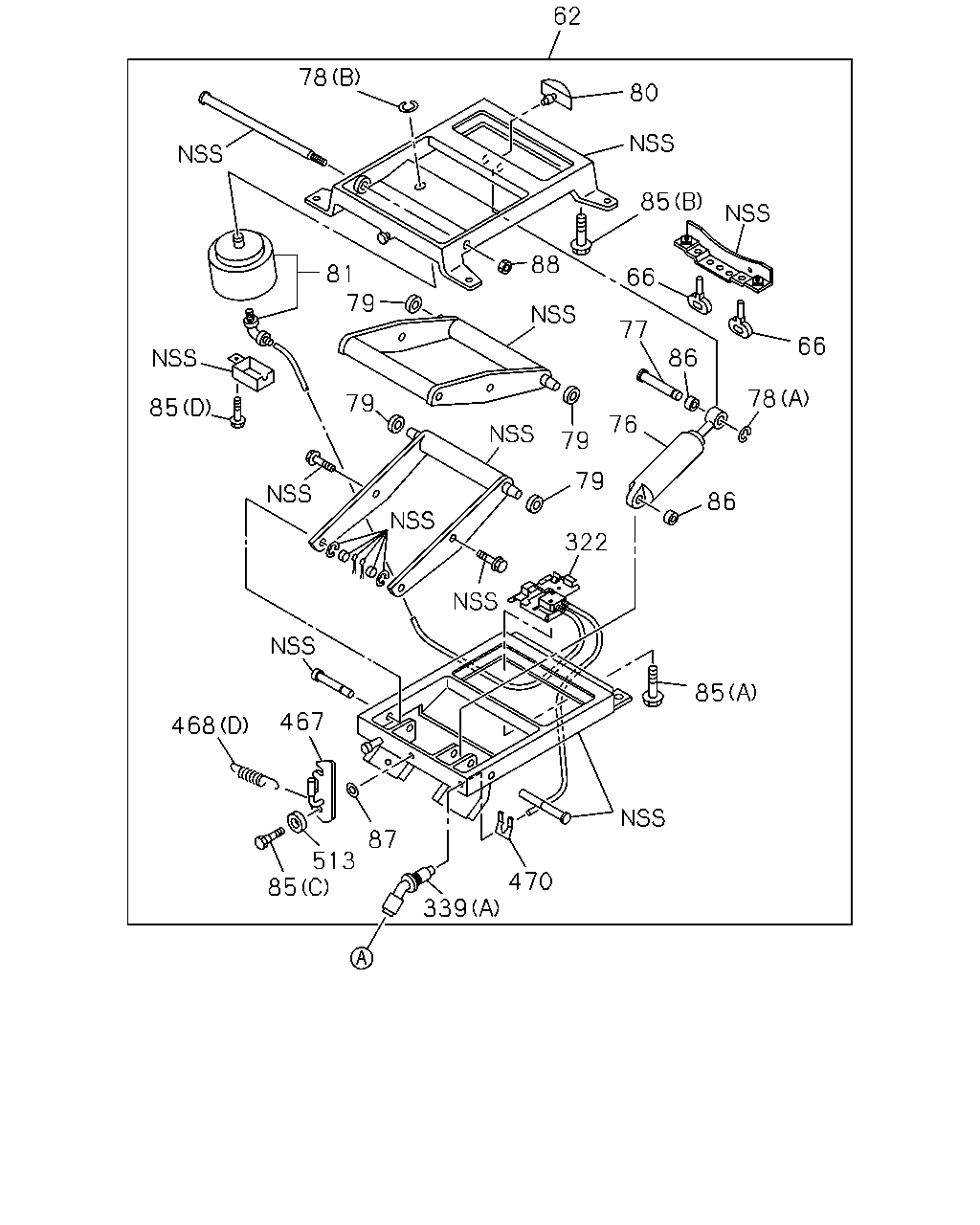

çizim 194264
62 80 85 66 66 88 77 86 78 76 86 79 79 322 85 470 339 85 513 87 468 467 85 79 79 81 78
BalonParca AdiParca NoAdetTipApplied Date A B
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-183-7 01 1 1204-1507 ●
62 DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-448-0 01 1 1508- ●
66 RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-145-0 02 1 1204- ●
76 DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-139-0 01 1 1204- ●
77 PIN; DAMPER
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-138-2 01 1 1204- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8 THA 		9-09185-408-0 01 1 1204- ●
78 RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=15 THA 		9-09185-415-0 01 1 1204- ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-159-0 04 1 1204-1507 ●
79 ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56> 		8-98261-489-0 04 1 1508- ●
80 RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56> THA 		1-09987-123-0 01 1 1204- ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-151-2 01 1 1204-1507 ●
81 SPRING; AIR
AIR SUSP DRIVER SEAT<A56> 		8-98242-816-0 01 1 1508- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C) 		1-09980-577-1 01 1 1204- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12 		1-75538-208-1 02 1 1204- ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER THA 		1-75538-209-0 03 1 1204-1312 ●
85 BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER THA 		1-75538-209-0 02 1 1401- ●
86 BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY THA 		1-09983-173-1 02 1 1204- ●
87 WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2 THA 		0-91510-508-0 01 1 1210- ●
88 NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10 THA 		1-75537-273-1 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-327-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 1209- ●
322 VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56> 		1-75538-186-3 01 1 1204- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (A) THA 		1-75538-131-3 01 1 1204- ●
339 UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56> (B) 		8-98014-971-0 01 1 1204- ●
467 LEVER; LOCK
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-134-0 01 1 1204- ●
468 SPRING; RETURN
AIR SUSP DRIVER SEAT<A56> (D) THA 		1-75538-132-0 01 1 1204- ●
468 SPRING; RETURN
(A) THA 		1-75518-206-0 01 1 1204- ●
468 SPRING; RETURN
(B) THA 		1-75518-207-0 01 1 1204- ●
468 SPRING; RETURN
(C) THA 		1-75518-208-0 02 1 1204- ●
470 CLIP; HOSE
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-137-0 01 1 1204- ●
513 SPACER; LEVER
AIR SUSP DRIVER SEAT<A56> THA 		1-75538-133-0 01 1 1204- ●
çizim 336650
359 533 365 535 360 537 537 360 534 360 360 536 538 536 360 359
BalonParca AdiParca NoAdetTipApplied Date A B
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97925-327-0 01 1 1204- ●
114 COVER; TRIM,PASSENGER SEAT,BACK
THA 		8-97924-761-0 01 1 1209- ●
359 BOX; PARCEL
CENTER SEAT<SA1> THA 		8-97924-469-0 01 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (B) M4X16 		0-70040-416-0 06 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (C) M5X16 TAPPING W/PL WASHER THA 		0-74360-516-0 04 1 1204- ●
360 SCREW; PARCEL
CENTER SEAT<SA1> (D) M5X20 		9-09829-324-1 02 1 1204- ●
365 LOCK ASM; SEAT
CENTER SEAT<SA1> THA 		8-97924-512-0 01 1 1204- ●
533 LID; PARCEL BOX
CENTER SEAT<SA1> THA 		8-97924-511-0 01 1 1204- ●
534 STRIKER; PARCEL BOX
CENTER SEAT<SA1> THA 		8-97913-529-0 01 1 1204- ●
535 HINGE; PARCEL BOX
CENTER SEAT<SA1> THA 		8-97913-533-0 01 1 1204- ●
536 RUBBER; CUSHION
CENTER SEAT<SA1> THA 		8-97914-858-0 02 1 1204- ●
537 BRACKET; RUBBER
CENTER SEAT<SA1> THA 		8-97914-859-0 02 1 1204- ●
538 GROMMET; SCREW
CENTER SEAT<SA1> THA 		8-97914-867-0 02 1 1204- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
