7-40 — INSTRUMENT PANEL AND BOX (#73174) — 219 parça

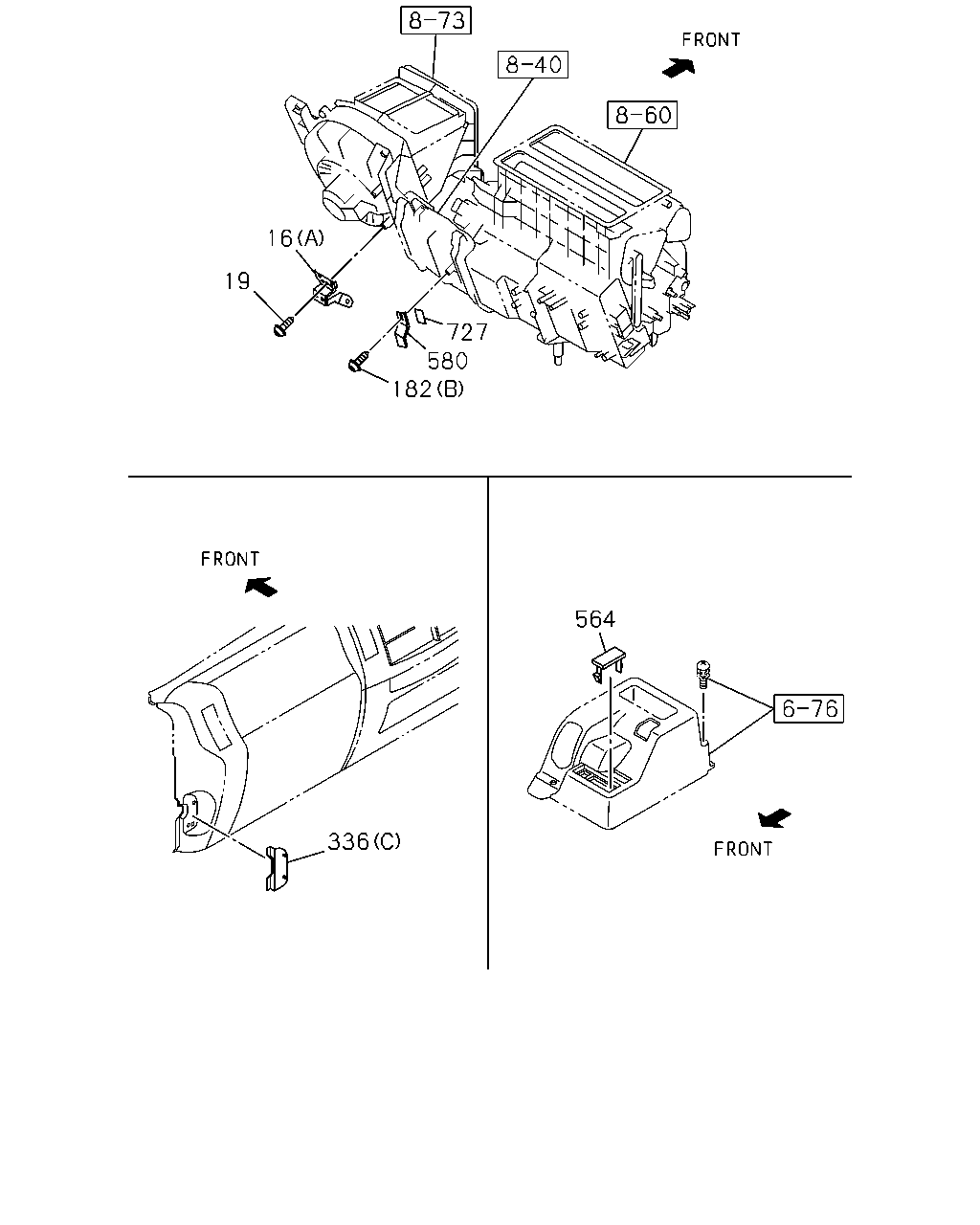

çizim 133163
16 19 727 580 182 336 564
BalonParca AdiParca NoAdetTipApplied Date A B
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1204-1208 ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1209- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1204-1208 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1209- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1204-1208 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1209- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1204-1208 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1209- ● ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1204-1208 ●
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1209- ● ●
564 COVER; SW 8-97043-732-1 04 1 1204- ●
564 COVER; SW 8-97043-732-1 06 1 1209- ●
580 BRACKET; COVER 8-98017-528-1 01 1 1204-1208 ●
580 BRACKET; COVER 8-98017-528-1 01 1 1209- ● ●
727 SEAL; BRACKET 8-98186-934-0 01 1 1204-1208 ●
727 SEAL; BRACKET 8-98186-934-0 01 1 1209- ● ●

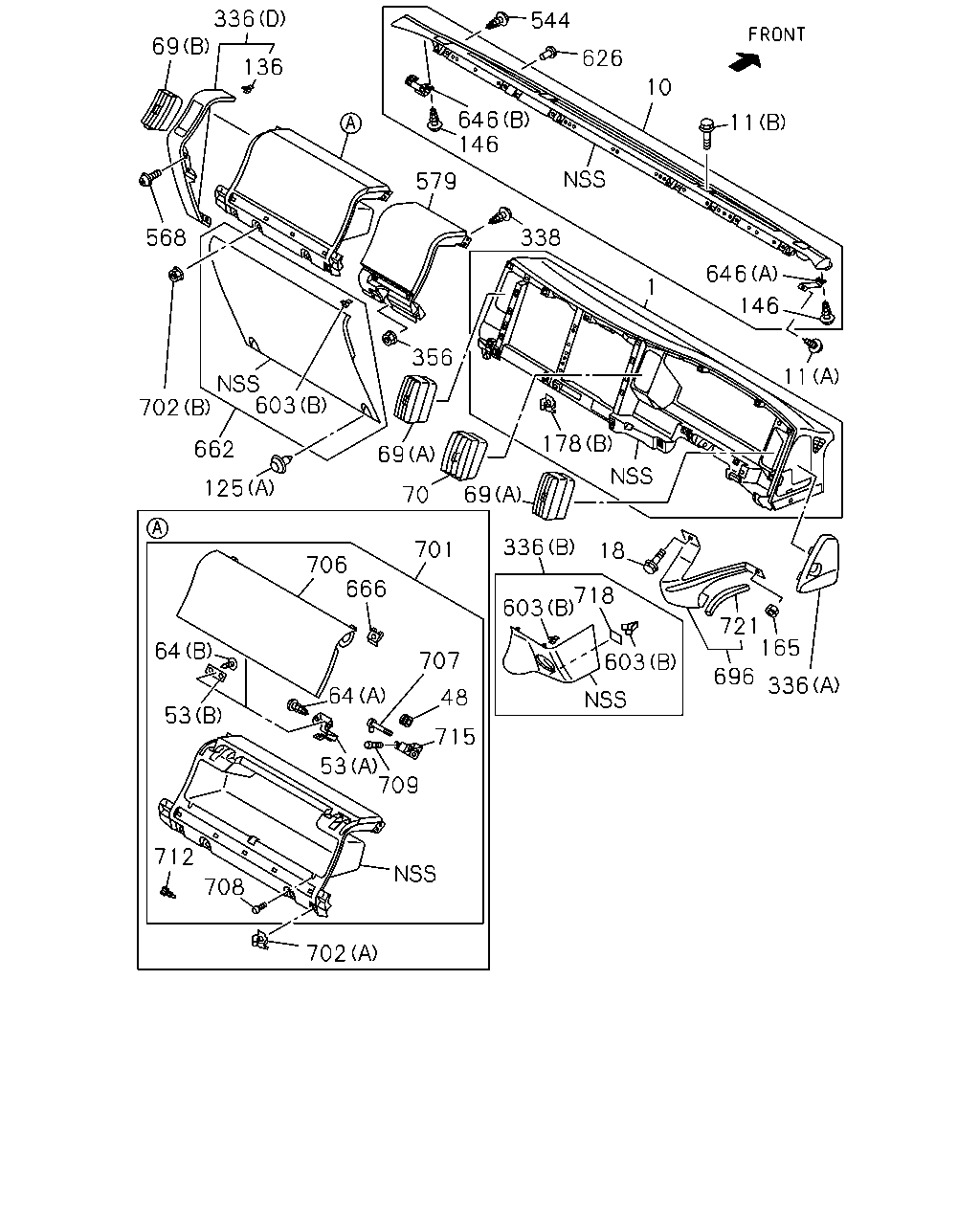

çizim 194260
336 69 136 544 626 10 11 646 146 579 568 603 702 662 125 69 356 338 70 69 178 336 18 718 603 701 706 666 707 48 715 64 64 53 53 709 712 708 702 603 696 336 165 721 11 146 646 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1204-1208 ●
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 1209- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1204-1208 ●
10 PANEL ASM; GARNISH
GRAY 		8-97422-097-1 01 1 1209- ● ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1204-1208 ●
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1209- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1204-1208 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1209- ● ●
18 BOLT; BRKT
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1204-1208 ●
18 BOLT; BRKT
T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 01 1 1209- ● ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1204-1208 ●
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 1209-1311 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-98270-763-0 01 1 1406- ● ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1204-1208 ●
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 1209-1311 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1312-1405 ● ●
48 SPRING; GLOVE BOX LID
THA 		8-98270-764-0 01 1 1406- ● ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1204-1208 ●
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 1209-1405 ● ●
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406- ● ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1204-1208 ●
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 1209-1405 ● ●
64 SCREW; STRIKER
(B) M4X85 THA 		8-97926-404-0 02 1 1406- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1204-1208 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1209- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1204-1208 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1209- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1204-1208 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1209- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1204-1208 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1209- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1204-1208 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1209- ● ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1204-1208 ●
136 CLIP; INST COVER 8-98076-254-0 02 1 1209- ● ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1204-1208 ●
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1209- ● ●
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 1204-1208 ●
165 NUT; BRKT KNEE PAD
M6 FLANGE THA 		0-91180-106-0 01 1 1209- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1204-1208 ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1209- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1204-1208 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1209- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 1209- ● ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1204-1208 ●
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1209- ● ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1204-1208 ●
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1209- ● ●
356 NUT; COVER
M6 FLANGE THA 		0-91180-106-0 01 1 1204-1208 ●
356 NUT; COVER
M6 FLANGE THA 		0-91180-106-0 01 1 1209- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1204-1208 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1209- ● ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1204-1208 ●
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1209- ● ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1204-1208 ●
579 COVER; INST PNL
GRAY 		8-97409-853-2 01 1 1209- ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1204-1208 ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1209- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1204-1208 ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1209- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1204-1208 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1209- ● ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1204-1208 ●
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 1209- ● ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1204-1208 ●
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 1209- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1204-1208 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1209- ● ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1204-1208 ●
666 INSERT; INST PANEL 8-98038-450-0 04 1 1209-1311 ● ●
666 INSERT; INST PANEL
M5 THA 		8-97926-400-0 04 1 1312- ● ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1204-1208 ●
696 BRACKET; KNEE 8-98066-085-1 01 1 1209- ● ●
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1204-1208 ●
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 1209-1405 ● ●
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406- ● ●
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1204-1208 ●
702 NUT; TRAY
(B) M6 FLANGE THA 		0-91180-106-0 02 1 1209- ● ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1204-1208 ●
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1209- ● ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1204-1208 ●
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 1209-1405 ● ●
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1204-1208 ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 1209-1311 ● ●
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1204-1208 ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 1209- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1204-1208 ●
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1209- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1204-1208 ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 1209- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1204-1208 ●
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 1209-1311 ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1312- ● ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1204-1208 ●
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 1209-1311 ● ●
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1312- ● ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1204-1208 ●
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 1209- ● ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1204-1208 ●
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 1209- ● ●

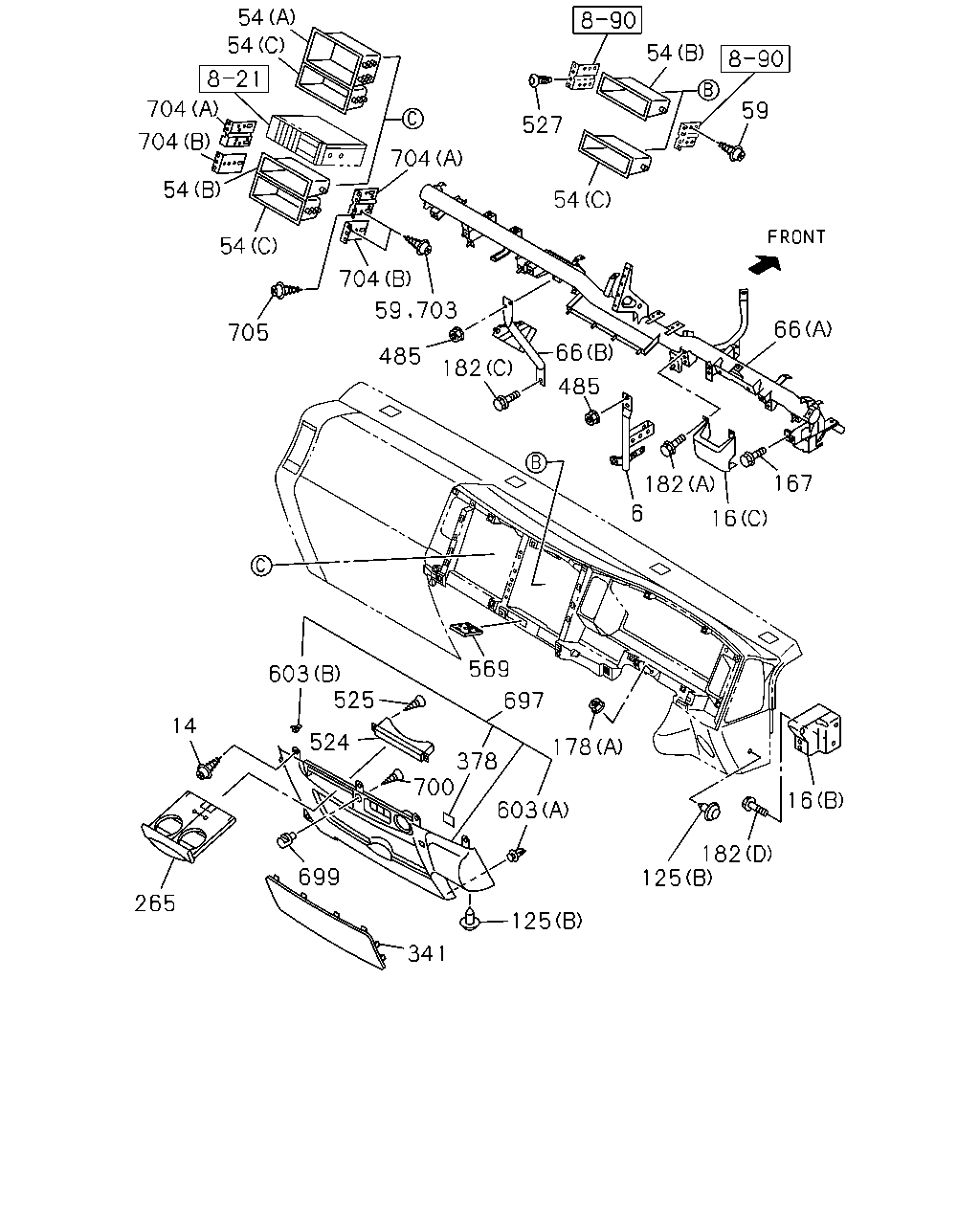

çizim 194263
54 54 704 704 54 54 704 705 59 703 485 182 704 527 54 54 59 66 66 485 182 167 16 6 569 697 178 16 182 125 125 341 699 265 14 603 525 524 378 700 603
BalonParca AdiParca NoAdetTipApplied Date A B
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1204-1208 ●
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1209- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1204-1208 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1209- ● ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1204-1208 ●
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 1209- ● ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1204-1208 ●
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1209- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1204-1208 ●
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1209- ● ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1204-1208 ●
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1209- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1204-1208 ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1209- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1204-1208 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1209- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1204-1208 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1209- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1204-1208 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1204-1208 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1209- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1209- ● ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1204-1208 ●
66 REINFORCEMENT; INST PANEL
(B) 		8-98151-167-0 01 1 1209- ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1204-1208 ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98174-904-1 01 1 1209-1406 ● ●
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-609-0 01 1 1407- ● ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1204-1208 ●
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1209- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1204-1208 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1209- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1204-1208 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1209- ● ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1204-1208 ●
178 NUT; INST PANEL
(A) M6 FLANGE THA 		0-91180-106-0 01 1 1209- ● ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1204-1208 ●
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE THA 		0-28050-816-0 04 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1209- ● ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1204-1208 ●
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1209- ● ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1204-1208 ●
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1209- ● ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1204-1208 ●
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1209- ● ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1204-1208 ●
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1209- ● ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1204-1208 ●
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE THA 		0-91180-106-0 04 1 1209- ● ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1204-1208 ●
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1209- ● ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1204-1208 ●
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1209- ● ●
527 CLIP; INST CLUSTER
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> DARK GRAY 		8-97098-326-0 01 1 1204-1208 ●
527 CLIP; INST CLUSTER
EXC. AIR CONDITIONER MANUAL CONT WO/HEATER<C65>, VENTILATOR & DEFROSTER WO/HEATER<SAZ> DARK GRAY 		8-97098-326-0 01 1 1209- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 1204-1208 ●
569 HOLDER; CARD 8-97410-276-1 01 1 1209- ● ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1204-1208 ●
603 CLIP; COVER
(A) THA 		8-98004-025-0 01 1 1209- ● ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1204-1208 ●
603 CLIP; COVER
(B) 		8-98021-271-0 09 1 1209- ● ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1204-1208 ●
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1209- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1204-1208 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1209- ● ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1204-1208 ●
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1209- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1204-1208 ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1209- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1204-1208 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1209- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1204-1208 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1209- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1204-1208 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
