◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#73170) — 15 parça

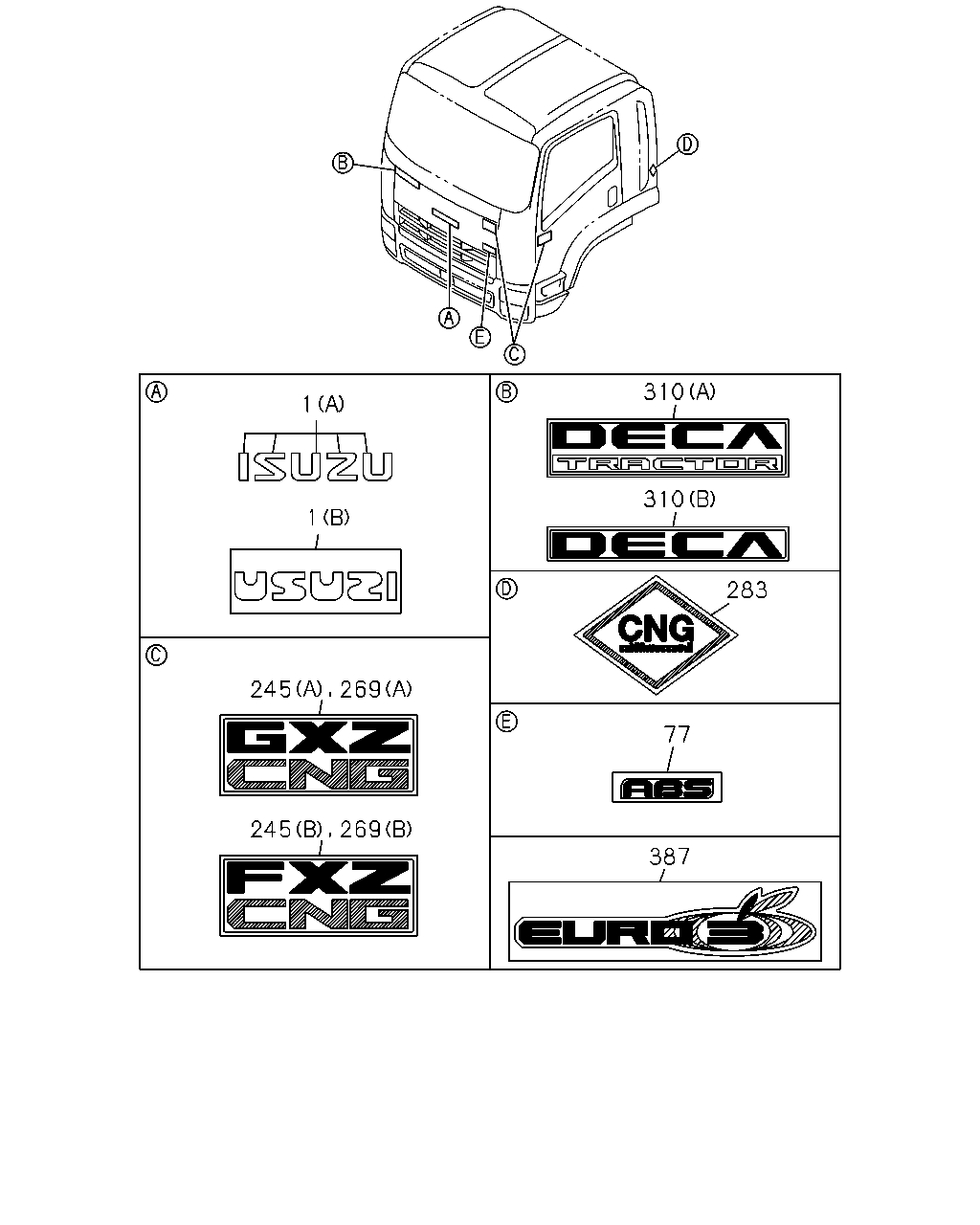

çizim 132497
310 310 283 77 387 269 245 269 245 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MARK; ISUZU
(A) 		8-98041-913-0 01 1 1210-1210 ● ●
1 MARK; ISUZU
(B) THA 		8-97926-494-0 01 1 1211- ● ●
1 MARK; ISUZU
(A) 		8-98041-913-0 01 1 1204-1208 ●
1 MARK; ISUZU
(A) 		8-98041-913-0 01 1 1209- ● ●
77 DECAL; "ANTI LOCK BRAKE SYSTEM"
ANTILOCK BRAKE SYSTEM<BFA> THA 		8-97924-929-0 01 1 1204- ●
245 DECAL; MODEL
(A) THA 		8-97925-645-0 01 1 1204- ●
245 DECAL; MODEL
(B) THA 		8-97925-960-0 01 1 1209- ●
269 DECAL; SIDE DOOR
(A) THA 		8-97925-645-0 02 1 1204- ●
269 DECAL; SIDE DOOR
(B) THA 		8-97925-960-0 02 1 1209- ●
283 DECAL; CNG
THA 		8-97924-926-2 02 1 1204-1208 ●
283 DECAL; CNG
THA 		8-97924-926-2 02 1 1209- ● ●
310 DECAL; "DECA"
(A) THA 		8-97924-290-0 01 1 1204- ●
310 DECAL; "DECA"
(B) THA 		8-97924-289-0 01 1 1209- ●
387 DECAL; "EURO"
THA 		8-97926-415-0 02 1 1208-1208 ●
387 DECAL; "EURO"
THA 		8-97926-415-0 02 1 1209- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
