Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10806 - EXZ RHD FUEL TANK 400L
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#7317) — 20 parça
◀

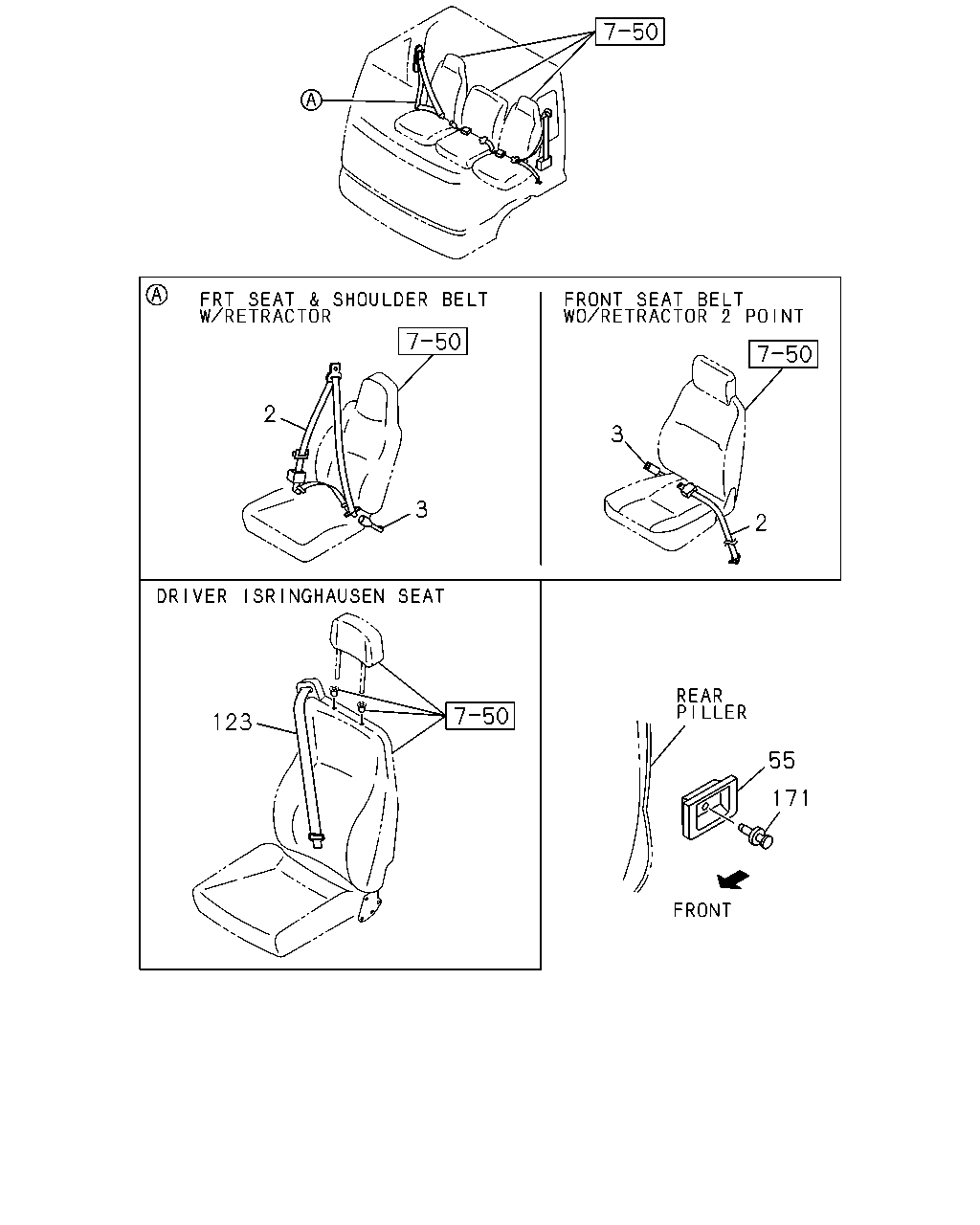

[760A] DRIVER SEAT (6 parça)

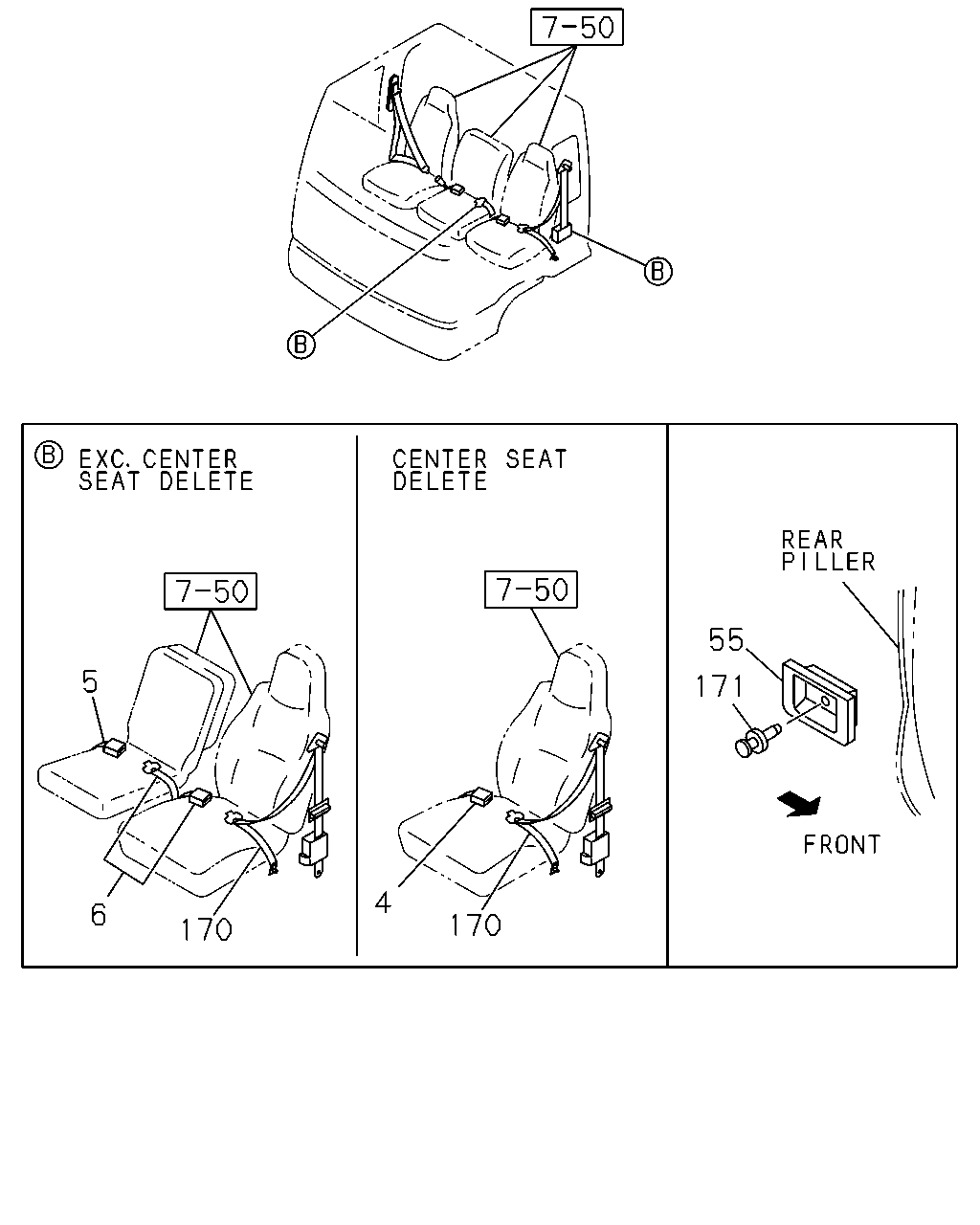

[760A] PASSENGER SEAT AND CENTER SEAT (10 parça)

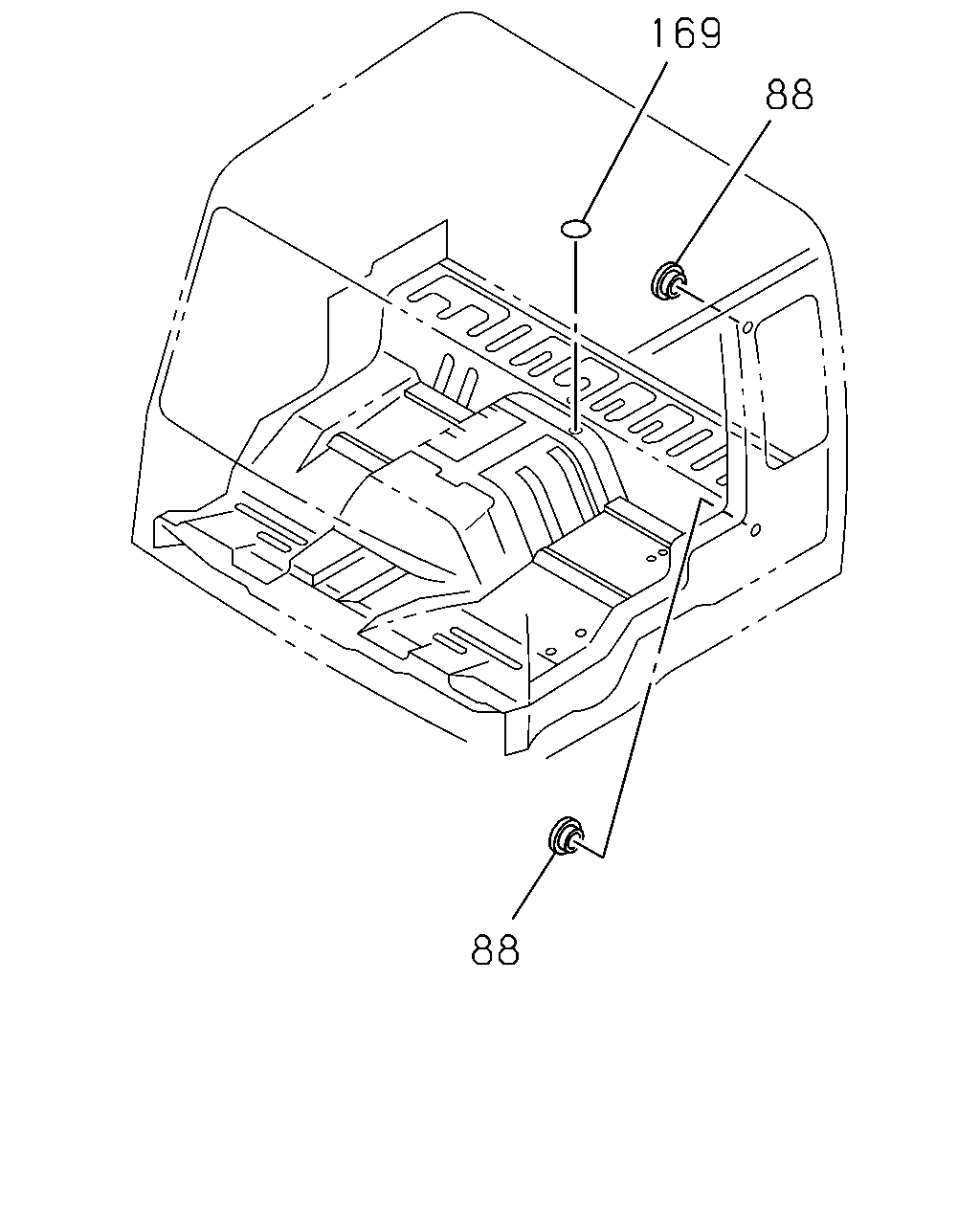

[760A] HOLE PLUG AND SEAL (4 parça)
▶
2
3
3
2
123
55
171
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA)
1-75617-509-4
01
1
9906-
3
BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA)
1-75618-779-0
01
1
9906-
55
GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA)
1-75617-513-0
01
1
9906-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-513-0
02
1
9906-
123
BELT ASM; SEAT
ISRINGHAUSEN SEAT(SJA)
1-75617-570-0
01
1
9906-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
9906-
55
5
171
4
6
170
170
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA)
1-75618-752-1
01
1
9906-
4
BELT; PASSENGER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9)
1-75617-566-1
01
1
9906-
5
BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. CENTER SEAT DELETE(SP9)
1-75618-739-0
01
1
9906-
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)
1-75617-567-1
01
1
9906-
6
BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)
1-75618-737-4
01
1
9906-
55
GUIDE; SEAT BELT
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA)
1-75617-513-0
01
1
9906-
55
GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3)
1-75617-513-0
02
1
9906-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA)
1-75617-565-1
01
1
9906-
170
BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) EXC. ISRINGHAUSEN SEAT(SJA)
1-75618-738-5
01
1
9906-
171
CLIP; SEAT BELT GUIDE
1-09987-239-0
02
1
9906-
169
88
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
88
PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=31.6
8-94198-177-0
02
1
9906-
169
SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK
1-76798-019-0
01
1
9906-
169
SEAL
FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) ISRINGHAUSEN SEAT(SJA) OD=25 BLACK
1-76798-019-0
02
1
9906-
169
SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR(AK3) OD=25 BLACK
1-76798-019-0
04
1
9906-
