6-66 — HEAD LINING AND TRIM (#73161) — 12 parça

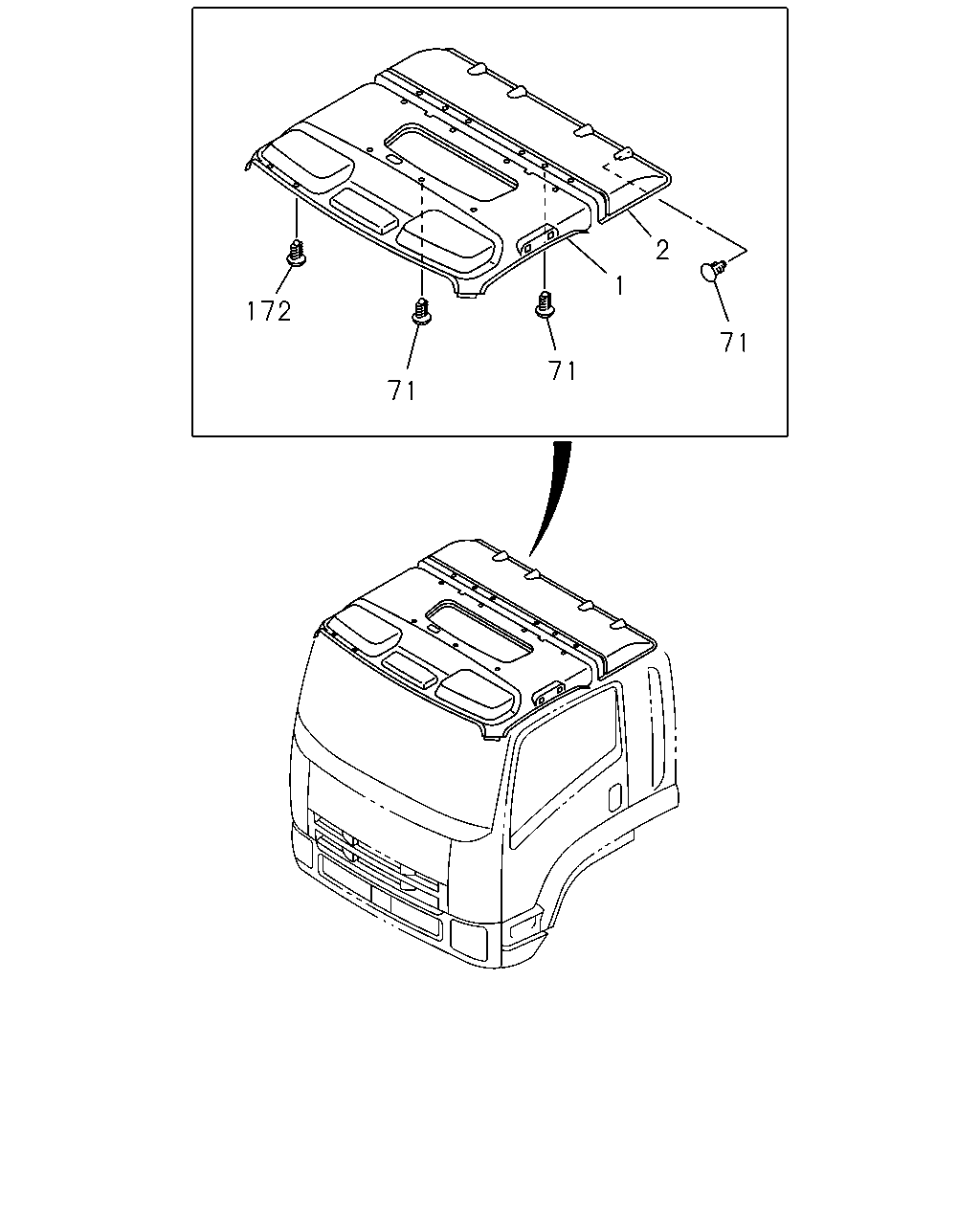

çizim 194250
172 71 71 71 1 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-899-3 01 1 1204-1208 ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-899-3 01 1 1209-1306 ● ●
1 LINING; HD
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-728-0 01 1 1307- ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-898-3 01 1 1204-1208 ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97409-898-3 01 1 1209-1306 ● ●
1 LINING; HD
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97426-727-0 01 1 1307- ● ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97407-455-5 01 1 1204-1208 ●
2 LINING; HD,ROOF RR
DARK GRAY 		8-97407-455-5 01 1 1209- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1204-1208 ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 07 1 1209- ● ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 12 1 1204-1208 ●
172 RETAINER; HEAD LINING
DARK GRAY 		8-97411-875-0 12 1 1209- ● ●
