◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#73160) — 19 parça

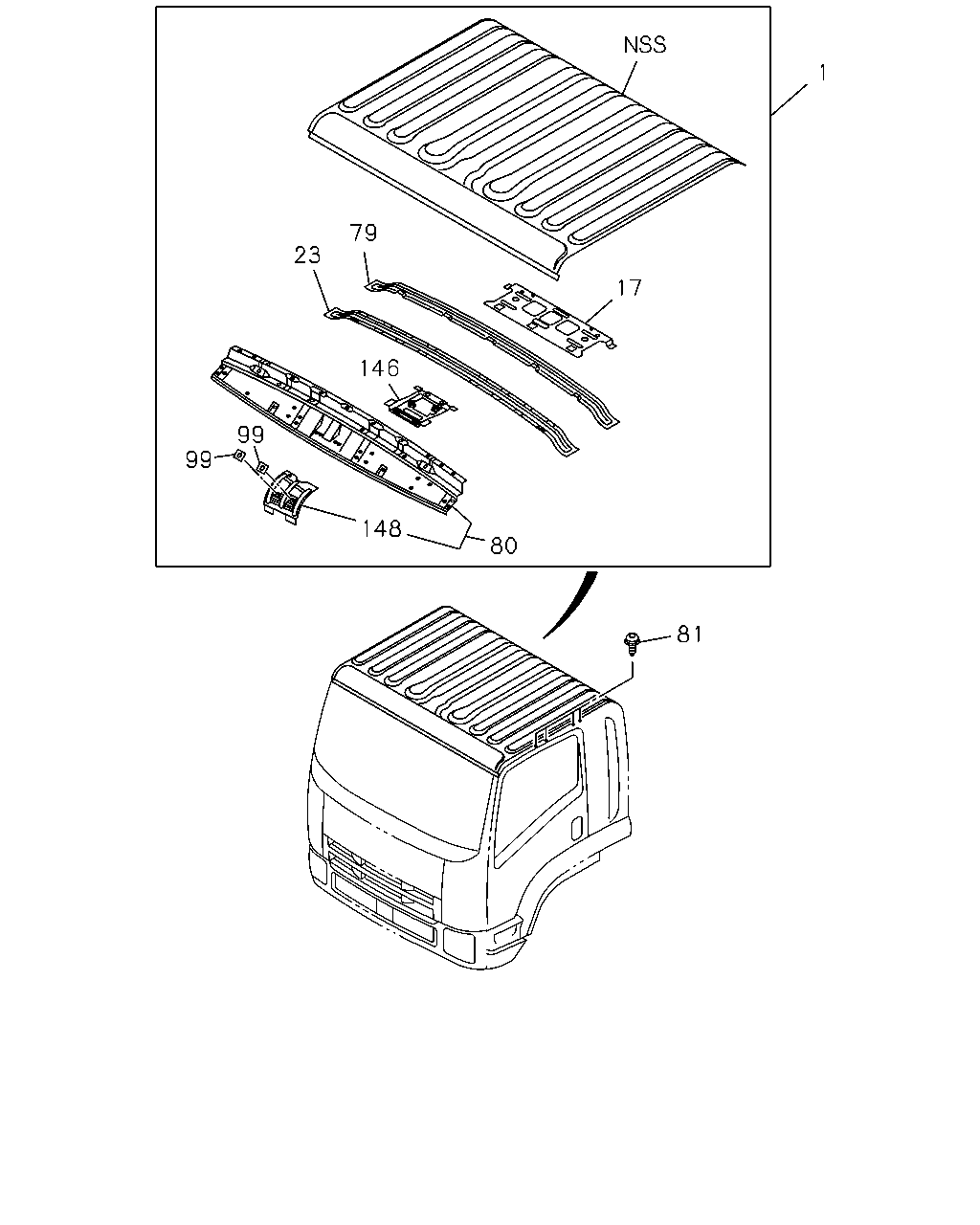

çizim 131494
1 17 79 23 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; ROOF
THA 		8-97925-345-0 01 1 1204-1208 ●
1 PANEL; ROOF
THA 		8-97925-345-0 01 1 1209- ● ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1204-1208 ●
17 REINFORCEMENT; ROOF PNL CENTER 8-97584-203-5 01 1 1209- ● ●
23 REINFORCEMENT; ROOF PANEL,FRT
THA 		8-98019-316-0 01 1 1204-1208 ●
23 REINFORCEMENT; ROOF PANEL,FRT
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98019-316-0 01 1 1209- ● ●
79 REINFORCEMENT; ROOF PANEL,RR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-276-0 01 1 1306- ● ●
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1204-1208 ●
79 REINFORCEMENT; ROOF PANEL,RR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97584-200-1 01 1 1209-1306 ● ●
80 PANEL; HEADER,ROOF
THA 		8-97925-343-0 01 1 1204-1208 ●
80 PANEL; HEADER,ROOF
THA 		8-97925-343-0 01 1 1209- ● ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1204-1208 ●
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1209- ● ●
99 SEAL; BODY,METAL
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1209- ● ●
146 REINFORCEMENT; ROOM LAMP
THA 		8-98075-827-0 01 1 1204-1208 ●
146 REINFORCEMENT; ROOM LAMP
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-98075-827-0 01 1 1209- ● ●
148 REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> THA 		8-97948-275-0 01 1 1306- ● ●
148 REINFORCEMENT; MIRROR 8-97411-015-1 01 1 1204-1208 ●
148 REINFORCEMENT; MIRROR
MIRROR - O/SIDE RR VIEW,PILLAR MOUNTED<DNB> 		8-97411-015-1 01 1 1209-1306 ● ●
