6-47 — MUD GUARD AND INSULATOR (#73159) — 147 parça

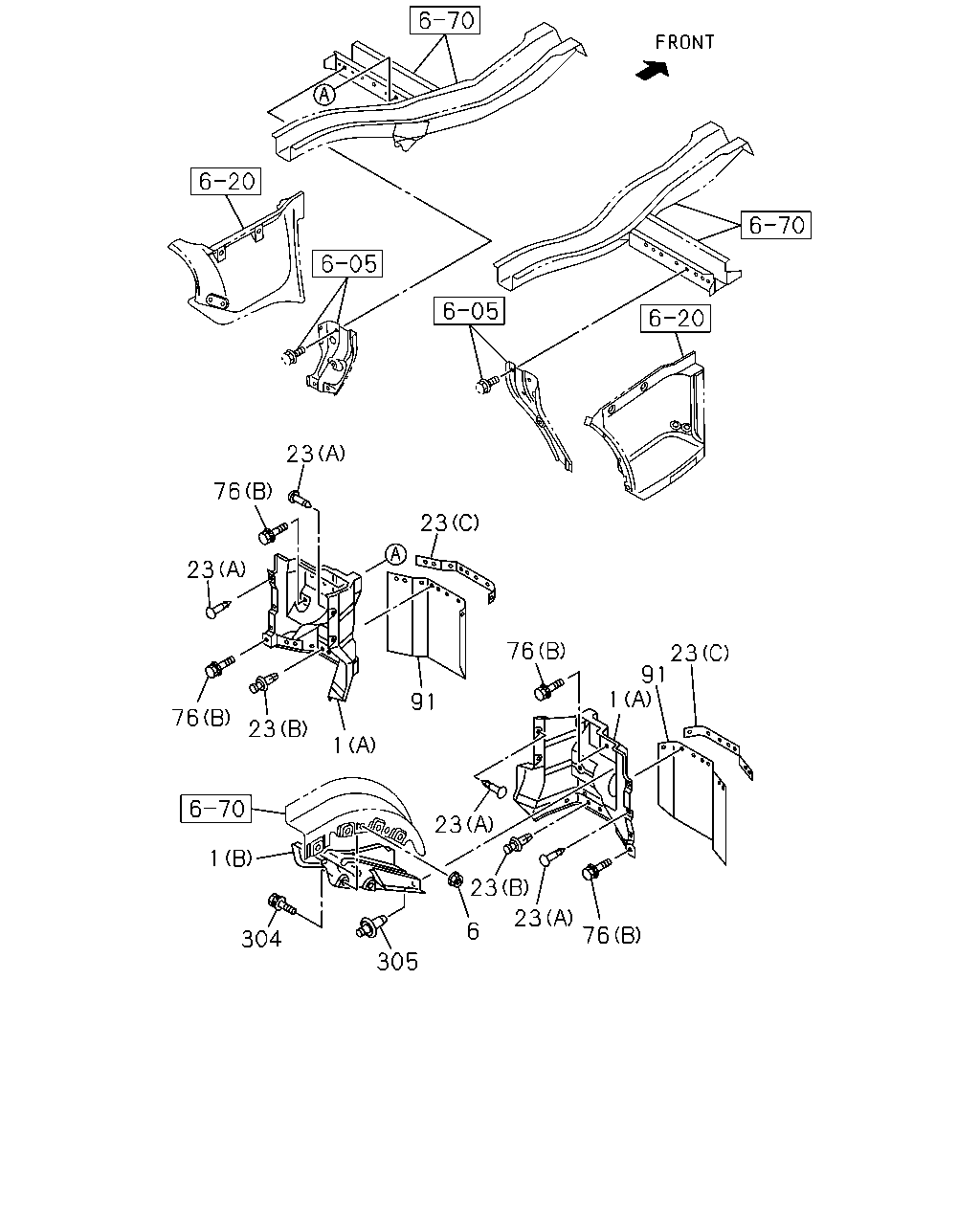

çizim 131199
23 76 23 76 23 1 91 23 1 304 305 6 23 23 23 76 76 1 91 23
BalonParca AdiParca NoAdetTipApplied Date A B
1 GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B) 		8-98076-271-0 01 1 1209- ●
1 GUARD; MUD,FRT
(A) 		8-97617-152-0 01 1 1204-1208 ●
1 GUARD; MUD,FRT
(A) 		8-97617-152-0 01 1 1209- ● ●
1 GUARD; MUD,FRT
(A) 		8-97617-151-0 01 1 1204-1208 ●
1 GUARD; MUD,FRT
(A) 		8-97617-151-0 01 1 1209- ● ●
6 NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE 		8-94197-199-0 02 1 1209- ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1204-1208 ●
23 FASTENER; MUD COVER
(B) 		1-09470-001-0 10 1 1209- ● ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 08 1 1204-1208 ●
23 FASTENER; MUD COVER
(A) D8X13.5 		1-09987-248-1 08 1 1209- ● ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 1204-1208 ●
23 FASTENER; MUD COVER
(C) 		8-98060-235-0 02 1 1209- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1204-1208 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1209- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1204-1208 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1209- ● ●
91 COVER; MUD,FRT 8-98136-553-0 02 1 1204-1208 ●
91 COVER; MUD,FRT 8-98136-553-0 02 1 1209- ● ●
304 BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER 		1-09980-495-0 02 1 1209- ●
305 FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5 		1-09987-248-1 02 1 1209- ●

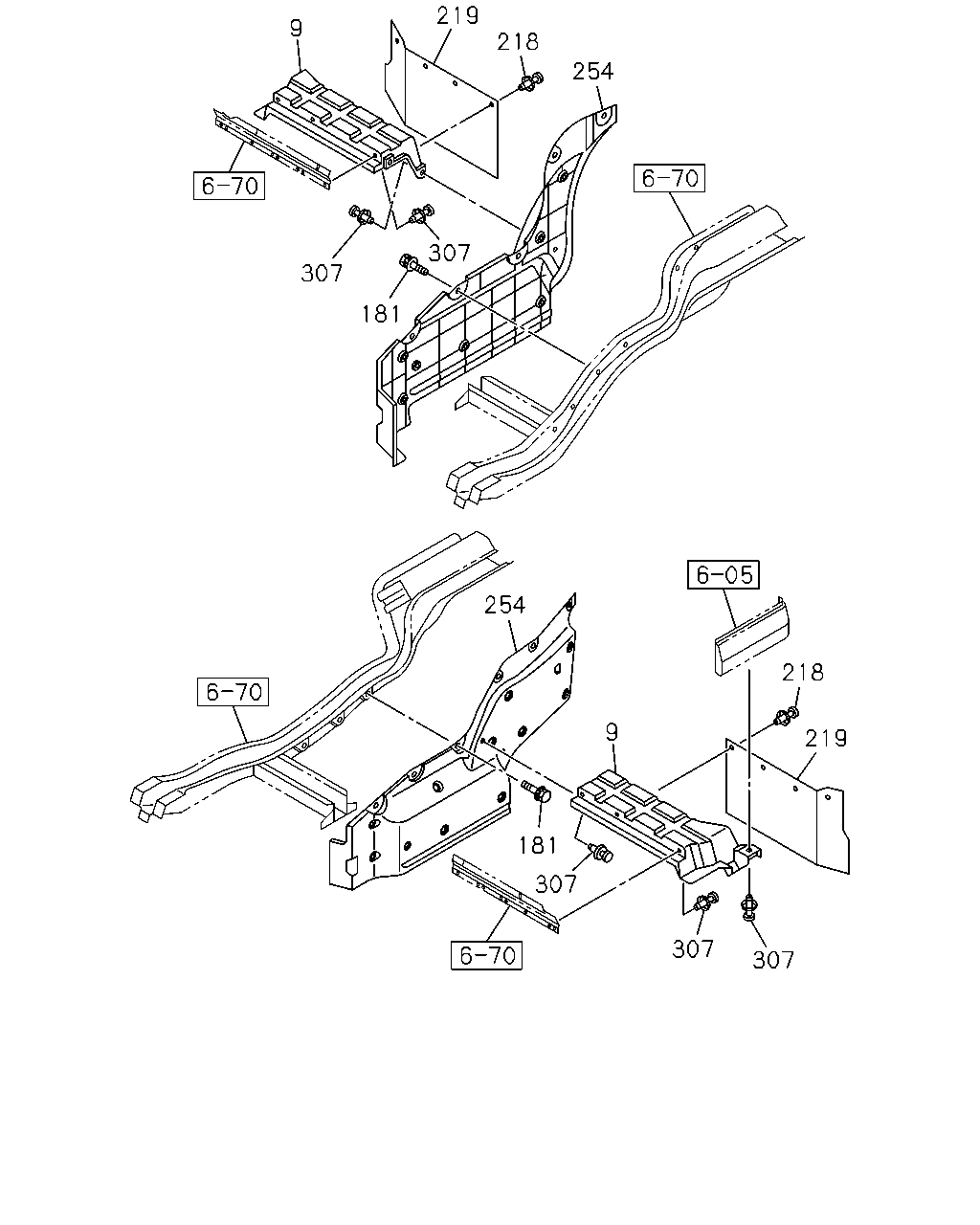

çizim 131411
9 219 218 254 307 181 307 254 9 218 219 307 307 307 181
BalonParca AdiParca NoAdetTipApplied Date A B
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 1204-1208 ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-133-1 01 1 1209- ● ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 1204-1208 ●
9 GUARD; SPLASH,WHEEL HOUSE 8-97617-132-1 01 1 1209- ● ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1204-1208 ●
181 BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 11 1 1209- ● ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1204-1208 ●
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 1209- ● ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 1204-1208 ●
219 FLAP; MUD GUARD 8-97617-139-0 02 1 1209- ● ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1204-1208 ●
254 COVER; MUD,VALANCE 8-97617-144-0 01 1 1209- ● ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 1204-1208 ●
254 COVER; MUD,VALANCE 8-97617-143-1 01 1 1209- ● ●
307 RETAINER
D8X13.5 		1-09987-248-1 12 1 1204-1208 ●
307 RETAINER
D8X13.5 		1-09987-248-1 12 1 1209- ● ●

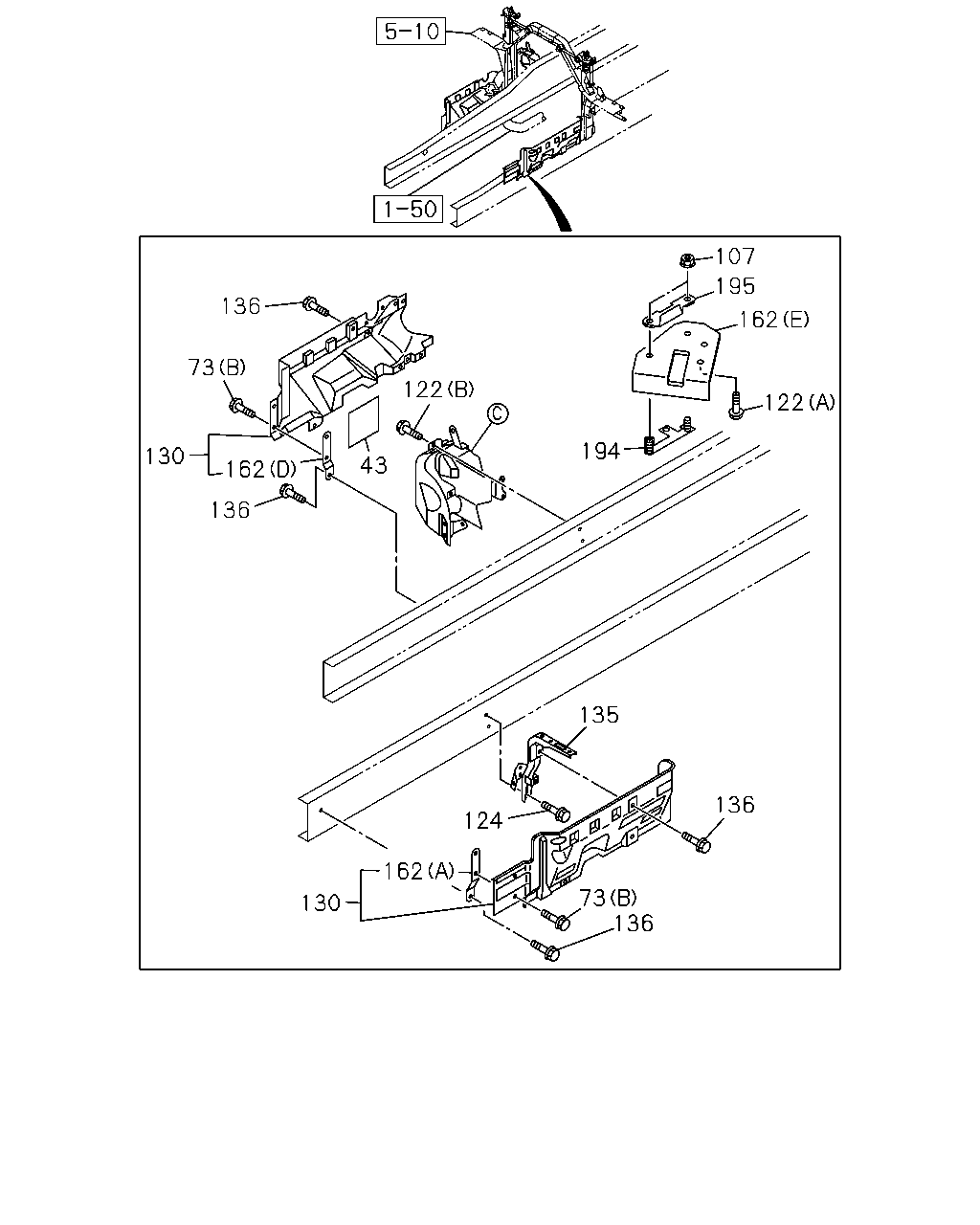

çizim 131520
136 73 130 136 162 43 122 107 195 162 122 194 135 136 136 73 124 162 130
BalonParca AdiParca NoAdetTipApplied Date A B
43 INSULATION; FENDER SIDE 8-98197-794-0 01 1 1204-1208 ●
43 INSULATION; FENDER SIDE 8-98197-794-0 01 1 1209-1209 ● ●
43 INSULATION; FENDER SIDE 8-98226-370-0 01 1 1210- ● ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1204-1208 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1209- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1204-1208 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1204-1208 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1209- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1209- ● ●
107 NUT; HEAT PROTECTOR
M8 FLANGE THA 		0-91180-108-0 02 1 1204-1208 ●
107 NUT; HEAT PROTECTOR
M8 FLANGE THA 		0-91180-108-0 02 1 1209- ● ●
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 1204-1208 ●
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 1209- ● ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 1204-1208 ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 1209- ● ●
124 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1204-1208 ●
124 BOLT; BRKT
M8X25 FLANGE THA 		0-28650-825-0 02 1 1209- ● ●
124 BOLT; BRKT
M12X25 FLANGE THA 		0-28051-225-0 02 1 1204-1208 ●
124 BOLT; BRKT
M12X25 FLANGE THA 		0-28051-225-0 02 1 1209- ● ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1204-1208 ●
130 PANEL; SHUTTER NOISE 8-98088-647-0 01 1 1209- ● ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 1204-1208 ●
130 PANEL; SHUTTER NOISE 8-98088-648-3 01 1 1209- ● ●
135 BRACKET; SIDE PANEL
THA 		8-98055-600-1 01 1 1204-1208 ●
135 BRACKET; SIDE PANEL
THA 		8-98055-600-1 01 1 1209- ● ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1204-1208 ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 04 1 1209- ● ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1204-1208 ●
136 BOLT
M8X30 W/LK&PL WASHER 		1-09030-095-0 08 1 1209- ● ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 1204-1208 ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 1209- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1204-1208 ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1209- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1204-1208 ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1209- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1204-1208 ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1209- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1204-1208 ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1209- ● ●
194 BRACKET; HEAT PROTECTOR 8-97609-044-0 01 1 1204-1208 ●
194 BRACKET; HEAT PROTECTOR 8-97609-044-0 01 1 1209- ● ●
195 PROTECTOR; HEAT 8-97609-045-0 01 1 1204-1208 ●
195 PROTECTOR; HEAT 8-97609-045-0 01 1 1209- ● ●

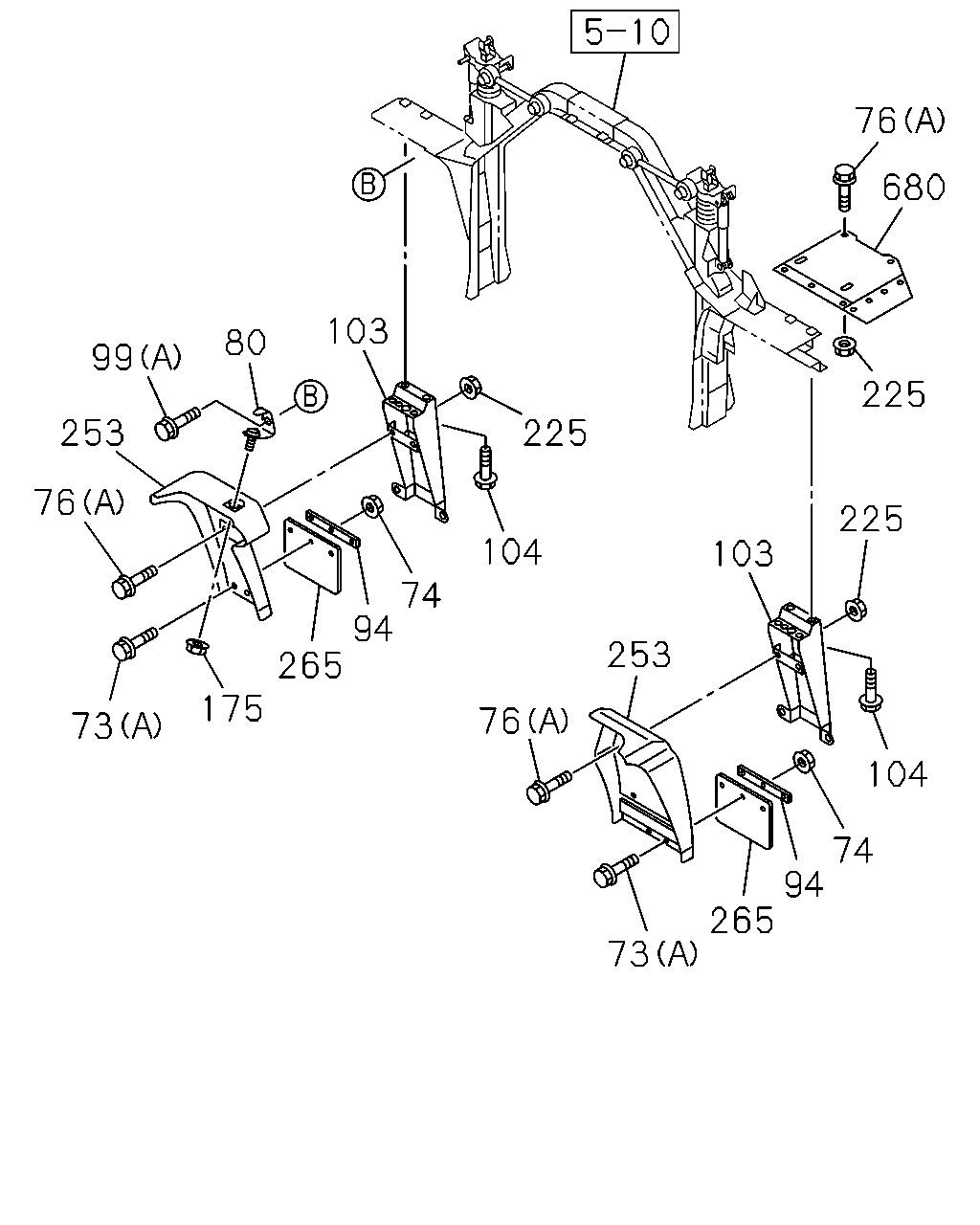

çizim 131720
76 253 99 80 103 76 680 225 225 104 74 94 265 73 76 253 103 225 104 74 94 265 175 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1204-1208 ●
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 1209- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1204-1208 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1204-1208 ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1209- ● ●
73 BOLT; MUD COVER BRKT
(B) M8X30 W/LK&PL WASHER 		1-09030-095-0 02 1 1209- ● ●
74 NUT
M8 FLANGE THA 		0-91180-108-0 06 1 1204-1208 ●
74 NUT
M8 FLANGE THA 		0-91180-108-0 06 1 1209- ● ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1204-1208 ●
76 BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 12 1 1209- ● ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1204-1208 ●
76 BOLT; MUD GUARD
(B) M8X25 W/LK&PL WASHER 		8-94331-747-1 06 1 1209- ● ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1204-1208 ●
80 BRACKET; MUD GUARD STAY 8-98057-793-0 01 1 1209- ● ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1204-1208 ●
94 RETAINER; FLAP RUBBER 1-79931-091-2 01 1 1209- ● ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1204-1208 ●
94 RETAINER; FLAP RUBBER 8-98038-675-0 01 1 1209- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA 		0-28650-616-0 08 1 1204-1208 ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA 		0-28650-616-0 08 1 1209- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 1204-1208 ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 1209- ● ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1204-1208 ●
103 BRACKET ASM; RR MUD FLAP 8-98055-593-1 02 1 1209- ● ●
104 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 08 1 1204-1208 ●
104 BOLT; BRKT
M10X25 FLANGE THA 		0-28651-025-0 08 1 1209- ● ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1204-1208 ●
175 NUT; STAY FIX
M8 W/DISHED WASHER 		8-97329-625-0 01 1 1209- ● ●
225 NUT; MUD GUARD
M8 FLANGE THA 		0-91180-108-0 12 1 1204-1208 ●
225 NUT; MUD GUARD
M8 FLANGE THA 		0-91180-108-0 12 1 1209- ● ●
253 GUARD; MUD 8-98057-779-1 01 1 1204-1208 ●
253 GUARD; MUD 8-98057-779-1 01 1 1209- ● ●
253 GUARD; MUD 8-98057-778-1 01 1 1204-1208 ●
253 GUARD; MUD 8-98057-778-1 01 1 1209- ● ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1204-1208 ●
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1209- ● ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1204-1208 ●
265 RUBBER; FLAP,REAR 8-98106-956-0 01 1 1209- ● ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1204-1208 ●
680 GUARD; MUD,UPPER 8-98060-251-0 01 1 1209- ● ●
çizim 194248
167 122 160 163 162 162 163 122
BalonParca AdiParca NoAdetTipApplied Date A B
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 1204-1208 ●
122 BOLT
(A) M10X40 FLANGE THA 		0-28051-040-0 02 1 1209- ● ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 1204-1208 ●
122 BOLT
(B) M8X30 FLANGE THA 		0-28650-830-0 03 1 1209- ● ●
160 COVER ASM; EXH 8-98090-111-1 01 1 1204-1208 ●
160 COVER ASM; EXH 8-98090-111-1 01 1 1209- ● ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 1204-1208 ●
162 BRACKET
(E) THA 		8-98059-845-1 01 1 1209- ● ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1204-1208 ●
162 BRACKET
(A) 		8-98055-601-0 01 1 1209- ● ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1204-1208 ●
162 BRACKET
(B) 		8-98055-608-0 01 1 1209- ● ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1204-1208 ●
162 BRACKET
(C) 		8-98055-609-2 01 1 1209- ● ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1204-1208 ●
162 BRACKET
(D) 		8-98092-305-0 01 1 1209- ● ●
163 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1204-1208 ●
163 BOLT; BRKT
M8X20 FLANGE THA 		0-28650-820-0 04 1 1209- ● ●
167 BOLT; EXH COVER
M8X20 FLANGE THA 		0-28650-820-0 01 1 1204-1208 ●
167 BOLT; EXH COVER
M8X20 FLANGE THA 		0-28650-820-0 01 1 1209- ● ●

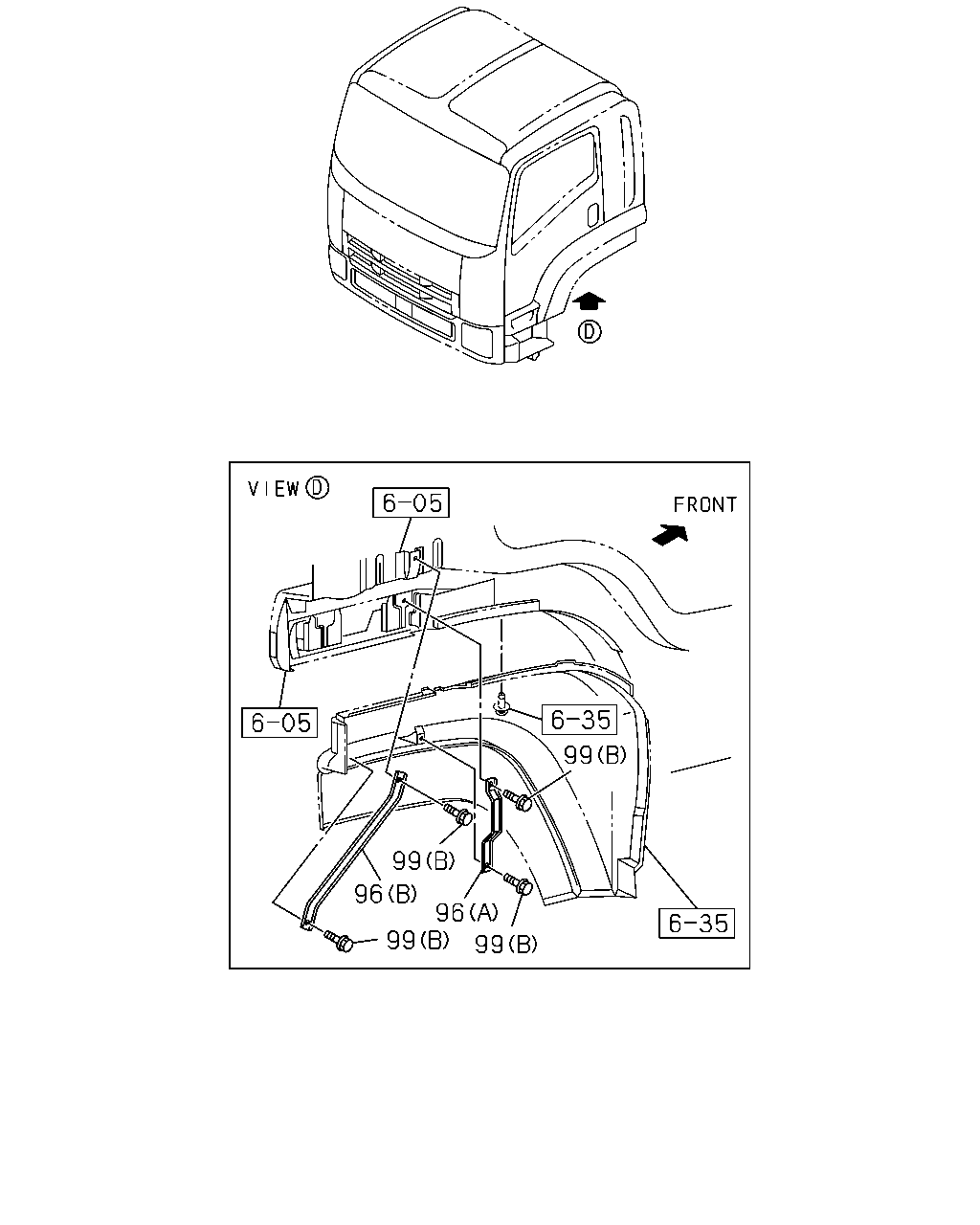

çizim 194251
99 96 96 99 99 99
BalonParca AdiParca NoAdetTipApplied Date A B
96 STAY; MUD GUARD
(B) THA 		8-98082-316-0 02 1 1204-1208 ●
96 STAY; MUD GUARD
(B) THA 		8-98082-316-0 02 1 1209- ● ●
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 1204-1208 ●
96 STAY; MUD GUARD
(A) 		8-98057-075-0 02 1 1209- ● ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA 		0-28650-616-0 08 1 1204-1208 ●
99 BOLT; STAY TO MUD GUARD
(B) M6X16 FLANGE THA 		0-28650-616-0 08 1 1209- ● ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 1204-1208 ●
99 BOLT; STAY TO MUD GUARD
(A) M8X25 FLANGE THA 		0-28050-825-0 01 1 1209- ● ●
