◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#73158) — 22 parça

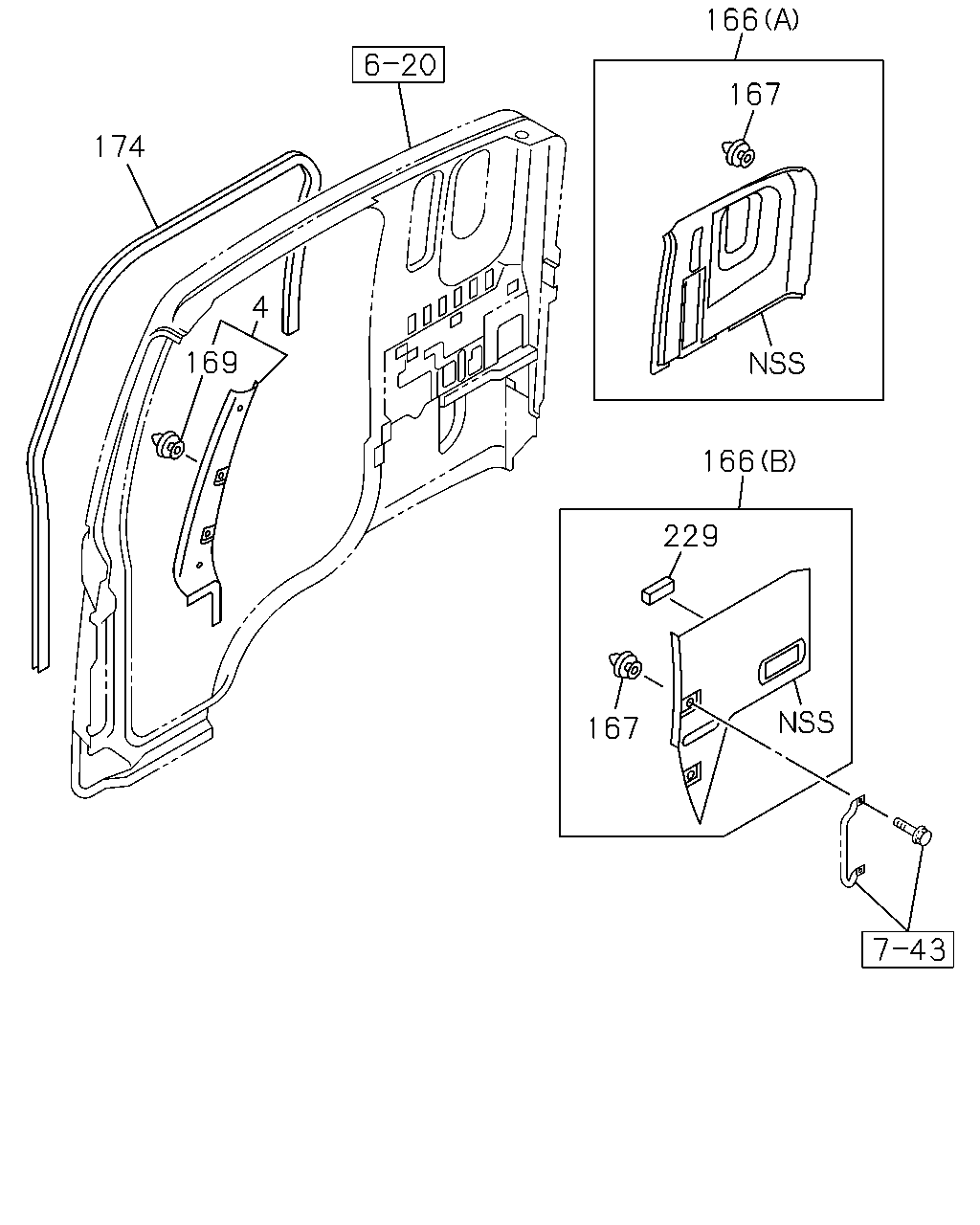

çizim 130619
174 166 167 166 229 167 4 169
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1204-1208 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1209- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1204-1208 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1209- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1204-1208 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1209- ● ●
166 TRIM; RR PILLAR
(B) THA 		8-97923-896-0 01 1 1204-1208 ●
166 TRIM; RR PILLAR
(B) THA 		8-97923-896-0 01 1 1209- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1204-1208 ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1209- ● ●
166 TRIM; RR PILLAR
(B) THA 		8-97923-895-0 01 1 1204-1208 ●
166 TRIM; RR PILLAR
(B) THA 		8-97923-895-0 01 1 1209- ● ●
167 CLIP; TRIM,RR PILLAR
THA 		8-98059-610-0 16 1 1204-1208 ●
167 CLIP; TRIM,RR PILLAR
THA 		8-98059-610-0 16 1 1209- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1204-1208 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 1209- ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1204-1208 ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1209- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1204-1208 ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1209- ● ●
229 SEAL 8-98080-972-0 04 1 1204-1208 ●
229 SEAL 8-98080-972-0 04 1 1209- ● ●
