◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#73157) — 48 parça

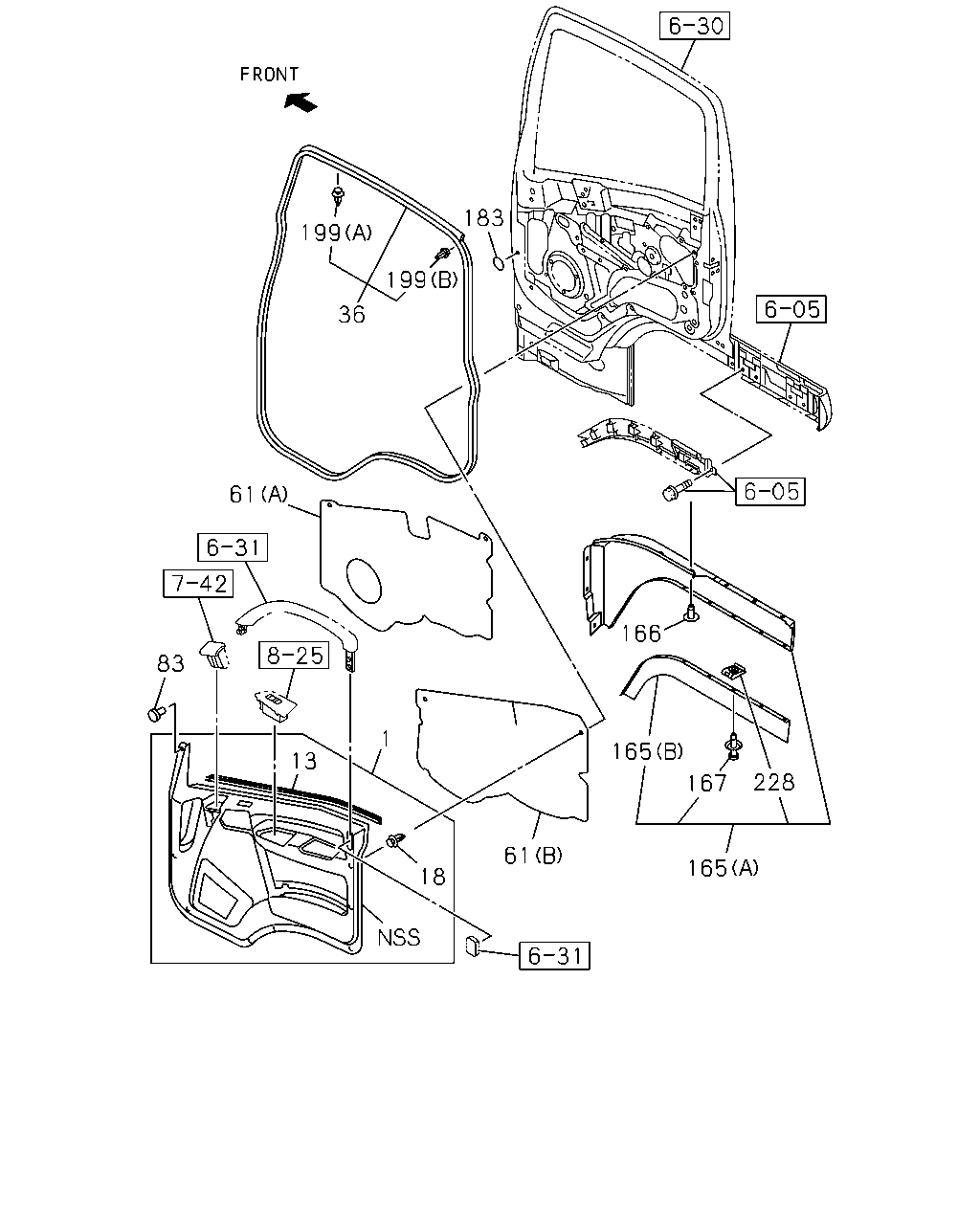

çizim 131109
165 167 165 61 166 18 13 83 1 61 36 199 199 183 228
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
THA 		8-97923-889-1 01 1 1209- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-890-1 01 1 1209- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-901-1 01 1 1207- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-902-1 01 1 1207- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-889-1 01 1 1209- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-890-1 01 1 1209- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-901-1 01 1 1204- ●
1 PAD; TRIM,FRT DOOR
THA 		8-97923-902-1 01 1 1204- ●
13 SEAL; DOOR TRIM
THA 		8-97923-891-0 01 1 1204-1206 ●
13 SEAL; DOOR TRIM
THA 		8-97923-891-0 01 1 1207-1208 ●
13 SEAL; DOOR TRIM
THA 		8-97923-891-0 01 1 1209- ● ●
13 SEAL; DOOR TRIM
THA 		8-97923-892-0 01 1 1204-1206 ●
13 SEAL; DOOR TRIM
THA 		8-97923-892-0 01 1 1207-1208 ●
13 SEAL; DOOR TRIM
THA 		8-97923-892-0 01 1 1209- ● ●
18 CLIP; DOOR PAD
THA 		8-98004-025-0 14 1 1204-1208 ●
18 CLIP; DOOR PAD
THA 		8-98004-025-0 14 1 1209- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1204-1208 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98029-199-3 01 1 1209- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1204-1208 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-98077-429-0 01 1 1209- ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98029-395-2 01 1 1204-1208 ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98029-395-2 01 1 1209- ● ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98029-394-2 01 1 1204-1208 ●
61 SEAL; WATER,DOOR PAD
SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A) 		8-98029-394-2 01 1 1209- ● ●
61 SEAL; WATER,DOOR PAD
EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (B) 		8-98029-396-0 02 1 1204-1208 ●
61 SEAL; WATER,DOOR PAD
EXC. SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (B) 		8-98029-396-0 02 1 1209- ● ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1204-1208 ●
83 CLIP; DOOR TRIM
GRAY 		8-97405-308-0 02 1 1209- ● ●
165 LINER; DOOR LWR
(A) 		8-97617-149-2 01 1 1204-1208 ●
165 LINER; DOOR LWR
(A) 		8-97617-149-2 01 1 1209- ● ●
165 LINER; DOOR LWR
(B) 		8-98057-720-1 01 1 1204-1208 ●
165 LINER; DOOR LWR
(B) 		8-98057-720-1 01 1 1209- ● ●
165 LINER; DOOR LWR
(A) 		8-97617-148-2 01 1 1204-1208 ●
165 LINER; DOOR LWR
(A) 		8-97617-148-2 01 1 1209- ● ●
165 LINER; DOOR LWR
(B) 		8-98057-719-1 01 1 1204-1208 ●
165 LINER; DOOR LWR
(B) 		8-98057-719-1 01 1 1209- ● ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 1204-1208 ●
166 PLUG; HOLE
D8X13.5 		1-09987-248-1 09 1 1209- ● ●
167 CLIP; LINER
D8X13.5 		1-09987-248-1 17 1 1204-1208 ●
167 CLIP; LINER
D8X13.5 		1-09987-248-1 17 1 1209- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK THA 		1-76798-019-0 02 1 1204-1208 ●
183 SEAL; LOCATION HOLE
OD=25 BLACK THA 		1-76798-019-0 02 1 1209- ● ●
199 CLIP; SEAL
(A) NATURAL THA 		8-98062-270-0 80 1 1204-1208 ●
199 CLIP; SEAL
(A) NATURAL THA 		8-98062-270-0 80 1 1209- ● ●
199 CLIP; SEAL
(B) RED THA 		8-98062-271-0 02 1 1204-1208 ●
199 CLIP; SEAL
(B) RED THA 		8-98062-271-0 02 1 1209- ● ●
228 NUT; SPIRE 8-94334-769-0 04 1 1204-1208 ●
228 NUT; SPIRE 8-94334-769-0 04 1 1209- ● ●
