◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ GXZ ▶ 11462 - GXZ CNG(THAI)EURO3 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#73155) — 102 parça

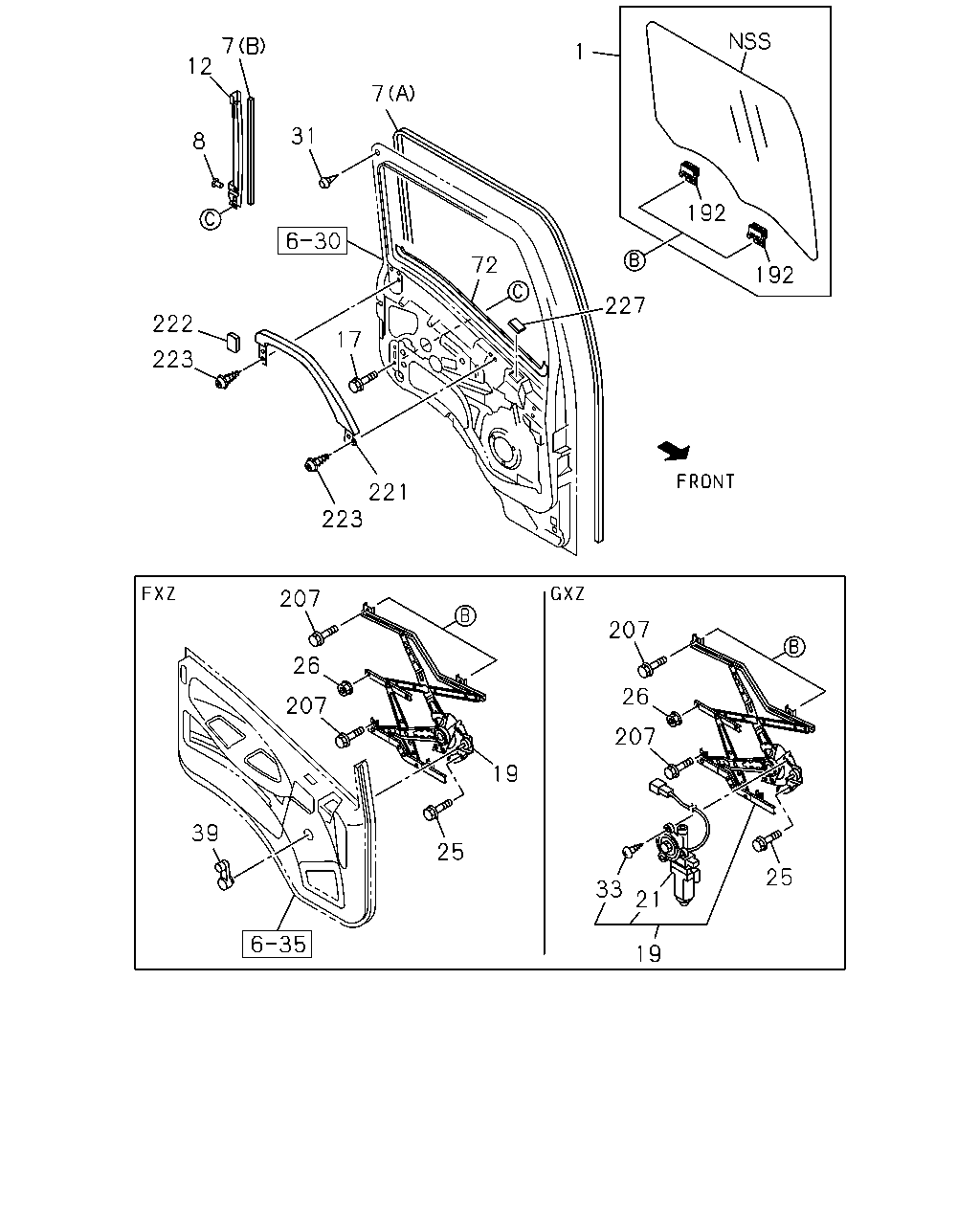

çizim 130990
12 7 31 8 7 222 223 17 72 227 221 223 192 192 1 207 26 207 19 25 39 207 26 207 33 21 19 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
THA 		8-97923-681-3 01 1 1204-1208 ●
1 GLASS; FRT DOOR
THA 		8-97923-681-3 01 1 1209- ● ●
1 GLASS; FRT DOOR
THA 		8-97923-680-3 01 1 1204-1208 ●
1 GLASS; FRT DOOR
THA 		8-97923-680-3 01 1 1209- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1204-1208 ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1209- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1204-1208 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1209- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1204-1208 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1209- ● ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1204-1208 ●
8 CLIP; GLASS GUIDE 8-98048-796-0 02 1 1209- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1204-1208 ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1209- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1204-1208 ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1209- ● ●
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 1204-1208 ●
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 1209- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-233-3 01 1 1209- ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-234-3 01 1 1209- ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-237-3 01 1 1204- ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-236-3 01 1 1204- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 1204- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 1204- ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 1204-1208 ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 1209- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 1204-1208 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 1209- ● ●
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 1207-1208 ●
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 1209- ● ●
33 SCREW; REG MOTOR 8-98058-431-0 06 1 1204- ●
39 HANDLE; WINDOW REG,FRT DOOR
GRAY 		8-97405-313-3 02 1 1209- ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1204-1208 ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1209- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1204-1208 ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1209- ● ●
192 HOLDER; DOOR GLASS
THA 		8-97288-022-0 04 1 1204-1208 ●
192 HOLDER; DOOR GLASS
THA 		8-97288-022-0 04 1 1209- ● ●
207 SCREW; DOOR GLASS
M6X10 FLANGE THA 		0-28050-610-0 04 1 1204-1208 ●
207 SCREW; DOOR GLASS
M6X10 FLANGE THA 		0-28050-610-0 04 1 1209- ● ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-103-0 01 1 1204-1208 ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-103-0 01 1 1209- ● ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-104-0 01 1 1204-1208 ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-104-0 01 1 1209- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1204-1208 ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1209- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1204-1208 ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1209- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1204-1208 ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1209-1212 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ●
227 RUBBER; SHUTTER
GRAY 		8-97405-321-0 01 1 1204-1208 ●
227 RUBBER; SHUTTER
GRAY 		8-97405-321-0 01 1 1209- ● ●

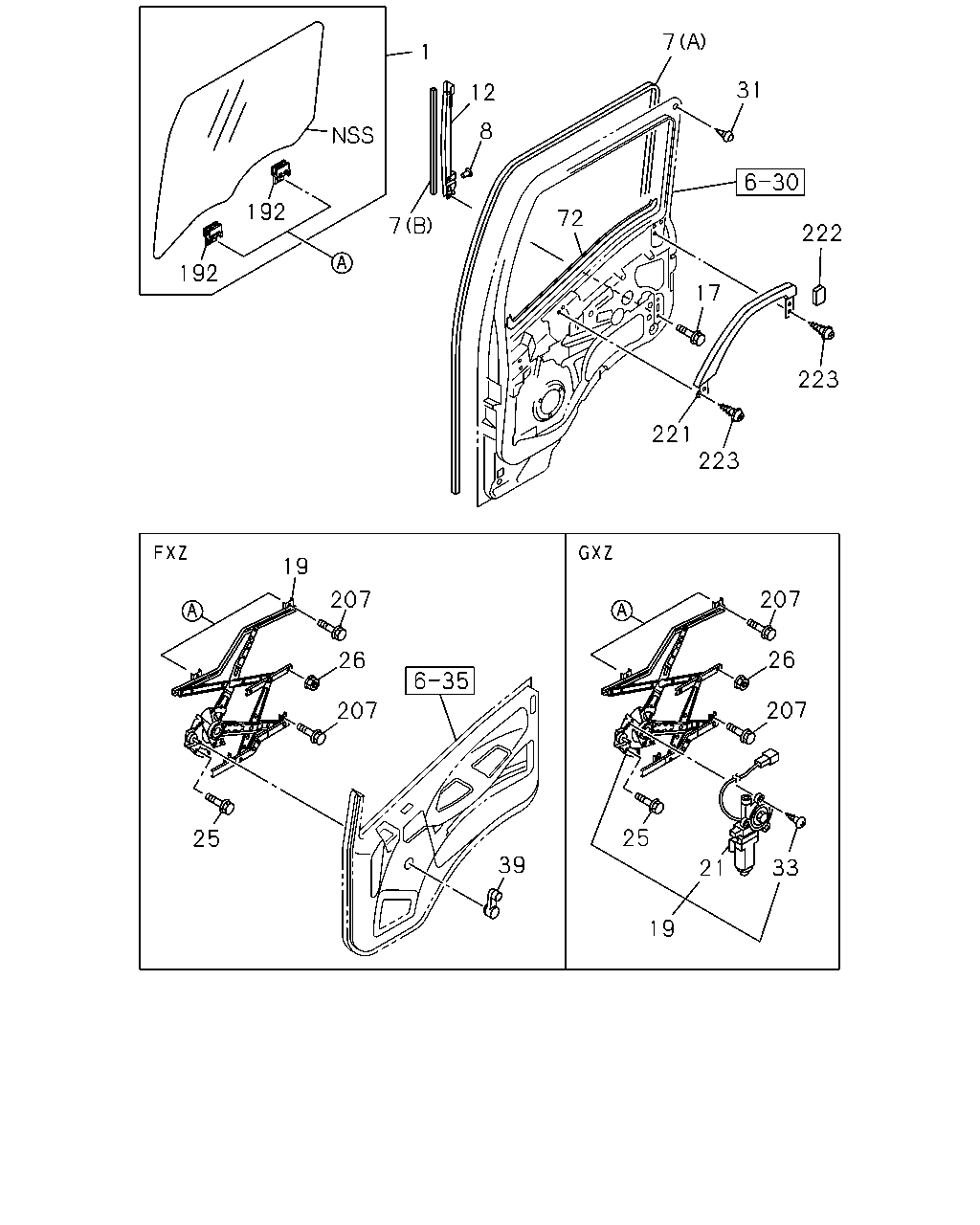

çizim 131054
1 12 7 192 192 72 7 31 222 223 221 223 19 207 26 207 25 17 39 207 26 207 25 19 21 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 GLASS; FRT DOOR
THA 		8-97923-681-3 01 1 1204-1208 ●
1 GLASS; FRT DOOR
THA 		8-97923-681-3 01 1 1209- ● ●
1 GLASS; FRT DOOR
THA 		8-97923-680-3 01 1 1204-1208 ●
1 GLASS; FRT DOOR
THA 		8-97923-680-3 01 1 1209- ● ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1204-1208 ●
7 GLASS RUN; FRT DOOR
(B) 		8-98031-742-2 02 1 1209- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1204-1208 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-196-3 01 1 1209- ● ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1204-1208 ●
7 GLASS RUN; FRT DOOR
(A) 		8-98029-195-3 01 1 1209- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1204-1208 ●
12 CHANNEL; GLASS RUN,FRT 8-98188-419-0 01 1 1209- ● ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1204-1208 ●
12 CHANNEL; GLASS RUN,FRT 8-98188-418-0 01 1 1209- ● ●
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 1204-1208 ●
17 SCREW; RR CHANNEL
M6X10 FLANGE THA 		0-28050-610-0 04 1 1209- ● ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-233-3 01 1 1209- ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-234-3 01 1 1209- ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-237-3 01 1 1204- ●
19 REGULATOR; WINDOW,FRT DOOR 8-98029-236-3 01 1 1204- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-430-0 01 1 1204- ●
21 MOTOR; POWER WINDOW REG,FRT DOOR 8-98058-429-0 01 1 1204- ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 1204-1208 ●
25 BOLT; WINDOW REG
M6X10 FLANGE THA 		0-28050-610-0 08 1 1209- ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 1204-1208 ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE THA 		0-91180-106-0 04 1 1209- ● ●
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 1207-1208 ●
31 STOPPER; RUBBER,DOOR INNER
THA 		8-94358-581-0 04 1 1209- ● ●
33 SCREW; REG MOTOR 8-98058-431-0 06 1 1204- ●
39 HANDLE; WINDOW REG,FRT DOOR
GRAY 		8-97405-313-3 02 1 1209- ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1204-1208 ●
72 SEAL; WAIST,FRT DOOR 8-98029-193-1 01 1 1209- ● ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1204-1208 ●
72 SEAL; WAIST,FRT DOOR 8-98029-192-1 01 1 1209- ● ●
192 HOLDER; DOOR GLASS
THA 		8-97288-022-0 04 1 1204-1208 ●
192 HOLDER; DOOR GLASS
THA 		8-97288-022-0 04 1 1209- ● ●
207 SCREW; DOOR GLASS
M6X10 FLANGE THA 		0-28050-610-0 04 1 1204-1208 ●
207 SCREW; DOOR GLASS
M6X10 FLANGE THA 		0-28050-610-0 04 1 1209- ● ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-103-0 01 1 1204-1208 ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-103-0 01 1 1209- ● ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-104-0 01 1 1204-1208 ●
221 BAR ASM; DOOR GLASS GUARD
THA 		8-97925-104-0 01 1 1209- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1204-1208 ●
222 CAP; GUARD BAR
GRAY 		8-97405-319-0 01 1 1209- ● ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1204-1208 ●
222 CAP; GUARD BAR
GRAY 		8-97405-318-0 01 1 1209- ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1204-1208 ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		8-98177-721-0 08 1 1209-1212 ● ●
223 SCREW; GUARD BAR
T25 M6X25 HEXALOBULAR SOCKET 		0-38050-625-0 08 1 1301- ● ●
